Dymax HPX Tree Shears for Hydraulic Excavators:

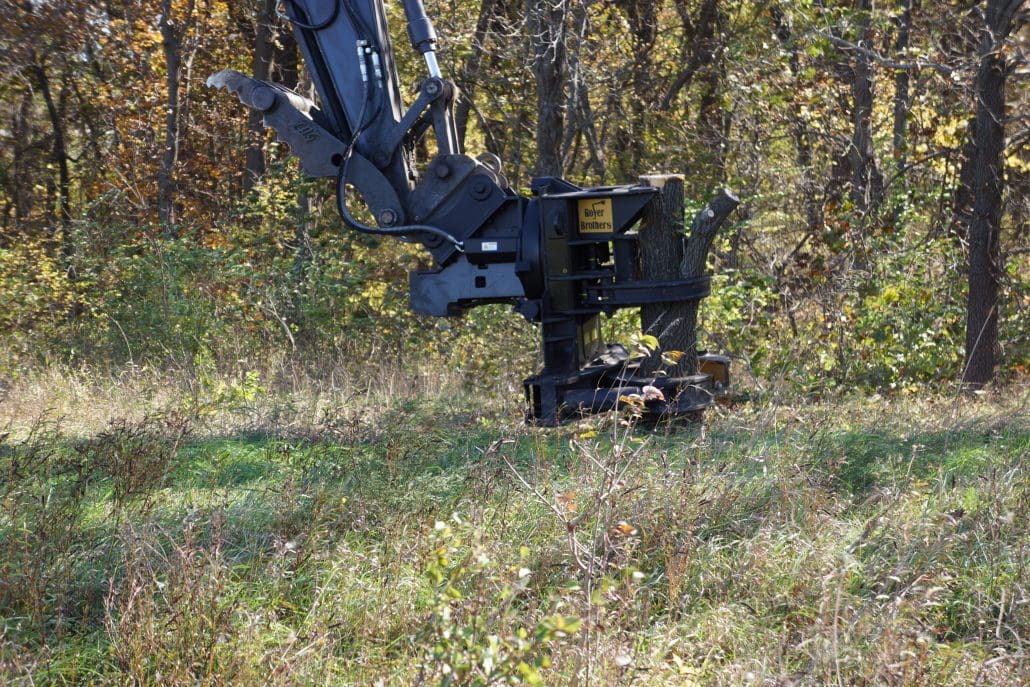

A Dymax HPX Hi Performance Excavator Tree Shear is the perfect tool for forest utility work, hazardous fuel removal such as dead undergrowth or diseased trees from forest lands, plantation thinning of acacia and eucalyptus, biomass fuels production and trimming limbs and trees for roadside maintenance and site development or alongside railroad tracks.  In plantation thinning operations of Acacia and Eucalyptus a Dymax Excavator Tree Shear can average between 100 to 180 trees per hour cutting rates and produce more volume of wood than competing models. Cutting rates are subject to tree spacing and operator skill.

The Dymax HPX Tree Shear features replaceable high strength, abrasion-resistant steel cutting knives. The dual shear arm design delivers strong performance in tough applications such as hardwood shearing compared to single shear arm models that are prone to twisting and bending.

Available in 8, 10, 14, 16, 18 and 21 inch diameter cutting capacity.

All Dymax HPX Tree Shear features dual grapple arms that secure the tree prior to shearing.  An optional 60 or 180 degree hydraulic rotator provides efficient positioning for side trimming along roadways and improves operators ability to load chippers in congested worksites.

Available in 8, 10, 14, 16, 18 and 21 inch diameter cutting capacity.

180° Rotate TREE Shear

Dymax HPX Tree Shears for Hydraulic Excavators:

Machine Operating Capacity Weight (lbs/kg)
Excavator Model No. Description No Rotator With Rotator 60 Degree Cylinder With Rotator 180 Degree
5T/8T DX-TS-FG-HPX8 Tree Shear – Forestry Grapple – Hi Performance 8 inch cutting capacity 700 lbs/ 320 kg NA NA
8T/11T DX-TS-FG-HPX10 Tree Shear – Forestry Grapple – 10 inch diameter cutting capacity 1,300 lbs / 590 kg NA NA
12T/20T DX-TS-FG-HPX14 Tree Shear – Forestry Grapple – 14 inch diameter cutting capacity 2,700 lbs / 1,224 kg 3,350 lbs/ 1,519 kg 3,450 lbs / 1,564 kg
15T/25T DX-TS-FG-HPX16 Tree Shear – Forestry Grapple – 16 inch diameter cutting capacity 2,900 lbs / 1,315 kg 3,550 lbs/ 1,610 kg 3,650 lbs/ 1,655 kg
20T/25T DX-TS-FG-HPX18 Tree Shear – Forestry Grapple – 18 inch diameter cutting capacity 4,500 lbs/2,040 kg 5,100 lbs /2,313 kg 5,300 lbs /2,404 kg
25T/36T DX-TS-FG-HPX21 Tree Shear – Forestry Grapple – 21 inch diameter cutting capacity 6,000 lbs  /2,721 kg 6,500 lbs/ 2,948 kg 6,750 lbs/3,060 kg

*Please note that hydraulic thumbs and pin grab couplers do restrict capacity of the excavator when being used with a Dymax Tree Shear.

*Average Tree Cutting Rates – subject to operator skill and machine arrangement.  80-120 trees per hour

Specifications are subject to change without notice.

Model No. Shear/Grapple
(All Models)		 Rotator Circuit
(DX-TS-FGT Models)		 Alternate Setup for Rotator
(DX-TS-FGT Models)
DX-TS-FG-HPX8
 2-way flow

13-20 GPM @ 3,000 psi maximum

 N/A N/A
DX-TS-FG-HPX10

DX-TS-FG-HPX14
DX-TS-FG-HPX14x60
DX-TS-FG-HPX14X180
DX-TS-FG-HPX16
DX-TS-FG-HPX16X60
DX-TS-FG-HPX16X180

 2-way flow
20-30 GPM @ 4,000 psi maximum		 2 way flow
8-10 GPM @ 3,000 psi maximum		 Electro-hyd diverter valve setup  Requires 2 wire service cable routed from switch/fuse in cab out to attachment lines on stick.  Wire not included. Provided with connector plug
DX-TS-FG-HPX18
DX-TS-FG-HPX18x60
DX-TS-FG-HPX18x180		 2-way flow
30-40 GPM @ 4,000 psi maximum		 2 way flow
8-10 GPM @ 3,000 psi maximum		 Electro-hyd diverter valve setup  Requires 2 wire service cable routed from switch/fuse in cab out to attachment lines on stick.  Wire not included. Provided with connector plug
DX-TS-FG-HPX21
DX-TS-FG-HPX21x60
DX-TS-FG-HPX21x180

Specifications are subject to change without notice.

  • Bolt on, replaceable AR400 cutting knives yield up to 1,000 hours of performance and are easily sharpened when worn.  All cutting knives are adjustable.
  • Heavy duty cylinder rams with guarded lines.  All shear knife cylinder rams are rated 4,000 psi.
  • Two fabricated steel grapple arms secure trees to control felling and are powered by dual cylinders (one per arm).
  • Heavy duty blade carrier shear arms feature oversized chrome plated pivot pins with replaceable bushings.
  • Bolt on guards protect hose lines and all hoses are wrapped with protective covering.
  • Optional 24v electro-hydraulic diverter valve can be provided upon request for powering the rotator circuit.
  • Optional 180 degree hydraulic rotator.
  • Optional 60 degree hydraulic cylinder rotator.
  • Optional bunching models available upon request subject to machine size.
