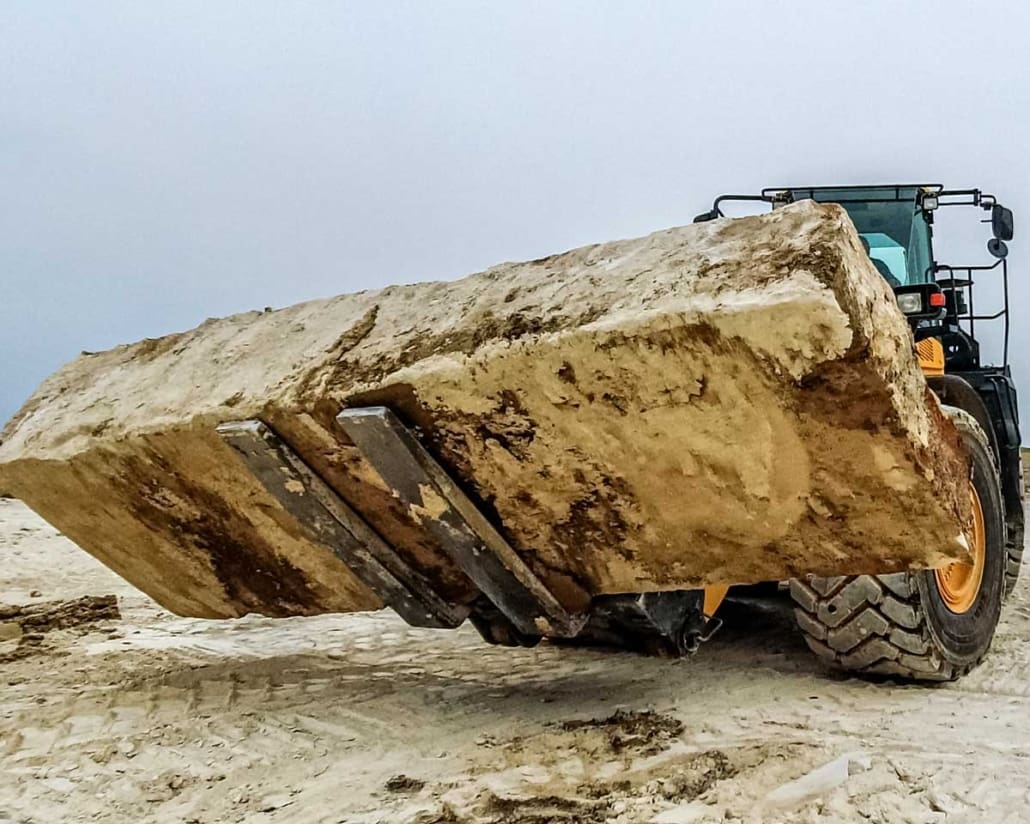

Wheel loader carrying a stone slab using Dymax block handling forks in a quarry

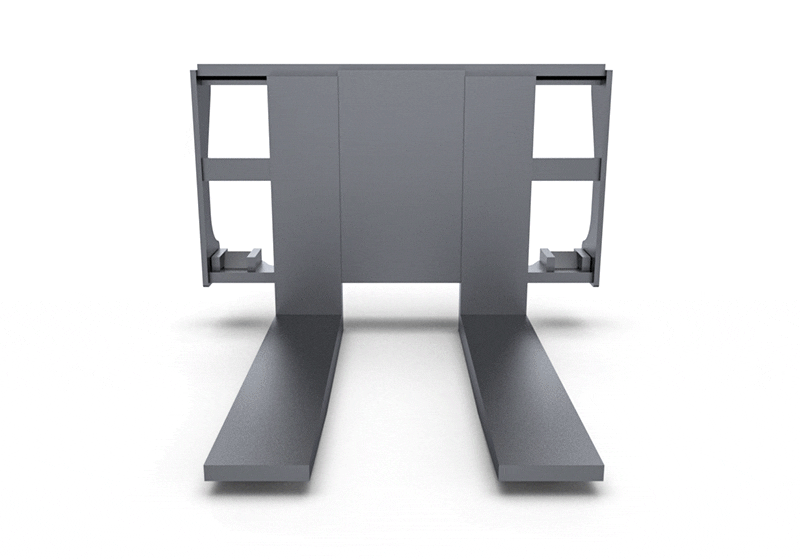

Dymax block handling loader forks with heavy-duty carriage and tines

Block Handling Loader Forks

Whether you’re prying at the wall face or moving stone slabs, Dymax Block Handling Forks help increase productivity. Forged, heat-treated tines provide substantially greater strength and durability than conventionally manufactured tines.

Built for years of productive use, these forks are backed by the best service in the industry. They’re ideally suited for handling blocks of stone in quarry and mining applications.

For maximum performance, pair your fork with a Dymax Block Handling Coupler. The wedgelock design provides positive lock and minimal breakout force loss, maximizing operators’ ability to handle large block stones and quarry slabs.

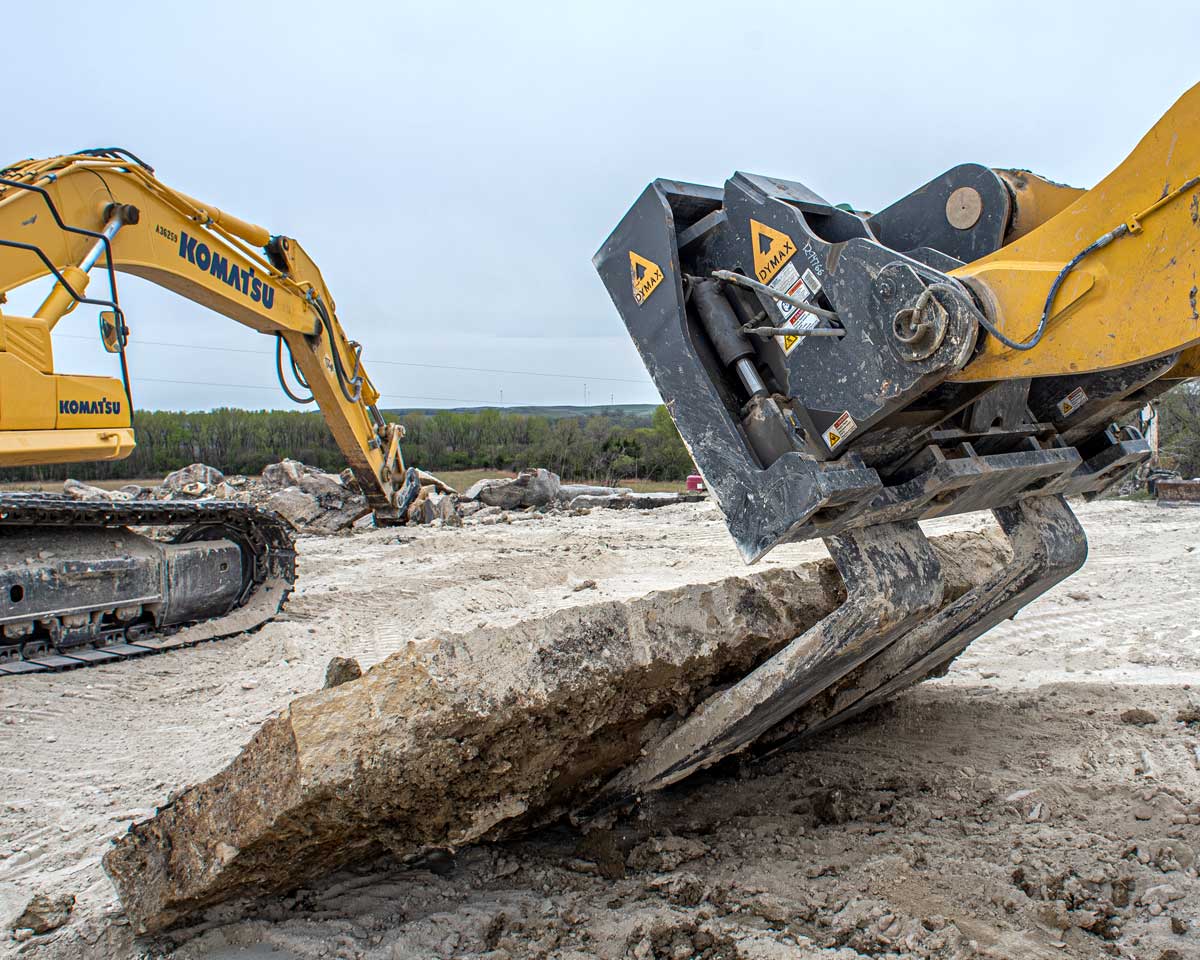

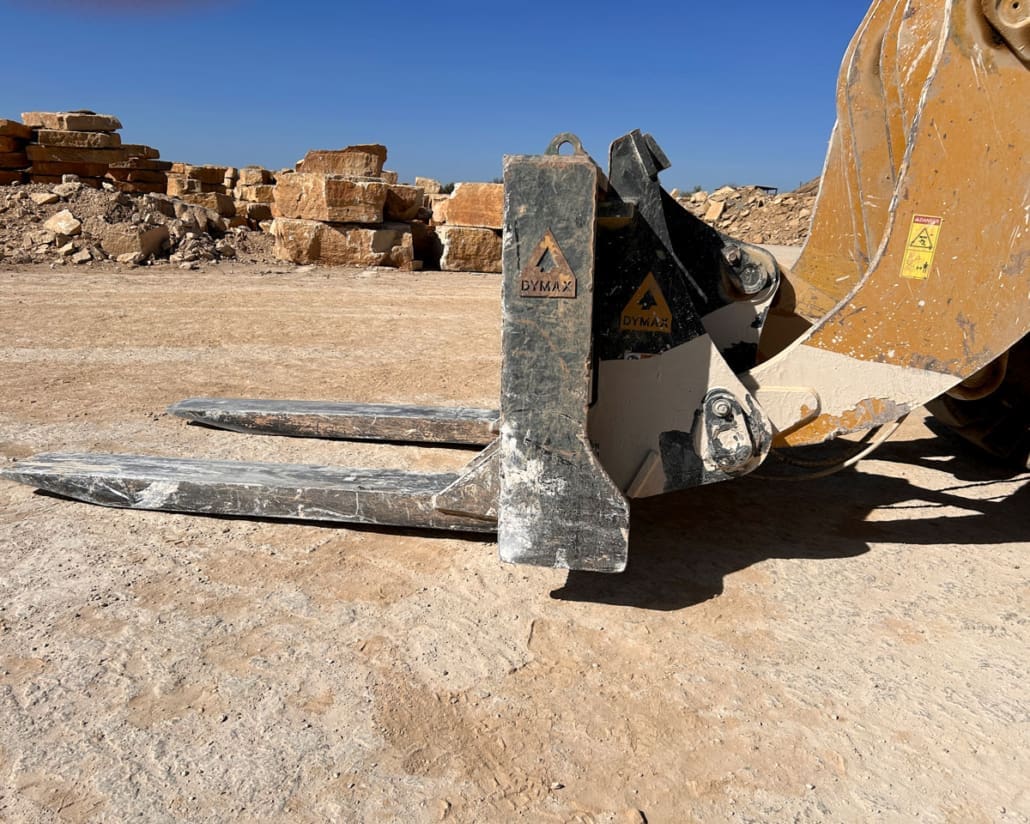

Block handling forks positioning a large stone slab during quarry handling

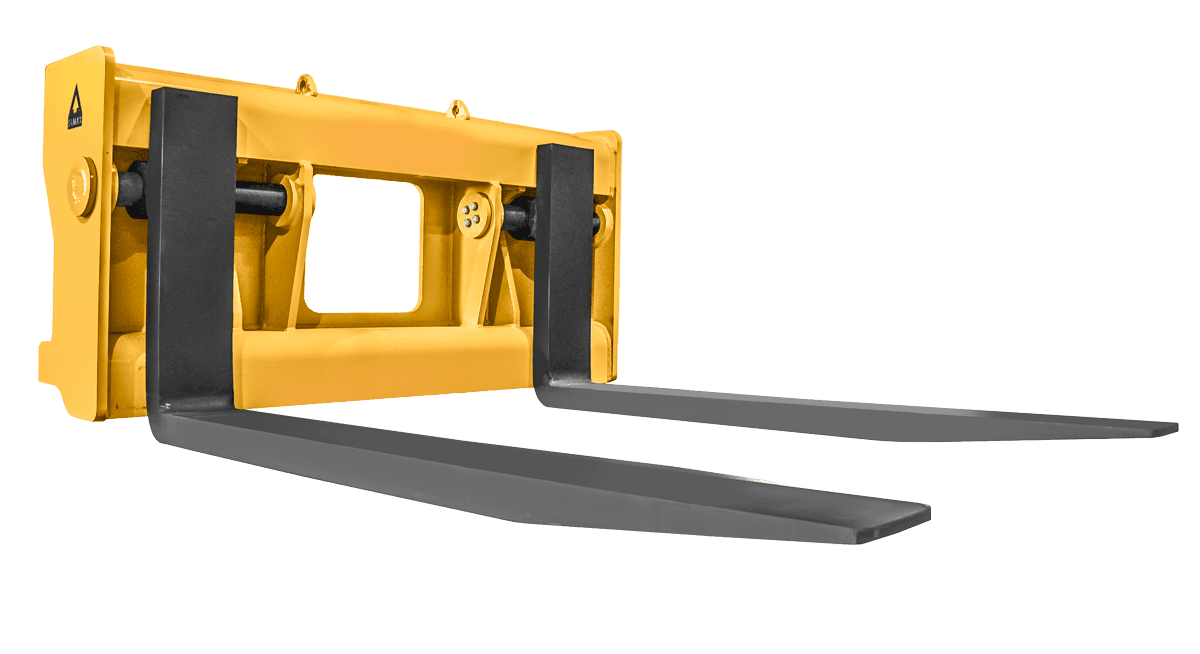

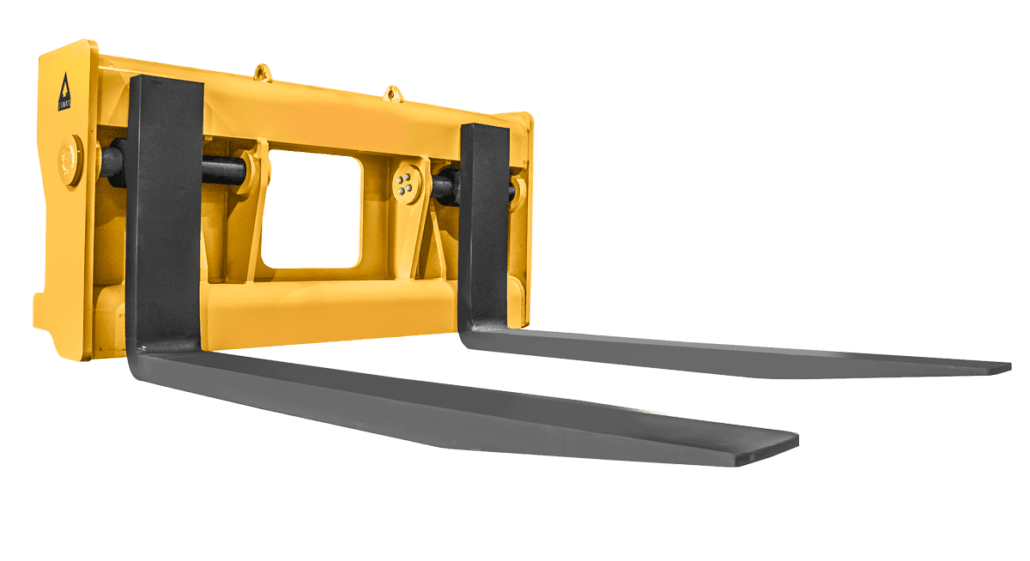

Dymax block handling forks with shaft-mounted tines

SHAFT-MOUNTED TINES

FEATURES AND BENEFITS

  • Forged, heat-treated tines for higher strength and longer wear life in stone handling applications.
  • Choose your tine style: replaceable shaft-mounted tines (standard) or weld-on tines (optional) to match your maintenance preference and job demands.
  • Built to fit the machine and the material: a wide range of custom carriage widths, tine sizes, and capacities for wheel loader applications.

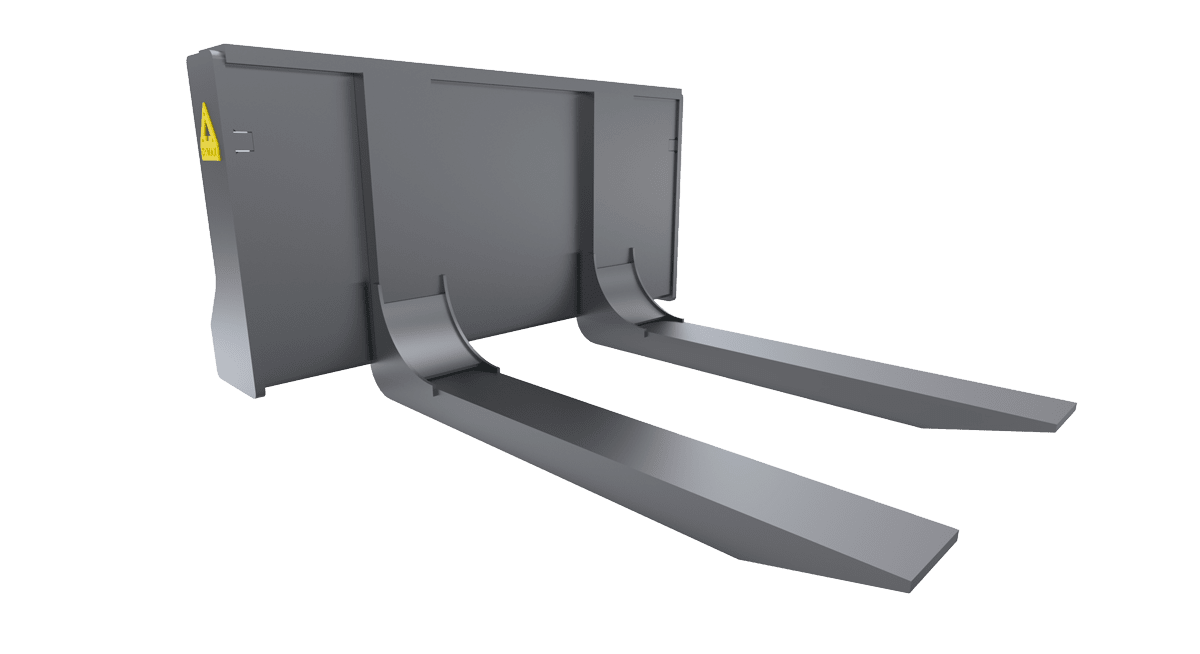

Dymax block handling forks with welded fixed tines

WELDED FIXED TINES

SPECIFICATIONS

Model Code
Description
Weight (lbs)
DX-FK-BHS-60inx50in-WL-80

Fork-Block Handling Shaft-60 inch tine length x 50 inch carriage width-Wheel Loader-Class 80

STANDARD FEATURES:

– Replaceable shaft-mounted non-adjusting tines

– 60 inch tine

– Tine size: 3.75 thick x 8.0 inch wide

– Rated 54,000 lb capacity @ 24 in load centers per tine as a pair

– High-visibility design / low profile carriage

WEIGHT: 3000 lbs
DX-FK-BHS-60inx60in-WL-70

Fork-Block Handling Shaft-60 inch tine length x 60 inch carriage-Wheel Loader-Class 70

STANDARD FEATURES:

– Shaft mounted forged tines

– High-strength frame design

– 60 inch tines

– Tine size: 3.50 thick x 8.00 inch wide

– Capacity: 54,600 lbs @ 24in load center

WEIGHT: 2650 lbs
DX-FK-BHS-60inx70in-WL-100

Fork-Block Handling Shaft-60 inch tine length x 70in carriage width-Wheel Loader-Class 100

STANDARD FEATURES:

– HD beam frame group (max width 75 inches)

– Shaft mounted forged tines

– Carriage: 70 inches max

– Tine size: 4.00 thick  x 10.00 inch wide

– Capacity: 75,300 lbs @ 24in load center

– Tines are manual adjusting

WEIGHT: 7500 lbs
DX-FK-BHS-72inx37in-WL-70

Fork-Block Handling Shaft-72 inch tine length x 37 inch wide carriage-Wheel Loader-Class 70

STANDARD FEATURES:

– Shaft mounted replaceable forged tines

– 72 inch tine length with specialized taper

– Tine size: 3.50 thick x 8.00 inch wide

– Capacity: 48,800 lbs @ 24in load centers

– Low profile carriage design with improved visibility and line of sight

– Tine spread is 37 inches outside to outside

WEIGHT: 2850 lbs
DX-FK-BHS-72inx84in-WL-90

Fork-Block Handling Shaft-72 inch tine length x 84 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Shaft mounted replaceable tines

– 4 inch vertical float with minimal side-to-side tine adjustability

– Tine size: 4.00 thick x 10.00 inch wide

– Capacity: 84,400 lbs @ 24in load centers

– 51.7 inch height

WEIGHT: 8210 lbs
DX-FK-BHS-84inx78in-WL-110

Fork-Block Handling Shaft-84 inch tine length x 78 inch carriage-Wheel Loader-Class 110

STANDARD FEATURES:

– Shaft mounted forged tines

– Minimum inside spacing on tines is 36 inches

– Max frame width of 78 inches outside to outside for fitting into dump trailers

– High-strength frame design / manufactured beam

– 84 inch tine length

– Tine size: 4.25 thick x 12.00 inch wide

– Capacity: 122,600 lbs @ 24in load center

WEIGHT: 9200 lbs
DX-FK-BHS-84inx84in-WL-90

Fork-Block Handling Shaft-84 inch tine length x 84 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Shaft mounted forged tines

– High-strength frame design

– 84 inch tines

– Tine size: 4.00 thick x 10.00 inch wide

– Capacity: 84,400 lbs @ 24in load center

WEIGHT: 8000 lbs
DX-FK-BHS-96inx79in-WL-120

Fork-Block Handling Shaft-96 inch tine length x 79 inch carriage width-Wheel Loader-Class 120

STANDARD FEATURES:

– Shaft mount non-swinging design

– Minimal adjustability left and right

– Features optimized line of sight for operator to see tine tips

– Tine size: 4.00 thick x 12.00 inch wide

– Capacity: 45,146 lbs @ 48in loader center

WEIGHT: 9430 lbs
DX-FK-BHS-96inx84in-WL-100

Fork-Block Handling Shaft-96 inch tine length x 84 inch carriage-Wheel Loader-Class 100

STANDARD FEATURES:

– Shaft mounted tines

– High-strength frame design

– 96 inch tine length

– Tine size: 4.50 thick x 10.00 inch wide

– Capacity (pair of tines): 111,000 lbs @ 24 inch load center, 55,000 lbs @ 48 inch load center

– 32 in tine spacing (inside)

WEIGHT: 6900 lbs

Specifications are subject to change without notice.

Model Code
Description
Weight (lbs)
DX-FK-BHW-60inx72in-WL-90

Fork-Block Handling Welded-60 inch tine length x 72 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Welded fixed tines

– High-strength frame design

– 60 inch tines

– Tine size: 4.00 thick x 12.00 inch wide

– Capacity: 101,400 lbs @ 24in load centers

– 21.56 in tine spacing (inside)

WEIGHT: 4650 lbs
DX-FK-BHW-60inx84in-WL-90

Fork-Block Handling Welded-60 inch tine length x 84 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Welded fixed tines

– High-strength frame design

– 60 inch tines

– Tine size: 4.00 thick x 10.00 width

– Capacity: 84,400 lbs @ 24in load centers

– 21.56 in tine spacing (inside)

WEIGHT: 4750 lbs
DX-FK-BHW-72inx82in-WL-100

Fork-Block Handling Welded-72 inch tine length x 82 inch carriage-Wheel Loader-Class 100

STANDARD FEATURES:

– Welded fixed tines

– Width over tines: 63.50″

– Inside spacing: approx. 32″

– High-strength frame design for block handler application with 4 wedge pockets

– 72 inch tines

– Tine size: 6.00 inch thick x 16.00 inch wide

– Capacity: 177,400 lbs @ 36 in load center

WEIGHT: 8250 lbs
DX-FK-BHW-72inx84in-WL-90

Fork-Block Handling Welded-72 inch tine length x 84 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Welded Fixed Tines

– High-strength frame design

– 72 inch tines

– Tine size: 4.00 thick x 10.00 inch wide

– Capacity: 84,400 lbs @ 24in load centers

– Tine spacing: 32 in (inside)

WEIGHT: 4800 lbs
DX-FK-BHW-72inx84in-WL-100

Fork-Block Handling Welded-72 inch tine length x 84 inch carriage-Wheel Loader-Class 100

STANDARD FEATURES:

– Welded fixed tines

– High-strength frame design

– 72 inch tines

– Tine size: 4.00 inch thick x 10.00 inch wide

– Capacity: 84,400 lbs @ 24in load center

– Tine spacing: 32 in (inside)

WEIGHT: 4850 lbs
DX-FK-BHW-96inx84in-WL-100

Fork-Block Handling Welded-96 inch tine length x 84 inch carriage-Wheel Loader-Class 100

STANDARD FEATURES:

– Welded fixed tines

– High-strength frame design

– 96 inch tine length

– Tine size: 4.50 x 10.00 inch

– Capacity (pair of tines): 111,000 lbs @ 24 inch load center; 55,000 lbs @ 48 inch load center

– Tine spacing: 32 in (inside)

WEIGHT: 6200 lbs
DX-FK-BHW-96inx88in-WL-120

Fork-Block Handling Welded Tine-96 inch tine length x 88 inch carriage width-Wheel Loader-Class 120

STANDARD FEATURES:

– Welded tines fixed to frame

– Minimal adjustability left and right

– Features optimized line of sight for operator to see tine tips

– Tine size: 4.00 thick x 16.00 inch wide

– Capacity: 68,560 lbs @ 48 inch loader center

Tines set

– Inside dimension: 28.50 inches

– Outside of tines: 60.50 inches

WEIGHT: 10,500 lbs

Specifications are subject to change without notice.

GALLERY

RELATED PRODUCTS

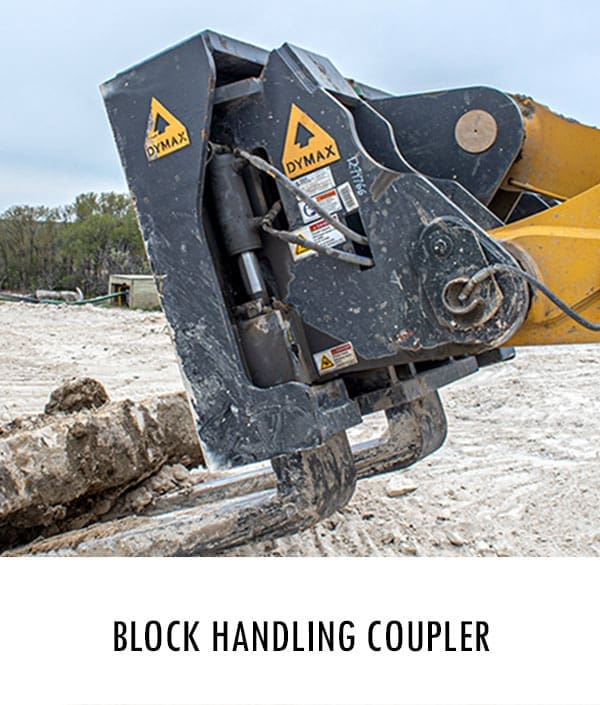

Dymax block handling coupler for wheel loader attachments

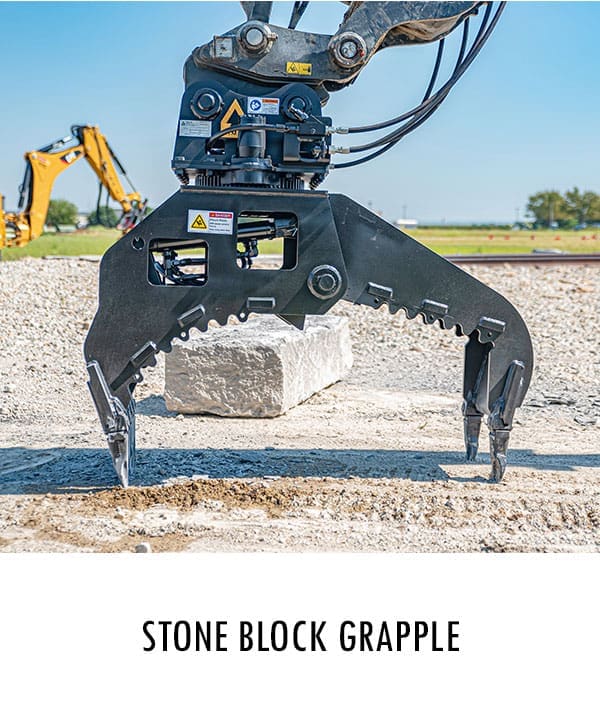

Stone block grapple attachment for handling large stone blocks

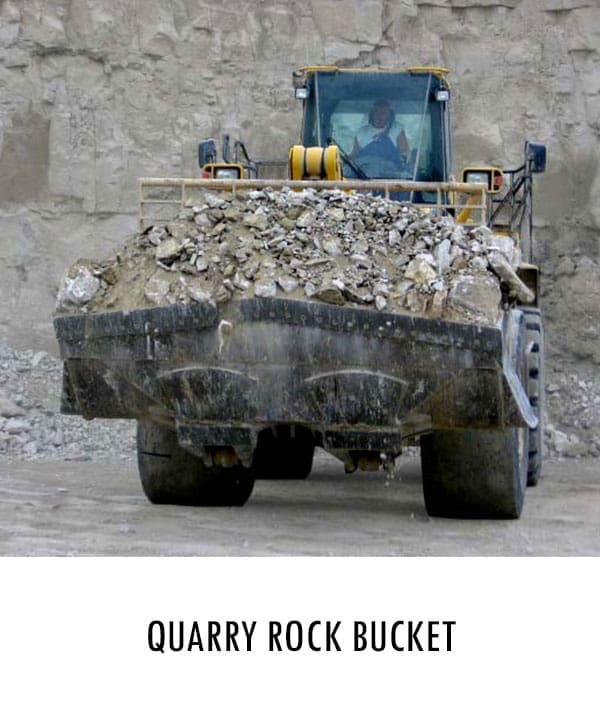

Quarry rock bucket for loading and moving rock in quarry applications

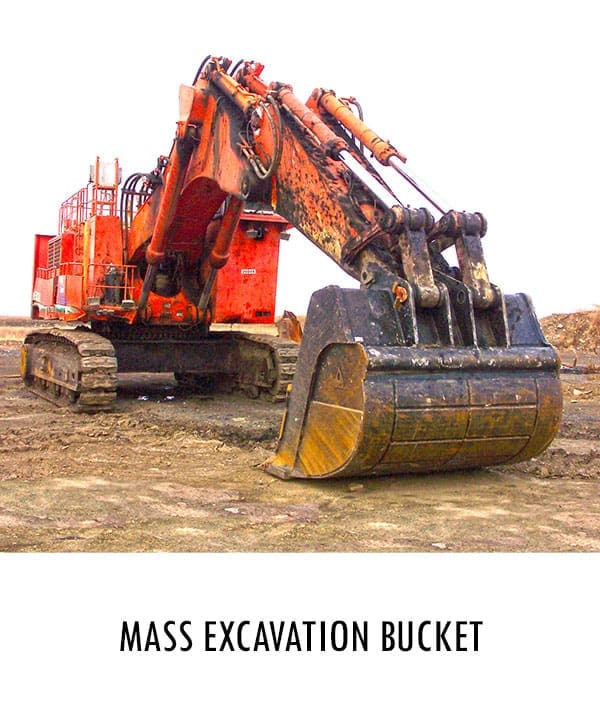

Mass excavation bucket attachment for high-volume material moving
