Hydraulic Adjustable Tine Pallet Forks

ADJUST FORK SPACING FROM THE CAB.

Dymax Hydraulic Adjustable Tine Pallet Forks are perfect for loading, moving and handling unusual sized pallets and materials. Two hydraulic cylinders easily adjust the tines, eliminating labor and lost time associated with manual adjustments.

Dymax Hydraulic Adjustable Tine Pallet Forks provide a measure of safety, eliminating the risk of pinched fingers and hands, as well as reducing the likelihood of strained backs that come from lifting and manually adjusting tines.

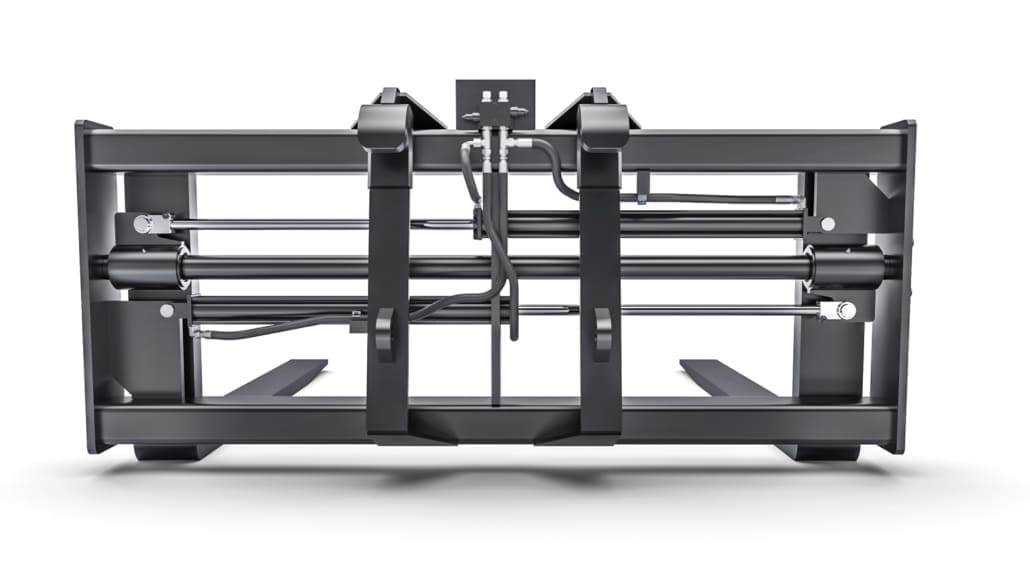

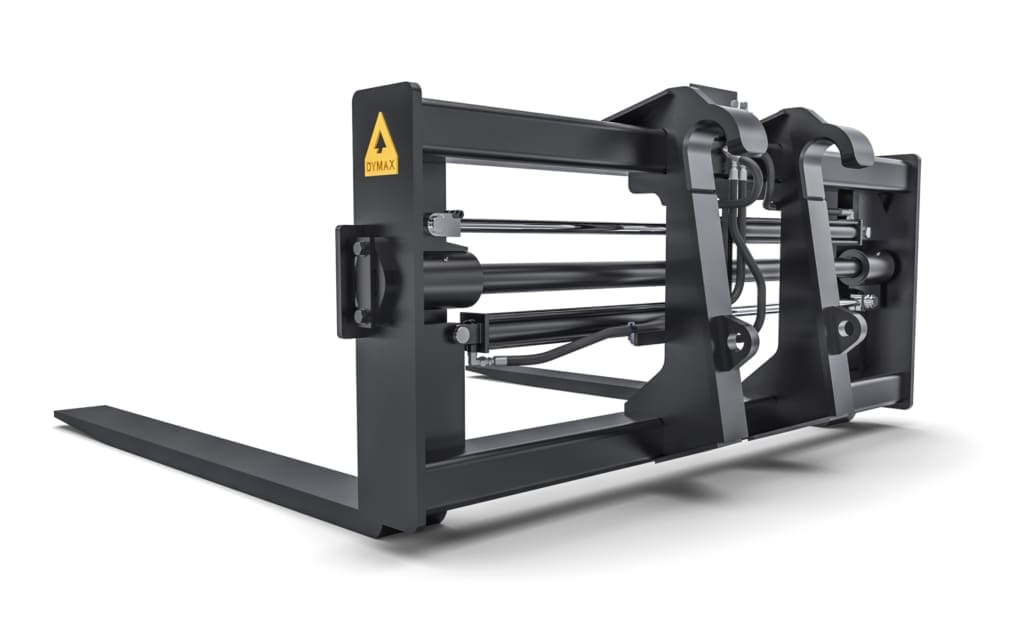

Hydraulic adjustable tine pallet forks for wheel loaders and telehandlers, showing the fork carriage and adjustable tines.

FEATURES & BENEFITS

  • Available to fit Wheel Loaders or Telehandlers.
  • Can be designed to pin direct or fit popular quick coupler systems.
  • Forks feature two hydraulic cylinders for tine adjustment, saving time and adding safety.
  • Machines require an additional hydraulic circuit for operation of the adjustable tines.
  • Tines are available in a variety of sizes and capacities. Most common are 48″, 60″, 72″, 84″ and 96″ tine lengths. A wide variation of carriage widths are also available, as well as optional tilt.
  • Contact Dymax Sales 1-800-530-5407 for more information or custom designs to meet your requirements.

SPECIFICATIONS

Model
Description
Weight (lbs)
DX-FK-PTHT-48inx60in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-48 inch tine length x 60 inch carriage-Wheel Loader-Class 60

– 48in tines, 2.50×7.00 in

– Capacity: 25,600 lbs @ 24in load centers

WEIGHT: 1600 lbs
DX-FK-PTHT-60inx48in-TH-08K

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 48 inches wide-Telehandler-Class 8,000lb

– 60in Tines, 2.00×6.00 in

– Capacity: 12,600 lbs @ 24in load centers

WEIGHT: 1700 lbs
DX-FK-PTHT-60inx60in-WL-40

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 60 inch carriage-Wheel Loader-Class 40

– 60in Tines, 2.00×6.00 in

– Capacity: 12,600 lbs @ 24in load centers
DX-FK-PTHT-60inx60in-WL-50

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 60 inch carriage-Wheel Loader-Class 50

60in Tines, 2.50×6.00 in

– Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 1650 lbs
DX-FK-PTHT-60inx60in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 60 inch carriage-Wheel Loader-Class 60

– 60in Tines, 2.50×7.00 in

– Capacity: 25,600 lbs @ 24in load centers

WEIGHT: 2250 lbs
DX-FK-PTHT-60inx72in-TL-50

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 72 inch carriage-Track Loader-Class 50

– 60in Tines, 2.50×6.00 in.

– Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2250 lbs
DX-FK-PTHT-60inx72in-WL-50

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 72 inch carriage-Wheel Loader-Class 50

– 60in Tines, 2.50×6.00 in.

– Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2250 lbs
DX-FK-PTHT-60inx72in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 72 inch carriage-Wheel Loader-Class 60

– 60in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2400 lbs
DX-FK-PTHT-60inx84in-TL-50

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 84 inch carriage-Track Loader-Class 50

– 60in Tines, 2.50×6.00 in.

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2460 lbs
DX-FK-PTHT-60inx84in-WL-50

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 84 inch carriage-Wheel Loader-Class 50

– 60in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2460 lbs
DX-FK-PTHT-60inx84in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 84 inch carriage-Wheel Loader-Class 60

– 60in Tines, 2.50×7.00 in

Capacity: 25,600 lbs @ 24in load centers

WEIGHT: 2550 lbs
DX-FK-PTHT-60inx84in-WL-70

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 84 inch carriage-Wheel Loader-Class 70

– 60in Tines, 3.00×7.00 in

Capacity: 34,200 lbs @ 24in load centers

WEIGHT: 2932 lbs
DX-FK-PTHT-60inx96in-WL-50

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 96 inch carriage-Wheel Loader-Class 50

– 60in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2300 lbs
DX-FK-PTHT-60inx96in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-60 inch tine length x 96 inch carriage-Wheel Loader-Class 60

– 60in Tines, 2.50×7.00 in

Capacity: 25,600 lbs @ 24in load centers

WEIGHT: 2700 lbs
DX-FK-PTHT-72inx106in-WL-70

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 106 inch carriage-Wheel Loader-Class 70

– 72in Tines, 3.00×7.00 in

Capacity: 34,200 lbs @ 24in load centers

WEIGHT: 3350 lbs
DX-FK-PTHT-72inx60in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 60 inch carriage-Wheel Loader-Class 60

– 72in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 1780 lbs
DX-FK-PTHT-72inx72in-TH-09K

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 72 inch carriage-Wheel Loader-Telehandler-9,000lbs

– 72in Tines, 2.00×6.00 in

Capacity: 12,600 lbs @ 24in load centers

WEIGHT: 1900 lbs
DX-FK-PTHT-72inx72in-TH-12K

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 72 inch carriage-Wheel Loader-Telehandler-12,000lbs

– 72in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2050 lbs
DX-FK-PTHT-72inx72in-WL-50

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 72 inch carriage-Wheel Loader-Class 50

– 72in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2100 lbs
DX-FK-PTHT-72inx72in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 72 inch carriage-Wheel Loader-Class 60

– 72in Tines, 2.50×7.00 in

Capacity: 25,600 lbs @ 24in load centers

WEIGHT: 2600 lbs
DX-FK-PTHT-72inx84in-TL-50

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 84 inch carriage-Wheel Loader-Class 50

– 72in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2650 lbs
DX-FK-PTHT-72inx84in-WL-50

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 84 inch carriage-Wheel Loader-Class 50

– 72in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2650 lbs
DX-FK-PTHT-72inx84in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 84 inch carriage-Wheel Loader-Class 60

– 72in Tines, 3.00×6.00 in

Capacity: 28,400 lbs @ 24in load centers

WEIGHT: 2700 lbs
DX-FK-PTHT-72inx84in-WL-70

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 84 inch carriage-Wheel Loader-Class 70

– 72in Tines, 3.00×7.00 in

Capacity: 34,200 lbs @ 24in load centers

WEIGHT: 3100 lbs
DX-FK-PTHT-72inx84in-WL-80

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 84 inch carriage-Wheel Loader-Class 80

– 72in Tines, 3.00×7.00 in

Capacity: 34,200 lbs @ 24in load centers

WEIGHT: 3100 lbs
DX-FK-PTHT-72inx96in-WL-50

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 96 inch carriage-Wheel Loader-Class 50

– 72in Tines, 2.50×6.00 in

Capacity: 21,400 lbs @ 24in load centers

WEIGHT: 2500 lbs
DX-FK-PTHT-72inx96in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 96 inch carriage-Wheel Loader-Class 60

Capacity: 25,600 lbs @ 24in load centers

WEIGHT: 2850 lbs
DX-FK-PTHT-72inx96in-WL-70

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 96 inch carriage-Wheel Loader-Class 70

– 72in Tines, 3.00×7.00 in

Capacity: 34,200 lbs @ 24in load centers

WEIGHT: 3232 lbs
DX-FK-PTHT-72inx96in-WL-80

Fork-Pallet Hydraulic Adjustable Tine-72 inch tine length x 96 inch carriage-Wheel Loader-Class 80

– 72in Tines, 3.00×7.00 in

Capacity: 34,200 lbs @ 24in load centers

WEIGHT: 3232 lbs
DX-FK-PTHT-84inx84in-WL-70

Fork-Pallet Hydraulic Adjustable Tine-84 inch tine length x 84 inch carriage-Wheel Loader-Class 70

– 84in Tines, 3.00×7.00 in

Capacity: 34,200 lbs @ 24in load centers

WEIGHT: 3400 lbs
DX-FK-PTHT-84inx96in-WL-70

Fork-Pallet Hydraulic Adjustable Tine-84 inch tine length x 96 inch carriage-Wheel Loader-Class 70

– 84in Tines, 3.00×7.00 in

Capacity: 34,200 lbs @ 24in load centers

WEIGHT: 3400 lbs
DX-FK-PTHT-84inx96in-WL-80

Fork-Pallet Hydraulic Adjustable Tine-84 inch tine length x 96 inch carriage-Wheel Loader-Class 80

– 84in Tines, 3.00×8.00 in

Capacity: 37,000 lbs @ 24in load centers

WEIGHT: 3550 lbs
DX-FK-PTHT-96inx112in-WL-90

Fork-Pallet Hydraulic Adjustable Tine-96 inch tine length x 112 inch carriage-Wheel Loader-Class 90

– 96in Tines, 3.50×8.00 in wide

Capacity: 54,600 lbs @ 24in load centers

WEIGHT: 5250 lbs
DX-FK-PTHT-96inx84in-WL-50

Fork-Pallet Hydraulic Adjustable Tine-96 inch tine length x 84 inch carriage-Wheel Loader-Class 50

– 96in Tines, 3.00×6.00 in.

– Capacity: 28,400 lbs. @ 24in load centers

WEIGHT: 3100 lbs
DX-FK-PTHT-96inx84in-WL-70

Fork-Pallet Hydraulic Adjustable Tine-96 inch tine length x 84 inch carriage-Wheel Loader-Class 70

– 96in Tines, 3.00×8.00 in

Capacity: 37,000 lbs @ 24in load centers

WEIGHT: 3600 lbs
DX-FK-PTHT-96inx96in-WL-60

Fork-Pallet Hydraulic Adjustable Tine-96 inch tine length x 96 inch carriage-Wheel Loader-Class 60

– 96in Tines, 3.00×6.00 in.

Capacity: 28,400 lbs @ 24in load centers

WEIGHT: 3100 lbs
DX-FK-PTHT-96inx96in-WL-70

Fork-Pallet Hydraulic Adjustable Tine-96 inch tine length x 96 inch carriage-Wheel Loader-Class 70

– 96in Tines, 3.00×8.00 in

Capacity: 37,000 lbs @ 24in load centers

WEIGHT: 3400 lbs
DX-FK-PTHT-96inx96in-WL-80

Fork-Pallet Hydraulic Adjustable Tine-96 inch tine length x 96 inch carriage-Wheel Loader-Class 80

– 96in Tines, 3.00×8.00 in

– Capacity: 37,000 lbs @ 24in load centers

WEIGHT: 3700 lbs
DX-FK-PTHT-120inx96in-WL-80

Fork-Pallet Hydraulic Adjustable Tine-120 inch tine length x 96 inch carriage-Wheel Loader-Class 80

– 120in Tines, 3.00×8.00 in

Capacity: 37,000 lbs @ 24in load center

WEIGHT: 3980 lbs

STANDARD MODELS INCLUDE:

– Shaft mounted, non swinging and hydraulic adjustable
– High-strength frame design with good visibility
– Tines move along the path of least resistance.

Design and specifications are subject to change without notice.

Contact Dymax sales for carriage widths not listed or special application requirements.

Model
Description
Weight (lbs)
DX-FK-PTHTT-72inx96in-WL-80

Fork-Pallet Hydraulic Tine and Tilt Carriage-72 inch tine length x 96 inch carriage-Wheel Loader-Class 80

STANDARD FEATURES:

– Shaft mount, non-swinging forged tines

– Hydraulic adjustable tines

– Hi Vis carriage

– 72 inch tine length @ 3.50 inch thick x 8.00 inch wide

– Rated Capacity @ 24″ Load Centers – 54,600 lbs per pair of tines

– Hydraulic tilt carriage up with integrated load check provided tilt up to 15 degrees max.

WEIGHT: 6000 lbs
DX-FK-PTHTT-72inx110in-WL-90

Fork-Pallet Hydraulic Tine and Tilt Carriage-72 inch tine length x 110 inch carriage-Wheel Loader—Class 90

STANDARD FEATURES:

– Shaft mount, non-swinging forged tines

– Hydraulic adjustable tines

– Hi Vis carriage

– 72 inch tine length @ 3.50 inch thick x 8.00 inch wide

– Rated Capacity @ 24″ Load Centers – 54,600 lbs per pair of tines

– Hydraulic tilt carriage up with integrated load check provided tilt up to 15 degrees max.

WEIGHT: 6680 lbs
DX-FK-PTHTT-84inx110in-WL-90

Fork-Pallet Hydraulic Tine and Tilt Carriage-84 inch tine length x 110 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Shaft mount, non-swinging forged tines

– Hydraulic adjustable tines

– Hi Vis carriage

– 84 inch tine length @ 4.00 inch thick x 8.00 inch wide

– Rated Capacity @ 24″ Load Centers – 67,600 lbs per pair of tines

– Hydraulic tilt carriage up with integrated load check provided tilt up to 15 degrees max.

WEIGHT: 7250 lbs
DX-FK-PTHTT-84inx96in-WL-80

Fork-Pallet Hydraulic Tine and Tilt Carriage-84 inch tine length x 96 inch carriage-Wheel Loader-Class 80

STANDARD FEATURES:

– Shaft mount, non-swinging forged tines

– Hydraulic adjustable tines

– Hi Vis carriage

– 84 inch tine length @ 3.50 inch thick x 8.00 inch wide

– Rated Capacity @ 24″ Load Centers – 54,600 lbs per pair of tines

– Hydraulic tilt carriage up with integrated load check provided tilt up to 15 degrees max.

WEIGHT: 6300 lbs
DX-FK-PTHTT-96inx96in-WL-60

Fork-Pallet Hydraulic Tine and Tilt Carriage-96 inch tine length x 96 inch carriage-Wheel Loader-Class 60

STANDARD FEATURES:

– Shaft mount, non-swinging forged tines

– Hydraulic adjustable tines

– Hi Vis carriage

– 96 inch tine length @ 3.00 inch thick x 6.00 inch wide

– Rated Capacity @ 24 inch Load Centers – 28,400 lbs per pair of tines

– Hydraulic tilt carriage up with integrated load check provided tilt up to 40 degrees max. (20 L/R)

WEIGHT: 4500 lbs
DX-FK-PTHTT-96inx96in-WL-80

Fork-Pallet Hydraulic Tine and Tilt Carriage-96 inch tine length x 96 inch carriage-Wheel Loader-Class 80

STANDARD FEATURES:

– Shaft mount, non-swinging forged tines

– Hydraulic adjustable tines

– Hi Vis carriage

– 96 inch tine length @ 3.50 inch thick x 8.00 inch wide

– Rated Capacity @ 24″ Load Centers – 54,600 lbs per pair of tines

– Hydraulic tilt carriage up with integrated load check provided tilt up to 15 degrees max.

WEIGHT: 6600 lbs
DX-FK-PTHTT-96inx110in-WL-90

Fork-Pallet Hydraulic Tine and Tilt Carriage-96 inch tine length x 110 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Shaft mount, non-swinging forged tines

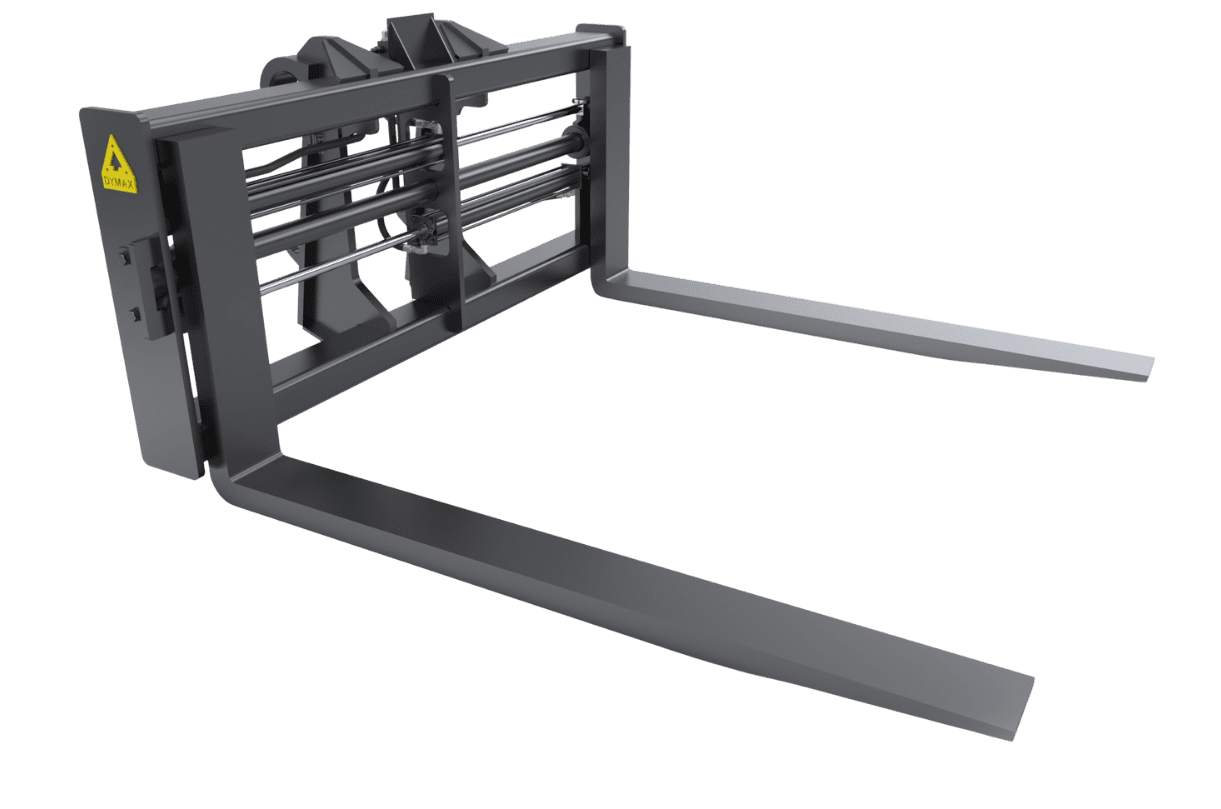

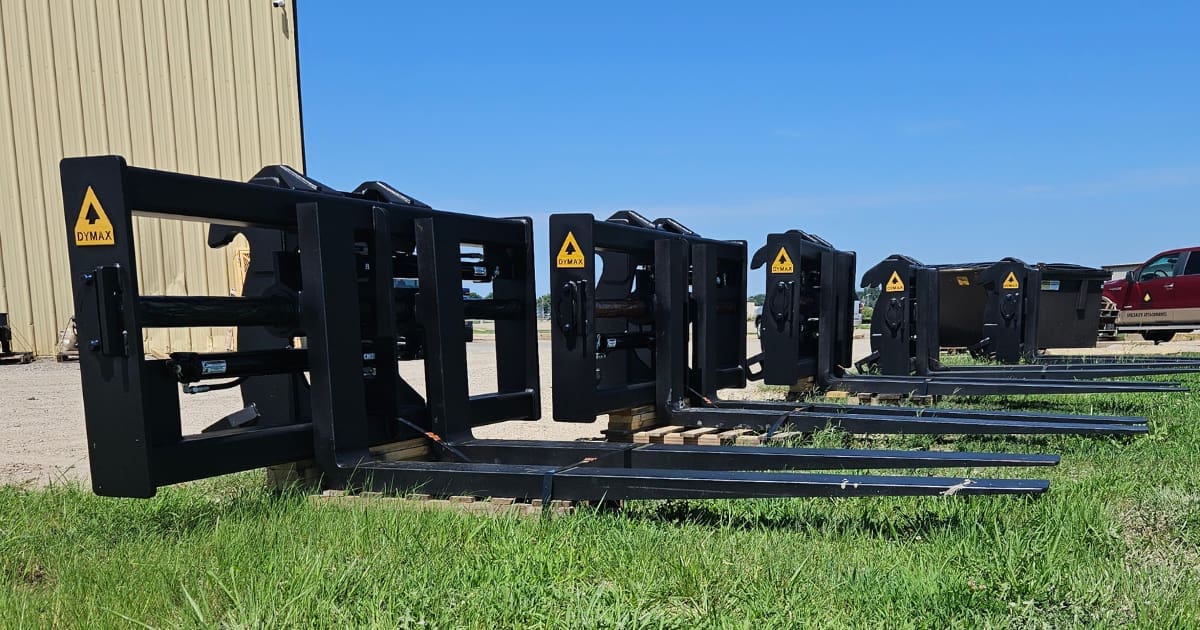

– Hydraulic adjustable tines

– Hi Vis carriage

– 84 inch tine length @ 4.00 inch thick x 8.00 inch wide

– Rated Capacity @ 24″ Load Centers – 67,600 lbs per pair of tines

– Hydraulic tilt carriage up with integrated load check provided tilt up to 15 degrees max.

WEIGHT: 7500 lbs

Design and specifications are subject to change without notice.

Contact Dymax sales for carriage widths not listed or special application requirements.

DX-FK-PTHT (STANDARD MODELS)
HYDRAULIC REQUIREMENTS: Your machine will require 3rd function auxiliary to operate.

CIRCUIT1 – Tine Adjust

Type: Two Way

Flow Pressure: GPM (min/max) 10-20, PSI (max) 3,000

NOT SUPPLIED: Not provided with jumper hoses to machine lines.
DX-FK-PTHTT (TILT MODELS)
HYDRAULIC REQUIREMENTS: Your machine will require 3rd & 4th function auxiliary to operate. You must use loader manufacturer recommended circuits.

CIRCUIT 1 – Tine Adjust

Type: Two Way

Flow Pressure: GPM (min/max) 10-20, PSI (max) 3,000

CIRCUIT 2 – Tilt Carriage

Type: Two Way

Flow Pressure: GPM (min/max) 10-20, PSI (max) 3,000

NOT SUPPLIED: Not provided with jumper hoses to machine lines.

GALLERY

Hay Bale SqueezeHay Bale Squeeze MainMillyard Forks
