Log and Lumber Forks for Wheel Loaders
Log and Lumber Forks for Wheel Loaders:
Haul Longer and Stronger with Dymax Log and Lumber Forks!

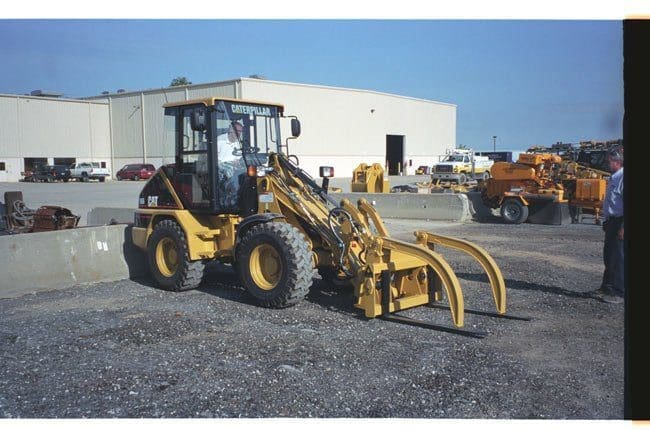

A smart design, paired with rugged construction, make Dymax Log and Lumber Forks for Wheel Loaders the right choice for millyard and timber stand applications. No job is too big for these powerful implements.
The versatile nature of these forks allows for loading, sorting, decking and hauling palletized loads or debris.
Specifications
| Model Number | Description | Weight (lbs/kg) |
|---|---|---|
| DX-FK-LLRDG-48inx53in-WL-10 | Fork – Log and Lumber Double Grapple – 48 inch tine length x 53 inch carriage – Wheel Loader – Class 10 | 1,160 lbs/526 kg |
| DX-FK-LLRDG-48inx60in-WL-20 | Fork – Log and Lumber Double Grapple – 48 inch tine length x 60 inch carriage – Wheel Loader – Class 20 | 1,100 lbs/499 kg |
| DX-FK-LLRDG-48inx72in-WL-30 | Fork – Log and Lumber Double Grapple – 48 inch tine length x 72 inch carriage – Wheel Loader – Class 30 | 2,200 lbs/998 kg |
| DX-FK-LLRDG-60inx84in-WL-40 | Fork – Log and Lumber Double Grapple – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 40 | 2,920 lbs/1,325 kg |
| DX-FK-LLRDG-60inx84in-WL-50 | Fork – Log and Lumber Double Grapple – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 50 | 2,800 lbs/1,270 kg |
| DX-FK-LLRDG-60inx84in-WL-60 | Fork – Log and Lumber Double Grapple – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 60 | 2,880 lbs/1,306 kg |
| DX-FK-LLRDG-60inx88in-WL-70 | Fork – Log and Lumber Double Grapple – 60 inch tine length x 88 inch carriage – Wheel Loader – Class 70 | 3,700 lbs/1,678 kg |
| DX-FK-LLRDG-72inx110in-WL-90 | Fork – Log and Lumber Double Grapple – 72 inch tine length x 110 inch carriage – Wheel Loader – Class 90 | 5,850 lbs/2,654 kg |
| DX-FK-LLRDG-72inx96in-WL-80 | Fork – Log and Lumber Double Grapple – 72 inch tine length x 96 inch carriage – Wheel Loader – Class 80 | 5,600 lbs/2,540 kg |
| DX-FK-LLRSG-48inx53in-WL-10 | Fork – Log and Lumber Single Grapple – 48 inch tine length x 53 inch carriage – Wheel Loader – Class 10 | 920 lbs/417 kg |
| DX-FK-LLRSG-48inx60in-WL-20 | Fork – Log and Lumber Single Grapple – 48 inch tine length x 60 inch carriage – Wheel Loader – Class 20 | 980 lbs/445 kg |
| DX-FK-LLRSG-48inx72in-WL-30 | Fork – Log and Lumber Single Grapple – 48 inch tine length x 72 inch carriage – Wheel Loader – Class 30 | 1,900 lbs/862 kg |
| DX-FK-LLRSG-60inx84in-WL-40 | Fork – Log and Lumber Single Grapple – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 40 | 2,280 lbs/1,034 kg |
| DX-FK-LLRSG-60inx84in-WL-50 | Fork – Log and Lumber Single Grapple – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 50 | 2,800 lbs/1,270 kg |
| DX-FK-LLRSG-60inx84in-WL-60 | Fork – Log and Lumber Single Grapple – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 60 | 2,600 lbs/1,179 kg |
| DX-FK-LLRSG-60inx88in-WL-70 | Fork – Log and Lumber Single Grapple – 60 inch tine length x 88 inch carriage – Wheel Loader – Class 70 | 3,600 lbs/1,633 kg |
| DX-FK-LLRWS-60inx84in-WL-40 | Fork – Log and Lumber Wishbone Clamp – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 40 | 3,350 lbs/1,520 kg |
| DX-FK-LLRWS-60inx84in-WL-50 | Fork – Log and Lumber Wishbone Clamp – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 50 | 3,400 lbs/1,542 kg |
| DX-FK-LLRWS-60inx84in-WL-60 | Fork – Log and Lumber Wishbone Clamp – 60 inch tine length x 84 inch carriage – Wheel Loader – Class 60 | 3,600 lbs/1,633 kg |
| DX-FK-LLRWS-60inx88in-WL-70 | Fork – Log and Lumber Wishbone Clamp – 60 inch tine length x 88 inch carriage – Wheel Loader – Class 70 | 3,900 lbs/1,769 kg |
Specifications are subject to change without notice.
Features

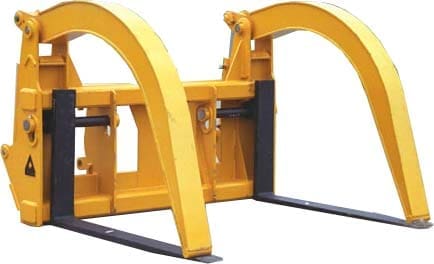

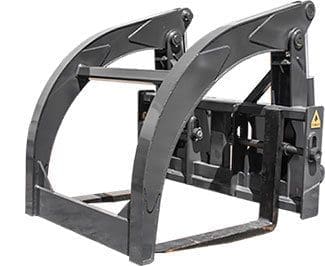

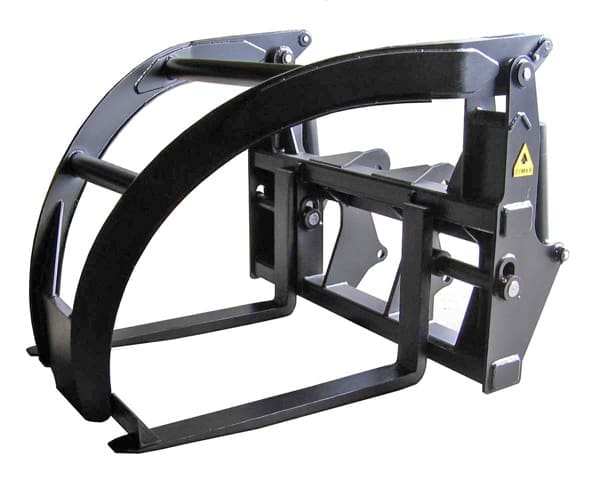

- Dymax Log & Lumber Forks for Wheel Loaders are available with a double top clamp or a wishbone style top clamp.
- The tines of the Dymax Log & Lumber Forks are non-swinging and feature “float” which provides vertical self-adjustment to go along with the manually-adjustable horizontal positioning.
- Top clamp opens nearly a full 90° to accommodate an entire load of logs.
- The design of the Dymax Log & Lumber Fork provides recessed cylinders, which offer greater protection from elements and errant logs.
- The versatile nature of these forks allows for loading, sorting, decking and hauling palletized loads or debris.
- Contact Dymax Sales 1-800-530-5407 for more information on custom designs.
