Railcar Couplers for Wheel Loaders or Tractors
Dymax Railcar Couplers are attachments that adapt to wheel loaders or tractors enabling operations such as coops, aggregate and load transfer facilities, port and terminal railways and rail yard applications to safely pull railcars. Dymax Railcar coupler systems are available to fit the front and rear of Wheel Loaders and Tractors with a minimum of 115-130 horsepower for pulling small car volumes.
They feature integrated free slide frames. Available with nylatron slide bearings or in hydraulic side shift. Each model features a standard AAR cast railcar knuckle. When equipped with the vertical float option the coupler will adjust, if the loader is traveling on uneven terrain.
We offer specialized design services and work with our local tractor dealers to provide turnkey ready railcar movers using tractor base platforms. These machines are highly versatile and are ideal for pulling low carload volumes. Contact us today to learn more about DymaxRail’s innovative solutions for moving railcars.

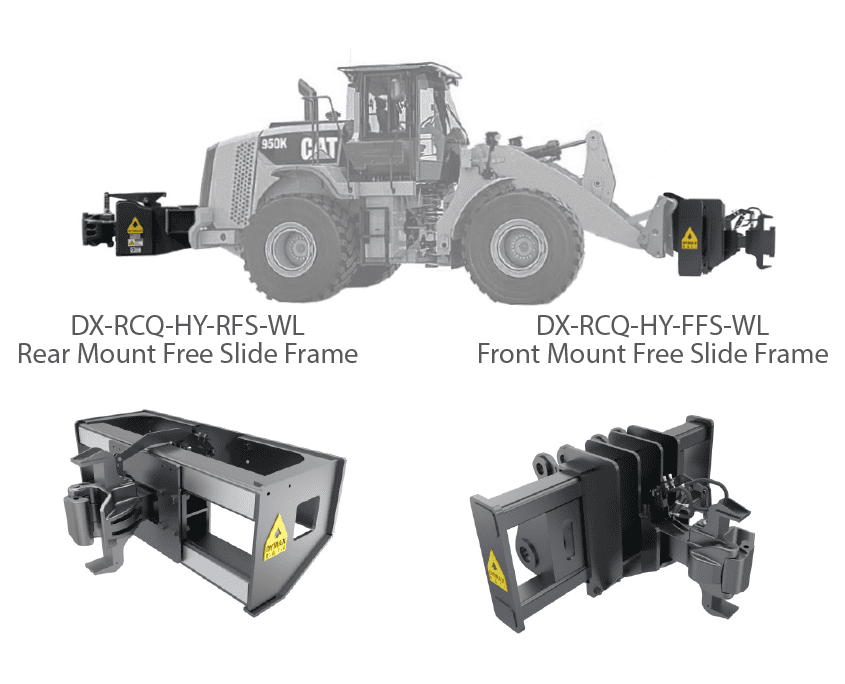

Front and Rear Mounted Railcar Couplers – Wheel Loader Models

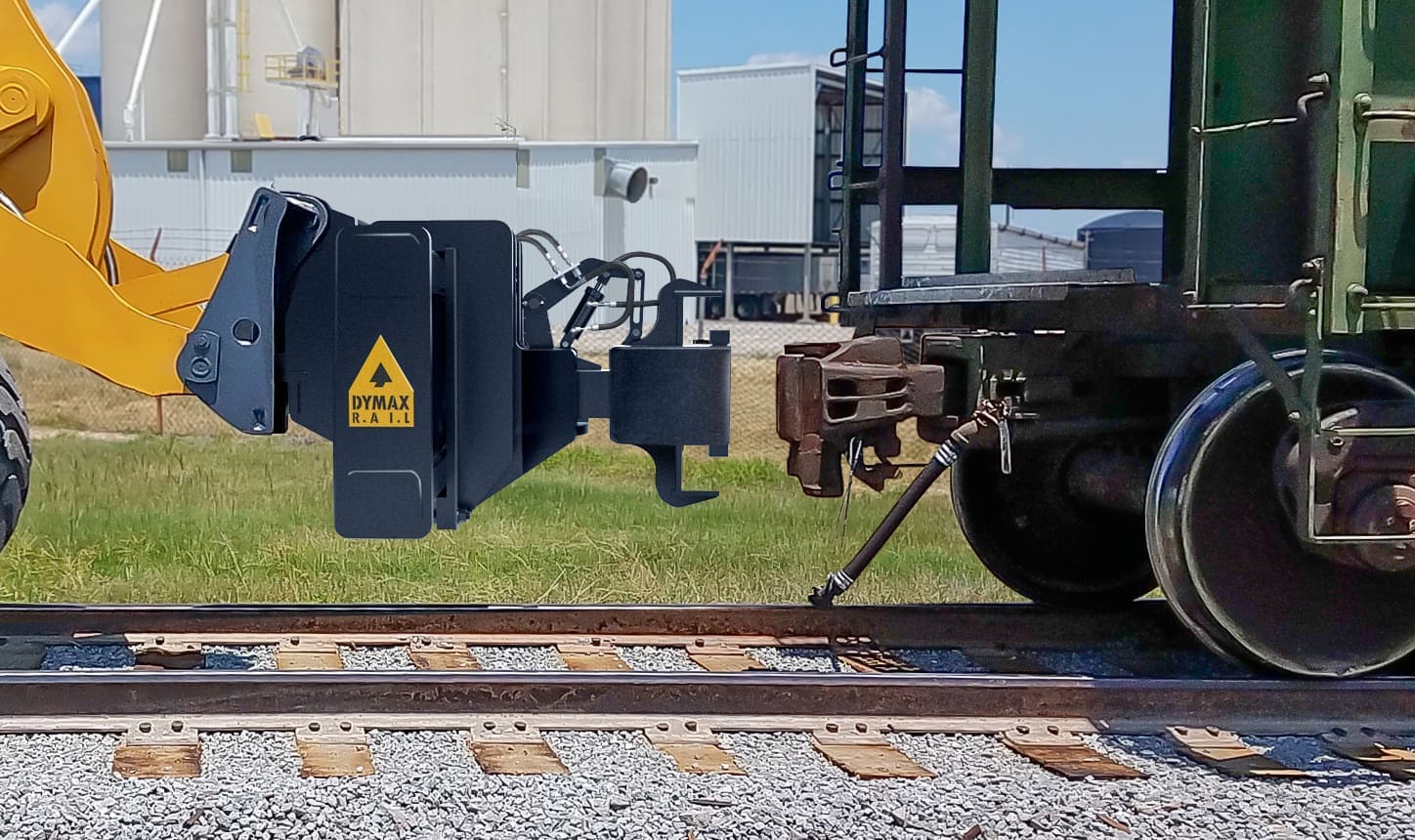

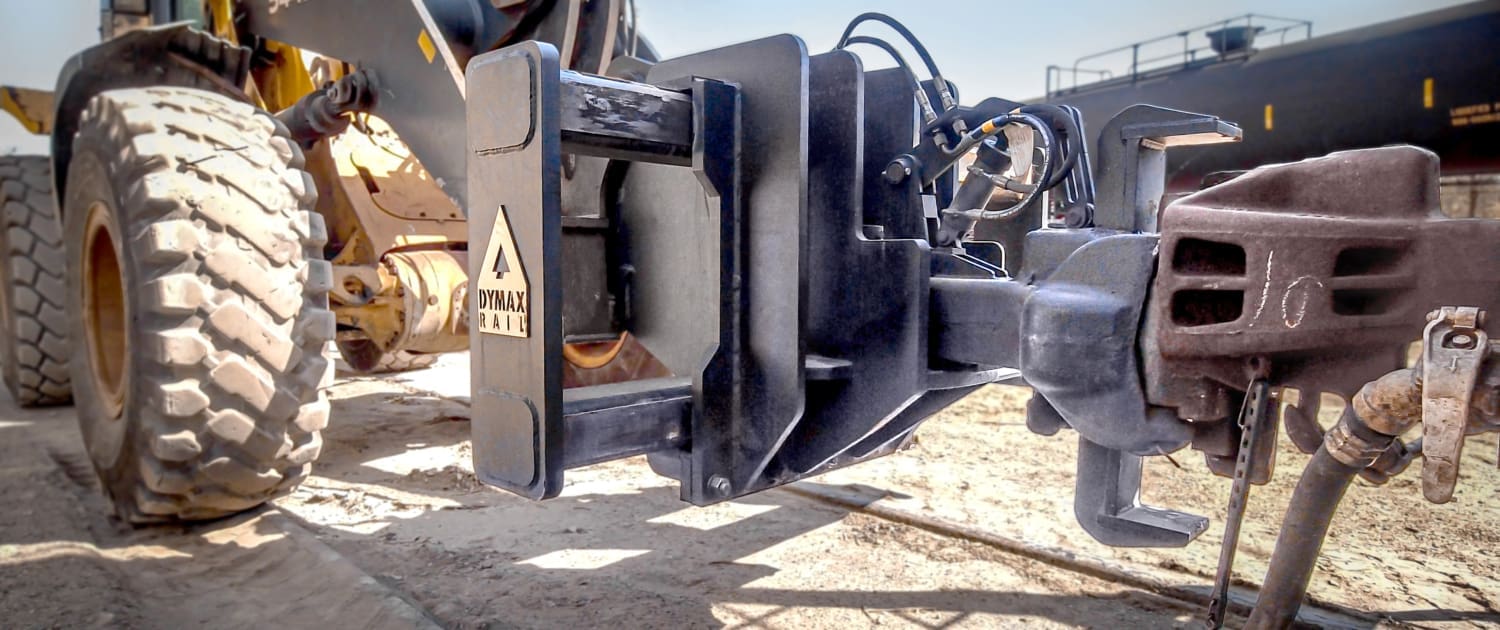

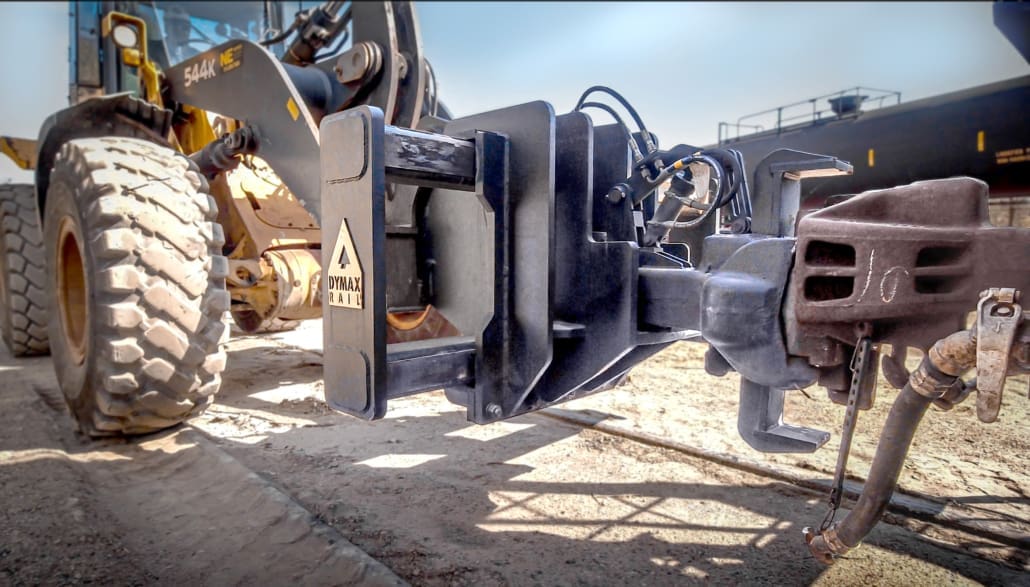

Dymax Front Mounted Railcar Quick Couplers feature free slide frames with pivoting AAR train car coupler with hydraulic pin. Made to fit specific wheel loader coupler systems or can be made to pin direct to the loader arms. Optional vertical float with shelf coupler available for uneven terrain applications.

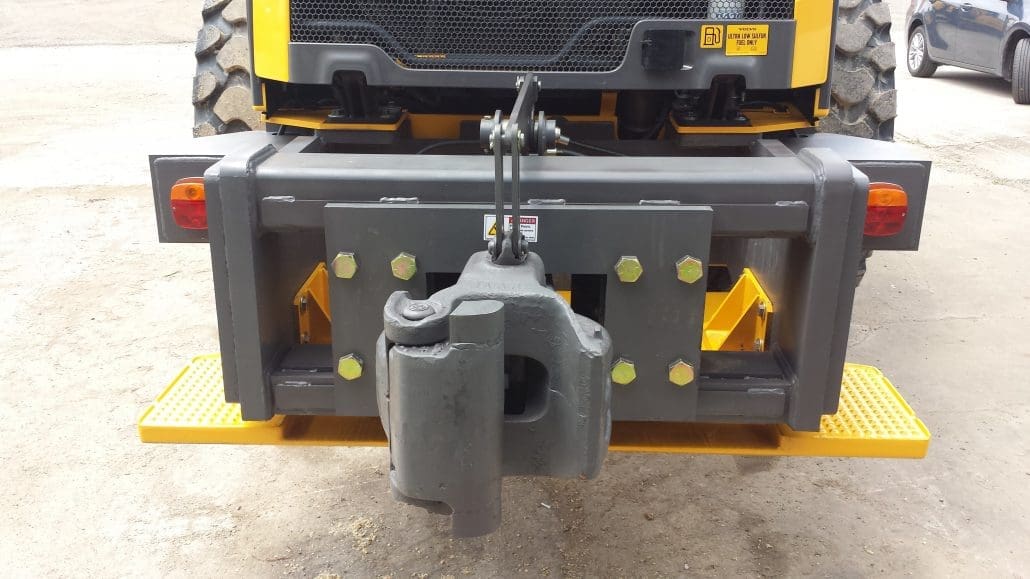

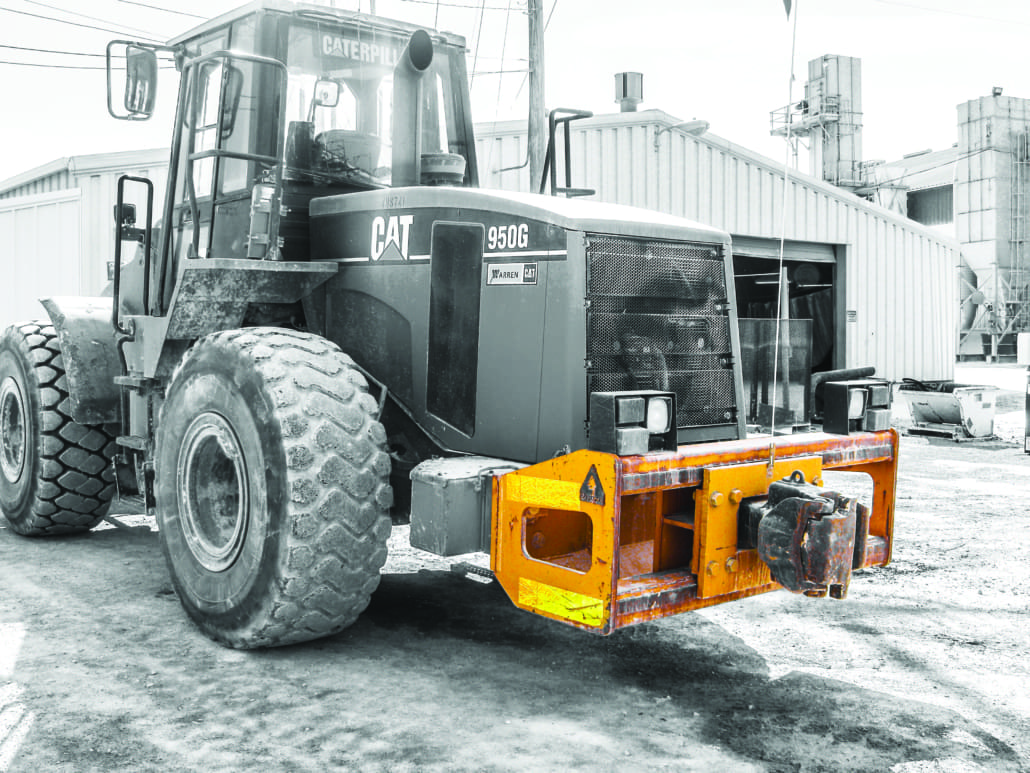

Dymax Rear Mounted Railcar Quick Coupler Solutions are designed specifically to fit the make and model of each machine. We work closely with OEM’s to make sure that stability of the loader and performance is not effected. Rear mounted railcar coupler systems feature free slide frames with pivoting AAR train car coupler with hydraulic pin.
- Available with Manual or Hydraulic pin
- Free slide frame with pivot knuckle for non-hi-railed machinery.
- Fixed Knuckle center mounted with pivot
Railcar Couplers – Tractor Models

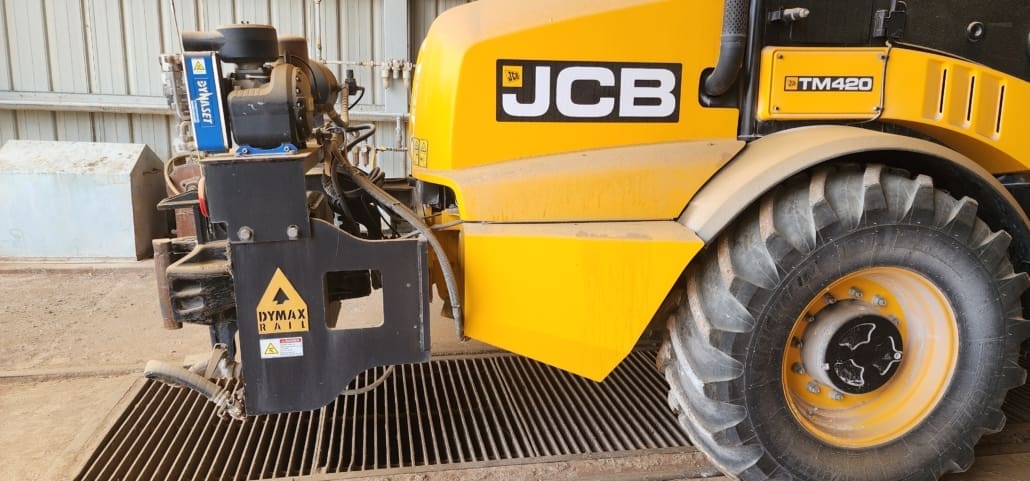

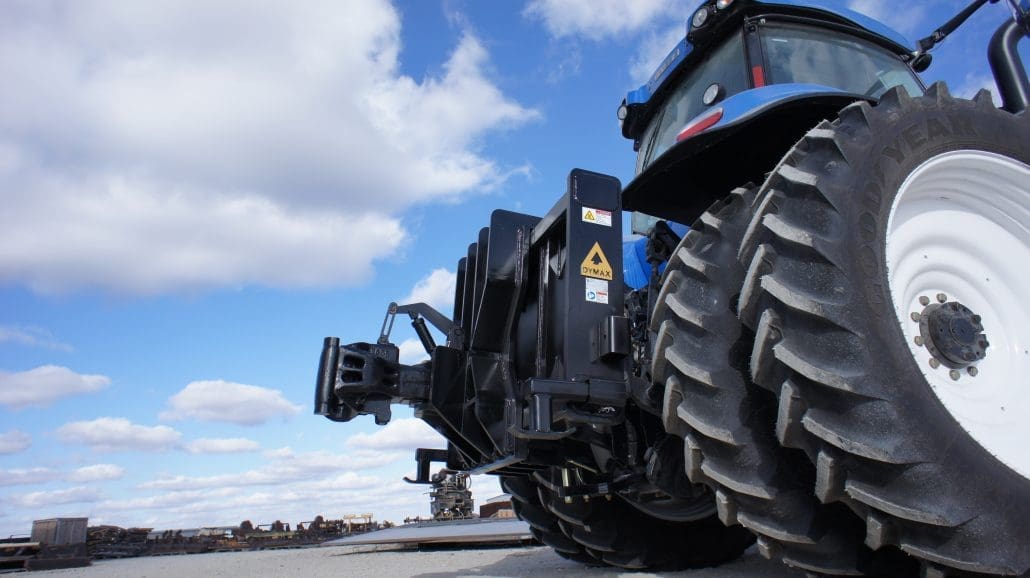

Dymax Railcar Coupler Systems for Tractors are available to fit the front chassis or can be mounted to the three point hitch. We can also help you adapt railgear, brushcutters and loaders to create the ultimate tractor railcar mover solution.
Railcar Couplers – Bareback Models
- Adaptable to a variety of trucks and equipment for working in railway applications. Unimog, Grapple Trucks.
- Adaptable to wheel loaders (Front and Rear)
- *Bareback models require some setup on site prior to use.
OPTIONAL
- Motor Screw Drive for offset of knuckle (side to side) hydraulically

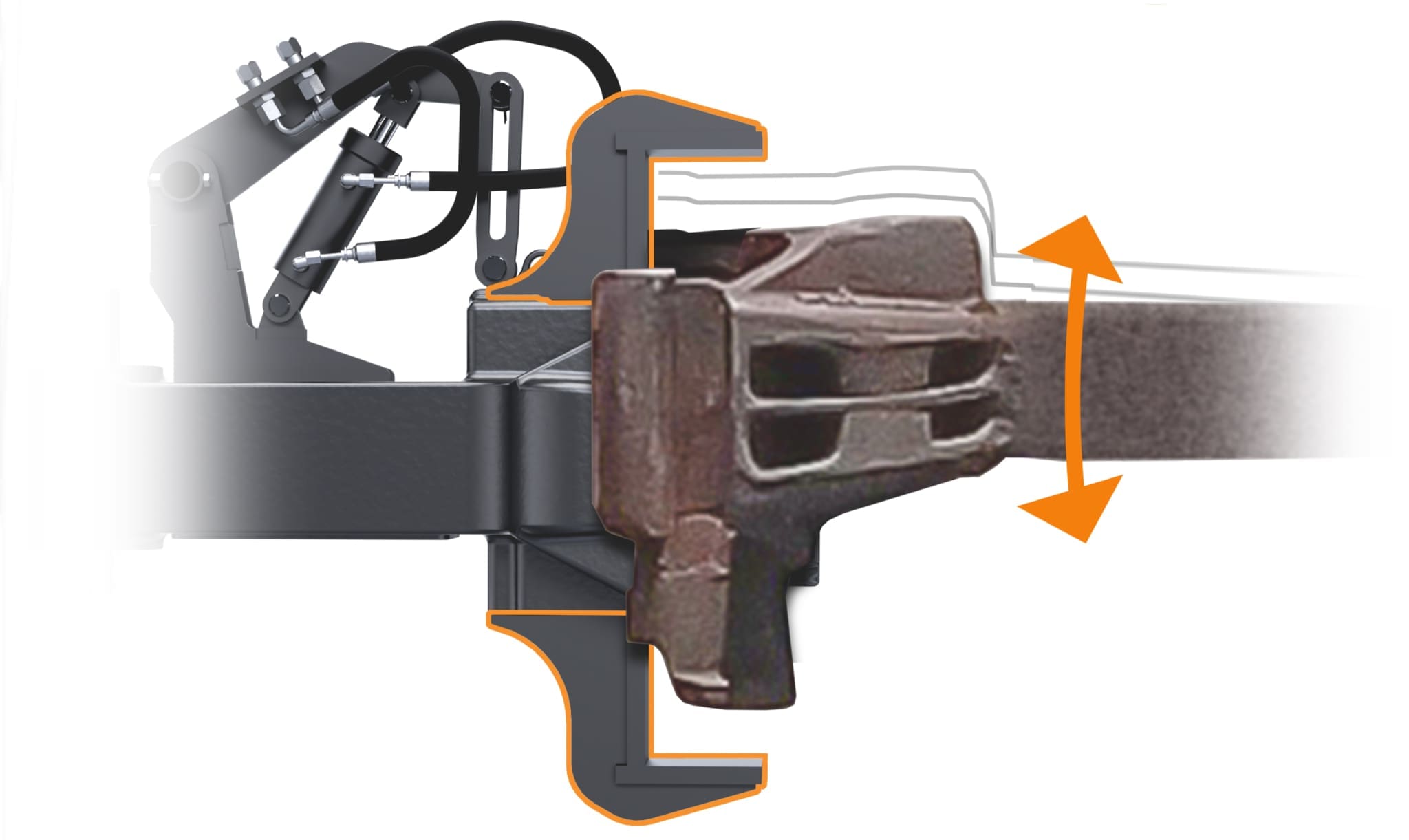

- Vertical Float Train Air Kit Bearing design with stop on AAR knuckle A9
- Train Air Kit – hydraulic driven compressor system with storage tanks
Specifications
| TRACTOR MODELS | |||
| Model | Description | Hookup | Weight (lbs) |

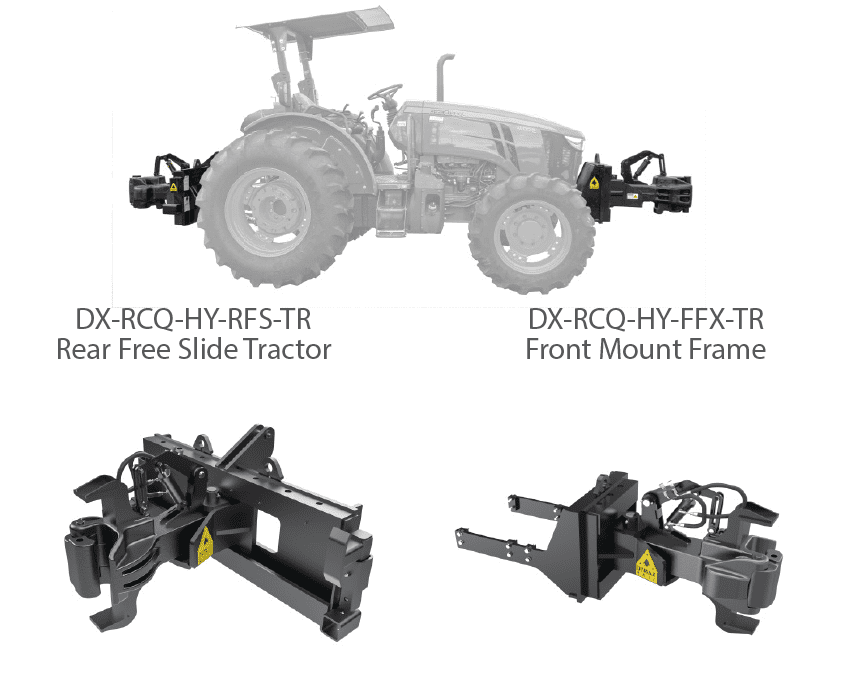

| DX-RCQ-HY-RFS-TR | Rear 3 point hitch free slide with hydraulic pin and retainer knuckle |
Available for Category 2, 3 and 4 hitches
|
2650 |
| DX-RCQ-HY-RHS-TR | Rear 3 point hitch hydraulic slide with hydraulic pin and retainer knuckle | 2300 | |
| Some models are not listed. To determine what’s available for your tractor contact Dymax Sales 1-800-530-5407. Specifications are subject to change without notice | |||
| WHEEL LOADER MODELS | Loader Reference Size Chart | |||||
| Model | Description | Weight (lbs) | Cat | Deere | Komatsu | Volvo |
| DX-RCQ-HY-FFS-WL-40 |
Front mount free slide with hydraulic pin and retainer knuckle
|
3000 | 924 | 444-524 | WA200 | L50-L60 |
| DX-RCQ-HY-FFS-WL-50/60 | 3150 | 928-930-938 | 544-624 | WA250-320 | L70-L110 | |
| DX-RCQ-HY-FFS-WL-70/80 | 3200 | 950-972 | 644-824 | WA380-470/480 | L150-L180 | |
| DX-RCQ-HY-FFS-WL-90 | 4000 | 980-982 | 844 | WA500 | L220 | |
| DX-RCQ-HY-RFS-WL-40 |
Rear Mounted free slide with hydraulic pin and retainer knuckle
|
3200 | 924 | 444-524 | WA200 | L50-L60 |
| DX-RCQ-HY-RFS-WL-50/60 | 3200 | 928-930-938 | 544-624 | WA250-320 | L70-L110 | |
| DX-RCQ-HY-RFS-WL-70/80 | 3850 | 950-972 | 644-824 | WA380-470/480 | L150-L180 | |
| DX-RCQ-HY-RFS-WL-90 | 4500 | 980-982 | 844 | WA500 | L220 | |
| Some models are not listed. To determine what’s available for your wheel loader contact Dymax Sales 1-800-530-5407. Specifications are subject to change without notice. Weights for rear mounted models are only approximate and do vary by machine series. | ||||||
Design and specifications are subject to change without notice
Features
- For wheel loaders and tractors.
- Equipped with standard railroad cast knuckles.
- Choose from front or rear mount.
- Available in manual pin, hydraulic pin or pneumatic-air pin.
- Front mount models feature a pivoting knuckle and free slide assembly.
- Custom railcar coupler systems require welding and possible counterweight removal.
