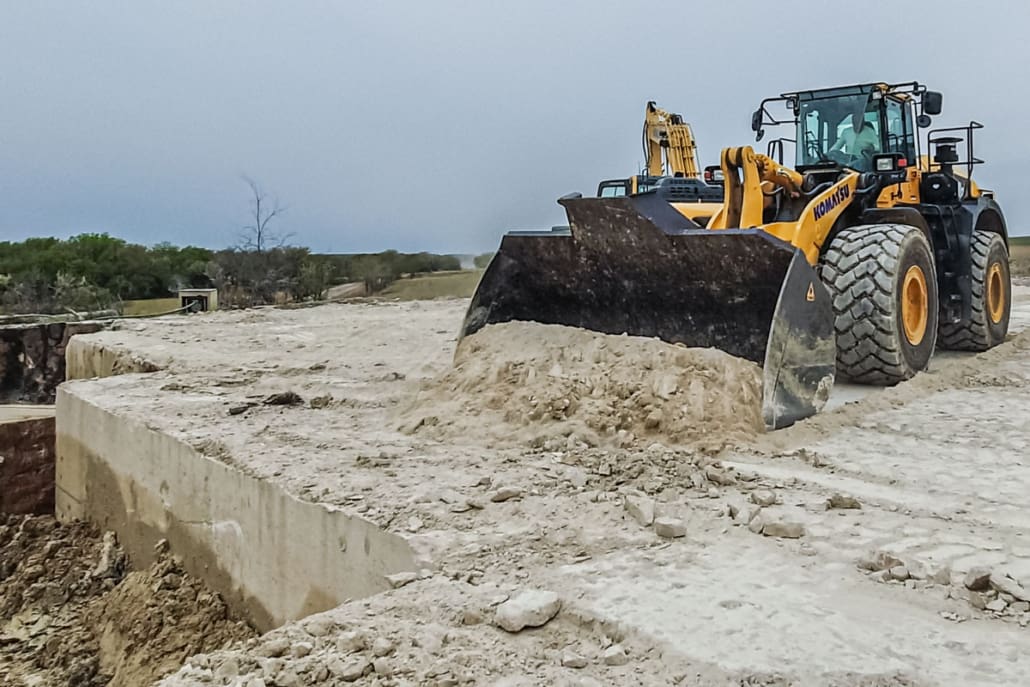

Sand and Gravel Buckets for Wheel Loaders

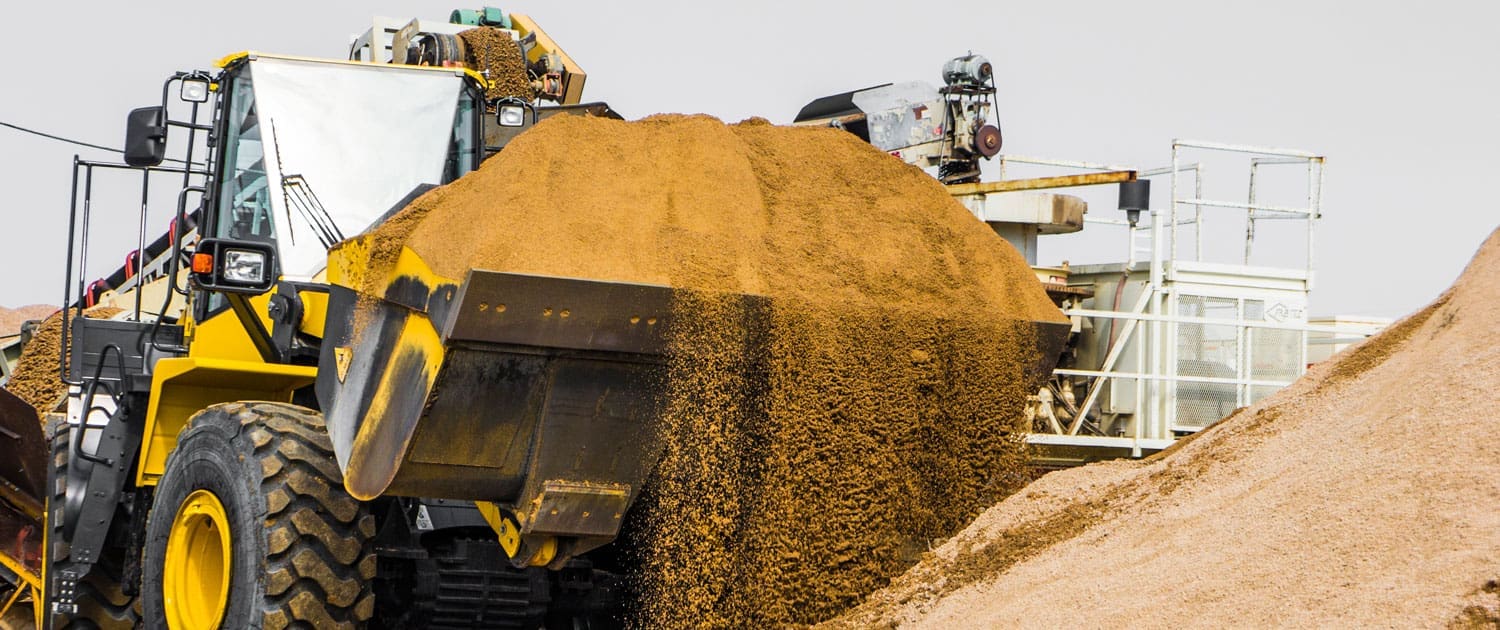

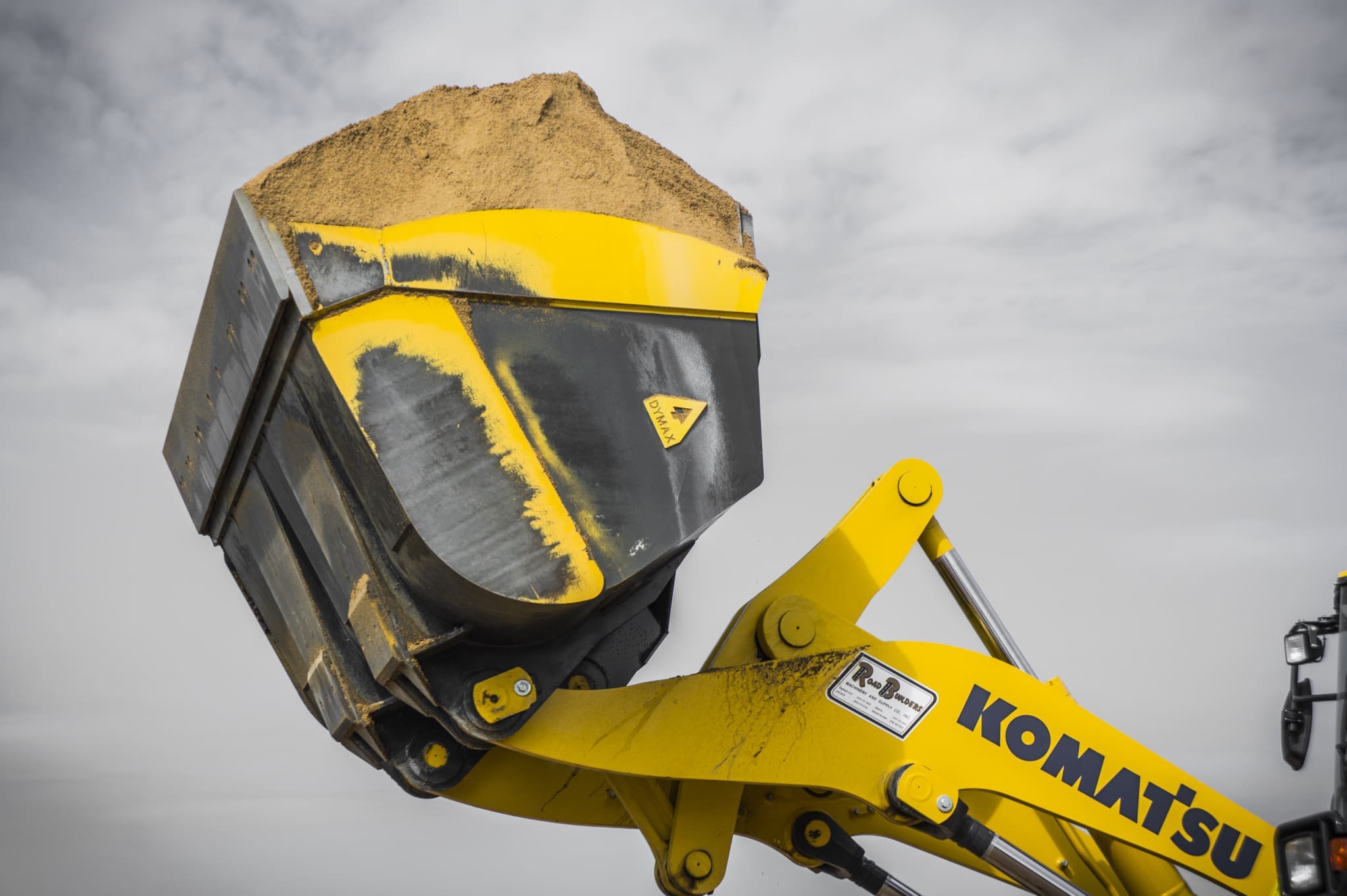

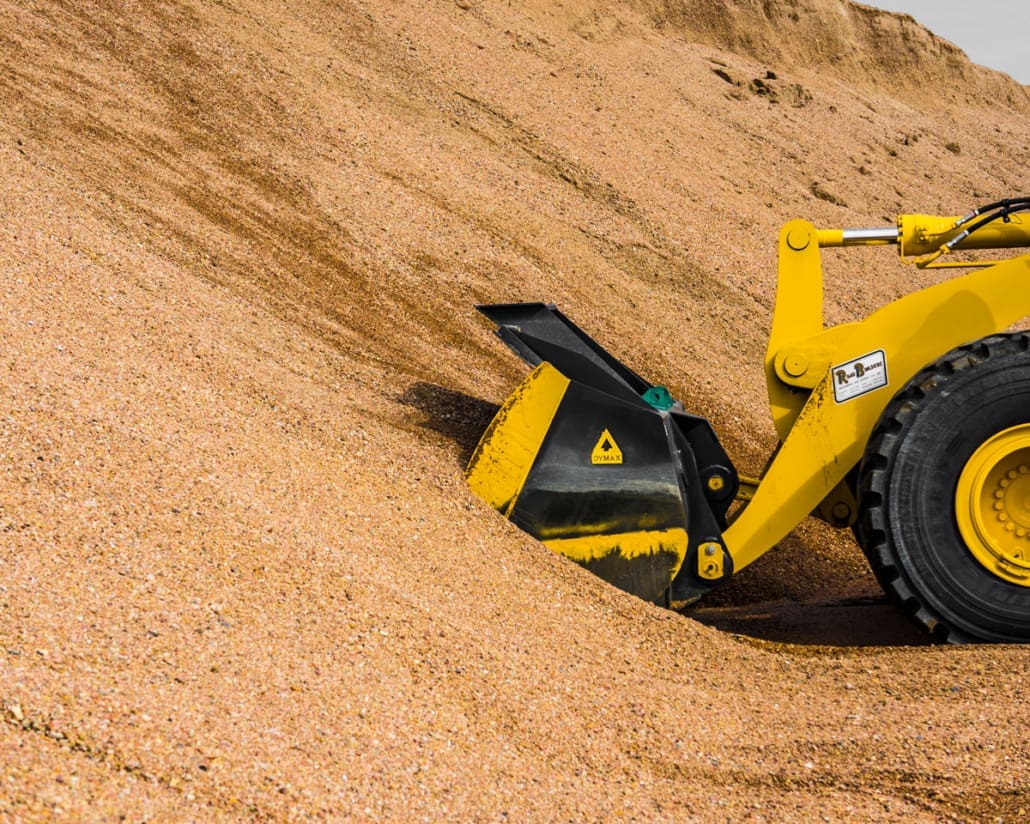

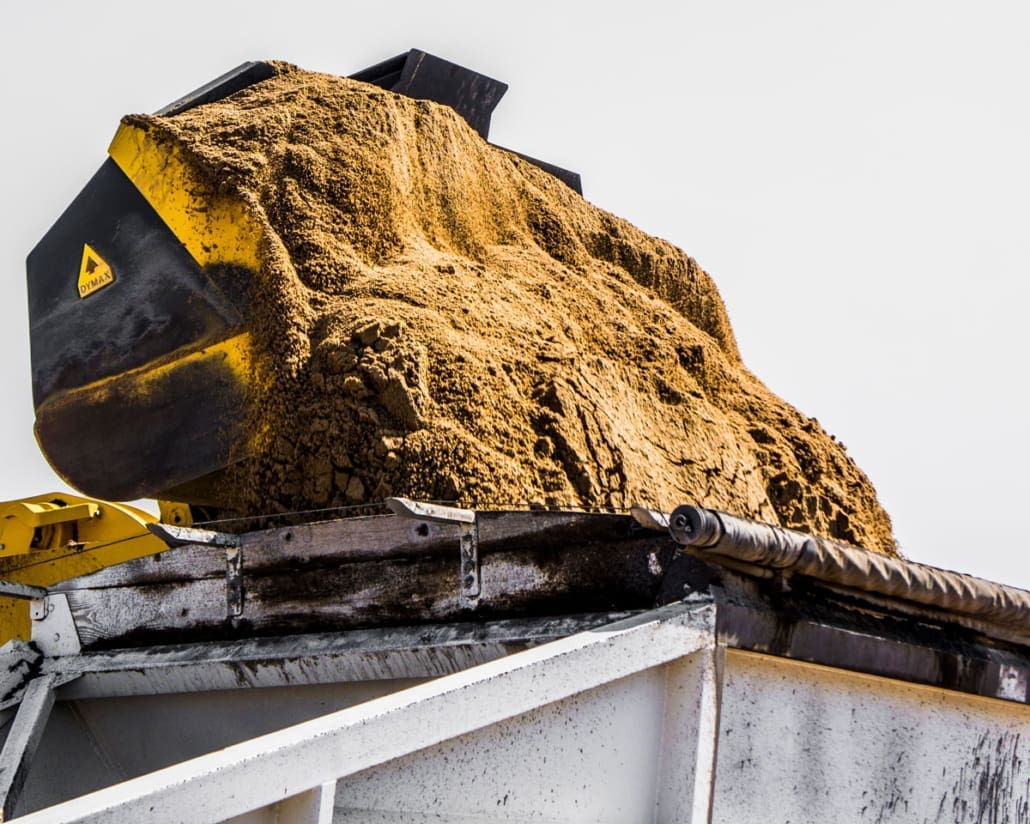

Dymax Sand and Gravel Buckets are designed for use in abrasive materials or extreme wear applications, such as loading sand and gravel or charging asphalt plants.

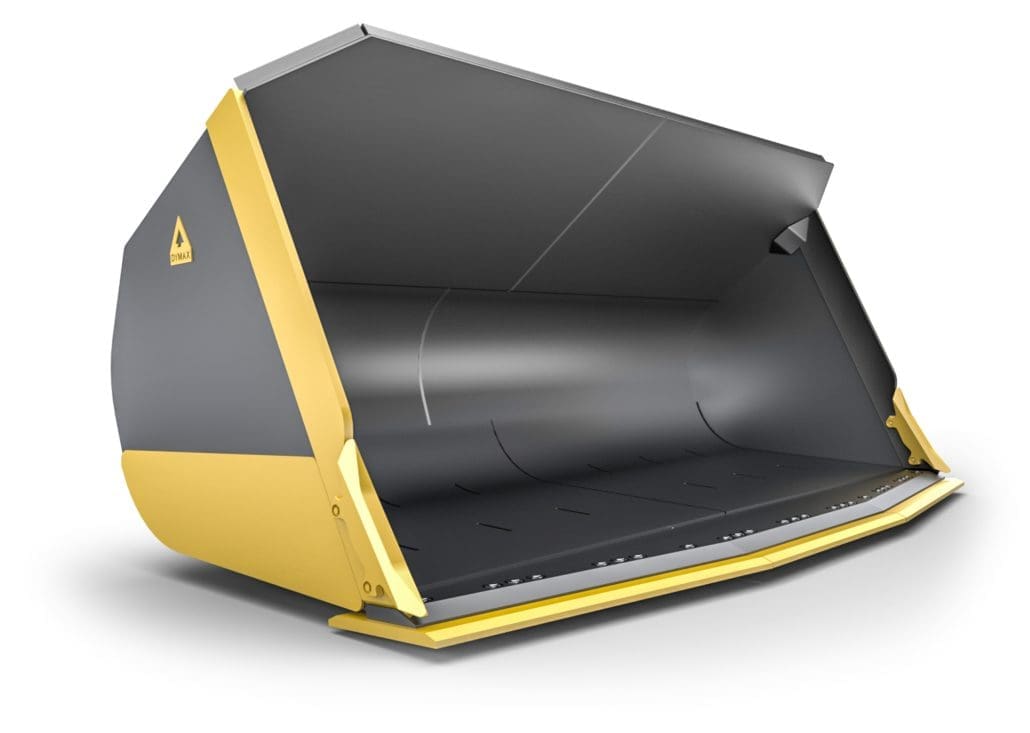

These buckets incorporate proven design criteria, which yield superior loading characteristics over many general-purpose buckets. Dymax Sand and Gravel Buckets feature wear plates on the sides and bottom of the bucket.
High tensile, wear-resistant steel is used throughout for greater durability, increased strength, and abrasion resistance.
Key Features
- Get 15% more capacity compared to standard bucket models, without affecting the machine’s stability.
- Convex side bars allow operators to retain more material.
- Specially designed spill plate retains the load and directs material away from the pins.
- Wear plates protect the integrity of the floor and sides of the bucket.

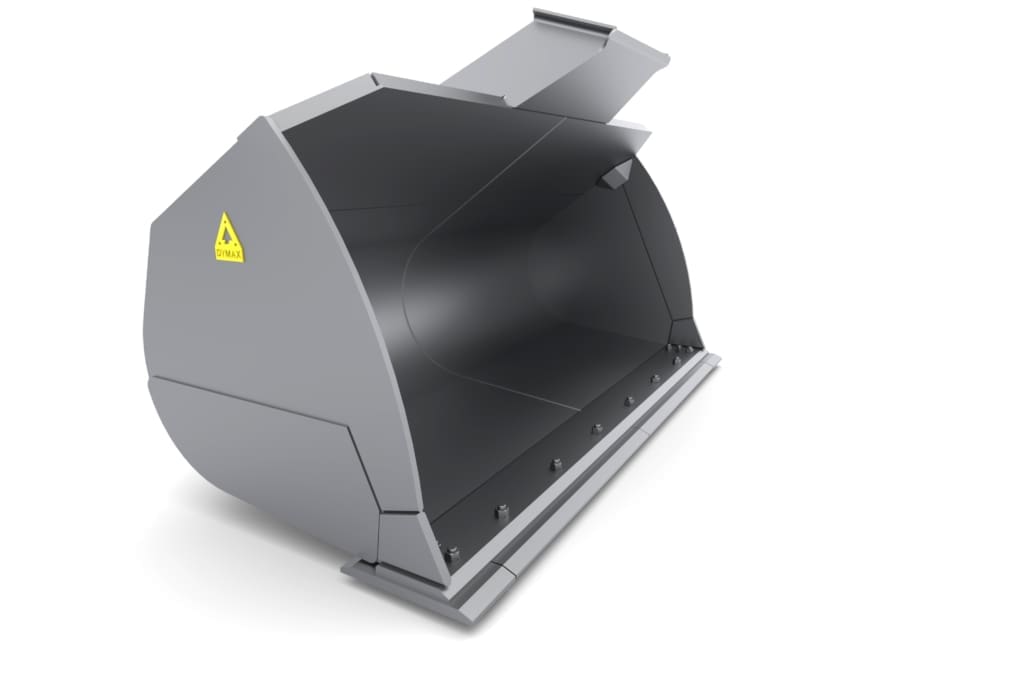

- Cutting edges on Dymax Sand and Gravel Buckets are drilled to accept O.E.M. bolt-on edges, or can be ordered with specified edges installed. Straight edge (standard) or spade nose (option)
- Available in direct pin-on models, or with hooks installed to work with the Dymax coupler system or other popular couplers.
- Available for a wide range of machine sizes and in a variety of sizes and widths.
SPECIFICATIONS
| Model Code Description Weight |
|||
| DX-BK-SG-10.00cyd-WL-100
Bucket-Sand & Gravel-10.00 cyd capacity-Wheel Loader-Class 100 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges (CAT Pattern), rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range: 148-150 inches Weight: 10,400 lbs |
|||
| DX-BK-SG-11.00cyd-WL-100
Bucket-Sand & Gravel-11.00 cyd capacity-Wheel Loader-Class 100 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges (CAT Pattern), rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width: 153 inches Weight: 10,800 lbs |
|||
| DX-BK-SG-3.50cyd-WL-50
Bucket-Sand & Gravel-3.50 cyd capacity-Wheel Loader-Class 50 STANDARD FEATURES: straight edge design, flat floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range (subject to edge pattern and machine arrangement): 104-108 inches Weight: 3,400 lbs |
|||
| DX-BK-SG-3.50cyd-WL-60
Bucket-Sand & Gravel-3.50 cyd capacity-Wheel Loader-Class 60 STANDARD FEATURES: straight edge design, flat floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range (subject to edge pattern and machine arrangement): 104-108 inches Weight: 3,850 lbs |
|||
| DX-BK-SG-4.75cyd-WL-70
Bucket-Sand & Gravel-4.75 cyd capacity-Wheel Loader-Class 70 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range (subject to edge pattern and machine arrangement): 114-120 inches Weight: 4,750 lbs |
|||
| DX-BK-SG-5.75cyd-WL-80
Bucket-Sand & Gravel-5.75 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range (subject to edge pattern and machine arrangement): 120-127 inches Weight: 5,500 lbs |
|||
| DX-BK-SG-6.00cyd-WL-80
Bucket-Sand & Gravel-6.00 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range (subject to edge pattern and machine arrangement): 120-127 inches Weight: 5,800 lbs |
|||
| DX-BK-SG-7.50cyd-WL-90
Bucket-Sand & Gravel-7.50 cyd capacity-Wheel Loader-Class 90 Standard Features: straight edge design, wedge floor design, center auxiliary spill plate design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, 2x lower replaceable side bar protectors, high tensile strength steel (T1) moldboard group, side wear plates AR400, bottom wear runners AR400. Width: 136 inches Weight: 7,850 lbs |
|||
| DX-BK-SG-7.80cyd-WL-90
Bucket-Sand & Gravel-7.80 cyd capacity-Wheel Loader-Class 90 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range (subject to edge pattern and machine arrangement): 134-138 inches Weight: 7,500 lbs |
|||
| DX-BK-SG-8.00cyd-WL-90
Bucket-Sand & Gravel-8.00 cyd capacity-Wheel Loader-Class 90 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range (subject to edge pattern and machine arrangement): 134-138 inches Weight: 9,450 lbs |
|||
| DX-BK-SG-9.00cyd-WL-90
Bucket-Sand & Gravel-9.00 cyd capacity-Wheel Loader-Class 90 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners. Width range (subject to edge pattern and machine arrangement): 134-138 inches Weight: 9,500 lbs |
|||

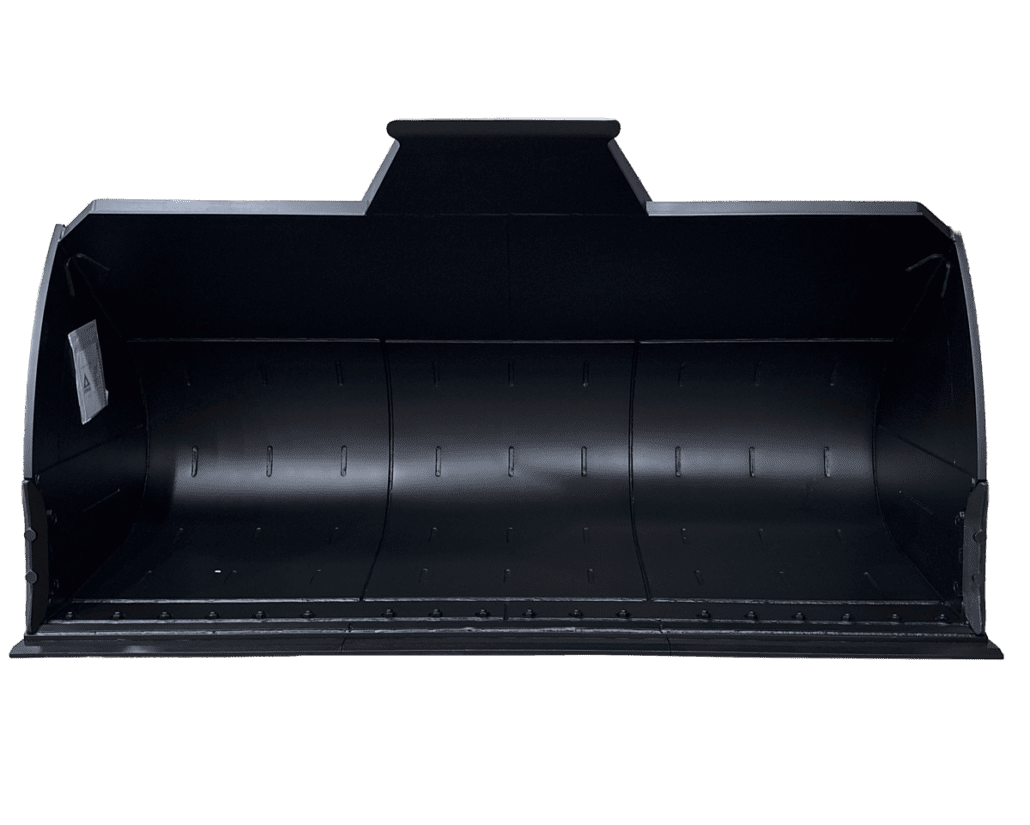

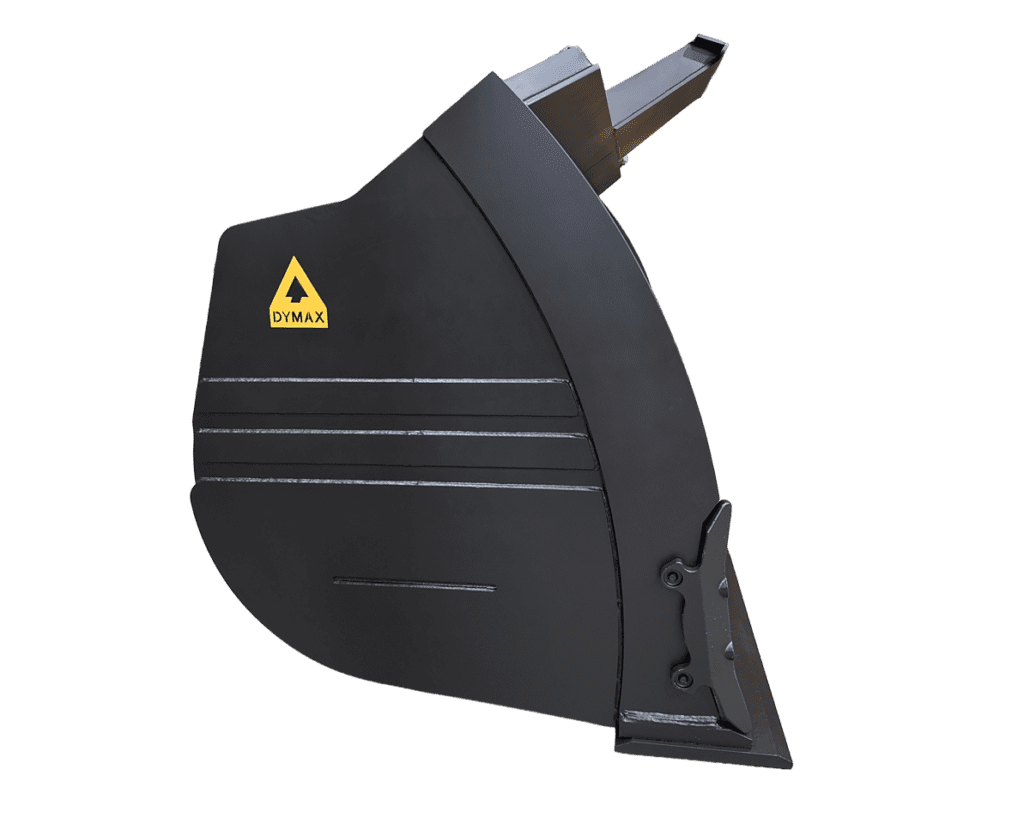

| DX-BK-SGAR-9.60cyd-WL-90
Bucket-Sand and Gravel Abrasion Resistant-9.60 cubic yard capacity-Wheel Loader-Class 90 STANDARD FEATURES: straight edge design, wedge floor design, replaceable bolt-on cutting edges, rear bolt-on wear plates, convex (radial) side cutters comprised of high tensile steel, specialized auxiliary spill plate for material deflection, high tensile strength steel (T1) moldboard group, side wear plates, bottom wear runners, abrasion package wear liners. Width range (subject to edge pattern and machine arrangement): 133-138 inches Weight: 11,450 lbs |
|||
| DX-BK-SGSPD-11.00cyd-WL-100
Bucket-Sand and Gravel Spade Nose-11.00 cyd capacity-Wheel Loader-Class 100 STANDARD FEATURES: spade nose edge, 3 piece replaceable bolt-on cutting edges, high strength T1 steel moldboard, floor liner system, rear bolt-on wear plates, auxiliary spill guard, radial side cutters, outside side plate wear plates, flat floor construction. Width range (subject to edge pattern and machine arrangement): 156-160 inches Weight: 11,800 lbs |
|||
| DX-BK-SGSPD-11.50cyd-WL-100
Bucket-Sand and Gravel Spade Nose-11.50 cyd capacity-Wheel Loader-Class 100 STANDARD FEATURES: spade nose edge, 3 piece replaceable bolt-on cutting edges, high strength T1 steel moldboard, floor liner system, rear bolt-on wear plates, auxiliary spill guard, radial side cutters, outside side plate wear plates, flat floor construction. Width: 157 inches Weight: 11,950 lbs |
|||
| DX-BK-SGSPD-12.00cyd-WL-100
Bucket-Sand and Gravel Spade Nose-12.00 cyd capacity-Wheel Loader-Class 100 STANDARD FEATURES: spade nose edge, 3 piece replaceable bolt-on cutting edges, high strength T1 steel moldboard, floor liner system, rear bolt-on wear plates, auxiliary spill guard, radial side cutters, outside side plate wear plates, flat floor construction. Width range (subject to edge pattern and machine arrangement): 156-160 inches Weight: 12,500 lbs |
|||
| Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions 1-800-530-5407. |
