Specifications

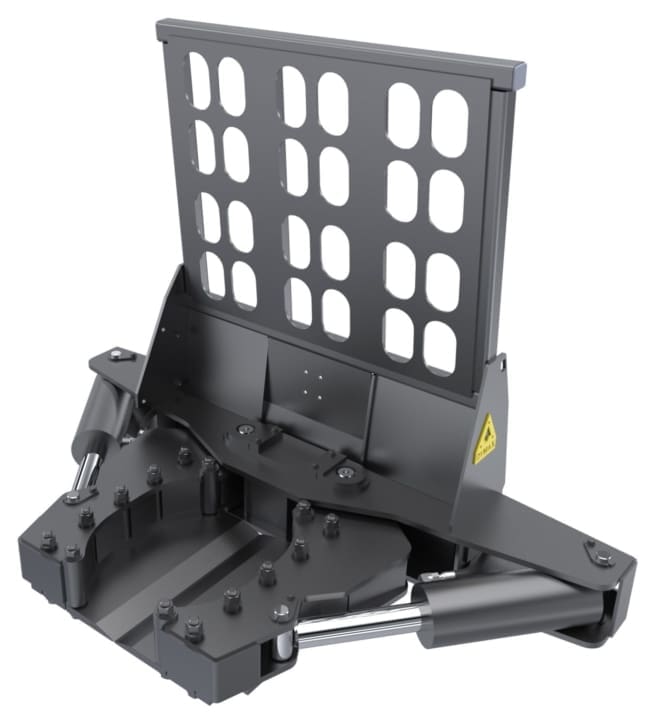

20″ Ranch Axe Tree Shear | |
---|---|
Model No. | DX-TS-LCBR-20in-SS-USS |
Weight (lbs.) | 1900 |
Height (in.) | 40.25″ |
Width (in.) | 82.72″ |
Overall depth (in.) | 40.00″ |
Shear blade material | 1″ AR400 Steel Single-Bevel Blade (Replaceable) |
Machine Requirements | Provided with set of jumper hoses with quick disconnects to standard flow lines connection. |
---|---|
Operating Capacity | 2,100 (minimum) |
Hydraulic Flow Requirement (gpm) | 17 (minimum) |
Hydraulic Pressure Requirement (psi) | 3,000 (maximum) |
Cylinder | Rod (in.) | Bore (in.) | Stroke (in.) |
---|---|---|---|
Shear | 3.00″ | 6.00″ | 12.00″ |
Specifications are subject to change without notice.
Features
- Near ground level cutting.
- Single bevel shear blades are easily replaced when worn.
- Shear blades are comprised of high tensile steel.
- Heavy duty, box weld constructed shearing arms.
- Extremely powerful 6” shearing cylinders.
- Convenient and well protected hose routing.
- Brush guard assembly.
- 3″ chrome plated pivot pins and replaceable bearings.
