Extreme Duty Grapple Rakes

Dymax Extreme Duty Root Rakes with top clamps

EXTREME DUTY GRAPPLE RAKES

Dymax Extreme Duty Grapple Rakes are built tough for harsh environments and demanding applications. Choose between the RT or WT series rake with a double or full width top clamp. Models are available to fit many popular quick coupler systems or can pin direct to the loader arms. Available for machines up to 120,000lbs in operating weight.

APPLICATIONS

C&D debris removal; Recycling; Disaster response & storm cleanup; Road maintenance & infrastructure; Forestry and landclearing; Stump removal; Waste management and disposal; Mulch and compost operation.

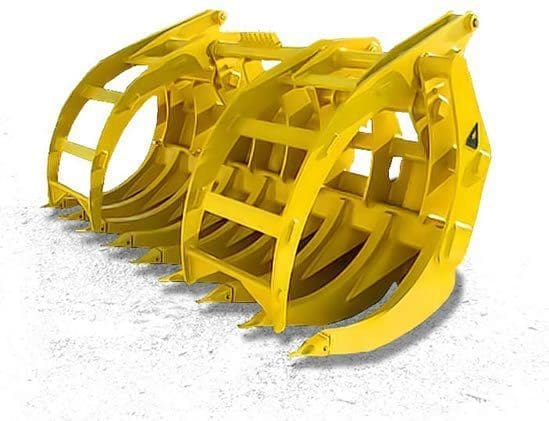

DUAL GRAPPLE (DX-RK-XSDG)

WT SERIES

Features weld on replaceable teeth

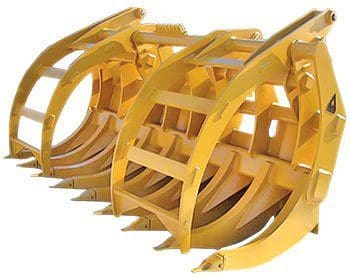

FULL WIDTH GRAPPLE (DX-RK-XSFG)

RT SERIES

Features ESCO replaceable tine tips

DUAL GRAPPLE MODELS WT AND RT SERIES

Machine operating weight 26,000-31,000 lbs

Model No. DX-RK-XSDG-108X10WT-WL-50

Rake-Extreme Service Double Grapple-108 inch raking width x 10 tines with welded replaceable tips-Wheel Loader-Class 50

STANDARD FEATURES: • 1.50in A514 grade steel rake tines • Welded AR400 replaceable tine tips • 10 total tines with cross tube • Avg tine spacing 10 inches • Dual independent grapples • 4.0 x 16.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 7.45 cubic yards

Weight 6,300 lbs

Machine operating weight 32,000-38,000 lbs

Model No. DX-RK-XSDG-119X11WT-WL-60

Rake-Extreme Service Double Grapple-119 inch raking width x 11 tines with welded replaceable tips-Wheel Loader-Class 60

STANDARD FEATURES: • 1.75in A514 grade steel rake tines • Welded AR400 replaceable tine tips • 10 total tines with cross tube • Avg tine spacing 10 inches • Dual independent grapples • 4.0 x 16.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 8.15 cubic yards

Weight 7,000 lbs

Machine operating weight 40,000-47,500 lbs

Model No. DX-RK-XSDG-122x11RT-WL-70

Rake-Extreme Service Double Grapple-122 inch raking width x 11 tines with Esco replaceable tips-Wheel Loader-Class 70

STANDARD FEATURES: • 2.00in A514 grade steel rake tines • Esco weld-on nose adapters and replaceable teeth • 11 total tines with cross tube • Avg tine spacing 10 inches • Dual independent grapples • 4.0 x 16.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 8.35 cubic yards

Weight 7,600 lbs

Machine operating weight 40,000-47,500 lbs

Model No. DX-RK-XSDG-122x11WT-WL-70

Rake-Extreme Service Double Grapple-122 inch raking width x 11 tines with welded replaceable tips-Wheel Loader-Class 70

STANDARD FEATURES: • 2.00in A514 grade steel rake tines • Welded AR400 replaceable tine tips

• 11 total tines with cross tube • Avg tine spacing 10 inches • Dual independent grapples • 4.0 x 16.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 8.35 cubic yards

Weight 7,400 lbs

Machine operating weight 48,000-56,000 lbs

Model No. DX-RK-XSDG-134x12RT-WL-80

Rake-Extreme Service Double Grapple-134 inch raking width x 12 tines with Esco replaceable tips-Wheel Loader-Class 80

STANDARD FEATURES: • 2.00in A514 grade steel rake tines • Esco weld-on nose adapters and replaceable teeth • 12 total tines with cross tube • Avg tine spacing 10 inches • Dual independent grapples • 4.0 x 16.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 9.18 cubic yards

Weight 8,600 lbs

Machine operating weight 48,000-56,000 lbs

Model No. DX-RK-XSDG-134x12WT-WL-80

Rake-Extreme Service Double Grapple-134 inch raking width x 12 tines with welded replaceable tips-Wheel Loader-Class 80

STANDARD FEATURES: • 2.00in A514 grade steel rake tines • Welded AR400 replaceable tine tips • 12 total tines with cross tube • Avg tine spacing 10 inches • Dual independent grapples • 4.0 x 16.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 9.18 cubic yards

Weight 8,400 lbs

Machine operating weight 66,000-80,000 lbs

Model No. DX-RK-XSDG-146x13RT-WL-90

Rake-Extreme Service Double Grapple-146 inch raking width x 13 tines with Esco replaceable tips-Wheel Loader-Class 90

STANDARD FEATURES: • 2.00in A514 grade steel rake tines • Esco weld-on nose adapters and replaceable teeth • 13 total tines with cross tube • Avg tine spacing 10 inches • Dual independent grapples • 4.0 x 20.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 10.0 cubic yards

Weight 10,800 lbs

Machine operating weight 66,000-80,000 lbs

Model No. DX-RK-XSDG-146X13WT-WL-90

Rake-Extreme Service Double Grapple-146 inch raking width x 13 tines with welded replaceable tips-Wheel Loader-Class 90

STANDARD FEATURES:• 2.00in A514 grade steel rake tines • Welded AR400 replaceable tine tips • 13 total tines with cross tube • Avg tine spacing 10 inches • Dual independent grapples • 4.0 x 16.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 10.0 cubic yards

Weight 10,500 lbs

Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions 1-800-530-5407.

FULL WIDTH GRAPPLE MODELS WT & RT SERIES

Machine operating weight 26,000-31,000 lbs

Model No.DX-RK-XSFG-108X10WT-WL-50

Rake-Extreme Service Full Width Grapple-108 inch raking width x 10 tines with welded replaceable tips-Wheel Loader-Class 50

STANDARD FEATURES:• 1.50in A514 grade steel rake tines• Weld on AR400 tine tips• 10 total tines with cross tube• Avg tine spacing 10 inches• Full width grapple (1 piece)• 4.0 x 16.0 HD cylinders• Cushion valve kit• Stand legs for ease of uncoupling from machine• Hi-capacity clamp opening of 104 inches• Appx Heap capacity – 7.45 cubic yards

Weight 6,600 lbs

Machine operating weight 32,000-38,000 lbs

Model No. DX-RK-XSFG-119X11WT-WL-60

Rake-Extreme Service Full Width Grapple-119 inch raking width x 11 tines with welded replaceable tips-Wheel Loader-Class 60

STANDARD FEATURES: • 1.75in A514 grade steel rake tines • Welded AR400 replaceable tine tips • 11 total tines with cross tube • Avg tine spacing 10 inches • Full width grapple (1 piece) • 4.0 x 16.0 HD cylinders • Cushion valve kit • Stand legs for ease of uncoupling from machine • Hi-capacity clamp opening of 104 inches • Appx Heap capacity – 8.15 cubic yards

Weight 7,000 lbs

Machine operating weight 40,000-47,500 lbs

Model No.DX-RK-XSFG-122x11RT-WL-70

Rake-Extreme Service Full Width Grapple-122 inch raking width x 11 tines with Esco replaceable tips-Wheel Loader-Class 70

STANDARD FEATURES:• 2.00in A514 grade steel rake tines• Esco weld on nose adapters and teeth• 11 total tines with cross tube• Avg tine spacing 10 inches• Full width grapple (1 piece)• 4.0 x 16.0 HD cylinders• Cushion valve kit• Stand legs for ease of uncoupling from machine• Hi-capacity clamp opening of 104 inches• Appx Heap capacity – 8.35 cubic yards

Weight 7,650 lbs

Machine operating weight 40,000-47,500 lbs

Model No.DX-RK-XSFG-122x11WT-WL-70

Rake-Extreme Service Full Width Grapple-122 inch raking width x 11 tines with welded replaceable tips-Wheel Loader-Class 70

STANDARD FEATURES:• 2.00in A514 grade steel rake tines• Weld on AR400 tine tips• 11 total tines with cross tube• Avg tine spacing 10 inches• Full width grapple (1 piece)• 4.0 x 16.0 HD cylinders• Cushion valve kit• Stand legs for ease of uncoupling from machine• Hi-capacity clamp opening of 104 inches• Appx Heap capacity – 8.35 cubic yards

Weight 7,400 lbs

Machine operating weight 48,000-56,000 lbs

Model No. DX-RK-XSFG-134x12RT-WL-80

Rake-Extreme Service Full Width Grapple-134 inch raking width x 12 tines with Esco replaceable tips-Wheel Loader-Class 80

STANDARD FEATURES:• 2.00in A514 grade steel rake tines• Esco weld on nose adapters and teeth• 12 total tines with cross tube• Avg tine spacing 10 inches• Full width grapple (1 piece)• 4.0 x 16.0 HD cylinders• Cushion valve kit• Stand legs for ease of uncoupling from machine• Hi-capacity clamp opening of 104 inches• Appx Heap capacity – 9.18 cubic yards

Weight 8,600 lbs

Machine operating weight 48,000-56,000 lbs

Model No.DX-RK-XSFG-134x12WT-WL-80

Rake-Extreme Service Full Width Grapple-134 inch raking width x 12 tines with welded replaceable tips-Wheel Loader-Class 80

STANDARD FEATURES:• 2.00in A514 grade steel rake tines• Weld on AR400 tine tips• 12 total tines with cross tube• Avg tine spacing 10 inches• Full width grapple (1 piece)• 4.0 x 16.0 HD cylinders

• Cushion valve kit• Stand legs for ease of uncoupling from machine• Hi-capacity clamp opening of 104 inches• Appx Heap capacity – 9.18 cubic yards

Weight 8,400 lbs

Machine operating weight 66,000-80,000 lbs

Model No. DX-RK-XSFG-146x13RT-WL-90

Rake-Extreme Service Full Width Grapple-146 inch raking width x 13 tines with Esco replaceable tips-Wheel Loader-Class 90

STANDARD FEATURES:• 2.00in A514 grade steel rake tines• Esco weld on nose adapters and teeth• 13 total tines with cross tube• Avg tine spacing 10 inches• Full width grapple (1 piece)• 4.0 x 20.0 HD cylinders• Cushion valve kit• Stand legs for ease of uncoupling from machine• Hi-capacity clamp opening of 104 inches• Appx Heap capacity – 10 cubic yards

Weight 11,000 lbs

Machine operating weight 90,000-110,000 lbs

Model No. DX-RK-XSFG-194x17RT-WL-100

Rake-Extreme Service Full Width Grapple-194 inch raking width x 17 tines with Esco replaceable tips-Wheel Loader-Class 100

STANDARD FEATURES:• 2.00in A514 grade steel rake tines• Esco weld on nose adapters and teeth

• 17 total tines with cross tube• Avg tine spacing 10 inches• Full width grapple (1 piece)• 4.0 x 20.0 HD cylinders• Cushion valve kit• Stand legs for ease of uncoupling from machine• Hi-capacity clamp opening of 104 inches• Appx Heap capacity – 13.29 cubic yards

Weight 17,500 lbs

Design and specifications are subject to change without notice. Please contact Dymax for more information 1-800-530-5407.
