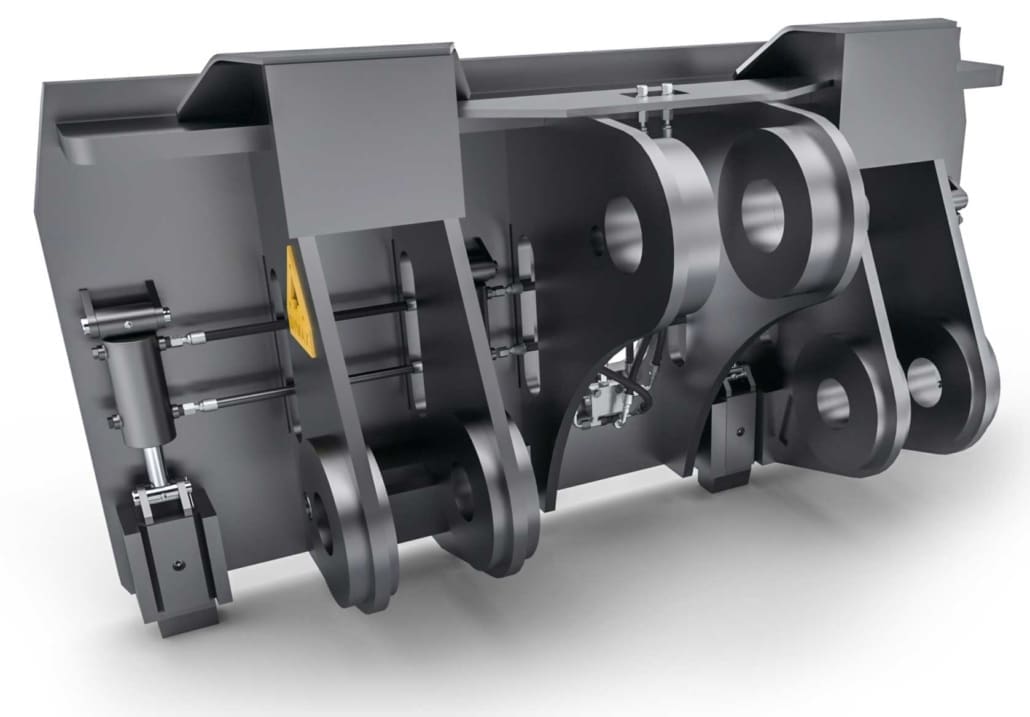

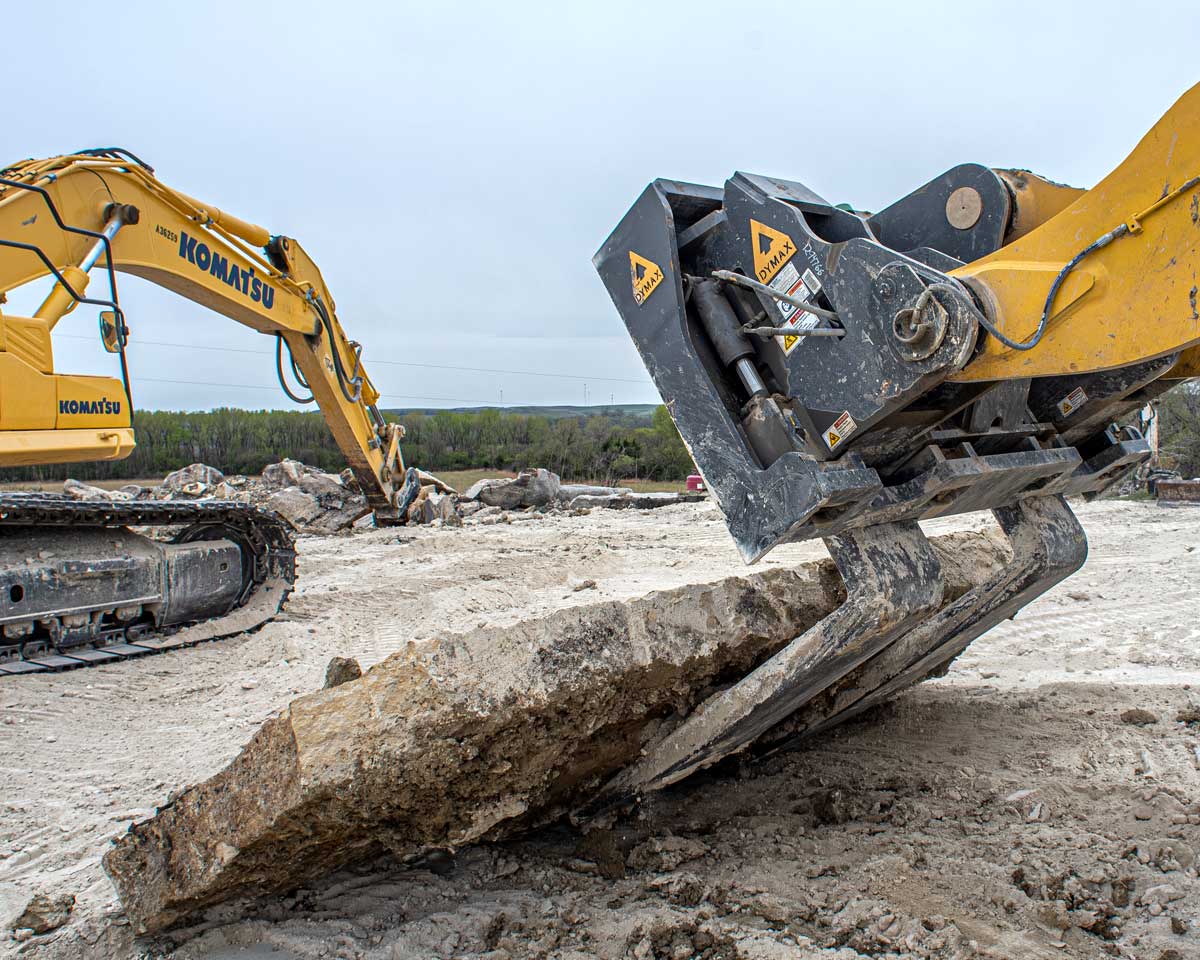

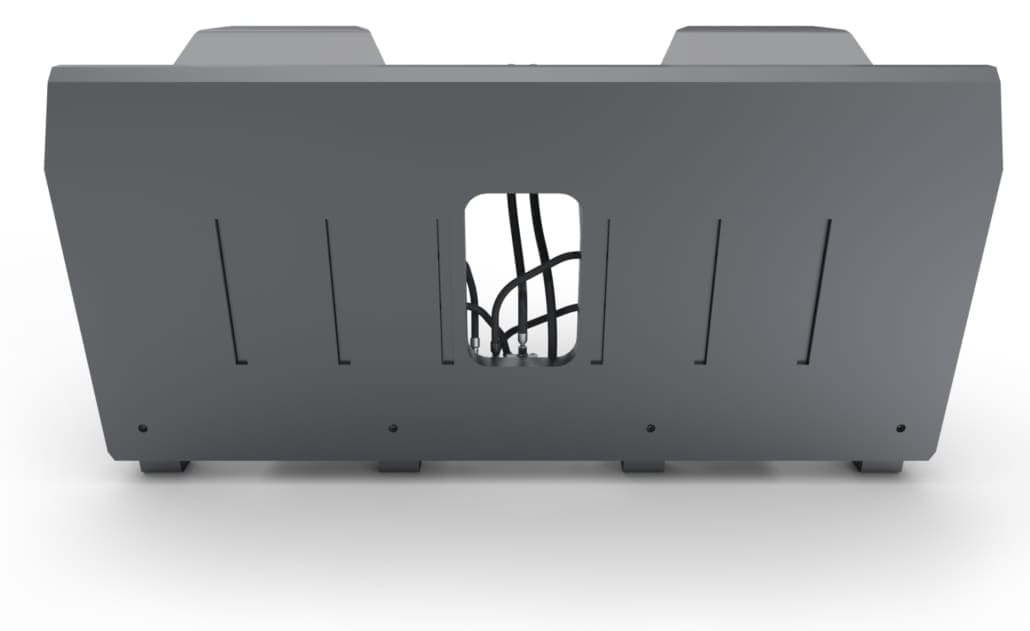

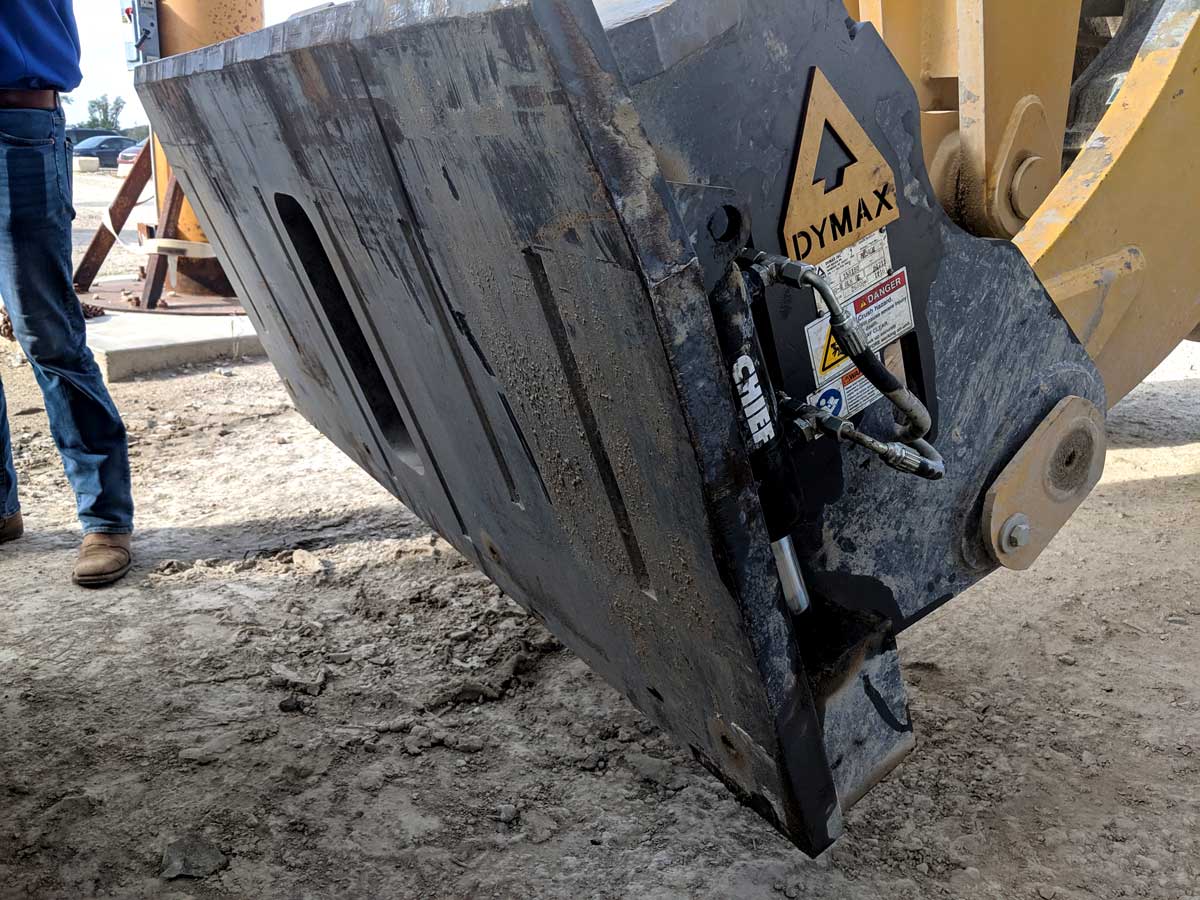

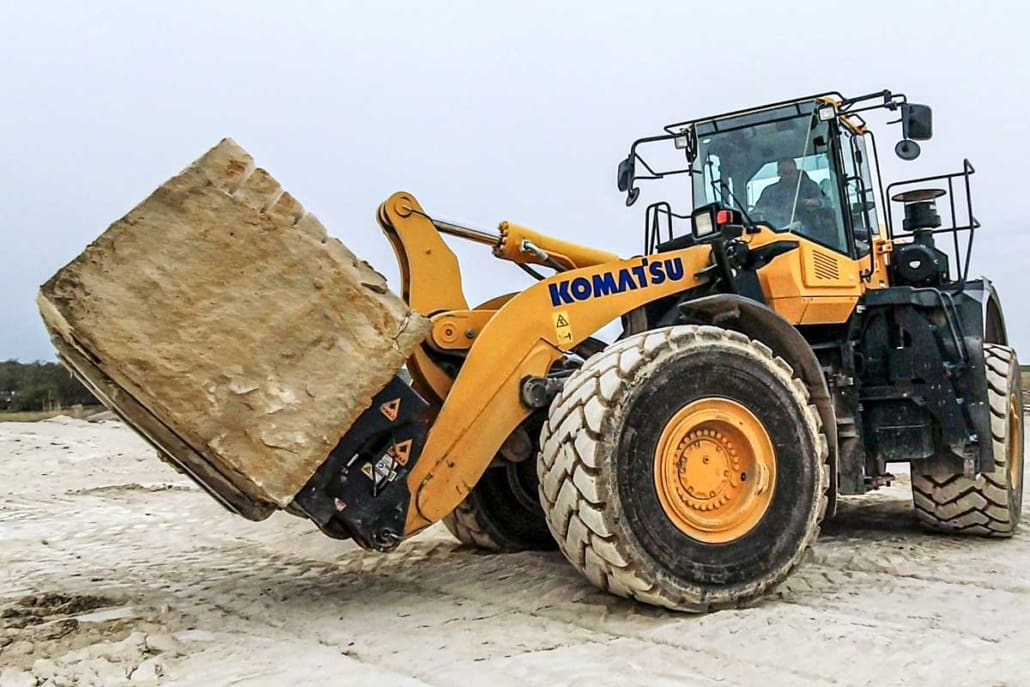

Dymax Block Handling Quick Couplers for wheel loaders are designed to retain maximum lifting and breakout capacity. With heavy-duty construction and two or four locking cylinders (depending on model), they deliver long service life in quarry environments. Models can be set up with visibility window to increase operator visibility while handling large rocks and blocks.
BLOCK HANDLING COUPLER MODELS
| Model Description Weight (lbs) |
| DX-QC-BH-WG-TL-70
Quick Coupler-Block Handling-Wedge Lock-Track Loader-Class 70 STANDARD FEATURES: – Twin cylinder wedge lock design – Compatible with CWTS block handling wedge lock coupler system Coupler design similar to large block handling models Uses wedge-lock design from block handlers WEIGHT: 1425 lbs |
| DX-QC-BH-WG-WL-80
Quick Coupler-Block Handling-Wedge Lock-Wheel Loader-Class 80 STANDARD FEATURES: – 2x wedge locks – Load check valve |
| DX-QC-BH-WG-WL-90
Quick Coupler-Block Handling-Wedge Lock-Wheel Loader-Class 90 STANDARD FEATURES: – 4x wedge locks – Load check valve WEIGHT: 2600 lbs |
| DX-QC-BH-WG-WL-100
Quick Coupler-Block Handling-Wedge Lock-Wheel Loader-Class 100 STANDARD FEATURES: – 4x wedge locks – Load check valve WEIGHT: 3300 lbs |
| DX-QC-BH-WG-WL-110
Quick Coupler-Block Handling-Wedge Lock-Wheel Loader-Class 110 STANDARD FEATURES: – 4x wedge locks – Load check valve WEIGHT: 4400 lbs |
| DX-QC-BH-WG-WL-120
Quick Coupler-Block Handling-Wedge Lock-Wheel Loader-Class 120 STANDARD FEATURES: – 4x wedge locks – Load check valve WEIGHT: 6500 lbs |
Design and specifications are subject to change without notice.
HYDRAULIC REQUIREMENTS
| HYDRAULIC REQUIREMENTS:
Your machine will require auxiliary 3rd valve in order to unlock and lock the quick coupler pins. CIRCUIT 1 – Coupler Lock/Unlock – Type: Two-way (bidirectional) – GPM (min/max) 5-10, PSI (min/max) 2,000/ 3,000 If using Dymax electro kit, your connection should be into a circuit less than 24GPM flow rates capable of 2,000-3,000 psi. NOT SUPPLIED: Hoses from coupler to the machine lines. |
