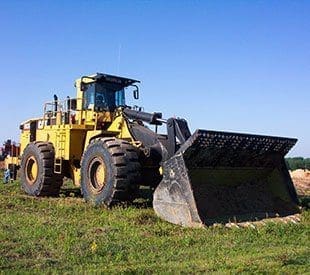

Coal Buckets for Wheel Loaders and Toolcarrier

Dymax Coal Loader Buckets are built to provide years of productive use and are backed by the best service in the industry.

Designed for materials weighing 1700lbs or less, Dymax coal buckets are specifically engineered to match each machine and its parameters.

Dymax Coal Loader Buckets can be configured as stockpile or seam loading buckets. Straight edge models and spade nose edge models are available, and can be equipped with replacement OEM bolt on cutting edges or specific teeth. All buckets feature heavy duty high tensile steel bottom wear plate construction.

Model Number	Description	Weight (lbs/kg)
DX-BK-CL-7.00cyd-WL-60	Bucket – Coal – 7.00 cyd capacity – Wheel Loader – Class 60	4,300 lbs/1,950 kg
DX-BK-CL-7.00cyd-WL-70	Bucket – Coal – 7.00 cyd capacity – Wheel Loader – Class 70	5,200 lbs/2,359 kg
DX-BK-CL-8.00cyd-WL-70	Bucket – Coal – 8.00 cyd capacity – Wheel Loader – Class 70	5,500 lbs/2,495 kg
DX-BK-CL-7.50cyd-WL-80	Bucket – Coal – 7.50 cyd capacity – Wheel Loader – Class 80	5,100 lbs/2,313 kg
DX-BK-CL-8.00cyd-WL-80	Bucket – Coal – 8.00 cyd capacity – Wheel Loader – Class 80	5,300 lbs/2,404 kg
DX-BK-CL-8.50cyd-WL-80	Bucket – Coal – 8.50 cyd capacity – Wheel Loader – Class 80	5,500 lbs/2,495 kg
DX-BK-CL-9.00cyd-WL-80	Bucket – Coal – 9.00 cyd capacity – Wheel Loader – Class 80	5,790 lbs/2,626 kg
DX-BK-CL-9.50cyd-WL-80	Bucket – Coal – 9.50 cyd capacity – Wheel Loader – Class 80	6,080 lbs/2,758 kg
DX-BK-CL-14.00cyd-WL-100	Bucket – Coal – 14.00 cyd capacity – Wheel Loader – Class 100	11,200 lbs/5,080 kg
DX-BK-CL-15.00cyd-WL-100	Bucket – Coal – 15.00 cyd capacity – Wheel Loader – Class 100	11,800 lbs/5,352 kg
DX-BK-CL-18.00cyd-WL-110	Bucket – Coal – 18.00 cyd capacity – Wheel Loader – Class 110	14,800 lbs/6,713 kg
DX-BK-CL-20.00cyd-WL-110	Bucket – Coal – 20.00 cyd capacity – Wheel Loader – Class 110	16,000 lbs/7,258 kg
DX-BK-CL-22.00cyd-WL-110	Bucket – Coal – 22.00 cyd capacity – Wheel Loader – Class 110	17,099 lbs/7,756 kg
DX-BK-CLSM-12.50cyd-WL-110	Bucket – Coal Seam Loading – 12.50 cyd capacity – Wheel Loader – Class 110	15,200 lbs/6,895 kg
DX-BK-CL-25.00cyd-WL-120	Bucket – Coal – 25.00 cyd capacity – Wheel Loader – Class 120	19,680 lbs/8,927 kg
DX-BK-CL-26.00cyd-WL-120	Bucket – Coal – 26.00 cyd capacity – Wheel Loader – Class 120	20,200 lbs/9,163 kg
DX-BK-CL-28.00cyd-WL-120	Bucket – Coal – 28.00 cyd capacity – Wheel Loader – Class 120	21,588 lbs/9,792 kg
DX-BK-CL-30.00cyd-WL-120	Bucket – Coal – 30.00 cyd capacity – Wheel Loader – Class 120	24,500 lbs/11,113 kg
DX-BK-CL-32.00cyd-WL-120	Bucket – Coal – 32.00 cyd capacity – Wheel Loader – Class 120	28,000 lbs/12,701 kg
DX-BK-CL-40.00cyd-WL-130	Bucket – Coal – 40.00 cyd capacity – Wheel Loader – Class 130	44,500 lbs/20,185 kg
DX-BK-CL-42.00cyd-WL-130	Bucket – Coal – 42.00 cyd capacity – Wheel Loader – Class 130	46,800 lbs/21,228 kg
DX-BK-CL-45.00cyd-WL-130	Bucket – Coal – 45.00 cyd capacity – Wheel Loader – Class 130	48,500 lbs/22,000 kg

Model Number

Description

Weight (lbs/kg)

DX-BK-CL-7.00cyd-WL-60

Bucket – Coal – 7.00 cyd capacity – Wheel Loader – Class 60

4,300 lbs/1,950 kg

DX-BK-CL-7.00cyd-WL-70

Bucket – Coal – 7.00 cyd capacity – Wheel Loader – Class 70

5,200 lbs/2,359 kg

DX-BK-CL-8.00cyd-WL-70

Bucket – Coal – 8.00 cyd capacity – Wheel Loader – Class 70

5,500 lbs/2,495 kg

DX-BK-CL-7.50cyd-WL-80

Bucket – Coal – 7.50 cyd capacity – Wheel Loader – Class 80

5,100 lbs/2,313 kg

DX-BK-CL-8.00cyd-WL-80

Bucket – Coal – 8.00 cyd capacity – Wheel Loader – Class 80

5,300 lbs/2,404 kg

DX-BK-CL-8.50cyd-WL-80

Bucket – Coal – 8.50 cyd capacity – Wheel Loader – Class 80

5,500 lbs/2,495 kg

DX-BK-CL-9.00cyd-WL-80

Bucket – Coal – 9.00 cyd capacity – Wheel Loader – Class 80

5,790 lbs/2,626 kg

DX-BK-CL-9.50cyd-WL-80

Bucket – Coal – 9.50 cyd capacity – Wheel Loader – Class 80

6,080 lbs/2,758 kg

DX-BK-CL-14.00cyd-WL-100

Bucket – Coal – 14.00 cyd capacity – Wheel Loader – Class 100

11,200 lbs/5,080 kg

DX-BK-CL-15.00cyd-WL-100

Bucket – Coal – 15.00 cyd capacity – Wheel Loader – Class 100

11,800 lbs/5,352 kg

DX-BK-CL-18.00cyd-WL-110

Bucket – Coal – 18.00 cyd capacity – Wheel Loader – Class 110

14,800 lbs/6,713 kg

DX-BK-CL-20.00cyd-WL-110

Bucket – Coal – 20.00 cyd capacity – Wheel Loader – Class 110

16,000 lbs/7,258 kg

DX-BK-CL-22.00cyd-WL-110

Bucket – Coal – 22.00 cyd capacity – Wheel Loader – Class 110

17,099 lbs/7,756 kg

DX-BK-CLSM-12.50cyd-WL-110

Bucket – Coal Seam Loading – 12.50 cyd capacity – Wheel Loader – Class 110

15,200 lbs/6,895 kg

DX-BK-CL-25.00cyd-WL-120

Bucket – Coal – 25.00 cyd capacity – Wheel Loader – Class 120

19,680 lbs/8,927 kg

DX-BK-CL-26.00cyd-WL-120

Bucket – Coal – 26.00 cyd capacity – Wheel Loader – Class 120

20,200 lbs/9,163 kg

DX-BK-CL-28.00cyd-WL-120

Bucket – Coal – 28.00 cyd capacity – Wheel Loader – Class 120

21,588 lbs/9,792 kg

DX-BK-CL-30.00cyd-WL-120

Bucket – Coal – 30.00 cyd capacity – Wheel Loader – Class 120

24,500 lbs/11,113 kg

DX-BK-CL-32.00cyd-WL-120

Bucket – Coal – 32.00 cyd capacity – Wheel Loader – Class 120

28,000 lbs/12,701 kg

DX-BK-CL-40.00cyd-WL-130

Bucket – Coal – 40.00 cyd capacity – Wheel Loader – Class 130

44,500 lbs/20,185 kg

DX-BK-CL-42.00cyd-WL-130

Bucket – Coal – 42.00 cyd capacity – Wheel Loader – Class 130

46,800 lbs/21,228 kg

DX-BK-CL-45.00cyd-WL-130

Bucket – Coal – 45.00 cyd capacity – Wheel Loader – Class 130

48,500 lbs/22,000 kg
