DYMAX 5TH WHEEL QUICK COUPLER
FOR WHEEL LOADERS AND 3-POINT TRACTORS
The Dymax 5th Wheel Quick Coupler is a heavy-duty trailer spotting and material-handling attachment for wheel loaders and 3-point tractors. With a 70,000 lb load capacity and reinforced pivot frame, it enables operators to lift, reposition, and offload trailer-mounted equipment, ISO containers, and van bodies, all with minimal hydraulic requirements.
Product Highlights
- Fits: Wheel Loaders & 3 Point Tractors
- Capacity: 70,000 lb
- Connection: Quick Coupler or Direct Pin
- Hydraulics: 1 auxiliary circuit
- Coupler Lock: Manual
KEY BENEFITS

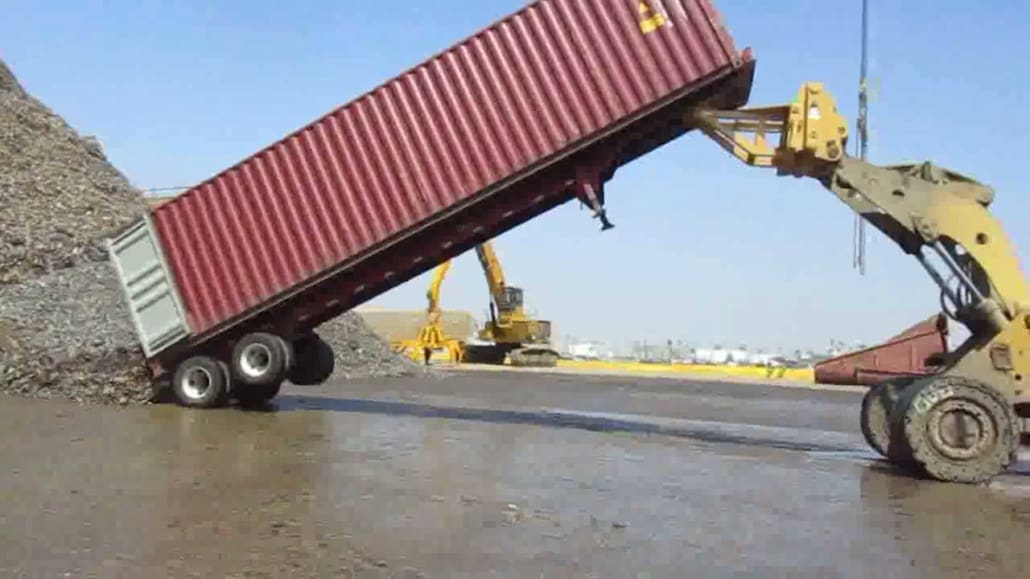

- 70,000 lb capacity for lift-and-dump operations
- Heavy-duty pivot frame built for structural durability
- Quick hitch adaptable for fast connection

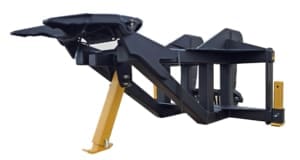

- Stowable support legs for easier hookup
- Open carriage design for maximum visibility during operation
APPLICATIONS

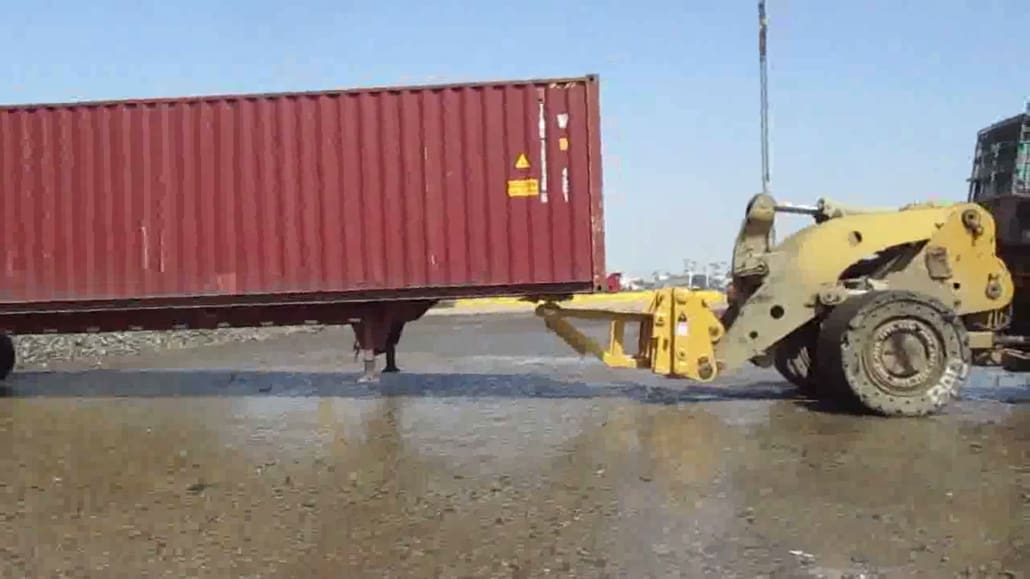

- Rail & Intermodal Yards: Spot and reposition container trailers and equipment.
- Oil & Gas Fields: Ideal mowing, ditch cleaning, and roadside work.
- Mines, Quarries, and Demolition Sites: Transfer and offload equipment trailers and aggregate bins.
- Ports and Recycling Yards: Move van bodies, roll-off bins, and dump containers.
SPECIFICATIONS
WHEEL LOADER COUPLER MODELS
| Model / Group Number Description Machines Weight (lbs) |
| DX-QC-5TH-70K-WL-80; GN REF 8414D1
Quick Coupler-Fifth Wheel Hitch-70,000 lb capacity-Wheel Loader-Class 80 Machines: Cat 966/972, Deere 744, Komatsu WA480 Weight: 2,200 lbs |
| DX-QC-5TH-70K-WL-90
Quick Coupler-Fifth Wheel Hitch-70,000 lb capacity-Wheel Loader-Class 90 Machines: Cat 980, Deere 844, Komatsu WA500 Weight: 3,000 lbs |

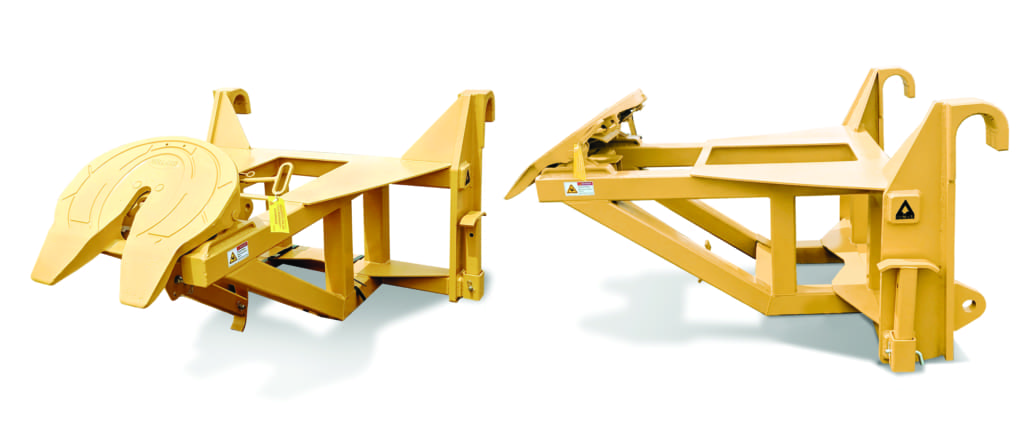

| DX-QC-5TH-70K-WL-100
Quick Coupler-Fifth Wheel Hitch-70,000 lb capacity-Wheel Loader-Class 100 Machines: Cat 988, Deere 944, Komatsu WA600 Weight: 3,250 lbs |
Design and specifications are subject to change without notice.
3-POINT HITCH TRACTOR COUPLER MODELS
| Model / Group Number Description Machines Weight (lbs) |
| DX-QC-5TH-70K-TR-3PT; GN REF7188D1
Machines: Quick Coupler-Fifth Wheel Hitch-70,000 lb capacity-Tractor-3 Point Hitch Weight: 1,450 lbs |
Design and specifications are subject to change without notice.
