MultiPurpose Buckets (4 in 1)
MultiPurpose Buckets for Wheel Loaders, Track Loaders and Toolcarriers:
BACKDRAG, DOZE, LOAD AND GRAB
Dymax Multipurpose 4-in-1 Buckets for Wheel Loaders, Toolcarriers and Track Loaders are fabricated from high-strength alloy steel and designed for thousands of hours of profitable production.
These multi-purpose buckets are versatile tools, whether working as general purpose buckets, or operating in clamshell, back dragging, back filling and land clearing applications.
MultiPurpose Buckets (4 in 1)
Specifications
| Model Number | Description | Weight (lbs/kg) |
|---|---|---|
| DX-BK-MP-1.75cyd-WL-40 | Multi-Purpose Bucket – 1.75 cyd capacity – Wheel Loader – Class 40 | 2,570 lbs/1,166 kg |
| DX-BK-MP-2.00cyd-WL-40 | Multi-Purpose Bucket – 2.00 cyd capacity – Wheel Loader – Class 40 | 2,700 lbs/1,225 kg |
| DX-BK-MP-2.25cyd-WL-40 | Multi-Purpose Bucket – 2.25 cyd capacity – Wheel Loader – Class 40 | 2,875 lbs/1,304 kg |
| DX-BK-MP-2.25cyd-WL-50 | Multi-Purpose Bucket – 2.25 cyd capacity – Wheel Loader – Class 50 | 3,100 lbs/1,406 kg |
| DX-BK-MP-2.50cyd-WL-50 | Multi-Purpose Bucket – 2.50 cyd capacity – Wheel Loader – Class 50 | 3,210 lbs/1,456 kg |
| DX-BK-MP-2.75cyd-WL-50 | Multi-Purpose Bucket – 2.75 cyd capacity – Wheel Loader – Class 50 | 3,340 lbs/1,515 kg |
| DX-BK-MP-2.75cyd-WL-60 | Multi-Purpose Bucket – 2.75 cyd capacity – Wheel Loader – Class 60 | 3,550 lbs/1,610 kg |
| DX-BK-MP-3.00cyd-WL-60 | Multi-Purpose Bucket – 3.00 cyd capacity – Wheel Loader – Class 60 | 3,790 lbs/1,719 kg |
| DX-BK-MP-3.25cyd-WL-60 | Multi-Purpose Bucket – 3.25 cyd capacity – Wheel Loader – Class 60 | 3,995 lbs/1,812 kg |
| DX-BK-MP-3.50cyd-WL-60 | Multi-Purpose Bucket – 3.50 cyd capacity – Wheel Loader – Class 60 | 4,350 lbs/1,973 kg |
| DX-BK-MP-3.25cyd-WL-70 | Multi-Purpose Bucket – 3.25 cyd capacity – Wheel Loader – Class 70 | 4,150 lbs/1,882 kg |
| DX-BK-MP-3.50cyd-WL-70 | Multi-Purpose Bucket – 3.50 cyd capacity – Wheel Loader – Class 70 | 4,460 lbs/2,023 kg |
| DX-BK-MP-3.75cyd-WL-70 | Multi-Purpose Bucket – 3.75 cyd capacity – Wheel Loader – Class 70 | 4,600 lbs/2,087 kg |
| DX-BK-MP-4.00cyd-WL-70 | Multi-Purpose Bucket – 4.00 cyd capacity – Wheel Loader – Class 70 | 4,900 lbs/2,223 kg |
| DX-BK-MP-3.75cyd-WL-80 | Multi-Purpose Bucket – 3.75 cyd capacity – Wheel Loader – Class 80 | 4,700 lbs/2,132 kg |
| DX-BK-MP-4.00cyd-WL-80 | Multi-Purpose Bucket – 4.00 cyd capacity – Wheel Loader – Class 80 | 4,880 lbs/2,214 kg |
| DX-BK-MP-4.25cyd-WL-80 | Multi-Purpose Bucket – 4.25 cyd capacity – Wheel Loader – Class 80 | 4,990 lbs/2,263 kg |
| DX-BK-MP-4.50cyd-WL-80 | Multi-Purpose Bucket – 4.50 cyd capacity – Wheel Loader – Class 80 | 5,180 lbs/2,350 kg |
| DX-BK-MP-4.50cyd-WL-90 | Multi-Purpose Bucket – 4.50 cyd capacity – Wheel Loader – Class 90 | 6,800 lbs/3,084 kg |
| DX-BK-MP-5.00cyd-WL-90 | Multi-Purpose Bucket – 5.00 cyd capacity – Wheel Loader – Class 90 | 7,600 lbs/3,447 kg |
Specifications are subject to change without notice.
Features
- Drilled to accept OEM bolt on cutting edges or teeth installed on the leading clamshell edge. Optional bolt-on edges are available for the backside of the clamshell if specified. All buckets feature clam positioning guides.
- A Dymax heat-treated bolt-on reversible cutting edge is installed on the dozer section.
- Large, high-quality cylinders operate the clamp portion of the bucket and the design provides for protection of those cylinders and fittings.
- Cutting side bar is beveled for increased penetration of material.
- Bucket floor design incorporates extra wear plates for back dragging and clamping applications.
- The spill plate features gussets for added strength in tough applications.

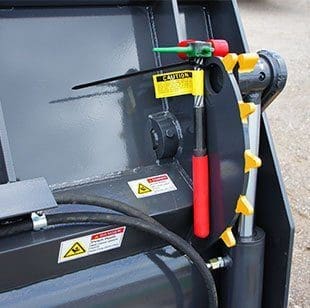

- Clam opens a generous 85-90 degrees, providing full access to the dozer portion of the bucket and allowing the bucket to be used in applications that require grabbing or clamping materials for hauling or moving.
- Available in a direct pin-on style or equipped with coupler hooks to fit the Dymax coupler system or other models.
