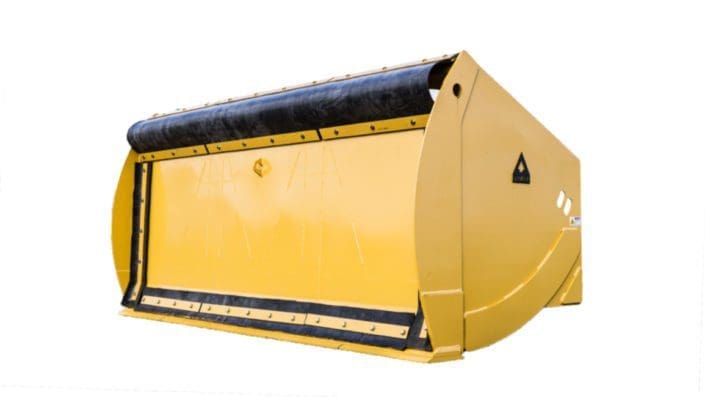

Pushout Loader Buckets
Dymax Pushout Buckets (also known as ejector buckets) help reduce feeding overages by improving control over ingredient volumes. More accurate loading means less feed waste, more consistent rations, and improved livestock nutrition.

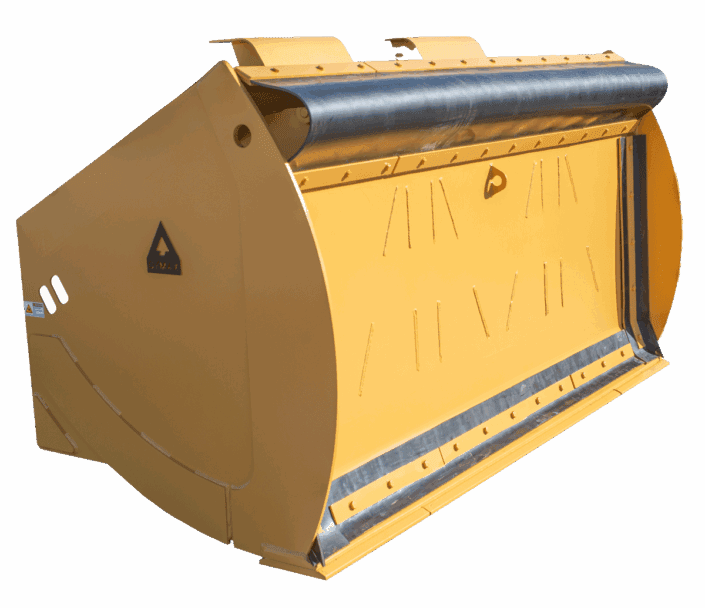

That control comes from a hydraulically driven pushout ram that ejects material from the bucket instead of dumping it. By eliminating the dump cycle of standard buckets and the uncontrolled rollout of rollout buckets, operators can unload material precisely and consistently.
Because material is pushed out rather than dumped, pushout buckets reduce equipment stress. This design minimizes loader lift arm fatigue and eliminates the bucket fatigue commonly associated with rollout-style buckets.
Stop dumping and start pushing with a Dymax Pushout Loader Bucket—built for controlled feeding, reduced waste, and long-term durability.
“A Dymax Pushout Bucket and a CAT Fusion Coupler together are bulletproof. There is just no wiggle in it.”
– Brent, Cat Dealer in Iowa
“You can give me another brand of loader, but you can’t take my Dymax Pushout bucket away from me!”
– Feedlot Operator, Eastern Colorado
FEATURES & BENEFITS

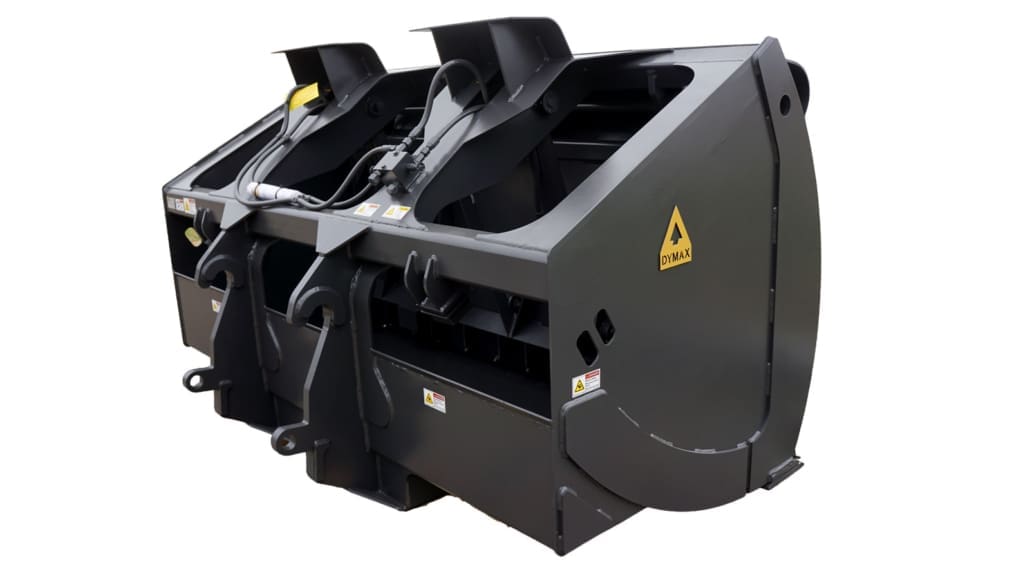

- Two heavy duty cylinder rams.
- Available as pin-on, or equipped with coupler hooks to fit Dymax or other brand quick couplers.
- Replaceable heat treated bottom wear shoes.
- Bolt-on replaceable interior bucket wipers seal bucket interior.
- Countersunk base edge with nylon plugs and replaceable bolt-on cutting edge.

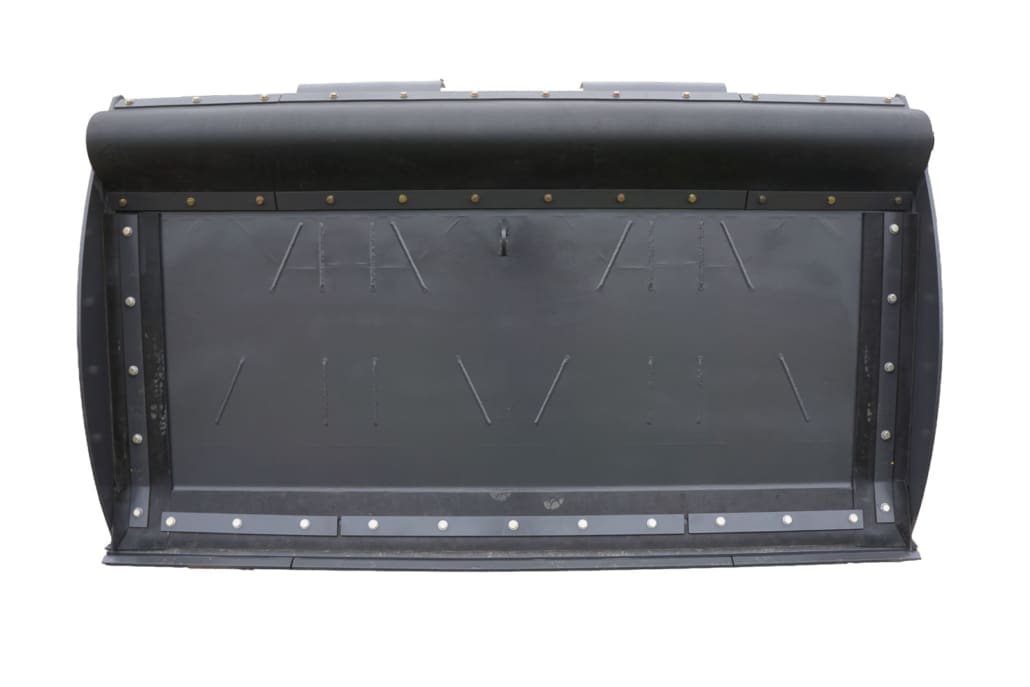

- Replaceable neoprene squeegees line the sides of the ram and cleanly sweep the material from the bucket.
- Dump heights vary, depending upon machine lift arms, but routinely exceed 14 feet at full lift and 30° rack back angle.
APPLICATIONS
- Dairies
- Feed operations
- Ethanol facilities
- Cattle feedlots
- Sugar beets
- Landfills
- Co-ops
- Woodchips

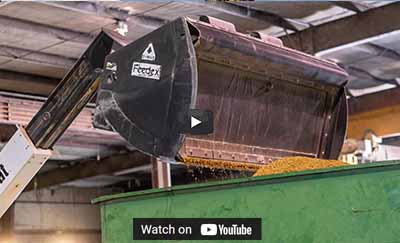

SEE IT IN ACTION!

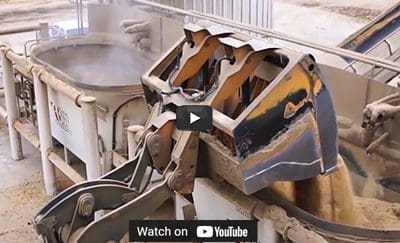

The unique hydraulically-driven ram moves forward in a smooth motion, metering the exact amount of material needed.
CUSTOMER STORY
Learn how an organic feed company saves money every month with the Dymax Pushout Bucket.
SPECIFICATIONS
PUSHOUT BUCKET MODELS
| Model Description Weight (lbs) |
| DX-BK-PO-1.25CYD-WL-20
Bucket-Push-Out-1.25 cyd capacity-Wheel Loader-Class 20 STANDARD FEATURES: – Dymax 3/4 x 8 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin-cylinder push gate – Radial side cutters WIDTH: 72 inches WEIGHT: 2000 lbs |
| DX-BK-PO-1.75cyd-WL-20
Bucket-PushOut-1.75 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 20 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 96 inches WEIGHT: 2000 lbs |
| DX-BK-PO-2.04cyd-WL-40
Bucket-PushOut-2.04 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 40 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 100 inches WEIGHT: 2100 lbs |
| DX-BK-PO-2.69cyd-WL-30
Bucket-PushOut-2.69 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 30 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 100 inches WEIGHT: 3350 lbs |
| DX-BK-PO-3.61cyd-WL-40
Bucket-PushOut-3.61 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 40 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 104 inches WEIGHT: 4400 lbs |
| DX-BK-PO-3.61cyd-WL-50
Bucket-PushOut-3.61 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 50 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 104 inches WEIGHT: 4400 lbs |
| DX-BK-PO-4.52cyd-WL-40
Bucket-PushOut-4.52 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 40 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 114 inches WEIGHT: 5000 lbs |
| DX-BK-PO-4.52cyd-WL-50
Bucket-PushOut-4.52 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 50 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 114 inches WEIGHT: 5000 lbs |
| DX-BK-PO-4.52cyd-WL-60
Bucket-PushOut-4.52 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 60 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 114 inches WEIGHT: 5000 lbs |
| DX-BK-PO-5.10cyd-WL-50
Bucket-PushOut-5.10 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 50 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 128 inches WEIGHT: 6100 lbs |
| DX-BK-PO-5.10cyd-WL-60
Bucket-PushOut-5.10 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 60 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 128 inches WEIGHT: 6100 lbs |
| DX-BK-PO-5.50cyd-WL-60
Bucket-PushOut-5.50 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 60 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 114 inches WEIGHT: 5800 lbs |
| DX-BK-PO-5.92cyd-WL-60
Bucket-PushOut-5.92 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 60 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 120 inches WEIGHT: 6050 lbs |
| DX-BK-PO-5.92cyd-WL-70
Bucket-PushOut-5.92 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 70 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 120 inches WEIGHT: 6050 lbs |
| DX-BK-PO-6.50cyd-WL-70
Bucket-PushOut-6.50 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 70 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 130 inches WEIGHT: 6350 lbs |
| DX-BK-PO-7.03cyd-WL-70
Bucket-PushOut-7.03 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 70 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 142 inches WEIGHT: 6600 lbs |
| DX-BK-PO-7.56cyd-WL-60
Bucket-PushOut-7.56 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 60 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 130 inches WEIGHT: 6100 lbs |
| DX-BK-PO-7.56cyd-WL-70
Bucket-PushOut-7.56 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 70 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 130 inches WEIGHT: 6100 lbs |
| DX-BK-PO-7.56cyd-WL-80
Bucket-PushOut-7.56 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 80 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 130 inches WEIGHT: 6100 lbs |
| DX-BK-PO-7.81cyd-WL-70
Bucket-PushOut-7.81 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 70 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 134 inches WEIGHT: 7650 lbs |
| DX-BK-PO-9.06cyd-WL-80
Bucket-PushOut-9.06 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 80 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 128 inches WEIGHT: 8500 lbs |
| DX-BK-PO-10.12cyd-WL-80
Bucket-PushOut-10.12 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 80 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 142 inches WEIGHT: 9500 lbs |
| DX-BK-PO-10.12cyd-WL-90
Bucket-PushOut-10.12 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 90 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters WIDTH: 142 inches WEIGHT: 9500 lbs |
| DX-BK-PO-11.36cyd-WL-80
Bucket-PushOut-11.36 cubic yard capacity (SAE Heap Rating)-Wheel Loader-Class 80 STANDARD FEATURES: – Dymax 1×10 replaceable bolt-on cutting edges – Bottom wear plates – Interior gate to moldboard wiper seals – Twin cylinder push gate – Radial side cutters Suited for 600-700 lb per yard material weights maximum WIDTH: 156 inches |
Design and specifications are subject to change without notice.
HYDRAULIC REQUIREMENTS
|
MODELS: DX-BK-PO-1.25CYD-WL-20, DX-BK-PO-1.75cyd-WL-20
|
|
HYDRAULIC REQUIREMENTS: Your machine will require 3rd valve auxiliary. CIRCUIT1 – Push Gate NOT SUPPLIED: Not provided with jumper hoses to machine lines. |
|
MODELS: DX-BK-PO-2.04cyd-WL-40, DX-BK-PO-2.69cyd-WL-30, DX-BK-PO-3.61cyd-WL-40, DX-BK-PO-3.61cyd-WL-50, DX-BK-PO-4.52cyd-WL-40, DX-BK-PO-4.52cyd-WL-50, DX-BK-PO-4.52cyd-WL-60, DX-BK-PO-5.10cyd-WL-50, DX-BK-PO-5.10cyd-WL-60, DX-BK-PO-5.50cyd-WL-60, DX-BK-PO-5.92cyd-WL-60, DX-BK-PO-5.92cyd-WL-70, DX-BK-PO-6.50cyd-WL-70, DX-BK-PO-7.03cyd-WL-70, DX-BK-PO-7.56cyd-WL-60, DX-BK-PO-7.56cyd-WL-70, DX-BK-PO-7.56cyd-WL-80, DX-BK-PO-7.81cyd-WL-70, DX-BK-PO-9.06cyd-WL-80, DX-BK-PO-10.12cyd-WL-80, DX-BK-PO-10.12cyd-WL-90, DX-BK-PO-11.36cyd-WL-80
|
|
HYDRAULIC REQUIREMENTS: Your machine will require 3rd valve auxiliary. CIRCUIT1 – Push Gate NOT SUPPLIED: Not provided with jumper hoses to machine lines. |

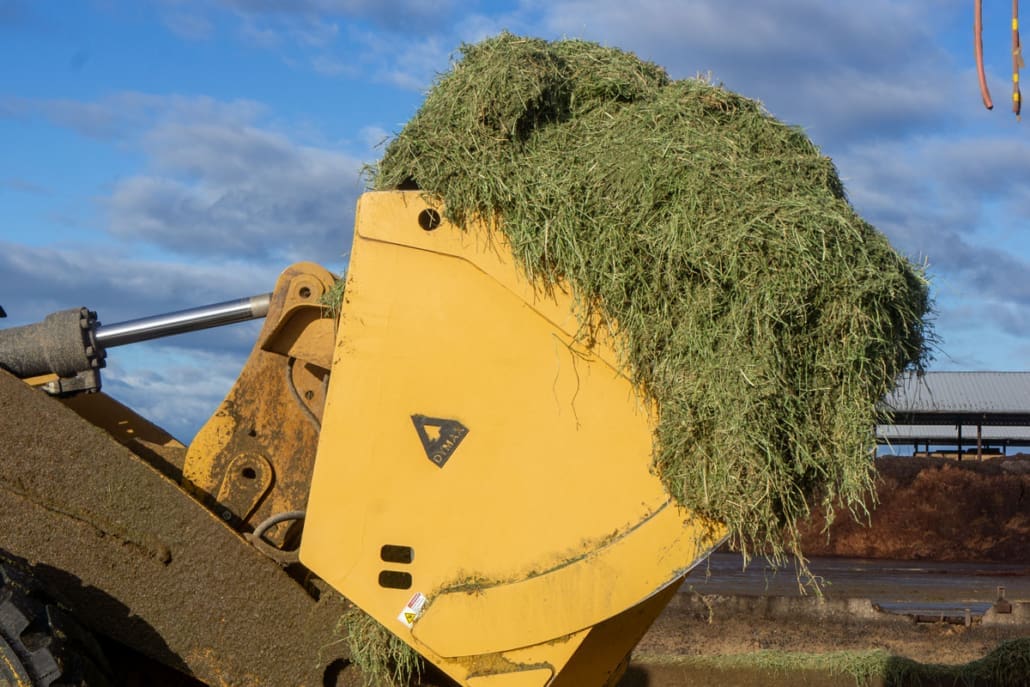

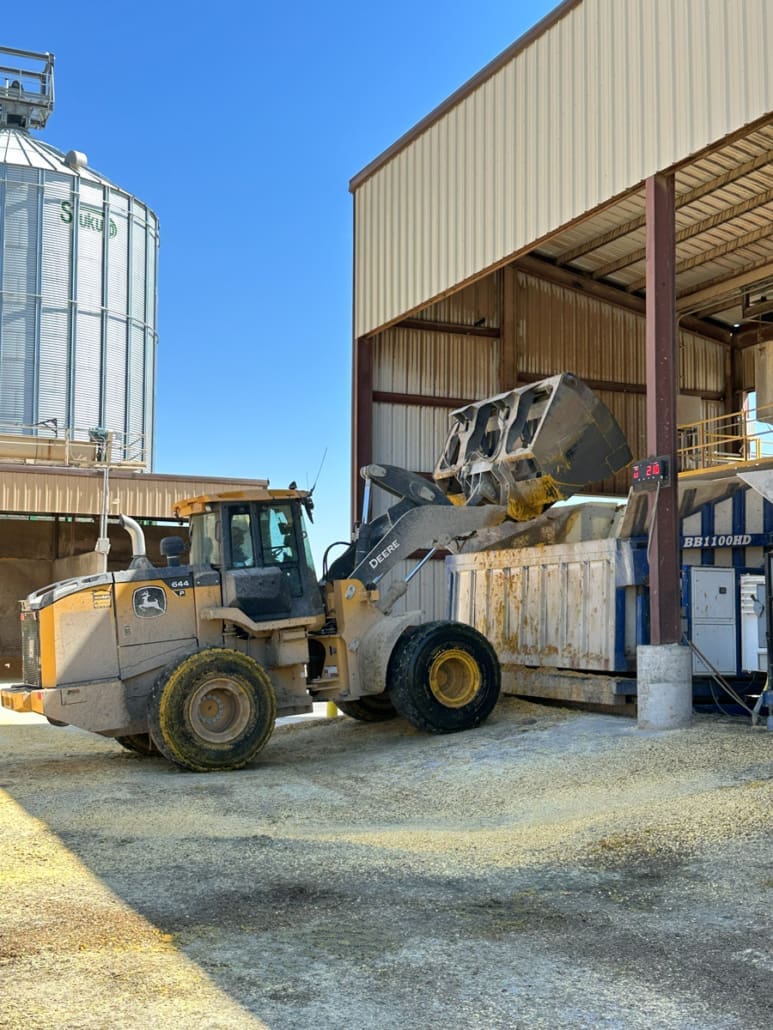

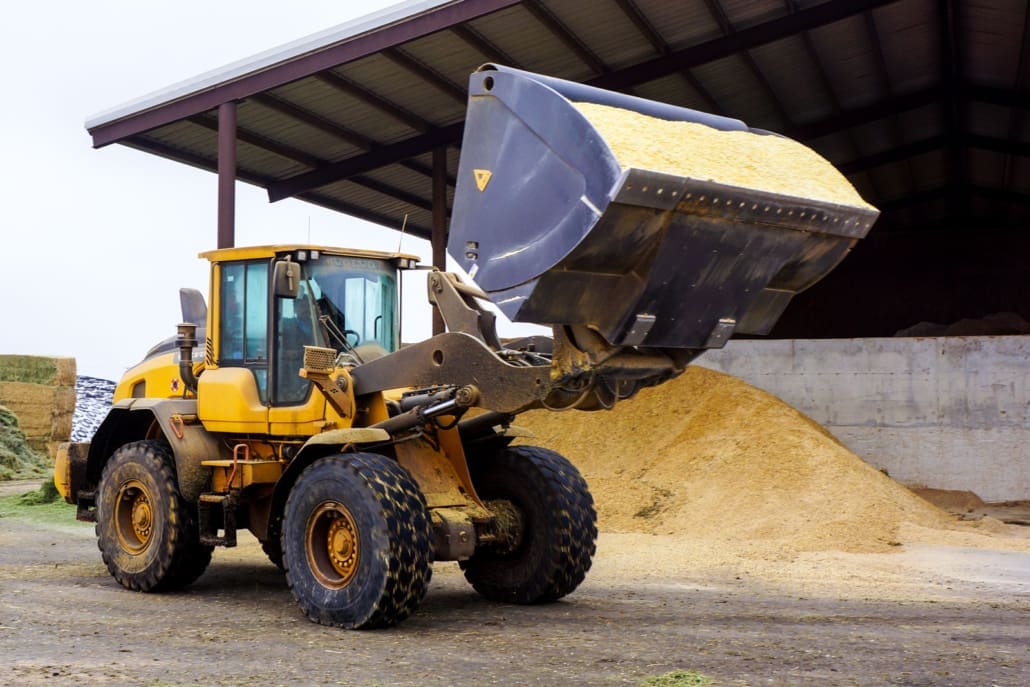

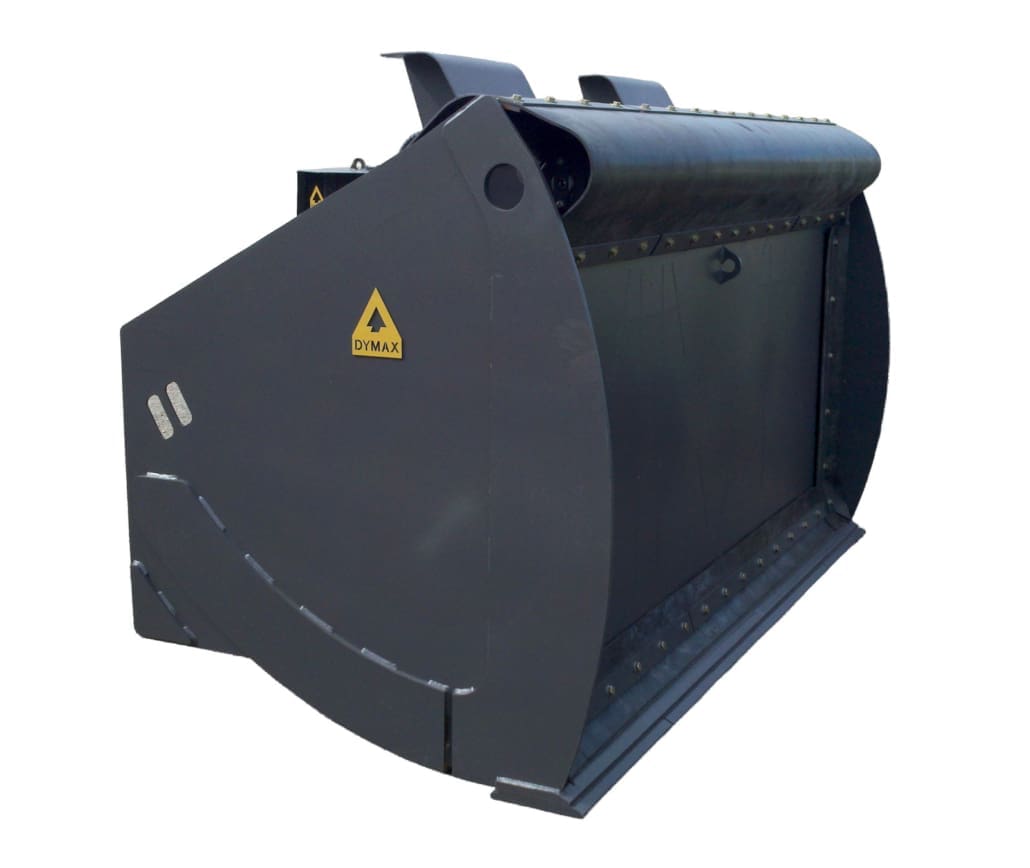

GALLERY
