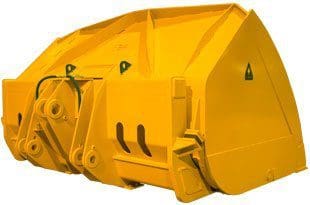

Roll Out Bucket for Wheel Loaders and Toolcarriers

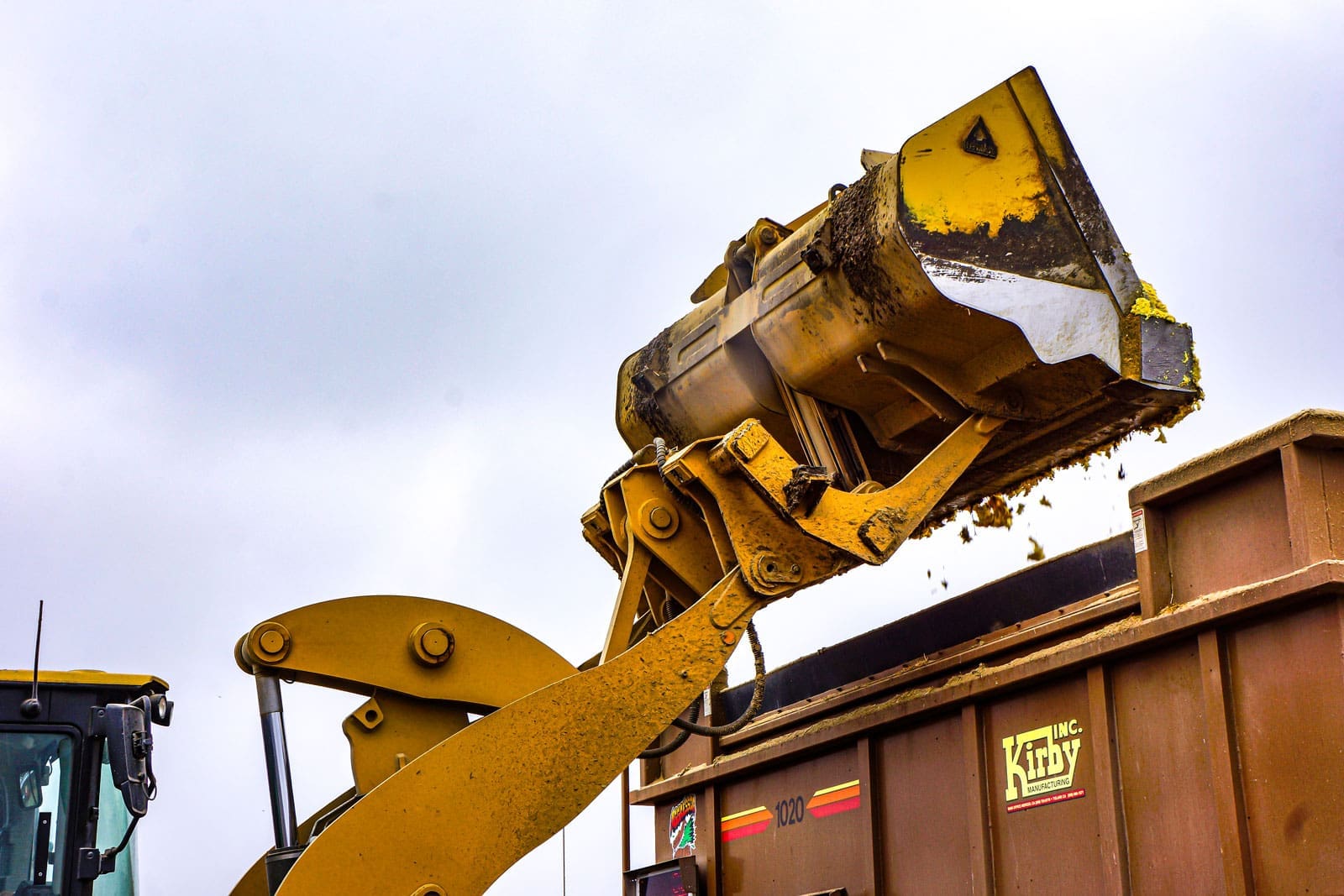

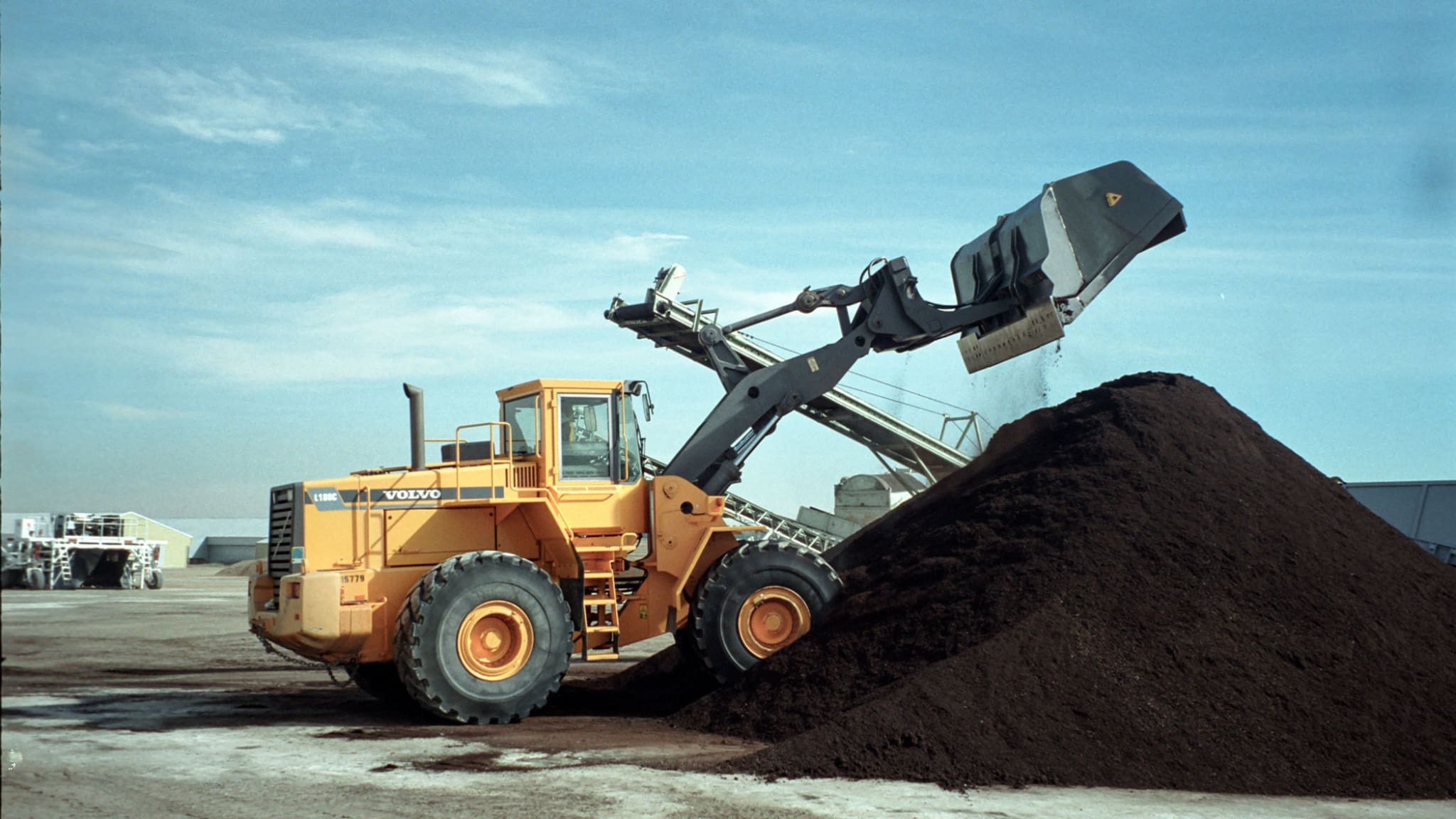

Dymax High Dump Roll Out Buckets are the solution to high dump clearance requirements, and are backed by the best service in the industry.

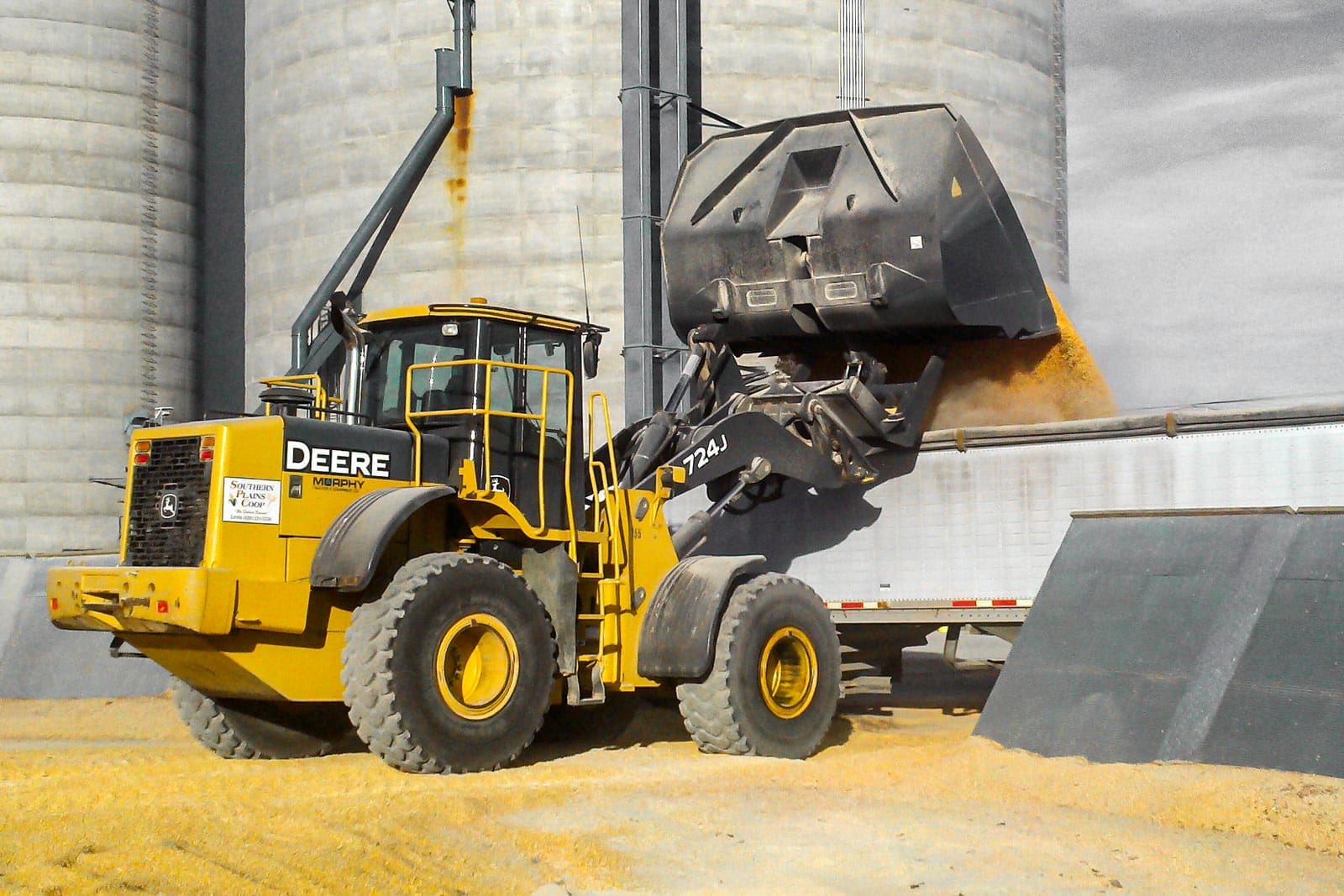

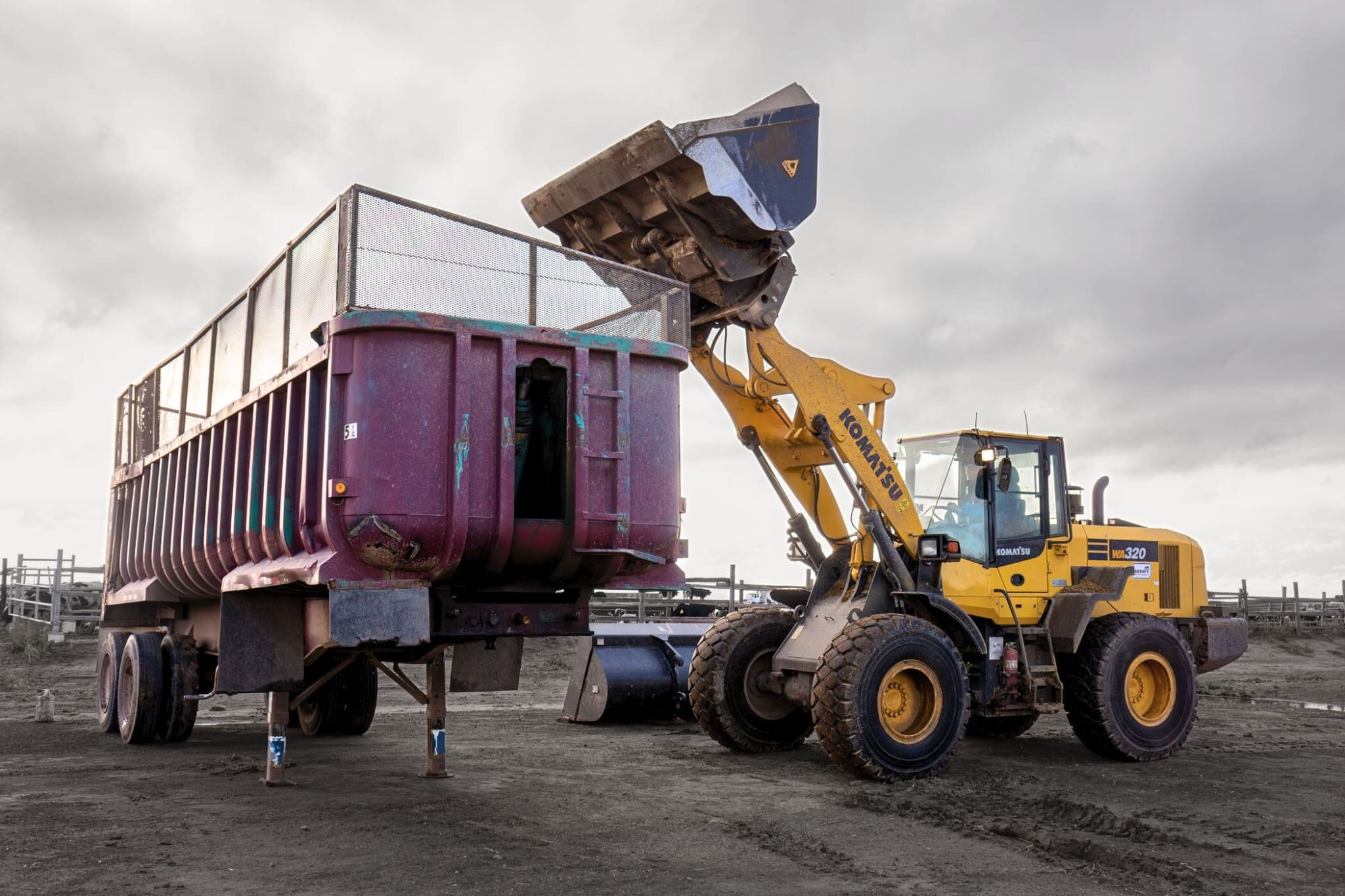

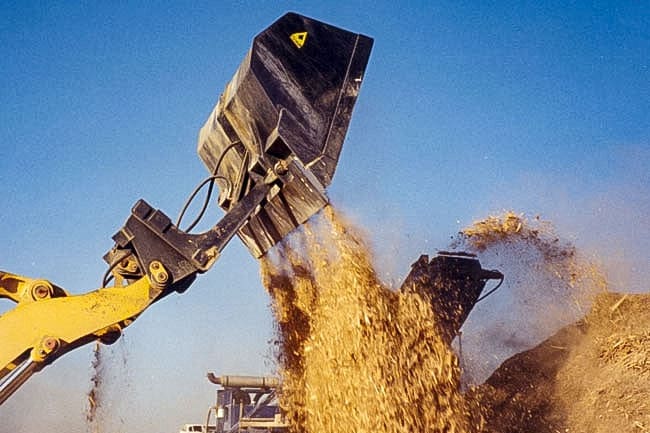

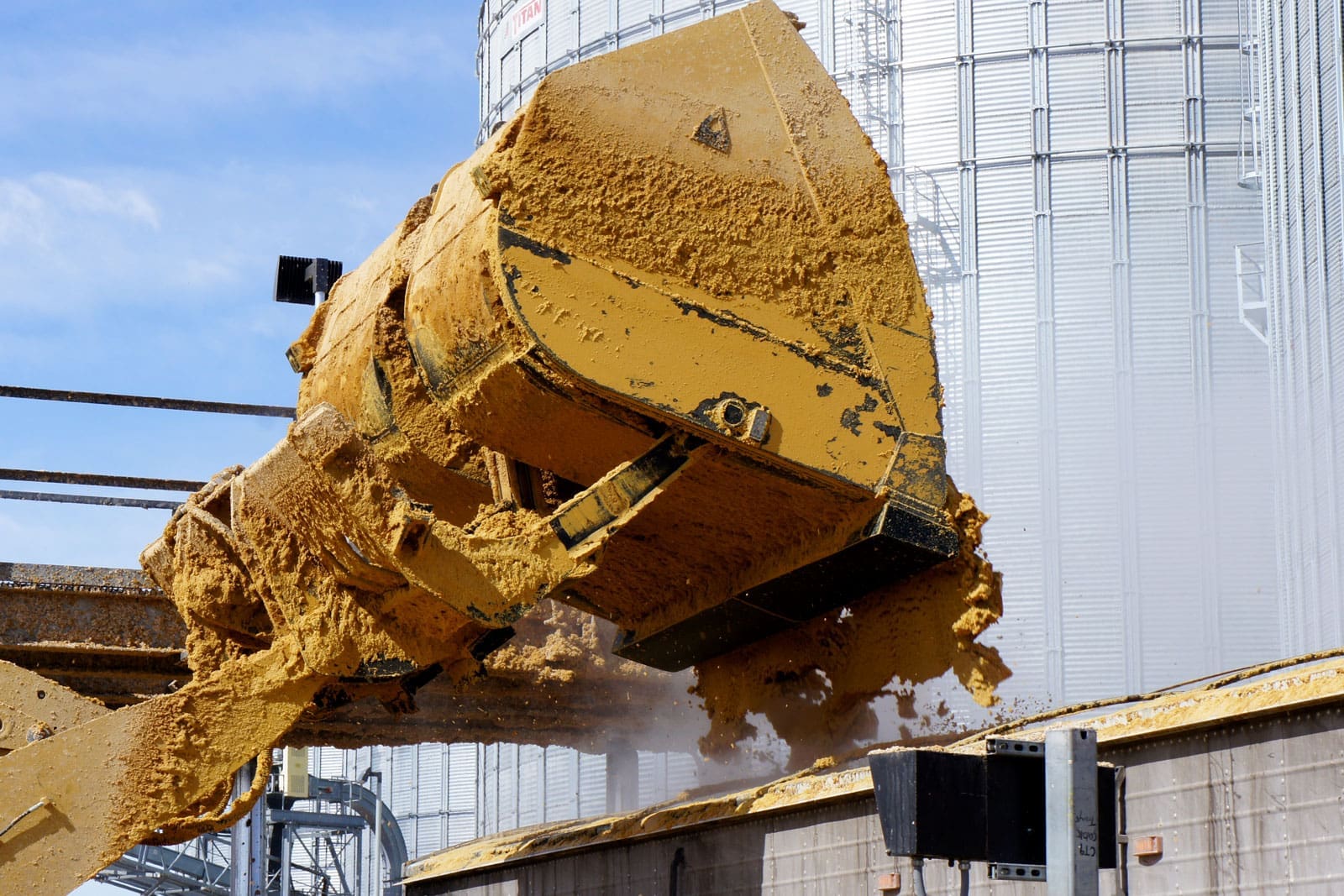

Especially popular for loading feed trucks at dairies, loading debris into tub grinders and working around landfill/transfer station applications, these high dump rollout buckets are made for wheel loaders and toolcarriers.
These buckets can be specially engineered to handle a variety of materials, making it the ideal tool for applications where material type, density and abrasiveness may vary, such as landfills and recycling centers.

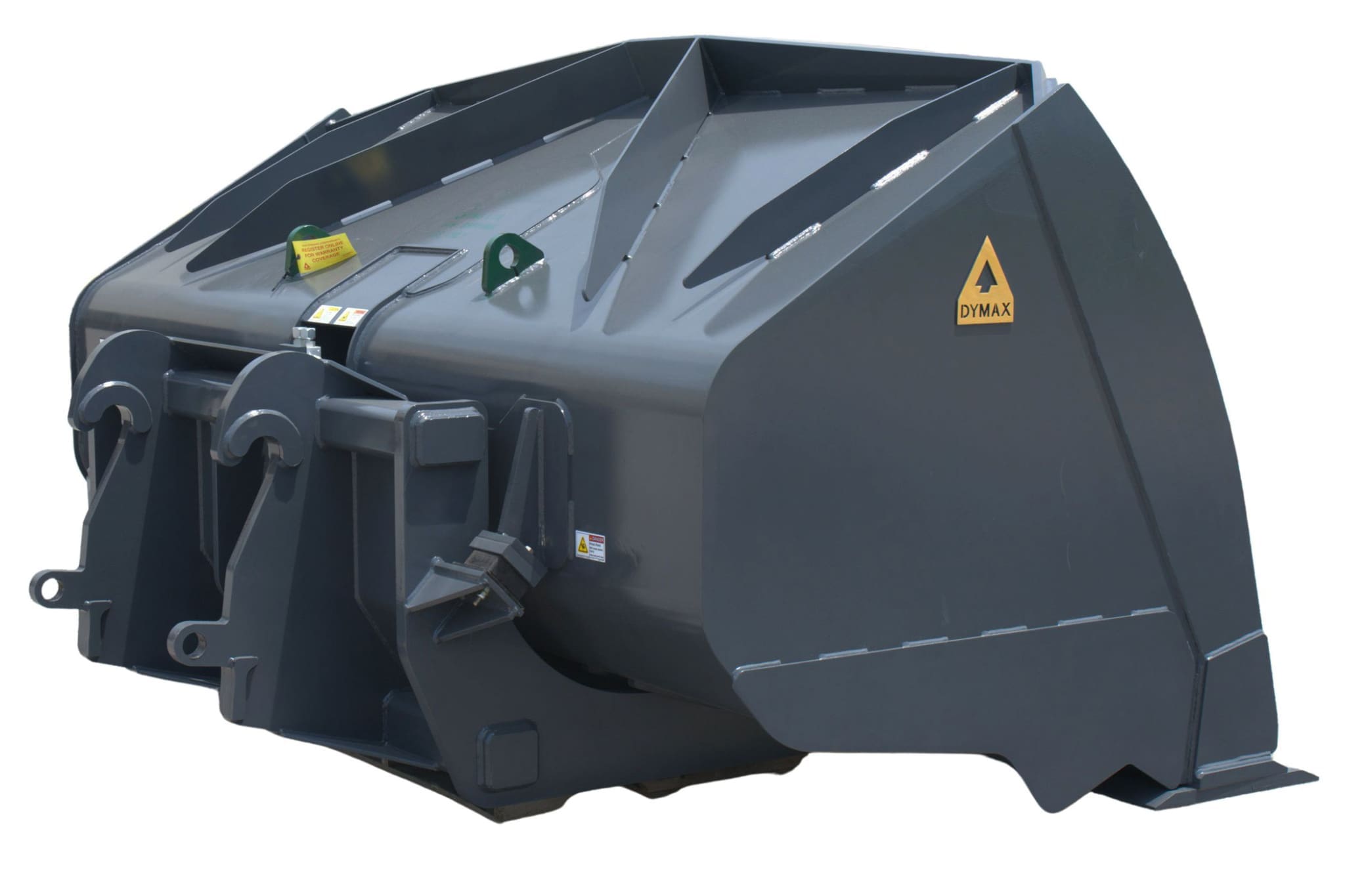

Dymax High Dump Roll Out Buckets incorporate a single, vertically-mounted dump cylinder, which significantly improves the ratio of cylinder stroke to dump motion. It also reduces metal fatigue found on roll out buckets with floor pockets and two bottom-mounted dump cylinders.
Specifications
| Model Number | Description | Weight (lbs/kg) |
|---|---|---|
| DX-BK-RO-3.00cyd-WL | Bucket – Roll-Out – 3.00 cyd capacity – Wheel Loader | 3,600 lbs/1,633 kg |
| DX-BK-RO-3.50cyd-WL | Bucket – Roll-Out – 3.50 cyd capacity – Wheel Loader | 3,750 lbs/1,701 kg |
| DX-BK-RO-4.00cyd-WL | Bucket – Roll-Out – 4.00 cyd capacity – Wheel Loader | 3,900 lbs/1,769 kg |
| DX-BK-RO-4.50cyd-WL | Bucket – Roll-Out – 4.50 cyd capacity – Wheel Loader | 4,350 lbs/1,973 kg |
| DX-BK-RO-5.00cyd-WL | Bucket – Roll-Out – 5.00 cyd capacity – Wheel Loader | 5,000 lbs/2,268 kg |
| DX-BK-RO-5.50cyd-WL | Bucket – Roll-Out – 5.50 cyd capacity – Wheel Loader | 5,220 lbs/2,368 kg |
| DX-BK-RO-6.00cyd-WL | Bucket – Roll-Out – 6.00 cyd capacity – Wheel Loader | 5,450 lbs/2,472 kg |
| DX-BK-RO-6.50cyd-WL | Bucket – Roll-Out – 6.50 cyd capacity – Wheel Loader | 5,800 lbs/2,631 kg |
| DX-BK-RO-7.00cyd-WL | Bucket – Roll-Out – 7.00 cyd capacity – Wheel Loader | 6,000 lbs/2,722 kg |
| DX-BK-RO-7.50cyd-WL | Bucket – Roll-Out – 7.50 cyd capacity – Wheel Loader | 6,600 lbs/2,994 kg |
| DX-BK-RO-8.00cyd-WL | Bucket – Roll-Out – 8.00 cyd capacity – Wheel Loader | 6,800 lbs/3,084 kg |
| DX-BK-RO-9.00cyd-WL | Bucket – Roll-Out – 9.00 cyd capacity – Wheel Loader | 7,100 lbs/3,221 kg |
| DX-BK-RO-10.00cyd-WL | Bucket – Roll-Out – 10.00 cyd capacity – Wheel Loader | 7,800 lbs/3,538 kg |
| DX-BK-RO-11.00cyd-WL | Bucket – Roll-Out – 11.00 cyd capacity – Wheel Loader | 8,250 lbs/3,742 kg |
| DX-BK-RO-12.00cyd-WL | Bucket – Roll-Out – 12.00 cyd capacity – Wheel Loader | 8,800 lbs/3,992 kg |
| Specifications (standard models) | |
|---|---|
|
Cylinder Bore (In.)
|
4.51 |
|
Cylinder Rod Diameter (In.)
|
2.25 |
|
Cylinder Stroke (In.)
|
24 |
|
Moldboard Thickness (In.)
|
3/16, 3/8, 1/2 |
|
Bolt-on Cutting Edge
|
OEM or Dymax |
|
Wear Pads
|
Standard Bolt-on |
Specifications are subject to change without notice.
Features
- For wheel loaders and toolcarriers.
- Can be ordered for specific material types and special applications.

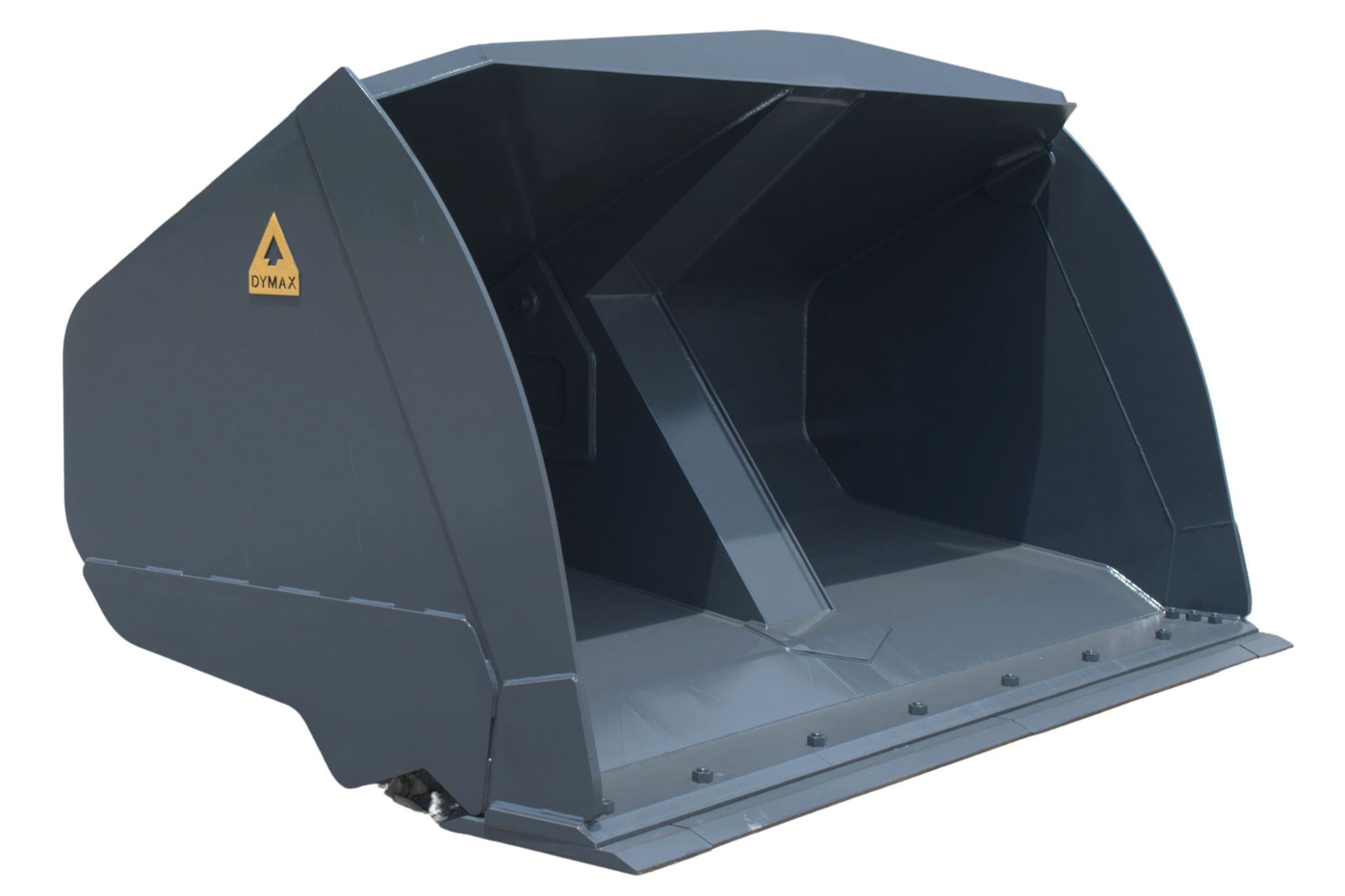

- Equipped with OEM or Dymax bolt-on cutting edges.
- Available in a variety of widths, and in capacities up to 12 cubic yards.
- Open bucket design for easy loading and rollout.
- Grapples are available, and are ideal for recycling centers and landfill/transfer station applications. Capacity is reduced when using grapples on rollout buckets.
