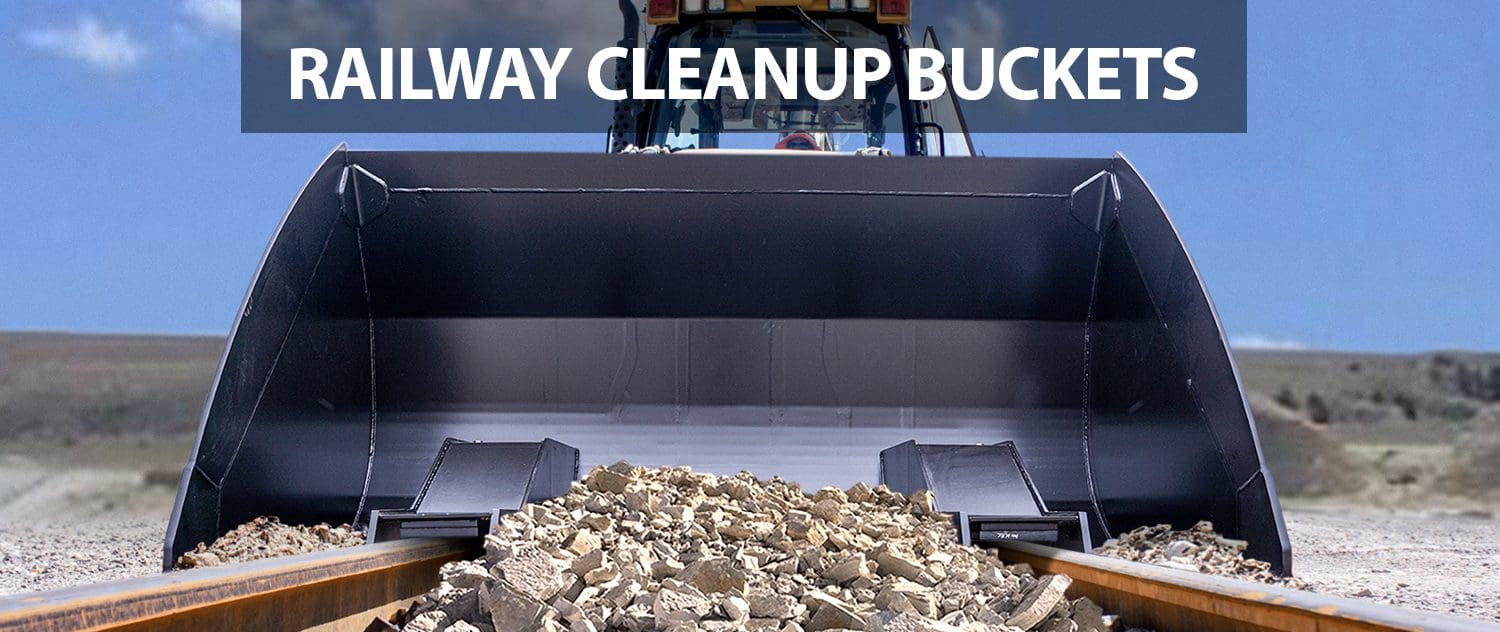

Dymax Railway Cleanup Bucket
for Wheel Loaders and Backhoe Loaders

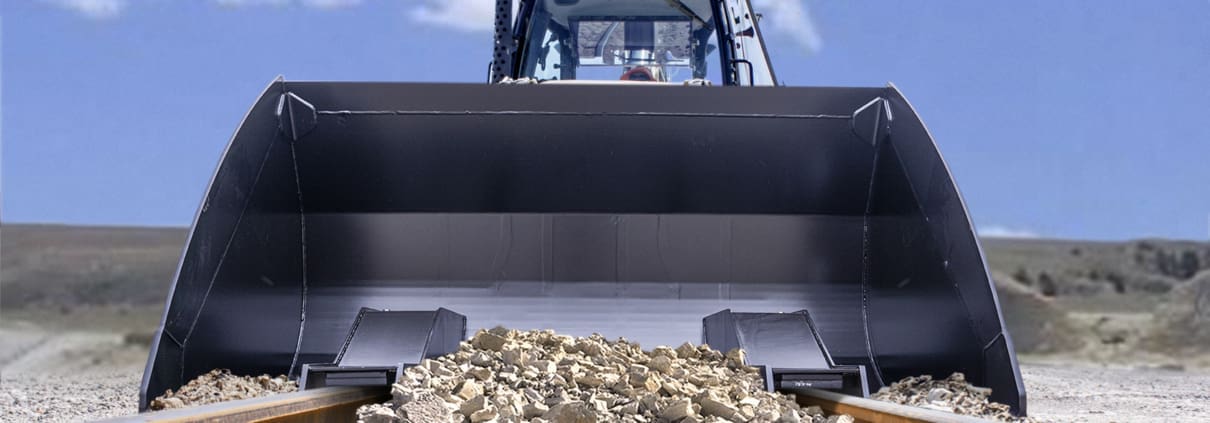

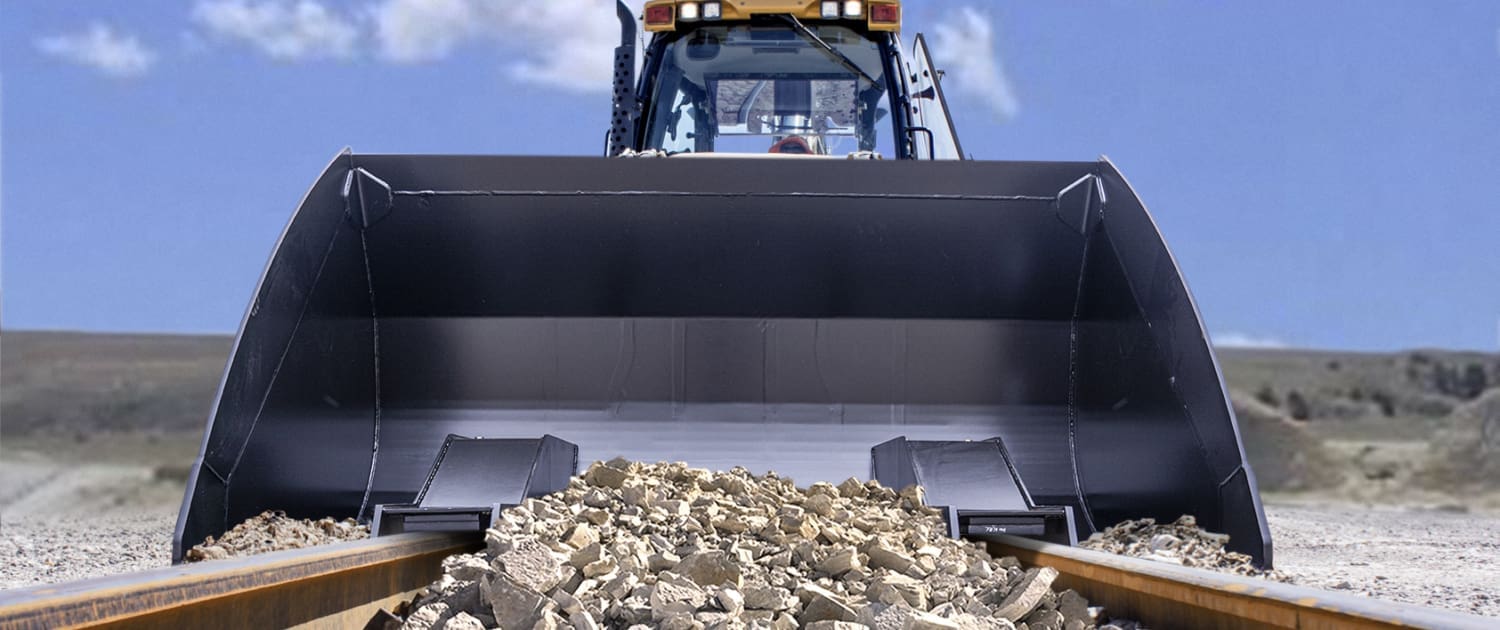

Dymax Railway Cleanup Buckets are designed for fast, effective removal of spilled materials around rail lines. Whether it’s coal dust, aggregate, sand, gypsum, or snow—these buckets are built to handle it.
Our buckets are engineered to perform in the toughest environments. Backed by decades of experience in rail and material handling solutions, Dymax Cleanup Buckets help keep your track areas safe, clean, and operational.
KEY BENEFITS

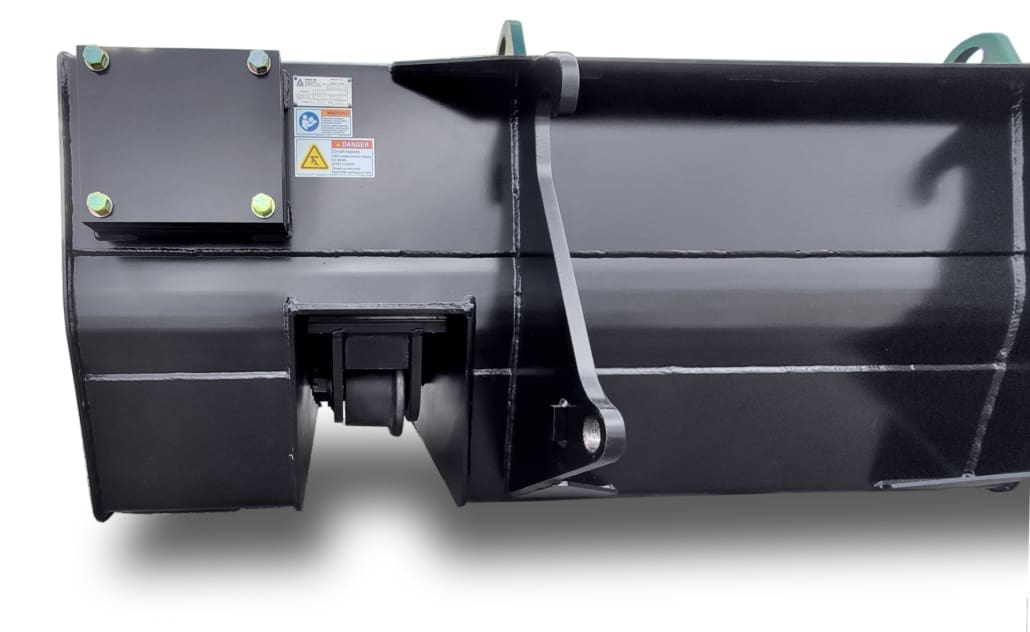

- Integrated rail wheels: Roll directly on the track for easier operation and guide.

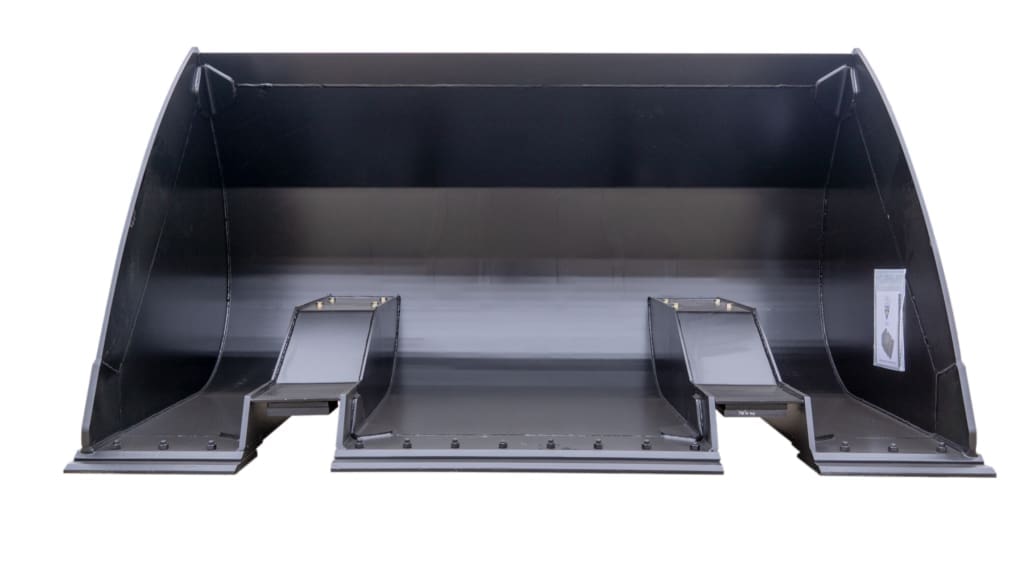

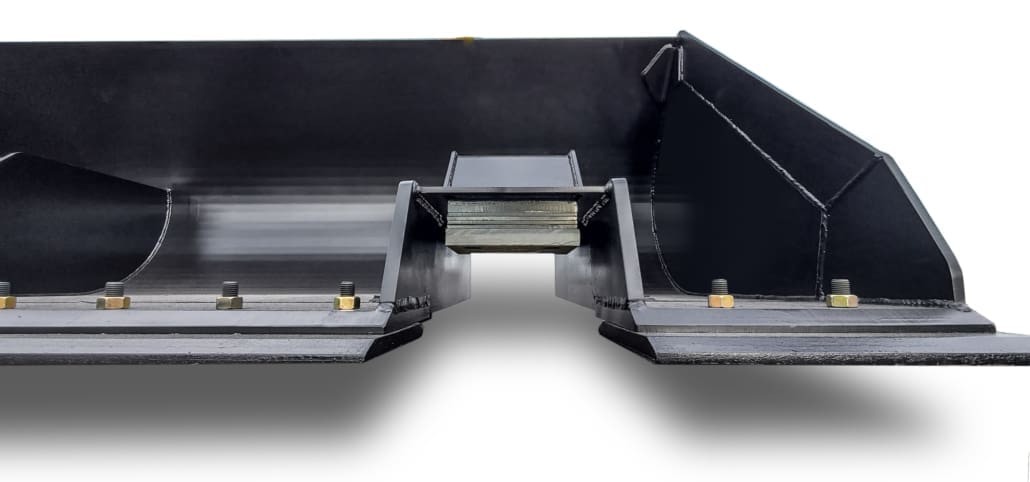

- Adjustable rail pads: Shim adjustable wear pads let you fine tune the bucket height to glide over the railhead.

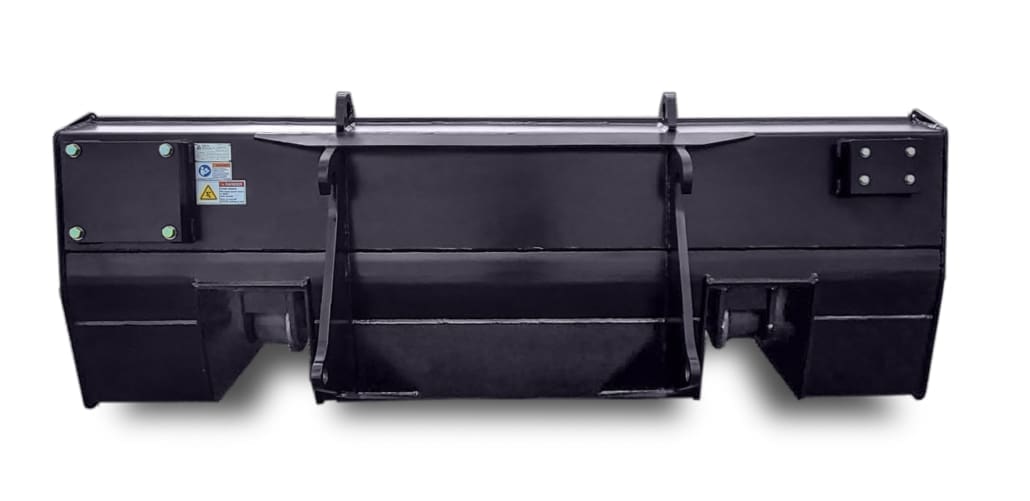

- Built for loaders: Compatible with front end loaders and swing loaders
- Dual purpose design: Scoop and stockpile materials in one operation
- Built tough: Designed for harsh environments like terminals, mines and quarries.
APPLICATIONS
- Mining Operations
- Quarry Railheads & Loadout Points
- Port and Terminal Cleanup
- Railcar Unloading Zones
- Intermodal Facilities
SPECIFICATIONS
RAILWAY CLEANUP BUCKETS
| Models Description Weight |
| DX-BK-LMRC-1.75cyd-BL-10;

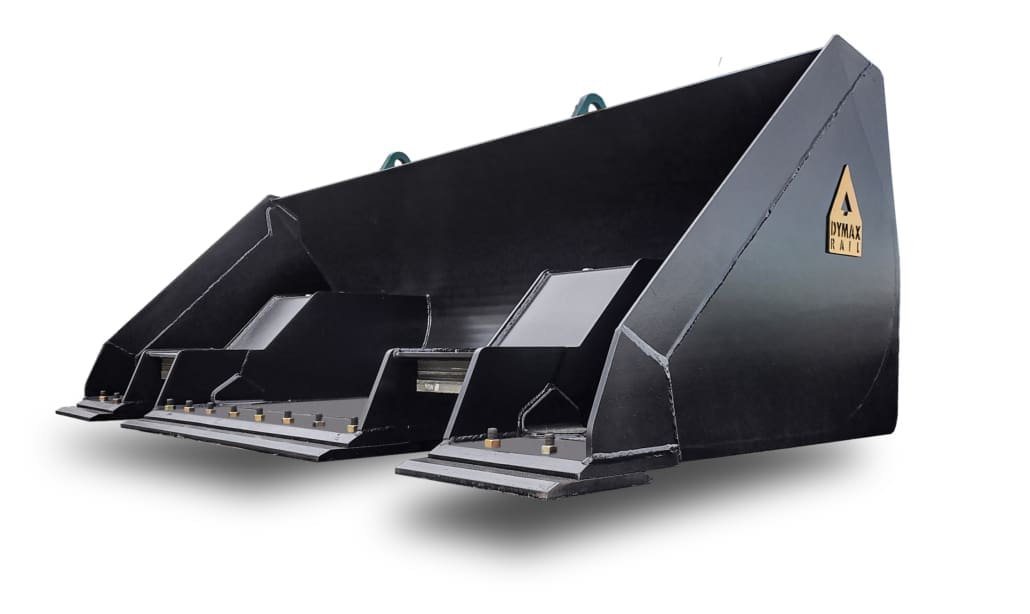

DX-BK-LMRC-1.75cyd-WL-40; DX-BK-LMRC-1.75cyd-WL-50; DX-BK-LMRC-1.75cyd-WL-60 Bucket-Light Material Rail Cleaning-1.75 cubic yard capacity (SAE heap rating)-Wheel Loader STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 102.00 inches wide (max) outside / 101.00 inches inside width For Loaders with 75-200 horsepower rating. Weight of product varies depending on hookup and coupler hitch type 2,200-2,400 lbs |
| DX-BK-LMRC-4.00cyd-WL-70
DX-BK-LMRC-4.00cyd-WL-80 DX-BK-LMRC-4.00cyd-WL-90 Bucket-Light Material Rail Cleaning-4.00 cubic yard capacity (SAE heap rating)-Wheel Loader STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 112 inches wide For Loaders with 200-450 horsepower rating. Weight of product varies depending on hookup and coupler hitch type Can range between 3,500-5,500 lbs. Pricing varies between these classes for machine connection sizes. |
