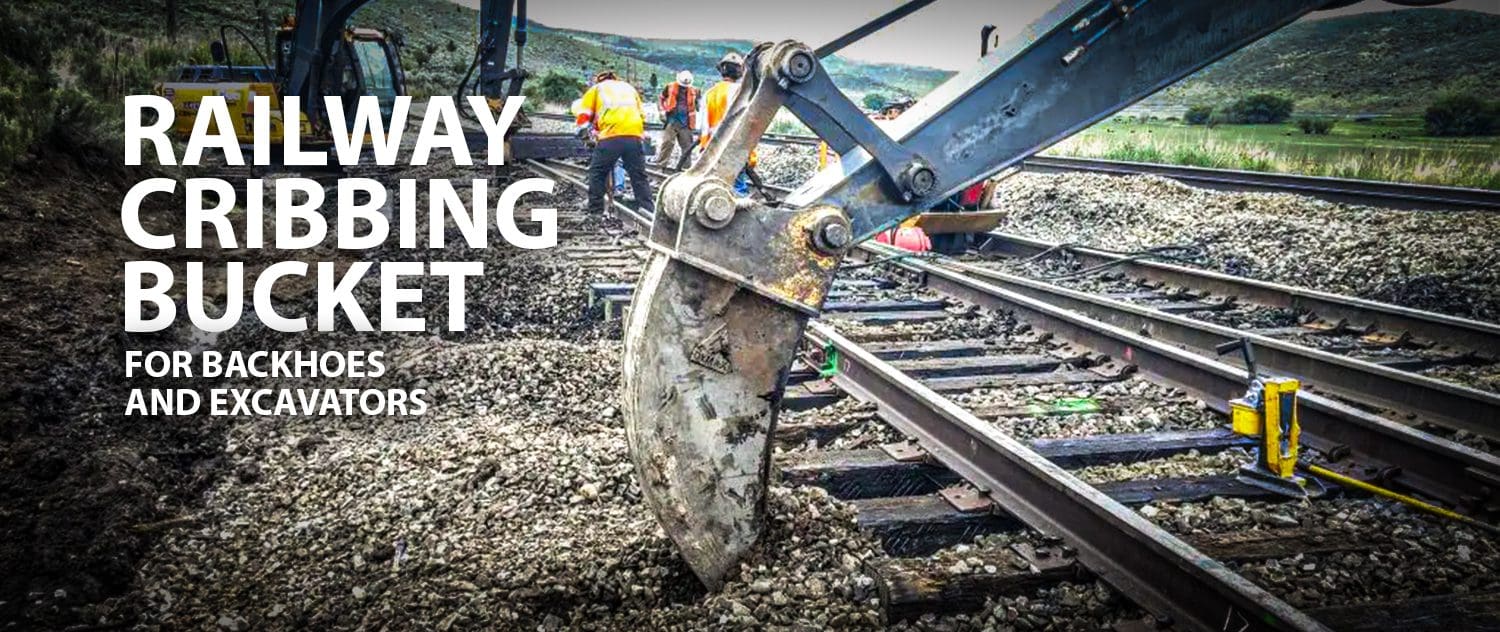

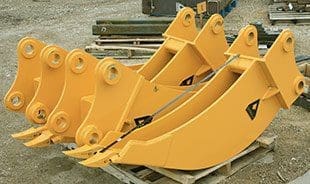

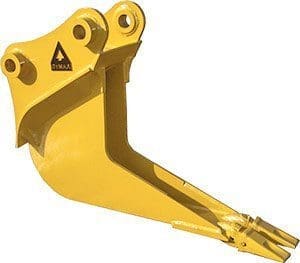

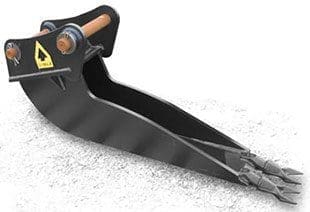

Railroad Cribbing Buckets for Loader Backhoes and Hydraulic Excavators:
Dymax Railroad Cribbing Buckets are designed to fit most backhoe loaders and excavators up to 70,000lbs in operating weight.
Built to last, these buckets are ideal for railway maintenance.
The Dymax Rail Cribbing Bucket features an 8″ width and a long lip design, which allows operators to efficiently clean under rails.
Replaceable cutting teeth complete the durable and efficient design.
Backhoe loader models available for Class 10 or Class 20.
Excavator models available for 5-20T excavators.
Specifications
| Model Number | Description | Weight (lbs/kg) |
|---|---|---|
| DX-BK-CR-8in-BL-10/20 | Bucket – Cribbing – 8 inches wide – Backhoe Loader – Class 10 or Class 20 | 320 lbs/145 kg |
| DX-BK-CR-8in-HX-5T | Bucket – Cribbing – 8 inches wide – Hydraulic Excavator – 5 Ton | 320 lbs/145 kg |
| DX-BK-CR-8in-HX-7-8T | Bucket – Cribbing – 8 inches wide – Hydraulic Excavator – 7 Ton | 320 lbs/145 kg |
| DX-BK-CR-8in-HX-11T | Bucket – Cribbing – 8 inches wide – Hydraulic Excavator – 11-16 Ton | 600 lbs/272 kg |
| DX-BK-CR-8in-HX-20T | Bucket – Cribbing – 8 inches wide – Hydraulic Excavator – 20 Ton | 600 lbs/272 kg |
Specifications are subject to change without notice.
Features
- Designed to fit most backhoe loaders and excavators up to 70,000lbs in operating weight.
- Ideal for railway maintenance.
- Long lip design for efficient under-rail cleaning.
- Available to fit most quick couplers, or can be pinned directly to the stick of the machine.
