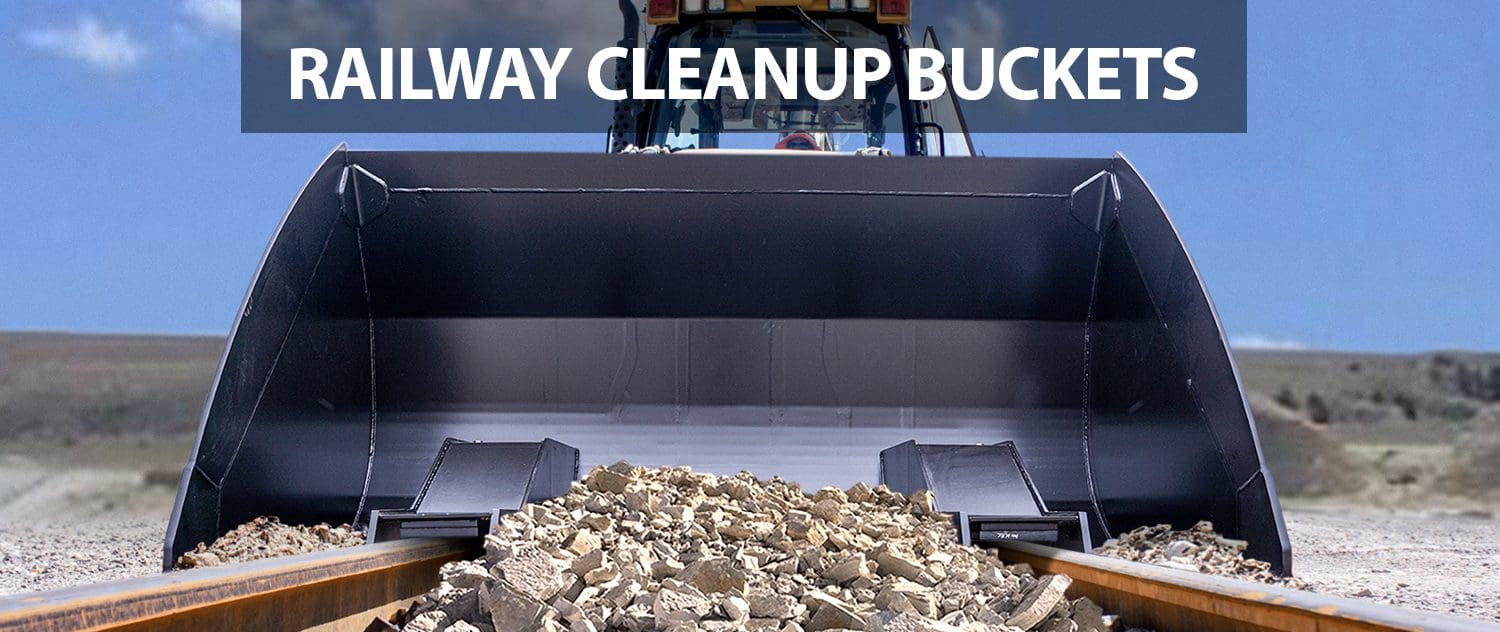

DYMAX RAILWAY CLEANUP BUCKET
FOR WHEEL LOADERS AND BACKHOE LOADERS
Rail yards and load transfer terminals have a spill problem — and standard loader buckets aren’t built to solve it.

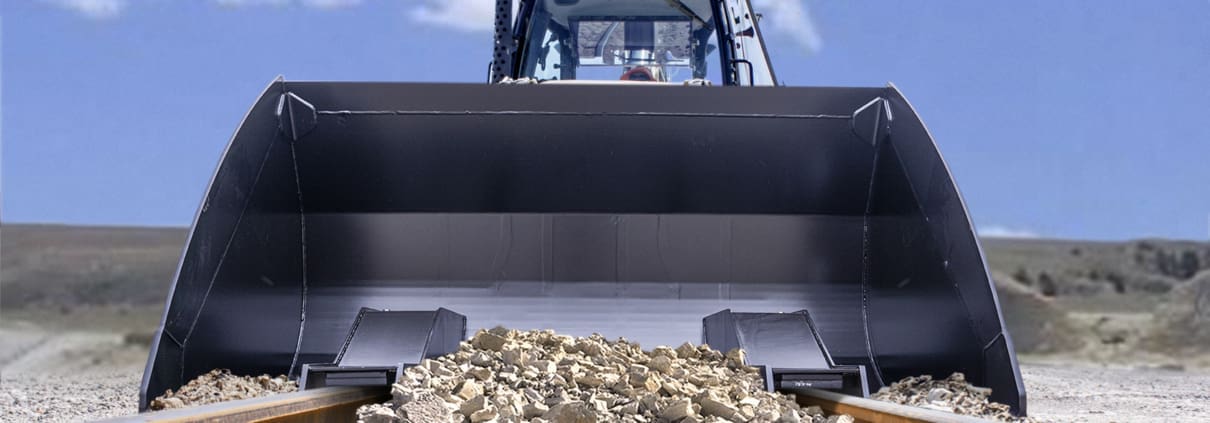

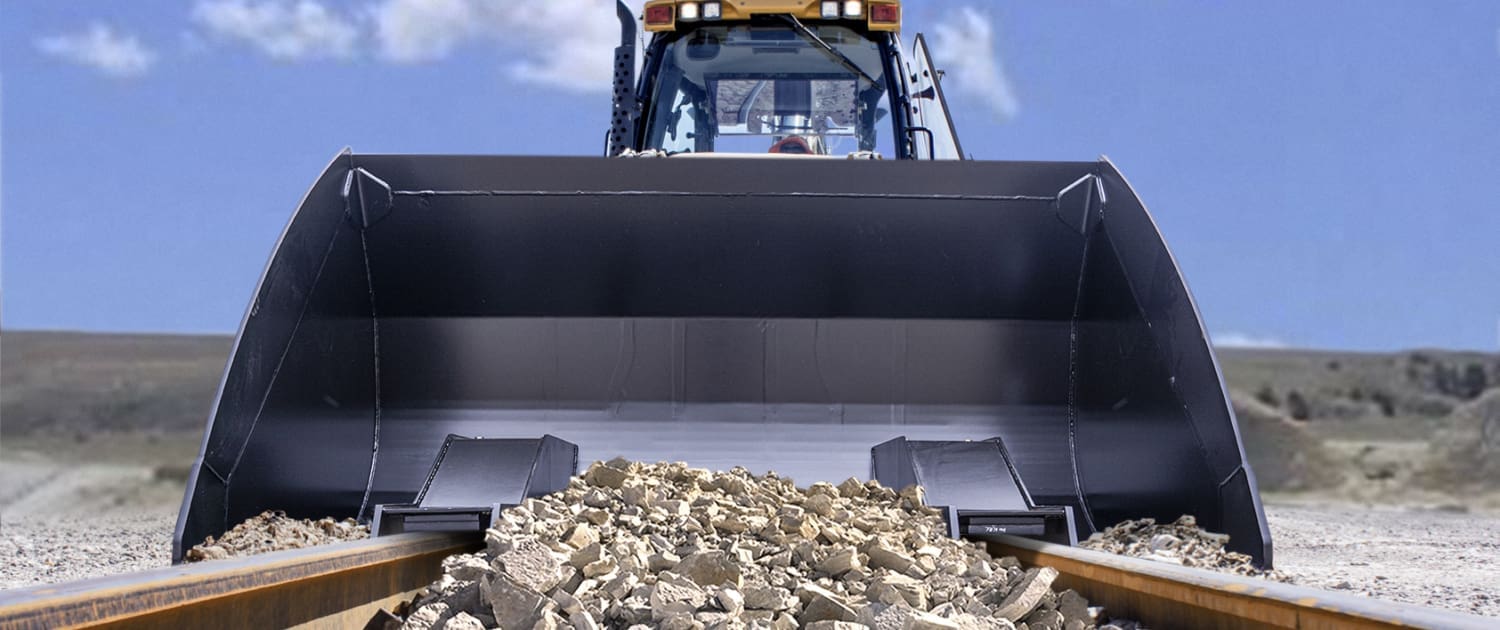

The Dymax Railway Cleanup Bucket rides directly on the track via integrated rail wheels, with shim-adjustable poly pads that set the bucket height precisely above the railhead. Available in 1.75 and 4.00 cubic yard capacities through Dymax dealers and direct.
For full product specifications, FAQs, and rail-specific application information, visit the DymaxRail product page.
KEY BENEFITS

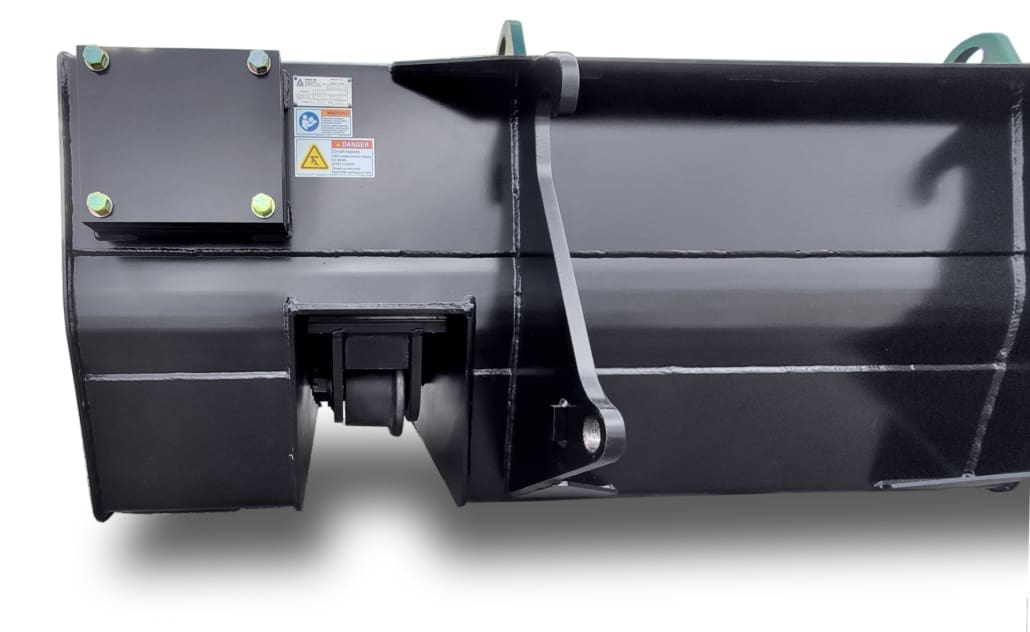

- Integrated rail wheels: Bucket rides directly on the track for precise positioning along the rail.

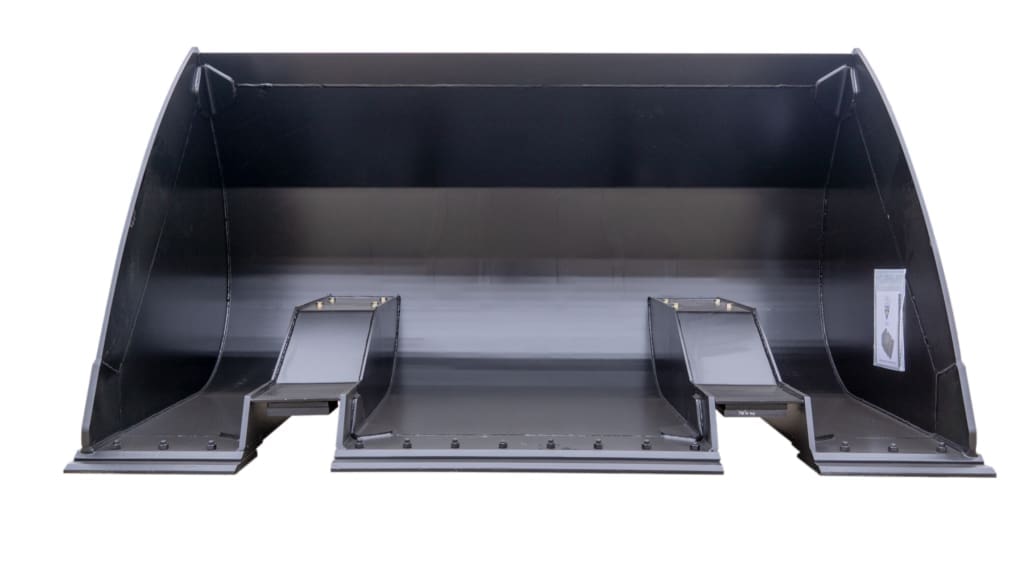

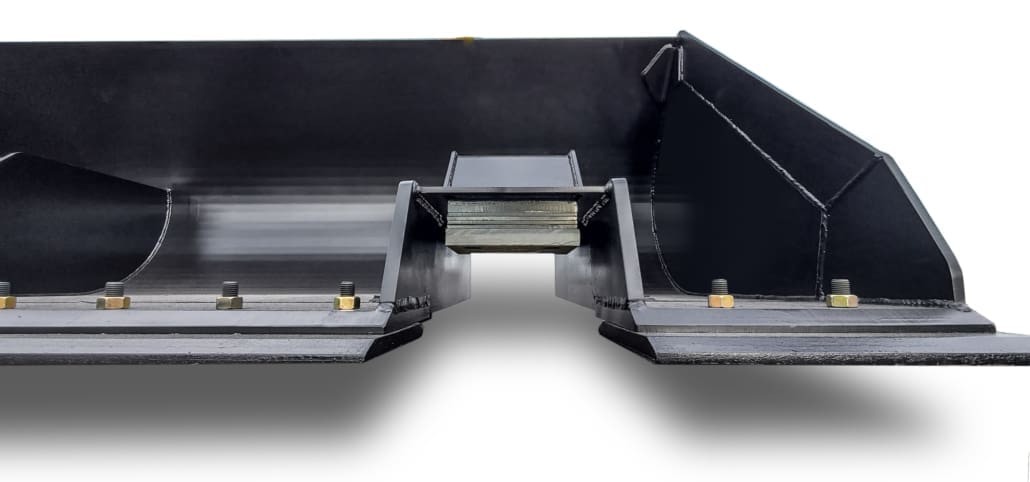

- Shim-adjustable poly pads: Fine-tune bucket height to glide just above the railhead without contact damage.
- T1 high-strength wear plates: Built for abrasive materials including coal dust, aggregate, sand, and gypsum.

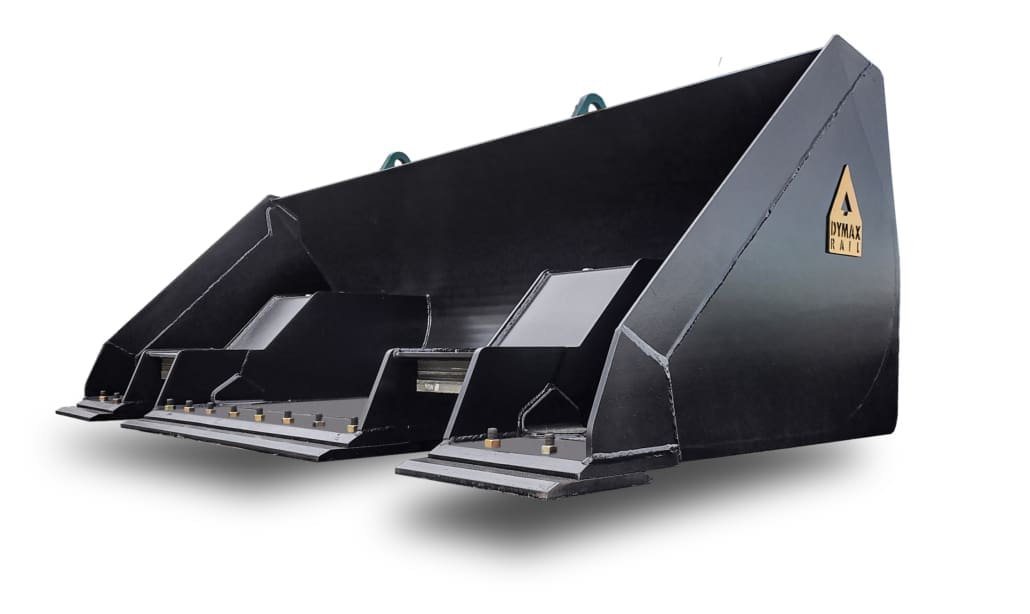

- Replaceable cutting edges and corners: Bolt on and off for field replacement without removing the bucket from the loader.
- Fits wheel loaders and backhoe loaders: Available in 1.75 and 4.00 cubic yard capacities across multiple machine classes.
APPLICATIONS
- Hopper car and terminal spill cleanup
- Rail yard and port facility maintenance
- Coal terminal track cleanup
- Quarry and mine railhead maintenance
- Snow removal along rail lines
SPECIFICATIONS
RAILWAY CLEANUP BUCKET MODELS
| Model Description Weight (lbs) |
| DX-BK-LMRC-1.75cyd-BL-10 Bucket-Light Material Rail Cleaning-1.75 cubic yard capacity (SAE heap rating)-Backhoe Loader-Class 10 STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 102.00 inches wide (max) outside / 101.00 inches inside width WEIGHT: 2400 lbs |
| DX-BK-LMRC-1.75cyd-WL-40 Bucket-Light Material Rail Cleaning-1.75 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 40 STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 102.00 inches wide (max) outside / 101.00 inches inside width WEIGHT: 2400 lbs |
| DX-BK-LMRC-1.75cyd-WL-50 Bucket-Light Material Rail Cleaning-1.75 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 50 STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 102.00 inches wide (max) outside / 101.00 inches inside width WEIGHT: 2400 lbs |
| DX-BK-LMRC-1.75cyd-WL-60 Bucket-Light Material Rail Cleaning-1.75 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60 STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 102.00 inches wide (max) outside / 101.00 inches inside width WEIGHT: 2400 lbs |
| DX-BK-LMRC-4.00cyd-WL-70 Bucket-Light Material Rail Cleaning-4.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 112 inches wide WEIGHT: 3200 lbs |
| DX-BK-LMRC-4.00cyd-WL-80 Bucket-Light Material Rail Cleaning-4.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 80 STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 112 inches wide WEIGHT: 3200 lbs |
| DX-BK-LMRC-4.00cyd-WL-90 Bucket-Light Material Rail Cleaning-4.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 90 STANDARD FEATURES: – Replaceable bolt-on cutting edges – T1 high-strength wear plates – Shim adjustable rail wheels – Poly pads underside of pockets – 112 inches wide WEIGHT: 5680 lbs |
Design and specifications are subject to change without notice.
