HIGH CAPACITY REFUSE GRAPPLE RAKE

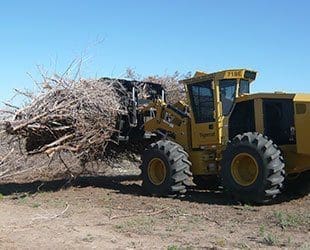

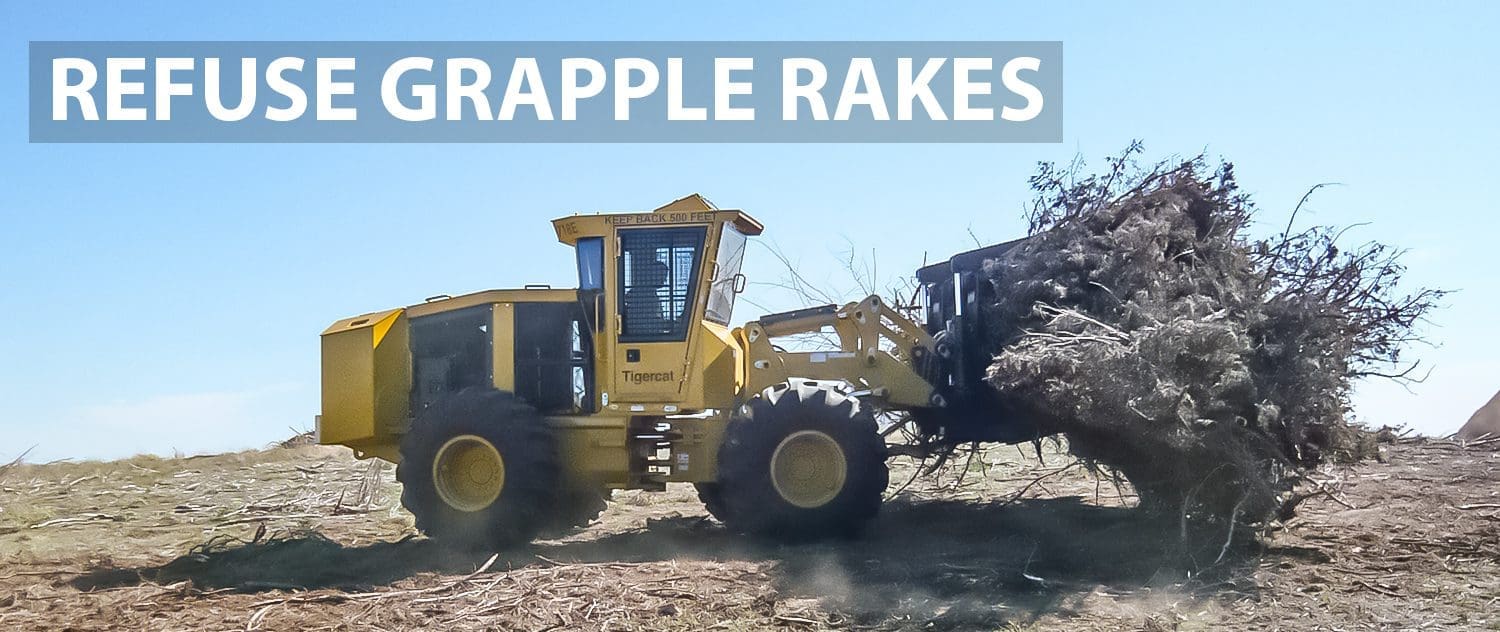

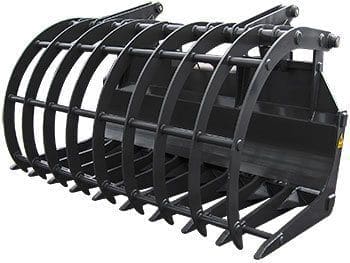

Dymax Refuse Grapple Rakes are available for wheel and track loaders. This attachment is ideal for large scale land clearing and waste handling applications. Quickly stack, load and sort various materials into tub grinders or trucks or collect for burn piles.
APPLICATIONS
C&D debris removal, recycling and scrap yards, disaster response and storm cleanup, forestry and land clearing, stump removal, waste management and disposal, mulch and composting.
KEY FEATURES
- T1 steel high strength tines with reinforced tine tips
- Available with dual (RK-RFDG) or full width grapples (RFFG)

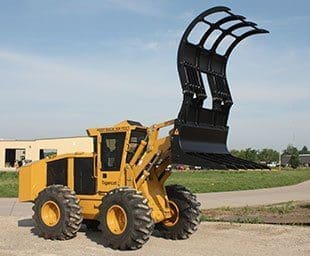

- Models RFFG and RFDG feature larger clamp opening of 115 inches and are suited for machines weighing more than 26,000 lbs

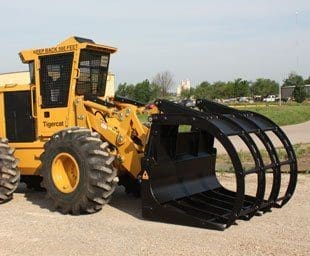

- Models RFSM feature smaller clamp opening of 70 inches.
- Smooth tines with 10.5″ inch spacing on average
- Cushion valve package for long lasting cylinder life
- 48 inch tine length with dozer push plate
DX-RFFG and DX-RFDG Models suited for medium to large loaders
DX-RFSM – For machines 20,000-30,000 lbs operating weight
Specifications
| Machine operating weight 20,000-24,000 lbs
Model No. DX-RK-RFSM-98×10-WL-40 Rake-Refuse Small Size-102 inch raking width x 10 steel tines-Wheel Loader-Class 40 • Clamp opening of 70 inches • 10x T1 high strength steel tines 1.50in thick • Dual grapples • 10 inch tine spacing • Relief and CB Valve Package Weight: 2,450 lbs |
|||
| Machine operating weight 20,000-24,000 lbs
Model No. DX-RK-RFSM-102×10-WL-40 Rake-Refuse Small Size-102 inch raking width x 10 steel tines-Wheel Loader-Class 40 • Clamp opening of 70 inches • 10x T1 high strength steel tines 1.50in thick • Dual grapples • 10 inch tine spacing • Relief and CB Valve Package Weight: 2,550 lbs |
|||
| Machine operating weight 26,500-31,000 lbs
Model No. DX-RK-RFSM-102×10-WL-50 Rake-Refuse Small Size-102 inch raking width x 10 steel tines-Wheel Loader-Class 50 • Clamp opening of 70 inches • 10x T1 high strength steel tines 1.50in thick • Dual grapples • 10 inch tine spacing • Relief and CB Valve Package Weight: 2,550 lbs |
|||
| Machine Operating Wt Class – 26,000-31,500 lbs
Model No. DX-RK-RFDG-D105x8-WL-50 Rake-Refuse Double Grapple-105 inch raking width x 8 steel tines with dozer push plate-Wheel Loader-Class 50 • Clamp opening of 115 inches • 8x – T1 steel lower tines with reinforced tine tips • 12-13in tine spacing on average • Dozer push plate installed on backside • HD dual grapples • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 5400 lbs |
|||
| Machine Operating Wt Class – 32,000-38,000 lbs
Model No. DX-RK-RFDG-D112x11-WL-60 Rake-Refuse Double Grapple-112 inch raking width x 11 steel tines with dozer push plate-Wheel Loader-Class 60 • Clamp opening of 115 inches • 11x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • HD dual grapples • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 5600 lbs |
|||
| Machine Operating Wt Class – 32,000-38,000 lbs
Model No. DX-RK-RFDG-D125x12-WL-60 Rake-Refuse Double Grapple-125 inch raking width x 12 steel tines with dozer push plate-Wheel Loader-Class 60 • Clamp opening of 115 inches • 12x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • HD dual grapples • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 6,000 lbs |
|||
| Machine Operating Wt Class – 40,000-47,500 lbs
Model No. DX-RK-RFDG-D125x12-WL-70 Rake-Refuse Double Grapple-125 inch raking width x 12 steel tines with dozer push plate-Wheel Loader-Class 70 • Clamp opening of 115 inches • 12x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • HD dual grapples • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 6,000 lbs |
|||
| Machine Operating Wt Class – 40,000-47,500 lbs
Model No. DX-RK-RFDG-D135x13-WL-70 Rake-Refuse Double Grapple-135 inch raking width x 13 steel tines with dozer push plate-Wheel Loader-Class 70 • Clamp opening of 115 inches • 13x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • HD dual grapples • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 6,400 lbs |
|||
| Machine Operating Wt Class – 40,000-47,500 lbs
Model No. DX-RK-RFDG-D135x13-WL-80 Rake-Refuse Double Grapple-135 inch raking width x 13 steel tines with dozer push plate-Wheel Loader-Class 80 • Clamp opening of 115 inches • 13x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • HD dual grapples • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 6,400 lbs |
|||
| Machine Operating Wt Class – 48,000-56,000 lbs
Model No. DX-RK-RFDG-D145x14-WL-80 Rake-Refuse Double Grapple-145 inch raking width x 14 steel tines with dozer push plate-Wheel Loader-Class 80 • Clamp opening of 115 inches • 14x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • HD dual grapples • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 7,000 lbs |
|||
| Full Width Grapple Models below | |||
| Machine Operating Wt Class – 40,000-47,500 lbs
Model No. DX-RK-RFFG-D135x13-WL-70 Rake-Refuse Full Width Grapple-135 inch raking width x 13 steel tines with dozer push plate-Wheel Loader-Class 70 • Clamp opening of 115 inches • 13x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • Full width grapple • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 6,800 lbs |
|||
| Machine Operating Wt Class – 48,000-56,000 lbs
Model No. DX-RK-RFFG-D135x13-WL-80 Rake-Refuse Full Width Grapple-135 inch raking width x 13 steel tines with dozer push plate-Wheel Loader-Class 80 • Clamp opening of 115 inches • 13x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • Full width grapple • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 6,800 lbs |
|||
| Model DX-RK-RFFG-D145x14-WL-80
Rake-Refuse Full Width Grapple-145 inch raking width x 14 steel tines with dozer push plate-Wheel Loader-Class 80 • Clamp opening of 115 inches • 14x – T1 steel lower tines with reinforced tine tips • 10.5 in tine spacing on average • Dozer push plate installed on backside • Full width grapple • 4.0 x 16.0 cylinder arrangement • Tine depth 48.5 inches Weight: 7,500 lbs |
Design and specifications are subject to change without notice. Please contact Dymax for custom solutions 1-800-530-5407.
