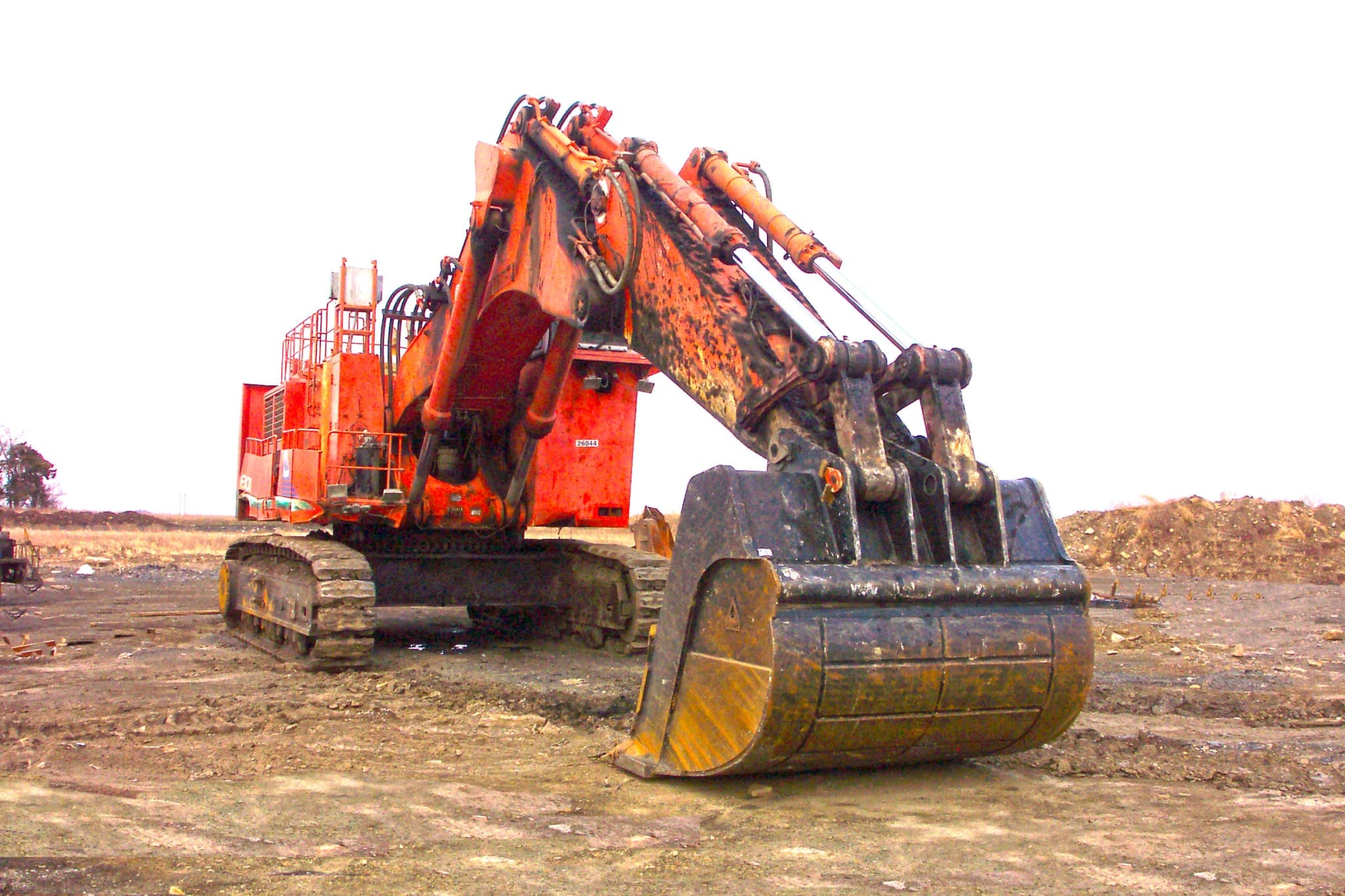

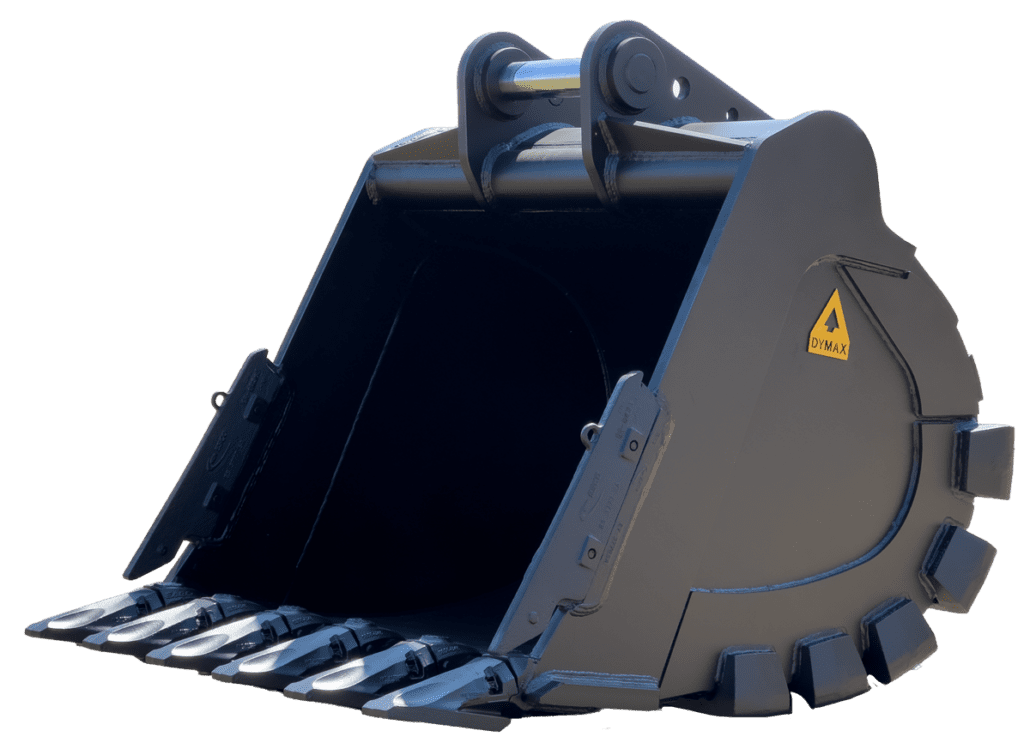

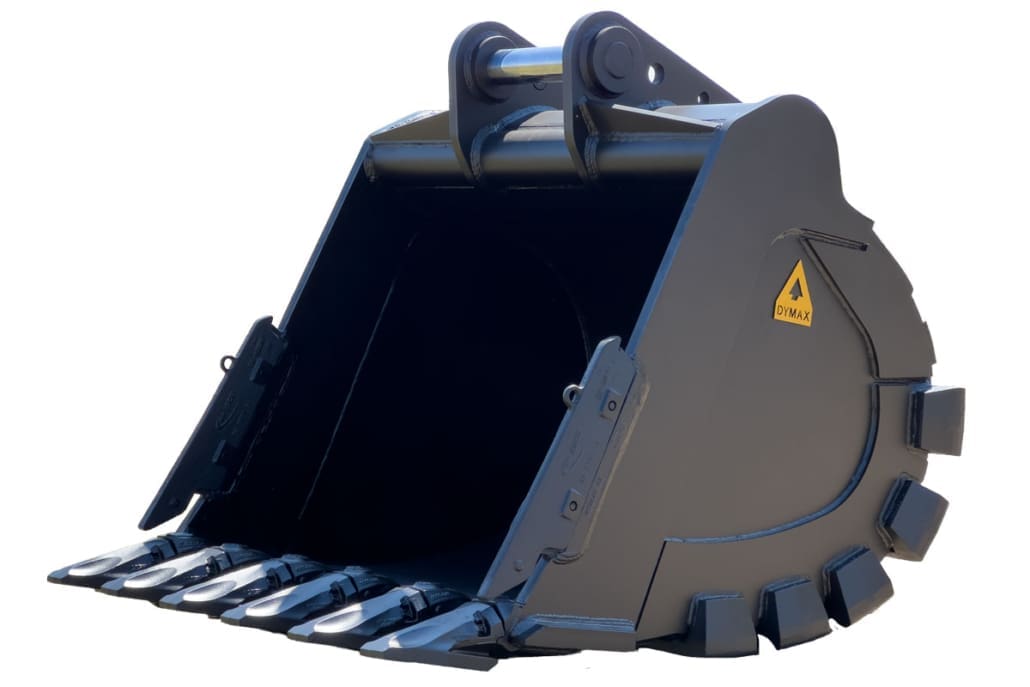

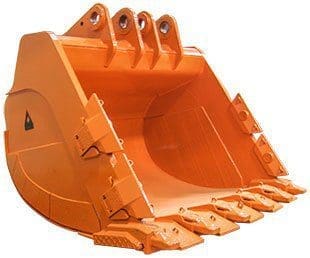

Dymax Rock and Mass Excavation Buckets are engineered for demanding rock and mining applications where durability and uptime matter most. Built from abrasion-resistant steel and configurable with heavy-duty edges and wear packages, these buckets are designed to match the machine, material, and production requirements of large-scale excavation work.

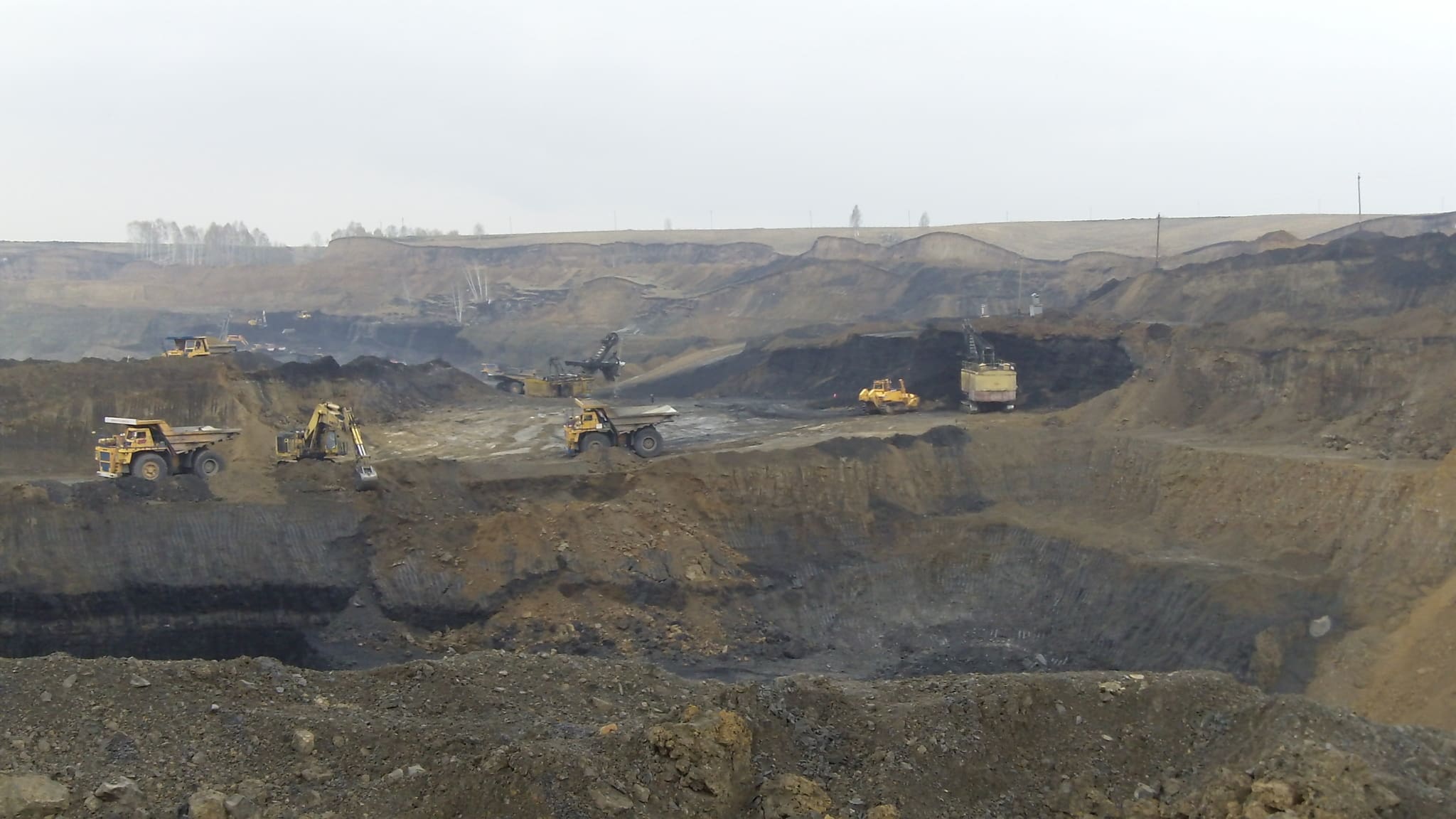

“We have a mine customer in the far reaches of Siberia who prefers Dymax Buckets over others, because they outperform and outlast other brands. On top of this, Dymax personnel were the first bucket manufacturer to visit us and our applications. They are great folks to work with.”
– Sergey Eremin, Scorpion Inc., Russia
EXCAVATOR ROCK BUCKET MODELS
| Model Description Weight (lbs) |
| DX-BK-RK-30×1.63-HX-45T
Bucket-Rock-30 inches wide x 1.63 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-45 Ton WEIGHT: 3200 lbs |
| DX-BK-RK-36×2.70-HX-85T
Bucket-Rock-36 inches wide x 2.70 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-85 Ton STANDARD FEATURES: – Equipped with 4x weld-on adapters and tips (Esco) – 1 set of lower side bar protectors – Side Bar: 2.00 A514 Steel – Moldboard: 0.75 A514 Grade Steel – Wear Plates: 0.75 AR400 Steel – Edge: 3.00 A514 Grade Steel WEIGHT: 5500 lbs |
| DX-BK-RK-42×1.88-HX-45T
Bucket-Rock-42 inches wide x 1.88 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-45 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 3700 lbs |
| DX-BK-RK-42×3.30-HX-85T
Bucket-Rock-42 inches wide x 3.30 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-85 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 5400 lbs |
| DX-BK-RK-48×1.80-HX-29T
Bucket-Rock-48 inches wide x 1.80 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-29 Ton STANDARD FEATURES: – 4 Esco replaceable teeth – Replaceable side bar shrouds – High-strength T1 moldboard group – Exterior side wear plates – Bottom horizontal AR400 wear plates – Includes set of pins WEIGHT: 3300 lbs |
| DX-BK-RK-48×2.25-HX-45T
Bucket-Rock-48 inches wide x 2.25 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-45 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 4600 lbs |
| DX-BK-RK-48×3.90-HX-85T
Bucket-Rock-48 inches wide x 3.90 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-85 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 8000 lbs |
| DX-BK-RK-54×1.75-HX-25T
Bucket-Rock-54 inches wide x 1.75 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-25 Ton STANDARD FEATURES: – Straight edge – (5) weld-on adapters and tips installed – 1 set of lower bolt-on side bar protectors – AR400 bottom horizontal wear plates – AR400 side wear plates – Standard T1 moldboard group – 1 set of pins WEIGHT: 3400 lbs |
| DX-BK-RK-54×2.10-HX-36T
Bucket-Rock-54 inches wide x 2.10 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-36 Ton STANDARD FEATURES: – Straight edge – (5) weld-on adapters and tips installed – 1 set of lower bolt-on side bar protectors – AR400 bottom horizontal wear plates – AR400 side wear plates – Standard T1 moldboard group – 1 set of pins WEIGHT: 4100 lbs |
| DX-BK-RK-54×3.00-HX-45T
Bucket-Rock-54 inches wide x 3.00 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-45 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 5450 lbs |
| DX-BK-RK-54×4.60-HX-85T
Bucket-Rock-54 inches wide x 4.60 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-85 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 8900 lbs |
| DX-BK-RK-60×2.25-HX-20T
Bucket-Rock-60 inches wide x 2.25 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-20 Ton STANDARD FEATURES: – Straight edge – 6x CAT style Advansys adapters and tips – T1 bottom and side wear plates – Standard T1 moldboard group – 2x Includes CAT bolt-on side cutters on lower sidebars – Includes set of Chrome pins (80mm) WEIGHT: 2850 lbs |
| DX-BK-RK-66X3.00-HX-36T
Bucket-Rock-66 inches wide x 3.00 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-36 Ton STANDARD FEATURES: – 6x Weld-on adapters and rips – 1x set of replaceable lower side bar protectors – HD T1 plate lip – Bottom AR400 horizontal wear strips – Exterior AR400 side plate wear pad – Rear upper hinge plate doubler – Includes set of pins for attaching to pin grabber coupler WEIGHT: 6200 lbs |
| DX-BK-RK-72×3.00-HX-36T
Bucket-Rock-72 inches wide x 3.00 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-36 Ton STANDARD FEATURES: – 6x Weld-on adapters and tips – 1x set of replaceable lower side bar protectors – HD T1 plate lip – Bottom AR400 horizontal wear strips – Exterior AR400 side plate wear pad – Rear upper hinge plate doubler – Includes set of pins for attaching to pin grabber coupler WEIGHT: 6200 lbs |
| DX-BK-RK-72×3.50-HX-40T
Bucket-Rock-72 inches wide x 3.50 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-40 Ton STANDARD FEATURES: – 6x Weld-on adapters and tips – 1x set of replaceable lower side bar protectors – HD T1 plate lip – Bottom AR400 horizontal wear strips – Exterior AR400 side plate wear pad – Rear upper hinge plate doubler – Includes set of pins for attaching to pin grabber coupler WEIGHT: 6400 lbs |
| DX-BK-RK-72×4.50-HX-65T
Bucket-Rock-72 inches wide x 4.50 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-65 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 8500 lbs |
| DX-BK-RK-78×4.50-HX-65T
Bucket-Rock-78 inches wide x 4.50 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-65 Ton STANDARD FEATURES: – Straight edge setup with (6) Esco adapters and tips – 2.50″ T1 steel base edge group – AR400 bottom wear plates and side wear plates – Upper radius wear plate – Heavy duty box section top beam design – T1 moldboard group 3/4″ thick – 2 sets of side bar protectors Optional heel shrouds can be purchased separately. 10x / 5 per side. WEIGHT: 8150 lbs |
| DX-BK-RK-84×3.90-HX-45T
Bucket-Rock-84 inches wide x 3.90 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-45 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 8000 lbs |
| DX-BK-RK-84×4.90-HX-85T
Bucket-Rock-84 inches wide x 4.90 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-85 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 9500 lbs |
| DX-BK-RK-84×6.80-HXM-120T
Bucket-Rock-84 inches wide x 6.80 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator Mining-120 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 13,000 lbs |
| DX-BK-RK-88×7.60-HXM-120T
Bucket-Rock-88 inches wide x 7.60 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator Mining-120 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 15,000 lbs |
| DX-BK-RK-91×6.25-HX-85T
Bucket-Rock-91 inches wide x 6.25 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-85 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 12,000 lbs |
| DX-BK-RK-94×8.80-HXM-120T
Bucket-Rock-94 inches wide x 8.80 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator Mining-120 Ton STANDARD FEATURES: – Straight edge – Half-arrow bolt-on cutting edges – AR400 bottom wear plates and rear bolt-on wear plates – Standard T1 moldboard group with auxiliary spill plate – 1 set of lower side bar protectors WEIGHT: 17,000 lbs |
| DX-BK-RK-96×8.10-HX-90T
Bucket-Rock-96 inches wide x 8.10 cubic yard capacity -Hydraulic Excavator-90 ton class STANDARD FEATURES: – CAT weld-on adapters and tips installed (Advansys 170 adapters and GP tips) – 3.0″ A514 plate lip – 2.0″ A514 side cutters with (2 ea) CAT bolt-on side bar protectors installed. – Twin-replaceable side cutters covering full side bars – 0.75″ thick Horizontal AR400 wear plates and side wear plates – HB linkage top adapter with adjuster group WEIGHT: 13,000 lbs |
| DX-BK-RKSD-79×5.30-HX-75T
Bucket-Rock Severe Duty-79 inches wide x 5.30 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator-75 Ton STANDARD FEATURES: – Straight edge design – Equipped with 4 teeth and adapters – AR400 wear plates on bottom and sides – T-1 moldboard group – Equipped with lower and upper side bar protectors – Not supplied with mounting pins WEIGHT: 10,500 lbs |
| DX-BK-RK-108×12.60-HXM-200T
Bucket-Rock-108 inches wide x 12.60 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator Mining-200 Ton STANDARD FEATURES: – Straight edge – Adapters, tips and lip shrouds – AR400 wear plates – bottom and sides – Standard T1 moldboard group – Lower and upper side bar protectors |
| DX-BK-RK-120×17.00-HXM-200T
Bucket-Rock-120 inches wide x 17.00 cubic yard capacity (SAE Heap Rating)-Hydraulic Excavator Mining-200 Ton STANDARD FEATURES: – Straight Edge – Adapters, Tips and Lip Shrouds – AR400 wear plates – bottom and sides – Standard T1 moldboard group – Lower and upper side bar protectors |
Design and specifications subject to change without notice.
For custom design solutions, contact Dymax Sales at [email protected] or 1-785-456-2081.
