Stone Grapple
1

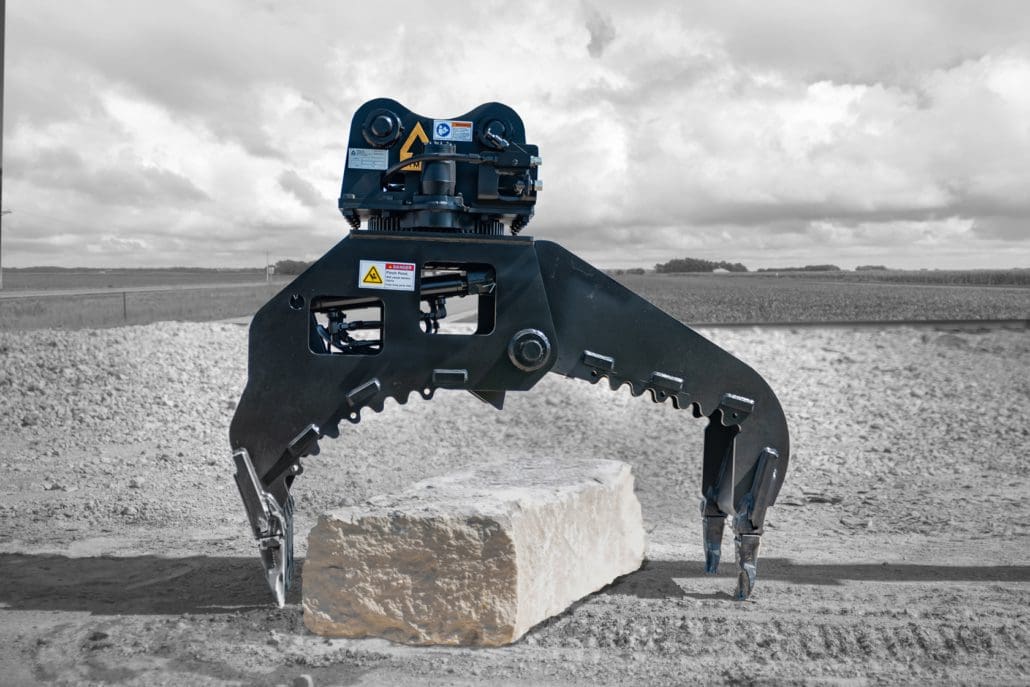

Dymax Stone Quarry Block Grapples feature replaceable teeth for digging, leveling and scraping away shale layers from stones.

2

360° rotation for precise placement of stones when building retaining walls and loading or unloading trucks.

3

Twin hydraulic cylinders provide powerful clamping force enabling operators to easily manipulate stone blocks.

4

Serrated high tensile steel with bolt-on side plates for handling brush and other specialized materials, not just boulders and stone blocks.

Stone Quarry Block Grapples

for excavators

Dymax Stone Quarry Block Grapples are excellent for building retaining walls, loading and unloading stone blocks and provide long lasting durability and performance.

Rotation models include serrated AR400 tines and are provided with bolt-on side plates to enable operators to handle brush, pipe and other materials, maximizing utilization of the attachment for many applications.

Standard Features

• Bolt-on machine adapter and pins included
• Twin pinion drive low profile rotation system 360°
• High strength T1 arms
• Two powerful hydraulic cylinders with load checks
• Esco weld-on flare type and tips
• Serrated tines
• Bolt-on side plates (1 set)

Model Code
Description
Weight
DX-GL-STN-360-HX-6T

Grapple-Stone & Rock-360 degrees rotation-Hydraulic Excavator-6 ton

STANDARD FEATURES: bolt-on machine adapter and pins included, twin pinion drive low profile rotation system 360°, high strength T1 arms, twin 2.5 bore hydraulic cylinders with load checks, (6) Esco weld on flare type and tips, serrated tines with bolt on removable side plates, max open: 37 inches, opening depth: 19.06 inches.

Weight: 993 lbs
DX-GL-STN-360-HX-8T

Grapple-Stone & Rock-360 degrees rotation-Hydraulic Excavator-8 ton

STANDARD FEATURES: bolt-on machine adapter and pins included, twin pinion drive low profile rotation system 360°, high strength T1 arms, twin 2.5 bore hydraulic cylinders with load checks, (7) Esco weld on flare type and tips, serrated tines with bolt on removable side plates, max open: 49 inches, opening depth: 21.5 inches, width 25.23 inches.

Weight: 1210 lbs
DX-GL-STN-360-HX-13T

Grapple-Stone & Rock-360 degrees rotation-Hydraulic Excavator-13 ton

STANDARD FEATURES: bolt-on machine adapter and pins, twin pinion drive low profile rotation system 360°, high strength T1 arms, twin 2.5 bore hydraulic cylinders with load checks, (7) Esco weld on flare type and tips, serrated tines, max open: 56 inches, fixed grapple width: 28 inches, moving grapple width: 20 inches.

Weight: 2000 lbs
DX-GL-STN-360-HX-16T

Grapple-Stone & Rock-360 degrees rotation-Hydraulic Excavator-16 ton

STANDARD FEATURES: bolt-on machine adapter and pins included, twin pinion drive low profile rotation system 360°, high strength T1 arms, twin 2.5 bore hydraulic cylinders with load checks, (7) Esco weld on flare type and tips, serrated tines, max open: 56 inches, fixed grapple width: 28 inches, moving grapple width: 20 inches.

Weight: 2060 lbs
Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions: 1-800-530-5407.
Your machine will require (2) sets of hydraulic lines for operation.

CIRCUIT 1 – Grapple
Type – Two way / Bi Directional
GPM (min/max) 10-15, PSI (max) 3,000

CIRCUIT 2 – Rotator
Type – Two way / Bi-directional
GPM (max) 8, PSI (min/max) 2,500-3,000
NOT SUPPLIED: Hoses to machine auxiliary lines and connectors.
