Basket Tine Grapple
For Hydraulic Excavators

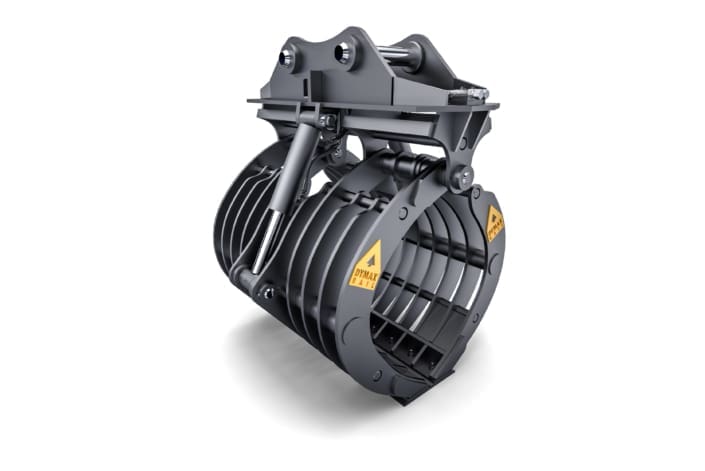

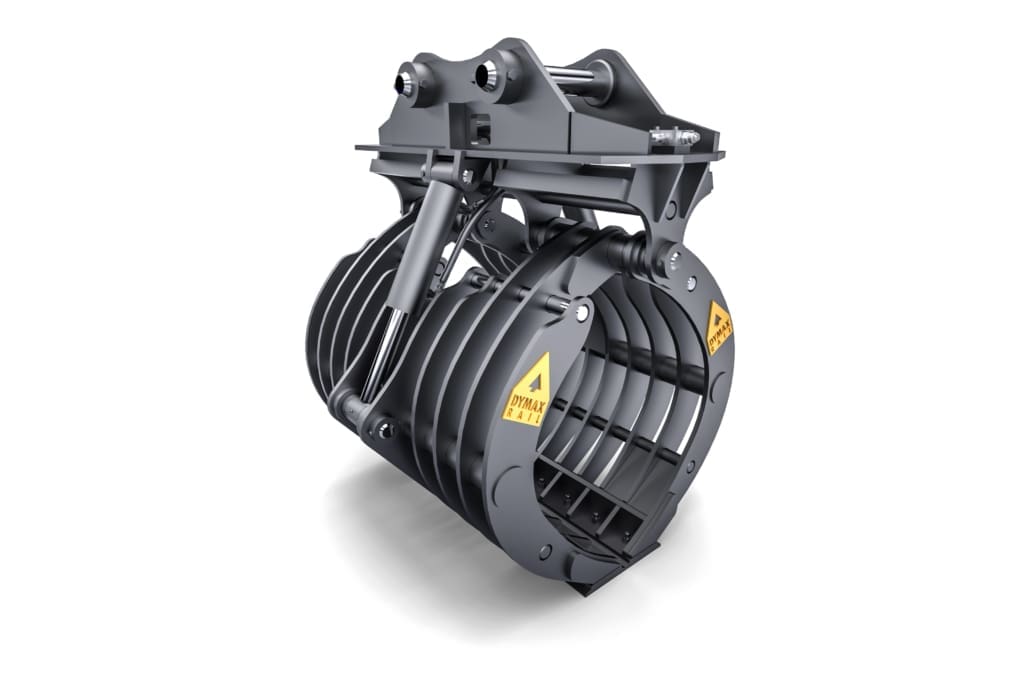

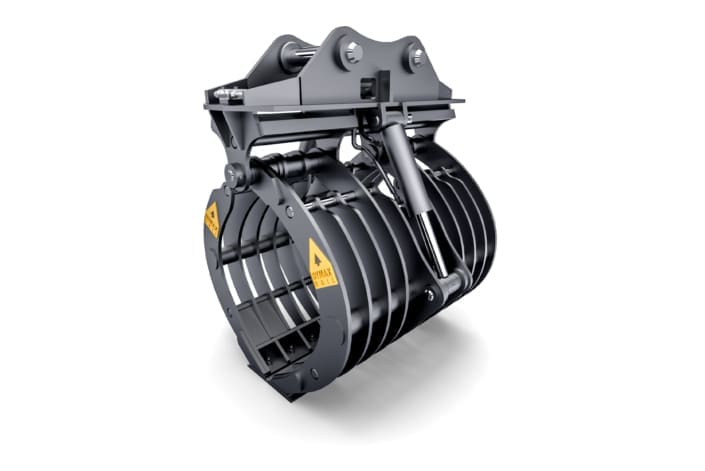

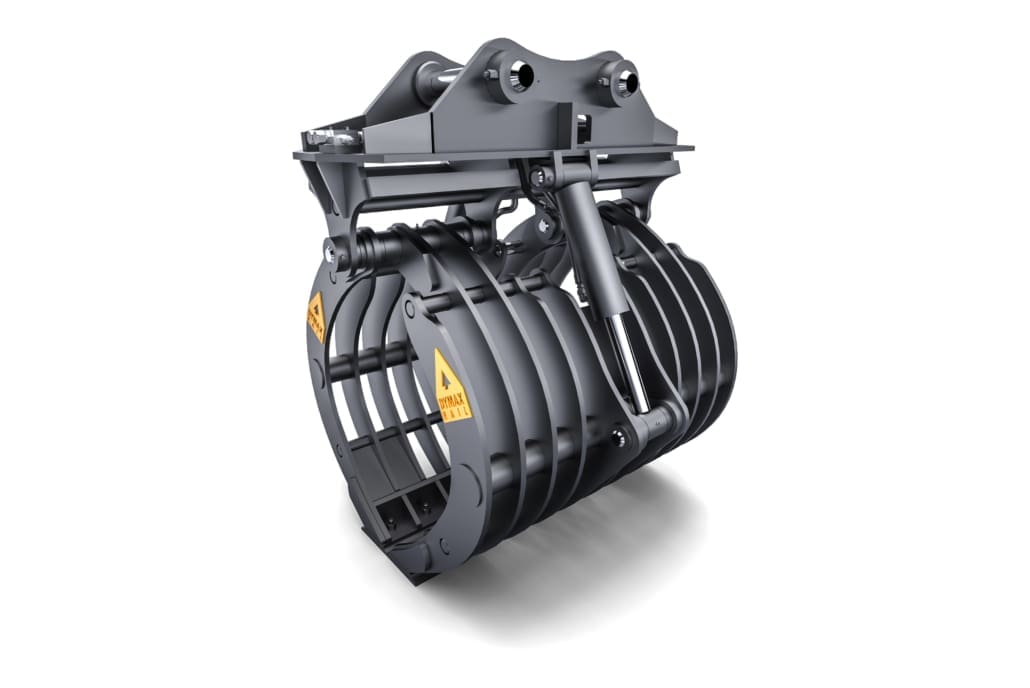

The Dymax Basket Tine Grapple is designed for efficient cleanup, featuring a skeletal structure that allows debris to sift through while securely holding larger materials. Built for tough jobs, it provides reliable handling and optimal retention, making it ideal for sorting and site cleanup.
Standard Features:

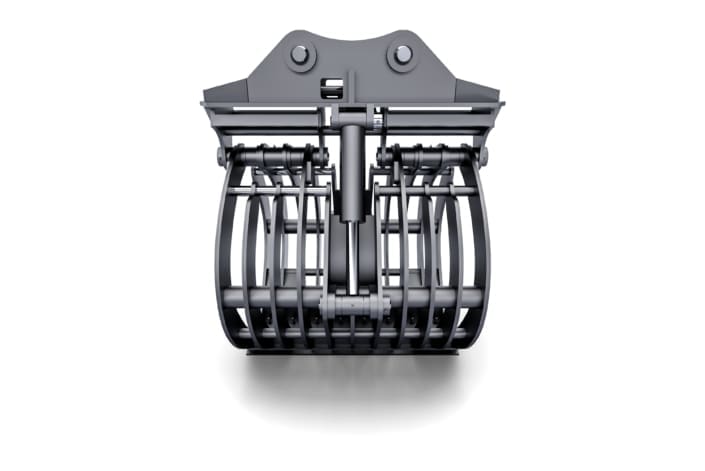

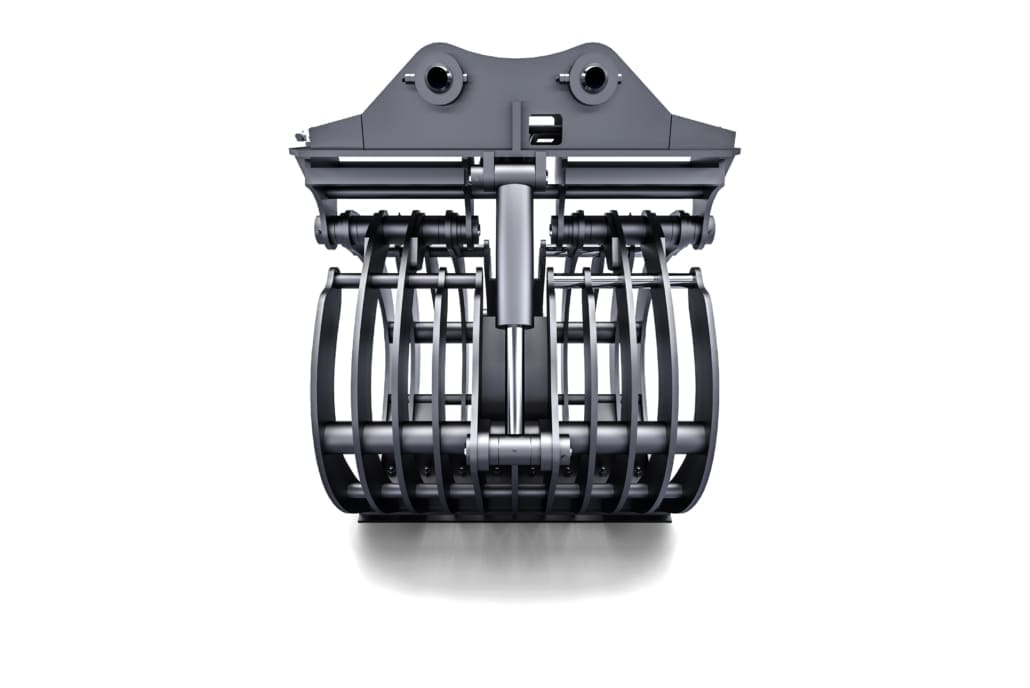

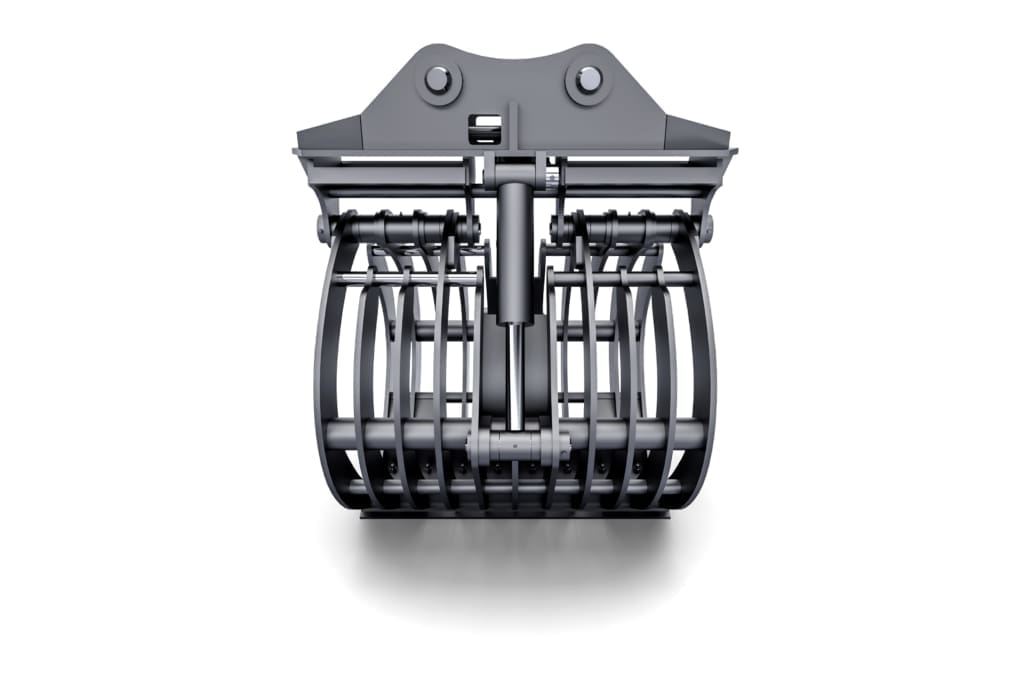

- Two skeleton tine grapple assemblies with replaceable bolt-on cutting edge.
- Each grapple side features 11 tines on 4 inch spacing.
- Max grapple opening between edges: 64.2 inches.
- Flow divider valve for balanced closing + relief valve.
OPTIONS:

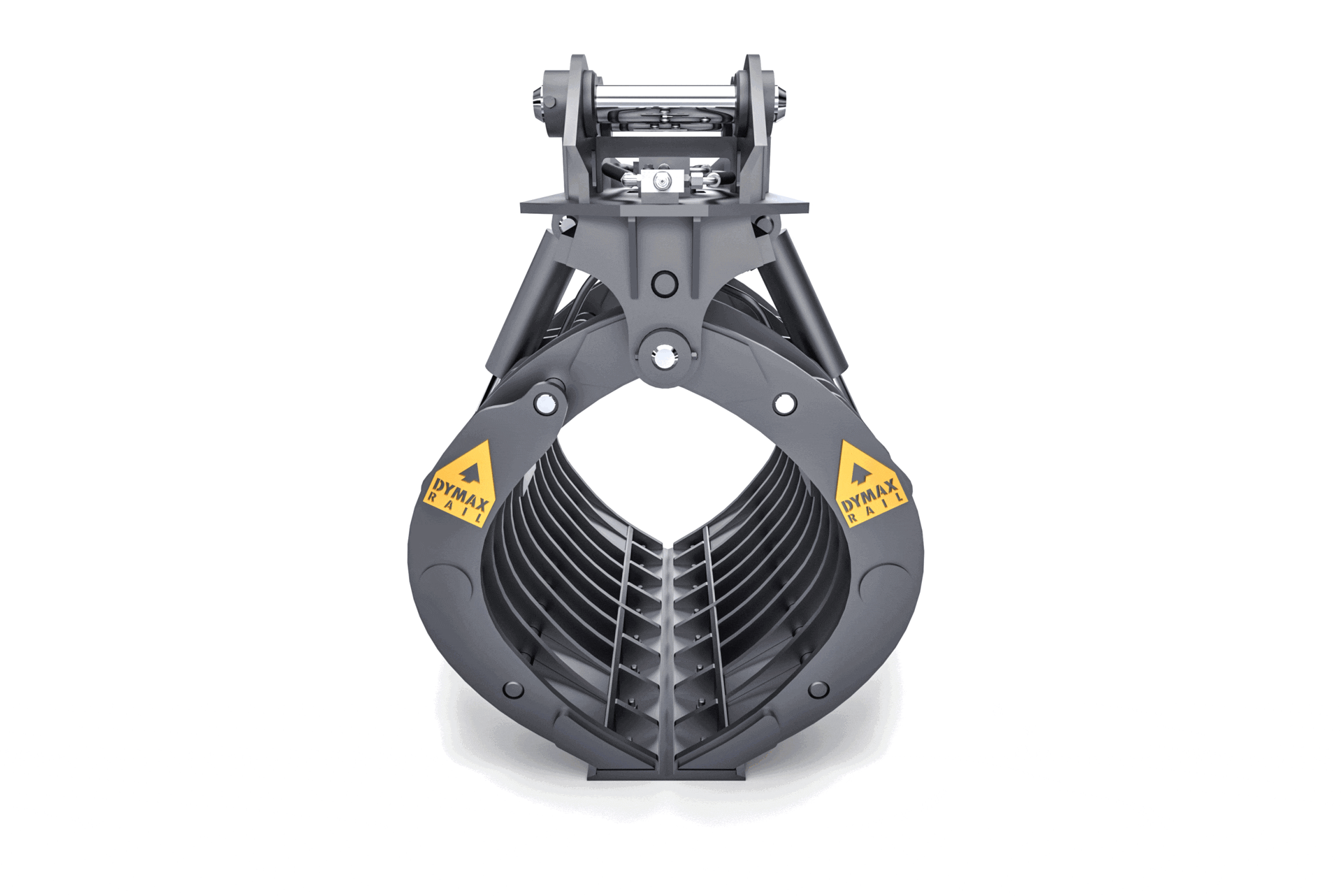

- Available with 360 rotation system.
- Can be made for Tiltrotator coupler systems.
SPECIFICATIONS
| Model Code Description Weight |
| DX-GL-BSKT-360x48in-HX-15T
Grapple-Basket Tine-360 degree rotation x 48 inches wide-Hydraulic Excavator-15 Ton STANDARD FEATURES: 360 rotation system – twin pinion drive, 2x skeleton tine basket assemblies with replaceable bolt on cutting edge, tine spacing: 4 inch (11 total tines), dual cylinder 3.5 x 10.0, bolt on replaceable cutting edges, flow divider valve for balanced closing + relief valve, max grapple opening between edges: 64.2 inches. Weight: 3750 lbs |
| DX-GL-BSKT-360x48in-HX-20T
Grapple-Basket Tine-360 degree rotation x 48 inches wide-Hydraulic Excavator-20 Ton STANDARD FEATURES: 360 rotation system – twin pinion drive, 2x skeleton tine basket assemblies with replaceable bolt on cutting edge, tine spacing: 4 inch (11 total tines), dual cylinder 3.5 x 10.0, bolt on replaceable cutting edges, flow divider valve for balanced closing + relief valve, max grapple opening between edges: 64.2 inches. Weight: 3800 lbs |
| DX-GL-BSKT-TRQx48-HX-15T
Grapple-Basket Tine-Tiltrotator Hookup x 48 inches wide-Hydraulic Excavator-15 Ton STANDARD FEATURES: fits tiltrotator coupler – includes machine adapter with pins, 2x skeleton tine basket assemblies with replaceable bolt on cutting edge, tine spacing: 4 inch (11 total tines), dual cylinder 3.5 x 10.0, bolt on replaceable cutting edges, flow divider valve for balanced closing + relief valve, max grapple opening between edges: 64.2 inches. Weight: 3100 lbs |
| DX-GL-BSKT-TRQx48-HX-20T
Grapple-Basket Tine-Tiltrotator Hookup x 48 inches wide-Hydraulic Excavator-20 Ton STANDARD FEATURES: fits tiltrotator couplers – includes machine adapter with pins, 2x skeleton tine basket assemblies with replaceable bolt on cutting edge, tine spacing: 4 inch (11 total tines), dual cylinder 3.5 x 10.0, bolt on replaceable cutting edges, flow divider valve for balanced closing + relief valve, max grapple opening between edges: 64.2 inches. Weight: 3180 lbs |
| Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions: 1-800-530-5407. |
HYDRAULIC REQUIREMENTS
| MODELS: DX-GL-BSKT-360x48in-HX-15T, DX-GL-BSKT-360x48in-HX-20T
Your machine will require (2x) circuits for operation of the grapple (open and close) and the rotation system. CIRCUIT 1 – Grapple CIRCUIT 2 – Rotator ALTERNATE CIRCUIT – If your machine does not have enough circuits, an Electro-Hydraulic Valve Kit + needle valves can be ordered. Requires installation on the cable harness. These are offered for 12 or 24-volt machines. Kits are set up on grapples before shipping. NOT SUPPLIED: Not provided with jumper hose lines to the machine auxiliary lines |
| MODELS: DX-GL-BSKT-TRQx48-HX-20T, DX-GL-BSKT-TRQx48-HX-15T
Your machine will require (1x) circuits for operation of the grapple (open and close) and the rotation system. CIRCUIT 1 – Grapple NOT SUPPLIED: Not provided with jumper hose lines to the machine auxiliary lines |
