Dymax Fertilizer Bucket, rear three-quarter view showing rear wear pads and hinge area

Dymax Fertilizer Light Material Bucket

for Wheel Loaders

Fill up to 85-90% of the bucket with potash or dry fertilizer — material that won’t heap in a standard bucket.

The Dymax Fertilizer Bucket has a long floor and long lip that self-fill as you cut into the pile and rack back. You move more per pass — without stepping up to a bigger bucket. That matters when a bigger bucket won’t fit your machine or your dump clearance. Bottom T1 wear plates and replaceable bolt-on edges hold up under abrasive, high-volume loading.

KEY FEATURES

  • Long flat floor with center ribs — fills to 85–90%
  • High-strength radial-convex side cutters for material retention and wear life
  • Bottom T1 wear plates
  • Replaceable bolt-on cutting edges
  • Rear weld-on wear pads

OPTIONS

  • Pin-on lugging or quick-coupler hooks
  • Rear bolt-on wear pads
  • Recessed hook design for added dump height
  • Special designs for height or width restrictions

SPECIFICATIONS

Model
Description
Weight (lbs)
DX-BK-LMFZ-4.60cyd-WL-50
Bucket-Light Material Fertilizer-4.60 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 50

STANDARD FEATURES: Long Floor Style

– Replaceable bolt-on cutting edges
– Bottom T1 wear plates with rear wear pads
– High-strength radial-convex side cutters
– Flat floor with center ribs for support

Rated SAE Heap.

Long lip design will allow fertilizer to fill to 85-90% of bucket volume.

WEIGHT: 3450 lbs
DX-BK-LMFZ-5.00cyd-WL-60
Bucket-Light Material Fertilizer-5.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60

STANDARD FEATURES: Long Floor Style

– Replaceable bolt-on cutting edges
– Bottom T1 wear plates with rear wear pads
– High-strength radial-convex side cutters
– Flat floor with center ribs for support

Rated SAE Heap.

Long lip design will allow fertilizer to fill to 85-90% of bucket volume.

WEIGHT: 3850 lbs
DX-BK-LMFZ-7.12cyd-WL-70
Bucket-Light Material Fertilizer-7.12 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70

STANDARD FEATURES: Long Floor Style

– Recessed hook design for increased dump height
– Rear Cat bolt-on wear plates
– Cat replaceable pattern bolt-on cutting edges
– Bucket designed for loading 6.40 cyd of fertilizer at 90% fill
– Radial side cutters
– 120.00 inches wide

Rated SAE Heap.

Long lip design will allow fertilizer to fill to 85-90% of bucket volume.

WEIGHT: 5200 lbs
DX-BK-LMFZ-9.00cyd-WL-80
Bucket-Light Material Fertilizer-9.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 80

STANDARD FEATURES: Long Floor Style

– Includes replaceable bolt-on cutting edges
– Bottom T1 wear plates with rear wear pads
– High-strength radial-convex side cutters
– Flat floor

Rated SAE Heap.

Long lip design will allow fertilizer to fill to 85-90% of bucket volume.

WEIGHT: 5500 lbs

Design and specifications are subject to change without notice.

GALLERY

PreviousNext
12345678

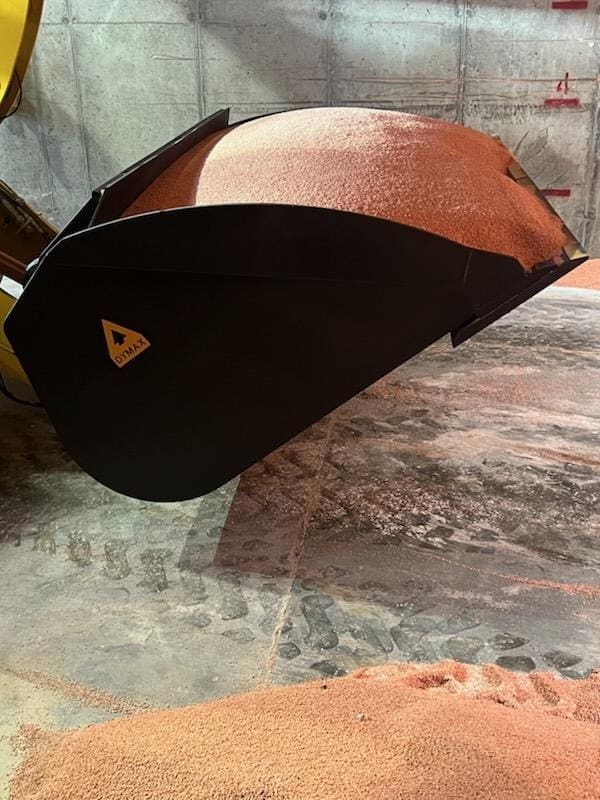

Dymax Fertilizer Bucket at a potash operation, side view showing the long floor and lip

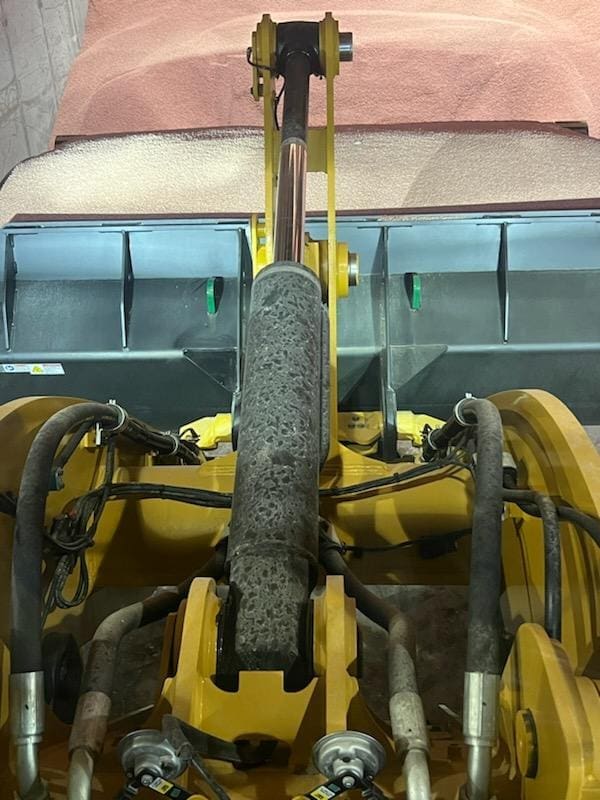

Dymax Fertilizer Bucket loading potash on a Caterpillar wheel loader

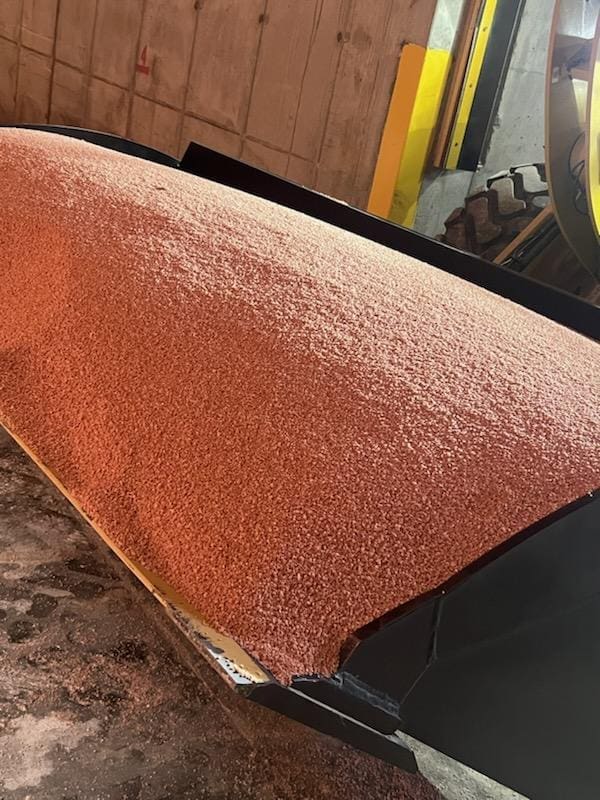

Dymax Fertilizer Bucket heaped with potash, showing high fill on flowing material

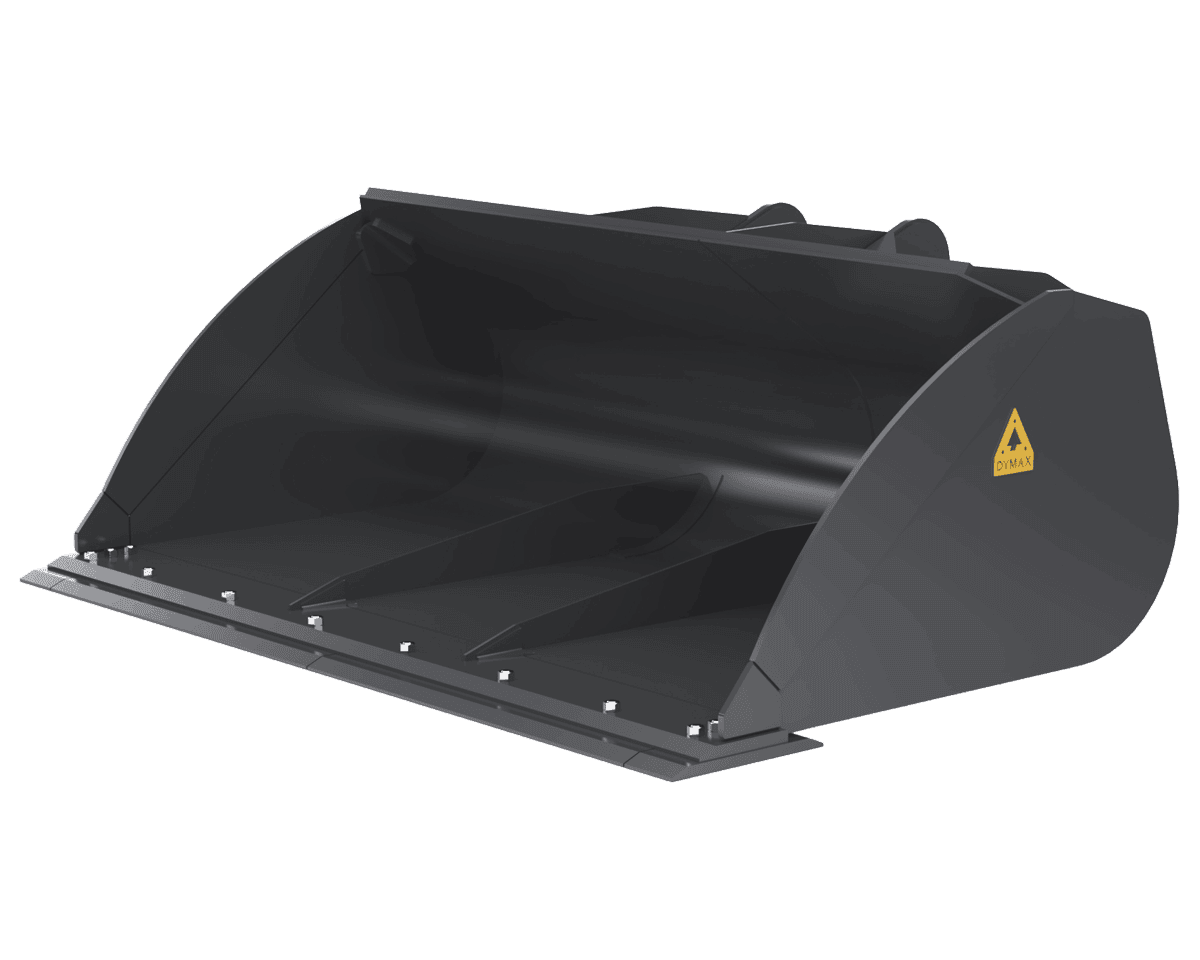

Dymax Fertilizer Bucket, rear three-quarter view showing rear wear pads and hinge area
Dymax Fertilizer Bucket side profile showing long floor and radial-convex side cutter
Dymax Fertilizer Bucket rear view showing rear wear pads

FAQ’S

Granular fertilizer flows instead of piling. It settles to struck level and slides off any heap you try to build. That leaves a standard bucket loading well below its rated volume.

The Dymax Fertilizer Bucket’s long floor and long lip let the material self-fill as you cut in and rack back, recovering that lost volume and filling to 85-90% of bucket capacity.
A standard light material bucket is built for volume on materials that heap, like mulch or snow. A fertilizer bucket is shaped for material that won’t heap. A longer floor and lip keep flowing product inside the bucket, and a radial-convex side cutter pushes material higher as it fills.

The Dymax Fertilizer Bucket runs from 4.60 cyd on a Class 50 loader (such as Cat 926 / Deere 524) up to 9.00 cyd on a Class 80 (aka, Cat 972 / Deere 824), with 5.00 and 7.12 cyd in between.

Capacity is rated SAE heap; expect 85-90% of that on fertilizer.

Tell Dymax your machine make and model and target load, and we’ll spec the size and width to match — call 1-800-530-5407.
Standard is a replaceable bolt-on cutting edge in Cat or Deere patterns, bottom T1 wear plates, and rear wear pads. Optional bolt-on pads are available.

Yes. The bucket for Class 70 loaders (such as Cat 950-962 / Deere 644-724) includes a standard recessed hook design for added dump height.

Dymax can custom-build wider-and-shorter or narrower configurations to meet height and width restrictions. Send your clearance and width constraints to our team for a custom design solution.

COMPARE DYMAX LIGHT MATERIAL BUCKETS

BUCKETBEST FORWHAT SETS IT APARTCAPACITY (SAE HEAPED)
Light Material BucketGeneral light material — corn, silage, hay, cottonseed, snowThe baseline LM bucket; widest range of sizes and edge patterns.0.75–14 cyd
Light Material PlusCorn, silage, and hay in high-hour operations~20% more durable than the standard LM bucket.3.25–9 cyd
Feedyard BucketHigh-hour cattle feedingReinforced for repeated dump-shaking; wedge floor.4.0–10.5 cyd
Bonus BucketMore capacity when width or dump height is limitedRecessed pockets add capacity without a longer floor — edge stays in view while dumping.3.5–8 cyd
Extra Wide Corn & Grain BucketEven-loading semi-trailers with corn and grainExtra-wide profile fills trailers in fewer passes.6.5–12 cyd
Fertilizer BucketPotash and dry fertilizerLong floor fills to 85–90%; abrasion resistant, less spillage4.6–9 cyd
Sugar Beet BucketHigh-volume sugar beet handlingHalf-arrow edge reduces beet damage; screen for visibility8.5–9 cyd
