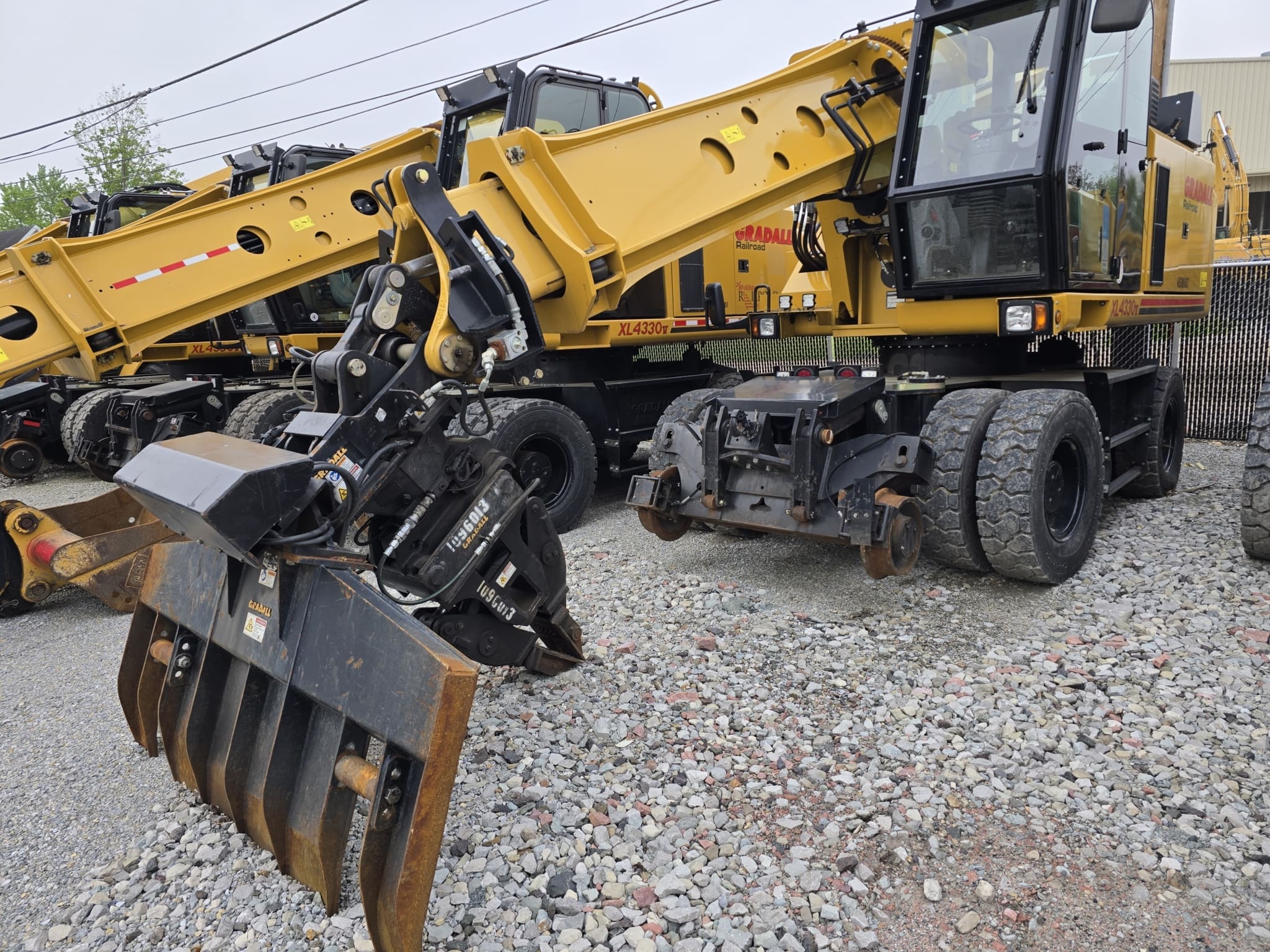

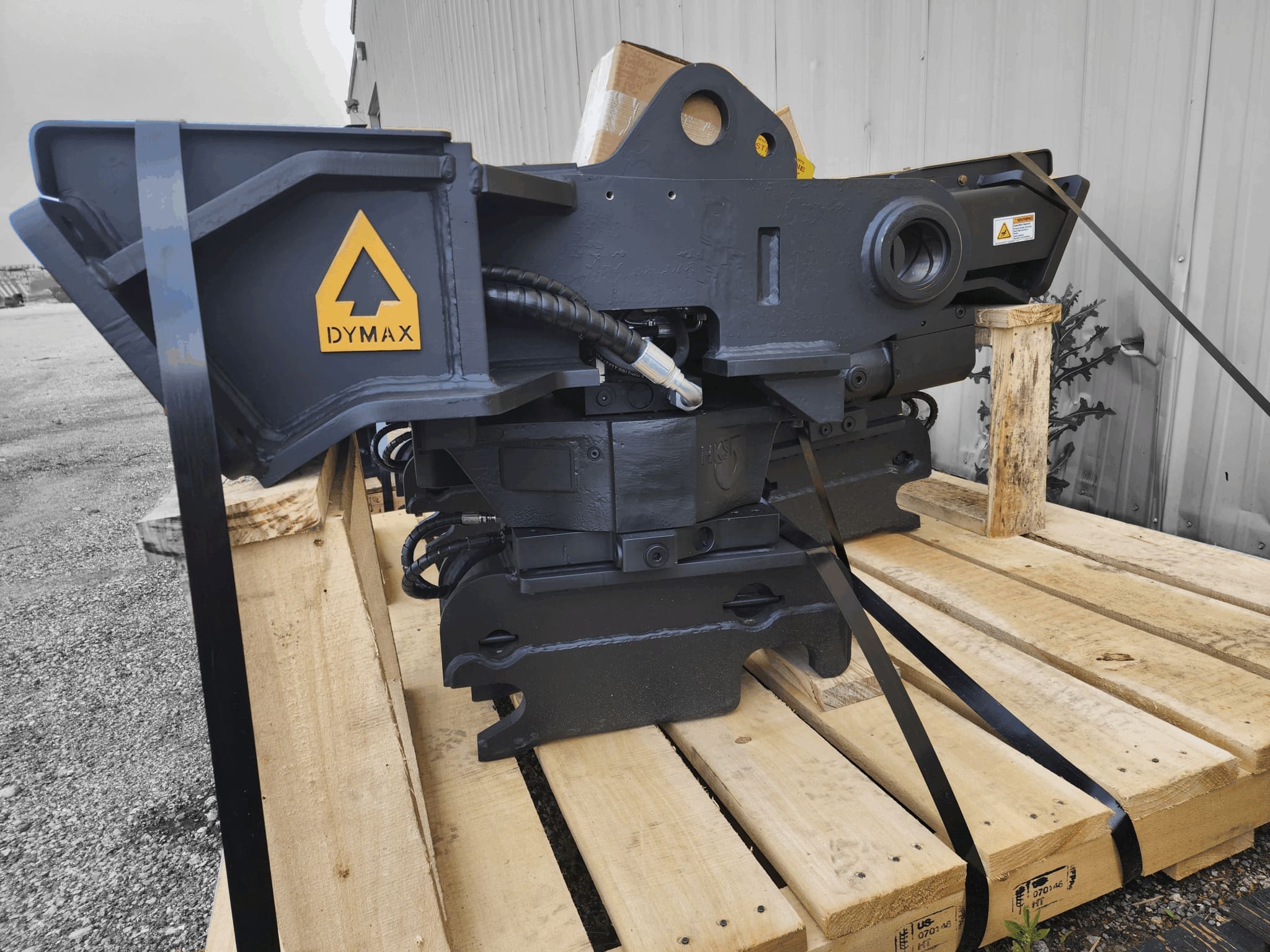

DYMAX 360 ROTATING QUICK COUPLER FOR GRADALL EXCAVATORS

The Dymax Rotating Coupler adds full 360° rotation to Gradall Excavators, working seamlessly with the machine’s built-in 220° boom tilt. No tilt is required in the coupler itself, so you can get more done with fewer adjustments.

Product Highlights

Fits: Gradall excavators
Rotation: 360° continuous
Tilt: None
Hydraulics: Requires only 1 auxiliary circuit
Coupler Lock: Hydraulic or Manual
Functions: 1 or 2 circuits (5 lines) below, subject to coupler lock
Installation: Wire cable kit + drain & jump lines

APPLICATIONS

Railway Maintenance – Handle tools and attachments on or off track.
Municipal and Utility Work – Ideal for mowing, ditch cleaning, and roadside work.
Forestry and Land Clearing – Rotate grapples and tree shears with precision.
General Construction – Grading, trenching or material handling tasks.
Demolition – Superior access in confined spaces.

Toolbar Attachment

Bolt-on interface for railway or utility applications such as ballast clearing blades.

KEY BENEFITS

High strength 360° continuous rotation. Up to 5 ports, 40GPM.
Pin grab quick coupler.
Uses factory auxiliary hydraulics.

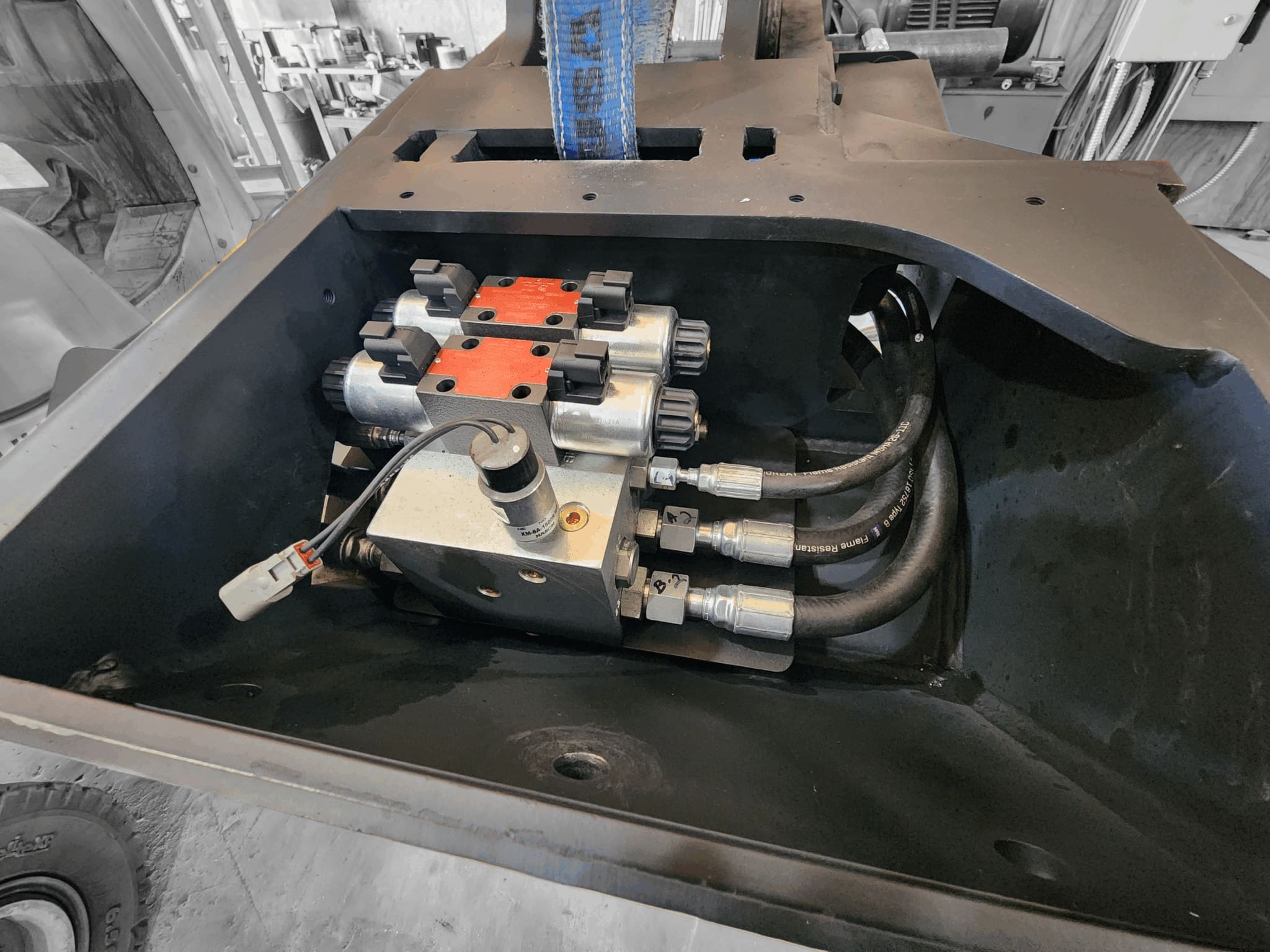

Custom Dymax valve for secure locking and proportional control.
No tilt needed – Gradall handles that.
Simple bolt-on toolbar attachments for odd jobs.

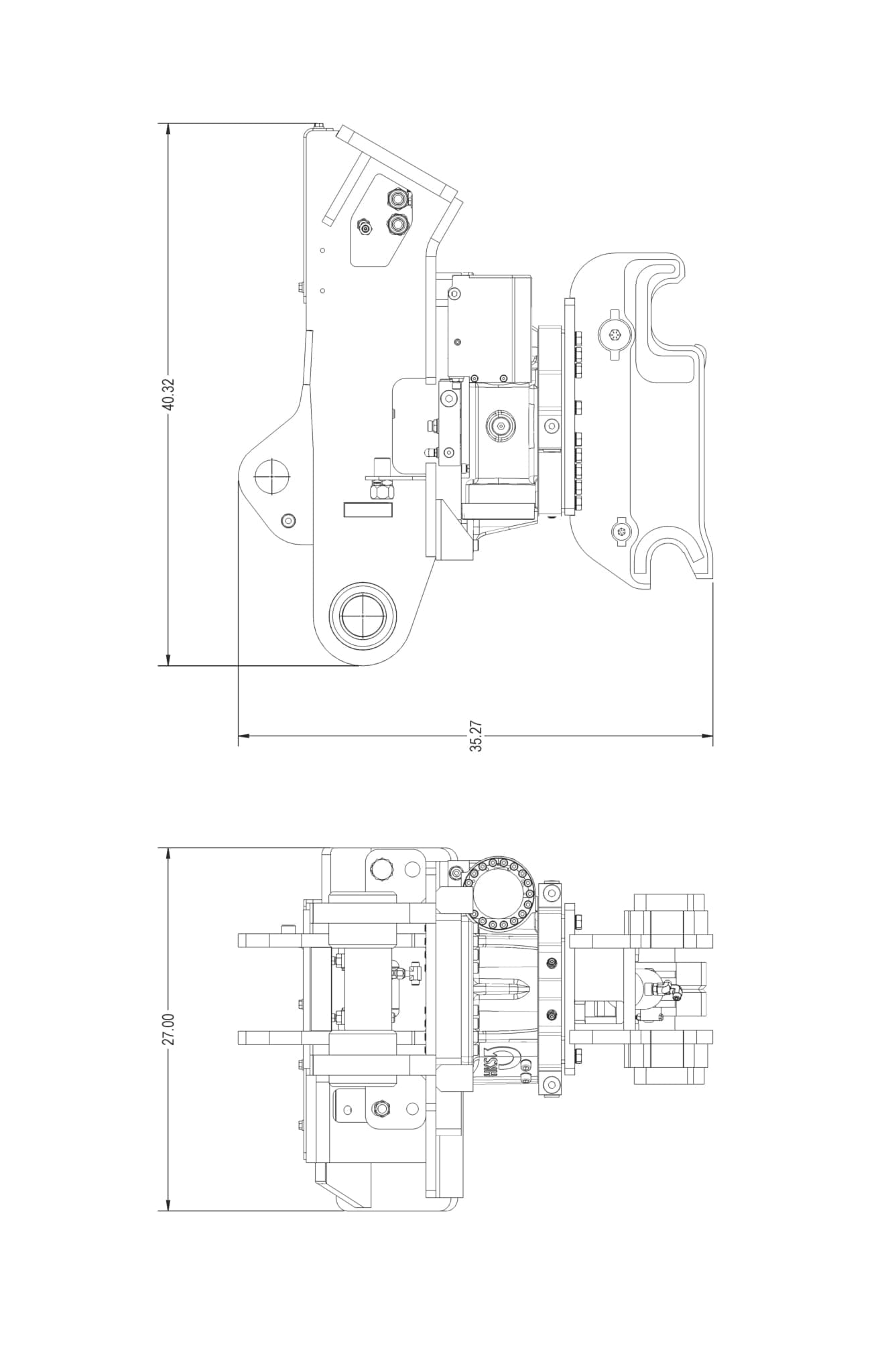

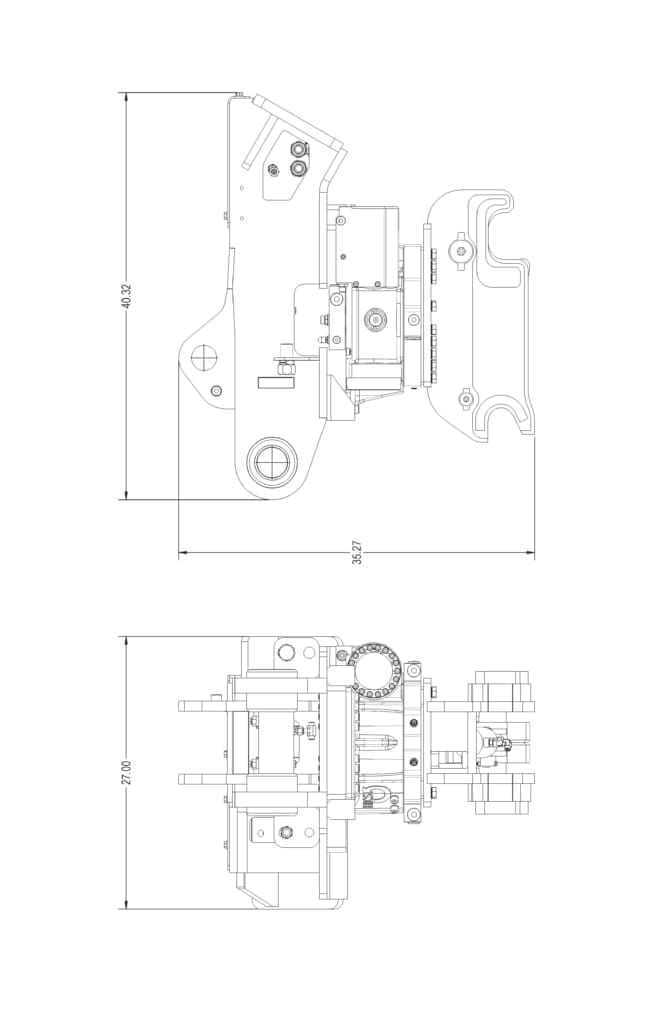

SPECIFICATIONS

ROTATING QUICK COUPLER FOR GRADALL EXCAVATORS

Model / Group Number
Description
Weight

DX-QC-PGH-360GRADALL-HX-14/18T ; 7210D2

Quick Coupler-Pin Grab Hydraulic-360 rotator Gradall compatible

STANDARD FEATURES: Full 360° continuous rotation system • Hydraulic camlock pin grab coupler compatible with Gradall standard attachments • Proportional multifunction control valve with control group • Toolbar interface (toolbar attachments sold separately)

INSTALLATION REQUIREMENTS: Dealer to install control group from coupler to cab.

OPTIONS: Manual locking coupler, Cat A Link (65MM) compatible

TOOLBAR ATTACHMENTS: Ballast rake, ballast blade, lift hook

WEIGHT: 1,470 lbs

Design and specifications are subject to change without notice.
