AMMUNITIONS GRAPPLES
For Hydraulic Excavators

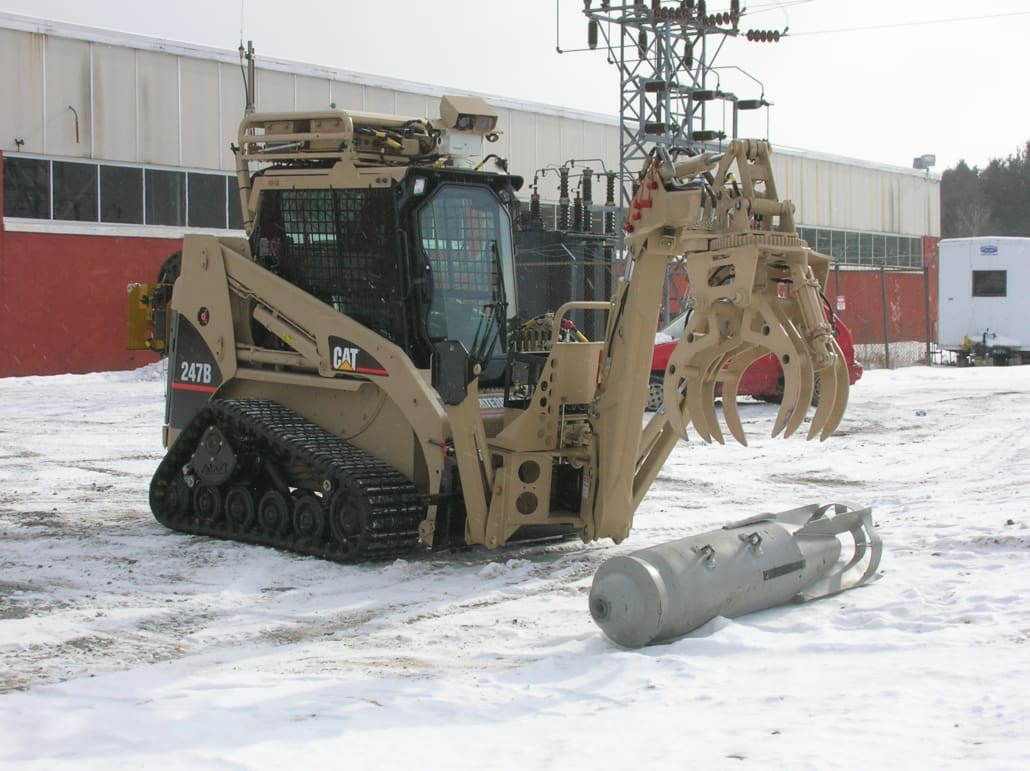

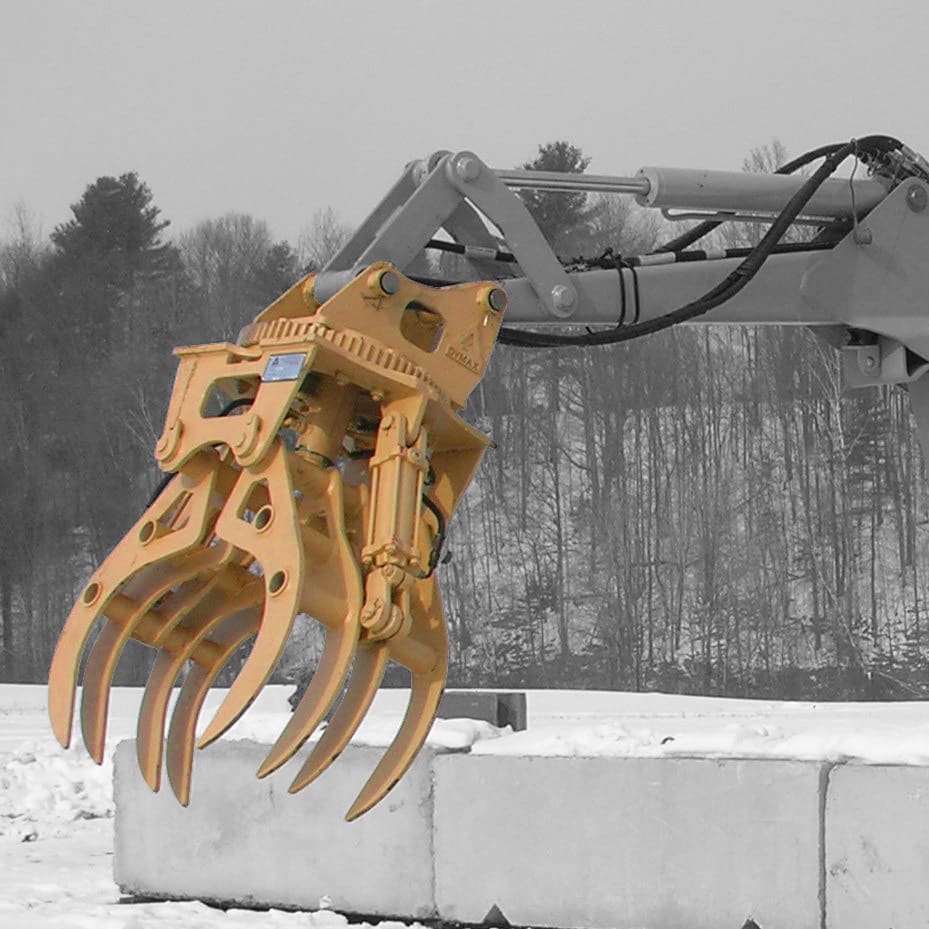

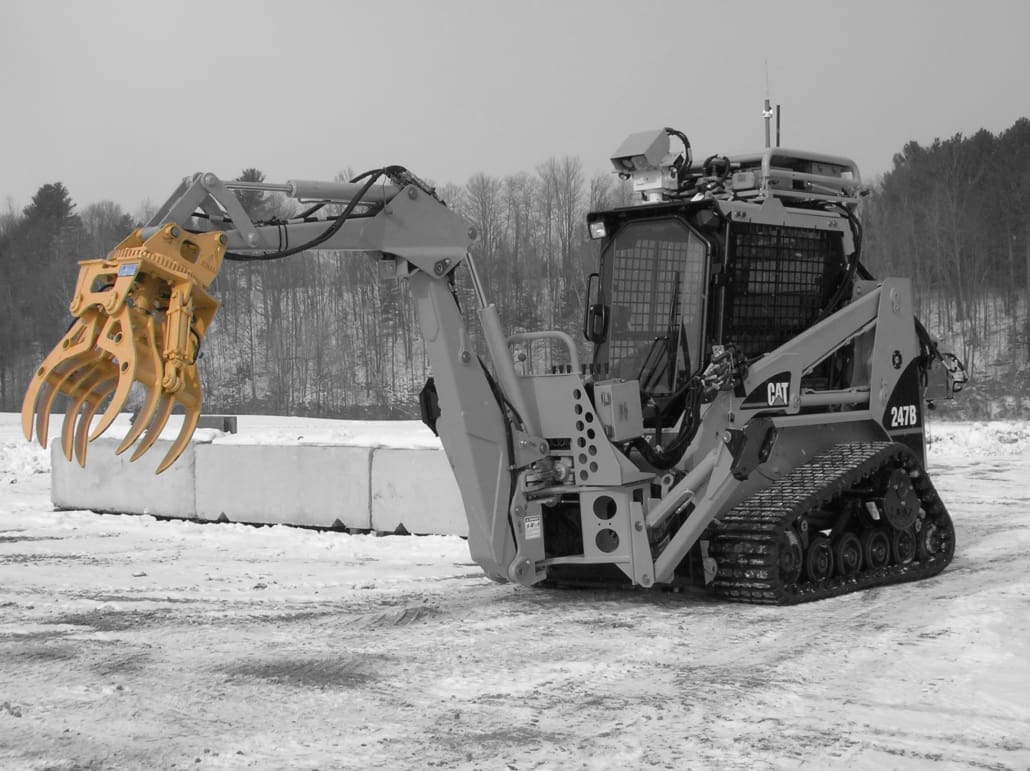

Made for Army Airborne Operations and Demining work. This specialty rotation grapple has solid tines and is designed for sifting, sorting and helping to grab bombs.
SPECIFICATIONS
| Model Code Description Weight |
| DX-GL-MAAM-360-HX-3T
Grapple-Multi-Application Tine Ammunitions-360 degrees rotation-Hydraulic Excavator-3 ton STANDARD FEATURES: designed to handle 300lb material – 2in min to 12in max diameter, 30 inch max opening between grapple tips, T1 steel tine fingers, two 2.0 x 8.0 hydraulic cylinders, 4 tine skeleton design for sifting and sorting. Weight: 400 lbs |
| Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions: 1-800-530-5407. |
HYDRAULIC REQUIREMENTS
| NOT SUPPLIED: Does not include jumper hoses to machine lines or quick disconnects. |
