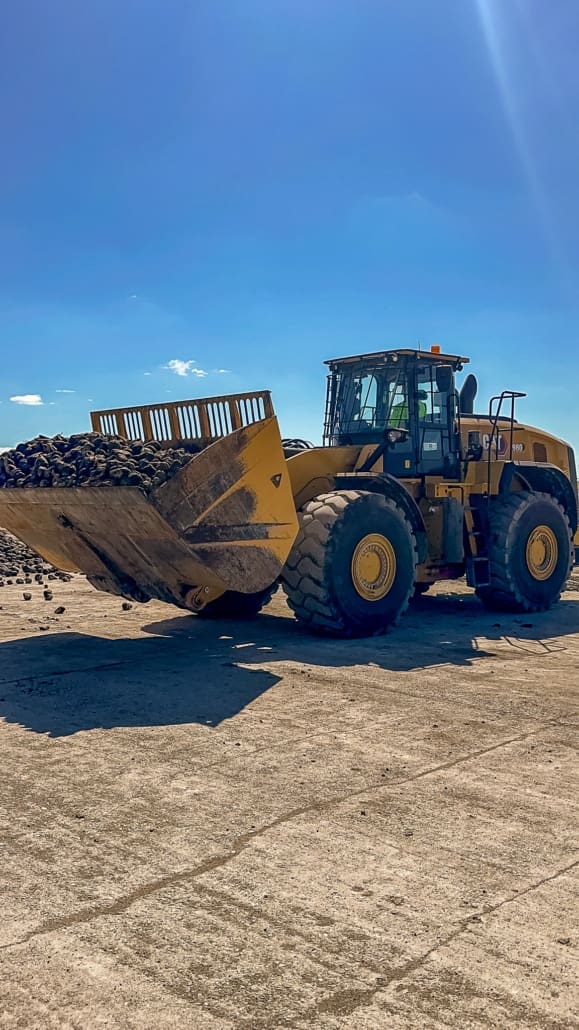

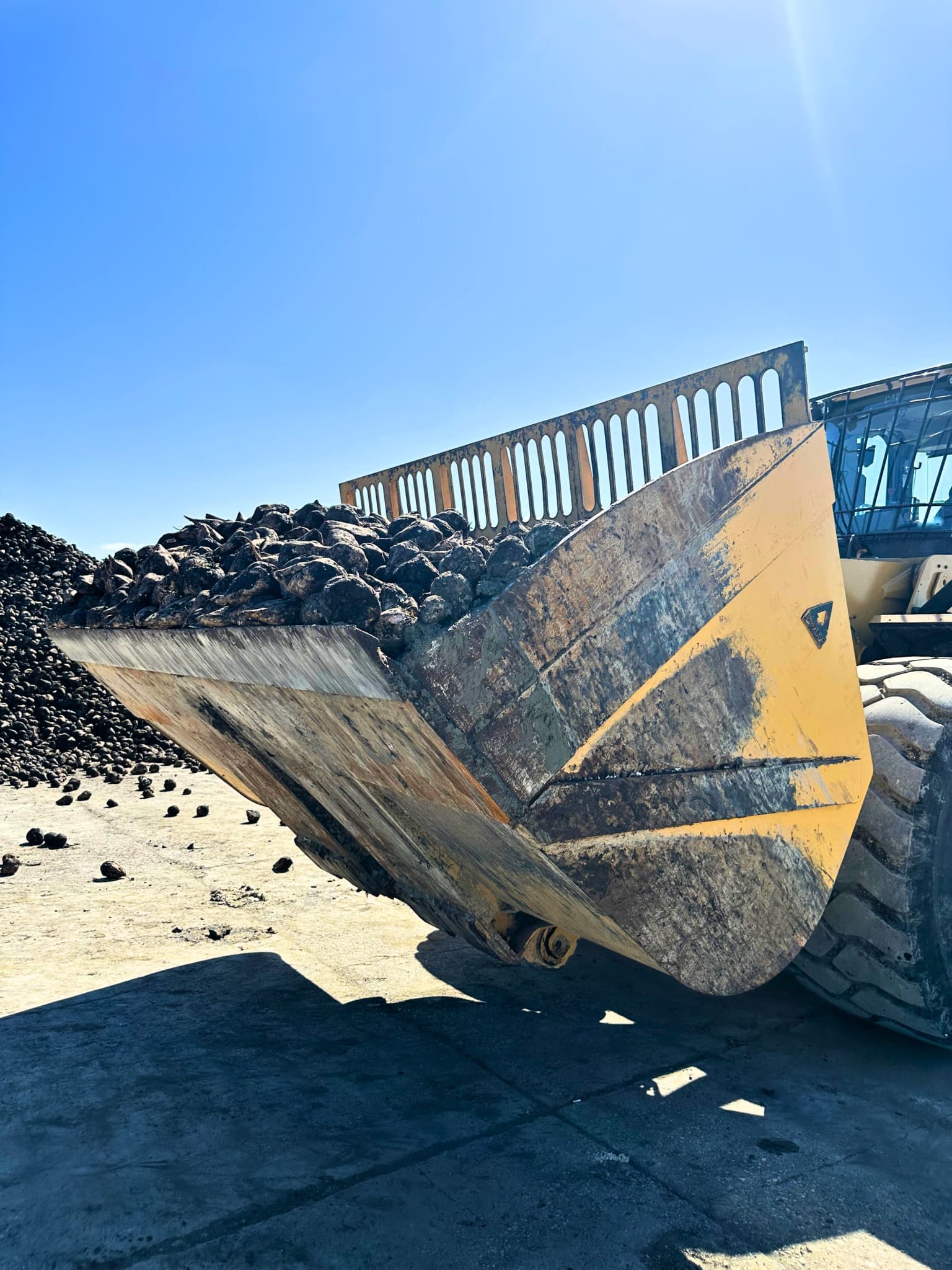

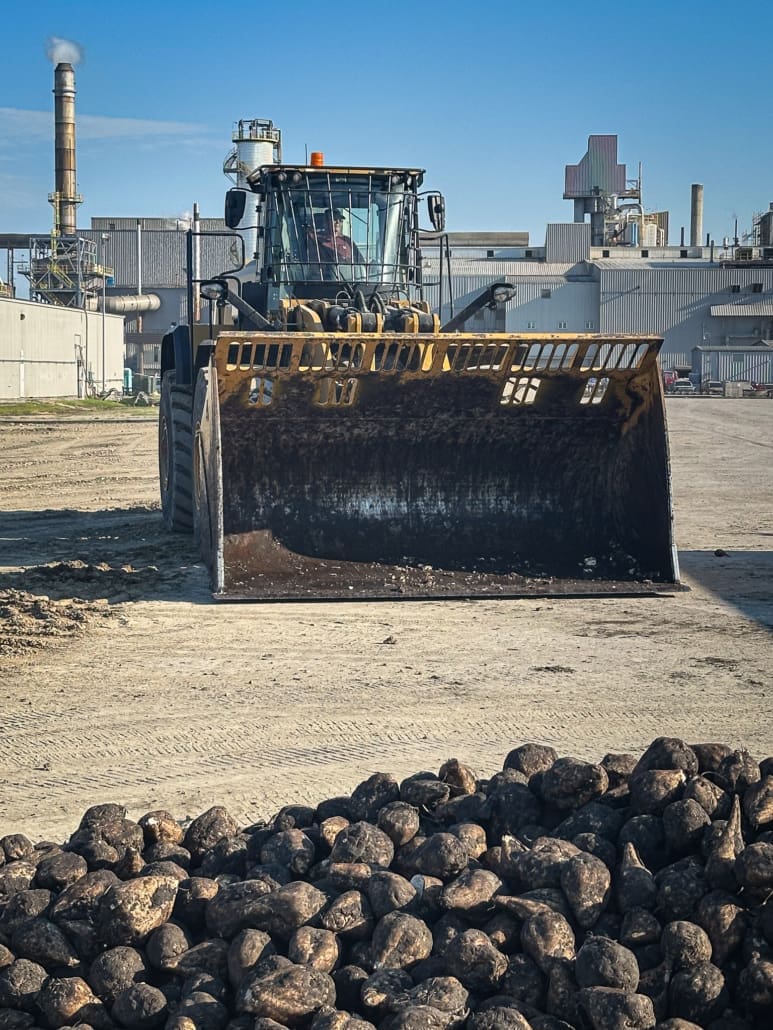

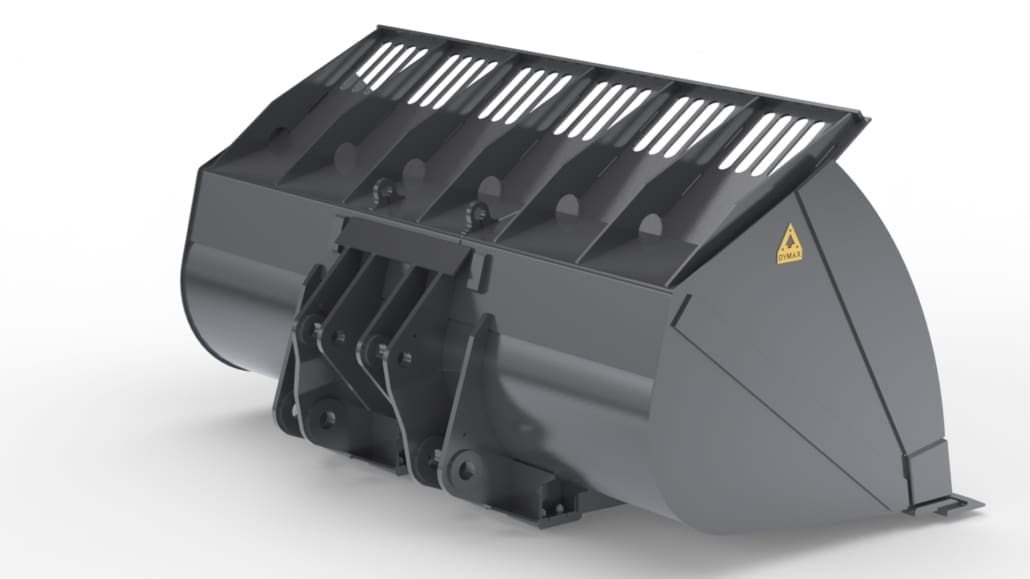

Sugar beets come in frozen and load like bowling balls. The Dymax Sugar Beet Bucket can handle the roughness, thanks to a strong, 6-degree wedge floor design.

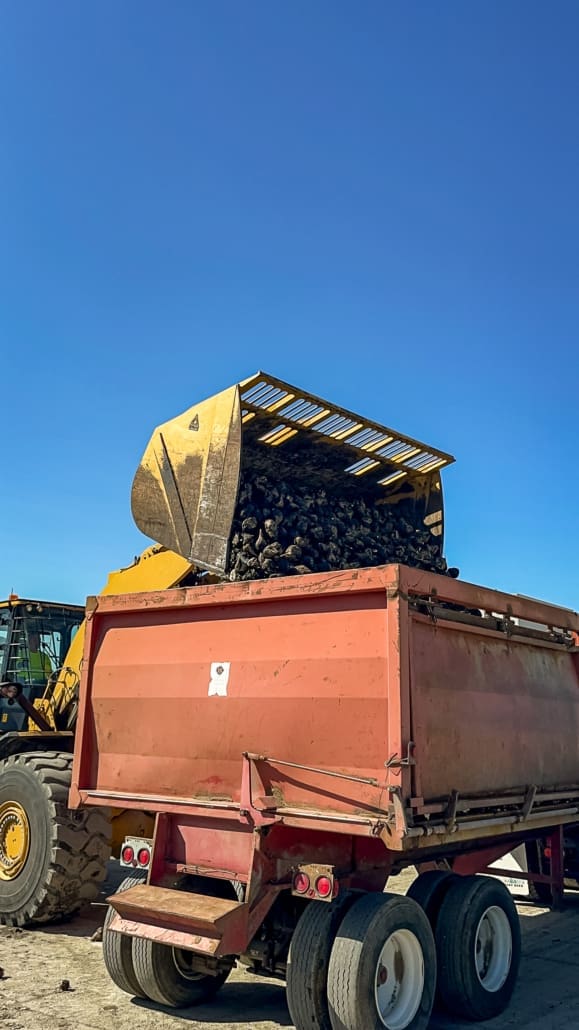

The half-arrow edge eases into the pile to protect the crop. Every load dumps cleanly off the smooth, ribless floor.
Available for larger loaders, such as Cat 966 and up, in capacities from 8.5 to 11.25 cubic yards.
| Model Description Weight (lbs) |
| DX-BK-LMSB-8.50cyd-WL-80
Bucket-Light Material Sugar Beet-8.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 80 STANDARD FEATURES: WEIGHT: 6200 lbs |
| DX-BK-LMSB-9.00cyd-WL-80
Bucket-Light Material Sugar Beet-9.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 80 STANDARD FEATURES: WEIGHT: 6500 lbs |
| DX-BK-LMSB-11.25cyd-WL-90
Bucket-Light Material Sugar Beet-11.25cubic yard capacity (SAE heap rating)-Wheel Loader-Class 90 STANDARD FEATURES: WEIGHT: 8650 lbs |
Design and specifications are subject to change without notice.
| A standard bucket is built to move dirt and aggregate. A sugar beet bucket is built to move a crop without wrecking it. The floor handles frozen loads. The edge works into the pile instead of bruising it. The spill rack holds beets in without blocking the view. |
|
Yes. Frozen beets are dense and unforgiving, and the impact is what cracks a lighter bucket. The Dymax bucket has a 6-degree wedge floor, added gusseting, and T1 steel wear parts — built to take the abuse. |
|
The Sugar Beet Bucket comes in three sizes:
Contact Dymax with your loader make and model to confirm the fit — 1-800-530-5407. |
|
Yes. We build custom widths to fit your machine and your pile, with pin-on or quick-coupler mounting. Send us your requirements, and we’ll build to spec. |
| BUCKET | BEST FOR | WHAT SETS IT APART | CAPACITY (SAE HEAPED) |
|---|---|---|---|

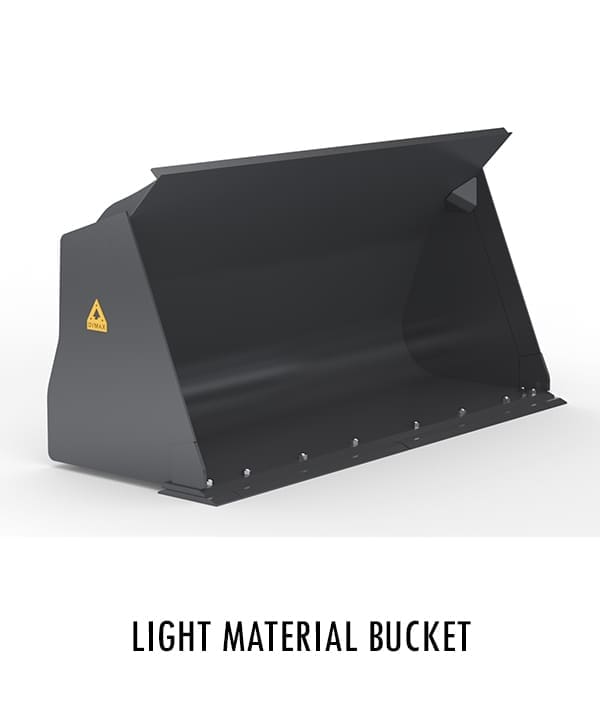

| Light Material Bucket | General light material — corn, silage, hay, cottonseed, snow | The baseline LM bucket; widest range of sizes and edge patterns. | 0.75–14 cyd |
| Light Material Plus | Corn, silage, and hay in high-hour operations | ~20% more durable than the standard LM bucket. | 3.25–9 cyd |
| Feedyard Bucket | High-hour cattle feeding | Reinforced for repeated dump-shaking; wedge floor. | 4.0–10.5 cyd |
| Bonus Bucket | More capacity when width or dump height is limited | Recessed pockets add capacity without a longer floor — edge stays in view while dumping. | 3.5–8 cyd |
| Extra Wide Corn & Grain Bucket | Even-loading semi-trailers with corn and grain | Extra-wide profile fills trailers in fewer passes. | 6.5–12 cyd |
| Fertilizer Bucket | Potash and dry fertilizer | Long floor fills to 85–90%; abrasion resistant, less spillage | 4.6–9 cyd |
| Sugar Beet Bucket | High-volume sugar beet handling | Half-arrow edge reduces beet damage; screen for visibility | 8.5–9 cyd |
