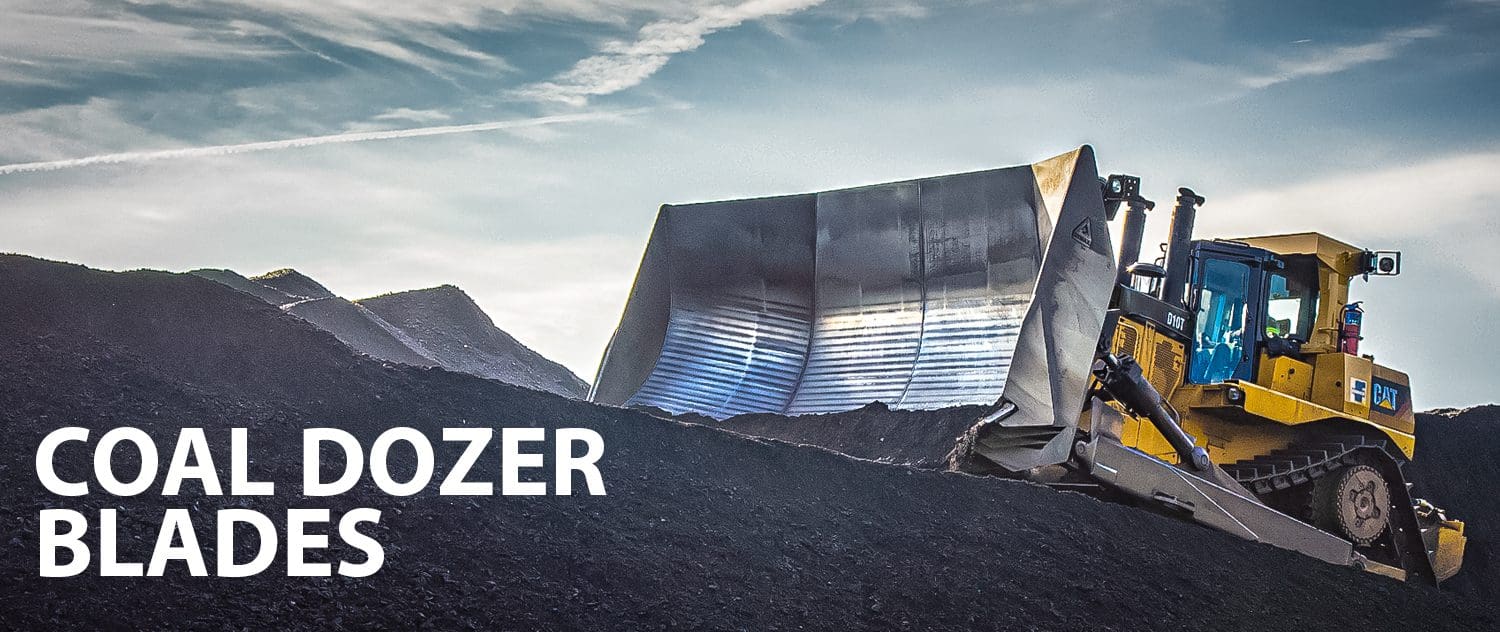

Track dozer pushing coal on a stockpile with a high-capacity coal U-blade for faster, fuller passes

Coal Dozer Blades for Stockpiles & High-Volume Material Moving

Dymax Coal Blades are built to maximize production on coal stockpiles around the world. From port facilities to power plants, our coal blades provide excellent rolling action and promote efficiency. Dymax coal blades feature a specially designed moldboard with twice the capacity of a standard dozer blade.

The Balderson family pioneered the use of large oversized coal blades in the 1960s, and today Dymax continues to provide customers with job-matched, high-performance coal blades.

  • Fits: Track dozers (Cat D6–D11, Komatsu D65–D475) and Wheel Dozers (Cat 814-854)
  • Capacity: 12.5–98 yd³
  • Widths: 14′ to 24’6″

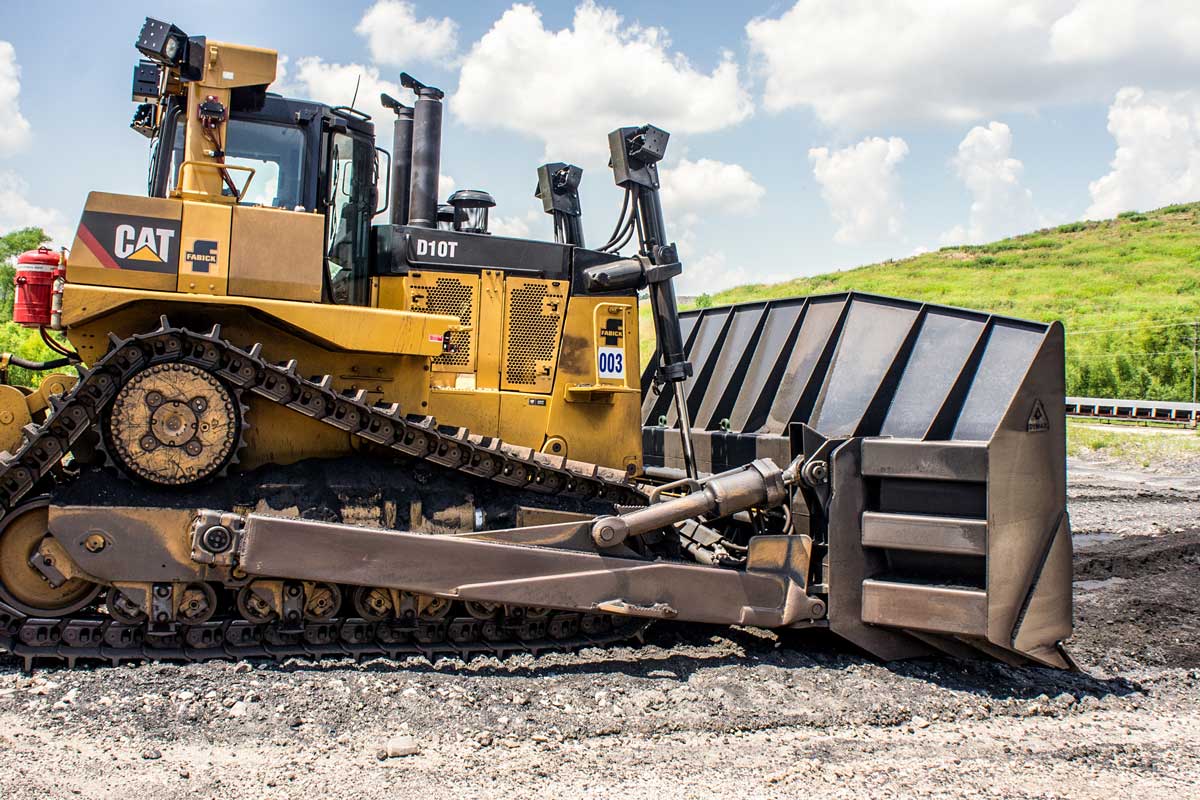

Track dozer equipped with a coal U-blade dozer blade designed to carry more coal and reduce spillage

Dymax coal blades feature a specially designed moldboard with twice the capacity of a standard dozer blade.

APPLICATIONS

  • Coal stockpile building and maintenance at power plants and generating stations
  • Export coal handling at port and terminal facilities
  • Stockpile management at coal mines and prep plants
  • Reclaim feeding to hoppers and tunnels
  • High-volume slot dozing across the pile

KEY FEATURES

  • Standard 30° wing angles for strong rolling action
  • High-strength moldboard carries up to twice the capacity of a standard dozer blade
  • Replaceable bolt-on cutting edges
  • Bolt-on sole plates protect the bottom of the blade
  • Attaches to factory outside-mount push arms
  • Custom widths, capacities, and edge configurations available

SPECIFICATIONS

Machine Size Model
Description
Weight
Cat D6
Komatsu D65		 DX-BL-CL-12.5x14ft-TD-10
Blade-Coal U-12.5 cubic yard capacity x 14 feet wide-Track Dozer-Class 10
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 4,500 lbs
Cat D6 LGP DX-BL-CL-12.5x14ft-TD-10LGP
Blade-Coal U-12.5 cubic yard capacity x 14 feet wide-Track Dozer-Class 10 LGP Wide Track
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to LGP tractor push arms with wider setting
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 4,650 lbs
Cat D7
Komatsu D85		 DX-BL-CL-22.0x16ft-TD-20
Blade-Coal U-22.0 cubic yard capacity x 16 feet wide-Track Dozer-Class 20
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 5,500 lbs
Cat D7 LGP DX-BL-CL-22.0x16ft-TD-20LGP
Blade-Coal U-22.0 cubic yard capacity x 16 feet wide-Track Dozer-Class 20 LGP Wide Track
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to LGP tractor push arms with wider setting
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 5,850 lbs
Cat D8
Komatsu D155		 DX-BL-CL-28.8x18ft-TD-30
Blade-Coal U-28.8 cubic yard capacity x 18 feet wide-Track Dozer-Class 30
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 8,400 lbs
Cat D8
Komatsu D155		 DX-BL-CL-32.0x18ft2-TD-30
Blade-Coal U-32.0 cubic yard capacity x 18 feet 2 inches wide-Track Dozer-Class 30
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 8,340 lbs
Cat D9
Komatsu D275		 DX-BL-CL-40.0x19ft-TD-40
Blade-Coal U-40.0 cubic yard capacity x 19 feet wide-Track Dozer-Class 40
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 9,900 lbs
Cat D9
Komatsu D275		 DX-BL-CL-48.0x19ft-TD-40
Blade-Coal U-48.0 cubic yard capacity x 19 feet wide-Track Dozer-Class 40
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 10,500 lbs
Cat D10
Komatsu D375		 DX-BL-CL-60.0x20ft-TD-50
Blade-Coal U-60.0 cubic yard capacity x 20 feet wide-Track Dozer-Class 50
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 14,250 lbs
Cat D10
Komatsu D375		 DX-BL-CL-67.8x22ft-TD-50
Blade-Coal U-67.8 cubic yard capacity x 22 feet wide-Track Dozer-Class 50
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 14,900 lbs
Cat D10
Komatsu D375		 DX-BL-CL-68.0x21ft-TD-50
Blade-Coal U-68.0 cubic yard capacity x 21 feet wide-Track Dozer-Class 50
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 15,750 lbs
Cat D11
Komatsu D475		 DX-BL-CL-90.0x24ft-TD-60
Blade-Coal U-90.0 cubic yard x 24 feet wide-Track Dozer-Class 60
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 24,000 lbs
Cat D11
Komatsu D475		 DX-BL-CL-98.0x24ft6-TD-60
Blade-Coal U-98.0 cubic yard capacity x 24 feet 6 inches wide-Track Dozer-Class 60
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30-degree wing angles
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms.
WEIGHT: 25,500 lbs

Design and specifications are subject to change without notice.

Machine Size Model
Description
Weight
Cat 814 DX-BL-CL-13.8x14ft-WD-10
Blade-Coal U-13.8 cubic yard capacity x 14 feet wide-Wheel Dozer-Class 10
STANDARD FEATURES:
– Replaceable CAT pattern bolt-on cutting edges
– 30-degree wing angle
– Bottom replaceable sole plates
– Fits OEM outside-mount push arms.
NOT SUPPLIED: Does not include connector blocks, pins or retainers.
WEIGHT: 4,200 lbs
Cat 834 DX-BL-CL-29.0x20ft3-WD-30
Blade-Coal U-29.0 cubic yard capacity x 20 feet 3 inches wide-Wheel Dozer-Class 30
STANDARD FEATURES:
– 30-degree wing angles
– Replaceable CAT bolt-on cutting edges with smooth end bits
– Bottom replaceable sole plates
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.
WEIGHT: 9,200 lbs
Cat 844
Tiger 590		 DX-BL-CL-40.2x19ft1-WD-40
Blade-Coal U-40.2 cubic yard capacity (J1265 rating) x 19 feet 1 inches wide-Wheel Dozer-Class 40
STANDARD FEATURES:
– 30-degree wing angles
– Bottom replaceable sole plates
– Standard CAT pattern bolt-on cutting edges with smooth finished end bits
– 88 inch center height (90 inch with bolt-on edges)
– 48 inch lower moldboard radius
– Lower side wear plates
– 0.50 inch moldboard group
NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.
WEIGHT: 14,800 lbs
Tiger 690 DX-BL-CL-50.8x21ft11-WD-50
Blade-Coal U-50.8 cubic yard capacity x 21 feet 11 inches wide-Wheel Dozer-Class 50
STANDARD FEATURES:
– 30-degree wing angles
– Replaceable CAT pattern bolt-on cutting edges
– Bottom replaceable sole plates
– Attaches to factory outside-mounted push arms
– 92 in center height with taper to wing around 78 inches
NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.
WEIGHT: 19,150 lbs
Cat 854 DX-BL-CL-58.5x22ft-WD-60
Blade-Coal U-58.5 cubic yard capacity x 22 feet wide-Wheel Dozer-Class 60
STANDARD FEATURES:
– 30-degree wing angles
– Replaceable Cat pattern bolt-on cutting edges
– Bottom replaceable sole plates
– Attaches to factory outside-mounted push arms
– 101 inches (center height)
– 265 inches wide (outside end bits)
NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.
WEIGHT: 21,500 lbs
Cat 854 DX-BL-CL-65.0x23ft-WD-60
Blade-Coal U-65.0 cubic yard capacity x 23 feet wide-Wheel Dozer-Class 60
STANDARD FEATURES:
– 30-degree wing angles
– Replaceable Cat pattern bolt-on cutting edges
– Bottom replaceable sole plates
– Attaches to factory outside-mounted push arms
NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.
WEIGHT: 20,500 lbs
Cat 854 DX-BL-CL-70.0x23ft-WD-60
Blade-Coal U-70.0 cubic yard capacity x 23 feet wide-Wheel Dozer-Class 60
STANDARD FEATURES:
– 30-degree wing angles
– Replaceable Cat pattern bolt-on cutting edges
– Bottom replaceable sole plates
– Attaches to factory outside-mounted push arms
– Approx. 108-inch center height with wing taper to 96 inches
NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.
WEIGHT: 23,000 lbs

Design and specifications are subject to change without notice.

GALLERY

FAQ

A Dymax coal U-blade carries up to twice the capacity of a standard blade of the same class.

The oversized moldboard and 30° wings build a U-shaped load in front of the machine, so you move more per pass with fewer passes.

Use a coal blade when the job is pushing and rolling high volumes of coal — building and reclaiming stockpiles or short slot dozing.

Use a coal bowldozer when you’re carrying material far enough that it would spill over the ends of the blade. The sidewalls hold the full load the entire push and release it when you lift.

Dymax Coal Blades are available for track dozers from Cat D6 through D11 and Komatsu D65 through D475, and Cat wheel dozers from the 814 through the 854.

Blades mount to factory outside-mount push arms and are built to the machine.

Send us your make and model and we’ll confirm the fit.

Typically, no. Coal isn’t abrasive, so a standard high-strength moldboard holds up fine and keeps the blade lighter.

For sites that also handle rock, slag, or grit, upgraded T1 moldboards and liners are available on request.

Yes. Capacities run up to 98 yd³. Widths, wing angles, and edges are all custom-tailored to your machine and your pile. Call Dymax Sales for details – 1-800-530-5407
