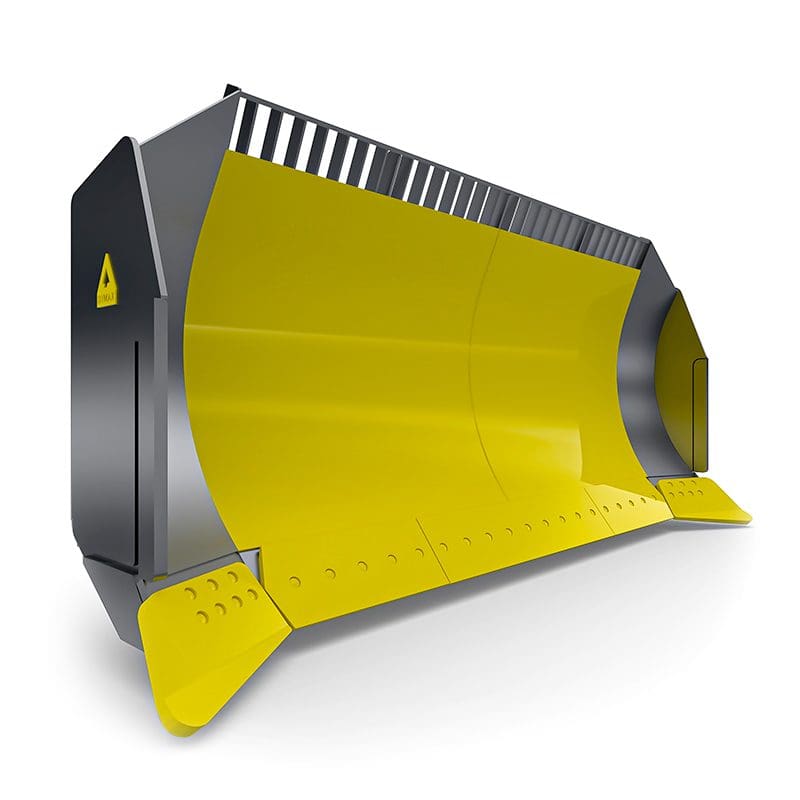

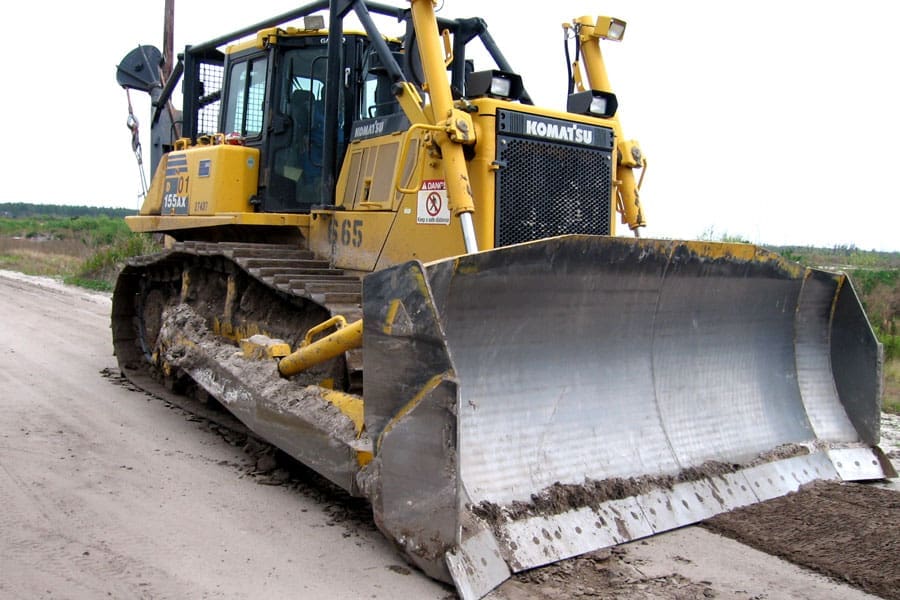

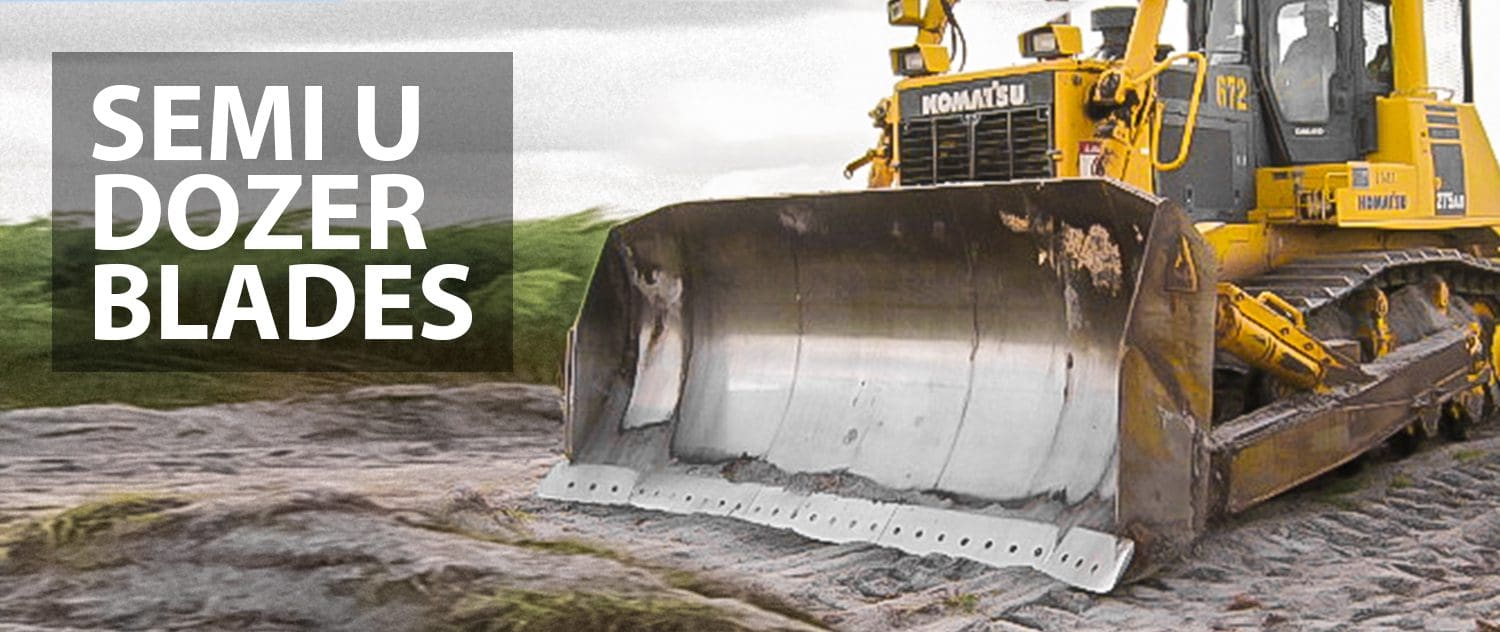

Dymax Semi-U dozer blade for track and wheel dozers

SEMI-U DOZER BLADES FOR TRACK & WHEEL DOZERS

Dymax Semi-U dozer blades are built for abrasive material-handling applications. With 25-degree wing angles, they push and retain more material than straight dozer blades, making them a strong fit for mining and heavy dozing.

Models include:

Semi-U Blades
Heavy Duty Abrasion Semi-U Blades
Variable Radius Semi-U Blades
Custom Design Solutions

Available for Caterpillar and Komatsu track and wheel dozers, with optional Hardox wear packages and replaceable wear parts for longer service life.

“We bought 2 variable radius blades from Dymax in 2002 & 2007 and are still operating them in 2023. They build tough blades.“

– C. Karlsson, Sweden

APPLICATIONS

Coal mining and stockpile work
Iron ore, taconite, copper, gold, and phosphate mining
Abrasive bulk material handling
Heavy dozing where greater material retention than a straight blade is needed

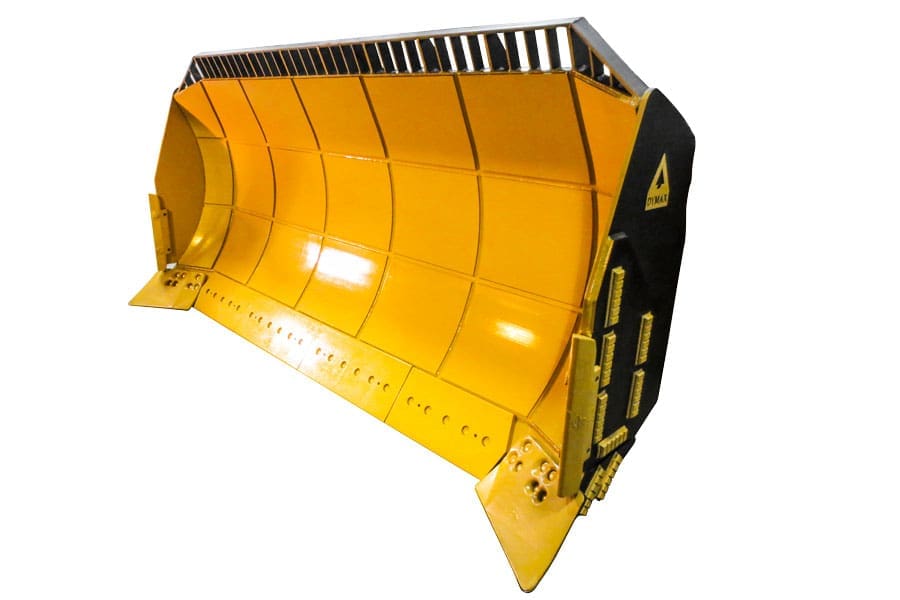

STANDARD FEATURES

25° wing angles help push and retain more material than a straight blade.
Replaceable OEM-pattern cutting edges simplify maintenance and help extend service life.

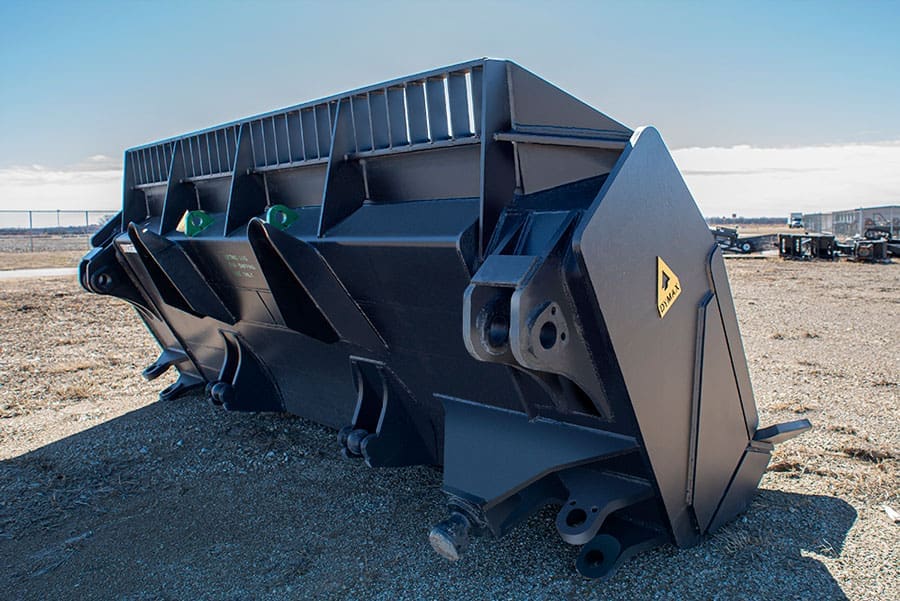

Designed to fit factory outside-mount push arms on supported machines.
Available for select Caterpillar and Komatsu track and wheel dozers.

AVAILABLE OPTIONS

Chrome carbide wear liner package for severe-abrasion applications.
Hardox® 400 or Hardox® 500 wear packages for high-impact, high-wear environments.

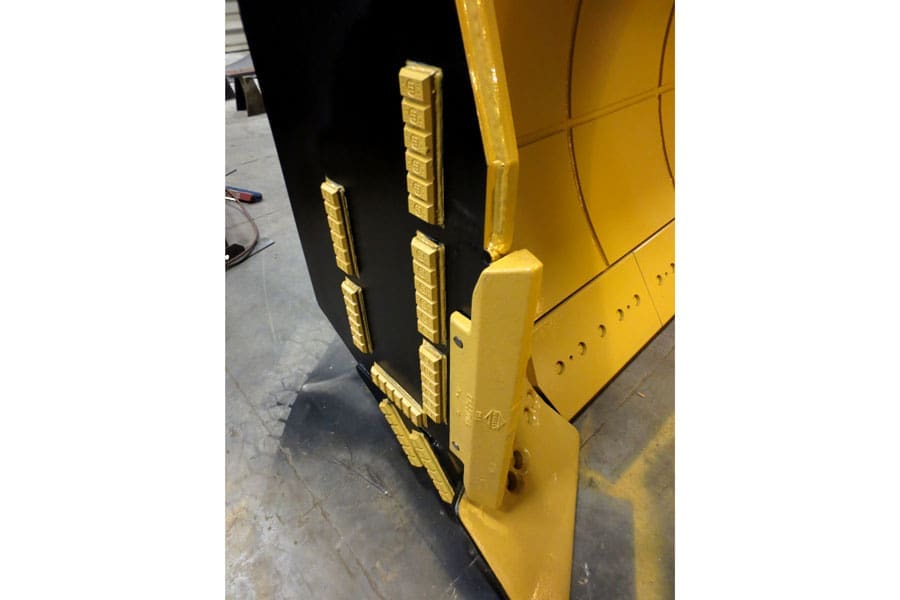

White iron wear blocks and replaceable side shrouds for added protection in critical wear areas.
Rock guards on the top moldboard assembly for additional protection in harsh working conditions.

SPECIFICATIONS

TRACK DOZER MODELS

Machine Size	Model Description Weight
Cat D6, Komatsu D65	DX-BL-SU-7.50x11ft-TD-10 Blade-Semi U-7.50 cubic yard capacity x 11 feet wide-Track Dozer-Class 10 STANDARD FEATURES: – Replaceable bolt-on cutting edges – 25 degree wing angles – Attaches to factory outside-mounted push arms NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 3100 lbs
Cat D7, Komatsu D85	DX-BL-SU-8.85x12ft-TD-20 Blade-Semi U-8.85 cubic yard capacity x 12 feet overall width-Track Dozer-Class 20 (WILL NOT FIT LGP TRACTOR) STANDARD FEATURES: – Replaceable pattern bolt-on cutting edges + end bits (Due to 12ft width specification, the center edges are modified) – Vertical slat guard on top moldboard – 25 degree wing angles – Attaches to factory outside-mounted push arms on Standard Tractors – 60-inch height NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 3995 lbs
Cat D7, Komatsu D85	DX-BL-SU-9.00x12ft4-TD-20 Blade-Semi U-9.00 cubic yard capacity x 12 feet 4 inches wide-Track Dozer-Class 20 (WILL NOT FIT LGP TRACTOR) STANDARD FEATURES: – Replaceable Cat pattern bolt-on cutting edges + end bits – Vertical slat guard on top moldboard – 25 degree wing angles – Attaches to factory outside-mounted push arms on Standard Tractors – 60 inch height NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 4000 lbs
Cat D6 LGP or Wide Track Dozers	DX-BL-SU-9.00x13ft9-TD-10LGP Blade-Semi U-9.00 cubic yard capacity x 13 feet 9 inches wide-Track Dozer-Class 10 LGP Wide Track Designed to fit a Cat D6 XE LGP track-type tractor STANDARD FEATURES: – Replaceable Cat pattern bolt-on cutting edges – 50″ overall moldboard height – For Tractors with 4727314 Bulldozer Arrangement – GPS mount locations for Accugrade systems WEIGHT: 3500 lbs
Cat D6 LGP or Wide Track Dozers	DX-BL-SUVR-9.00x14ft-TD-10LGP Blade-Semi U Variable Radius-9.00 cubic yard capacity x 14 feet wide-Track Dozer-Class 10 LGP Wide Track STANDARD FEATURES: – Replaceable Cat pattern bolt-on cutting edges – Cone-shaped variable radius moldboard – Vertical slat guard on top moldboard – 25-degree wing angles – Attaches to factory outside-mounted push arms on LGP Tractors NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 3400 lbs
Cat D6 LGP or Wide Track Dozers	DX-BL-SUVR-10.2X14ft8-TD-20LGP Blade-Semi U Variable Radius-10.20 cubic yard capacity x 14ft 8 inches wide-Track Dozer-Class 20 LGP Wide Track STANDARD FEATURES: – Replaceable Cat pattern bolt-on cutting edges – Cone-shaped variable radius moldboard – Vertical slat guard on top moldboard – 25 degree wing angles – Attaches to factory outside-mounted push arms on LGP Tractors NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 4650 lbs
Cat D8, Komatsu D155	DX-BL-SU-11.5x13ft7-TD-30 Blade-Semi U-11.50 cubic yard capacity x 13 feet 7 inches wide-Track Dozer-Class 30 STANDARD FEATURES: – Fits Komatsu SIGMA (SINGLE STRUT) push arm group – Blade mount locations feature replaceable bushings – High-strength AR400 moldboard group (non-lined) – Komatsu pattern bolt-on cutting edges with smooth finished end bits – Replacement 18in wing sole plates with shims NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms. WEIGHT: 6700 lbs
Cat D8, Komatsu D155	DX-BL-SUHD-11.5x13ft7-TD-30 Blade-Semi U Heavy Duty Abrasion-11.5 cyd capacity x 13 feet 7 inches wide-Track Dozer-Class 30 STANDARD FEATURES: – Fits Komatsu SIGMA (SINGLE STRUT) push arm group – Blade mount locations feature replaceable bushings – High-strength moldboard group – Rockguard spill plate – Base Moldboard 1/2 inch A572 with 3/8 inch AR400 wear plate liner package installed – Komatsu pattern bolt-on cutting edges with smooth finished end bits NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms. WEIGHT: 8500 lbs
Cat D8, Komatsu D155	DX-BL-SU-12.0x13ft1-TD-30 Blade-Semi U-12.00 cubic yard capacity x 13 feet 1 inch wide-Track Dozer-Class 30 STANDARD FEATURES: – Replaceable bolt-on cutting edges with end bits – 25 degree wing angles – Attaches to factory outside-mounted push arms – 5 ft-6 in center moldboard height – Vertical slat rock guard – HD weld-in side cutters NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 6800 lbs
Cat D8 LGP or Wide Track Machine	DX-BL-SU-13.50x15ft-TD-30LGP Blade-Semi U-13.50 cubic yard capacity x 15 feet wide-Track Dozer-Track Dozer STANDARD FEATURES: – Replaceable CAT pattern bolt-on cutting edges (180″) – 25 degree wing angles – Attaches to factory outside-mounted push arms – 5 ft 6 in center moldboard height – Vertical slat rock guard – HD weld-in side cutters NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 6900 lbs
Cat D9, Komatsu D275	DX-BL-SU-17.7x14ft-TD-40 Blade-Semi U-17.70 cubic yard capacity x 14 feet wide-Track Dozer-Track Dozer STANDARD FEATURES: – Replaceable bolt-on cutting edges – 25 degree wing angles – Attaches to factory outside-mounted push arms NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 8800 lbs
Cat D9, Komatsu D275	DX-BL-SUHD-17.7x14ft2-TD-40 Blade-Semi U Heavy Duty Abrasion-17.7 cubic yard capacity x 14 feet 2 inches wide-Track Dozer-Class 40 STANDARD FEATURES: – Replaceable CAT bolt-on cutting edges – 25 degree wing angles – Attaches to factory outside-mounted push arms – AR400 liner package – Vertical slat rock guard – Solid steel side cutters NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 9700 lbs
Cat D9, Komatsu D275	DX-BL-SU-17.9x14ft6-TD-40 Blade-Semi U-17.90 cubic yard capacity x 14 feet 6 inches wide-Track Dozer-Track Dozer STANDARD FEATURES: – 25 degree wing angles – Komatsu bolt-on cutting edges with end bits – Fits K brace push arm assembly – AR400 moldboard face for Phosphate mining applications – Outside sole plate edges NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 8870 lbs
Cat D10, Komatsu D375	DX-BL-SU-24.20x16ft-TD-50 Blade-Semi U-24.20 cubic yard capacity x 16 feet wide-Track Dozer-Track Dozer STANDARD FEATURES: – Replaceable bolt-on cutting edges – 25 degree wing angles – Attaches to factory outside-mounted push arms NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 12,000 lbs
Cat D10, Komatsu D375	DX-BL-SUHD-24.20x16ft-TD-50 Blade-Semi U Heavy Duty Abrasion-24.20 cubic yard capacity x 16 feet wide-Track Dozer-Class 50 STANDARD FEATURES: – Replaceable CAT bolt-on cutting edges – 25 degree wing angles – Attaches to factory outside-mounted push arms – Heavy-duty AR400 wear liner package – External white iron wear blocks NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 15,700 lbs
Cat D11, Komatsu D475	DX-BL-SUHD-35.5x18ft8-TD-60 Blade-Semi U Heavy Duty Abrasion-35.5 cubic yard capacity x 18ft 8 inches wide-Track Dozer-Class 60 STANDARD FEATURES: – 25 degree wing angle – AR400 multisection liner package – Replaceable CAT bolt-on cutting edges (Uses End Bits 8E4545/8E4546; 9w-4494/9w4495 for edge arrangement) – Fits outside mount push arms on Cat D11R or T Dozers – Includes vertical slat rock guard – Exterior AR400 wear plates and weld-on replaceable side cutters – Base boldboard height (less rack) – 93 inches NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 25,000 lbs

Design and specifications are subject to change without notice. For custom designs, contact Dymax Sales 1-785-456-2081.

WHEEL DOZER MODELS

Machine Size	Model Description Weight
Cat 824	DX-BL-SU-9.0x15ft9-WD-20 Blade-Semi U-9.00 cubic yard capacity x 15 feet 9 inches wide-Wheel Dozer-Class 20 STANDARD FEATURES: – 25 degree wing angles – Replaceable CAT bolt-on cutting edges with end bits – Underside sole plate edge group – Height: 64 inches NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 6670
Cat 834	DX-BL-SUHD-13.2x15ft4-WD-30 Blade-Semi U Heavy Duty Abrasion-13.2 cubic yard capacity x 15 feet 4 inches wide-Wheel Dozer-Class 30 STANDARD FEATURES: – Replaceable bolt-on cutting edges and end bits – 25 degree wing angles – Rear sole plate replaceable cutting edges – Center spill plate with slot design – Fits outside-mounted push arms – 3/8″ AR400 wear liner package installed on moldboard face NOT SUPPLIED: Connector blocks, pins and retainers for attaching to push arms. WEIGHT: 9800
Cat 834	DX-BL-SU-17.6x15ft5-WD-30 Blade-Semi U-17.60 cubic yard capacity x 15 feet 5 inches wide-Wheel Dozer-Wheel Dozer FOR CATERPILLAR 834G/H/K WHEEL TRACTOR FITTING STANDARD OUTSIDE PUSH ARMS STANDARD FEATURES – 185.4 inch overall width – 0.38 A514 T1 steel moldboard group (non-lined) – Cat style replaceable cutting edges and end bits – Cat replaceable sole plate cutting edges installed – Vertical slots in moldboard group – With tubes, guards and clamps NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms. WEIGHT: 8800 lbs
Tiger 590	DX-BL-SU-20.9x17ft9-WD-40 Blade-Semi U-20.90 cubic yard capacity x 17 feet 9 inches wide-Wheel Dozer-Wheel Dozer STANDARD FEATURES: – Replaceable Cat bolt-on cutting edges – 25 degree wing angle – Equipped with slotted top screen assembly – Standard Moldboard (0.50″ T1 steel) – Underside replaceable sole plate edges (Uses 3x 135-9668) – Fits factory outside mount push arms NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 11,100 lbs
Cat 844	DX-BL-SU-24.9x19ft5-WD-50 Blade-Semi U-24.90 cubic yard capacity x 19 feet 5 inches wide-Wheel Dozer-Wheel Dozer STANDARD FEATURES: – Replaceable Cat bolt-on cutting edges – 25 degree wing angles – Standard T1 moldboard group – Underside replaceable sole plate edges – Fits factory outside mount push arms NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms. WEIGHT: 12,900 lbs
Cat 844	DX-BL-SU-24.9x20ft5-WD-40 Blade-Semi U-24.90 cubic yard capacity x 20 feet 5 inches wide-Wheel Dozer-Wheel Dozer FOR CATERPILLAR 844K WHEEL TRACTOR FITTING STANDARD OUTSIDE PUSH ARMS STANDARD FEATURES – 245.09 in overall width x 81.60 in height – 5/8″ T1 steel moldboard group (non-lined) – Cat style replaceable cutting edges and end bits – Cat replaceable sole plate cutting edges installed – Vertical slots in moldboard group – With tubes, guards and clamps NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms. WEIGHT: 13,000 lbs
Cat 854 / Tiger 790	DX-BL-SU-30.0x20ft9-WD-60 Blade-Semi U-30.00 cubic yard capacity x 20 feet 9 inches wide-Wheel Dozer-Wheel Dozer STANDARD FEATURES: – 25 degree wing angles – HD moldboard group T1 face (non-lined moldboard) – Replaceable bolt-on cutting edges and end bits – Replaceable sole plate edge group – Fits outside push arm group NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms. WEIGHT: 18,500 lbs
Cat 854	DX-BL-SU-33.1x20ft7-WD-60 Blade-Semi U-33.1 cubic yard capacity x 20 feet 7 inches wide-Wheel Dozer-Wheel Dozer FOR CATERPILLAR 854G/K WHEEL TRACTOR FITTING STANDARD OUTSIDE PUSH ARMS STANDARD FEATURES – 248.86 in overall width x 90.52 in height – 5/8 in T1 steel moldboard group (non-lined) – Cat style replaceable cutting edges and end bits – Cat replaceable sole plate cutting edges installed – Vertical slots in moldboard group – With tubes, guards and clamps NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms. WEIGHT: 21,600 lbs
Cat 854	DX-BL-SUHD-33.1x20ft7-WD-60 Blade-Semi U Heavy Duty Abrasion-33.1 cubic yard capacity x 20 feet 7 inches wide-Wheel Dozer-Class 60 FOR CATERPILLAR 854G/K WHEEL TRACTOR FITTING STANDARD OUTSIDE PUSH ARMS STANDARD FEATURES – 248.86 in overall width x 90.52 in height – 3/8in AR400 4 pieces Moldboard Liner package installed – 5/8in T1 steel moldboard group (non-lined) – Cat style replaceable cutting edges and end bits – Cat replaceable sole plate cutting edges installed – Vertical slots in moldboard group – With tubes, guards and clamps NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms. WEIGHT: 24,500 lbs
Letourneau D950	DX-BL-SU-35.0x20ft9-WD-60 Blade-Semi U-35.00 cubic yard capacity x 20 feet 9 inches wide-Wheel Dozer-Wheel Dozer STANDARD FEATURES: – 25 degree wing angles – HD moldboard group T1 face (non-lined moldboard) – Replaceable bolt-on cutting edges and end bits – Replaceable sole plate edge group – Fits outside push arm group NOT SUPPLIED: Connector blocks, pins, and retainers that attach the blade to the push arms. WEIGHT: 17,000 lbs

Design and specifications are subject to change without notice. For custom designs, contact Dymax Sales 1-785-456-2081.

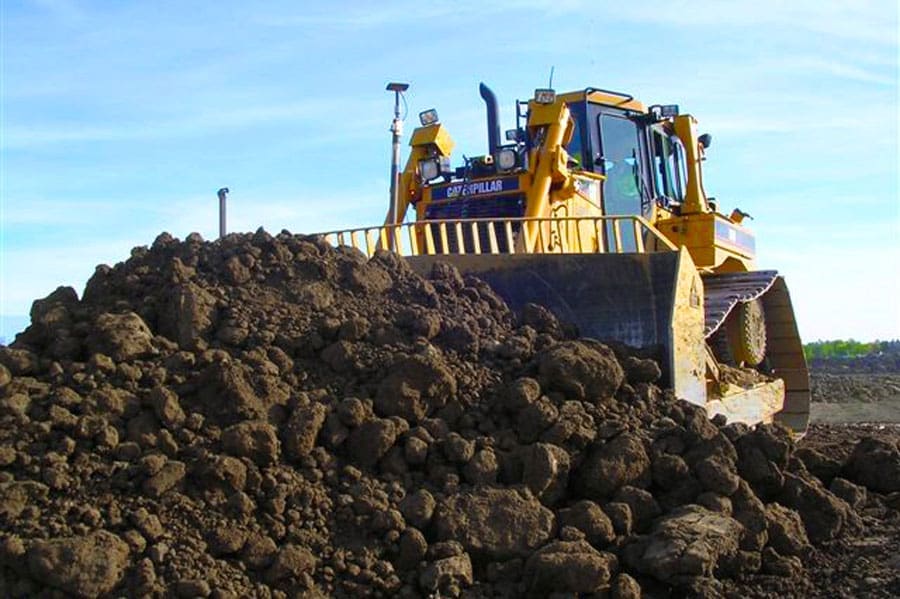

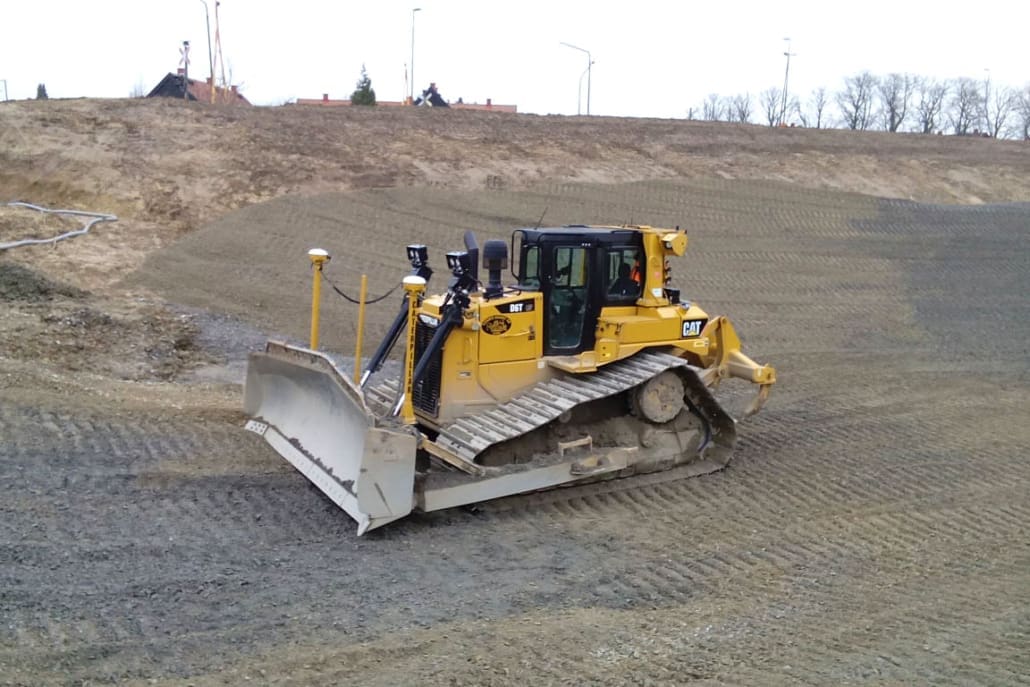

GALLERY

FAQ’S

WHAT IS A SEMI-U DOZER BLADE?

A semi-U blade has 25-degree angled wings that build a U-shaped pile. It carries more material per pass than a straight blade, while staying more versatile than a full U. It’s the most common blade for mixed dozing: road building, stockpile work, landfills, and mining.

SEMI-U VS. STRAIGHT VS. FULL U-BLADE — WHICH ONE DO I NEED?

Straight blades spread and grade and carry the least. Full U-blades have deeper wings for maximum retention on one repeated task, like coal or reclamation. Semi-U splits the difference — more capacity than a straight blade, more flexibility than a full U — which is why it’s the default for general-purpose dozing. Push one material all day and a full U-blade may earn its keep; do a bit of everything and the semi-U is usually the right call.

WILL A DYMAX SEMI-U BLADE FIT MY DOZER?

Dymax semi-U blades bolt to the factory outside-mount push arms on Caterpillar and Komatsu track dozers (D6 / D65 up through D11 / D475) and Cat wheel dozers (824–854), plus select other machines. Connector blocks, pins, and retainers that join the blade to your push arms aren’t included, since those are machine-specific. Send us your machine’s make, model, and bulldozer arrangement number and we’ll confirm the exact fit.

WHICH WEAR PACKAGE DO I NEED FOR ABRASIVE MATERIAL

For high-wear work, Dymax offers a chrome carbide liner package, Hardox 400 or Hardox 500 wear packages, white iron wear blocks, replaceable side shrouds, and top-moldboard rock guards. The Heavy Duty Abrasion models come with a 3/8-inch AR400 liner package installed over the moldboard, built for taconite, phosphate, hard rock, and other severe-abrasion mining.

CAN I GET A CUSTOM WING ANGLE, WIDTH, OR LINER?

Yes. 25 degrees is the standard wing angle, but Dymax builds wings, overall width, capacity, and liner packages to your spec — based on five generations of Balderson-family engineering expertise. Tell us the machine and the application, and we’ll design to it.

DO YOU MAKE SEMI-U BLADES FOR LGP AND WIDE-TRACK DOZERS?

Yes — Dymax builds dedicated LGP and wide-track models, including variable-radius versions with a cone-shaped moldboard for a Cat D6 XE LGP. Standard-width blades won’t fit an LGP tractor, so this isn’t a swap; it’s a specific build. Current LGP capacities run 9.0 to 10.2 cubic yards.
