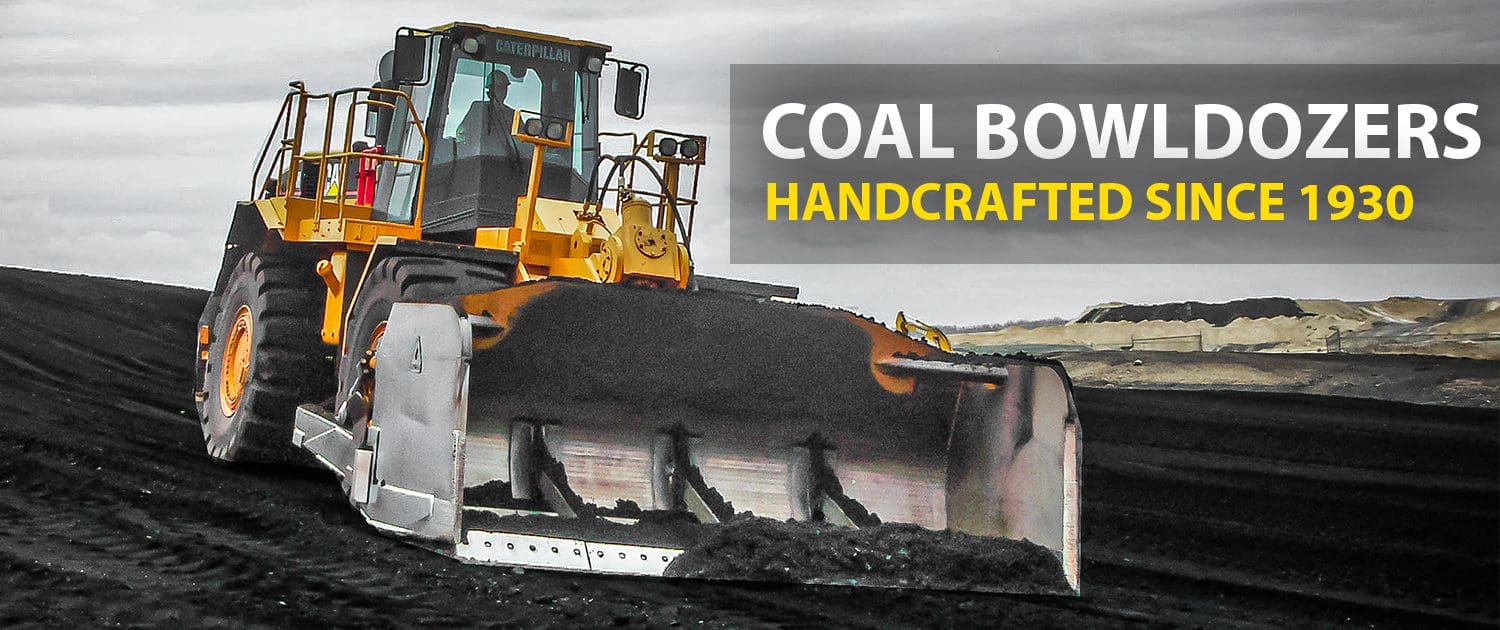

Dymax coal bowldozer on a Caterpillar wheel dozer pushing a full load of coal across a stockpile

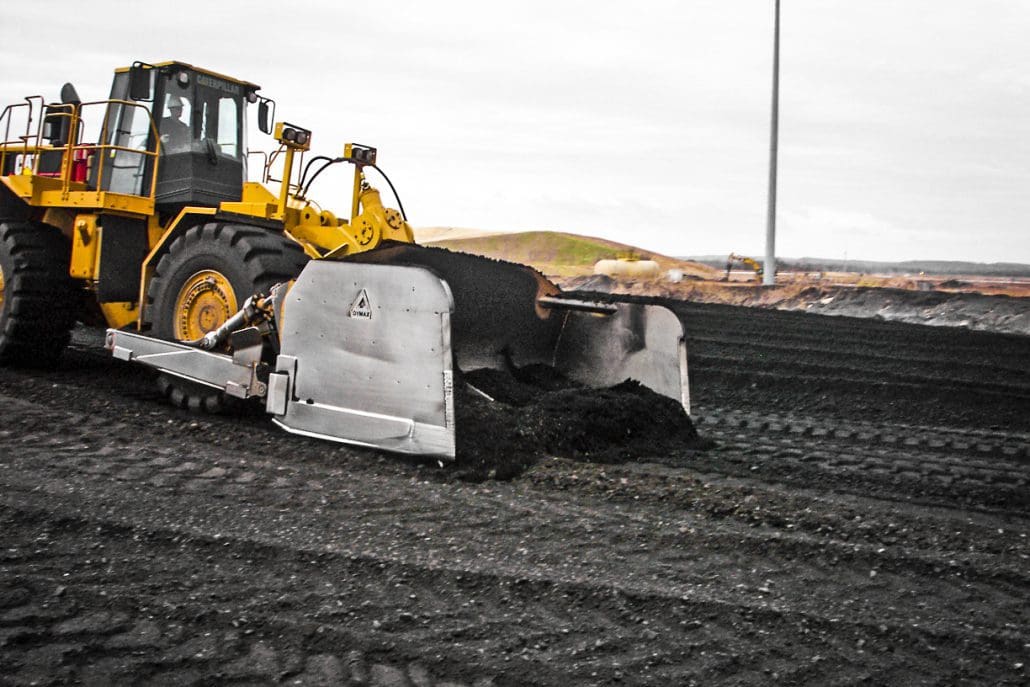

Dymax coal bowldozer with tall box-reinforced sidewalls and bolt-on cutting edges
Book-open Book-open Download Brochure User User Get a Quote

Coal Bowldozers — Sidewall Blades That Keep the Load In

Dymax Coal Bowldozers push large volumes of coal while minimizing side spillage.

It’s similar to slot dozing — without digging a trench.

The leading edge cuts into the pile and feeds coal back into the center box. Once full, the box carries the whole load to the end of the push, then drops it when you raise the blade.

There’s less mess to clean up, fewer passes, and the machine isn’t fighting the pile.

Built by the family that invented it — one of a handful of companies on earth that still builds it.

OVERVIEW

  • Fits: Wheel Dozers (Cat 834) and Track Dozers (Cat D9-D10, Komatsu D275-D375)
  • Capacity: 26.3 to 48.75 yd³
  • Widths: 15’5″ to 19’8″

APPLICATIONS

  • Stockpile building and reclamation at power plants, coal terminals, and rail-served coal yards

KEY FEATURES

  • Heavy-duty box-reinforced sidewalls with high-tensile side cutters.
  • Replaceable bolt-on cutting edges on the stinger and main edge group.
  • Sole-plate cutting edges protect the underside of the back moldboard.
  • Pin-style leading edge support links.
  • Mounts to your factory outside-mount push arms.
  • Custom sizes and configurations available.

SPECIFICATIONS

Machine Model
Description
Weight (lbs)
Cat 834 DX-BL-BDCL-26.3x15ft5-WD-30

Blade-Bowldozer Coal-26.3 cubic yard capacity x 15 feet 5 inches wide-Wheel Dozer-Class 30

STANDARD FEATURES:
– Height – 72.00 inches
– Width – 15 feet 5 inches
– Capacity – 26.3 cyd
– Replaceable CAT-style bolt-on cutting edges on stinger and main edge group
– T1 bottom edge supports
– Machine bracket assembly to fit factory push group
– Side walls are box-reinforced with lower T1 solid design

NOT SUPPLIED: Connector blocks, pins, or retainers that attach the blade to the push arms.

WEIGHT: 12,980 lbs
Cat D9

Komatsu D275

 DX-BL-BDCL-37.0x18ft10-TD-40

Blade-Bowldozer Coal-37.0 cubic yard capacity x 18 feet 10 inches wide-Track Dozer-Class 40

STANDARD FEATURES:
– Height – 68.00 inches
– Width – 18 feet 10 inches
– Capacity – 37.0 cyd
– Replaceable bolt-on cutting edges on stinger and main edge group
– T1 bottom edge supports
– Machine bracket assembly to fit factory push group
– Side walls are box-reinforced with lower T1 solid design

NOT SUPPLIED: Connector blocks, pins, or retainers that attach the blade to the push arms.

WEIGHT: 13,500 lbs
Cat D9

Komatsu D275

 DX-BL-BDCL-39.0x18ft-TD-40

Blade-Bowldozer Coal-39.0 cubic yard capacity x 18 feet wide-Track Dozer-Class 40

STANDARD FEATURES:
– Width – 216.00 inches
– Capacity – 39 cyd
– Replaceable bolt-on cutting edges on stinger and main edge group
– T1 bottom edge supports
– Machine bracket assembly to fit factory push group
– Side walls are box-reinforced with lower T1 solid design

NOT SUPPLIED: Connector blocks, pins, or retainers that attach the blade to the push arms.

WEIGHT: 13,800 lbs
Cat D10 DX-BL-BDCL-48.75x19ft8-TD-50

Blade-Bowldozer Coal-48.75 cubic yard capacity x 19 feet 8 inches wide-Track Dozer-Class 50

STANDARD FEATURES:
– Height – 90.00 inches
– Width – 19 feet 8 inches
– Capacity – 48.75 cyd
– Replaceable CAT Pattern bolt-on cutting edges
– Heavy-duty side walls with lower outside solid wear plates
– Leading stinger edge with pin supports
– Bottom sole plates

NOT SUPPLIED: Connector blocks, pins, or retainers that attach the blade to the push arms.

WEIGHT: 19,800 lbs

Design and specifications are subject to change without notice.

GALLERY

FAQ’S

A coal bowldozer is a high-capacity dozer blade with tall, box-reinforced sidewalls that hold material in the bowl through the entire push instead of letting it spill over the sides. It is also known as a sidewall blade. It’s used to move large volumes of loose material over short, repeated distances.

The Balderson family designed the original coal bowldozer, and we’re still building them today.

A U-blade’s wings build a pile in front of the machine, but on a long push the material starts spilling around the sides.

A bowldozer’s box sidewalls trap the load and keep it in front of the machine to the end of the run, so you move more per pass and make fewer passes.

Choose a coal bowldozer when you’re carrying coal over a longer distance. The sidewalls hold the full load the entire push and release it when you lift, so you move more with less spillage.

Choose a coal blade for pushing high volumes over short distances — building and reclaiming stockpiles.

It’s built for Cat and Komatsu track and wheel dozers, from the Cat 834 wheel dozer up through the D10 class, and it mounts to your factory outside-mount push arms. Send us your machine make and model, and we’ll confirm the exact fit.

Standard builds run from 26.3 yd³ up to 48.75 yd³. If your application needs a different width or capacity, contact us for a custom configuration – 1-800-530-5407

Bolt-on edges on the stinger and main edge group, plus the sole-plate edges under the back moldboard, all swap out individually — you replace edges, not the blade. Order replacements through Dymax parts.

Send us your machine, your material, and your push distance, and we’ll work with you on a custom design solution. Get a quote.
