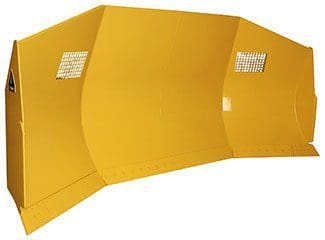

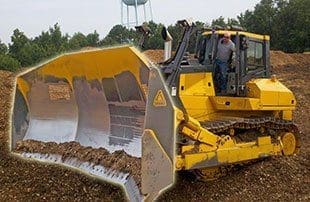

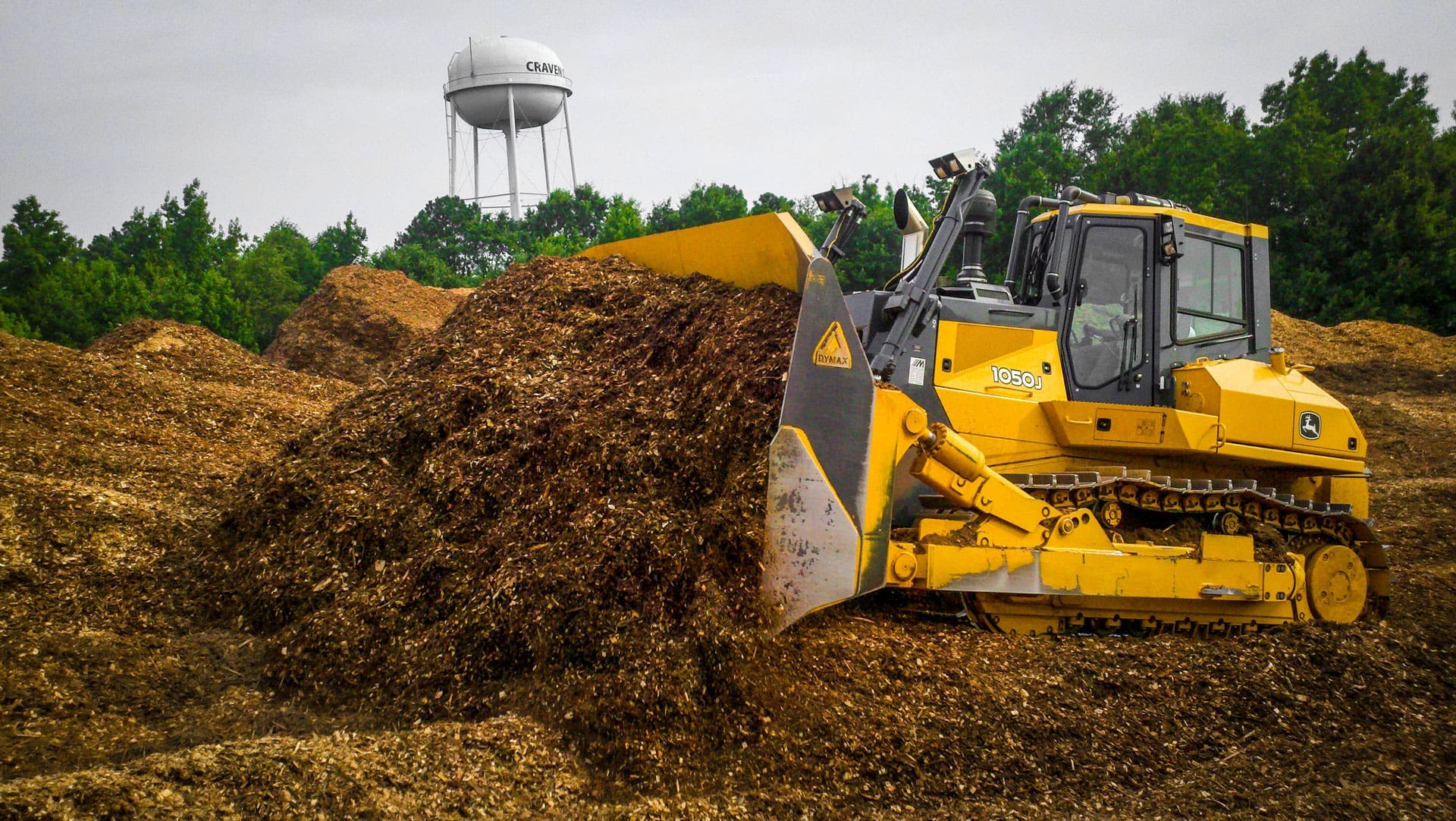

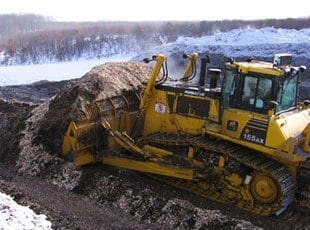

Woodchip Dozer Blades for Dozers / Crawler Tractors

Dymax Woodchip Dozer Blades are ideal for pushing massive amounts of woodchips at pulp and paper mills or wood fuel power stations. The large, high-capacity wings make every pass more efficient and productive.

Available for Caterpillar, Komatsu and Liebherr crawler dozer and track type tractors, as well as certain model wheel dozers. A Balderson family tradition since the 1930s.

Features:

  • 30° wing angle.
  • Includes replaceable OEM brand cutting edges.
  • Fits factory outside mount push arms.

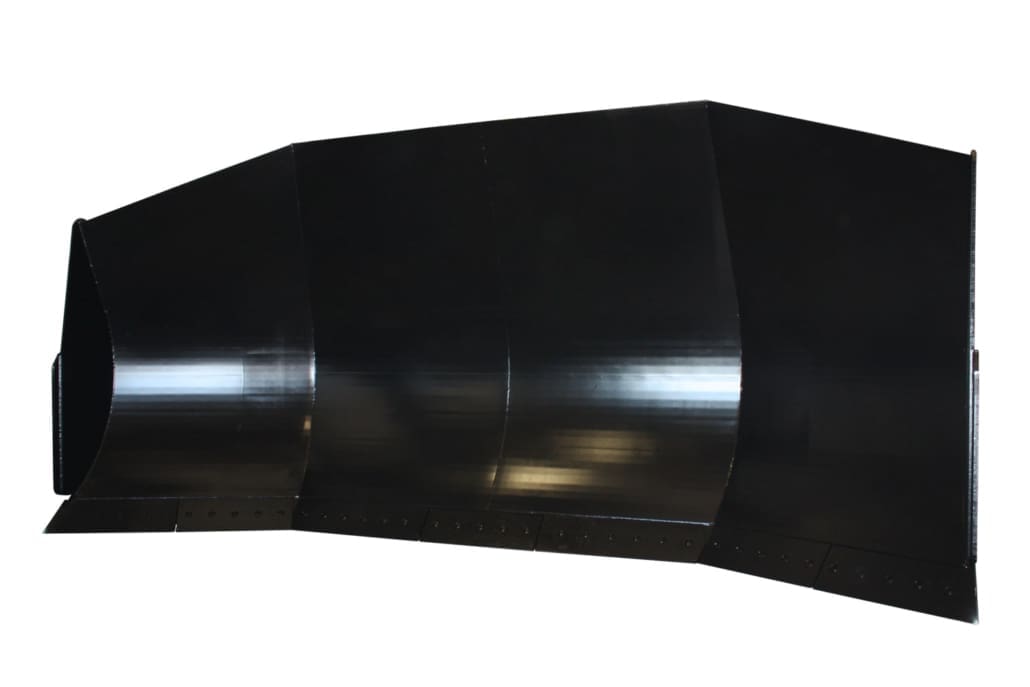

  • Fitted with an operator visibility screen assembly or can be provided with a solid moldboard group (no screens).
  • Custom configurations available.
  • DOWNLOAD BROCHURE

  • CONTACT US

SPECIFICATIONS

Machine Size Model Code

Description

Weight

Cat D6, Komatsu D65 DX-BL-WC-16.00x13ft-TD-10

Blade – Wood Chip – 16.00 yd³ capacity x 13 feet wide – Track Dozer – Class 10.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid.

Weight: 5,350 lbs

Cat D6, Komatsu D65 DX-BL-WC-20.00x14ft-TD-10

Blade – Wood Chip – 20.00 yd³ capacity x 14 feet wide – Track Dozer – Class 10.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid.

Weight: 4,200 lbs

Cat D7, Komatsu D85 DX-BL-WC-27.00x16ft-TD-20

Blade – Wood Chip – 27.00 yd³ capacity x 16 feet wide – Track Dozer – Class 20.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid.

Weight: 6,100 lbs

Cat D8, Komatsu D275 DX-BL-WC-38.00x18ft-TD-30

Blade – Wood Chip – 38.00 yd³ capacity x 18 feet wide – Track Dozer – Class 30.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid.

Weight: 8,200 lbs

Cat D8, Komatsu D27 DX-BL-WC-38.0x18ft2-TD-30

Blade – Wood Chip – 38.00 yd³ capacity x 18 feet 2 inches wide – Track Dozer – Class 30.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid.

Weight: 8,250 lbs

Cat D8, Komatsu D275 DX-BL-WC-40.0x18ft2-TD-30

Blade – Wood Chip – 40.00 yd³ capacity x 18 feet 2 inches wide – Track Dozer – Class 30.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid.

Weight: 8,900 lbs

Cat D9, Komatsu D275 DX-BL-WC-55.00x18ft-TD-40

Blade – Wood Chip – 55.00 yd³ capacity x 18 feet wide – Track Dozer – Class 40.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, no screen assembly – solid moldboard group.

Weight: 13,320 lbs

Cat D9, Komatsu D275 DX-BL-WC-65.00x19ft-TD-40

Blade – Wood Chip – 65.00 yd³ capacity x 19 feet wide – Track Dozer – Class 40.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid.

Weight: 11,000 lbs

Cat D9, Komatsu D275 DX-BL-WC-48.0x20ft4-TD-40

Blade – Wood Chip – 48.00 yd³ capacity x 20 feet 4 inches wide – Track Dozer – Class 40.

STANDARD FEATURES: Cat pattern replaceable cutting edges, end bits 8E4199, 8E4198, 30 degree wing angles, top 12″ spill plate with wire mesh screen, 85″ side wall height.

Weight: 12,500 lbs

Cat D10, Komatsu D275 DX-BL-WC-52.0x22ft1-TD-50

Blade – Wood Chip – 52.00 yd³ capacity x 22 feet 1 inch wide – Track Dozer – Class 50.

STANDARD FEATURES: replaceable bolt-on cutting edges, 25 (custom) degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid, 100″ center height with added 12″ screen rack on top of center moldboard, wing height set lower to 88″.

Weight: 17,000 lbs

Cat D10, Komatsu D275 DX-BL-WC-95.00x22ft-TD-50

Blade – Wood Chip – 95.00 yd³ capacity x 22 feet wide – Track Dozer – Class 50.

STANDARD FEATURES: replaceable bolt-on cutting edges, 30 degree wing angles, attaches to factory outside mounted push arms, screen assembly on wings – center of moldboard is solid.

Weight: 18,000 lbs

NOT SUPPLIED: connector blocks, pins and retainers that attach the blade to the push arms.

Design and specifications are subject to change without notice.
