Woodchip Buckets
Woodchip Buckets for Wheel Loaders, Track Loaders and Toolcarriers:
EXTRA LARGE CAPACITY LOADING

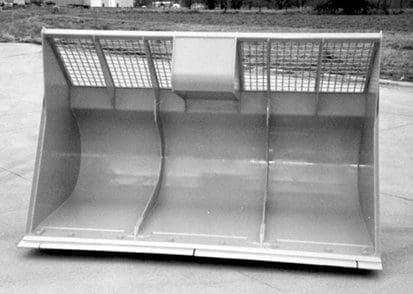

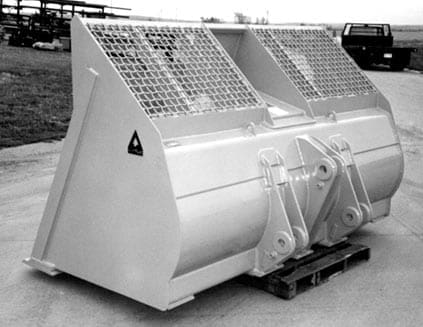

Dymax Woodchip Buckets are designed to match the machine capabilities to the weight of the material, yielding the highest possible productivity. Optional visibility screens in the upper sections provide increased safety and productivity for the operator. Certain models feature a z-bar clearance pocket depending on capacity and machine loader arm configuration.
Designed by skilled engineers in northeast Kansas, Dymax Woodchip Buckets are ideal for woodchips and other materials such as sugar cane residue, corn cobs, cinders, dry peat and other extra light materials. Buckets are suited for materials weighing 400lbs per cubic yard up to 900lbs per cubic yard.
Specifications
| Model Number | Description | Weight (lbs/kg) |
|---|---|---|
| DX-BK-WC-5.00cyd-WL-40 | Bucket – Wood Chip – 5.00 cyd capacity – Wheel Loader – Class 40 | 2,583 lbs/1,172 kg |
| DX-BK-WC-5.50cyd-WL-40 | Bucket – Wood Chip – 5.50 cyd Capacity – Wheel Loader – Class 40 | 2,780 lbs/1,261 kg |
| DX-BK-WC-6.00cyd-WL-40 | Bucket – Wood Chip – 6.00 cyd capacity – Wheel Loader – Class 40 | 3,180 lbs/1,442 kg |
| DX-BK-WC-6.00cyd-WL-50 | Bucket – Wood Chip – 6.00 cyd capacity – Wheel Loader – Class 50 | 3,300 lbs/1,497 kg |
| DX-BK-WC-6.50cyd-WL-50 | Bucket – Wood Chip – 6.50 cyd capacity – Wheel Loader – Class 50 | 3,600 lbs/1,633 kg |
| DX-BK-WC-7.00cyd-WL-50 | Bucket – Wood Chip – 7.00 cyd capacity – Wheel Loader – Class 50 | 3,960 lbs/1,796 kg |
| DX-BK-WC-7.50cyd-WL-50 | Bucket – Wood Chip – 7.50 cyd capacity – Wheel Loader – Class 50 | 4,353 lbs/1,975 kg |
| DX-BK-WC-8.00cyd-WL-60 | Bucket – Wood Chip – 8.00 cyd capacity – Wheel Loader – Class 60 | 4,450 lbs/2,019 kg |
| DX-BK-WC-9.00cyd-WL-60 | Bucket – Wood Chip – 9.00 cyd capacity – Wheel Loader – Class 60 | 4,620 lbs/2,096 kg |
| DX-BK-WC-10.00cyd-WL-60 | Bucket – Wood Chip – 10.00 cyd capacity – Wheel Loader – Class 60 | 4,900 lbs/2,223 kg |
| DX-BK-WC-9.00cyd-WL-70 | Bucket – Wood Chip – 9.00 cyd capacity – Wheel Loader – Class 70 | 4,680 lbs/2,123 kg |
| DX-BK-WC-10.00cyd-WL-70 | Bucket – Wood Chip – 10.00 cyd capacity – Wheel Loader – Class 70 | 4,900 lbs/2,223 kg |
| DX-BK-WC-11.00cyd-WL-80 | Bucket – Wood Chip – 11.00 cyd capacity – Wheel Loader – Class 80 | 5,600 lbs/2,540 kg |
| DX-BK-WC-12.00cyd-WL-80 | Bucket – Wood Chip – 12.00 cyd capacity – Wheel Loader – Class 80 | 6,200 lbs/2,812 kg |
| DX-BK-WC-13.00cyd-WL-80 | Bucket – Wood Chip – 13.00 cyd capacity – Wheel Loader – Class 80 | 6,400 lbs/2,903 kg |
| DX-BK-WC-14.00cyd-WL-80 | Bucket – Wood Chip – 14.00 cyd capacity – Wheel Loader – Class 80 | 7,500 lbs/3,402 kg |
| DX-BK-WC-15.00cyd-WL-80 | Bucket – Wood Chip – 15.00 cyd capacity – Wheel Loader – Class 80 | 8,400 lbs/3,810 kg |
| DX-BK-WC-12.00cyd-WL-90 | Bucket – Wood Chip – 12.00 cyd capacity – Wheel Loader – Class 90 | 7,800 lbs/3,538 kg |
| DX-BK-WC-13.00cyd-WL-90 | Bucket – Wood Chip – 13.00 cyd capacity – Wheel Loader – Class 90 | 8,200 lbs/3,720 kg |
| DX-BK-WC-14.00cyd-WL-90 | Bucket – Wood Chip – 14.00 cyd capacity – Wheel Loader – Class 90 | 8,460 lbs/3,837 kg |
| DX-BK-WC-15.00cyd-WL-90 | Bucket – Wood Chip – 15.00 cyd capacity – Wheel Loader – Class 90 | 8,800 lbs/3,992 kg |
| DX-BK-WC-16.00cyd-WL-90 | Bucket – Wood Chip – 16.00 cyd capacity – Wheel Loader – Class 90 | 9,000 lbs/4,082 kg |
| DX-BK-WC-17.00cyd-WL-90 | Bucket – Wood Chip – 17.00 cyd capacity – Wheel Loader – Class 90 | 9,200 lbs/4,173 kg |
| DX-BK-WC-16.00cyd-WL-100 | Bucket – Wood Chip – 16.0 cyd capacity – Wheel Loader – Class 100 | 9,048 lbs/4,104 kg |
| DX-BK-WC-18.00cyd-WL-100 | Bucket – Wood Chip – 18.0 cyd capacity – Wheel Loader – Class 100 | 10,086 lbs/4,575 kg |
| DX-BK-WC-20.00cyd-WL-100 | Bucket – Wood Chip – 20.0 cyd capacity – Wheel Loader – Class 100 | 11,245 lbs/5,101 kg |
| DX-BK-WC-22.00cyd-WL-100 | Bucket – Wood Chip – 22.0 cyd capacity – Wheel Loader – Class 100 | 12,538 lbs/5,687 kg |
| DX-BK-WC-24.00cyd-WL-100 | Bucket – Wood Chip – 24.0 cyd capacity – Wheel Loader – Class 100 | 13,200 lbs/5,988 kg |
Specifications are subject to change without notice.
Features
- For wheel loaders, track loaders and toolcarriers.
- Suitable for materials weighing between 400 and 900 pounds per cubic yard.
- Radius of bucket wrapper is calculated to ensure easy loading and clean dumping characteristics.
- Optional visibility screens available.
- For extra light material moving.
