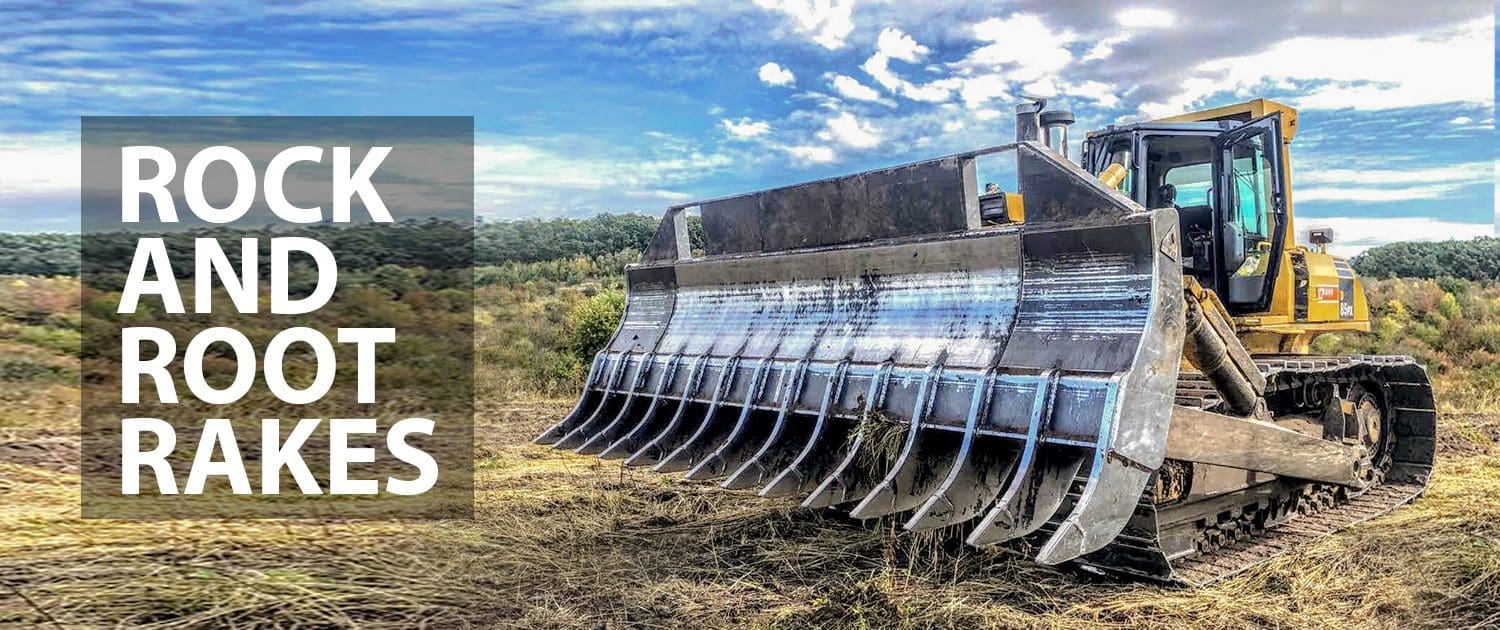

ROCK AND ROOT RAKE FOR DOZERS

FOR Cat D6-D10 & Komatsu D65-D275 DOZERS

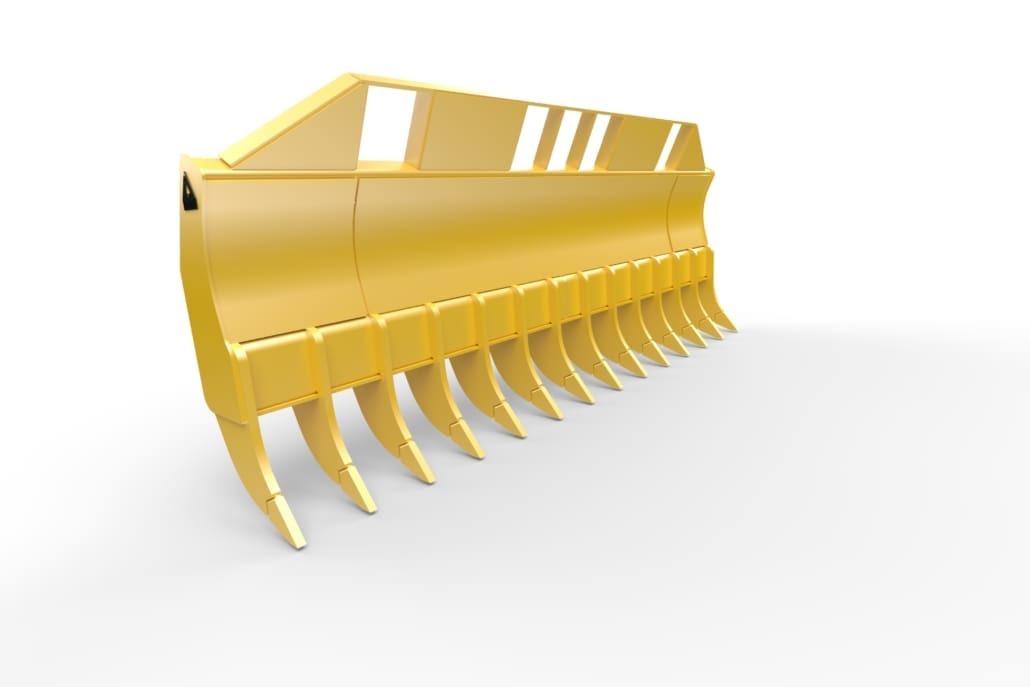

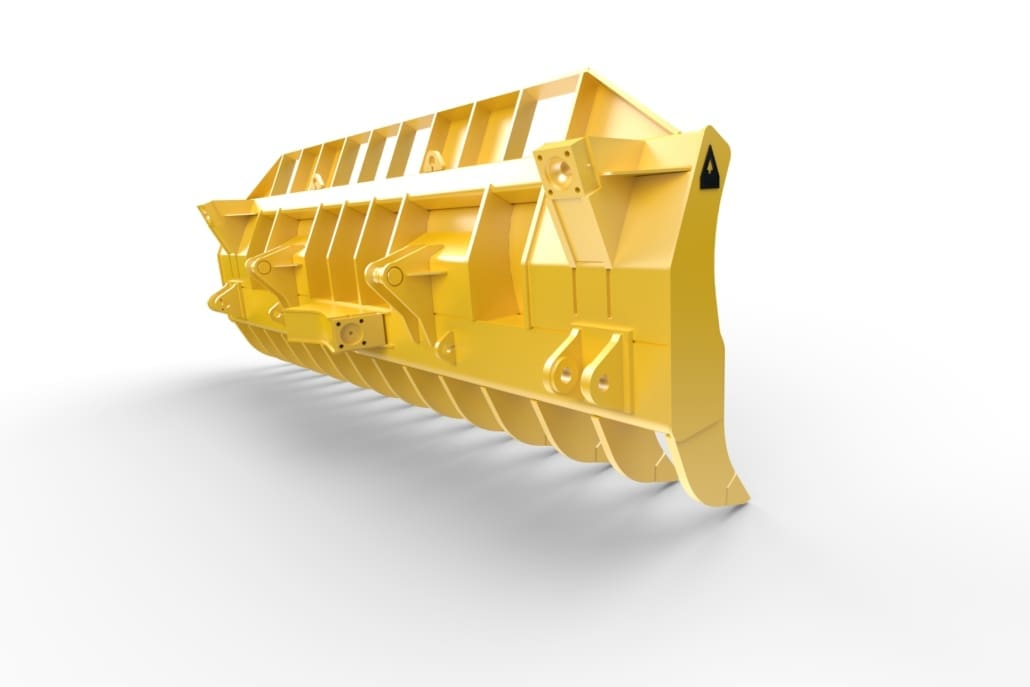

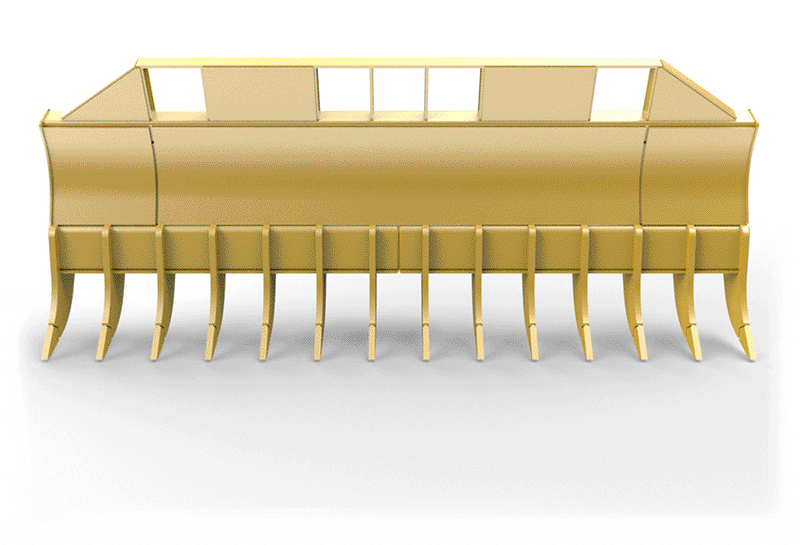

Dymax Rock and Root Rakes are available for fitting Track Dozers operating in large scale land clearing operations. Excellent for clearing rocks, roots, vegetation and debris of all types. All models are made for fitting conventional outside-mounted push arm groups and replace the factory semi-u or straight dozer blade.

APPLICATIONS

Site remediation
Mining for accessing minerals and ore
Erosion control
Field preparation to remove unwanted obstructions
Fire break management in forest land
Road maintenance & construction
Demolition

Looking for a different type of rake? Browse the full list of Dymax Rakes for Wheel Loaders and Dozers. →

SPECIFICATIONS

Available Models

FOR CAT D6 (NON LGP), KOMATSU D65 OR DEERE 850 DOZERS

Model No. DX-RK-RR-136in-TD-10

Rake-Rock & Root-136 inches wide-Track Dozer-Class 10

STANDARD FEATURES: • AR400 steel ripper shanks • 1.50 in thick steel tines • 15 tines • 8 inch tine spacing (on average) • Weld on replaceable AR400 tine tips • 70 in height

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm

Weight 5,300 lbs / Ref 4583D2 Styling

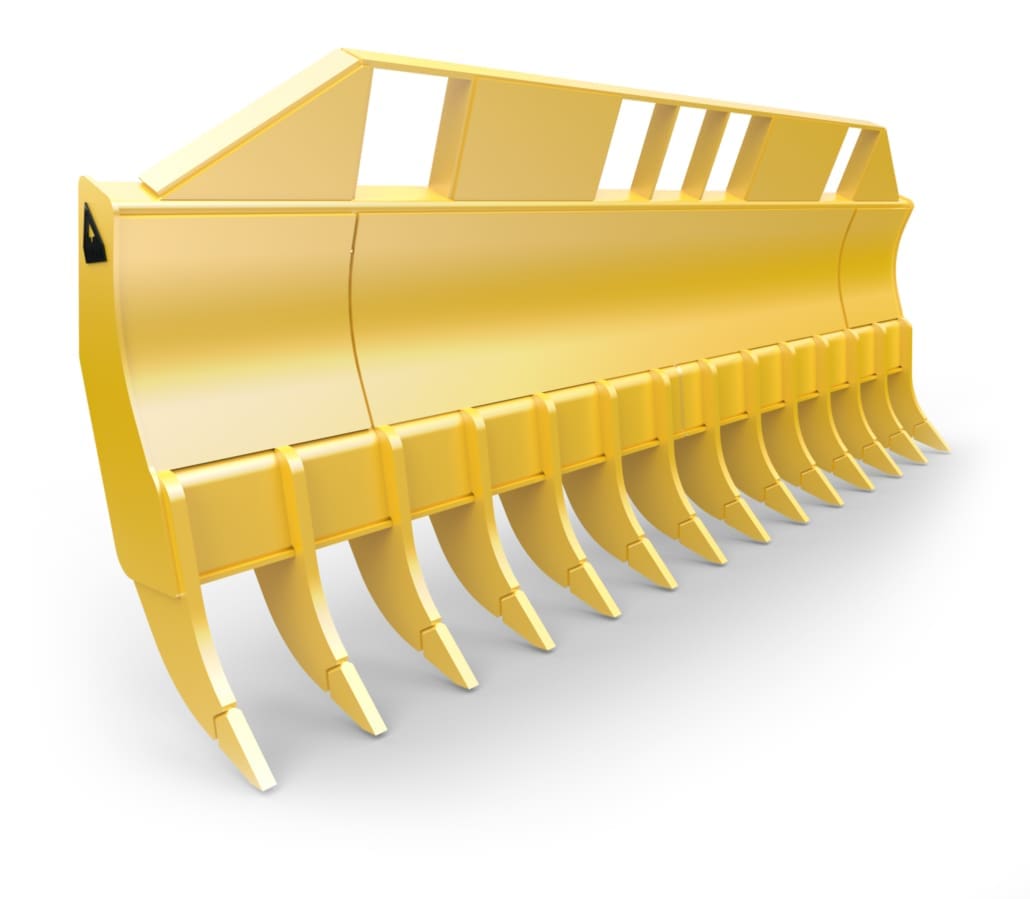

FOR CAT D7, KOMATSU D85 OR DEERE 950 DOZERS

Model No. DX-RK-RR-172in-TD-20

Rake-Rock & Root-172 inches wide-Track Dozer-Class 20

STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 1.50 inch steel tine thickness • 14 tines

• Weld on replaceable AR400 tine tips • 11.5 inch tine spacing (on average) • 72 inch height

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm

Weight 6,540 lbs / Ref 7098D2 Styling

FOR CAT D8, KOMATSU D155 OR DEERE 1050 DOZERS

Model No. DX-RK-RR-158in-TD-30

Rake-Rock & Root-158 inches wide-Track Dozer-Class 30

STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 2.50 inch steel tine thickness • 10 tines

• Weld on replaceable AR400 tine tips • 14 inch tine spacing (on average) • 78 inch height

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm

Weight 8,950 lbs / Ref 6159D2 Styling

FOR CAT D8, KOMATSU D155 OR DEERE 1050 DOZERS – NARROW TINE SPACING

Model No. DX-RK-RR-158in-TD-30

Rake-Rock & Root-158 inches wide-Track Dozer-Class 30

STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 2.50 inch steel tine thickness • 18 tines

• Weld on replaceable AR400 tine tips • 6 inch tine spacing (on average) • 78 inch height

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm

Weight 9,500 lbs / Ref 6232D Styling

FOR CAT LGP WIDE TRACK DOZERS

Model No. DX-RK-RR-165in-TD-10LGP

Rake-Rock & Root-165 inches wide-Track Dozer-Class 10 LGP Wide Track

STANDARD FEATURES: • AR400 steel ripper shanks • 1.50 in thick steel tines • 18 tines • 8 inch tine spacing (on average) • Weld on replaceable AR400 tine tips • 70 in height

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm

Weight 6,400 lbs

FOR CAT D8, KOMATSU D155 OR DEERE 1050 DOZERS

Model No. DX-RK-RRXD-180in-TD-30

Rake-Rock & Root Extreme Duty-180 inches wide-Track Dozer-Class 30

FOR SEVERE DUTY APPLICATIONS ONLY

STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 3.00 inch steel tine thickness • 14 tines

• Weld on replaceable AR400 tine tips • 10.5 inch tine spacing (on average) • 78 inch height

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm

Weight 11,200 lbs / Ref 7560D1 Styling

FOR CAT D9 OR KOMATSU D275

Model No. DX-RK-RRXD-180in-TD-40

Rake-Rock & Root Extreme Duty-180 inches wide-Track Dozer-Class 40

FOR SEVERE DUTY APPLICATIONS ONLY

STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 3.00 inch steel tine thickness • 17 tines

• Weld on replaceable AR400 tine tips • 8 inch tine spacing (on average) • 84 inch height

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm

Weight 12,450 lbs / Ref 5296D1 Styling

FOR CAT D10 – SEVERE DUTY APPLICATIONS

Model No. DX-RK-RRXD-192in-TD-50

Rake-Rock & Root Extreme Duty-192 inches wide-Track Dozer-Class 50

STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 3.00 inch steel tine thickness • 16 tines • 84 inches tall • 12 inch tine spacing on average • Weld on replaceable tine tips with carbide overlay.

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arms

Weight 15,000lbs

FOR CAT D10 – SEVERE DUTY APPLICATIONS

Model No. DX-RK-RRXD-216in-TD-50

STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 3.00 inch steel tine thickness • 18 tines

• 92 inches tall • 9 inch tine spacing on average • Weld on replaceable tine tips with carbide overlay.

NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arms,

Weight 16,000 lbs

Design and specifications are subject to change without notice.
