Dymax HPX10 excavator tree shear attachment (10-inch capacity) for 8–14 ton excavators

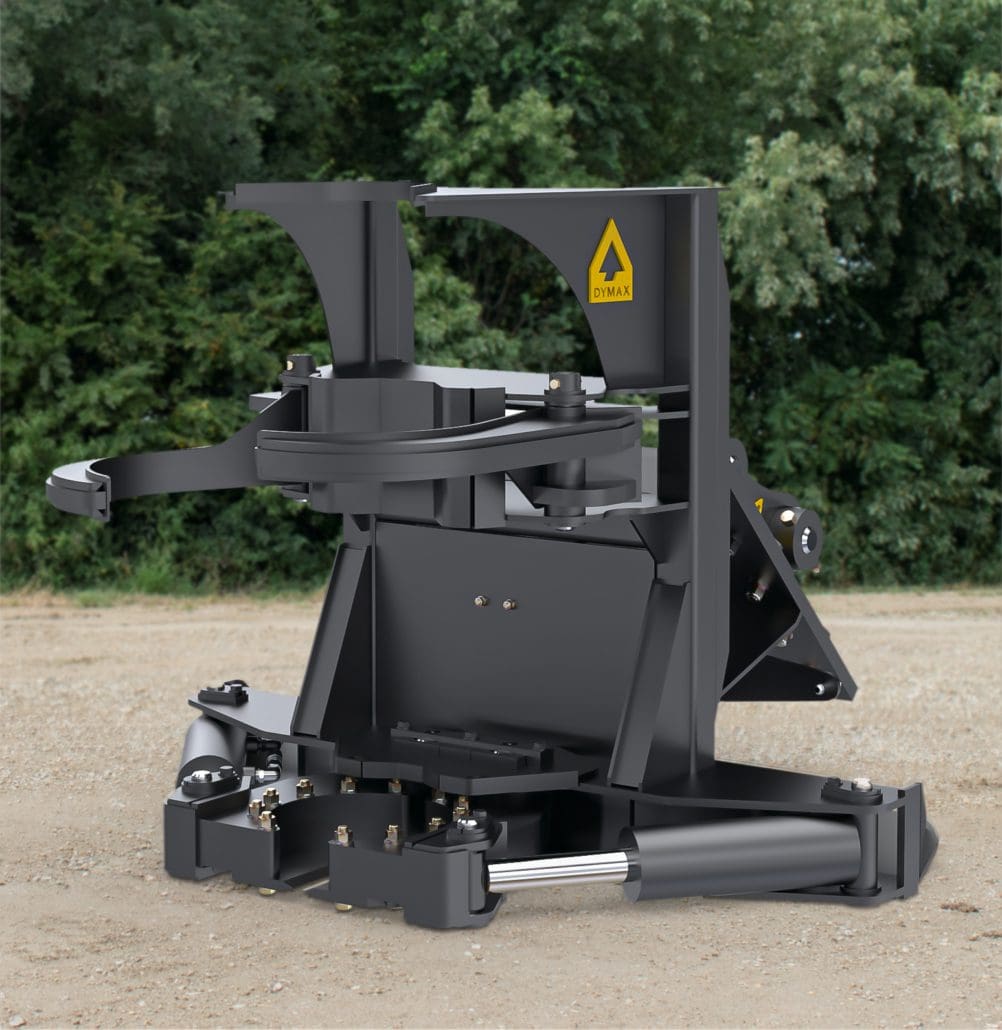

HPX10 Dymax Excavator Tree Shear

FOR 8-14 TON HYDRAULIC SMALL TO MID-SIZED EXCAVATORS – 10″ CUT CAPACITY

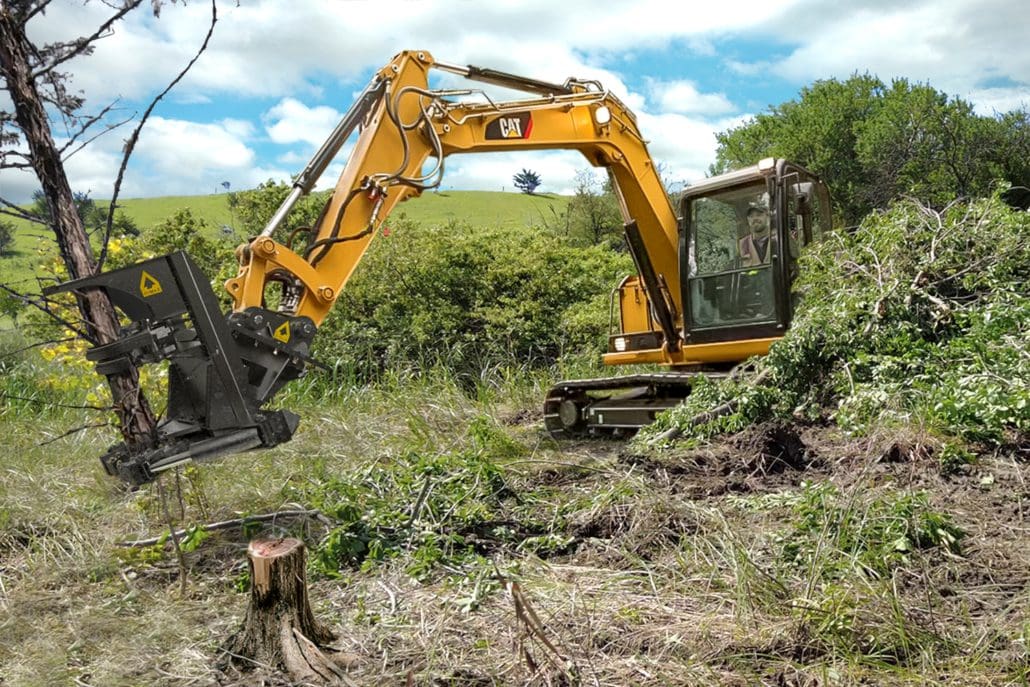

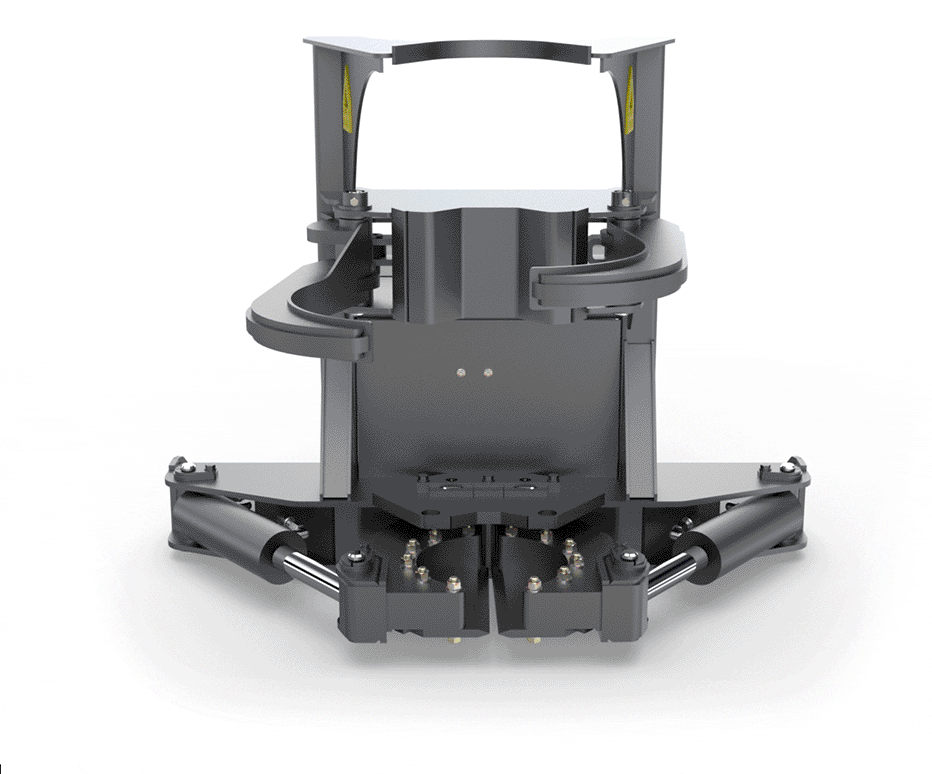

A compact, powerful hardwood tree cutter designed to shear the tree at ground level. Whether you’re clearing land or the right of way, the Dymax high-performance HPX10 tree shear delivers high power and continuous blade arm support during the cut. Featuring solid steel shearing arms and twin grapples to ensure a positive hold allowing operators to bring trees to the ground safely. Once on the ground, you can easily control the timber but manipulating the trunks and stems to cut to length. Available with an optional 180-degree rotate positioner for 12-ton Excavators.

“We’ve had Dymax tree shears for more than 15 years. It’s a fine piece of equipment. Durability. Labor saving. Brings safety to our operation.”

– J.D. King, County Engineer

APPLICATIONS

Firewood processing
Biomass harvesting
Land clearing and site cleanup
Road and Railway rights of way
Municipality tree and limb clearing
Hazardous fuels reduction in forested lands
Plantation thinning

FEATURES AND BENEFITS

Cut up to 10 inch diameter hardwood trees
Continuous arm and blade support during the cutting process
Strong robust twin grapples to secure trees allowing operators to place into collective piles
Solid steel cutting arms with bolt on replaceable cutting knives
Bolted head plate for changing machine connections
Heavy duty chrome plated shear arm pivot pin with replaceable bushings and seals
34 tons of shearing force

OPTIONS AVAILABLE

180-degree Tilt model for 11-12 ton excavators
Electro-hydraulic valve with electrical switch kit for rotation. (priced separately)

SPECIFICATIONS

HPX10 MODELS WITHOUT ROTATION

Model Code
Description
Weight (lbs)

DX-TS-FG-HPX10-BL-10

Tree Shear-Grapple-HPX Series 10 inch capacity-Backhoe Loader-Class 10

STANDARD FEATURES:

– 10 inch max capacity diameter (30cm)

– HPX frame group

– 5/8 inch AR400 cutting knives

– 4.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Sequence valve standard

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

Contact Dymax for options and pricing information

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 1565 lbs

DX-TS-FG-HPX10-BL-20

Tree Shear-Grapple-HPX Series 10 inch capacity-Backhoe Loader-Class 20

STANDARD FEATURES:

– 10 inch max capacity diameter (30cm)

– HPX frame group

– 5/8 inch AR400 cutting knives

– 4.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Sequence valve standard

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 1600 lbs

DX-TS-FG-HPX10-HX-8T

Tree Shear-Grapple-HPX Series 10 inch capacity-Hydraulic Excavator-8 Ton

STANDARD FEATURES:

– 10 inch max capacity diameter (30cm)

– HPX frame group

– 5/8 inch AR400 cutting knives

– 4.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Sequence valve standard

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

Contact Dymax for options and pricing information

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 1600 lbs

DX-TS-FG-HPX10-HX-11T

Tree Shear-Grapple-HPX Series 10 inch capacity-Hydraulic Excavator-11 Ton

STANDARD FEATURES:

– 10 inch max capacity diameter (30cm)

– HPX frame group

– 5/8 inch AR400 cutting knives

– 4.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Sequence valve standard

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

Contact Dymax for options and pricing information

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 1635 lbs

DX-TS-FG-HPX10-HX-12T

Tree Shear-Grapple-HPX Series 10 inch capacity-Hydraulic Excavator-12 Ton

STANDARD FEATURES:

– 10 inch max capacity diameter (30cm)

– HPX frame group

– 5/8 inch AR400 cutting knives

– 4.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Sequence valve standard

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 1660 lbs

Design and specifications are subject to change without notice.

HPX10 MODELS WITH 180° ROTATION

Model Code
Description
Weight (lbs)

DX-TS-FGT-HPX10x180-HX-12T

Tree Shear-Grapple + Tilt-HPX Series 10 inch capacity x 180 degrees-Hydraulic Excavator-12 Ton

STANDARD FEATURES:

– 10 inch max capacity diameter (30cm)

– HPX frame group

– 5/8 inch AR400 cutting knives

– 4.0×10.0 cylinders

– 180 degree rotation system (total)

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Sequence valve standard

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 2210 lbs

Design and specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS

MODELS: DX-TS-FG-HPX10-HX-8T

HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.

CIRCUIT1 – Shear/Grapple

– Type Two Way

– GPM (min/max) 15-25, PSI (max) 3,000

NOT SUPPLIED: Not provided with lines to the machine auxiliaries.

MODELS: DX-TS-FG-HPX10-BL-10, DX-TS-FG-HPX10-BL-20, DX-TS-FG-HPX10-HX-11T, DX-TS-FG-HPX10-HX-12T

HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.

CIRCUIT1 – Shear/Grapple

– Type Two Way

– GPM (min/max) 15-25, PSI (max) 3,500

NOT SUPPLIED: Not provided with lines to the machine auxiliaries.

MODELS: DX-TS-FGT-HPX10x180-HX-12T

HYDRAULIC REQUIREMENTS: Your machine will require the following 2x circuits for operation. If your machine has only 1 auxiliary circuit, please contact Dymax for pricing on electrohydraulic directional valves to power the rotate circuit.

CIRCUIT1 – Shear/Grapple

– Type Two Way

– GPM (min/max) 15-25, PSI (max) 3,500

CIRCUIT2 – Rotator Gear Drive 180

– Type Two Way + Drain Line Required

– GPM (min/max) 8-10, PSI (max) 3,000

NOT SUPPLIED: Not provided with lines to the machine auxiliaries.

FAQ’S

What size excavator is this tree shear designed for?

The HPX10 is designed for 8–14 ton hydraulic excavators.

What is the maximum cutting diameter?

Up to 10 inches (30 cm).

Does it hold the tree after the cut?

Yes. Each HPX shear uses grapples to maintain control of the tree so the operator can place it safely. The HPX10 has a dual grapple configuration. (Twin shear arms with dual grapples.)

What hydraulic flow and pressure are required?

It depends on the model and whether you have rotation. The HPX10 is typically 15–25 GPM with max 3,000–3,500 PSI depending on configuration; rotation adds a second circuit and may require a drain line.
