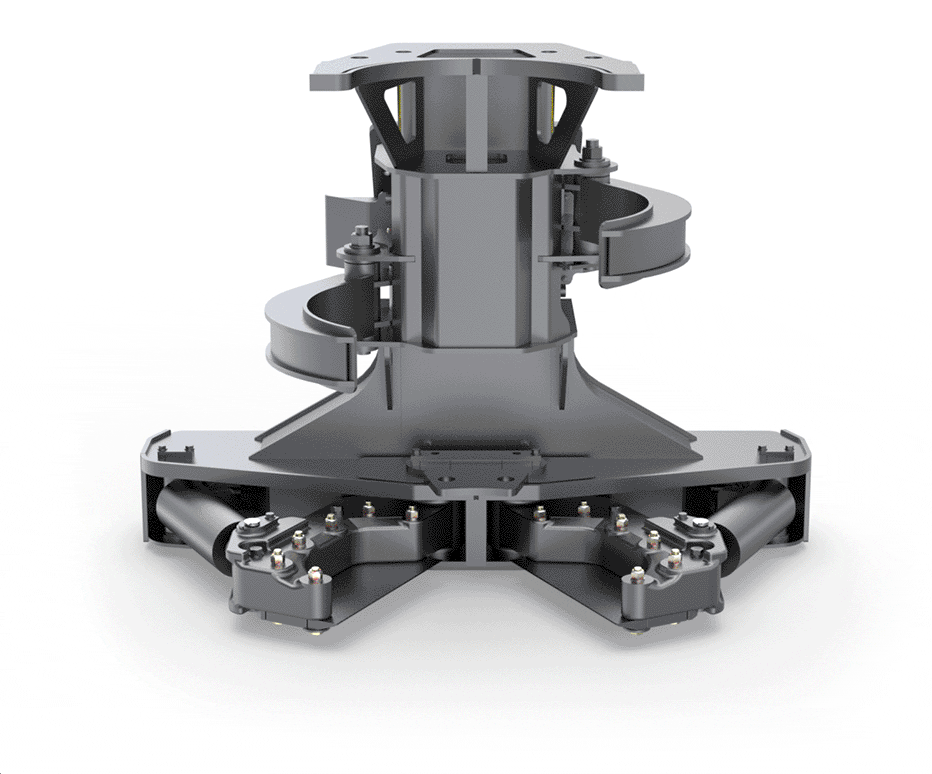

Dymax HPX14 excavator tree shear attachment (14-inch capacity) for 13–20 ton excavator

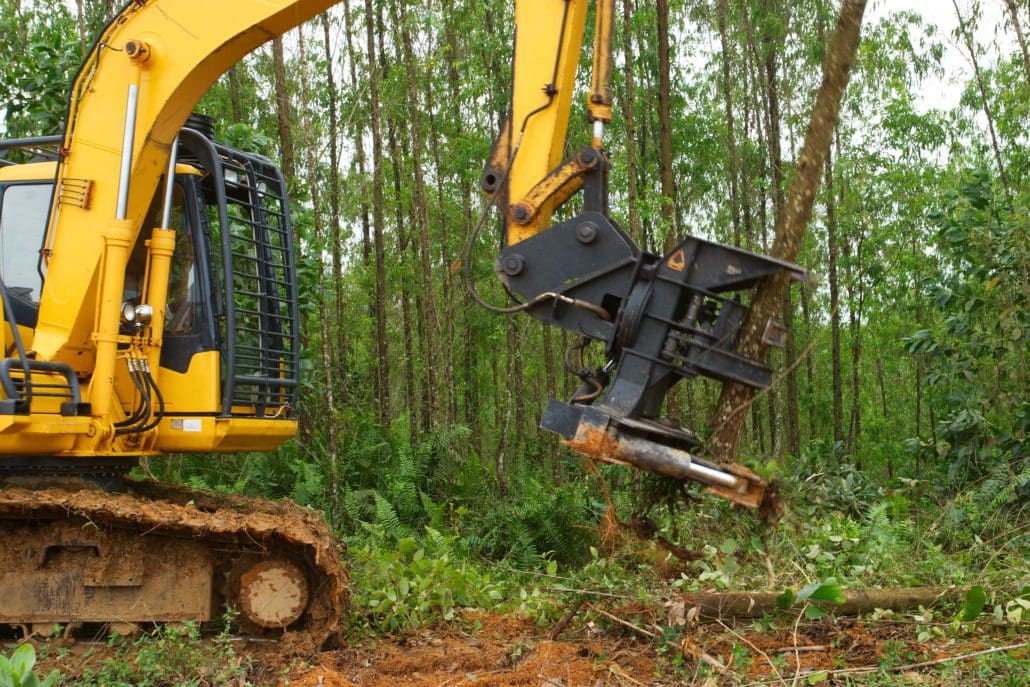

HPX14 Dymax Excavator Tree Shear

FOR 13-20 TON MID-SIZED EXCAVATORS – 14″ CUT CAPACITY

The HPX14 is a powerful tree shear attachment for excavators that is used for taking down the toughest trees on the planet. An excellent choice for any land clearing contractor or land management operator. The HPX14 is available for medium to large excavators and delivers up to 62 tons of shearing force. With a maximum cut capacity of 14 inches (36cm) the HPX14 can easily cut trees of all types, including hardwoods. Like most Dymax Excavator Tree Shears, the HPX14 features continuous blade and arm support during the cut to increase durability and performance.

“We’ve had Dymax tree shears for more than 15 years. It’s a fine piece of equipment. Durability. Labor saving. Brings safety to our operation.”

– J.D. King, County Engineer

APPLICATIONS

Tree harvesting for pulp and paper applications
Biomass harvesting
General land clearing and site cleanup
Roadside and Transmission Utility line right-of-way clearing
Railway right-of-way clearing
Hazardous fuels reduction on forested lands

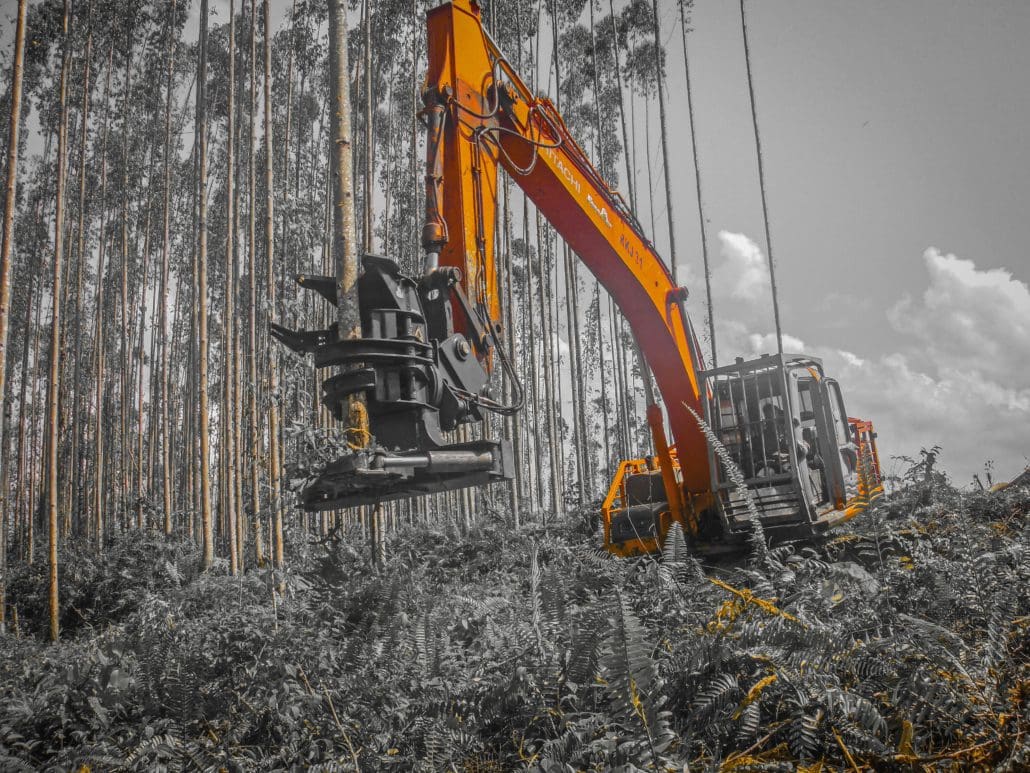

Plantation thinning and harvesting for Eucalyptus and Acacia

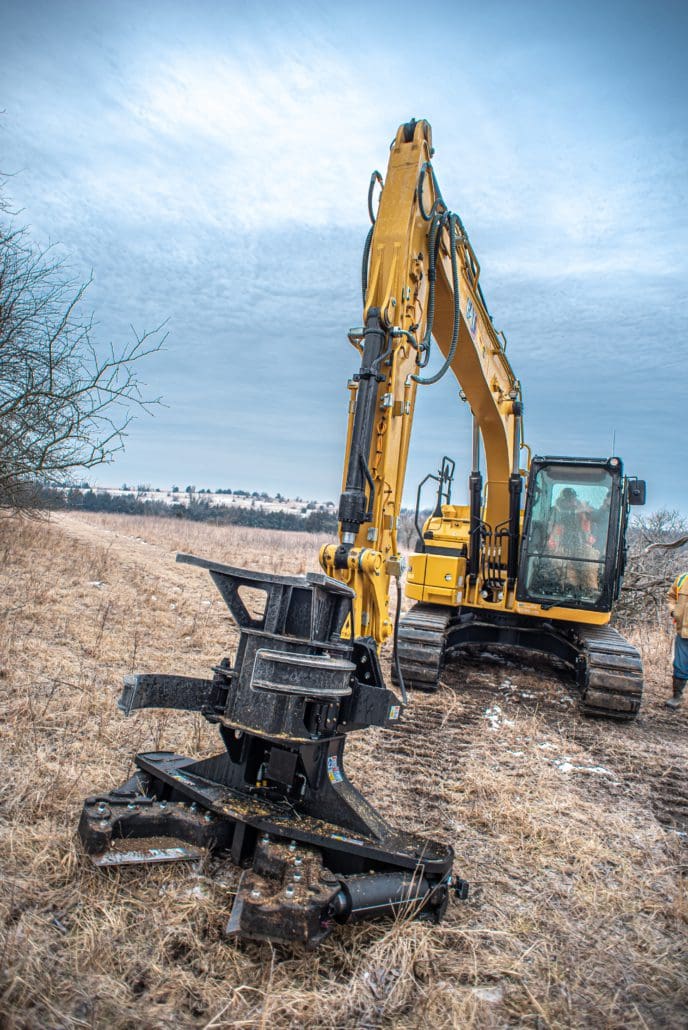

FEATURES AND BENEFITS

Cut up to 14-inch diameter hardwoods

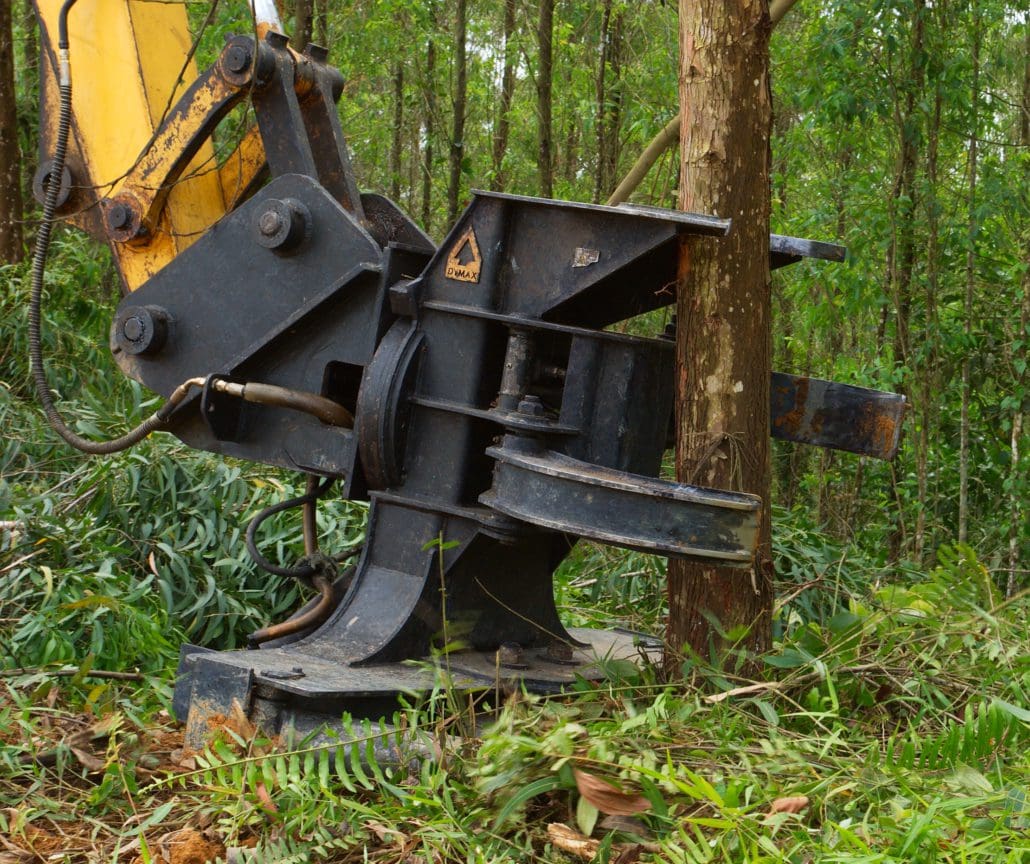

Continuous blade support during the cutting process

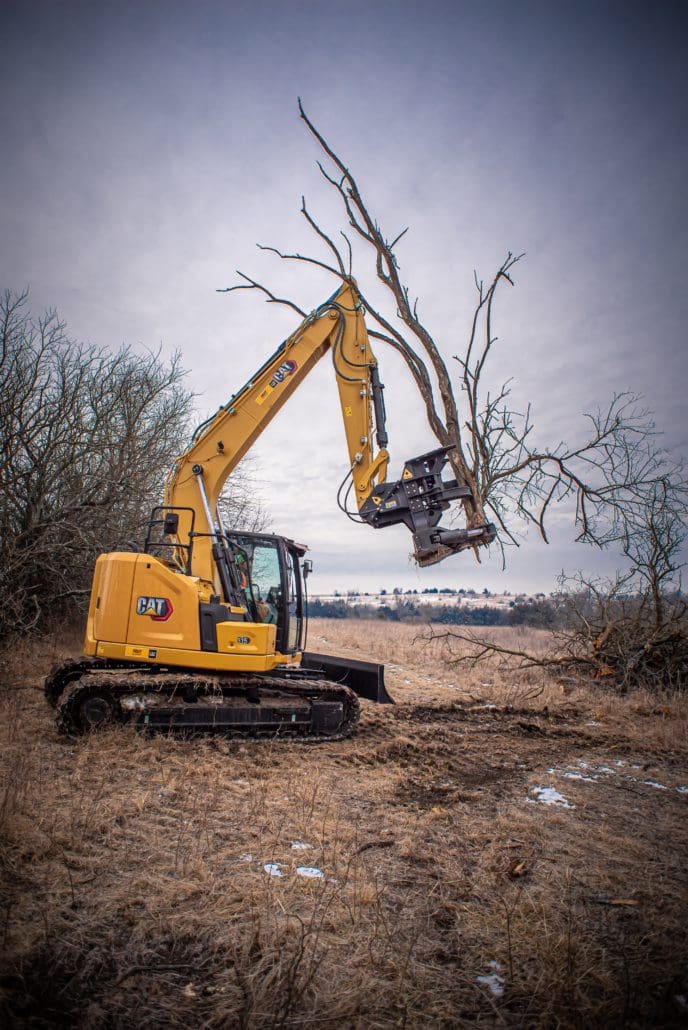

Strong and durable grapples enable operators to place sheared trees into collection piles
High-strength steel cutting arms with bolt-on replaceable cutting knives
Bolted head plate for changing machine connections
Heavy-duty chrome-plated shear arm pivot pin with replaceable bushings and seals
62 tons of shearing force

OPTIONS AVAILABLE

60 degree rotator makes it possible to adjust to the tree with the machine sitting on uneven ground
Electro-hydraulic valve with electrical switch kit for rotation is priced separately. If you only have (1) circuit please visit with your Dymax sales representative.

SPECIFICATIONS

HPX14 MODELS WITHOUT ROTATION

Model Code
Description
Weight (lbs)

DX-TS-FG-HPX14-HX-12T

Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-12 Ton

STANDARD FEATURES:

– 14 inch max capacity diameter (36cm)

– HPX frame group

– 3/4 inch AR400 cutting knives

– 5.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Bolt 303 excavator head plate with adapter and pins

WEIGHT: 2970 lbs

DX-TS-FG-HPX14-HX-13T

Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-13 Ton

STANDARD FEATURES:

– 14 inch max capacity diameter (36cm)

– HPX frame group

– 3/4 inch AR400 cutting knives

– 5.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 2970 lbs

DX-TS-FG-HPX14-HX-14T

Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-14 Ton

STANDARD FEATURES:

– 14 inch max capacity diameter (36cm)

– HPX frame group

– 3/4 inch AR400 cutting knives

– 5.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 2970 lbs

DX-TS-FG-HPX14-HX-15T

Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-15 Ton

STANDARD FEATURES:

– 14 inch max capacity diameter (36cm)

– HPX frame group

– 3/4 inch AR400 cutting knives

– 5.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Bolt 303 excavator head plate with adapter and pins

OPTIONS:

– Grapple load check circuit

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 2970 lbs

DX-TS-FG-HPX14-HX-20T

Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-20 Ton

STANDARD FEATURES:

– 14 inch max capacity diameter (36cm)

– HPX frame group

– 3/4 inch AR400 cutting knives

– 5.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Bolt 303 excavator head plate with adapter and pins

WEIGHT: 3050 lbs

Design and specifications are subject to change without notice.

HPX14 MODELS WITH 60° ROTATION

Model Code
Description
Weight (lbs)

DX-TS-FGT-HPX14X60-HX-12T

Tree Shear-Grapple + Tilt-HPX Series 14 inch capacity x 60 degrees-Hydraulic Excavator-12 Ton

STANDARD FEATURES:

– 14 inch max capacity diameter (36cm)

– HPX frame group

– 60 degree rotator; cylinder driven with slew ring

– 3/4 inch AR400 cutting knives

– 5.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Bolted excavator head plate with adapter and pins

OPTIONS

– Grapple load check circuit

– Electro-hydraulic diverter valve kit for rotation systems operation

– Rotator systems, if not quoted

– Custom design solutions

WEIGHT: 3300 lbs

DX-TS-FGT-HPX14x60-HX-14T

Tree Shear-Grapple + Tilt-HPX Series 14 inch capacity x 60 degrees-Hydraulic Excavator-14 Ton

STANDARD FEATURES:

– 14 inch max capacity diameter (36cm)

– HPX frame group

– 60 degree rotator; cylinder driven with slew ring

– 3/4 inch AR400 cutting knives

– 5.0×10 cylinders

– Twin shear arms with dual grapples

– Chrome-plated pivot pins and bushings

– Bolted excavator head plate with adapter and pins

OPTIONS:

– Grapple load check circuit

– Electro-hydraulic diverter valve kit for rotation systems operation

– Rotator systems if not quoted

– Custom design solutions

WEIGHT: 3300 lbs

Design and specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS

MODELS: DX-TS-FG-HPX14-HX-12T, DX-TS-FG-HPX14-HX-13T, DX-TS-FG-HPX14-HX-14T, DX-TS-FG-HPX14-HX-15T, DX-TS-FG-HPX14-HX-20T

HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.

CIRCUIT1 – Shear/Grapple

– Type Two Way

– GPM (min/max) 15-25, PSI (max) 3,500

NOT SUPPLIED: Not provided with lines to the machine auxiliaries.

MODELS: DX-TS-FGT-HPX14X60-HX-12T, DX-TS-FGT-HPX14x60-HX-14T

HYDRAULIC REQUIREMENTS: Your machine will require the following 2x circuits for operation. If your machine has only 1 auxiliary circuit, please contact Dymax for pricing on electrohydraulic directional valves to power the rotate circuit.

CIRCUIT1 – Shear/Grapple

– Type Two Way

– GPM (min/max) 20-30, PSI (max) 4,000

CIRCUIT2 – Rotator, Cylinder Drive 60

– Type Two Way,

– GPM (min/max) 8-10, PSI (max) 3,000

NOT SUPPLIED: Not provided with jumper hose lines

FAQ’S

What size excavator is this tree shear designed for?

The HPX14 is designed for 13–20 ton mid-sized excavators.

What is the maximum cutting diameter?

Up to 14 inches (36 cm).

Does it hold the tree after the cut?

Yes. Each HPX shear uses grapples to maintain control of the tree so the operator can place it safely. The HPX14 has a dual grapple configuration. (Twin shear arms with dual grapples.)

What hydraulic flow and pressure are required?

It depends on the model and whether you have rotation. Generally, the range for HPX14 is 15–25 GPM @ 3,500 PSI for standard; rotation models add a second circuit.
