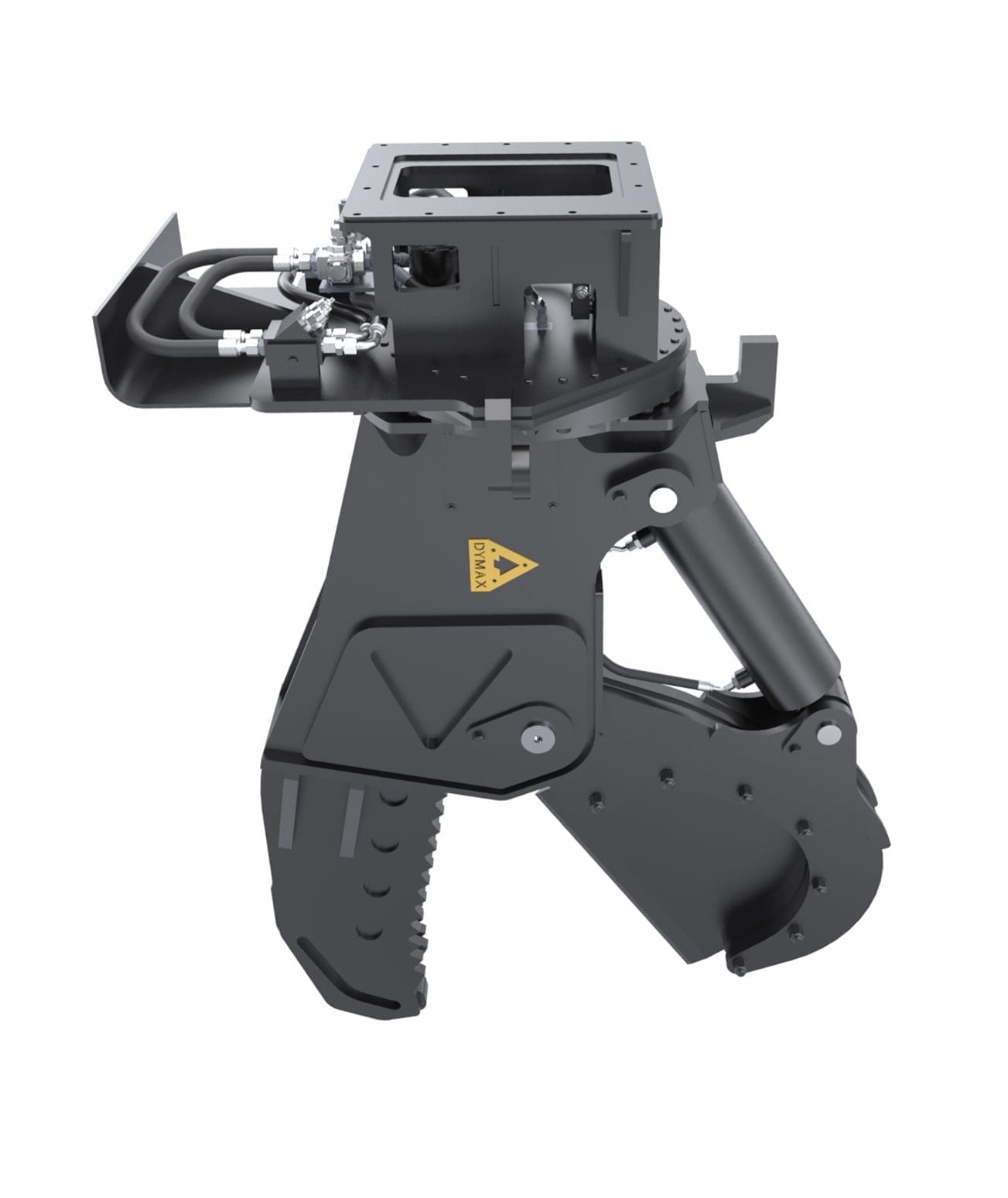

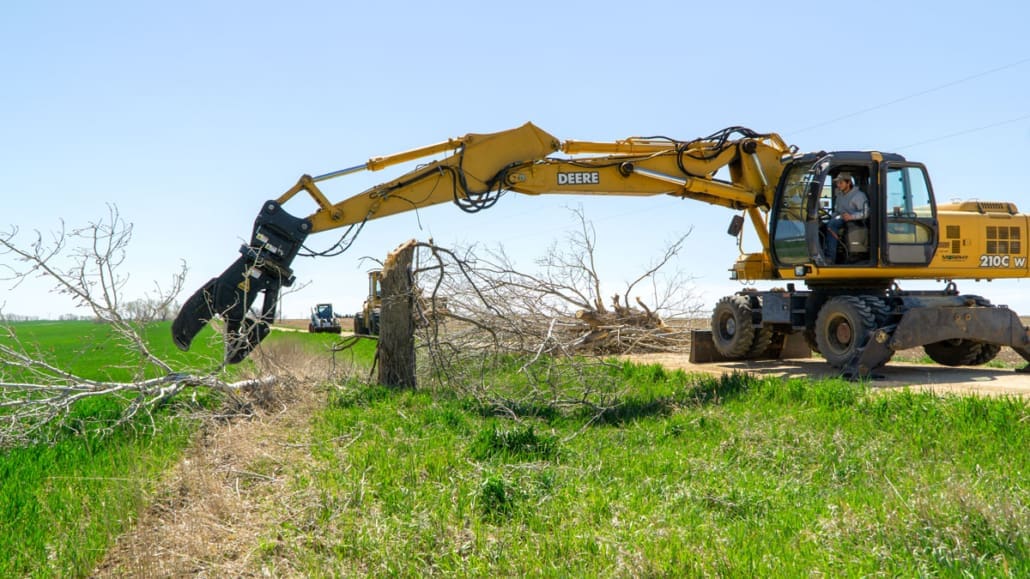

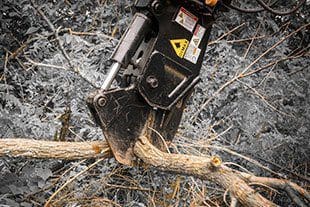

Dymax rotating limb tree shear attachment with 180° hydraulic rotation (8–24 in cutting)

Rotating Limb Tree Shear for Excavators & Backhoes

For 10 Ton Backhoes & 6-36 Ton Excavators • 8-24 in Cutting Capacity • 180° Hydraulic Rotation

The Dymax Limb Tree Shear for Excavators and Backhoes is extremely efficient in right-of-way maintenance for railroads and county highway departments.

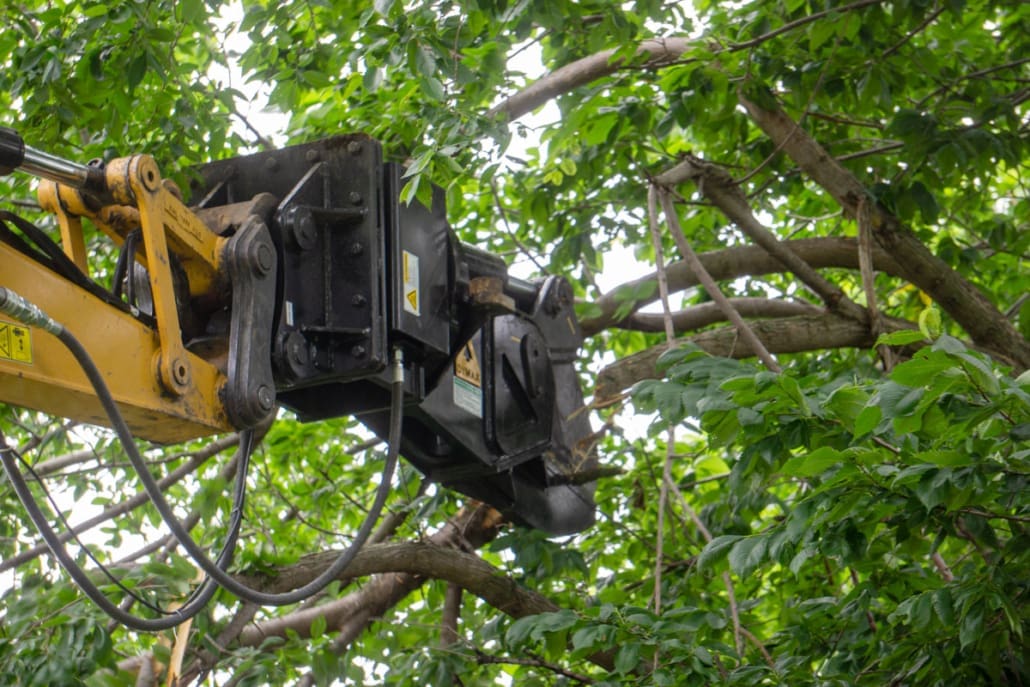

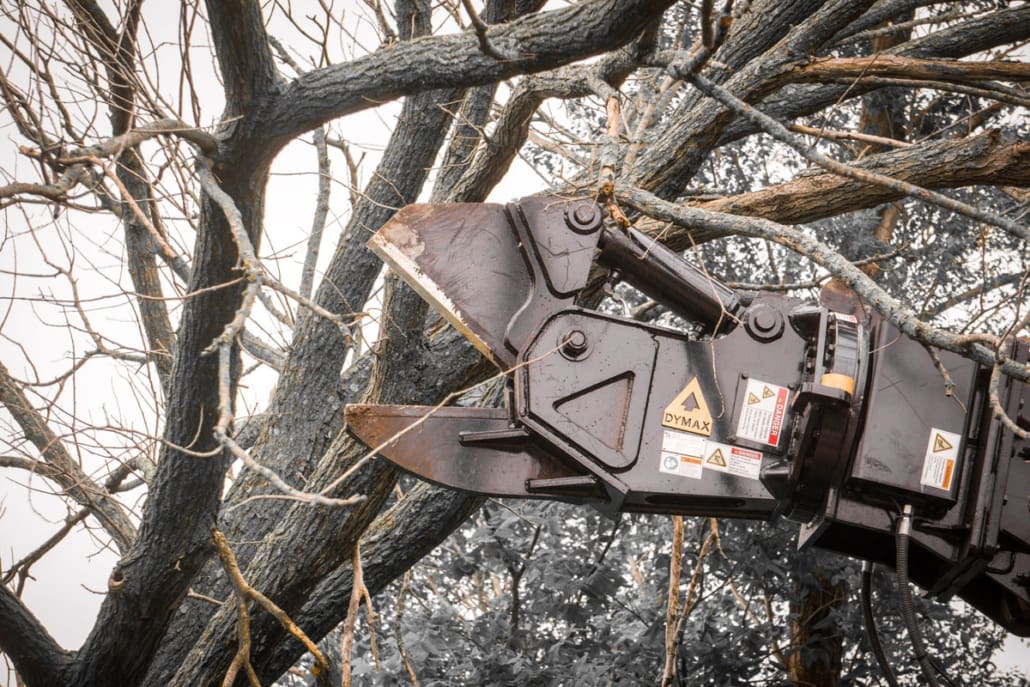

The small, compact frame allows operators to shear limbs and trees in hard-to-reach areas. Dymax Rotating Limb Shears are ideal for trimming around power lines and tree pruning using excavators and backhoe loaders.

With 180° of hydraulic rotation, these shears will adjust to the limb. Non-rotating models are also available. And like all Dymax products, they are backed by the highest level of support in the industry.

The Dymax Rotating Limb Tree Shear fits all makes and models of excavators and backhoe loaders such as Caterpillar, Case, John Deere, Hitachi, Hyundai, JCB, Komatsu, Kobelco, Samsung, Volvo and many other makes.

FEATURES AND BENEFITS

Small compact frame design, which is ideal in hard-to-reach areas.
Super fast cycle time.
Heavy-duty replaceable shear blade comprised of high-tensile steel.
Hoses and fittings are well protected from abusive elements found in shearing applications.
180° hydraulic rotation setup through a heavy-duty slewing ring bearing for long life. Non-rotating models are also available.
8″ to 24″ diameter cutting capacities.
Dymax Limb Shears feature bolt-on top assemblies, allowing for interchangeability between various machine manufacturers and sizes

Applications

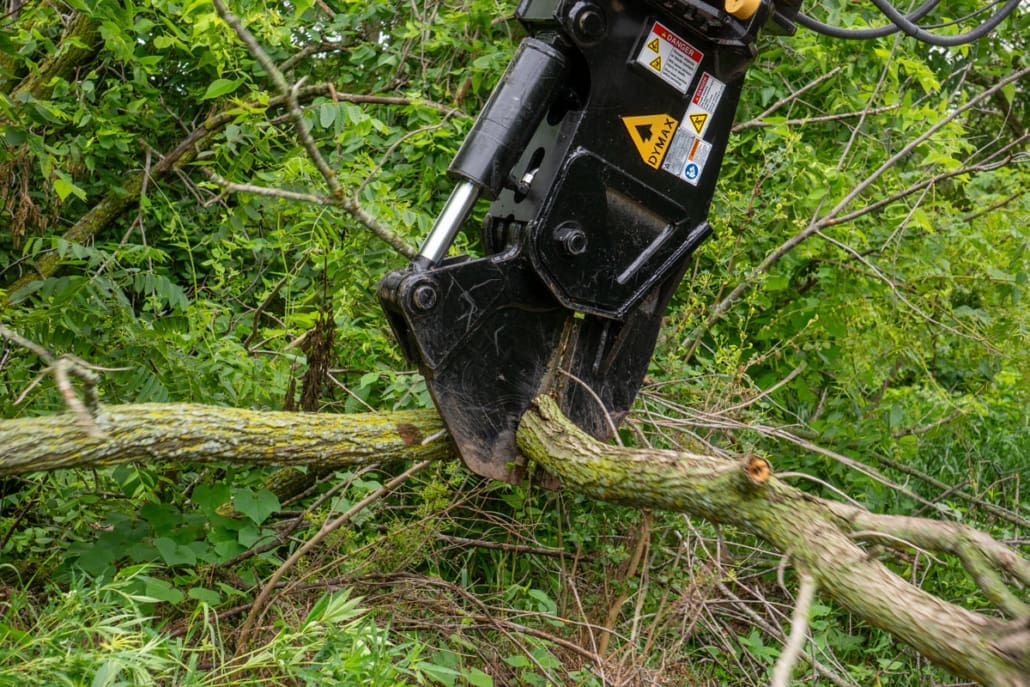

Clearing vegetation along lines and utility ROWs

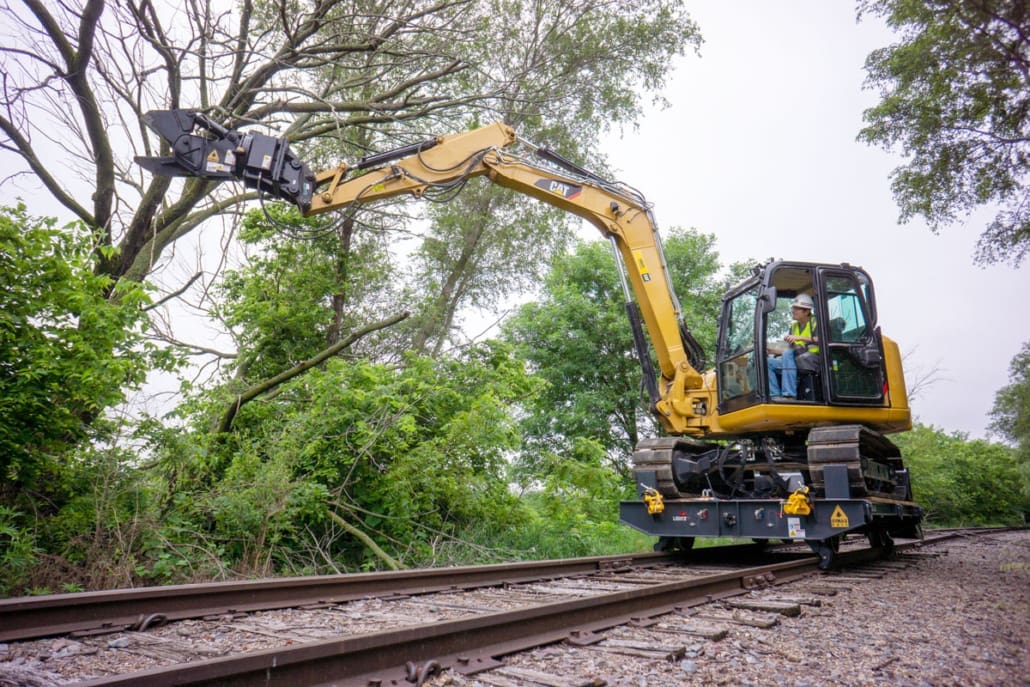

Right-of-way (ROW) maintenance for rail corridors

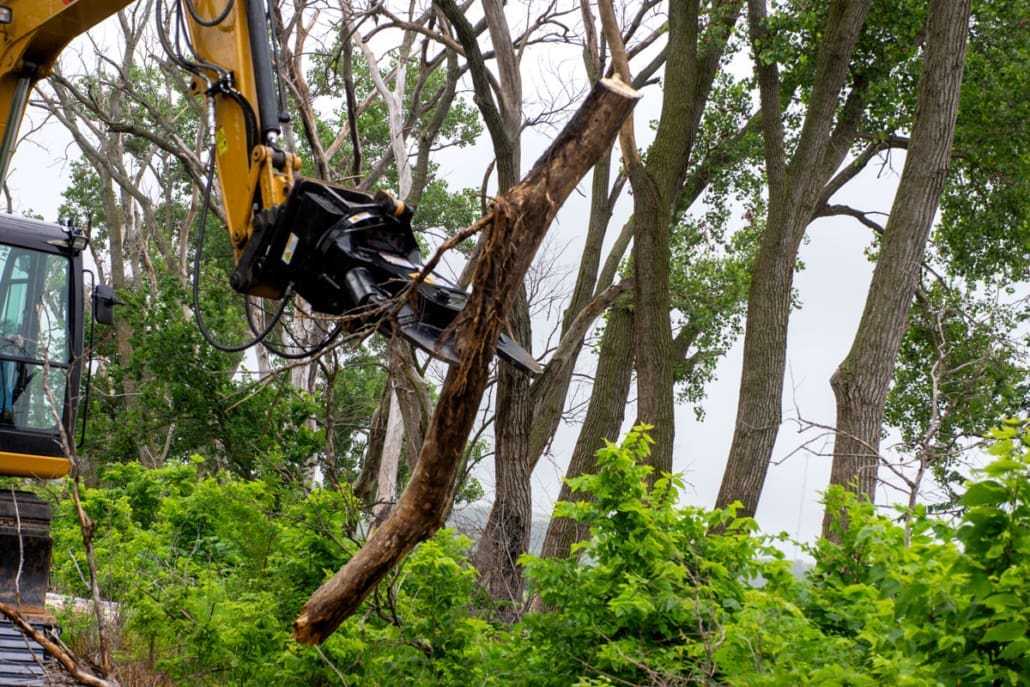

Tree and brush removal for land clearing and site prep

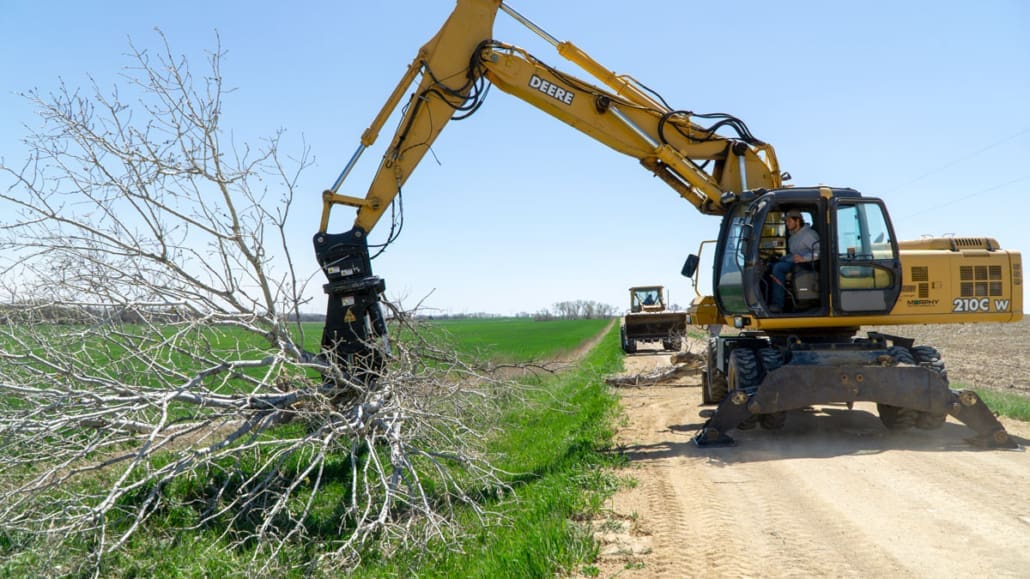

Roadside ditchline and shoulder clearing for county and highway maintenance
High-volume limb cutting for commercial tree clearing operations

Rotating Limb Shear Models (180° Rotation)

Model
Description
Weight (lbs)

DX-TS-RLS-8in-HX-6T

Tree Shear-Limb Shear with 180 degrees rotation-8 inch cutting capacity-Hydraulic Excavator-6 Ton

For fitting 5-6T Excavators

STANDARD FEATURES:

– Bolted interface machine adapter with pins

– 8 inch max capacity diameter (20cm)

– Single knife bypass design

– 4.0×8.0 hydraulic cylinder

– 180° rotator positioner; pinion drive

– Electro hydraulic diverter valve kit to power rotator

WEIGHT: 785 lbs

DX-TS-RLS-10in-BL-10

Tree Shear-Limb Shear with 180 degrees rotation-10 inch cutting capacity-Backhoe Loader-Class 10

STANDARD FEATURES:

– Bolted interface machine adapter with pins

– 10 inch max capacity diameter (30cm)

– Single knife bypass design

– 4.5×8 cylinder

– 180° rotator positioner; pinion drive

– Electro hydraulic diverter valve kit to power rotator

WEIGHT: 1600 lbs

DX-TS-RLS-10in-HX-8T

Tree Shear-Limb Shear with 180 degrees rotation-10 inch cutting capacity-Hydraulic Excavator-8 Ton

STANDARD FEATURES:

– Bolted interface machine adapter with pins

– 10 inch max capacity diameter (30cm)

– Single knife bypass design

– 4.5×8 cylinder

– 180° rotator positioner; pinion drive

– Electro hydraulic diverter valve kit to power rotator

WEIGHT: 1600 lbs

DX-TS-RLS-10inx360-GT-10

Tree Shear-Limb Shear with 180 degrees rotation-10 inches wide x 360 degrees rotation-Grapple Truck-Class 10

STANDARD FEATURES:

– Single pin crane adapter with Baltrotor 360 Rotator

(DY122151 style) for crane dangling applications

– 10 inch max capacity diameter (30cm)

– Single knife bypass design

– 4.50×8.00 cylinder

WEIGHT: 840 lbs

DX-TS-RLS-14in-HX-20T

Tree Shear-Limb Shear with 180 degrees rotation-14 inch cutting capacity-Hydraulic Excavator-20 Ton

STANDARD FEATURES:

– Bolted interface machine adapter with pins

– 14 inch max capacity diameter (36cm)

– Single knife bypass design

– 6.0×10 cylinder

– 180° rotator positioner; pinion drive

– Electro hydraulic diverter valve kit to power rotator

WEIGHT: 2800 lbs

DX-TS-RLS-20in-HX-36T

Tree Shear-Limb Shear with 180 degrees rotation-20 inch cutting capacity-Hydraulic Excavator-36 Ton

STANDARD FEATURES:

– Bolted interface machine adapter with pins

– 20 inch max capacity diameter (51cm)

– Single knife bypass design

– 8.0×16 cylinder

– 180° rotator positioner; twin pinion drive

– Electro hydraulic diverter valve kit to power rotator

WEIGHT: 5800 lbs

DX-TS-RLS-24in-HX-25T

Tree Shear-Limb Shear with 180 degrees rotation-24 inches wide-Hydraulic Excavator-25 Ton

STANDARD FEATURES:

– Bolted interface machine adapter with pins

– 24 inch max capacity diameter

– Single knife bypass design

– 8.0×16 cylinder

– 180° rotator positioner; twin pinion drive

– Electro hydraulic diverter valve kit to power rotator

WEIGHT: 6300 lbs

Design and specifications are subject to change without notice.

Non-Rotating Limb Shear Models

Model
Description
Weight (lbs)

DX-TS-LS-10in-BL-10

Tree Shear-Limb Shear without rotation-10 inch cutting capacity-Backhoe Loader-Class 10

STANDARD FEATURES:

– Welded top assembly supplied with pins

– Serrated bypass jaw design

– AR400 cutting knife

– HD 4.50cyl x 8.00 stroke

WEIGHT: 850 lbs

DX-TS-LS-10in-HX-8T

Tree Shear-Limb Shear without rotation-10 inch cutting capacity-Hydraulic Excavator-8 Ton

STANDARD FEATURES:

– Welded top assembly supplied with pins

– Serrated bypass jaw design

– AR400 cutting knife

– HD 4.50cyl x 8.00 stroke

WEIGHT: 850 lbs

DX-TS-LS-14in-HX-14T

Tree Shear-Limb Shear without rotation-14 inch cutting capacity-Hydraulic Excavator-14 Ton

STANDARD FEATURES:

– Welded top assembly supplied with pins

– Serrated bypass jaw design

– AR400 cutting knife

– HD 6.00cyl x 10.00 stroke

WEIGHT: 1750 lbs

DX-TS-LS-14in-HX-20T

Tree Shear-Limb Shear without rotation-14 inch cutting capacity-Hydraulic Excavator-20 Ton

STANDARD FEATURES:

– Welded top assembly supplied with pins

– Serrated bypass jaw design

– AR400 cutting knife

– HD 6.00cyl x 10.00 stroke

WEIGHT: 1850 lbs

DX-TS-LS-20in-HX-36T

Tree Shear-Limb Shear without rotation-20 inch cutting capacity-Hydraulic Excavator-36 Ton

STANDARD FEATURES:

– Bolted interface machine adapter with pins

– 20 inch max capacity diameter (51cm)

– Serrated bypass jaw design

– AR400 cutting knife

– 8.0×16 cylinder

WEIGHT: 2500 lbs

Design and specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS

MODELS: DX-TS-RLS-8in-HX-6T, DX-TS-RLS-10in-BL-10, DX-TS-RLS-10in-HX-8T, DX-TS-RLS-14in-HX-20T, DX-TS-RLS-20in-HX-36T, DX-TS-RLS-24in-HX-25T

HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.

CIRCUIT 1 – Shear

– Type: Two way

– GPM (min/max) 15-25, PSI (max) 3,000

CIRCUIT 2 – Rotator 180 degree

– Electro-hydraulic valve kit requires installation

NOT SUPPLIED: Jumper hose lines

MODEL: DX-TS-RLS-10inx360-GT-10

HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.

CIRCUIT 1 – Shear

– Type: Two way

– GPM (min/max) 15-20, PSI (max) 3,000

CIRCUIT 2 – Rotator 360 degree

– Type: Two way

– GPM (min/max) 15-20, PSI (max) 3,000

NOT SUPPLIED: Jumper hose lines

SPECIAL NOTE: If your machine only has 1 auxiliary circuit we can quote and provide a secondary solution, which is an electro-hydraulic valve to divert oil from the primary auxiliary function to power the rotator.

MODELS: DX-TS-LS-10in-BL-10, DX-TS-LS-10in-HX-8T, DX-TS-LS-14in-HX-14T, DX-TS-LS-14in-HX-20T, DX-TS-LS-20in-HX-36T

HYDRAULIC REQUIREMENTS: Your machine will require a single auxiliary, bidirectional circuit.

CIRCUIT 1 – Shear / Flow

– Type: Two Way

– GPM (min/max) 15-25, PSI (max) 3,000

NOT SUPPLIED: Not provided with hose lines to machine

What is the max cutting diameter?

Dymax Limb Tree Shears are available in multiple sizes with 8″ to 24″ maximum diameter cutting capacities, depending on the model you select. If you’re unsure which size you need, choose based on your typical limb/tree diameter (not the occasional outlier) and your machine class, and we’ll match the best-fit model.

What machines does it fit?

This attachment is built for 10 ton backhoes and 6-36 ton excavators. We can fit it to most major OEMs using the proper interface/adaptor for your machine (for example: Caterpillar, Case, John Deere, Hitachi, Hyundai, JCB, Komatsu, Kobelco, Samsung, Volvo, and others).

How much rotation does it have?

Rotating models provide 180° of hydraulic rotation, so the shear can be positioned to meet the limb/tree without constantly repositioning the carrier. This is especially useful in tight right-of-way and overhead work. Non-rotating models are also available.

Note: there is also a 360° rotator configuration for grapple truck applications, but the primary excavator/backhoe rotating models are 180°.

Do you offer a non-rotating version?

Yes. Non-rotating limb shear models are available for customers who want a simpler configuration while still getting the same core shearing performance for pruning and vegetation removal.
