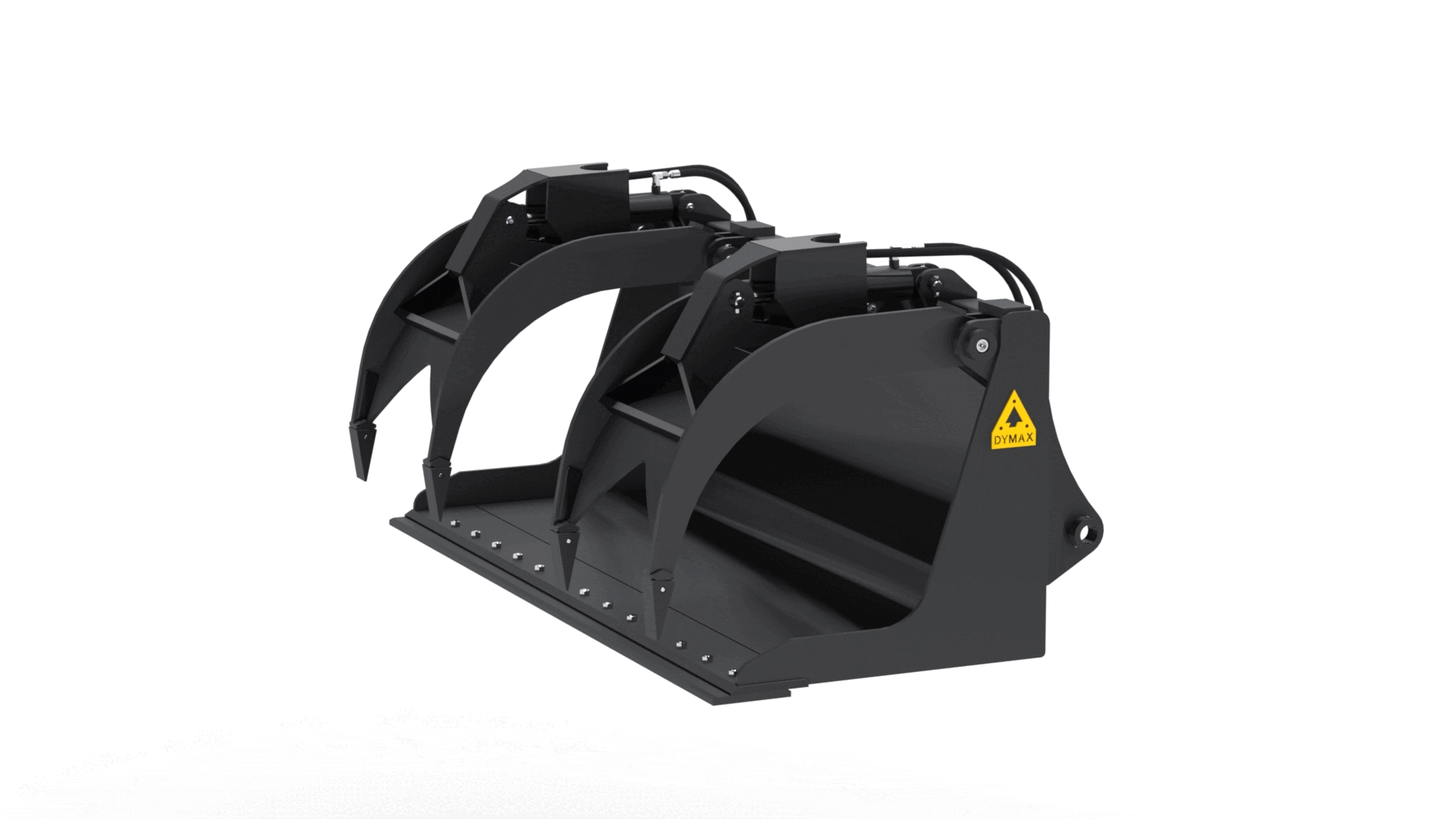

DYMAX GRIZZLY GRAPPLE BUCKET
FOR BACKHOE LOADERS AND WHEEL LOADERS
SPECIFICATIONS
| Model Code Description Width Weight |
|||
| DX-BK-GLGR-0.70cyd-BL-10
Bucket-Grapple Grizzly Style-0.70 cyd capacity-Backhoe Loader-Class 10 STANDARD FEATURES: dual independent top clamps reinforced design, replaceable heat treated bolt-on cutting edge, cushion and relief valve package, 3.00 x 6.00 hydraulic cylinders, 0.75 inch thick rear wear pads. WIDTH: 64 inches WEIGHT: 1730 lbs |
|||
| DX-BK-GLGR-0.70cyd-WL-10
Bucket-Grapple Grizzly Style-0.70 cyd capacity-Wheel Loader-Class 10 STANDARD FEATURES: dual independent top clamps reinforced design, replaceable heat treated bolt-on cutting edge, cushion and relief valve package, 3.00 x 6.00 hydraulic cylinders, 0.75 inch thick rear wear pads. WIDTH: 64 inches WEIGHT: 1730 lbs |
|||
| DX-BK-GLGR-1.00cyd-BL-10
Bucket-Grapple Grizzly Style-1.00 cyd capacity-Backhoe Loader-Class 10 STANDARD FEATURES: dual independent top clamps reinforced design, replaceable heat treated bolt-on cutting edge, cushion and relief valve package, 3.00 x 6.00 hydraulic cylinders, 0.75 inch thick rear wear pads. WIDTH: 88 inches WEIGHT: 2130 lbs |
|||
| DX-BK-GLGR-1.00cyd-WL-20
Bucket-Grapple Grizzly Style-1.00 cyd capacity-Wheel Loader-Class 20 STANDARD FEATURES: dual independent top clamps reinforced design, replaceable heat treated bolt-on cutting edge, cushion and relief valve package, 3.00 x 6.00 hydraulic cylinders, 0.75 inch thick rear wear pads. WIDTH: 88 inches WEIGHT: 2130 lbs |
|||
| DX-BK-GLGR-1.25cyd-BL-10
Bucket-Grapple Grizzly Style-1.25 cyd capacity-Backhoe Loader-Class 10 STANDARD FEATURES: Dual independent top clamps reinforced design, replaceable heat treated bolt-on cutting edge, cushion and relief valve package, 3.00 x 6.00 hydraulic cylinders, 0.75 inch thick rear wear pads. WIDTH: 96 inches WEIGHT: 2350 lbs |
|||
| DX-BK-GLGR-1.25cyd-WL-20
Bucket-Grapple Grizzly Style-1.25 cyd capacity-Wheel Loader-Class 20 STANDARD FEATURES: Dual independent top clamps reinforced design, replaceable heat treated bolt-on cutting edge, cushion and relief valve package, 3.00 x 6.00 hydraulic cylinders, 0.75 inch thick rear wear pads. WIDTH: 96 inches WEIGHT: 2350 lbs |
|||
| DX-BK-GLGR-1.50cyd-BL-20
Bucket-Grapple Grizzly Style-1.50 cyd capacity-Backhoe Loader-Class 20 STANDARD FEATURES: Dual independent top clamps reinforced design, replaceable heat treated bolt-on cutting edge, cushion and relief valve package, 3.00 x 6.00 hydraulic cylinders, 0.75 inch thick rear wear pads. WIDTH: 100 inches WEIGHT: 2500 lbs |
Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions 1-800-530-5407.
HYDRAULIC REQUIREMENTS
| Your machine will require 3rd function auxiliary lines.
CIRCUIT 1 – Clamp Operation Type – Two way Flow/Pressure – GPM (min/max) 15-25, PSI (max) 3,000 |
|||
| NOT SUPPLIED: Does not include jumper hoses to machine lines or quick disconnects. |
