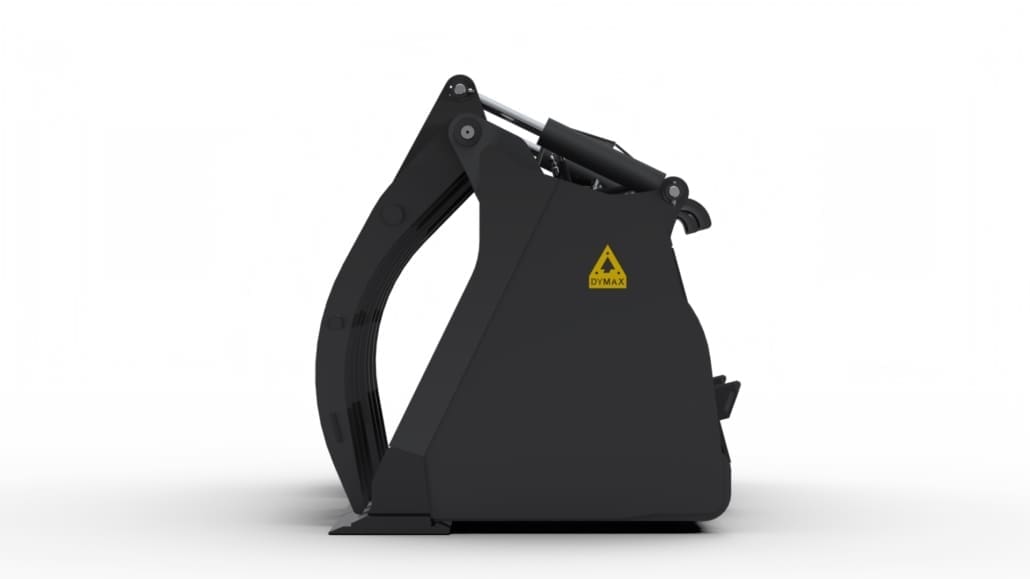

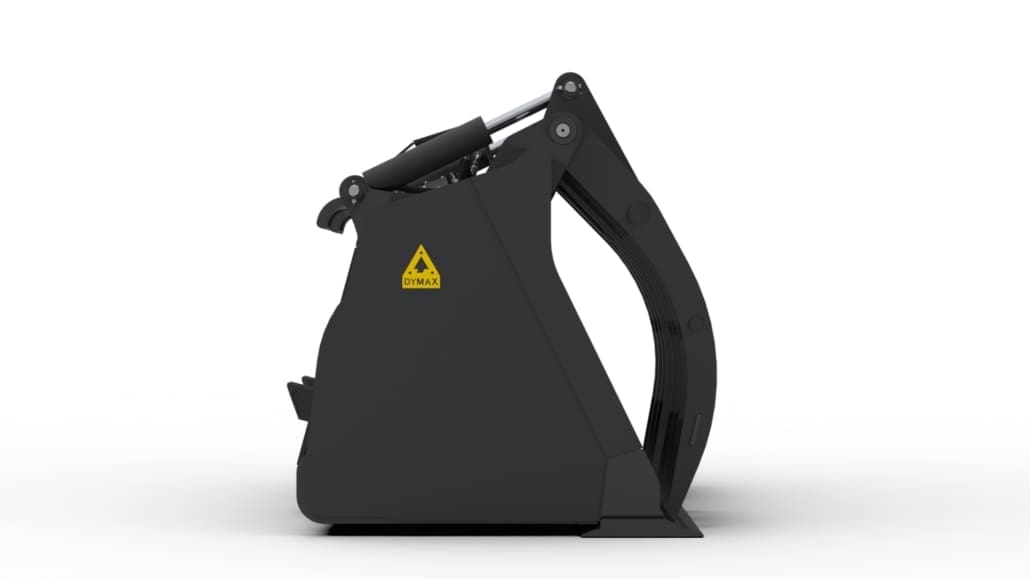

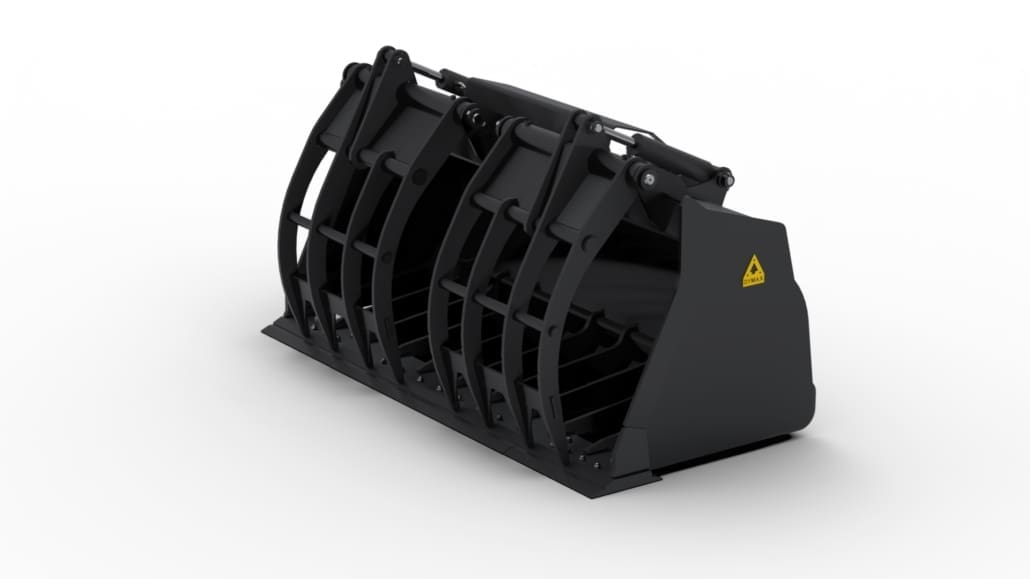

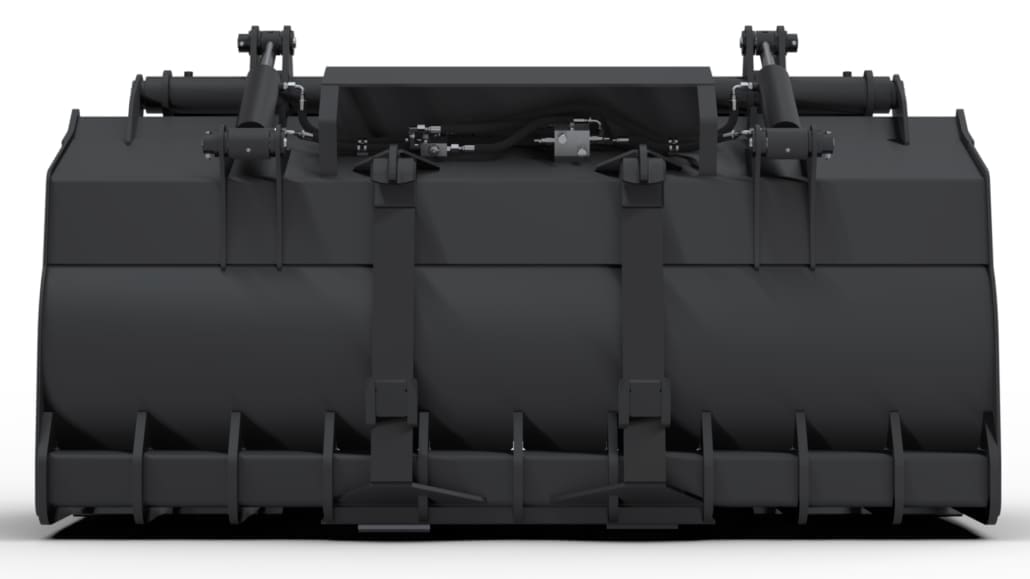

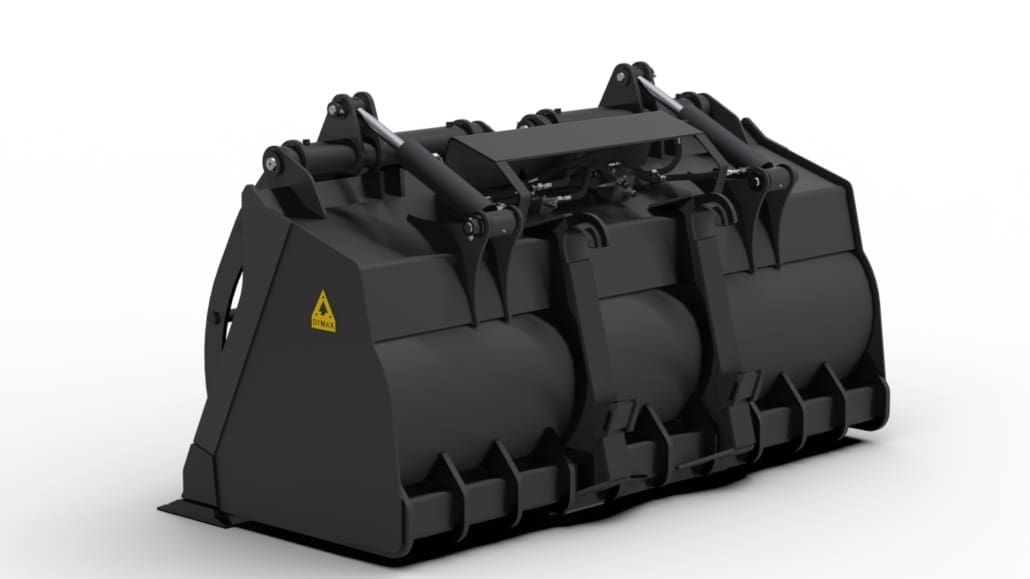

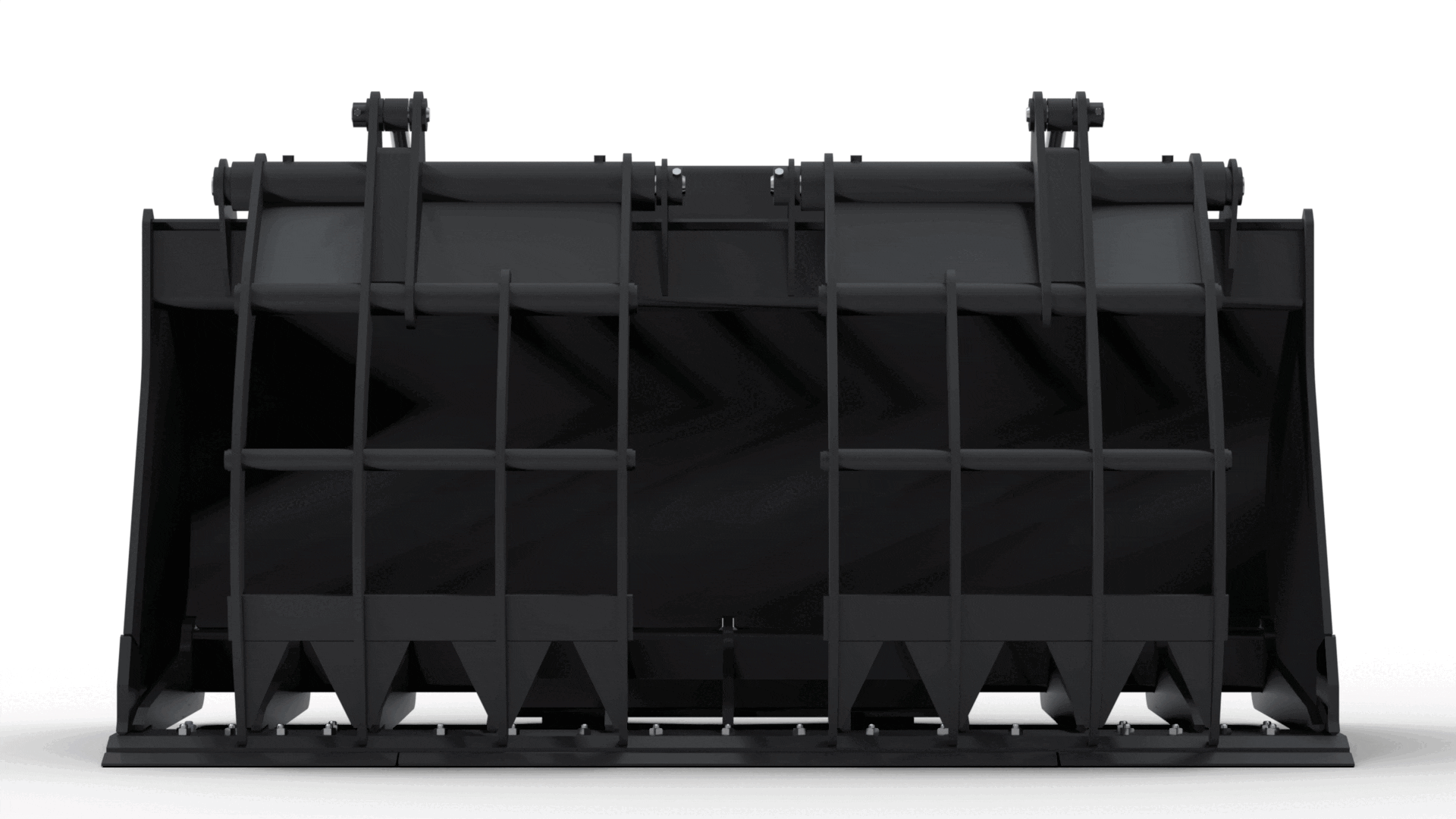

SKELETON FLOOR GRAPPLE BUCKET
For Wheel Loaders
SPECIFICATIONS
| Model Code Description Width Weight |
|||
| DX-BK-GLSK-2.50cyd-WL-40
Bucket-Grapple with Skeletal Floor-2.50 cyd capacity-Wheel Loader-Class 40 STANDARD FEATURES: full side plates like conventional bucket, replaceable bolt-on cutting edges, HD cylinders, pins and bushings, dual clamps with relief and counterbalance valves, T1 bottom heel wear plates, 10 inch spacing T1 steel constructed tine floor allowing for material to fall through. WIDTH RANGE: 100-102 inches, subject to machine WEIGHT: 4000 lbs |
|||
| DX-BK-GLSK-3.00cyd-WL-50
Bucket-Grapple with Skeletal Floor-3.00 cyd capacity-Wheel Loader-Class 50 STANDARD FEATURES: Full side plates like conventional bucket, Replaceable OEM pattern bolt-on cutting edges, HD cylinders, pins and bushings, dual clamps with relief and counterbalance valves, T1 bottom heel wear plates, 10 inch spacing T1 steel constructed tine floor allowing for material to fall through. WIDTH RANGE: 100-102 inches, subject to machine WEIGHT: 4800 lbs |
|||
| DX-BK-GLSK-4.00cyd-WL-60
Bucket-Grapple with Skeletal Floor-4.00 cyd capacity-Wheel Loader-Class 60 STANDARD FEATURES: Full side plates like conventional bucket, replaceable bolt-on cutting edges, HD cylinders, pins and bushings, dual clamps with relief and counterbalance valves, T1 bottom heel wear plates, 10 inch spacing T1 steel constructed tine floor allowing for material to fall through. WIDTH RANGE: 113-120 inches, subject to machine WEIGHT: 5250 lbs |
Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions 1-800-530-5407.
HYDRAULIC REQUIREMENTS
| Your machine will require 3rd function auxiliary lines.
CIRCUIT 1 – Clamp Operation Type – Two way Flow/Pressure – GPM (min/max) 15-25, PSI (max) 3,000 |
|||
| NOT SUPPLIED: Does not include jumper hoses to machine lines or quick disconnects. |
