Hay Bale Squeeze for Wheel Loaders and Telescopic Handlers.

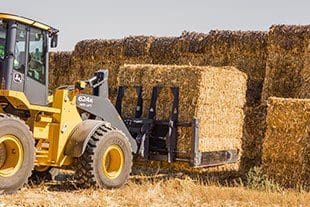

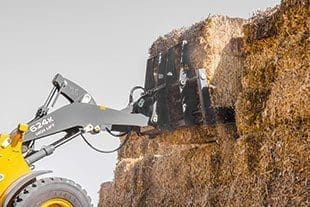

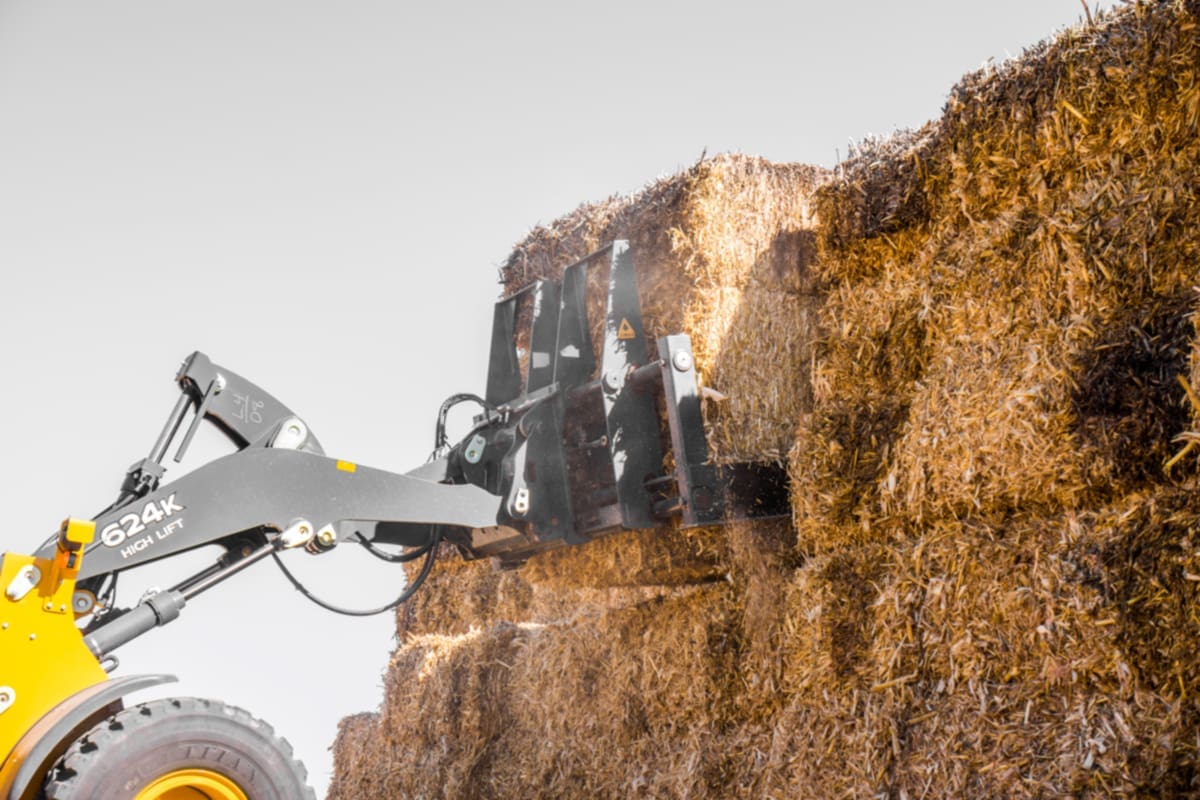

Make some hay with a Dymax Hay Bale Squeeze and quickly stack more bales with precision placement.  Whether you’re stockpiling hay inside a barn or loading  straw bales to flatbed trucks a Dymax Bale Squeeze features the most powerful hydraulics with best in class visibility and high-strength arms designed so you don’t have to worry about downtime.  Our engineered to perform and built to outlast designs easily resist arm deflection commonly found with competing products.  Available for fitting a variety of quick coupler systems mounted to wheel loaders and telehandler machinery.

1
2
3
1

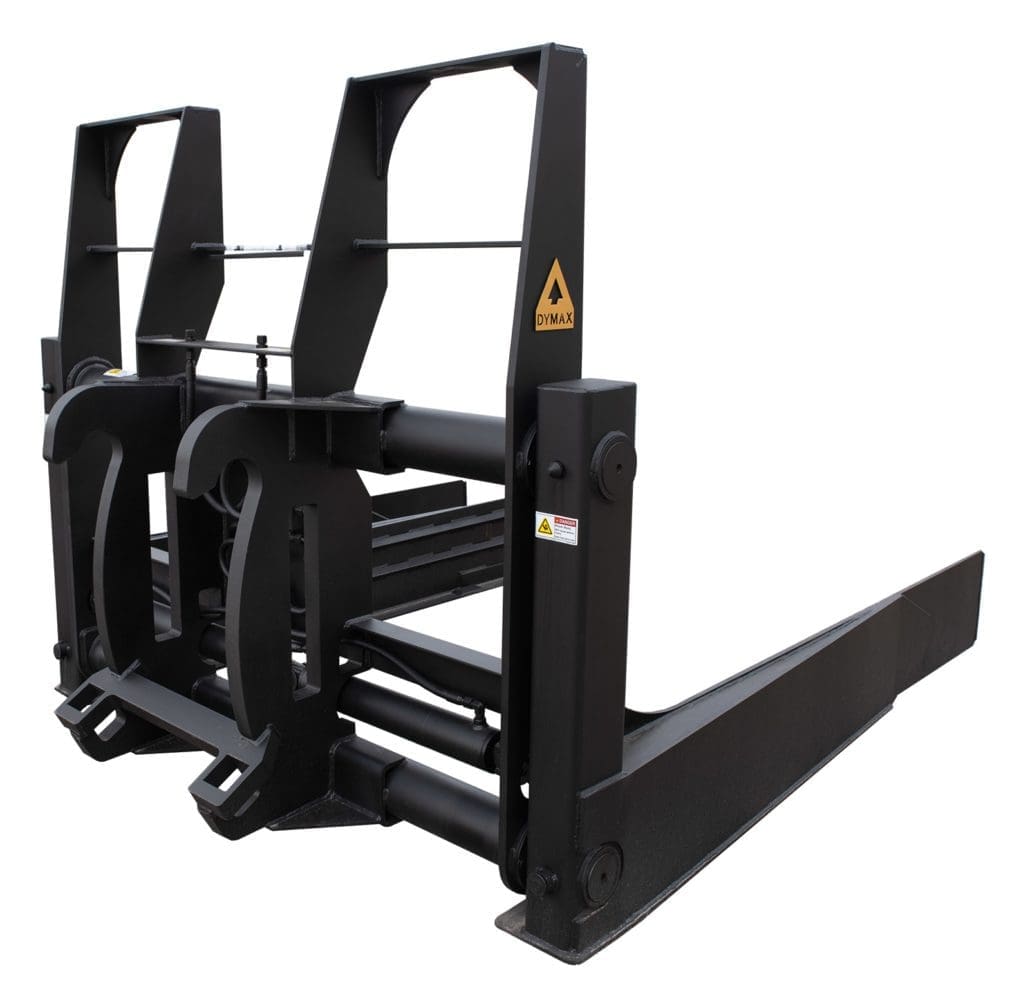

Reinforced high strength arms with taller cross section provide superior strength and durability.

2

Replaceable nylon slide bearings require no grease and deliver long lasting performance.

3

Steel angle bale supports provides grip and reduces bale damage.

Standard Model Bale Squeeze for Wheel Loaders and Telescopic Handlers

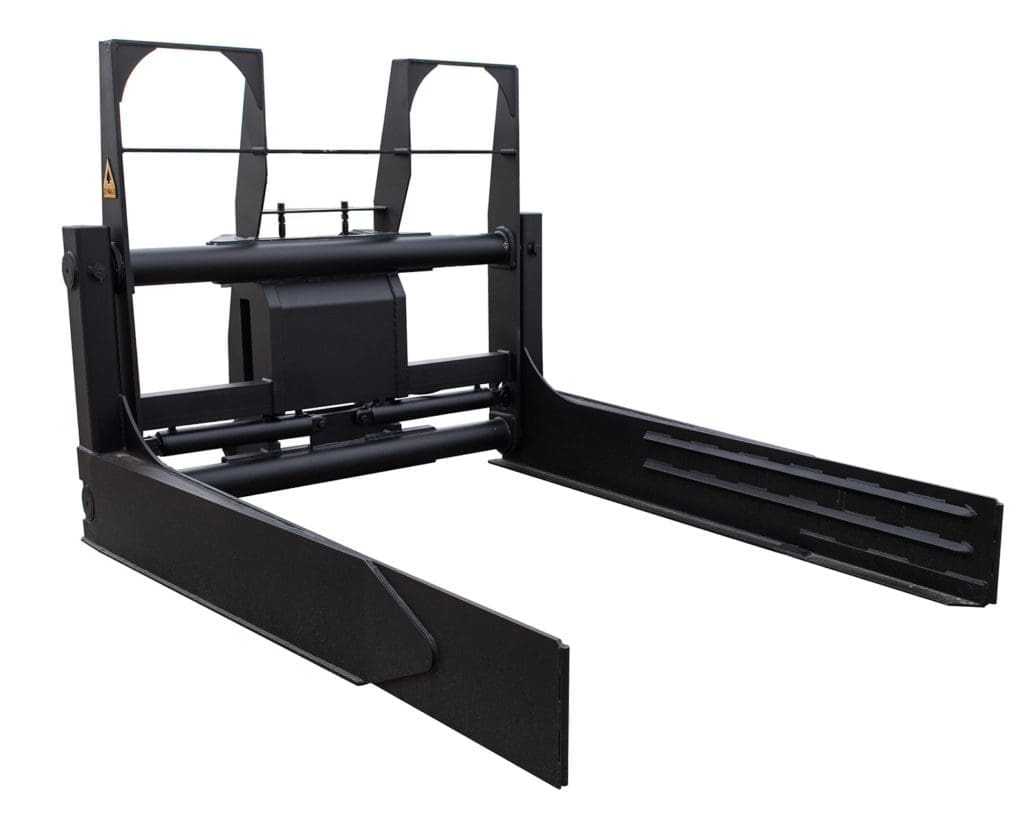

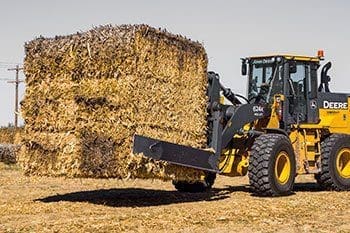

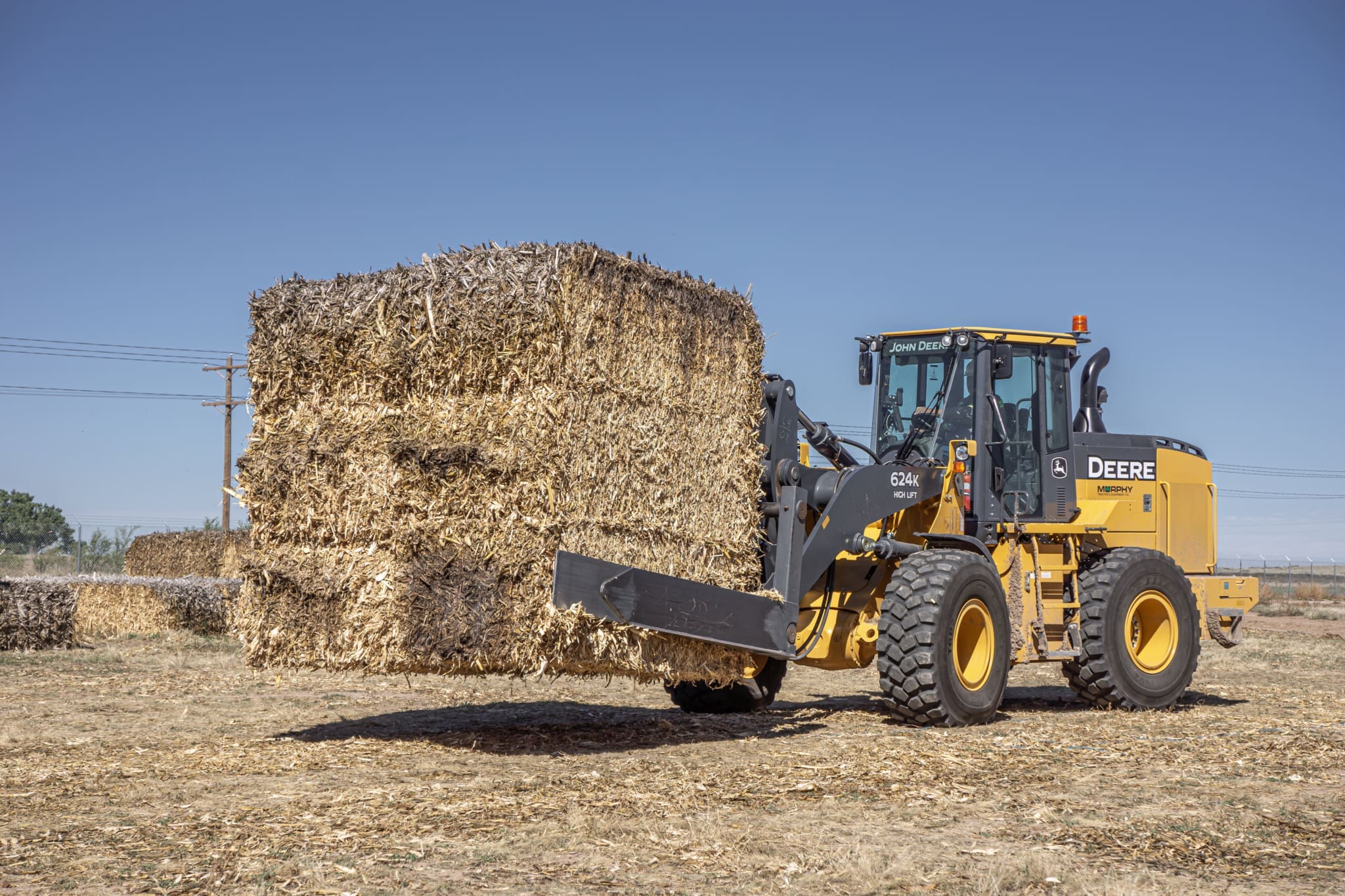

Dymax Standard Bale Squeeze delivers 20 tons of squeeze force allowing operators to quickly load alfalfa bales, straw bales, hay bales and corn stalk bales in no time.

1
2
Bale Squeeze - SideShifting
1

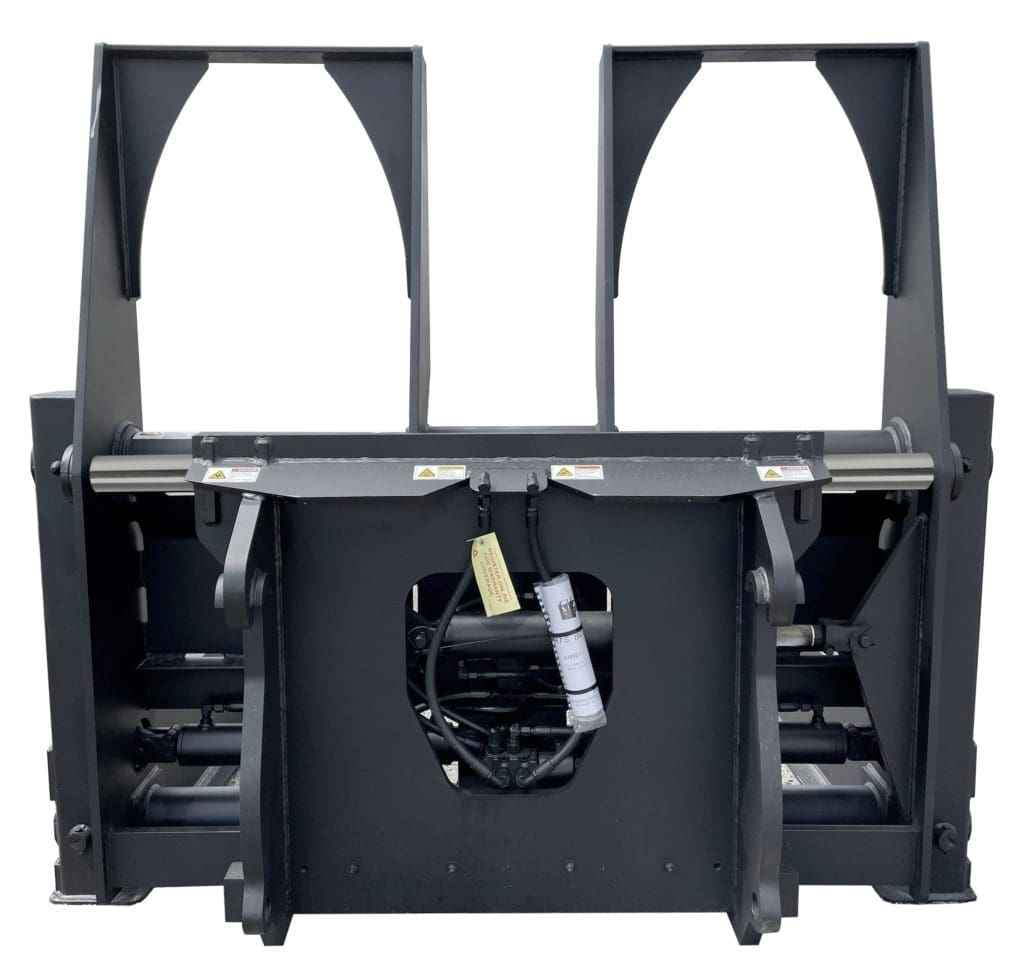

The Dymax Side Shift Bale Squeeze features a 24v electronic diverter valve making precision loading easy.

2

Intermediate frame assembly allows entire bale squeeze to move sideways 9 inches in either direction.

Hydraulic Side Shift Bale Squeeze

The Dymax Side Shift Bale Squeeze features 18 inches of total side shift allowing operators to place bales with precision movement without having to reposition the machine.

Hay Bale Squeeze

Hay Bale SqueezeStandard Bale SqueezeSide Shift Bale SqueezeLiterature PDF DownloadVideo
Model Code Description Machines Weight (lbs)
Standard Squeeze Models (NON SIDE SHIFTING)
DX-HS-STD-73inx113in-WL-50 Hay Squeeze – Standard Duty – 73 inches closed x 113 inches open – Wheel Loader – Class 50 Case 621, Cat 928, Cat 926M, Cat IT28, Cat 930, Doosan 200, Hyundai 740, Hyundai 940, JCB 426, John Deere 544, John Deere TC54, John Deere 524, Komatsu PT200, Komatsu WA200, Komatsu WA250, New Holland LW130, Volvo L60, Volvo L70
2800-3300
DX-HS-STD-73inx113in-WL-60 Hay Squeeze – Standard Duty – 73 inches closed x 113 inches open – Wheel Loader – Class 60 Case 721, Cat 938, Cat IT38, JCB 436, John Deere 624, Komatsu WA320, Volvo L90
DX-HS-STD-73inx113in-WL-70 Hay Squeeze – Standard Duty – 73 inches closed x 113 inches open – Wheel Loader – Class 70 Case 821, Cat 950, Cat 962, Cat IT62, Doosan 300, Hyundai 770, Hyundai 970, JCB 456, John Deere 644, John Deere 724, Komatsu WA380, Volvo L110, Volvo L120
DX-HS-STD-73inx113in-WL-80 Hay Squeeze – Standard Duty – 73 inches closed x 113 inches open – Wheel Loader – Class 80 Case 921, Cat 966, Cat 972, Doosan 400, John Deere 744, John Deere 824, Komatsu WA450, Volvo L150, Volvo L180
DX-HS-STD-73inx113in-TH-08K Hay Squeeze-Standard Duty-73 inches closed x 113 inches open-Telehandler-8000 lb class Telescopic Handler Machines with 8,000lb capacity.
SideShifting Squeeze Models (NON SIDE SHIFTING)
DX-HS-SF-73inx113in-WL-50 Hay Squeeze – Side Shift – 73 inches closed x 113 inches open – Wheel Loader – Class 50, Standard Features: Nylatron slide bearings – do not require grease, • 73in minimum squeeze spread x 113 inches max open spread, • Open backrest, • 18 inches of side shift capability, • 24v diverter valve kit Case 621, Cat 928, Cat 926M, Cat IT28, Cat 930, Doosan 200, Hyundai 740, Hyundai 940, JCB 426, John Deere 544, John Deere TC54, John Deere 524, Komatsu PT200, Komatsu WA200, Komatsu WA250, New Holland LW130, Volvo L60, Volvo L70
3800-4400
DX-HS-SF-73inx113in-WL-60 Hay Squeeze – Side Shift – 73 inches closed x 113 inches open – Wheel Loader – Class 60, Standard Features: Nylatron slide bearings – do not require grease, • 73in minimum squeeze spread x 113 inches max open spread, • Open backrest, • 18 inches of side shift capability, • 24v diverter valve kit Case 721, Cat 938, Cat IT38, JCB 436, John Deere 624, Komatsu WA320, Volvo L90
DX-HS-SF-73inx113in-WL-70 Hay Squeeze – Side Shift – 73 inches closed x 113 inches open – Wheel Loader – Class 70, Standard Features: Nylatron slide bearings – do not require grease, • 73in minimum squeeze spread x 113 inches max open spread, • Open backrest, • 18 inches of side shift capability, • 24v diverter valve kit Case 821, Cat 950, Cat 962, Cat IT62, Doosan 300, Hyundai 770, Hyundai 970, JCB 456, John Deere 644, John Deere 724, Komatsu WA380, Volvo L110, Volvo L120
DX-HS-SF-73inx113in-WL-80 Hay Squeeze – Side Shift – 73 inches closed x 113 inches open – Wheel Loader – Class 80, Standard Features: Nylatron slide bearings – do not require grease, • 73in minimum squeeze spread x 113 inches max open spread, • Open backrest, • 18 inches of side shift capability, • 24v diverter valve kit Case 921, Cat 966, Cat 972, Doosan 400, John Deere 744, John Deere 824, Komatsu WA450, Volvo L150, Volvo L180
Design and specifications are subject to change without notice.
Weights are listed in pounds. Please note that varying hookups do change final weights. The range listed suits the majority of machines within the class subject to the quick coupler style and hook arrangement.
Standard Model Side-Shift Model
Height (in.) 72-76″  72-76″
Width (in.) 73″ closed; 115″ open 73″ closed; 115″ open
Overall depth (in.) 94″ 112″
Cylinder Bore (in.) 3.5 3.5
Cylinder Stroke (in.) 20 20
Cylinder Rod Diameter (in.) 1.75  1.75
PSI Recommended 2,500-3,000 2,500-3,000
Total Side Shift – 18″ total

Specifications are subject to change without notice.
