HYDRAULIC QUICK COUPLERS FOR WHEEL LOADERS

A quick coupler should do two things well: speed up attachment changes and work with the attachments you already use.

Dymax hydraulic quick couplers are built to do both — backed by Balderson work tool expertise.

Choose from a wide variety of coupler styles to match different machine and attachment interfaces, including Balderson/Cat HPL, Cat IT, and Volvo ISO. This gives dealers a practical option when OEM couplers aren’t the right fit and helps fleets solve fitment across mixed equipment.

Book-open Book-open Download Brochure User User Get a Quote

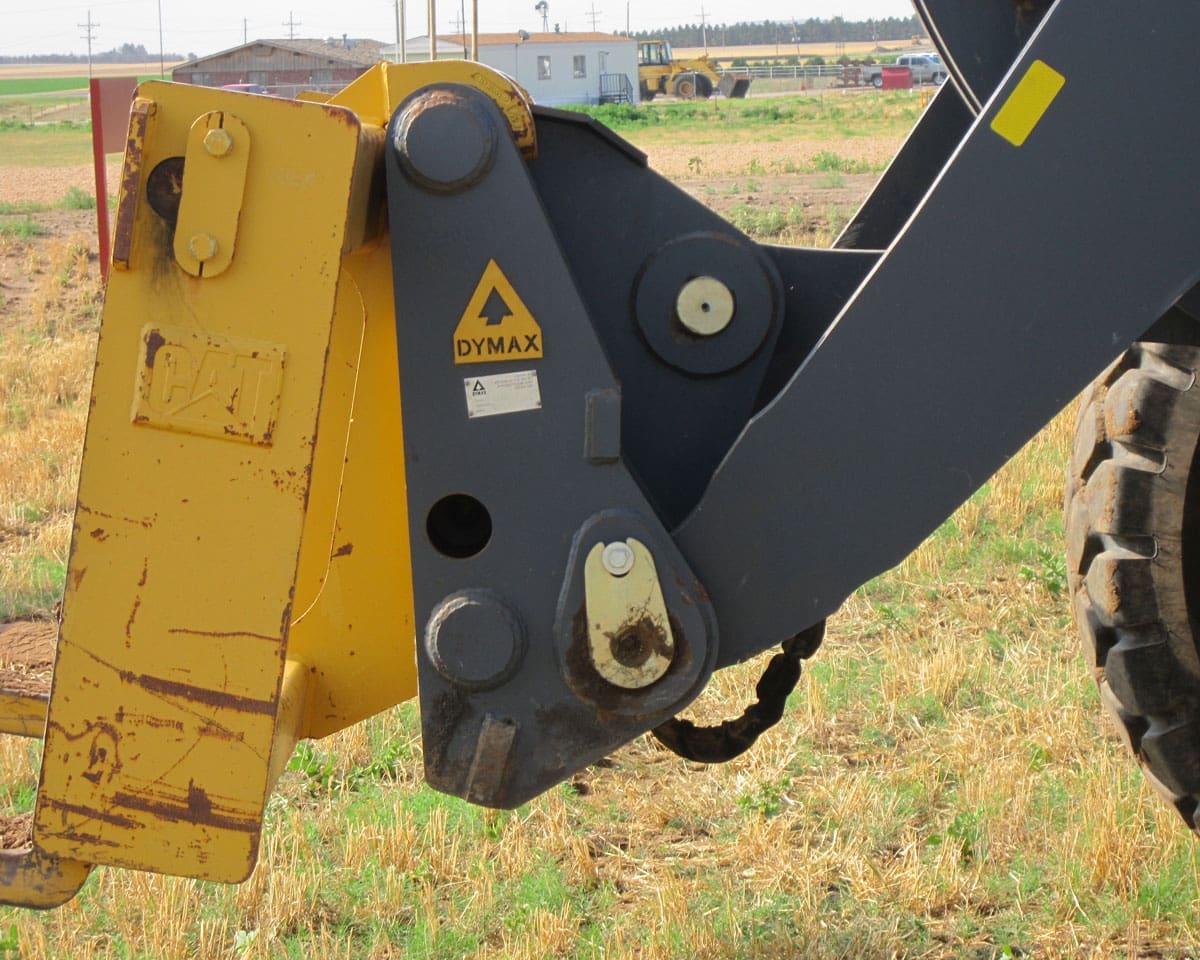

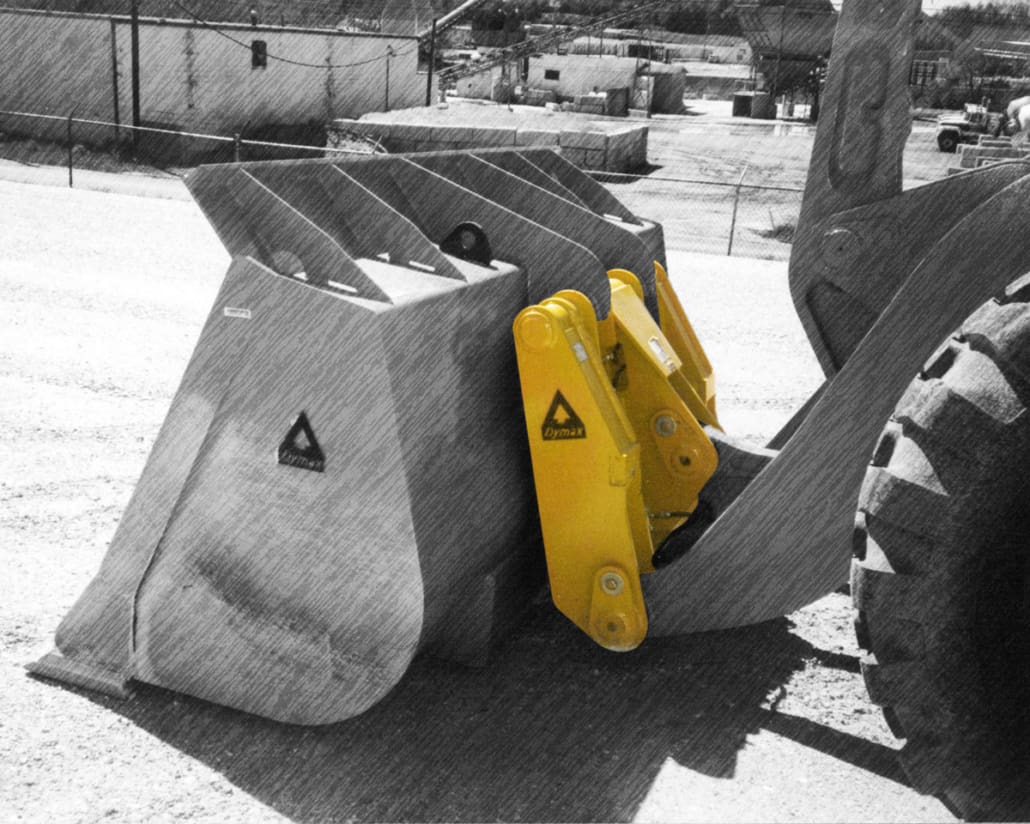

Dymax hydraulic quick coupler for wheel loader attachment interface

FEATURES

  • Change attachments in less than 30 seconds without leaving the cab for faster transitions between tasks.
  • Built heavier in key load-bearing areas, including heavy wall tubing and thicker hinge plates.
  • Choose from multiple coupler styles to match different wheel loader and attachment interface requirements.
  • Compatible interface styles include Dymax Horizontal Pin Lock / Traditional Balderson-Cat HPL, Cat IT, Volvo/ISO / John Deere Hi Vis, JRB, and Wedge Lock configurations.

CONFIGURATION OPTIONS

  • Diverter valve kit for machines without dedicated coupler hydraulics, using an existing hydraulic circuit to lock and unlock the coupler from the cab.
  • Hook assembly options, including blank and flat hooks, to help adapt certain existing pin-on attachments to quick coupler systems.
  • Severe-service coupler configurations, including heavier top tubes, oversized locking pins, and upsized lock cylinders.
  • Manual pin configuration.

TRUSTED FOR LARGE, COMPLEX COUPLER BUILDS

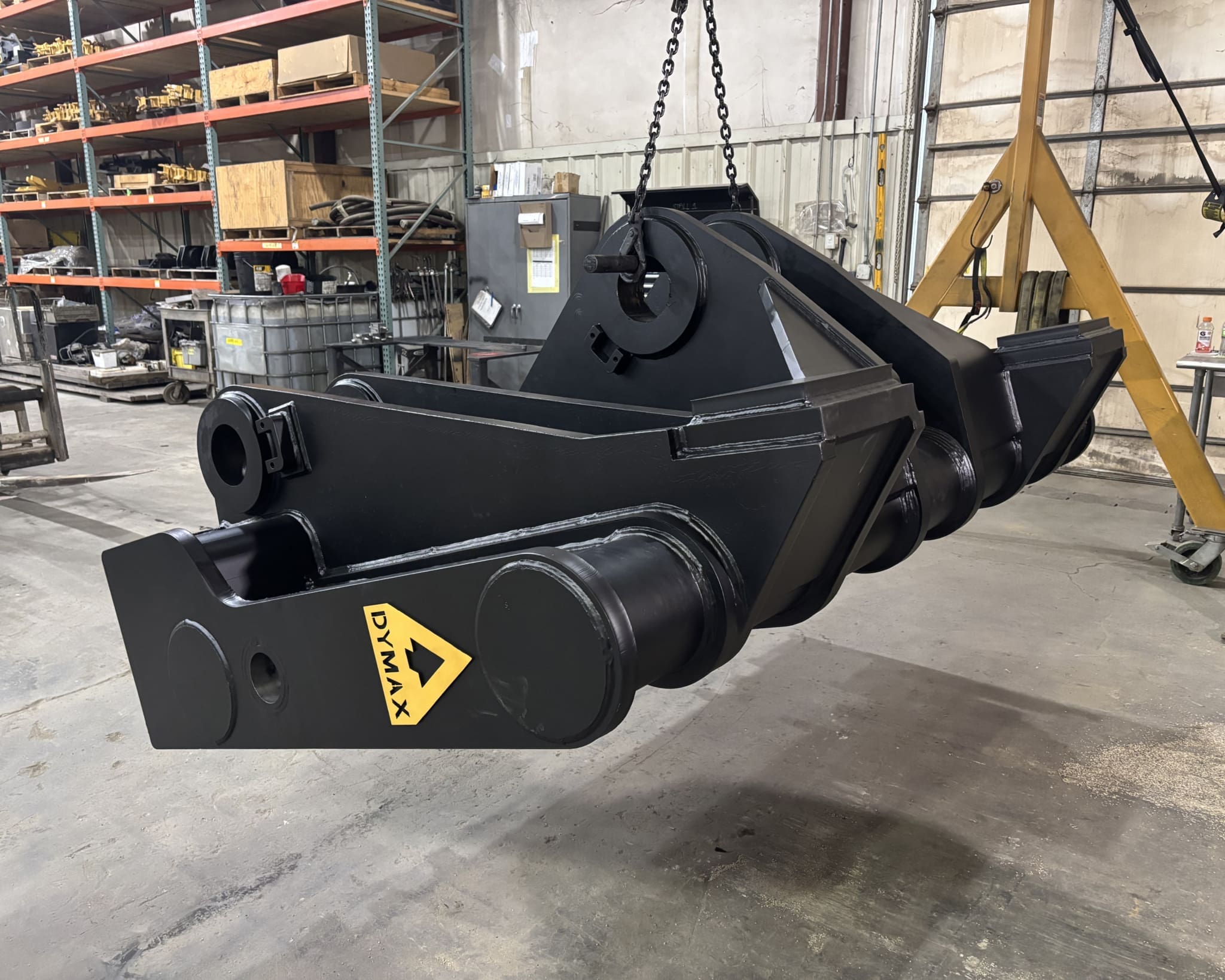

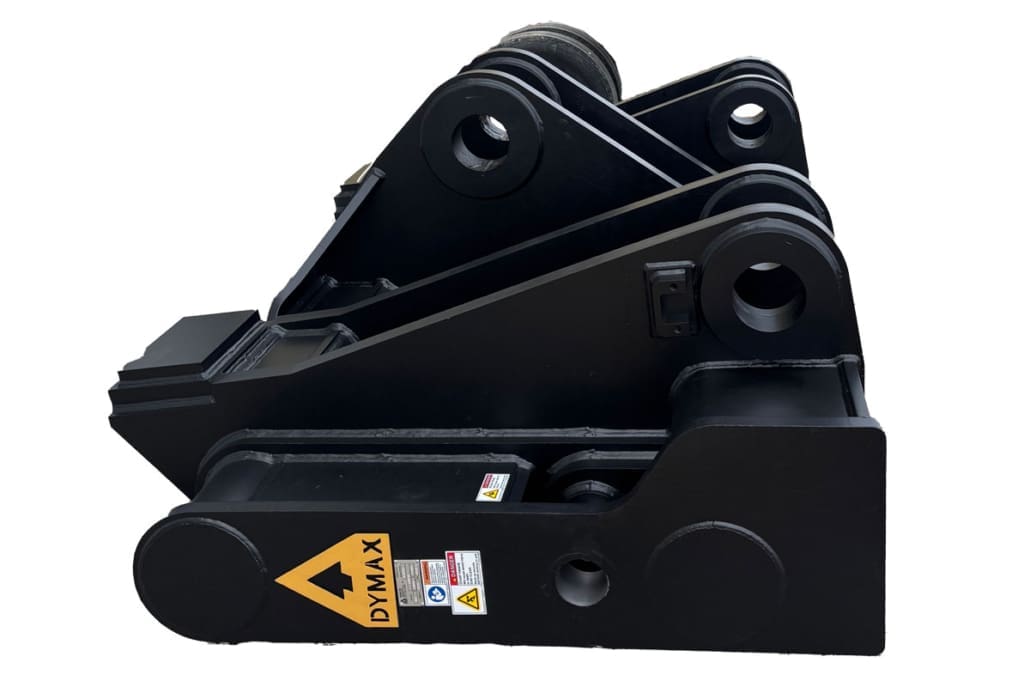

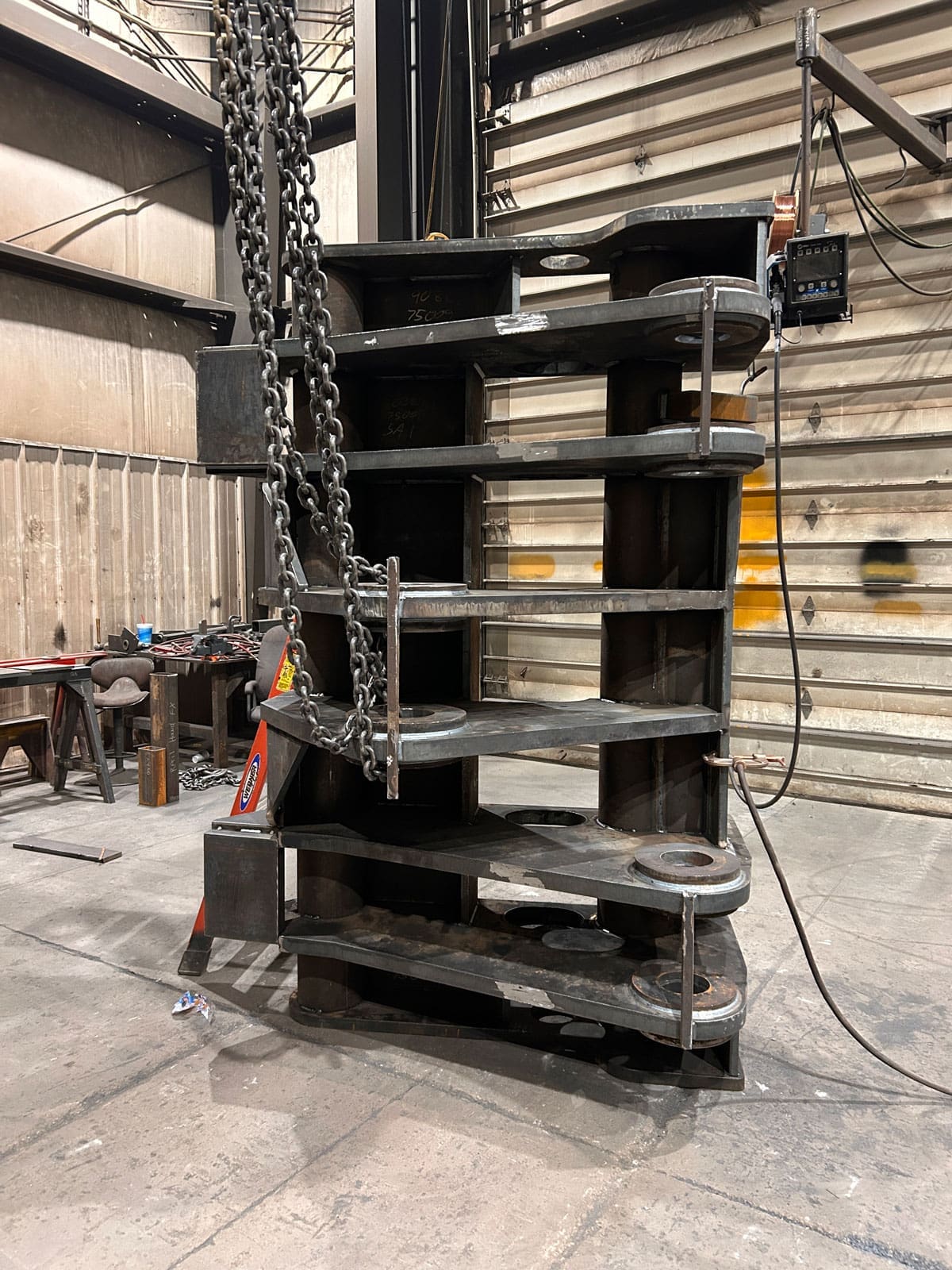

When Kiewit needed a coupler for a Cat 992 NextGen wheel loader, they came to Dymax. The finished unit weighs 10,930 lbs and uses 9-inch top tubes.

Built in-house from start to finish, this project shows how Dymax helps customers solve complex coupler and fitment needs when off-the-shelf options are not enough.

SPECIFICATIONS

Click the tab to see more details for each quick coupler style.

Model
Description
Weight

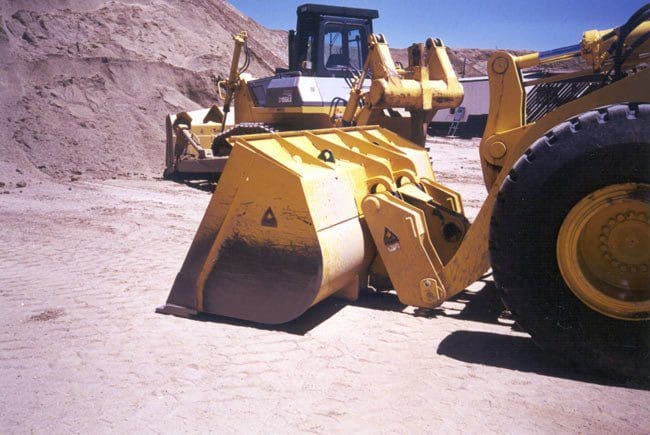

DX-QC-HY-HLP4-WL-40
Quick Coupler-Hydraulic-Horizontal Lock Pin 4.0 inch top tube-Wheel Loader-Class 40
STANDARD FEATURES:
– 4 inch top tube design
– Available in 4×22.5×1.5 configuration to work with old style Balderson or RYLIND attachments, or can be made to work with newer Balderson/CWTS 4×15.75×2.0 configuration. (Verification required for compatibility.)
WEIGHT: 1100 lbs
DX-QC-HY-HLP4-WL-50
Quick Coupler-Hydraulic-Horizontal Lock Pin 4.0 inch top tube-Wheel Loader-Class 50
STANDARD FEATURES:
– 4 inch top tube design
– Available in 4×22.5×1.5 configuration to work with old style Balderson or RYLIND attachments, or can be made to work with newer Balderson/CWTS 4×15.75×2.0 configuration. (Verification required for compatibility.)
WEIGHT: 1100 lbs
DX-QC-HY-HLP4-TL-50
Quick Coupler-Hydraulic-Horizontal Lock Pin 4.0 inch top tube x 15.75 inch spacing-Track Loader-Class 50
STANDARD FEATURES:
– 4 inch top tube design
– 2 inch locking pins
– Heavy duty frame construction
WEIGHT: 1100 lbs
DX-QC-HY-HLP4-WL-60
Quick Coupler-Hydraulic-Horizontal Lock Pin 4.0 inch top tube-Wheel Loader-Class 60
STANDARD FEATURES:
– 4 inch top tube design
– Available in 4×22.5×1.5 configuration to work with old style Balderson or RYLIND attachments, or can be made to work with newer Balderson/CWTS 4×15.75×2.0 configuration. (Verification required for compatibility.)
WEIGHT: 1100 lbs
DX-QC-HY-HLP4-TL-60
Quick Coupler-Hydraulic-Horizontal Lock Pin 4.0 inch top tube x 15.75 inch spacing-Track Loader-Class 60
STANDARD FEATURES:
– 4 inch top tube design
– 2 inch locking pins
– Heavy-duty frame construction
WEIGHT: 1100 lbs
DX-QC-HY-HLP5-WL-70
Quick Coupler-Hydraulic-Horizontal Lock Pin 5.0 inch top tube-Wheel Loader-Class 70
STANDARD FEATURES:
– 5 inch top tube design
– Available in 5×18.5×2.0 configuration to work with old style Balderson/CWTS. (Verification required for compatibility.)
– Heavy-duty frame construction
WEIGHT: 1300 lbs
DX-QC-HY-HLP5-WL-80
Quick Coupler-Hydraulic-Horizontal Lock Pin 5.0 inch top tube-Wheel Loader-Class 80
STANDARD FEATURES:
– 5 inch top tube design
– Available in 5×18.5×2.0 configuration to work with old style Balderson/CWTS. (Verification required for compatibility.)
– Heavy-duty frame construction
WEIGHT: 1300 lbs
DX-QC-HY-HLP6-WL-90
Quick Coupler-Hydraulic-Horizontal Lock Pin 6.0 inch top tube-Wheel Loader-Class 90
STANDARD FEATURES:
– 6.00 inch top tube design
– Standard lock pin 2.25 inch diameter
– Standard frame construction
– 53.56 in inside hook spacing
WEIGHT: 2800 lbs
DX-QC-HY-HLP6XD-WL-90
Quick Coupler-Hydraulic-Horizontal Lock Pin 6.0 inch top tube Extreme Duty-Wheel Loader-Class 90
STANDARD FEATURES:
– 6.00 inch diameter top tube design
– Heavy-duty 3.0-inch diameter pins to match HD hook style
– Heavy-duty frame construction
– 53.56 inch hook spacing (inside)
WEIGHT: 3400 lbs
DX-QC-HY-HLP6-WL-100
Quick Coupler-Hydraulic-Horizontal Lock Pin 6.0 inch top tube-Wheel Loader-Class 100
STANDARD FEATURES:
– 6 inch top tube design with bottom dual beam structure
– Balderson / Cat Horizontal Pin Lock compatible
WEIGHT: 4180 lbs
DX-QC-HY-HLP6XD-WL-100
Quick Coupler-Hydraulic-Horizontal Lock Pin 6.0 inch top tube Extreme Duty-Wheel Loader-Class 100
STANDARD FEATURES:
– 6.00 inch top tube horizontal lock pin – Dual beam structure
– Extreme duty design upgraded with 3.00 inch chrome lock pins
– Hook spacing inside: 62.50 inches
WEIGHT: 5250 lbs
DX-QC-HY-HLP9-WL-110
Quick Coupler-Hydraulic-Horizontal Lock Pin 9.0 inch top tube-Wheel Loader-Class 110
STANDARD FEATURES:
– 9 inch top tube design with bottom dual beam structure
– Balderson / Cat Horizontal Pin Lock compatible
WEIGHT: 10,200 lbs
DX-QC-HY-HLP9-WL-120
Quick Coupler-Hydraulic-Horizontal Lock Pin 9.0 inch top tube-Wheel Loader-Class 120
STANDARD FEATURES:
– 9 inch top tube design with bottom dual beam structure
– Balderson / Cat Horizontal Pin Lock compatible
WEIGHT: 10,800 lbs

Design and specifications are subject to change without notice.

Model
Description
Weight

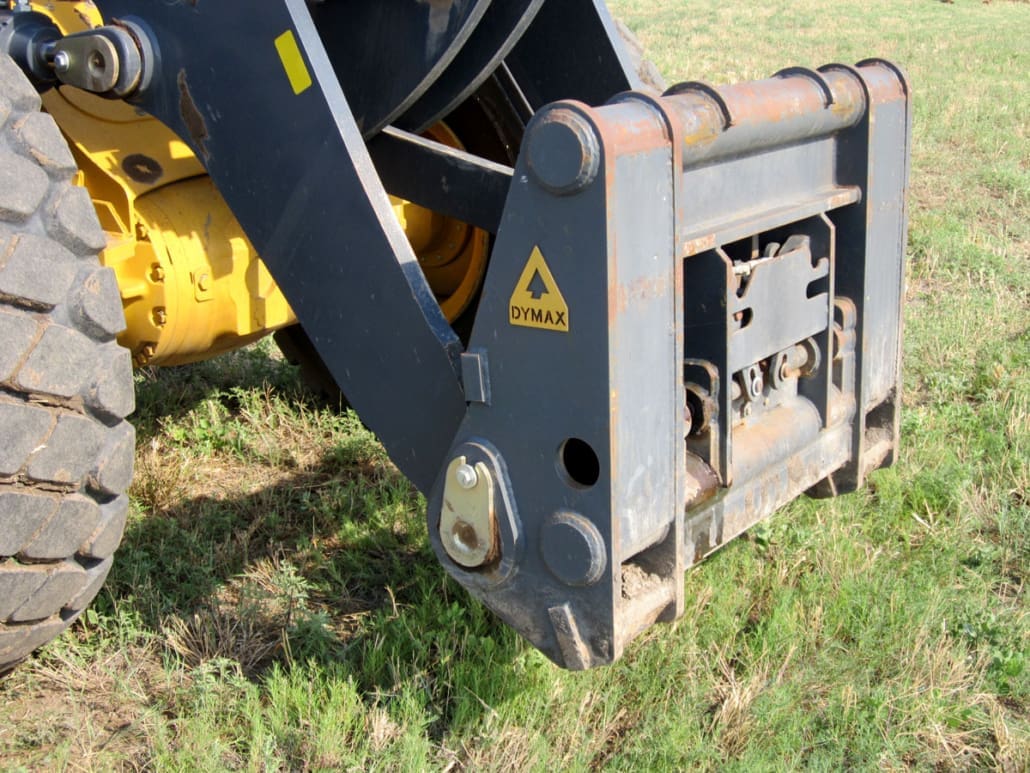

DX-QC-HY-CATIT1428-BL-10
Quick Coupler-Hydraulic-Caterpillar IT1428 Style-Backhoe Loader-Class 10
STANDARD FEATURES:
– Compatible with IT14-28 Cat Work Tool Attachments
– Heavy-duty frame construction
– Single cylinder
WEIGHT: 425 lbs
DX-QC-HY-CATIT1428-WL-50
Quick Coupler-Hydraulic-Caterpillar IT1428 Style-Wheel Loader-Class 50
STANDARD FEATURES:
– Compatible with IT14-28 Cat Work Tool Attachments
– Heavy-duty frame construction
– Single cylinder
WEIGHT: 1100 lbs
DX-QC-HY-CATIT1428-WL-60
Quick Coupler-Hydraulic-Caterpillar IT1428 Style-Wheel Loader-Class 60
STANDARD FEATURES:
– Heavy-duty construction
– Compatible with Caterpillar IT14-28 attachments
– Hydraulic pin
(Coupler only – ready to pin to loader arms)
WEIGHT: 900 lbs
DX-QC-HY-CATIT62-WLTC-70
Quick Coupler-Hydraulic-Caterpillar IT62 Compatible-Wheel Loader-Class 70
THIS SPECIFIC COUPLER IS SUITED FOR CAT IT62G TOOLCARRIER MACHINE.
STANDARD FEATURES:
– Single cylinder
– Frame style weldment (168949BINC)
– Hook compatible with IT38/62 machines
– Heavy-duty frame construction
WEIGHT: 800 lbs

Design and specifications are subject to change without notice.

Model
Description
Weight

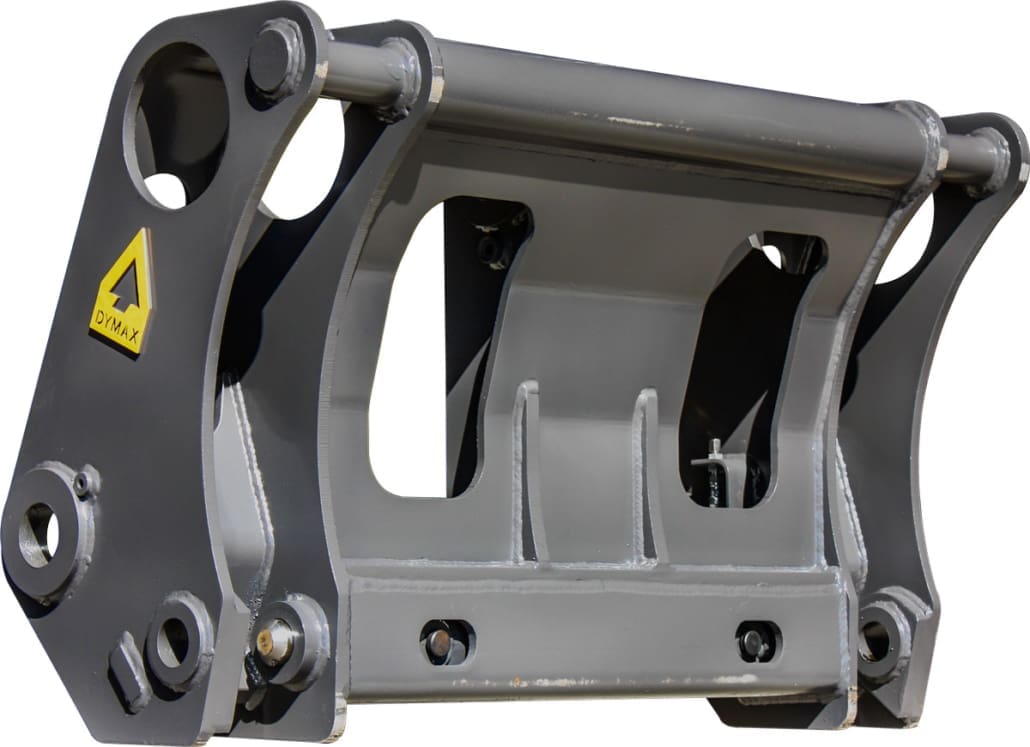

DX-QC-HY-QV150-WL-70
Quick Coupler-Hydraulic-Volvo L150 Style Compatible-Wheel Loader-Class 70
STANDARD FEATURES:
– Compatible with Volvo L150,L180 Style Work Tool Attachments
WEIGHT: 1350 lbs
DX-QC-HY-QV150-WL-80
Quick Coupler-Hydraulic-Volvo L150 Style Compatible-Wheel Loader-Class 80
STANDARD FEATURES:
– Compatible with Volvo L150,L180 Style Work Tool Attachment
DX-QC-HY-QV50120-WL-60
Quick Coupler-Hydraulic-Volvo L50-120 Style-Wheel Loader-Class 60
STANDARD FEATURES:
– Compatible with Volvo L50,L60,L70,L90,L110,L120 Style Work Tool Attachments
WEIGHT: 1100 lbs
DX-QC-HY-QV50120-WL-70
Quick Coupler-Hydraulic-Volvo L50-120 Style-Wheel Loader-Wheel Loader
STANDARD FEATURES:
– Compatible with Volvo L50,L60,L70,L90,L110,L120 Style Work Tool Attachments
COUPLER ONLY
WEIGHT: 1600 lbs

Design and specifications are subject to change without notice.

Model
Description
Weight

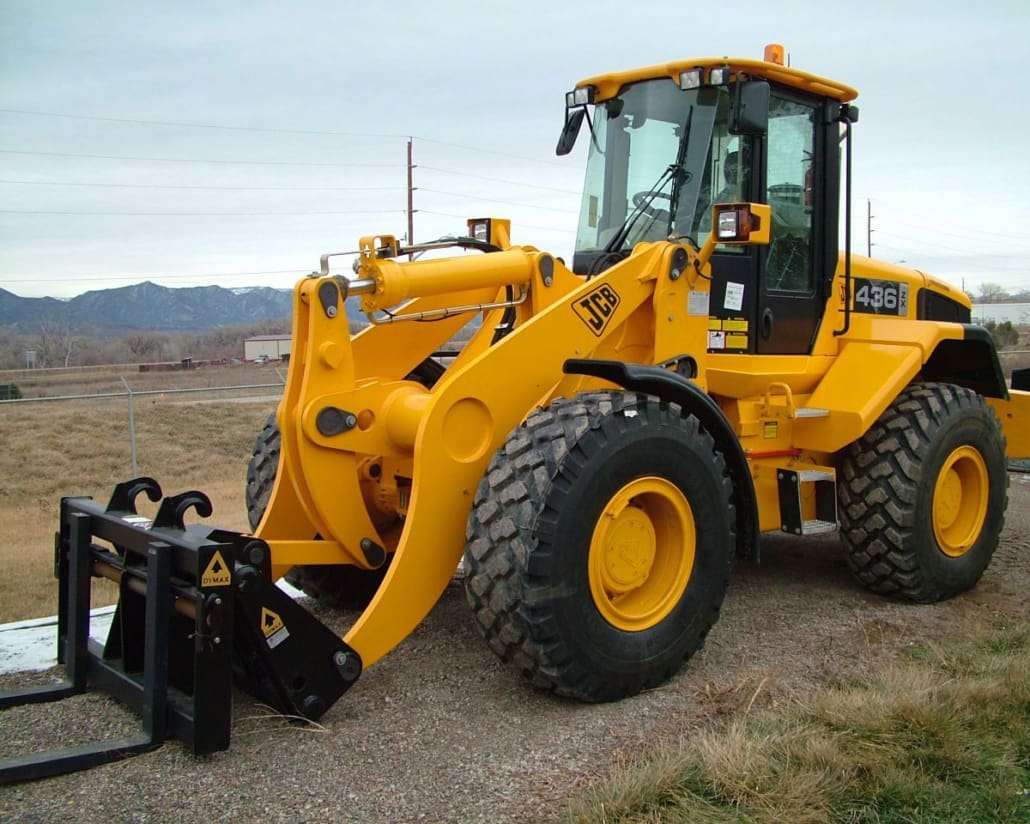

DX-QC-HY-JRB416-WL-50/60
Quick Coupler-Hydraulic-JRB compatible 416 series hook-Wheel Loader-Class 50/60
STANDARD FEATURES:
– Heavy duty frame
– Single cylinder with horizontal lock pins
– Compatible with JRB416 hook
– Coupler only (no kit supplied)
DX-QC-HY-JRB418-WL-70
Quick Coupler-Hydraulic-JRB compatible 418 series hook-Wheel Loader-Class 70
STANDARD FEATURES:
– Heavy duty frame
– Single cylinder with horizontal lock pins
– Compatible with JRB418 hook
– Coupler only (no kit supplied)
WEIGHT: 1780 lbs
DX-QC-HY-JRB420-WL-80
Quick Coupler-Hydraulic-JRB compatible 420 series 4.00″ hook-Wheel Loader-Class 80
STANDARD FEATURES:
– Heavy duty frame
– Single cylinder with horizontal lock pins
– Compatible with JRB420 hook (4in top)
– Coupler only (no kit supplied)
WEIGHT: 1780 lbs
DX-QC-HY-JRB_DSERIES-WL-60
Quick Coupler-Hydraulic-JRB old D series compatible hook-Wheel Loader-Class 60
STANDARD FEATURES:
– Heavy duty frame
– Single cylinder with horizontal lock pins
– Compatible with JRB D SERIES hook
– Coupler only (no kit supplied)
WEIGHT: 1150 lbs

Design and specifications are subject to change without notice.

Model
Description
Weight
DX-QC-HY-WG4X15-WL-60
Quick Coupler-Hydraulic-Wedge Lock 4in x 15.75in spacing-Wheel Loader-Class 60
STANDARD FEATURES:
– 4 inch top hook
– Inside spacing at 15.75 inches
– Compatible with BALDERSON/CAT WORK TOOLS
– Coupler only
WEIGHT: 1200 lbs
DX-QC-HY-WG4X22-WL-60
Quick Coupler-Hydraulic-Wedge Lock 4in x 22.50in spacing-Wheel Loader-Class 60
STANDARD FEATURES:
– 4 inch top hook
– Inside spacing at 22.50 inches
– Compatible with RYLIND attachments
– Compatible with Dymax CDOT attachments set up with Rylind WedgeLock Coupler Hooks, per spacing above.
– Coupler only
WEIGHT: 1250 lbs
DX-QC-HY-WG5x18-TL-60
Quick Coupler-Hydraulic-Wedge Lock 5.0 inch top tube x 18.50 inch spacing-Track Loader-Class 60
STANDARD FEATURES:
– Wedge pocket design
– Twin cylinder lock
– 5.0 inch top tube/hook configuration like Balderson design for Cat 950-972
WEIGHT: 1350 lbs
DX-QC-HY-WG5X18-TL-70
Quick Coupler-Hydraulic-Wedge Lock 5.0 inch top tube x 18.50 inch spacing-Track Loader-Class 70
STANDARD FEATURES:
– Wedge pocket design
– Twin cylinder lock
– 5″ top tube/hook configuration similar to old Balderson design
WEIGHT: 1400 lbs
DX-QC-HY-WG5X18-WL-70
Quick Coupler-Hydraulic-Wedge Lock 5.0 inch top tube x 18.50 inch spacing-Wheel Loader-Class 70
STANDARD FEATURES:
– Wedge pocket design
– Twin cylinder lock
– 5″ top tube/hook configuration similar to old Balderson design
WEIGHT: 1400 lbs

Design and specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS

Your machine will require an auxiliary 3rd valve in order to unlock and lock the quick coupler pins.

CIRCUIT 1 – Coupler Lock/Unlock
– Type: Two-way (bi-directional)
– GPM (min/max) 5-10, PSI (min/max) 2,000/ 3,000

If using Dymax electro kit, your connection should be into a circuit less than 24GPM flow rates capable of 2,000-3,000 psi.

NOT SUPPLIED: Not provided with hoses from coupler to the machine lines.
