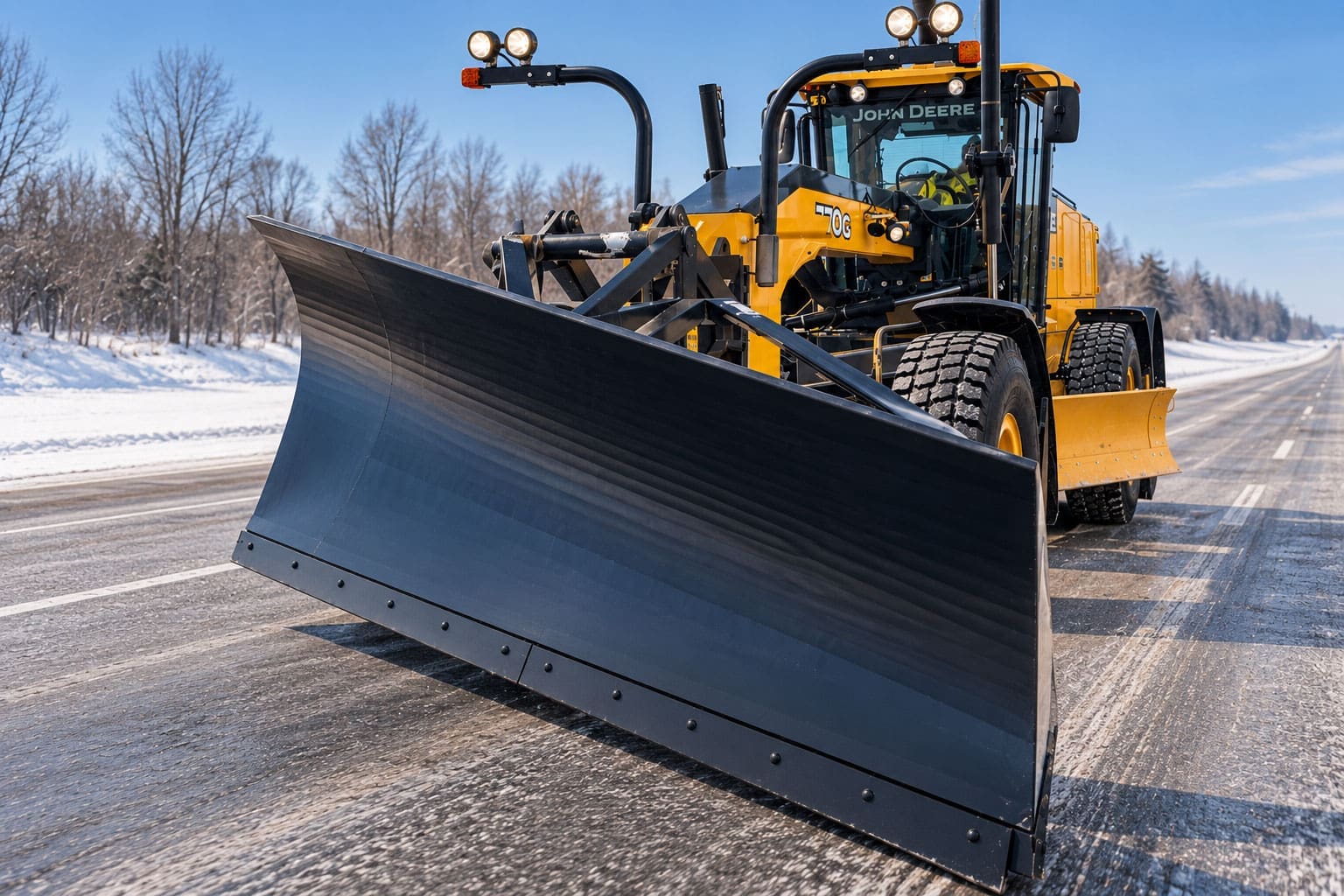

Dymax One-Way Snow Plows are heavy-duty motor grader snow plow blades designed for highway, county, municipal, and rural road snow removal.
Built on generations of Balderson family snow plow experience, these plows are engineered for the demanding winter conditions found throughout Nebraska, Kansas, Colorado, Wyoming, North Dakota, South Dakota, and other heavy-snow regions.

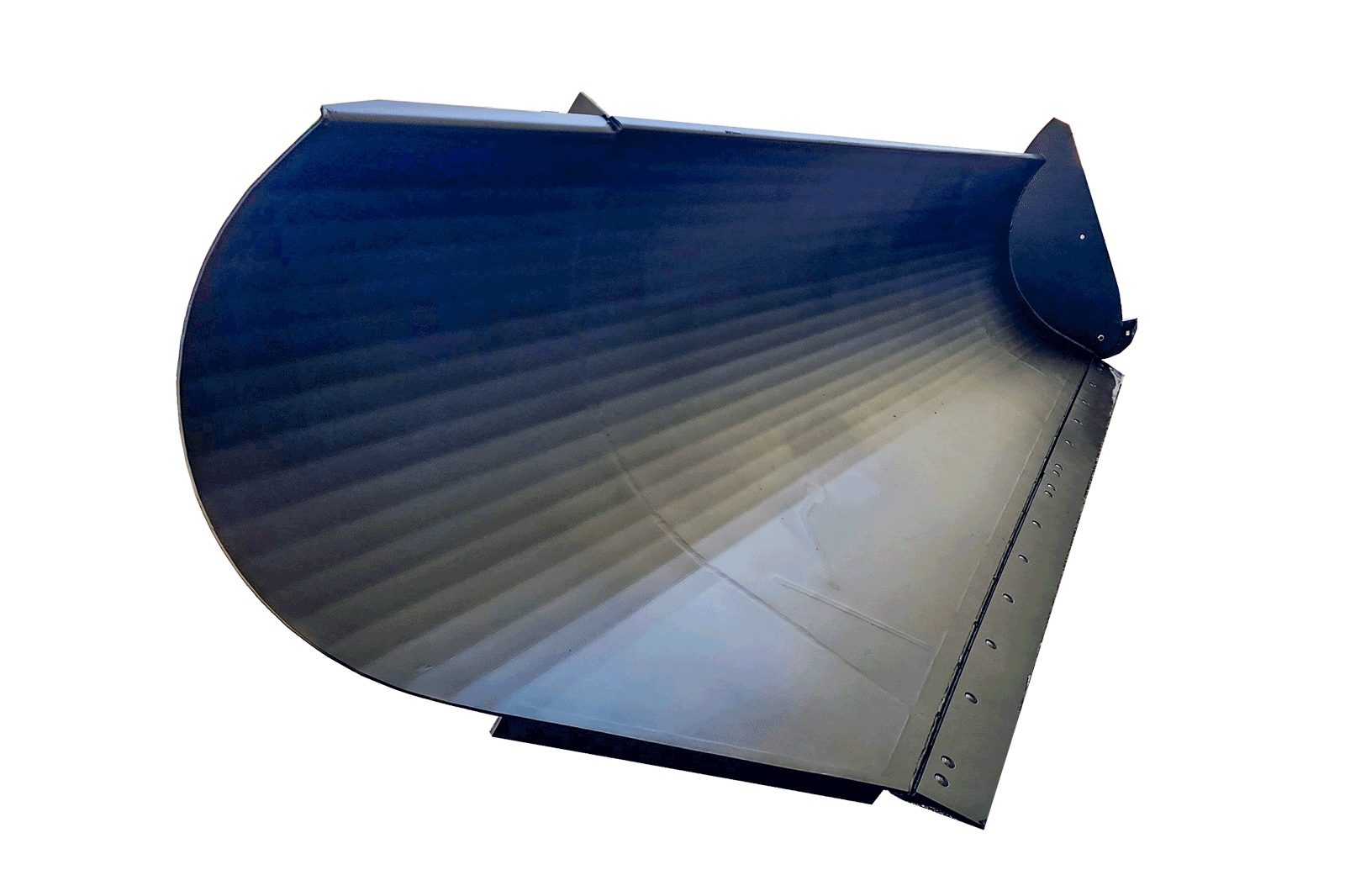

Conical moldboard shape
Adjustable skid shoes

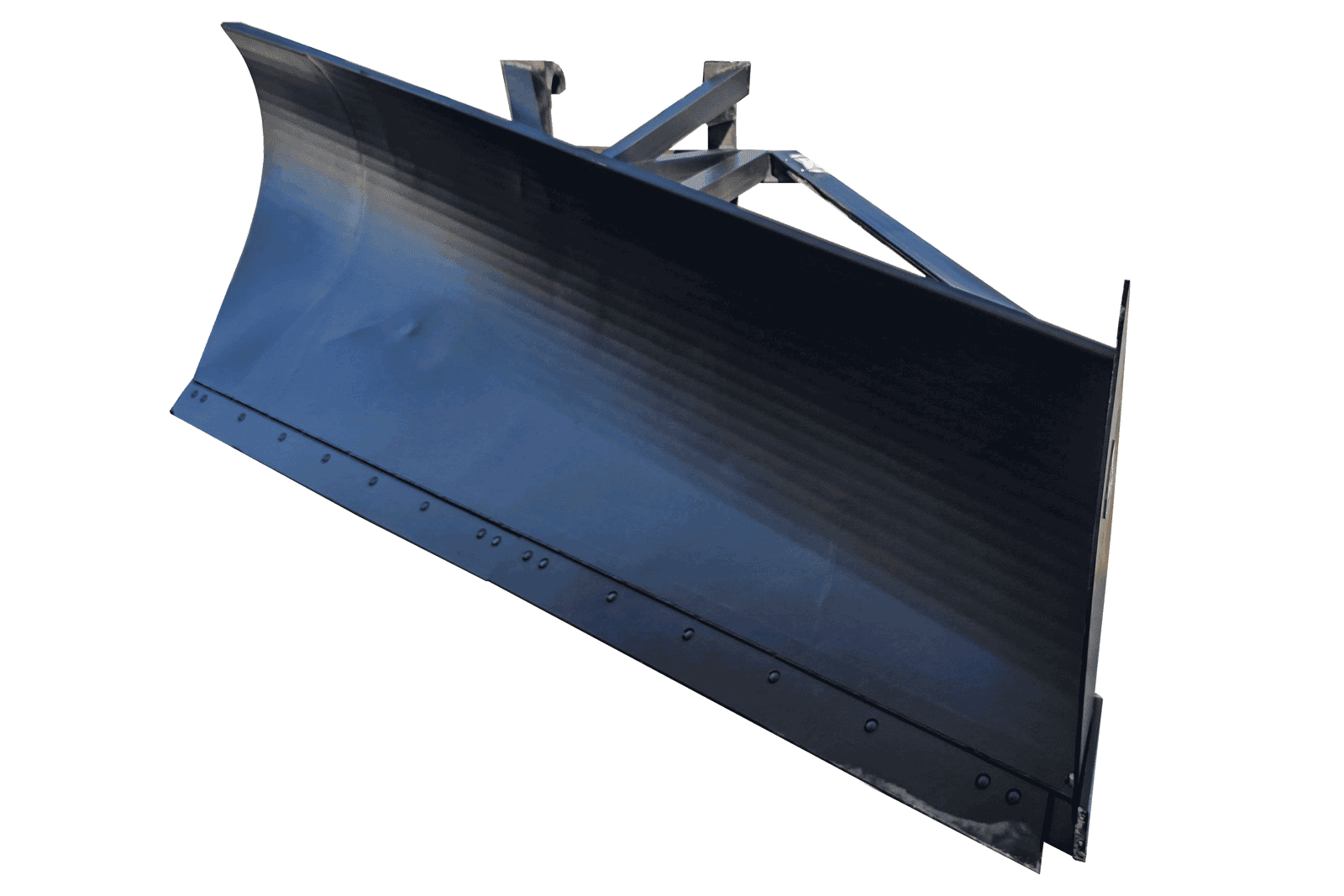

Bolt-on cutting edge
| Model Group Number Standard Features Weight (lbs) |
| Model: DX-BL-SW1W-11ft6x61-MG-10
Group Number: 8672D1 Cutting Edge Width: 136.4 inches Max Overall Width: 152 inches Moldboard Height: 41.5 inches at the nose / 61 inches at wing Cutting Edges: Bolt-on Shoes: Heavy-duty adjustable shoes Machine Compatibility: Motor graders Lift Group Coupler Configuration: Horizontal pin lock 4×22.5 Weight: 2,030 lb |
Design and specifications are subject to change without notice.
For custom solutions, contact Dymax Sales at 1-800-530-5407.
|
A V-plow splits snow to both sides, which makes it the stronger choice for breaking open the deepest, hardest-packed drifts. A one-way plow uses a single angled moldboard to roll snow up and cast it to one side. That makes it the better fit on two-lane rural and county roads, where snow needs to go off the shoulder instead of into the other lane. Many crews run both. If your routes need a V, see the Folding V-Type Snow Plow web page. |
|
“High side” is operator shorthand for a one-way plow. The moldboard is taller at the discharge end than at the leading end, so snow climbs the curve and rolls off the tall side. On the Dymax One-Way Plow, the moldboard rises from 41.5 in at the nose to 61 in at the discharge end. |
|
It’s sized for mid-size graders, including the Cat 120, 140, 143 and 150; John Deere 670, 672, 770, and 772; Komatsu GD655 and GD675; Case 856 and 865; and Volvo G930 and G940. It mounts to the grader’s front lift group. |
|
Yes. The heavy-duty adjustable skid shoes set the cutting edge height, so you can keep the edge above the gravel until a packed snow base forms. Once the base is established, lower the edge to cut closer. |
|
The cutting edge and nose stinger bolt on, and the skid shoes are replaceable. When they wear, you swap parts instead of rebuilding the moldboard. Replacement edges and shoes are available through your Dymax dealer or direct at 1-800-530-5407. |
| PRODUCT | BEST FOR | PLOW ACTION | WIDTH x HEIGHT RANGE | MACHINE |
|---|---|---|---|---|
| One-Way Snow Plow | Opening drifted rural and county roads by casting snow off the shoulder | Fixed conical moldboard rolls snow up and throws it to one side | 11 ft 4 in × 61 in (41.5 in at nose) | Motor graders |
| Hydraulic Angle Snow Blades | Windrowing snow on roads, parking lots, and industrial yards | Hydraulically angles left or right; fixed lower edge | 10 ft x 36 in → up to 22 ft × 55 in | Wheel loaders, backhoe loaders, motor graders |
| Trip Edge Snow Plow | Clearing city streets and roadways with manholes, curbs, and hidden obstacles | Lower edge trips back over the obstacle, then springs down | 12 ft × 42 in → up to 20 ft × 48 in | Wheel loaders |
| Folding V-Type Snow Plow | Deep snow, drifts, and crews that want one plow for every condition | Positions: V, angle, straight, scoop | 12 ft × 48 in → up to 16 ft × 48 in | Wheel loaders |
