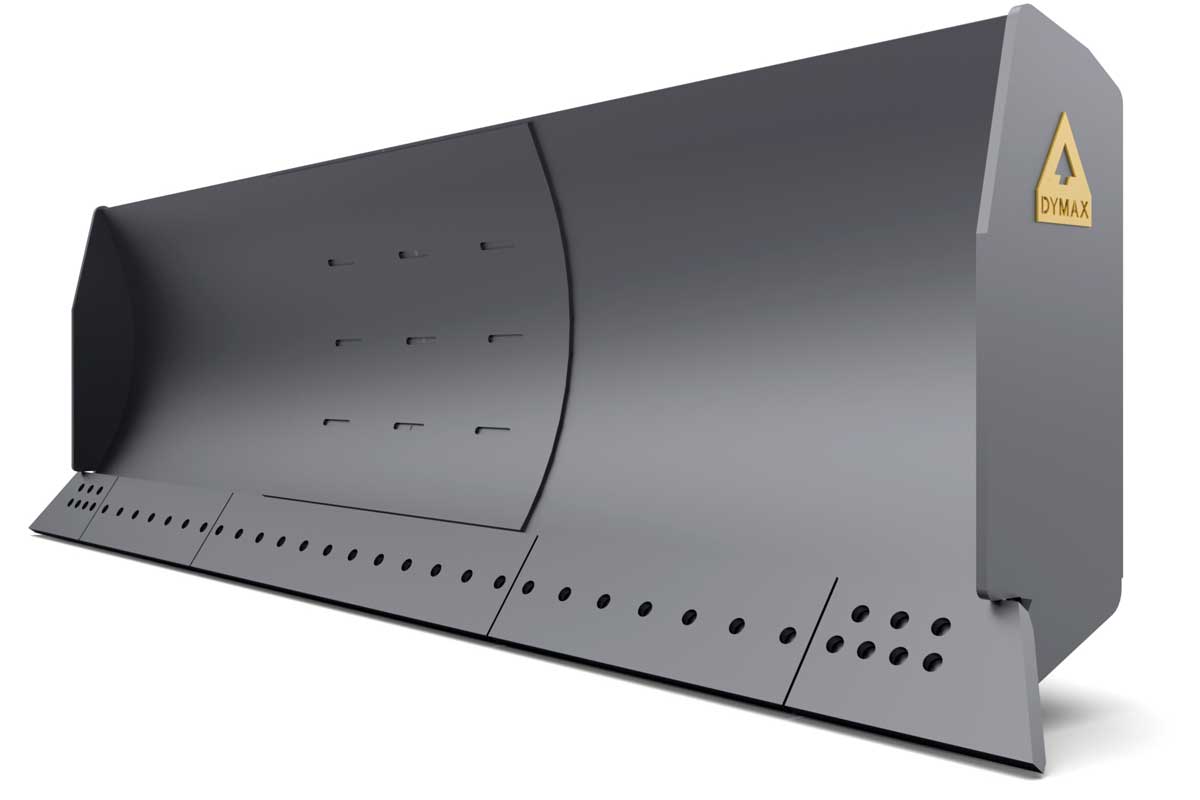

Dymax straight dozer blade for wheel dozers, three-quarter view showing the bolt-on cutting edge and end bits

DOZER & LOADER STRAIGHT BLADES FOR DIRT, ROCK AND HAUL-ROAD WORK

ENGINEERED FOR HIGH-HOUR PUSHING

Dymax Straight Blades give you more hours between rebuilds. With bolt-on cutting edges, a T1 moldboard, and optional Hardox® 400/500 liners, you replace parts — not the whole blade.

Book-open Book-open Brochure User User Get a Quote

KEY FEATURES

DOZER MODELS

  • Replaceable bolt-on cutting edges
  • T1 or HD moldboard group, with a center doubler plate on the Class 30 model for added face strength
  • Bottom sole-plate edge group — functions as a skid shoe
  • Fits factory outside-mount push arms

LOADER & GRADER MODELS

  • Replaceable bolt-on cutting edges
  • Standard moldboard group, 52-inch height (4 ft 4 in)
  • Shim-adjustable, heat-treated, replaceable skid shoes
  • Quick-coupler hooks, or built to pin directly to the loader arms

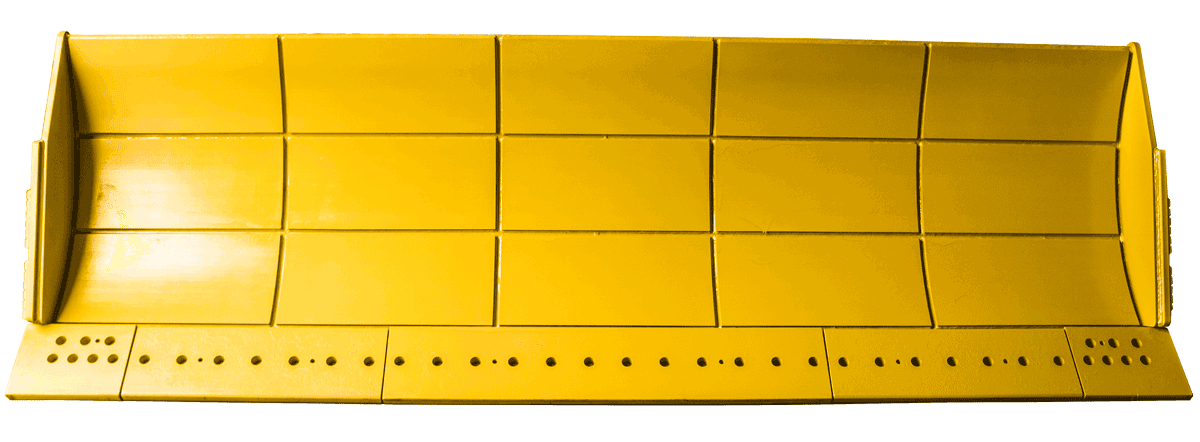

Dymax straight dozer blade, front view showing the segmented moldboard liner platesliner wear package and bolt-on cutting edge

OPTIONS

  • Hardox® liner wear packages for high-abrasion material — sand, coal, rock
  • Chocky bars on exterior side plates
  • Special design solutions
Row of Dymax straight dozer blades in the fabrication shop, ready to ship, rear view of the reinforced moldboard structure and push-arm mounting

APPLICATIONS

  • Haul-road construction and maintenance
  • General earthmoving and site prep
  • Reclamation and backfill
  • Coal and stockpile management
  • Sand and aggregate loading
  • Rock dozing at iron, gold, copper and other metal mines and quarries
  • Snow and material pushing on motor graders and wheel loaders

SPECIFICATIONS

Machine
Size		 Model
Description
Weight (lbs)
Cat 824 DX-BL-ST-6.0x14ft7-WD-20

Blade-Straight-6.0 cubic yard capacity x 14 feet 7 inches wide-Wheel Dozer-Class 20

STANDARD FEATURES:
– Replaceable CAT pattern cutting edges and end bits
– HD moldboard group
– Bottom sole plates
– Fits outside mount push arms
– 52 inch height

NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.
Cat 834 DX-BL-ST-10.3x16ft6-WD-30

Blade-Straight-10.3 cubic yard capacity x 16 feet 6 inches wide-Wheel Dozer-Class 30

STANDARD FEATURES:
– Replaceable CAT pattern bolt-on cutting edges
– Straight edge/moldboard group
– T1 moldboard face with center doubler plate
– Bottom sole plates
– Non-lined moldboard

NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.
Cat 834 DX-BL-STHD-10.3x15ft6-WD-30

Blade-Straight Heavy Duty Liner-10.3 cubic yard capacity x 15 feet 6 inches wide-Wheel Dozer-Class 30

STANDARD FEATURES:
– 10.30 yd capacity x 15 ft 6 in wide x 60 in height
– Equipped with Caterpillar bolt-on cutting edges
– T1 standard moldboard with Hardox wear liner package
– Includes chocky bars on exterior side plates
– Bottom sole plates

NOT SUPPLIED: Connector blocks, pins and retainers that attach the blade to the push arms.

Design and specifications are subject to change without notice.

Model
Description
Weight (lbs)
DX-BL-ST-108in-WL-60

Blade-Straight-108 inches wide-Wheel Loader-Class 60

STANDARD FEATURES:
– 52 in moldboard height (4 ft 4 in)
– Replaceable bolt-on cutting edges
– Standard moldboard group
– Skid shoes: shim adjustable, rectangular shaped, heat treated, replaceable
– Quick coupler hooks

NOT SUPPLIED: Jumper hose lines
DX-BL-ST-120in-WL-70

Blade-Straight-120 inches wide-Wheel Loader-Class 70

STANDARD FEATURES:
– 52 in moldboard height (4 ft 4 in)
– Replaceable bolt-on cutting edges
– Standard moldboard group
– Skid shoes: shim adjustable, rectangular shaped, heat treated, replaceable
– Quick coupler hooks

NOT SUPPLIED: Jumper hose lines
DX-BL-ST-144in-WL-80

Blade-Straight-144 inches wide-Wheel Loader-Class 80

STANDARD FEATURES:
– 52 in moldboard height (4 ft 4 in)
– Replaceable bolt-on cutting edges
– Standard moldboard group
– Skid shoes: shim adjustable, rectangular shaped, heat treated, replaceable
– Quick coupler hooks

NOT SUPPLIED: Jumper hose lines

Design and specifications are subject to change without notice.

Model
Description
Weight (lbs)

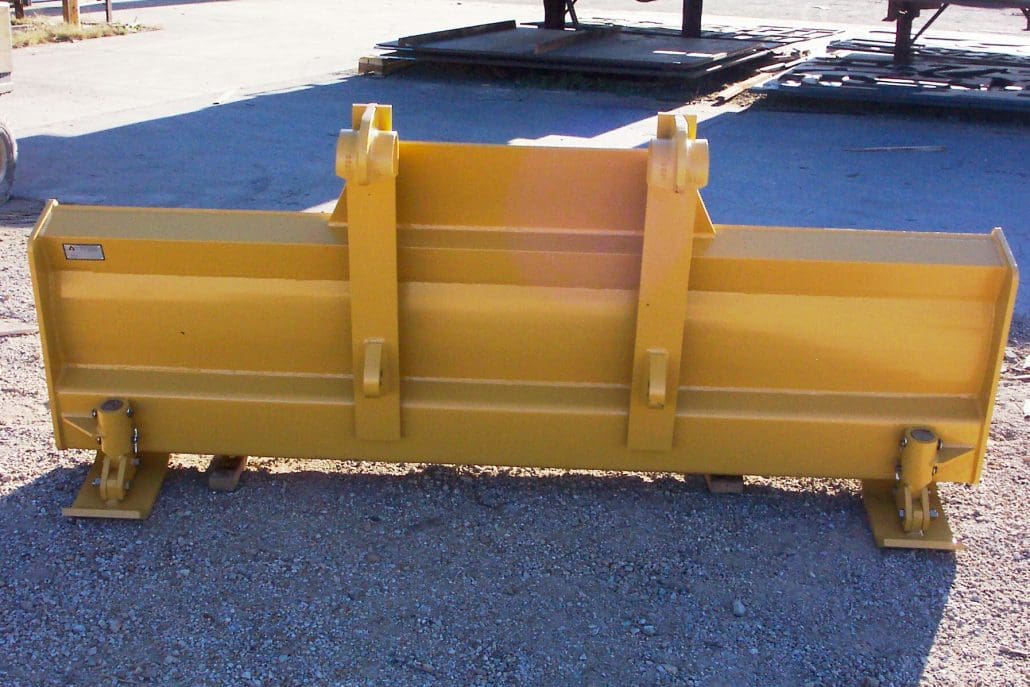

DX-BL-ST-96in-MG-10

Blade-Straight-96 inches wide-Motor Grader-Class 10

STANDARD FEATURES:
– 52 in moldboard height (4 ft 4 in)
– Replaceable bolt-on cutting edges
– Standard moldboard group
– Shim-adjustable skid shoes
– Quick coupler hooks

NOT SUPPLIED: Jumper hose lines

Design and specifications are subject to change without notice.

FAQ’S

A straight blade has a flat, wingless moldboard for pushing, spreading, and leveling.

It’s the go-to for moving dirt, maintaining haul roads, reclamation backfill, coal and stockpile work, sand and aggregate loading, snow pushing, and general site grading.

A straight blade spreads and levels cleanly and handles side-to-side grading well.

U blades and Semi-U blades have angled wings that carry more material per pass, but give up some finish control.

Wear protection is layered: replaceable bolt-on cutting edges and end bits, a T1 moldboard face, and optional Hardox® 400/500 liner packages, white-iron wear blocks, chocky bars, and side shrouds for high-abrasion materials like sand, coal, and rock. Tell us what you’re moving and how abrasive it runs, and we’ll spec your wear package to match.

Yes. Dymax offers special design solutions — custom widths, moldboard heights, and mounting to suit machines outside the standard chart. Send the machine and the width you need for a made-to-order quote.
