Pipe and Pole Forks with Grapples

for Wheel Loaders, Track Loaders, Toolcarriers and Loader Backhoes

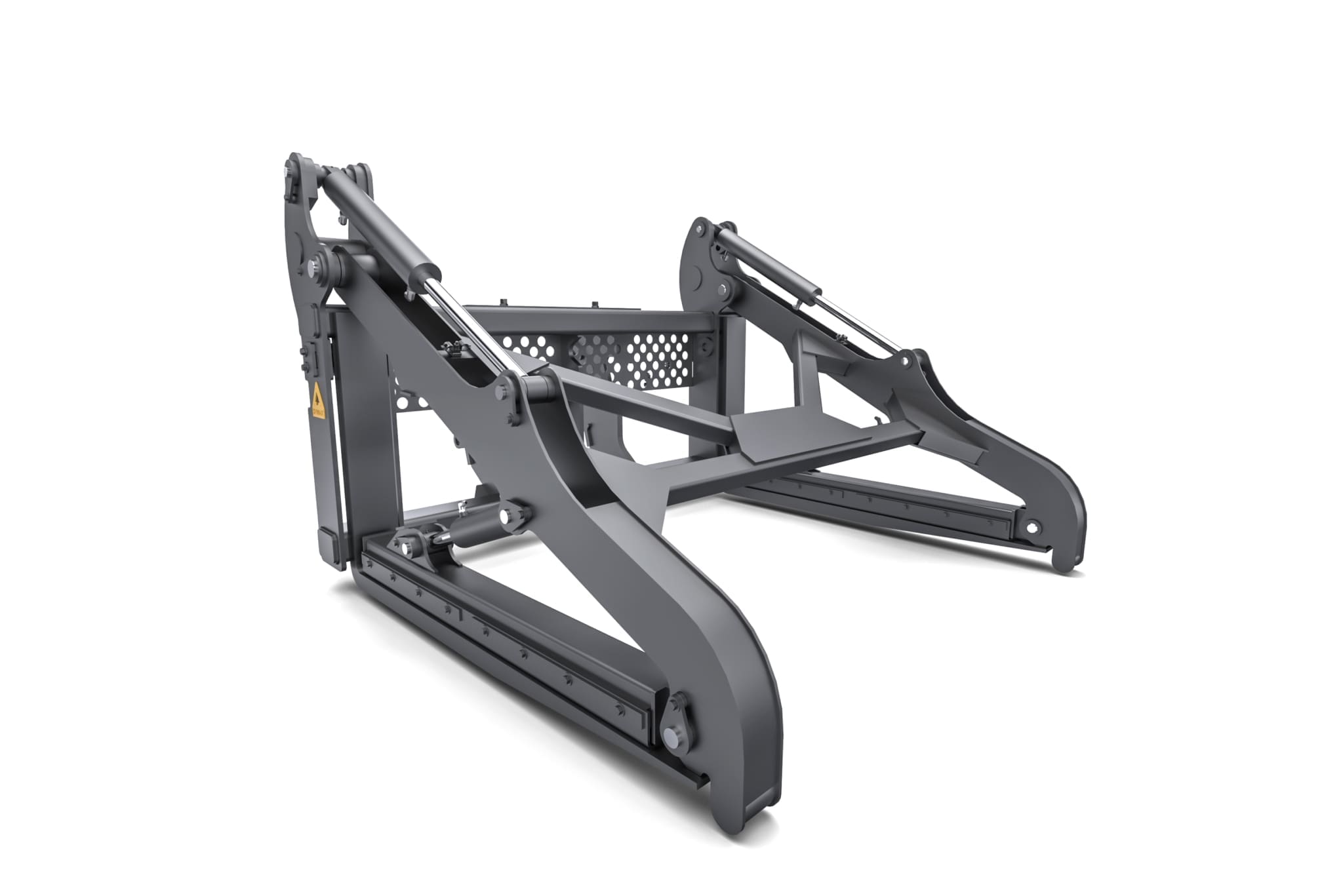

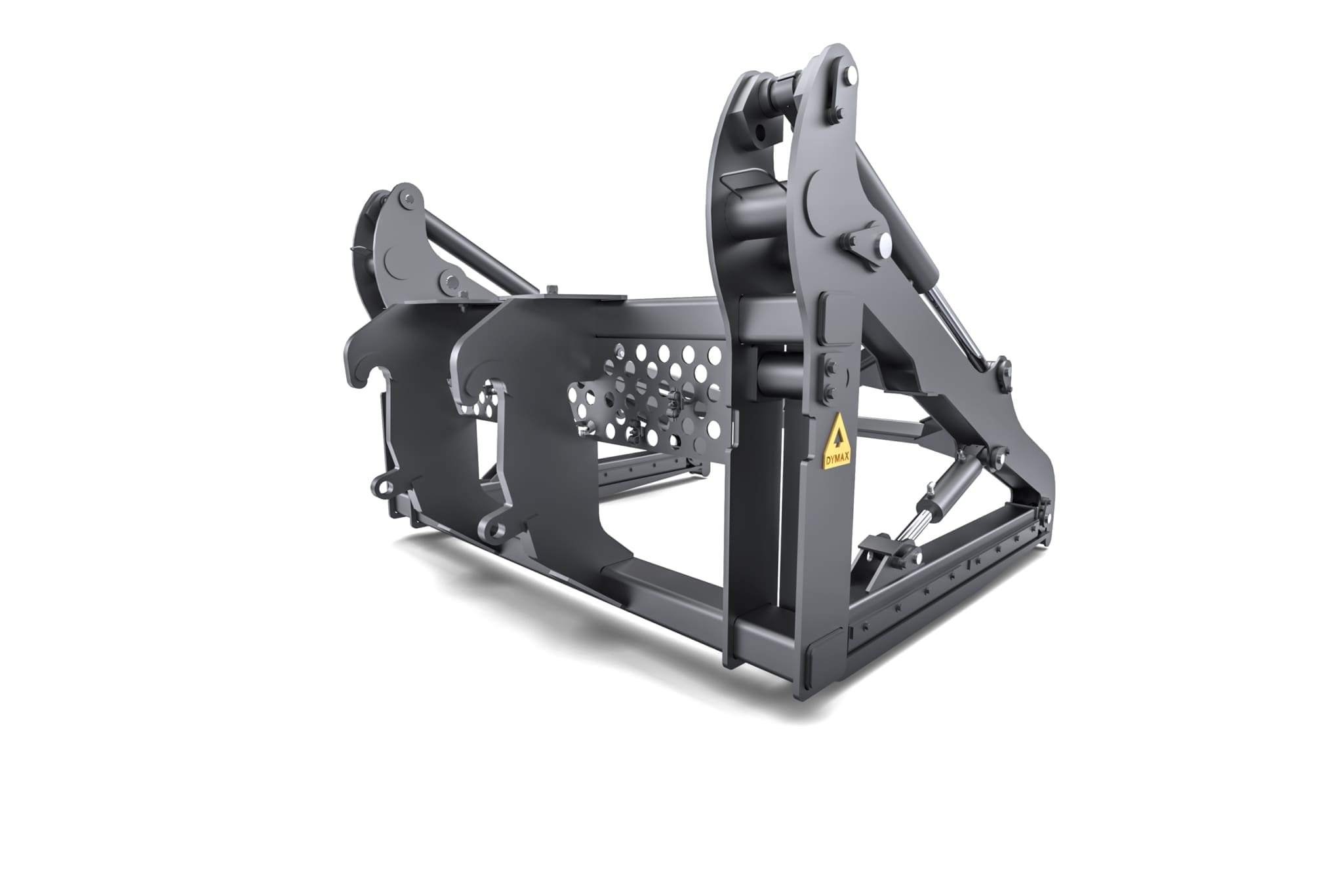

Dymax Pipe and Pole Forks with stabilizer clamps are ideal for handling oil field pipe and transmission lines poles, whether steel or wood. They feature bolt-on replaceable padding that prevents damage and ensures a tight and safe grip with all materials.

Equipped with shaft mounted, non-swinging and non-adjusting fork tines, these pipe handling forks are available in several lengths. Tine capacity is matched to the loader’s rated performance. Optional mechanical floating tines are available if specified.

Dymax Pipe and Pole Handling Forks are designed to provide years of productive use and are backed by the best service in the industry.

FEATURES AND BENEFITS

Available with 72″, 84″, 96″ and 102″ tine lengths.
Extra wide carriages for handling bundles of pipe or single pipe pieces.
Available as direct mount pin-on models, or with coupler hooks.
A sequence valve is setup for operation of the top clamp and stabilizer clamps, therefore machines only require 3rd function hydraulics for operation.
Hydraulic cylinders are matched to machine hydraulic system and ensure firm grip on pipe and poles.
Hookup available to fit specific coupler systems or to pin direct to the loader arms.
Top clamp is rigidly built for years of use and guarantees that loads are held safely.

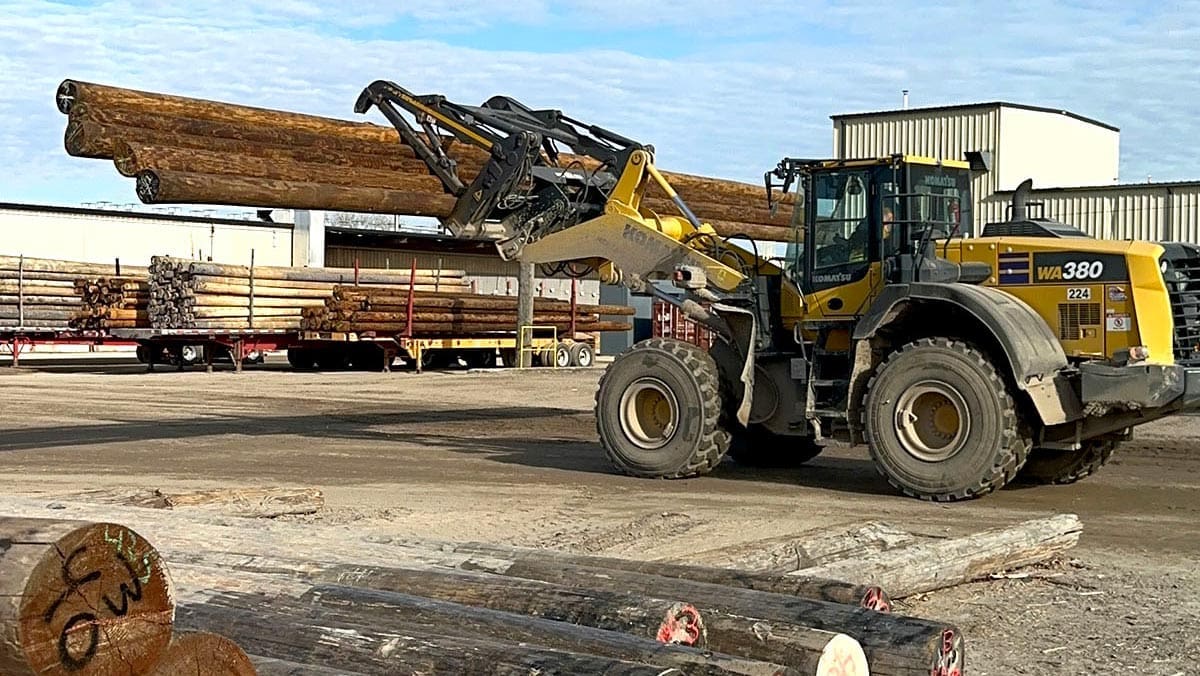

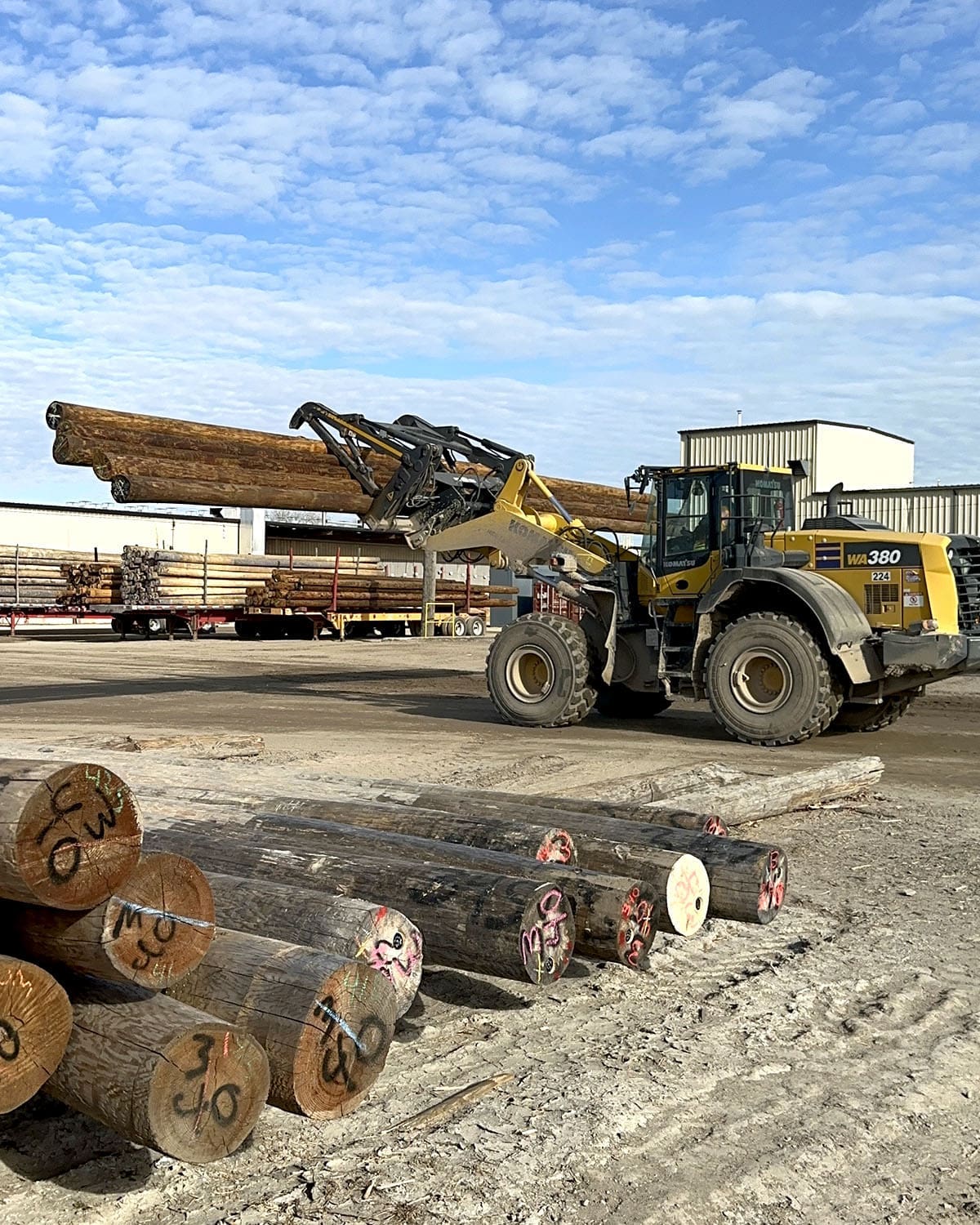

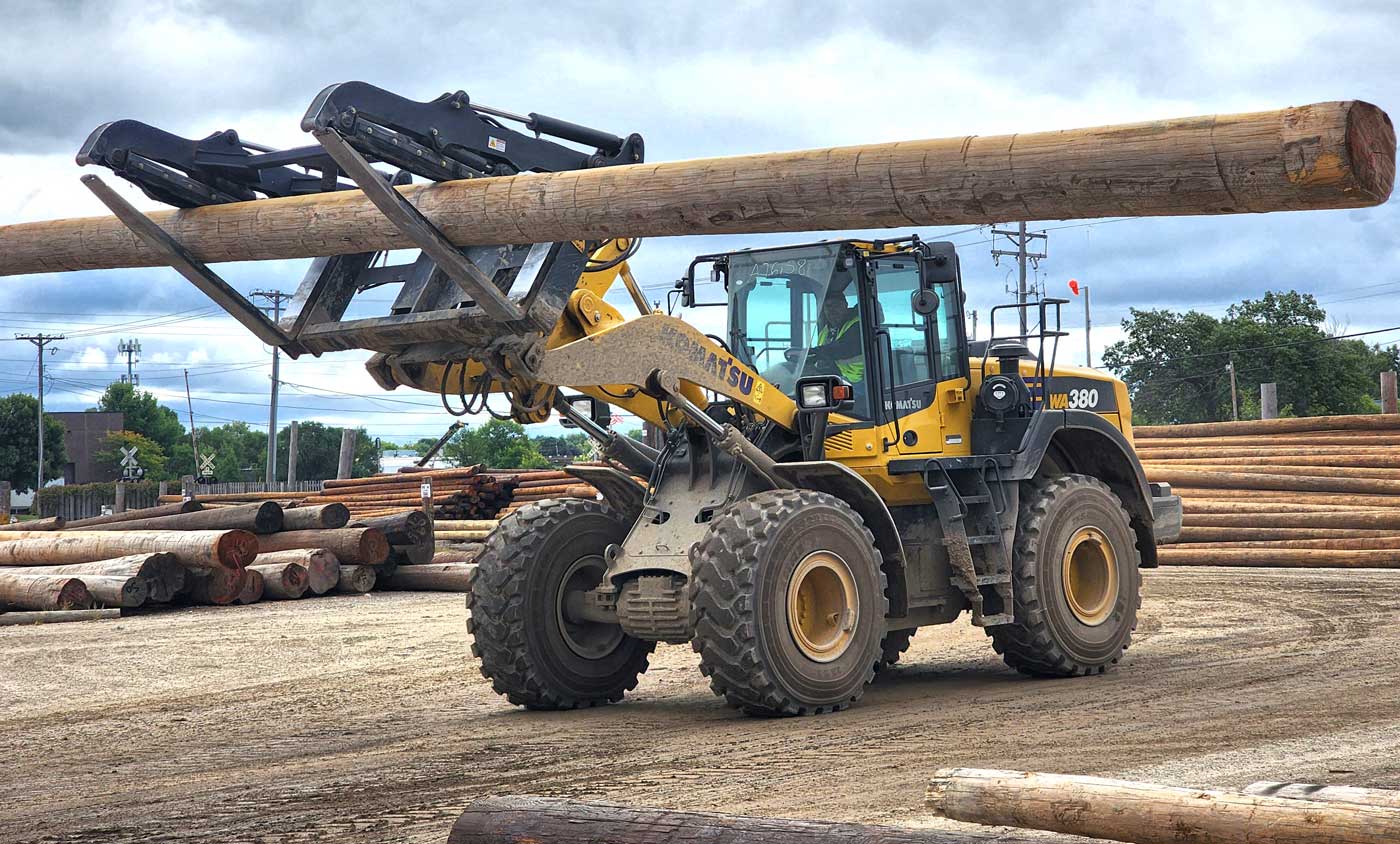

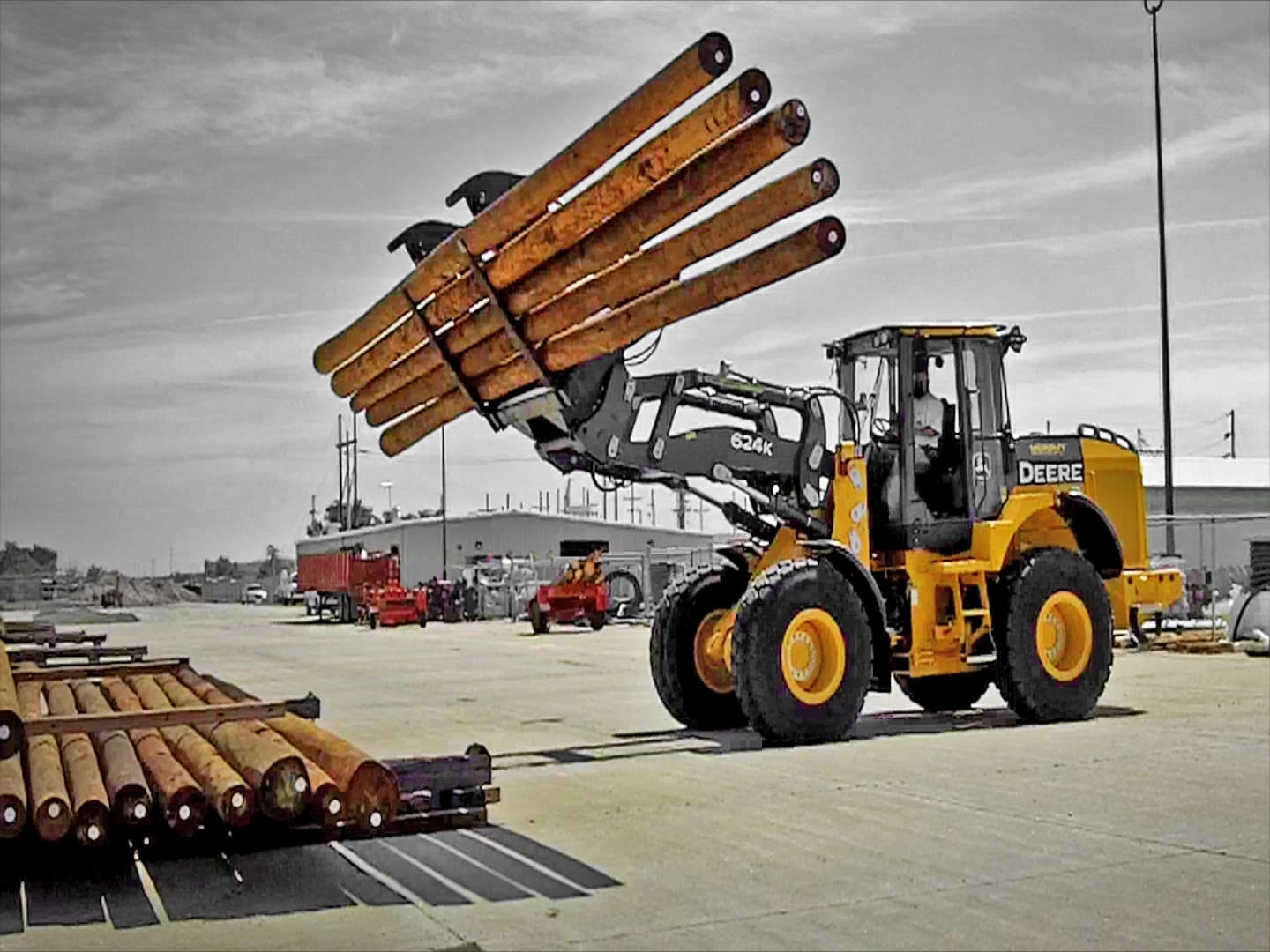

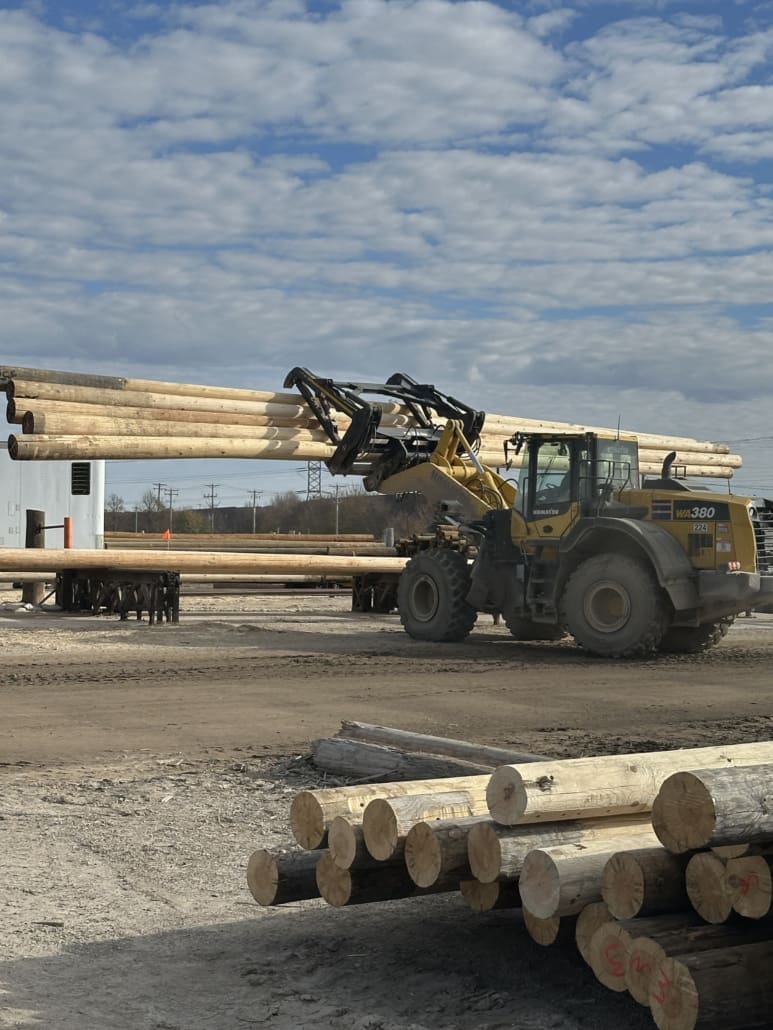

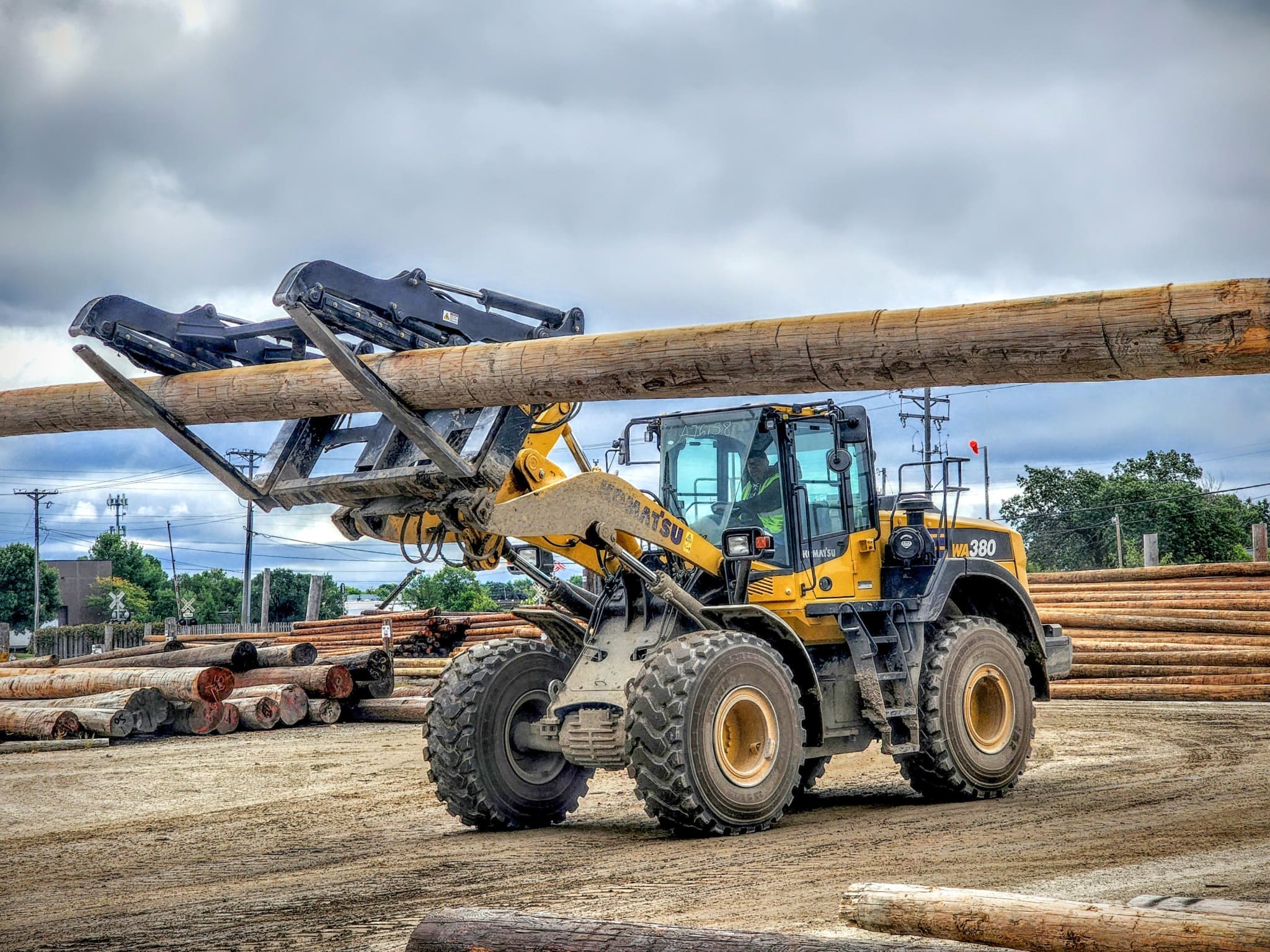

WHEEL LOADER

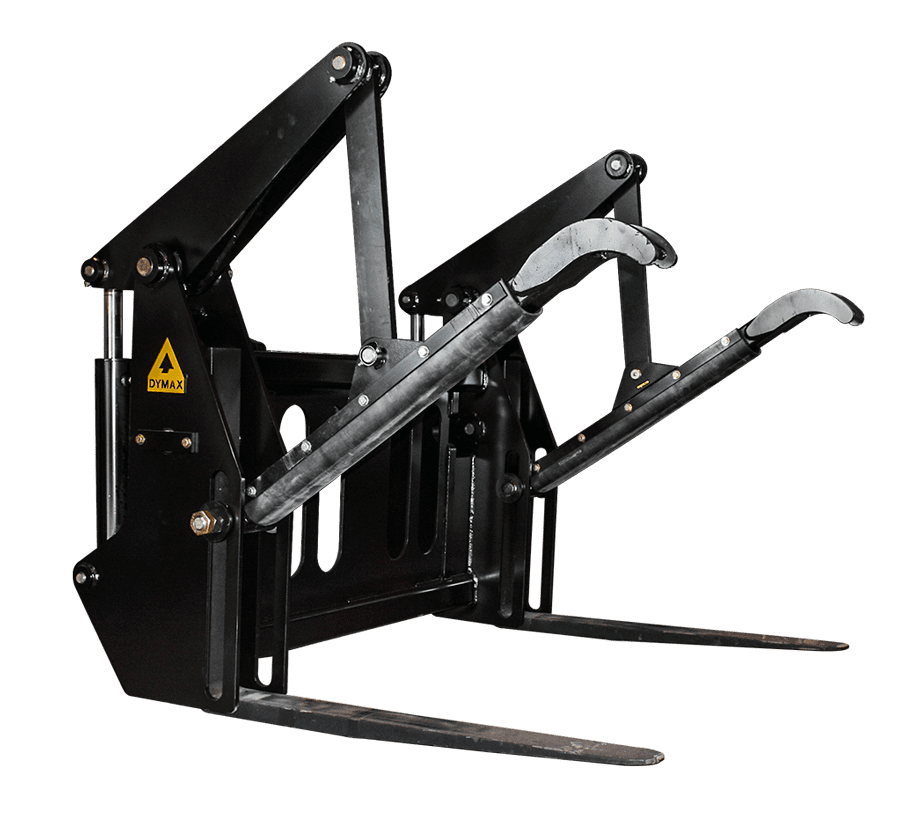

Heavy duty grapple with lower hydraulic stabilizer clamps.

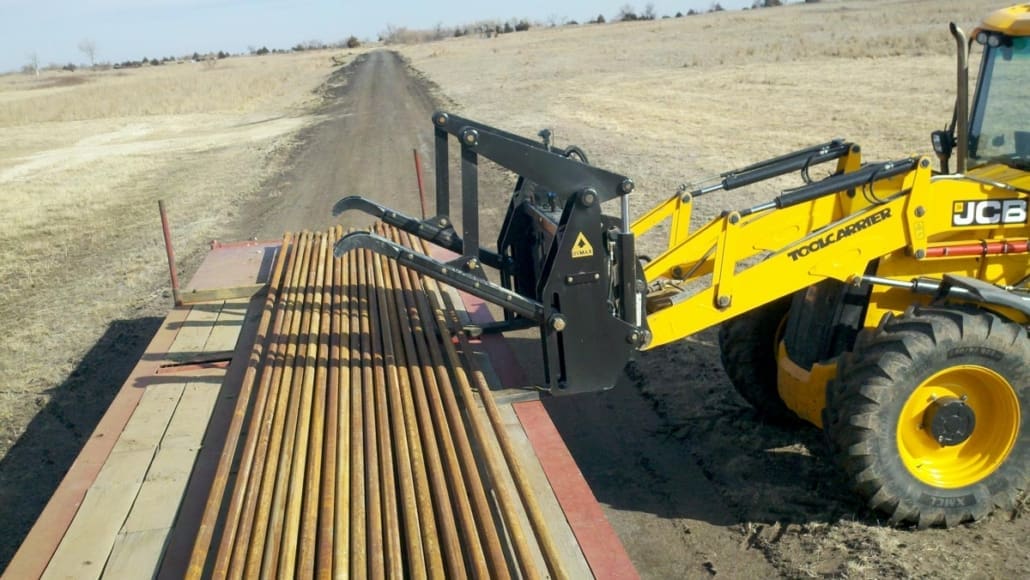

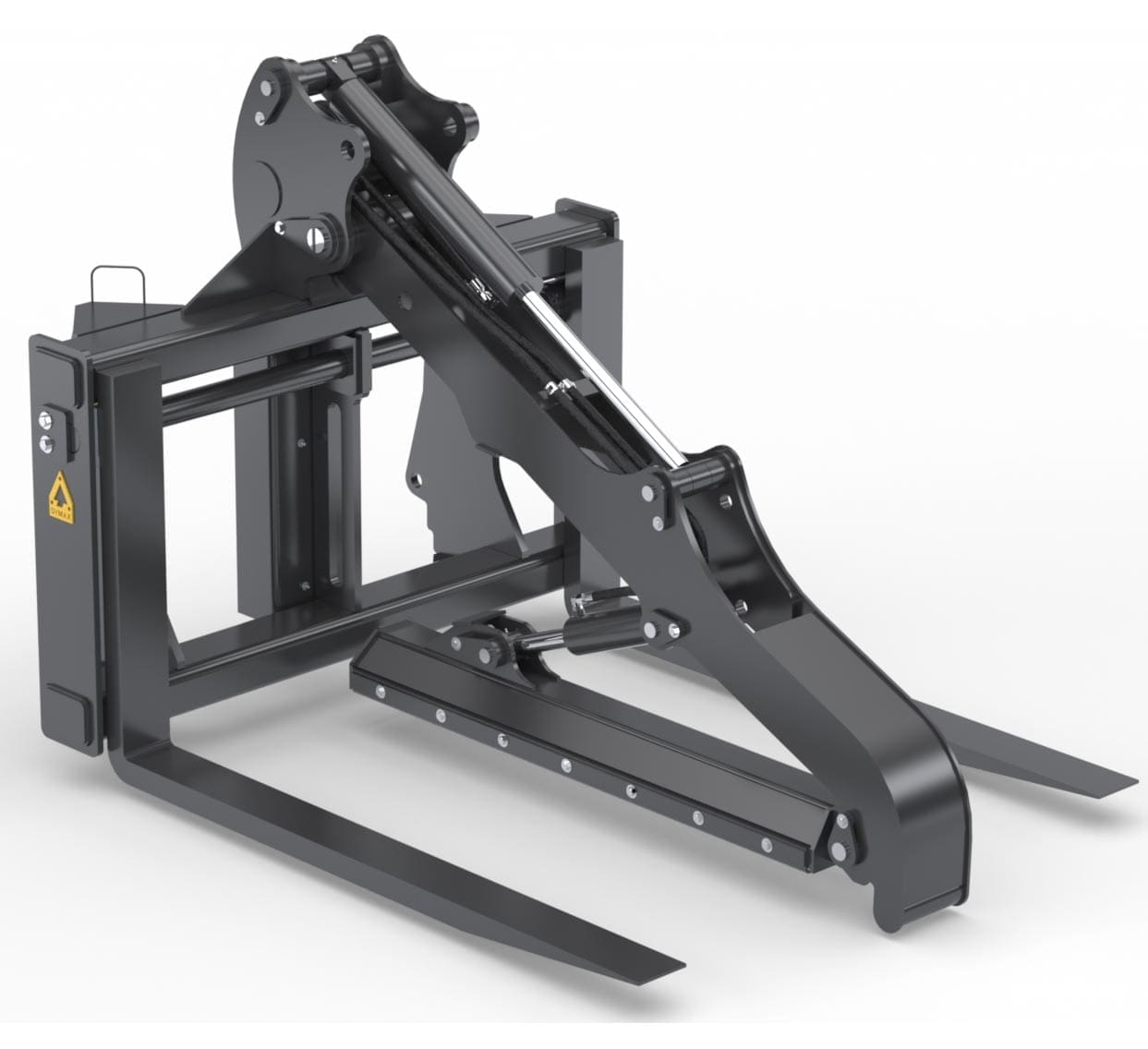

BACKHOE LOADER / TELEHANDLER

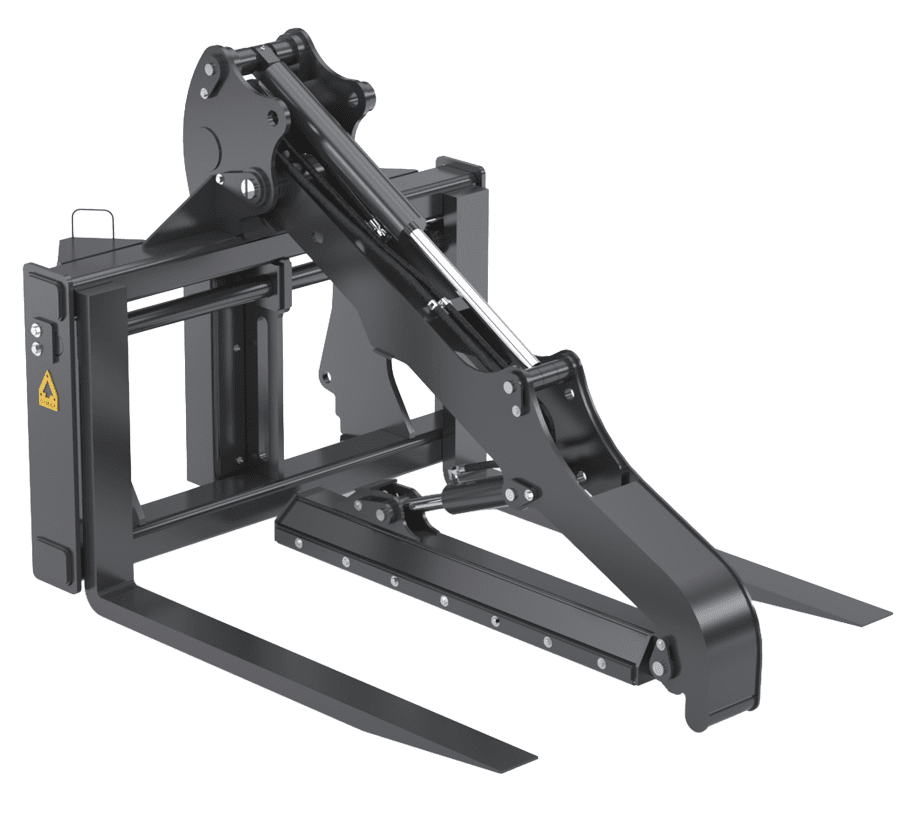

Slide link clamp design with rubber padding. Excellent for pipe and pole applications.

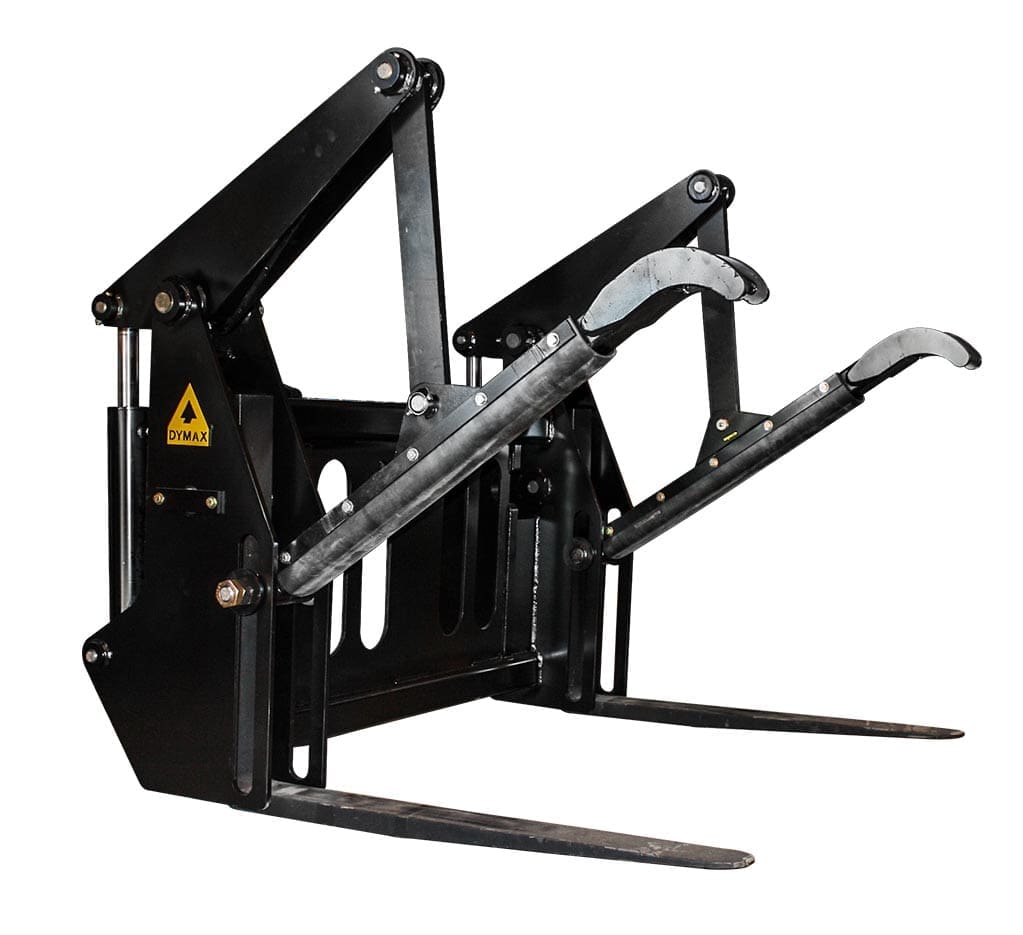

LOADER / TELEHANDLER

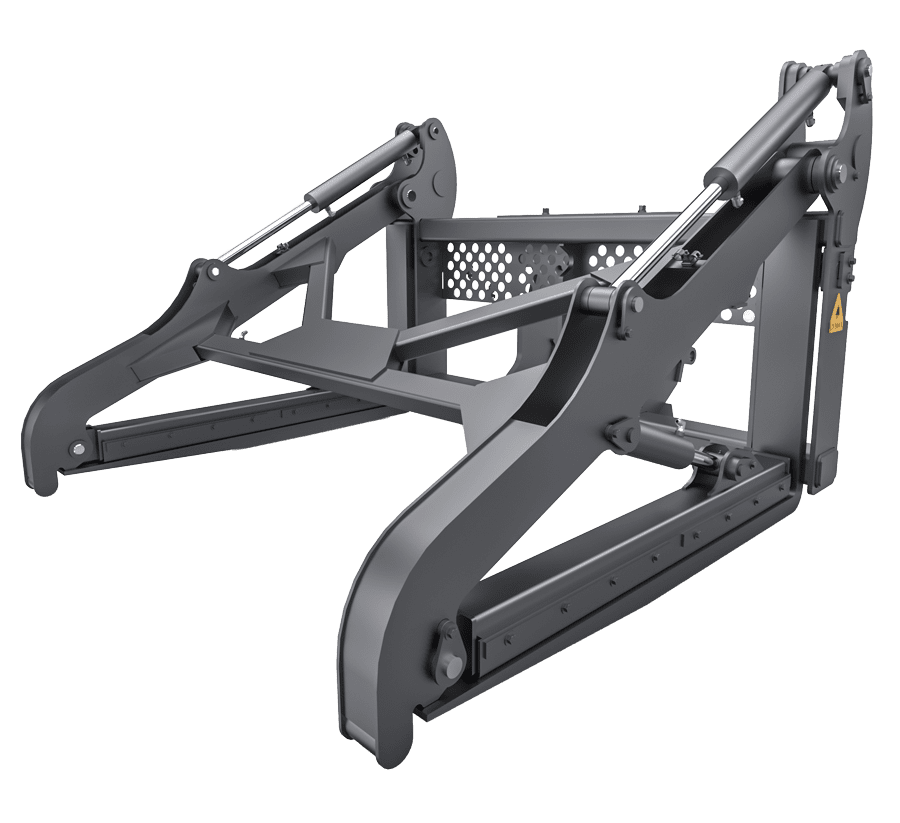

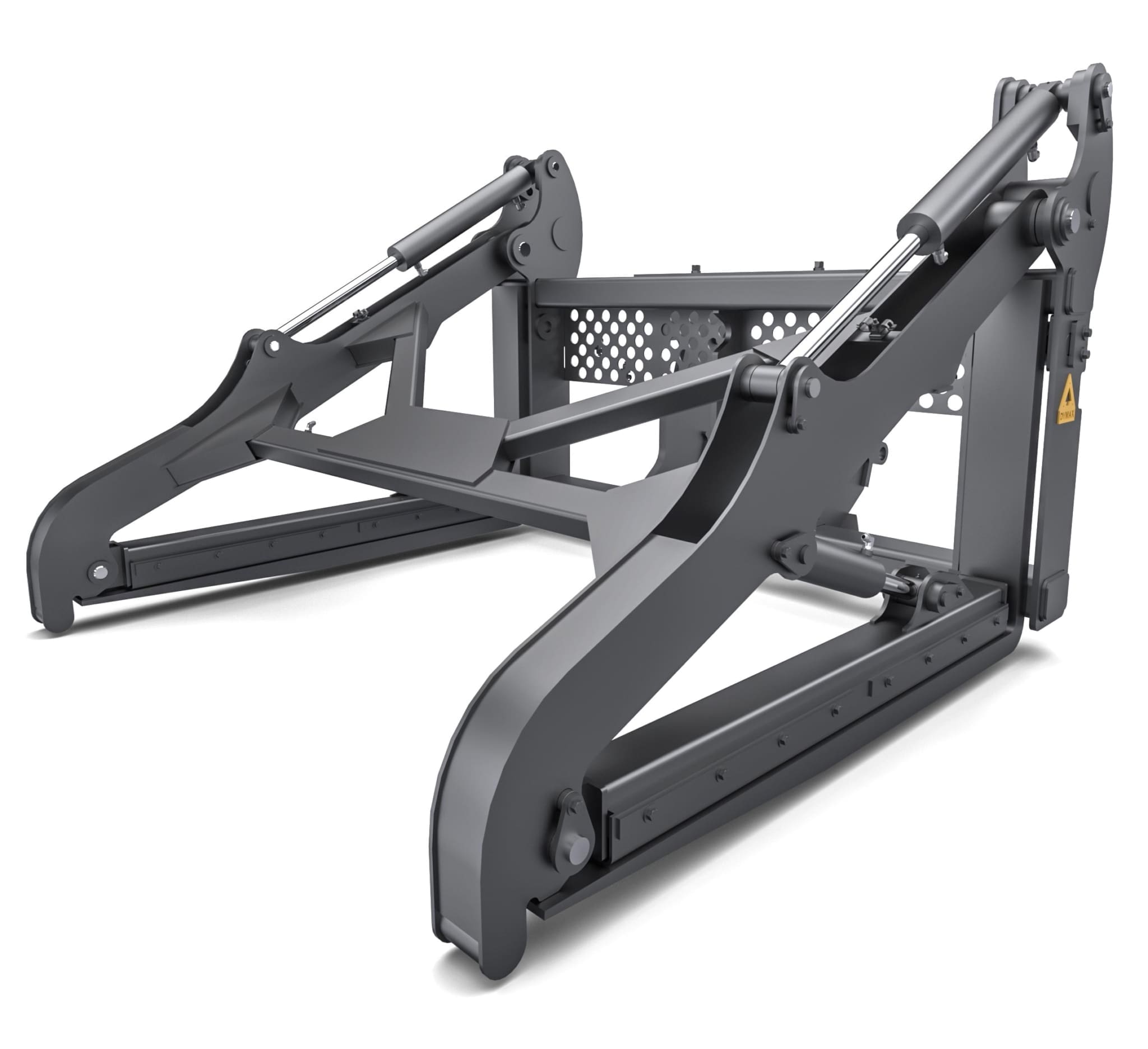

Single grapple clamp with lower stabilizer and pallet fork base carriage.

Specifications-Title-Bar-Transparent-Dymax-Inc

STANDARD MODELS

MODEL
DESCRIPTION
WEIGHT (LBS)

DX-FK-PPG-54inx84in-WL-40

Fork-Pipe & Pole Grapple-54 inch tine length x 84 inch wide-Wheel Loader-Class 40 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 54 inch tines, 2.50×6.00 inch

– Capacity: 21,400 lbs @ 24 inch load centers

WEIGHT: 3600 lbs

DX-FK-PPG-54inx96in-WL-60

Fork-Pipe & Pole Grapple-54 inch tine length x 96 inch wide-Wheel Loader-Class 60 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 54 inch tines, 2.50×7.00 inch

– Capacity: 25,600 lbs @ 24 inch load centers

WEIGHT: 3850 lbs

DX-FK-PPG-60inx84in-WL-50

Fork-Pipe & Pole Grapple-60 inch tine length x 84 inch carriage-Wheel Loader-Class 50 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 60 inch tines, 2.50×7.00 inch

– Capacity: 25,600 lbs @ 24 inch load centers

WEIGHT: 4000 lbs

DX-FK-PPG-60inx84in-WL-60

Fork-Pipe & Pole Grapple-60 inch tine length x 84 inch carriage-Wheel Loader-Class 60 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 60 inch tines, 2.50×7.00 inch

– Capacity: 25,600 lbs @ 24 inch load centers

WEIGHT: 4200 lbs

DX-FK-PPG-60inx84in-WL-70

Fork-Pipe & Pole Grapple-60 inch tine length x 84 inch carriage-Wheel Loader-Class 70 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 60 inch tines, 3.00×7.00 inch

– Capacity: 34,200 lbs @ 24 inch load centers

WEIGHT: 4300 lbs

DX-FK-PPG-60inx90in-WL-70

Fork-Pipe & Pole Grapple-60 inch tine length x 90 inch carriage-Wheel Loader-Class 70

STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 60 inch tines, 3.00×7.00 inch

– Capacity: 34,200 lbs @ 24 inch load centers

WEIGHT: 4750 lbs

DX-FK-PPG-60inx96in-WL-80

Fork-Pipe & Pole Grapple-60 inch tine length x 96 inch carriage-Wheel Loader-Class 80

STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 60 inch tines, 3.00×7.00 inches

– Capacity: 34,200 lbs @ 24 inch load centers

WEIGHT: 4500 lbs

DX-FK-PPG-72inx84in-TH-12K

Fork-Pipe & Pole Grapple -72 inch tine length x 84 inch carriage-Telehandler-Class 12,000lb

Works with most OEM telehandlers in 12,000lb class

STANDARD FEATURES:

– Single-mounted stabilizer top clamp with sequencing valve

– Shaft mounted, non swinging tines

– Clamp underside features rubberized padding

– Low profile design

– 72 inch tines, 2.50×6.0 inch

– Capacity: 22,000 lbs @ 24in load centers

WEIGHT: 3950 lbs

DX-FK-PPG-72inx72in-WL-60

Fork-Pipe & Pole Grapple-72 inch tine length x 72 inch carriage-Wheel Loader-Class 60

STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 72 inch tines, 2.50×6.0 inches

– Capacity: 22,000 lbs @ 24 inch load centers

DX-FK-PPG-72inx84in-WL-40

Fork-Pipe & Pole Grapple-72 inch tine length x 84 inch carriage-Wheel Loader-Class 40 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 72 inch tines, 2.50×6.00 inch

– Capacity: 22,000 lbs @ 24 inch load centers

WEIGHT: 3350 lbs

DX-FK-PPG-72inx84in-WL-60

Fork-Pipe & Pole Grapple-72 inch tine length x 84 inch carriage-Wheel Loader-Class 60 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 72 inch tines, 3.00×7.00 inch

– Capacity: 34,200 lbs @ 24 inch load centers

WEIGHT: 4800 lbs

DX-FK-PPG-72inx84in-WL-70

Fork-Pipe & Pole Grapple-72 inch tine length x 84 inch carriage-Wheel Loader-Class 70 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 72 inch tines, 3.00×7.00 inch

– Capacity: 34,200 lbs @ 24 inch load centers

WEIGHT: 4800 lbs

DX-FK-PPG-72inx90in-WL-70

Fork-Pipe & Pole Grapple-72 inch tine length x 90 inch carriage-Wheel Loader-Class 70 STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 72 inch tines, 3.00×7.00 inch

– Capacity: 34,200 lbs @ 24 inch load centers

WEIGHT: 4950 lbs

DX-FK-PPG-72inx96in-WL-70

Fork-Pipe & Pole Grapple-72 inch tine length x 96 inch carriage-Wheel Loader-Class 70

STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 72 inch tines, 3.00×7.00 inch

– Capacity: 34,200 lbs @ 24 inch load centers

WEIGHT: 5500 lbs

DX-FK-PPG-72inx96in-WL-80

Fork-Pipe & Pole Grapple-72 inch tine length x 96 inch carriage-Wheel Loader-Class 80

STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 72 inch tines, 3.00×7.00 inch

– Capacity: 34,200 lbs @ 24 inch load centers

WEIGHT: 5500 lbs

DX-FK-PPG-84inx96in-WL-80

Fork-Pipe & Pole Grapple-84 inch tine length x 96 inch carriage-Wheel Loader-Class 80

STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 84 inch tines, 3.00×7.00

– Capacity:34,200 lbs @ 24 inch load centers

WEIGHT: 5800 lbs

DX-FK-PPG-96inx100in-WL-90

Fork-Pipe & Pole Grapple-96 inch tine length x 100 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 96 inch tines, 3.50×7.00

– Capacity: 43,200 lbs @ 24 inch load centers

WEIGHT: 7200 lbs

DX-FK-PPG-96inx120in-WL-90

Fork-Pipe & Pole Grapple-96 inch tine length x 120 inch carriage-Wheel Loader-Class 90

STANDARD FEATURES:

– Shaft-mounted, non-swinging forged tines

– Hydraulic pipe clamp with rubber padding to ensure positive grip

– Sequencing valve

– 96 inch tines, 3.50×8.00

– Capacity: 54,600 lbs @ 24 inch load centers

WEIGHT: 8200 lbs

Contact Dymax sales for carriage widths not listed or special application requirements.

Specifications are subject to change without notice.

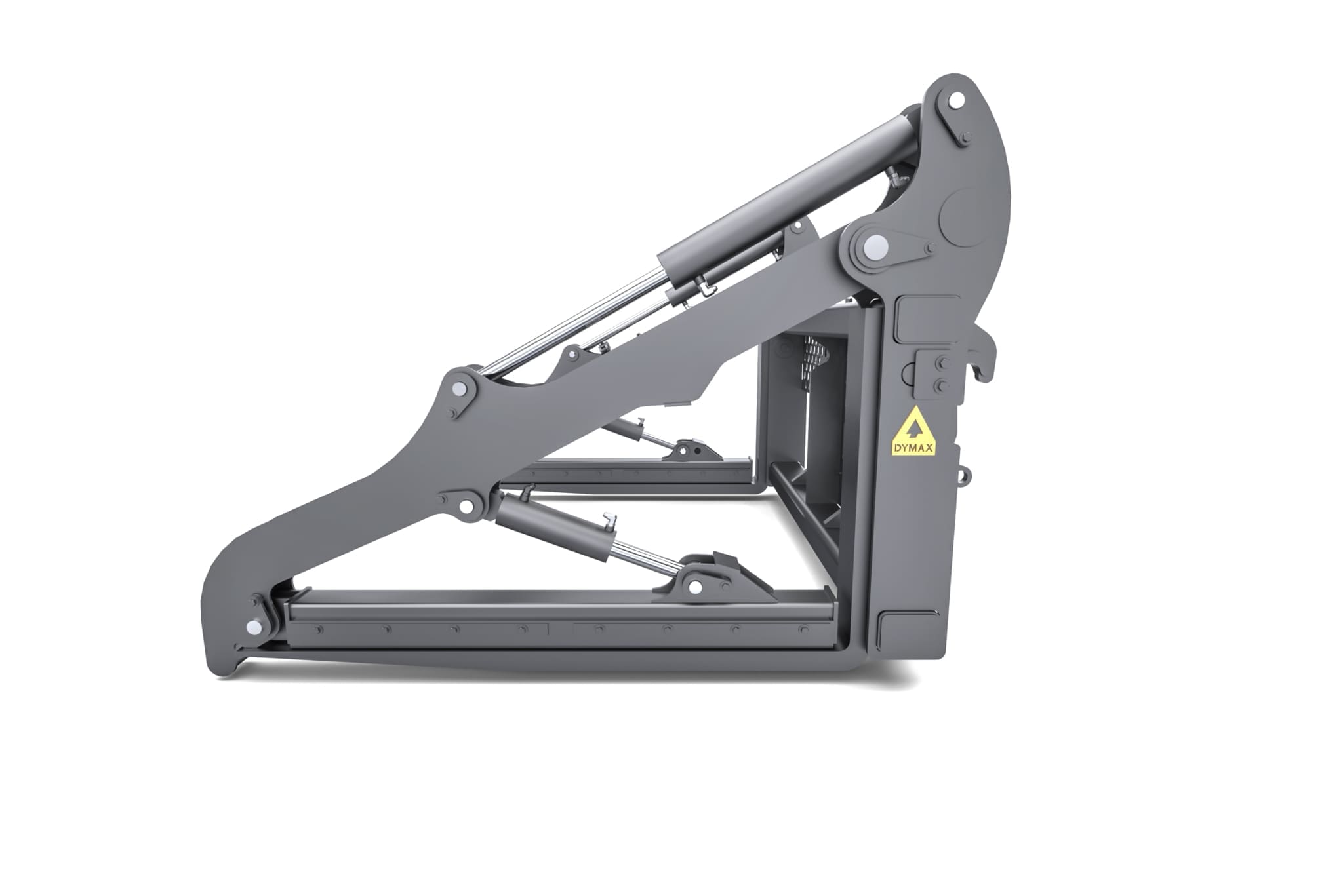

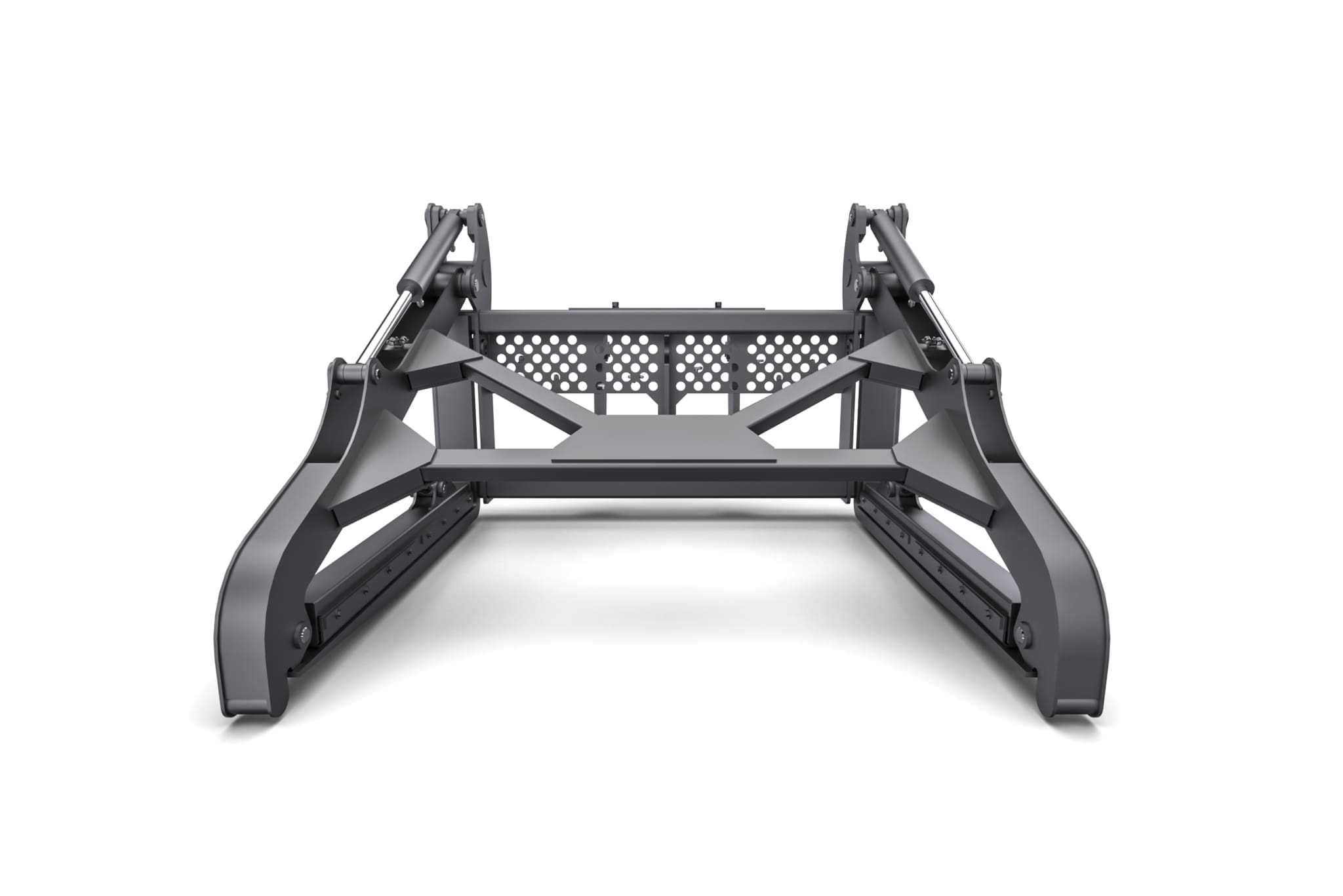

SLIDE LINK MODELS

MODEL
DESCRIPTION
WEIGHT (LBS)

DX-FK-PPGSL-60inx72in-BL-10

Fork-Pipe & Pole Grapple Slide Link-60 inch tine length x 72 inch carriage-Backhoe Loader-Class 10

STANDARD FEATURES:

– 72 in wide carriage / 73 inch max total overall width

– Shaft mounted fixed tines – non swinging

– Tine spread outside – 68.50 inches

– Replaceable rubber padding on underside of clamp arm

– Twin cylinder design

– Slide linkage clamp arm for pipe stabilization

– 60 inch tine length x 2 inch thick x 6 inch wide

– Capacity: 12,600lb at 24 inch load centers

WEIGHT: 2600 lbs

DX-FK-PPGSL-60inx84in-BL-20

Fork-Pipe & Pole Grapple Slide Link-60 inch tine length x 84 inch carriage-Backhoe Loader-Class 20

STANDARD FEATURES:

– 84 inch wide carriage / 86 inch max total overall width

– Shaft mounted fixed tines – non swinging

– Replaceable rubber padding on underside of clamp arm

– Twin cylinder design

– Slide linkage clamp arm for pipe stabilization

– 60 inch tine length x 2 inch thick x 6 inch wide

– Capacity: 12,600 lbs at 24 inch load centers

WEIGHT: 2700 lbs

DX-FK-PPGSL-60inx84in-WL-50

Fork-Pipe & Pole Grapple Slide Link-60 inch tine length x 84 inch carriage-Wheel Loader-Class 50

STANDARD FEATURES:

– 84 inch wide carriage / 86 inch max total overall width

– Shaft mounted fixed tines – non swinging

– Tine spread outside – 80 inches

– Replaceable rubber padding on underside of clamp arm

– Twin cylinder design

– Slide linkage clamp arm for pipe stabilization

– 60 inch tines x 2.5 inch thick x 6 inch wide

– Capacity: 22,400 lbs @ 24 inch load centers

WEIGHT: 3850 lbs

DX-FK-PPGSL-60inx96in-WL-60

Fork-Pipe & Pole Grapple Slide Link-60 inch tine length x 96 inch carriage-Wheel Loader-Class 60

STANDARD FEATURES:

– 96 inch wide carriage / 98 inch max total overall width

– Shaft mounted fixed tines – non swinging

– Tine spread outside – 92 inches

– Replaceable rubber padding on underside of clamp arm

– Twin cylinder design

– Slide linkage clamp arm for pipe stabilization

– 60 inch tines x 2.5 inch thick x 7 inch wide

– Capacity: 25,600 lbs @ 24 inch load centers

WEIGHT: 4300 lbs

DX-FK-PPGSL-60inx106in-WL-70

Fork-Pipe & Pole Grapple Slide Link-60 inch tine length x 106 inch carriage-Wheel Loader-Class 70

STANDARD FEATURES:

– 106 inch wide carriage / 109 inch max total overall width

– Shaft mounted fixed tines – non swinging

– Tine spread outside – 101 inches

– Replaceable rubber padding on underside of clamp arm

– Twin cylinder design

– Slide linkage clamp arm for pipe stabilization

– 60 inch tines x 3 inch thick x 7 inch wide

– Capacity: 34,000 lb at 24 inch load centers

WEIGHT: 5200 lbs

DX-FK-PPGSL-72inx84in-TH-12K

Fork-Pipe & Pole Grapple Slide Link-72 inch tine length x 84 inch carriage-Telehandler-Class 12,000lb

Works with most OEM telehandlers in 12,000lb class

STANDARD FEATURES:

– 84 inch wide carriage

– Shaft mounted fixed tines – non swinging

– Tine spread outside – 80.50 inches

– Replaceable rubber padding on underside of clamp arm

– Twin cylinder design with dual clamps

– Slide linkage clamp arm for pipe stabilization

– 72 inch tine length – tines are 2.0 inch x 6 inch wide

– Capacity: 12,600 lbs @ 24 inch load centers

WEIGHT: 3400 lbs

DX-FK-PPGSL-96inx120in-WL-80

Fork-Pipe & Pole Grapple Slide Link-96 inch tine length x 120 inch carriage-Wheel Loader-Class 80

STANDARD FEATURES:

– 117 inch wide carriage / 120 inch max total overall width

– Shaft mounted fixed tines – non swinging

– Tine spread outside – 112 inches

– Replaceable rubber padding on underside of clamp arm

– Twin cylinder design

– Slide linkage clamp arm for pipe stabilization

– 96 inch tines, 3.00 inch thick x 7.00 inch wide

– Capacity: 34,000 lbs at 24 inch load centers

WEIGHT: 3400 lbs

Contact Dymax sales for carriage widths not listed or special application requirements.

Specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS

Your machine will require 3rd function auxiliary to operate.

CIRCUIT1 – Grapple Clamp
Type: Two Way
Flow Pressure: GPM (min/max) 15-30, PSI (max) 3,000

NOT SUPPLIED: Not provided with jumper hoses to machine lines.

Previous Next

1 2 3 4 5 6 7 8 9 10

DEMONSTRATION VIDEO 1

DEMONSTRATION VIDEO 2

DOWNLOAD BROCHURE

GET A QUOTE

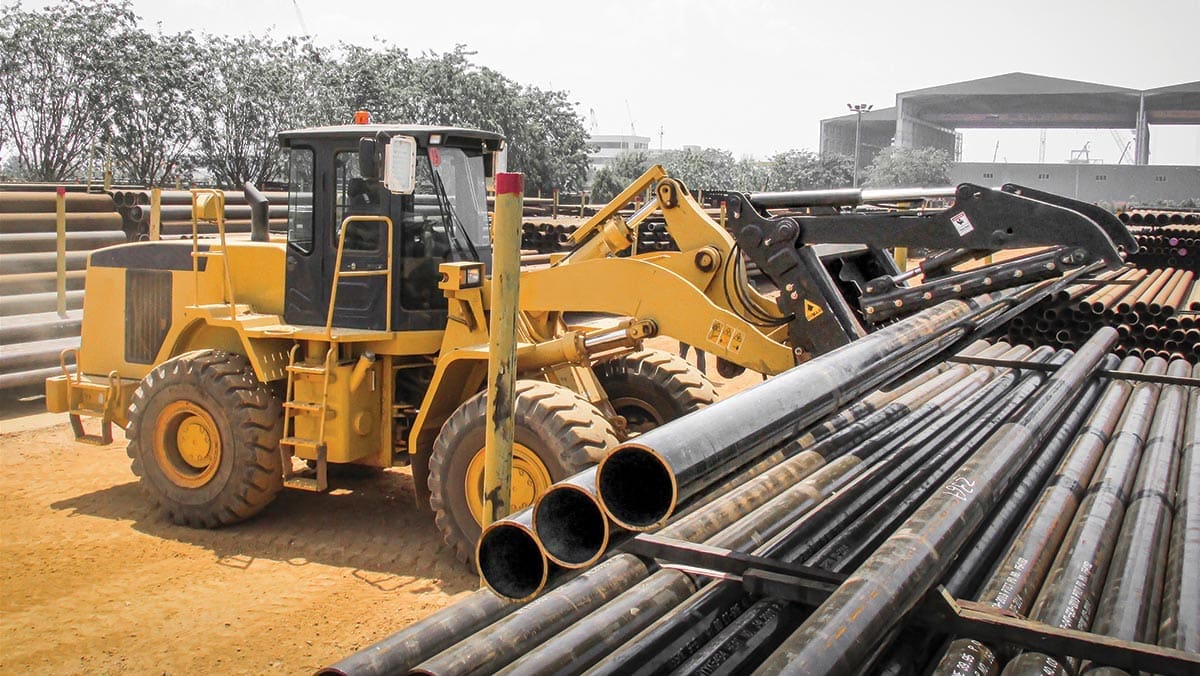

Pipe and Pole Forks with Grapples

for Wheel Loaders, Track Loaders, Toolcarriers and Loader Backhoes

FEATURES AND BENEFITS

ADDRESS

Contact

OPERATION HOURS
