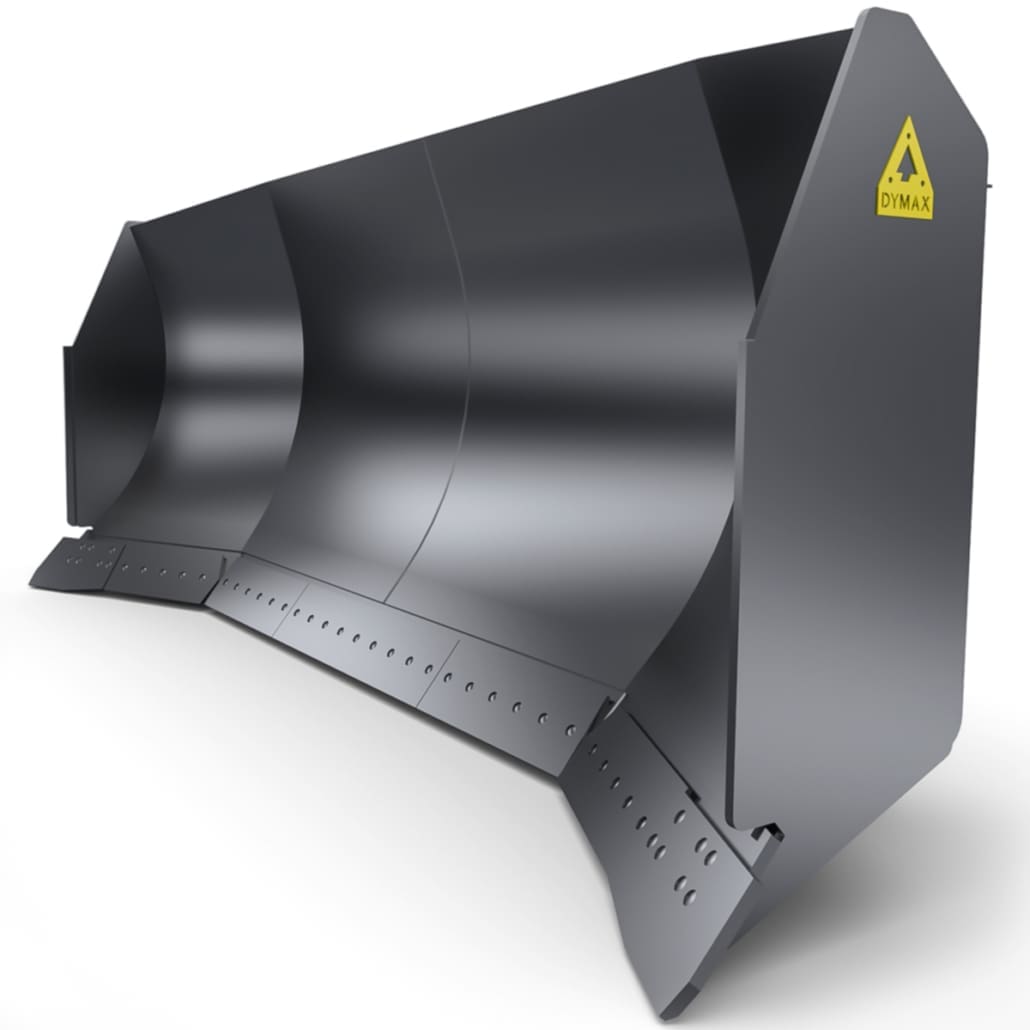

Reclamation Dozer Blades for Dozers / Crawler Tractors

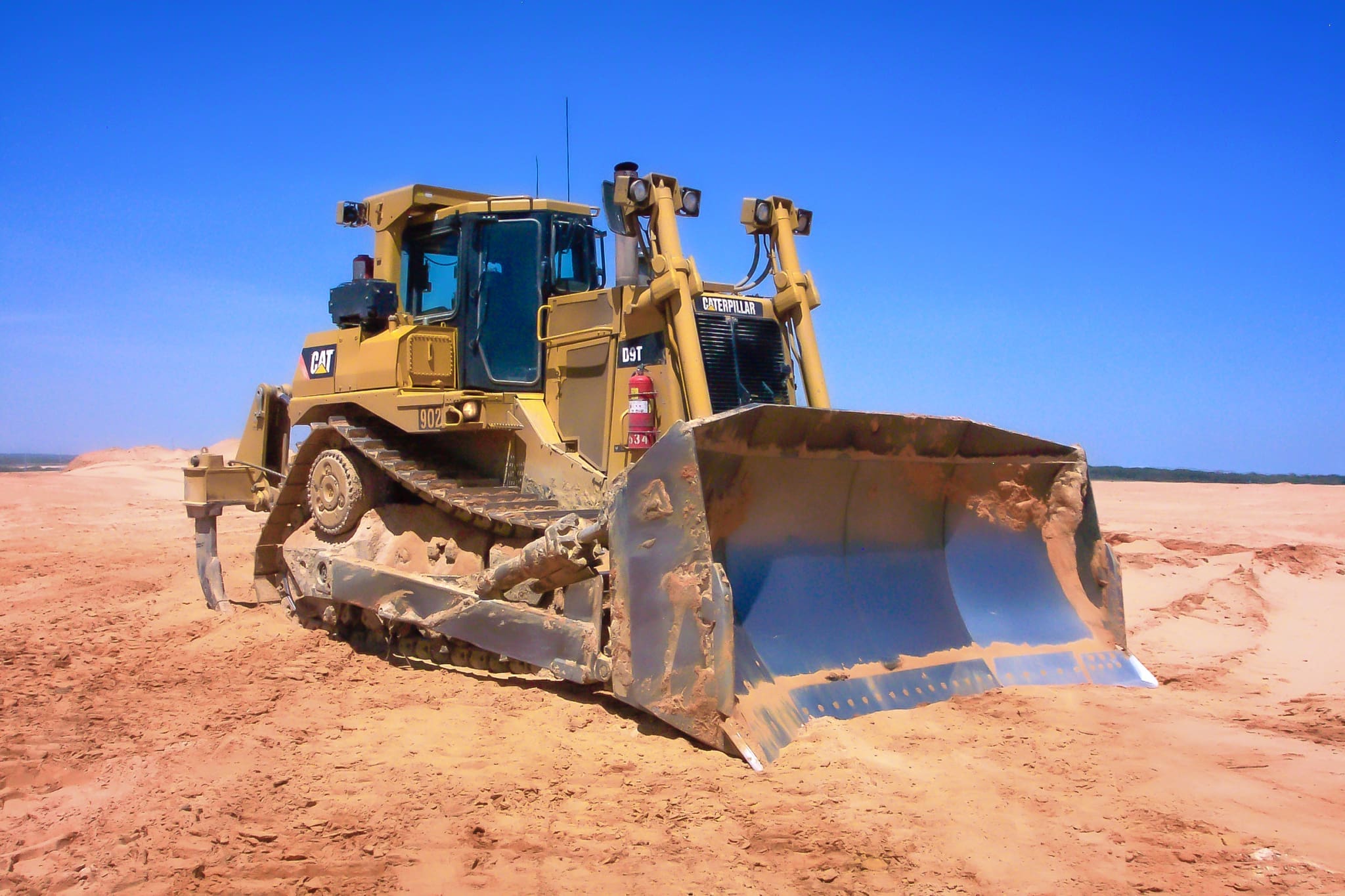

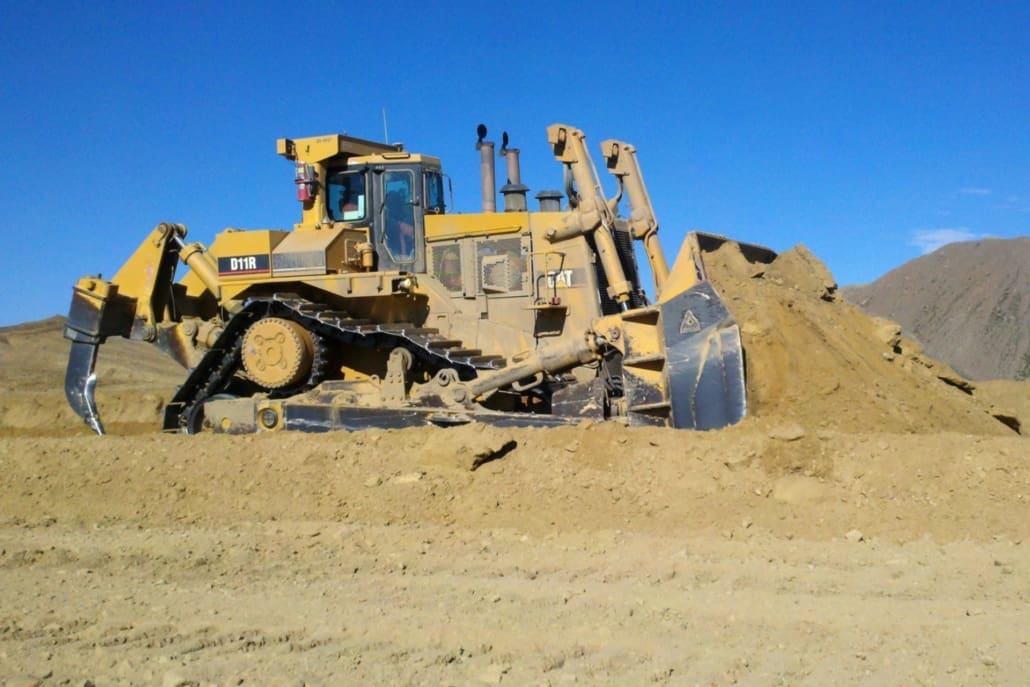

Dymax Reclamation Dozer Blades provide 40% more dozing capacity than traditional blades, thanks to their large U-shaped wings and proven moldboard radius design. Many mines prefer this style for overburden and slot dozing, as it moves more material per pass while improving fuel efficiency.

Reclamation blades can be equipped with a variety of replaceable wear parts and liner systems for maximum abrasion resistance.

Available for Caterpillar, Komatsu and Liebherr crawler dozer and track type tractors. A Balderson family tradition since the 1930s.

Features

  • 28° wing angle.
  • Includes replaceable OEM brand cutting edges.
  • Fits factory outside mount push arms.

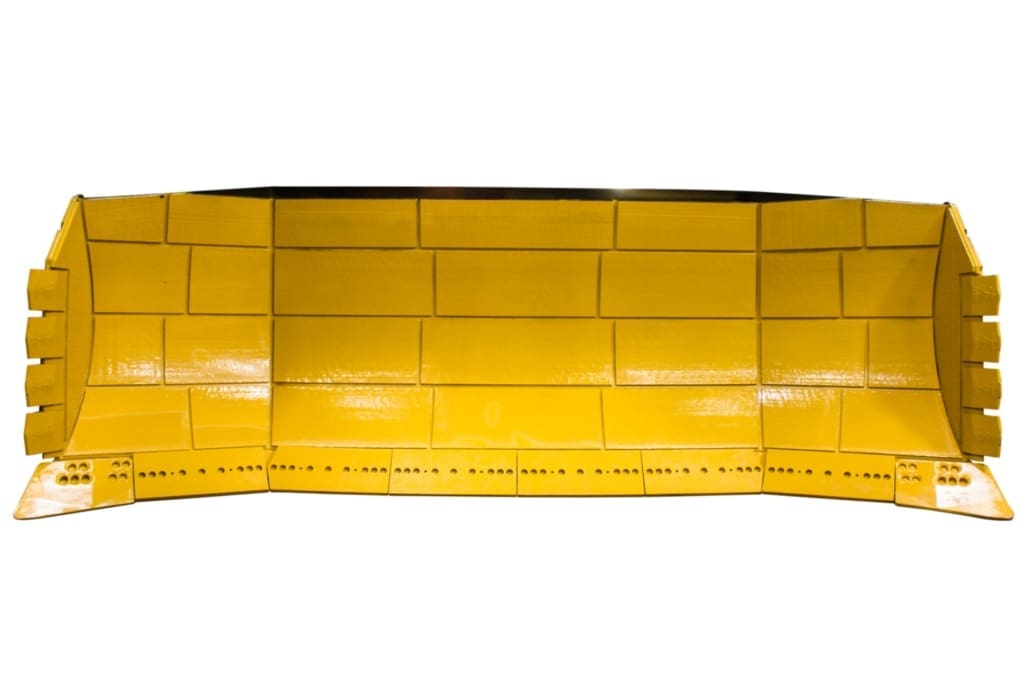

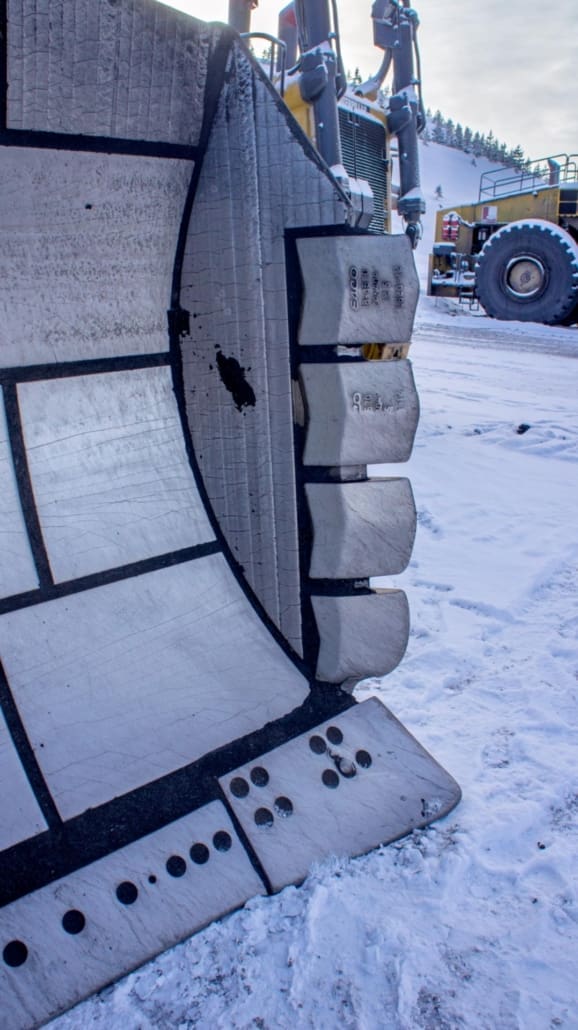

  • Available with liner wear package for severe abrasion resistance in moderate to high impact environments.

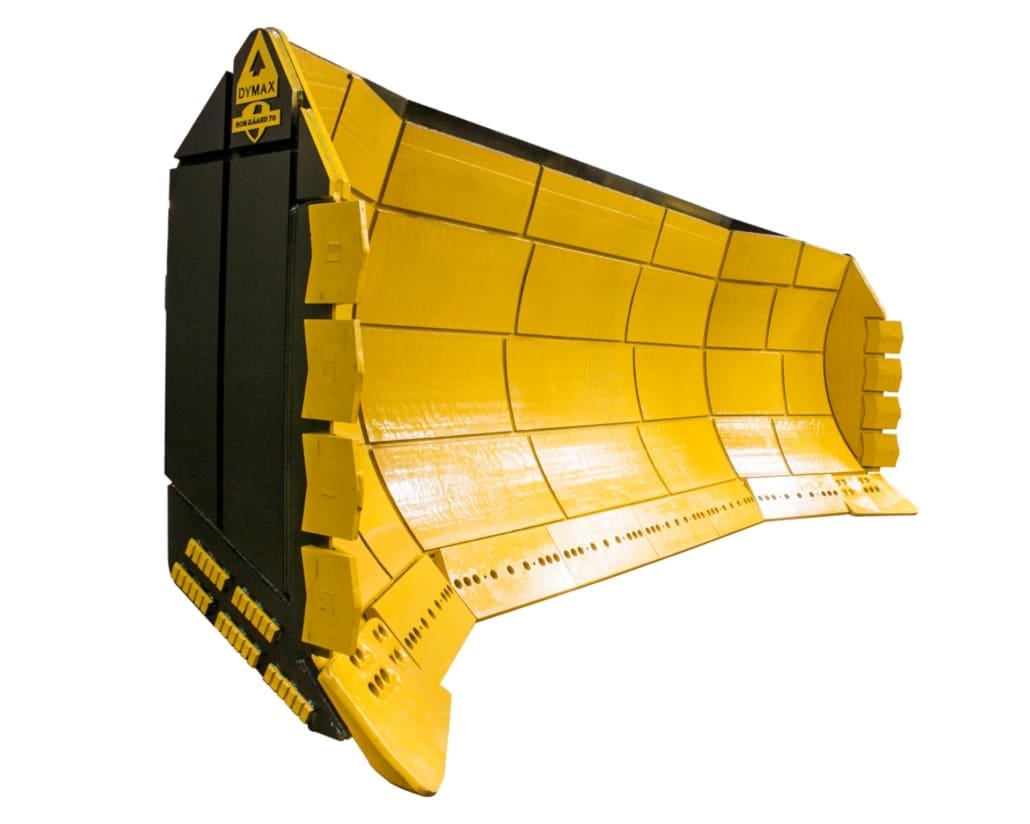

  • Available with white iron wear blocks, side replacement shrouds and other types of wear protection.
  • DOWNLOAD BROCHURE

  • CONTACT US

SPECIFICATIONS

Machine Size Model Code
Description
Weight
Cat D6, Komatsu D65 DX-BL-RC-10.46x12ft-TD-10

Blade – Reclamation – 10.46 yd³ capacity x 12 feet wide – Track Dozer – Class 10.

STANDARD FEATURES: replaceable bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms.

Weight: 3,800 lbs

Cat D7, Komatsu D85 DX-BL-RC-15.00x14ft-TD-20

Blade – Reclamation – 15.00 yd³ capacity x 14 feet wide – Track Dozer – Class 20.

STANDARD FEATURES: replaceable bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms.

Weight: 6,000 lbs

Cat D8, Komatsu D155 DX-BL-RC-22.00X16ft-TD-30

Blade – Reclamation – 22.00 yd³ capacity x 16 feet wide – Track Dozer – Class 30.

STANDARD FEATURES: replaceable bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms, standard T1 moldboard group (non lined).

Weight: 8,600 lbs

Cat D9, Komatsu D275 DX-BL-RC-22.62x15ft-TD-40

Blade – Reclamation – 22.62 yd³ capacity x 15 feet wide – Track Dozer – Class 40.

STANDARD FEATURES: replaceable bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms.

Weight: 8,400 lbs

Cat D9, Komatsu D275 DX-BL-RC-23.1x16ft6-TD-40

Blade – Reclamation – 23.1 yd³ capacity x 16 feet 6 inches wide – Track Dozer – Class 40.

STANDARD FEATURES: 28 degree wing angles, replaceable Caterpillar cutting edges with end bits, vertical slat rock guard on top moldboard, standard T1 moldboard group (non lined), solid side cutters.

Weight: 9,200 lbs

Cat D10, Komatsu D275 DX-BL-RCTX-22.6x15ft3-TD-40

Blade – Reclamation Texas – 22.6 yd³ capacity x 15 feet 3 inches wide – Track Dozer – Class 40.

STANDARD FEATURES: replaceable Cat bolt-on cutting edges, 28 degree wing angles, AR400 wear liner package installed on moldboard face, attaches to factory outside mounted push arms.

Weight: 10,800 lbs

Cat D10, Komatsu D375 DX-BL-RC-40.00x19ft-TD-50

Blade – Reclamation – 40.00 yd³ capacity x 19 feet wide – Track Dozer – Class 50.

STANDARD FEATURES: replaceable bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms.

Weight: 15,800 lbs

Cat D10, Komatsu D375 DX-BL-RCTX-31.6x17ft5-TD-50

Blade – Reclamation Texas – 31.6 yd³ capacity x 17 feet 5 inches wide – Track Dozer – Class 50.

STANDARD FEATURES: replaceable CAT bolt-on cutting edges, 28 degree wing angles, AR400 wear liner package installed on moldboard face, attaches to factory outside mounted push arms

Weight: 14,500 lbs

Cat D11, Komatsu D475 DX-BL-RC-60.0x20ft8-TD-60

Blade – Reclamation – 60.0 yd³ capacity x 20 feet 8 inches wide – Track Dozer – Class 60.

STANDARD FEATURES: replaceable CAT bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms, AR400 10 piece liner package, heavy duty replaceable side cutters.

Weight: 30,380 lbs

Cat D11, Komatsu D475 DX-BL-RC-66.00x22ft-TD-60

Blade – Reclamation – 66.00 yd³ capacity x 22 feet wide – Track Dozer – Class 60.

STANDARD FEATURES: replaceable bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms, AR400 10 piece liner package, heavy duty replaceable side cutters.

Weight: 27,000 lbs

Cat D11, Komatsu D475 DX-BL-RC-68.00x24ft-TD-60

Blade – Reclamation – 68.00 yd³ capacity x 24 feet wide – Track Dozer – Class 60.

STANDARD FEATURES: replaceable bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms, AR400 10 piece liner package, heavy duty replaceable side cutters.

Weight: 28,500 lbs

Cat D11, Komatsu D475 DX-BL-RCRG-60.0x21ft10-TD-60

Blade – Reclamation Carbide Liner – 60.0 yd³ capacity x 23 feet 10 inches wide – Track Dozer – Class 60.

STANDARD FEATURES: replaceable bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms, heavy duty side cutters, vertical slat rock guard on top moldboard, includes full chrome carbide 3/8 on 3/8 wear liner package installed on moldboard face, features 6 piece section in middle and 4 sections on wings.

Weight: 32,600 lbs

Cat D11, Komatsu D475 DX-BL-RCRG-70.0x23ft10-TD-60

Blade – Reclamation Carbide Liner  – 70.0 yd³ capacity x 23 feet 10 inches wide – Track Dozer – Class 60.

STANDARD FEATURES: replaceable CAT bolt-on cutting edges and end bits, 28 degree wing angles, attaches to factory outside mounted push arms, heavy duty replaceable weld on side cutters, includes full chrome carbide 3/8 on 3/8 wear liner package installed on moldboard face, features 6 piece section in middle and 4 sections on wings.

Weight: 33,800

Design and specifications are subject to change without notice.
