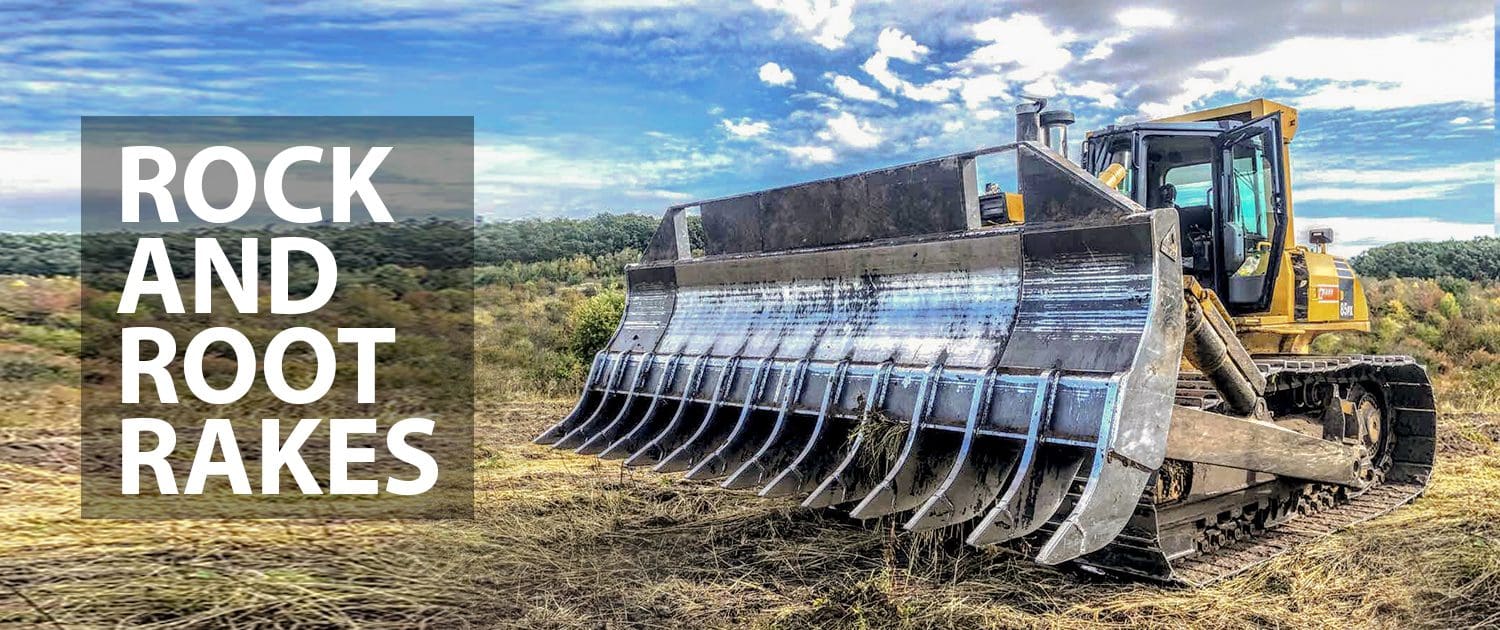

ROCK AND ROOT RAKE FOR DOZERS
Dymax ROCK AND ROOT Rakes are available for fitting Track Dozers operating in large scale land clearing operations. Excellent for clearing rocks, roots, vegetation and debris of all types. All models are made for fitting conventional outside mounted push arm groups and replace the factory semi-u or straight dozer blade.
APPLICATIONS
- Site remediation
- Mining for accessing minerals and ore
- Erosion control
- Field preparation to remove unwanted obstructions
- Fire break management in forest land
- Road maintenance & construction
- Demolition
Models & Specifications
| FOR CAT D6 (NON LGP), KOMATSU D65 OR DEERE 850 DOZERS
Model No. DX-RK-RR-136in-TD-10 Rake-Rock & Root-136 inches wide-Track Dozer-Class 10 STANDARD FEATURES: • AR400 steel ripper shanks • 1.50 in thick steel tines • 15 tines • 8 inch tine spacing (on average) • Weld on replaceable AR400 tine tips • 70 in height NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm Weight 5,300 lbs / Ref 4583D2 Styling |
| FOR CAT D7, KOMATSU D85 OR DEERE 950 DOZERS
Model No. DX-RK-RR-172in-TD-20 Rake-Rock & Root-172 inches wide-Track Dozer-Class 20 STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 1.50 inch steel tine thickness • 14 tines • Weld on replaceable AR400 tine tips • 11.5 inch tine spacing (on average) • 72 inch height NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm Weight 6,540 lbs / Ref 7098D2 Styling |
| FOR CAT D8, KOMATSU D155 OR DEERE 1050 DOZERS
Model No. DX-RK-RR-158in-TD-30 Rake-Rock & Root-158 inches wide-Track Dozer-Class 30 STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 2.50 inch steel tine thickness • 10 tines • Weld on replaceable AR400 tine tips • 14 inch tine spacing (on average) • 78 inch height NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm Weight 8,950 lbs / Ref 6159D2 Styling |
| FOR CAT D8, KOMATSU D155 OR DEERE 1050 DOZERS – NARROW TINE SPACING
Model No. DX-RK-RR-158in-TD-30 Rake-Rock & Root-158 inches wide-Track Dozer-Class 30 STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 2.50 inch steel tine thickness • 18 tines • Weld on replaceable AR400 tine tips • 6 inch tine spacing (on average) • 78 inch height NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm Weight 9,500 lbs / Ref 6232D Styling |
| FOR CAT LGP WIDE TRACK DOZERS
Model No. DX-RK-RR-165in-TD-10LGP Rake-Rock & Root-165 inches wide-Track Dozer-Class 10 LGP Wide Track STANDARD FEATURES: • AR400 steel ripper shanks • 1.50 in thick steel tines • 18 tines • 8 inch tine spacing (on average) • Weld on replaceable AR400 tine tips • 70 in height NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm Weight 6,400 lbs |
| FOR CAT D8, KOMATSU D155 OR DEERE 1050 DOZERS
Model No. DX-RK-RRXD-180in-TD-30 Rake-Rock & Root Extreme Duty-180 inches wide-Track Dozer-Class 30 FOR SEVERE DUTY APPLICATIONS ONLY STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 3.00 inch steel tine thickness • 14 tines • Weld on replaceable AR400 tine tips • 10.5 inch tine spacing (on average) • 78 inch height NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm Weight 11,200 lbs / Ref 7560D1 Styling |
| FOR CAT D9 OR KOMATSU D275
Model No. DX-RK-RRXD-180in-TD-40 Rake-Rock & Root Extreme Duty-180 inches wide-Track Dozer-Class 40 FOR SEVERE DUTY APPLICATIONS ONLY STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 3.00 inch steel tine thickness • 17 tines • Weld on replaceable AR400 tine tips • 8 inch tine spacing (on average) • 84 inch height NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arm Weight 12,450 lbs / Ref 5296D1 Styling |
| FOR CAT D10 – SEVERE DUTY APPLICATIONS
Model No. DX-RK-RRXD-192in-TD-50 Rake-Rock & Root Extreme Duty-192 inches wide-Track Dozer-Class 50 STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 3.00 inch steel tine thickness • 16 tines • 84 inches tall • 12 inch tine spacing on average • Weld on replaceable tine tips with carbide overlay. NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arms Weight 15,000lbs |
| FOR CAT D10 – SEVERE DUTY APPLICATIONS
Model No. DX-RK-RRXD-216in-TD-50 STANDARD FEATURES: • AR400 hi-strength steel ripper tines • 3.00 inch steel tine thickness • 18 tines • 92 inches tall • 9 inch tine spacing on average • Weld on replaceable tine tips with carbide overlay. NOT SUPPLIED: Not supplied with connector blocks, pins or retainers for attaching to push arms, Weight 16,000 lbs |
Design and specifications are subject to change without notice.
