DYMAX TRASH GRAPPLE RAKES

Dymax Trash Grapple Rakes are ideal for general cleanup applications and feature a narrow tine spacing to help retain materials while letting dirt and unwanted materials to escape.

APPLICATIONS

C&D debris removal; recycling and scrap yard, disaster response and storm cleanup; waste management and disposal; mulch and composting.

KEY FEATURES

  • Hi-strength 5/8″ + 1″ T1 steel rake tines with 6 inch spacing
  • 115 inch clamp opening for maximum capacity
  • Powerful 4.0″ bore cylinders deliver powerful clamping force
  • Coupler hooks to fit many popular coupler sizes
  • Tine style back for enhanced visibility
  • Available with dual independent grapple clamps or full width
Machine Operating Weight – 20,000-24,000 lbs

Model No: DX-RK-RFTG-98×18-WL-40

Rake – Refuse Trash Grapple – 98 inches wide x 18 total tines – Wheel Loader – Class 40

• 0.63 A514 X 1.00 A572 combination steel tine rake structure • 115 inch clamp opening for high capacity loading • 6.0 inch tine spacing on average • 4.0 x 16.0 cylinder • Tine style back (no dozer plate)

Weight 4,450 lbs
Machine Operating Weight – 26,000-31,500 lbs

Model No: DX-RK-RFTG-112×20-WL-50

Rake – Refuse Trash Grapple – 112 inches wide x 20 total tines – Wheel Loader – Class 50

• 0.63 A514 X 1.00 A572 combination steel tine rake structure • 115 inch clamp opening for high capacity loading • 6.0 inch tine spacing on average • 4.0 x 16.0 cylinder • Tine style back (no dozer plate)

Weight 5,120 lbs
Machine Operating Weight – 32,000-38,000 lbs

Model No: DX-RK-RFTG-126×22-WL-50

Rake – Refuse Trash Grapple – 126 inches wide x 22 total tines – Wheel Loader – Class 60

• 0.63 A514 X 1.00 A572 combination steel tine rake structure • 115 inch clamp opening for high capacity loading • 6.0 inch tine spacing on average • 4.0 x 16.0 cylinder • Tine style back (no dozer plate)

Weight 5,850 lbs
Machine Operating Weight – 40,000-47,500 lbs

Model No: DX-RK-RFTG-140×24-WL-70

Rake – Refuse Trash Grapple – 126 inches wide x 22 total tines – Wheel Loader – Class 70

• 0.63 A514 X 1.00 A572 combination steel tine rake structure • 115 inch clamp opening for high capacity loading • 6.0 inch tine spacing on average • 4.0 x 16.0 cylinder • Tine style back (no dozer plate)

Weight 6,500 lbs

Design and specifications are subject to change without notice.  For custom solutions please contact Dymax Sales 1-800-530-5407.

gn specifications are subject to change without notice.  For special design requirements, unique tine spacing or options please contact Dymax sales 1-800-530-5407

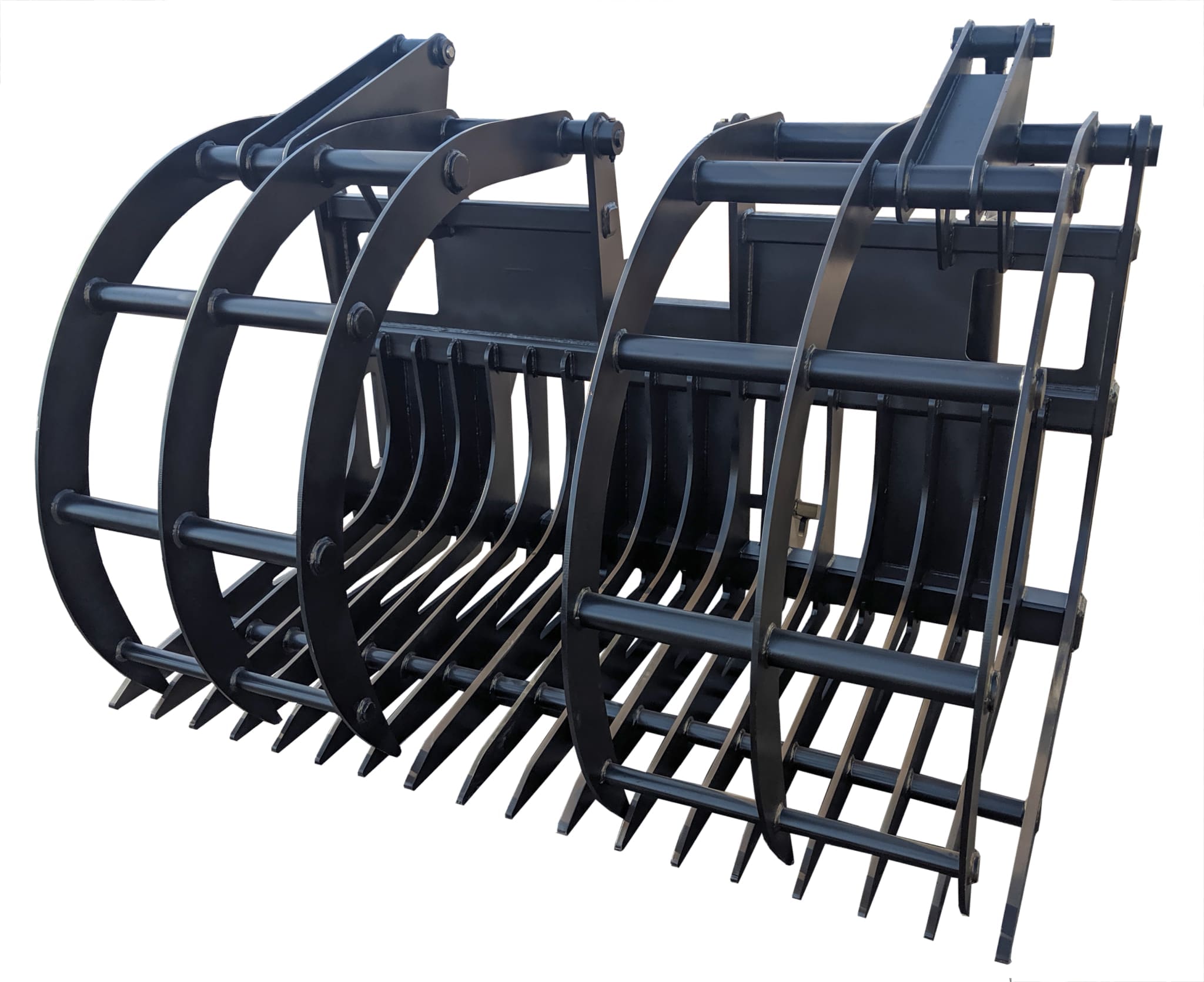

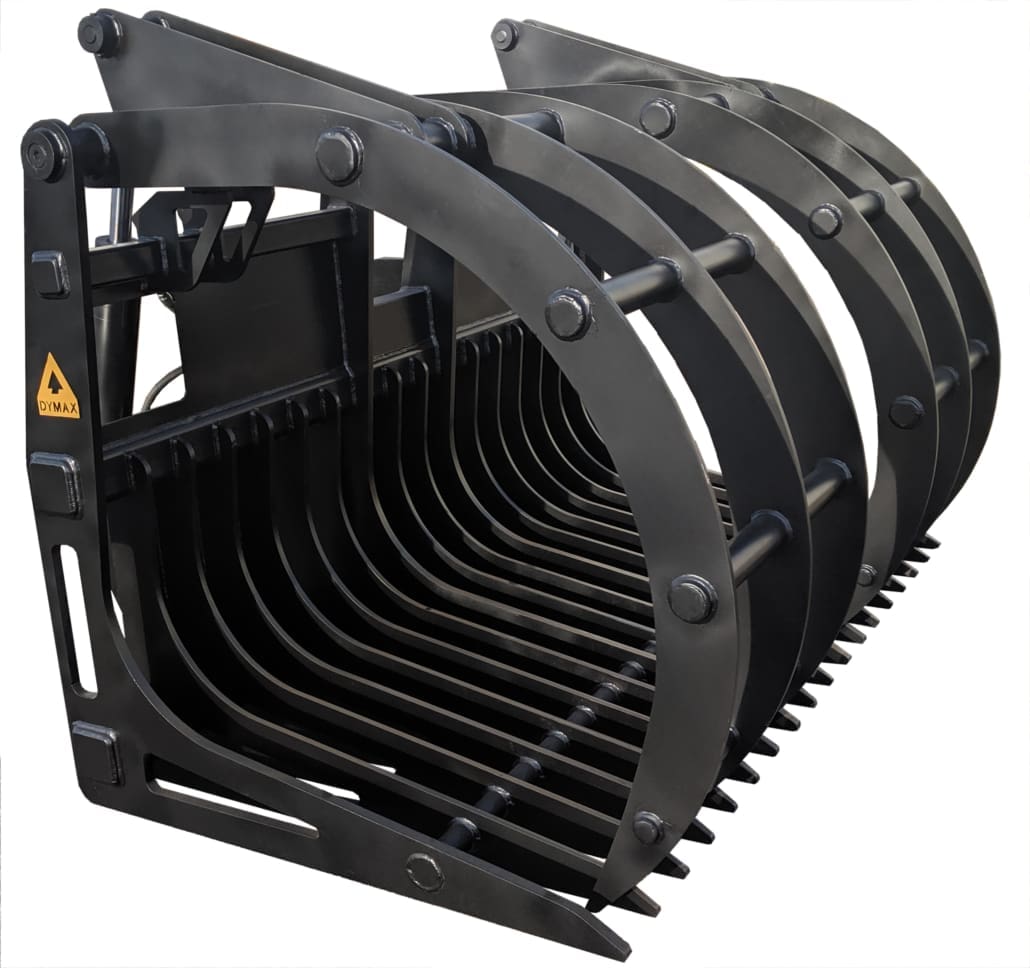

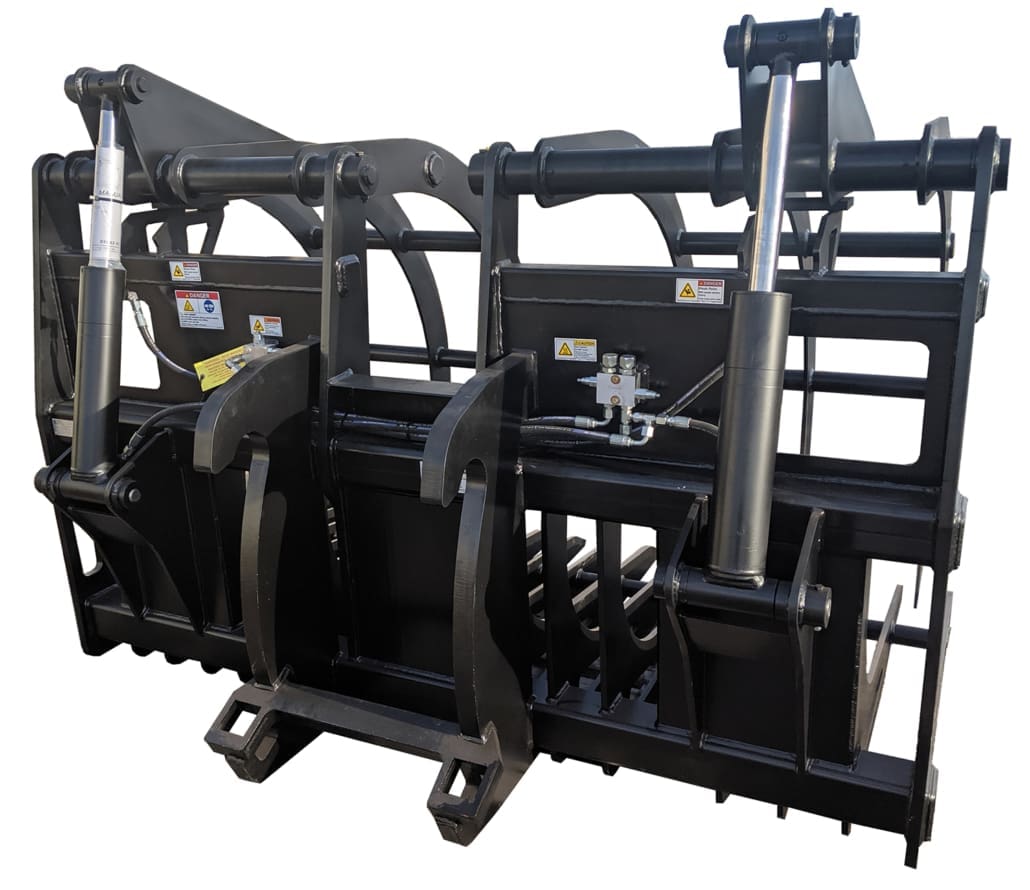

GALLERY
