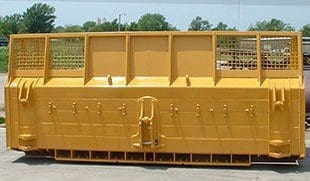

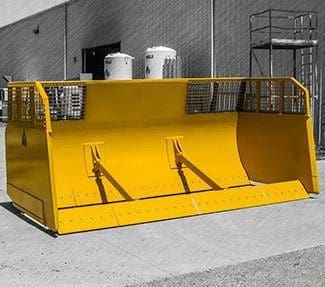

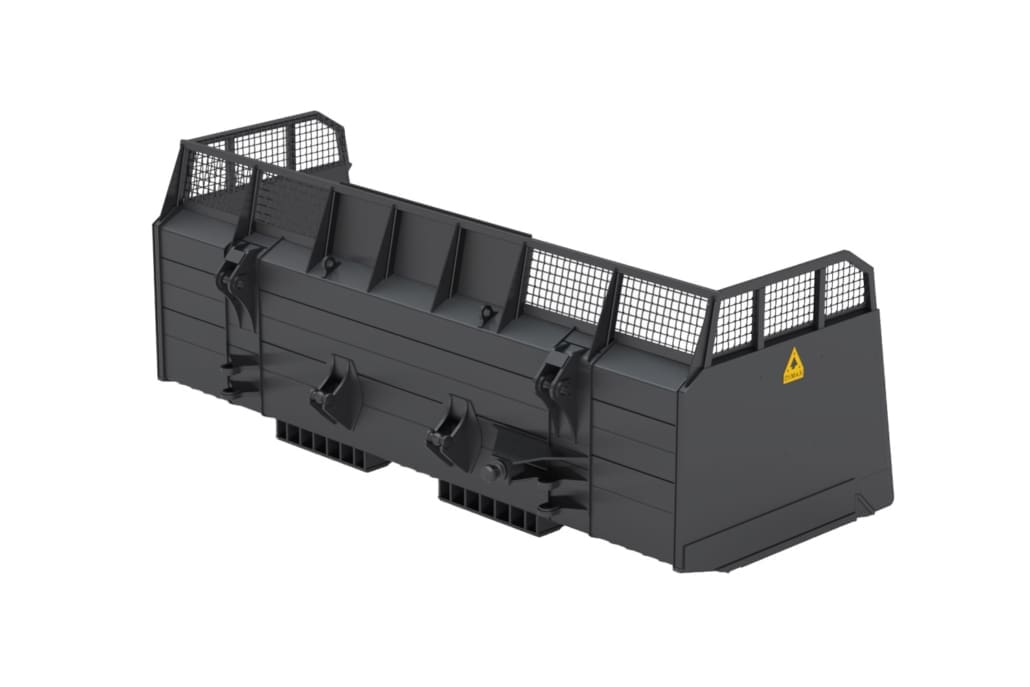

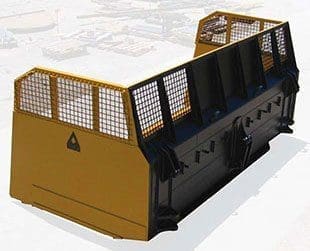

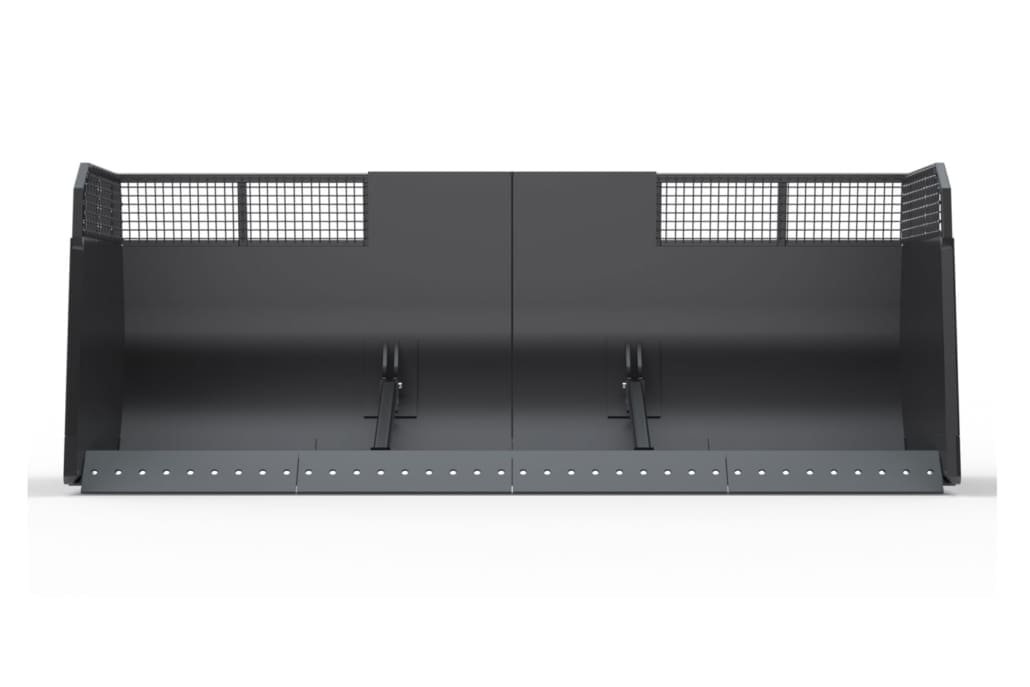

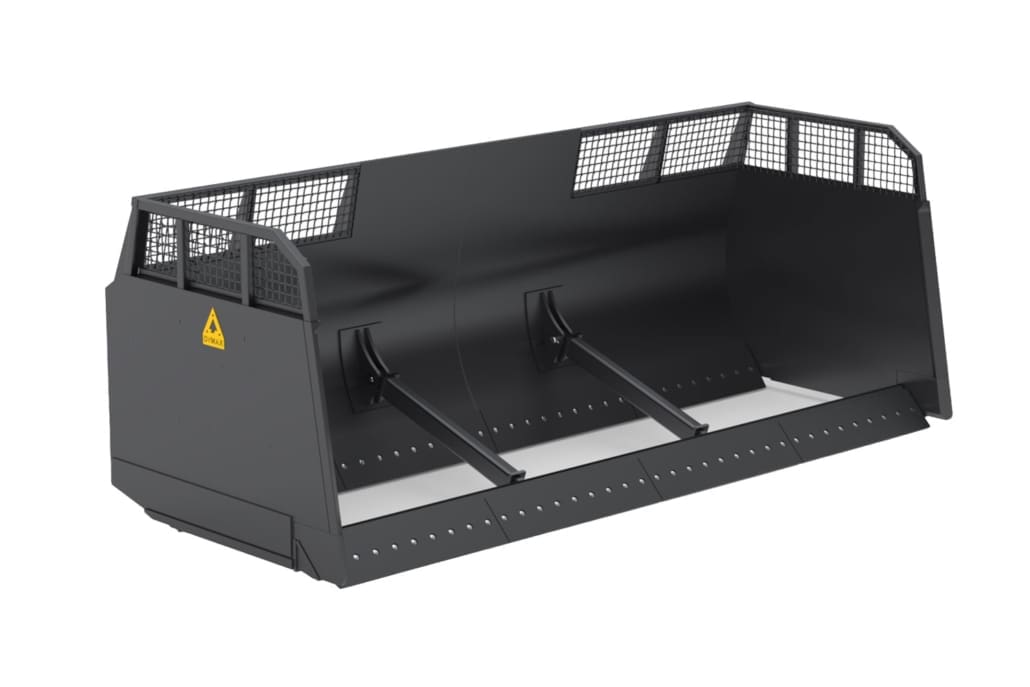

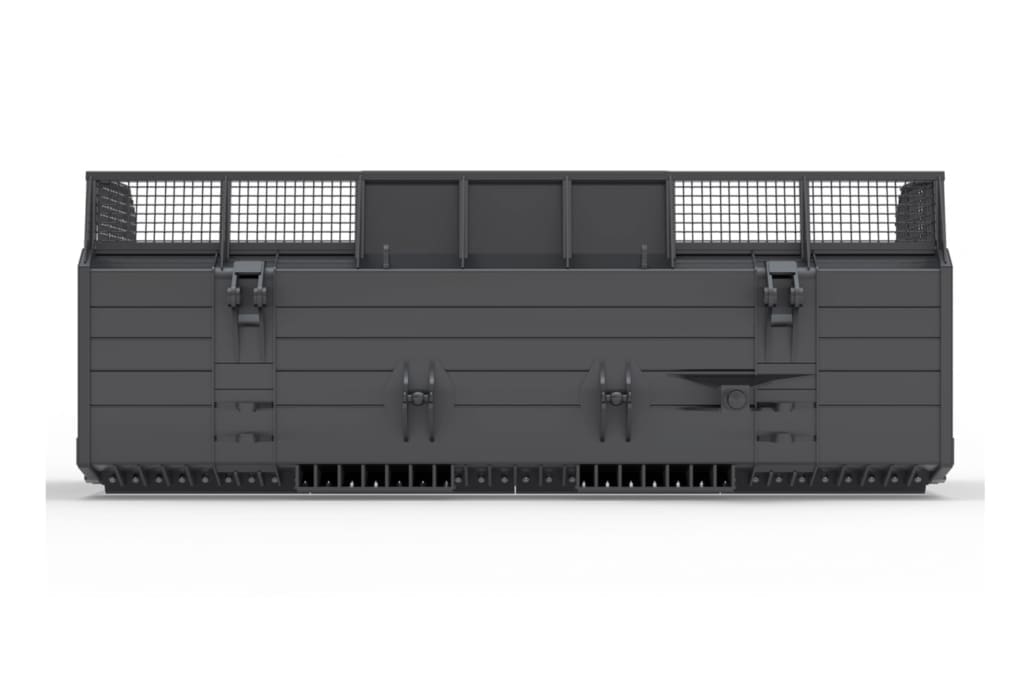

Woodchip Bowldozers for Dozers / Crawler Tractors

Dymax Woodchip Bowldozer attachments feature large side walls that contain more material than traditional woodchip U blades. The leading edge of the Woodchip Bowldozer cuts the material, allowing the operator to fill the box section completely, then drift the load, reducing side spill and maximizing capacity.

Dymax Woodchip Bowldozers are ideal for hog fuel plants that use wood chips as fuel, and are frequently used for slot dozing feeding hoppers.

Dymax Woodchip Bowldozer Blades are available for Caterpillar, Komatsu and Liebherr Crawler Dozer and Track Type Tractors and Caterpillar and Komatsu Wheel Dozers. A Balderson family tradition since the 1930s.

Features:

  • Heavy duty side wall construction with high strength, high tensile steel.
  • Includes replaceable OEM brand cutting edges and replaceable sole plate cutting edges on the bottom side of the back dozer moldboard.
  • Includes standard screen design built into the top section.
  • Pin style leading edge support links.
  • Fits factory outside mount push arms.
  • On some wheel dozer models, machine modification is required for the lifting cylinder arrangement.
  • Custom configurations available.
  • DOWNLOAD BROCHURE

  • CONTACT US

SPECIFICATIONS

Machine Size Model Code

Description

Weight

Cat 824 DX-BL-BDWC-36.6x15ft4-WD-20

Blade – Bowldozer Woodchip – 36.6 yd³ capacity x 15 feet 4 inches wide – Wheel Dozer – Class 20.

STANDARD FEATURES: replaceable Cat pattern bolt-on cutting edges, twin edge support for leading stinger edge group, visibility screen in back moldboard group, underside sole plate cutting edges, attaches to outside push arms.

Weight: 11,290 lbs

Cat D8, Komatsu D275 DX-BL-BDWC-42.8x18ft6-TD-30

Blade – Bowldozer Woodchip – 42.8 yd³ capacity x 18 feet 6 inches wide – Track Dozer – Class 30.

STANDARD FEATURES: replaceable Cat style bolt-on cutting edges, heavy duty side walls with upper side screen, leading stinger edge with pin supports – includes 4x 7T-9126 edges, side screen windows, center plate solid in front of radiator, underside sole plate edge group, retainer tapped pads for lines group connections on moldboard per machine arrangement, 83″ height in center and side walls

Weight: 14,500 lbs

Cat D8, Komatsu D275 DX-BL-BDWC-45.00x17ft-TD-30

Blade – Bowldozer Woodchip – 45.00 yd³ capacity x 17 feet wide – Track Dozer – Class 30.

STANDARD FEATURES: replaceable bolt-on cutting edges, heavy duty side walls, 2x leading stinger edge with pin supports, side screen windows, underside sole plate edge group.

Weight: 14,500 lbs

Cat D9, Komatsu D275 Weight: DX-BL-BDWC-80.0x22ft9-TD-40

Blade – Bowldozer Woodchip – 80.00 yd³ capacity x 22 feet 9 inches wide – Track Dozer – Class 40.

STANDARD FEATURES: replaceable Cat style bolt-on cutting edges, heavy duty side walls, leading stinger edge with pin supports.

For CAT D9-07A New Dozer

(Made like 8474C1 Balderson D9N model)

Weight: 15,800 lbs

Design and specifications are subject to change without notice.
