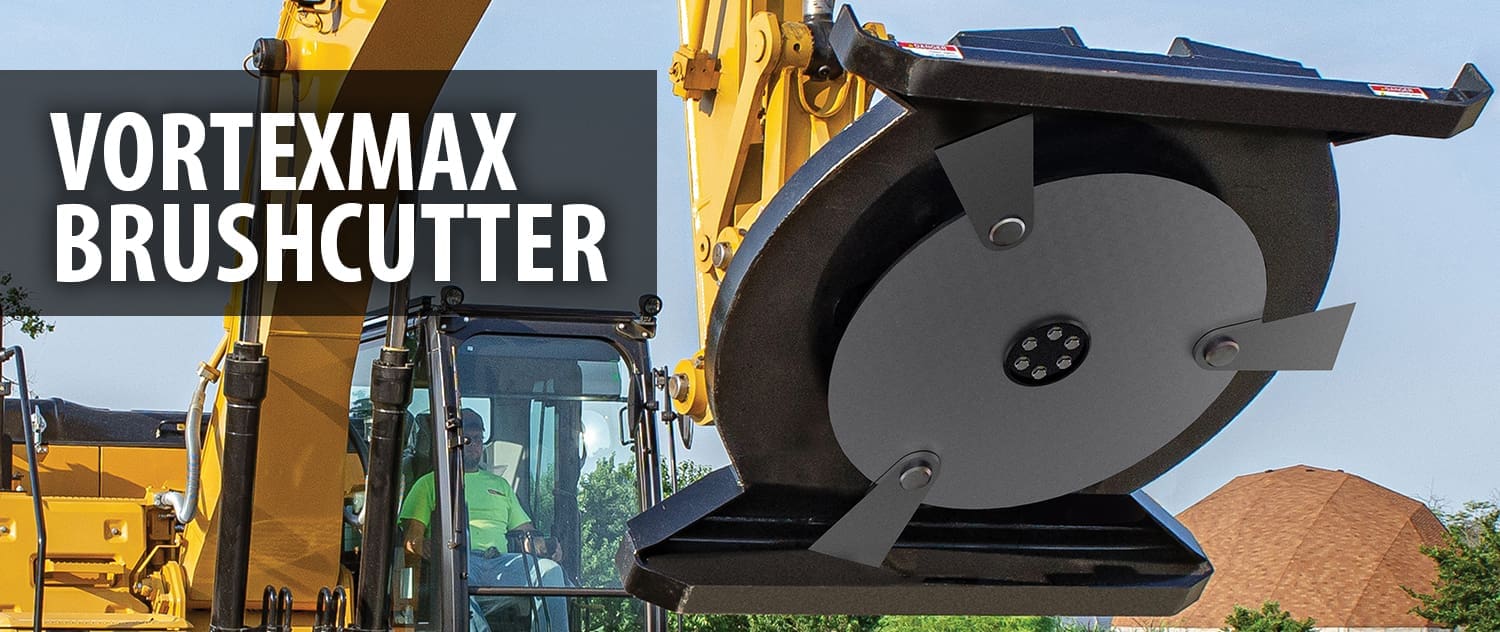

VortexMax Brush Cutter for Hydraulic Excavators
TOUGH AND DEPENDABLE
The Dymax VortexMax Brushcutter is the toughest brush cutter made for 20-30T hydraulic excavators. With a 750 flywheel and 3 AR400 blades, the VortexMax destroys small trees and brush up to 8″ in diameter.
The Dymax VortexMax Brushcutter is available with a 60-inch cutting width.

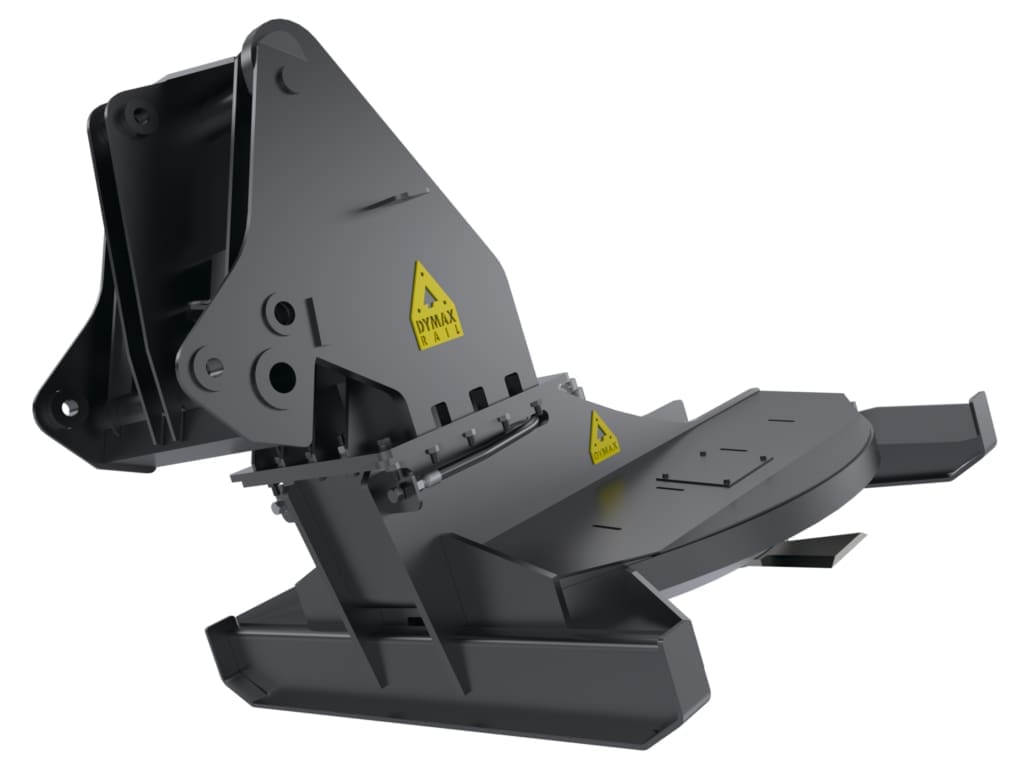

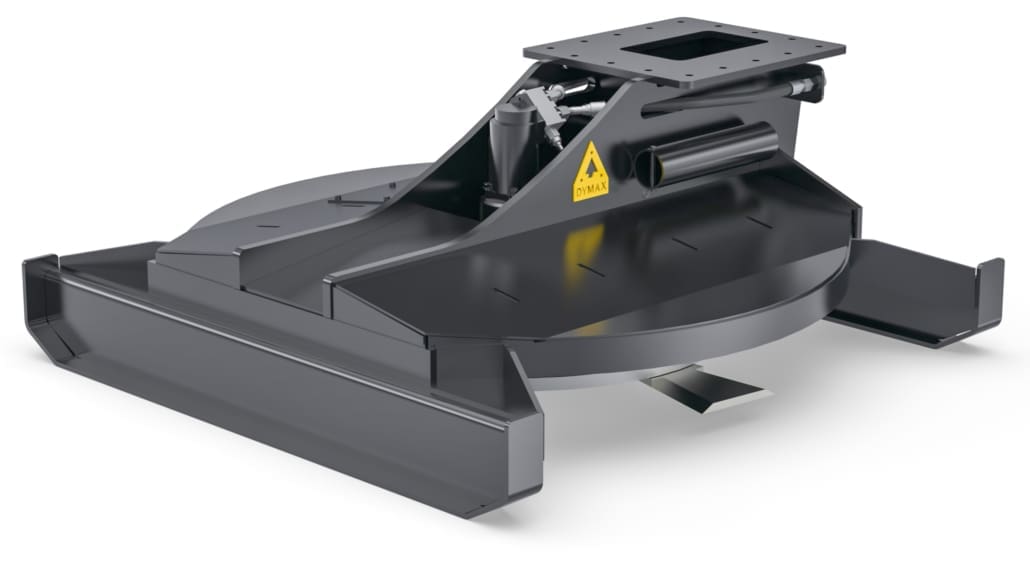

Equipped with a heavy duty, open end frame design, the VortexMax Brushcutter cuts the material before it encounters the deck. This allows for faster cleanout and recycle times, increasing overall efficiency.
KEY FEATURES & BENEFITS
- Up to 8″ diameter cutting capacity.
- (3) AR400 replaceable cutting knives.
- Powerful gear motor system.
- Heavy duty open-sided deck/frame design holds up to 24/7 operations.
- 750 lb flywheel.
- Available in 60″ cutting width.
- Features dual discharge deck.
APPLICATIONS
- Vegetation management
- General land clearing and site prep
- Roadside and transmission utility line right-of-way clearing

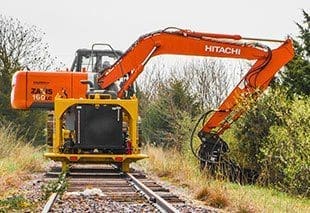

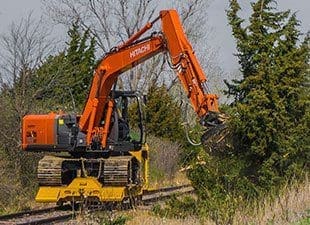

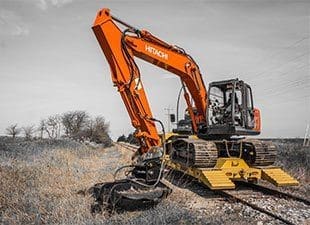

- Railway right of way clearing
WATCH NOW: BRUSHCUTTER DEMONSTRATION VIDEO & CUSTOMER STORY
MISSOURI DEPARTMENT OF CONSERVATION
“The cutting edge is quite heavy. We can put it through some punishment. We need to get all the way to the bottom to keep the sides of levees looking good and manageable. The Dymax VortexMax Brush cutter has a long reach and is doing a good job. We can take out trees up to 8 inches wide.”
– J. Brittain, Heavy Equipment Operator
SPECIFICATIONS
| Model Code Description Weight |
|||
| DX-VT-MAX-60in-HX-20T
Vortex – Max – 60 inches wide – Hydraulic Excavator – 20 Ton STANDARD FEATURES: HD flywheel, (3X) AR400 cutting knives, 60 inches cutting width, up to 8 inch diameter capacity + mulching, Dymax Bolt 303 pattern. Machine adapter sold separately. Weight: 2850 lbs |
|||
| DX-VT-MAX-60in-HX-25T
Vortex – Max – 60 inches wide – Hydraulic Excavator – 25 Ton STANDARD FEATURES: HD flywheel, (3X) AR400 cutting knives, 60 inches cutting width, up to 8 inch diameter capacity + mulching, Dymax Bolt 303 pattern, machine adapter and pins. Weight: 2850 lbs |
|||
| DX-VT-MAX-60in-HX-30T
Vortex – Max – 60 inches wide – Hydraulic Excavator – 30 Ton Standard Features: HD flywheel, (3X) AR400 cutting knives, 60 inches cutting width, up to 8 inch diameter capacity + mulching, Dymax Bolt 303 pattern, machine adapter and pins. Weight: 2850 lbs |
Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions 1-800-530-5407.
HYDRAULIC REQUIREMENTS
| HYDRAULIC REQUIREMENTS |
| CIRCUIT1 – Motor
Type One Way GPM (min/max) 34-41, PSI (max) 3,500 NOT SUPPLIED: Not provided with jumper hoses or disconnects. |
