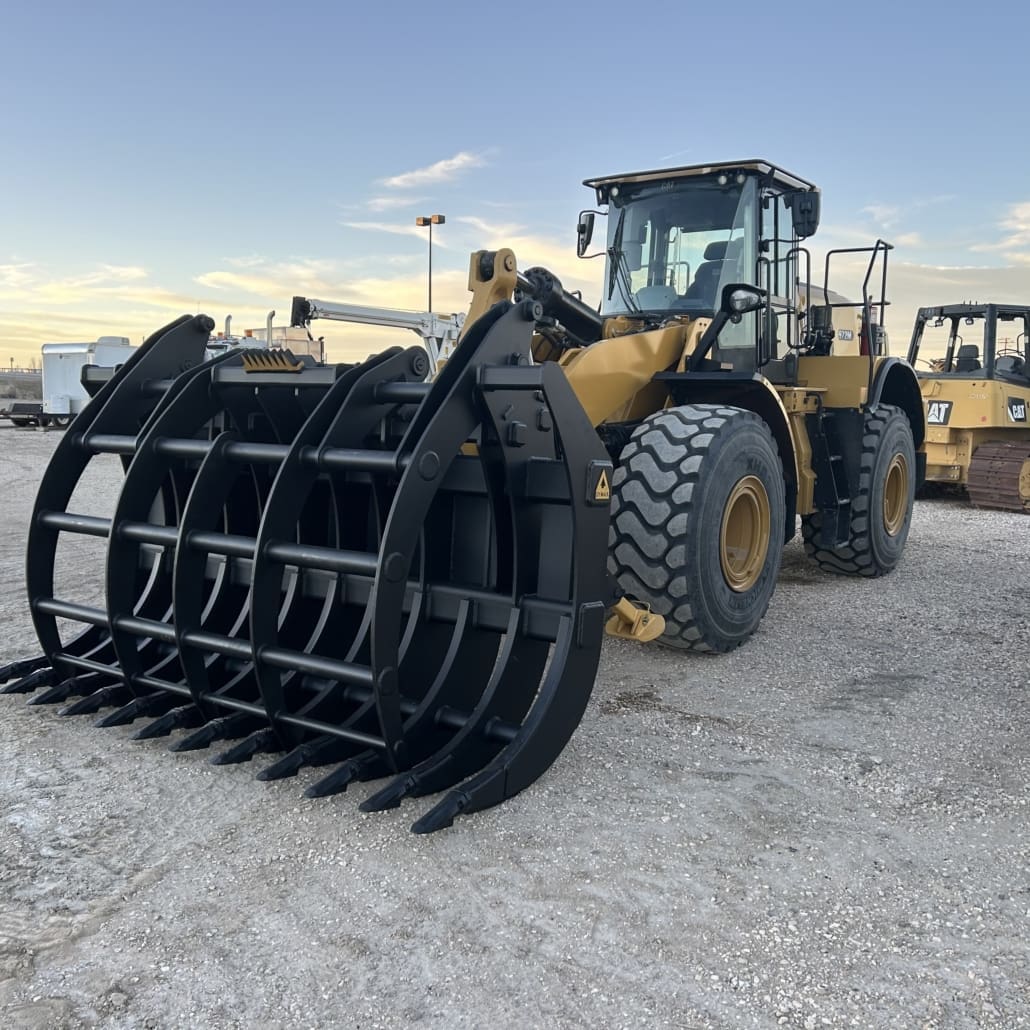

Wheel loader grapple rake with top clamps working on a jobsite

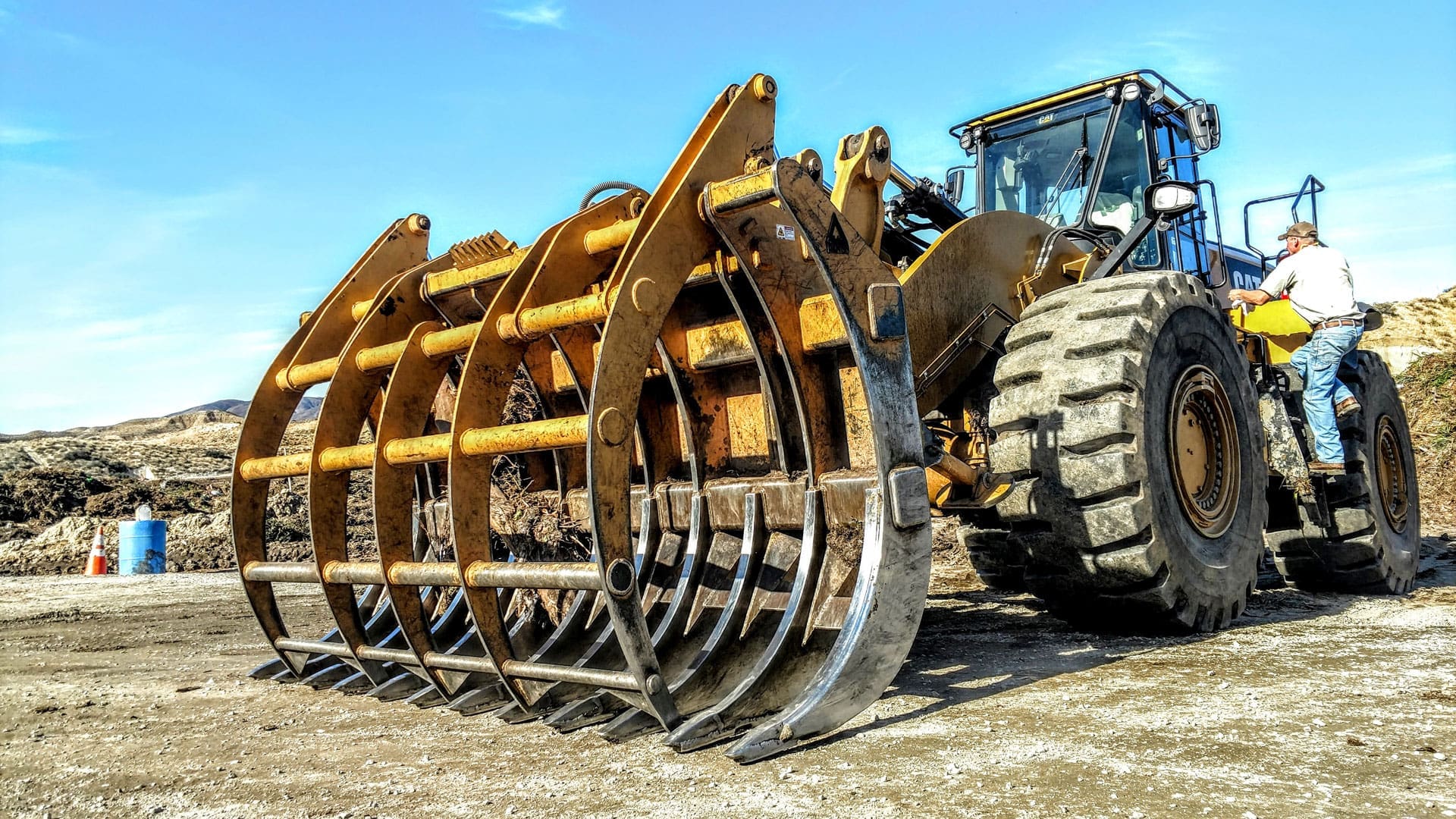

Wheel loader grapple rake with grapples open showing clamp range

EXTREME DUTY WHEEL LOADER GRAPPLE RAKE

Dymax Extreme Duty Wheel Loader Grapple Rakes are built for land clearing, C&D debris removal, storm cleanup, recycling, and waste handling. Available with dual independent grapples or a full-width top clamp, these wheel loader attachments help operators rake, clamp, carry, and sort bulky material with better load control. Models fit many popular quick coupler systems or can pin directly to the loader arms, with weld-on teeth or ESCO replaceable tine tip options available.

FEATURES

  • Abrasion resistant steel tines
  • Select weld-on or replaceable tooth model
  • 10 inch spacing on average
  • Stow legs for easier uncoupling
  • Cushion valve package
  • Heavy-duty long-stroke cylinders
  • Cylinder guards

APPLICATIONS

  • C&D debris removal
  • Recycling
  • Disaster response & storm cleanup
  • Road maintenance & infrastructure
  • Forestry and landclearing
  • Stump removal
  • Waste management and disposal
  • Mulch and compost operations

CUSTOMIZE YOUR LOADER RAKE

 DUAL OR FULL-WIDTH TOP CLAMPS | TEETH & TIPS | CUSTOM DESIGNS

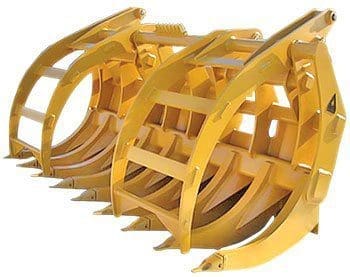

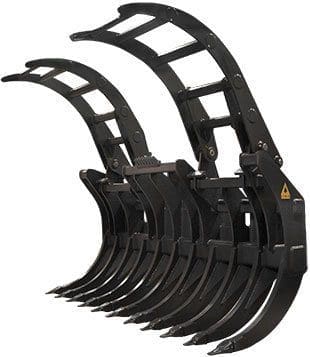

DUAL GRAPPLE (DX-RK-XSDG)

Dual grapple wheel loader grapple rake attachment (DX-RK-XSDG)

WT SERIES

Features weld on replaceable teeth

WT series grapple rake tine with weld-on replaceable tooth

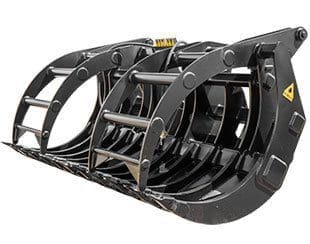

FULL WIDTH GRAPPLE (DX-RK-XSFG)

Full width grapple wheel loader grapple rake attachment (DX-RK-XSFG)

RT SERIES

Features ESCO replaceable tine tips

RT series grapple rake tine with ESCO replaceable tip

SPECIFICATIONS

Model
Description
Weight (lbs)
DX-RK-XSDG-106X9RT-TL-60
Rake-Extreme Service Double Grapple-106 inch raking width x 9 tines with Esco replaceable tips-Track Loader-Class 60
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Esco weld-on nose adapters and replaceable teeth
– 9 total tines with cross tube
– 12 inch tine spacing
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 7.35 cubic yards
WEIGHT: 7150 lbs
DX-RK-XSDG-106X9WT-TL-60
Rake-Extreme Service Double Grapple-106 inch raking width x 9 tines with weld on replaceable tips-Track Loader-Class 60
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Welded AR400 replaceable tine tips
– 9 total tines with cross tube
– 12 inch tine spacing
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 7.35 cubic yards
WEIGHT: 6950 lbs
DX-RK-XSDG-108X10WT-WL-50
Rake-Extreme Service Double Grapple-108 inch raking width x 10 tines with welded replaceable tips-Wheel Loader-Class 50
STANDARD FEATURES:
– 1.50in A514 grade steel rake tines
– Welded AR400 replaceable tine tips
– 10 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 7.45 cubic yards
WEIGHT: 6300 lbs
DX-RK-XSDG-119X11WT-TL-60
Rake-Extreme Service Double Grapple-119 inch raking width x 11 tines with welded replaceable tips-Track Loader-Class 60
STANDARD FEATURES:
– 1.75in A514 grade steel rake tines
– Welded AR400 replaceable tine tips
– 11 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 8.15 cubic yards
WEIGHT: 7000 lbs
DX-RK-XSDG-119X11WT-WL-60
Rake-Extreme Service Double Grapple-119 inch raking width x 11 tines with welded replaceable tips-Wheel Loader-Class 60
STANDARD FEATURES:
– 1.75in A514 grade steel rake tines
– Welded AR400 replaceable tine tips
– 11 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 8.15 cubic yards
WEIGHT: 7000 lbs
DX-RK-XSDG-122x11RT-WL-70
Rake-Extreme Service Double Grapple-122 inch raking width x 11 tines with Esco replaceable tips-Wheel Loader-Class 70
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Esco weld-on nose adapters and replaceable teeth
– 11 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 8.35 cubic yards
WEIGHT: 7600 lbs
DX-RK-XSDG-122x11WT-WL-70
Rake-Extreme Service Double Grapple-122 inch raking width x 11 tines with welded replaceable tips-Wheel Loader-Class 70
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Welded AR400 replaceable tine tips
– 11 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 8.35 cubic yards
WEIGHT: 7400 lbs
DX-RK-XSDG-134x12RT-WL-80
Rake-Extreme Service Double Grapple-134 inch raking width x 12 tines with Esco replaceable tips-Wheel Loader-Class 80
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Esco weld-on nose adapters and replaceable teeth
– 12 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 9.18 cubic yards
WEIGHT: 8600 lbs
DX-RK-XSDG-134x12WT-WL-80
Rake-Extreme Service Double Grapple-134 inch raking width x 12 tines with welded replaceable tips-Wheel Loader-Class 80
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Welded AR400 replaceable tine tips
– 12 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 9.18 cubic yards
WEIGHT: 8400 lbs
DX-RK-XSDG-146x13RT-WL-90
Rake-Extreme Service Double Grapple-146 inch raking width x 13 tines with Esco replaceable tips-Wheel Loader-Class 90
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Esco weld-on nose adapters and replaceable teeth
– 13 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 20.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 10.0 cubic yards
WEIGHT: 10,800 lbs
DX-RK-XSDG-146X13WT-WL-90
Rake-Extreme Service Double Grapple-146 inch raking width x 13 tines with welded replaceable tips-Wheel Loader-Class 90
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Welded AR400 replaceable tine tips
– 13 total tines with cross tube
– Avg tine spacing 10 inches
– Dual independent grapples
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 10.0 cubic yards
WEIGHT: 10,500 lbs

Design and specifications are subject to change without notice.

Model
Description
Weight (lbs)
DX-RK-XSFG-108X10WT-WL-50
Rake-Extreme Service Full Width Grapple-108 inch raking width x 10 tines with welded replaceable tips-Wheel Loader-Class 50
STANDARD FEATURES:
– 1.50in A514 grade steel rake tines
– Weld on AR400 tine tips
– 10 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 7.45 cubic yards
WEIGHT: 6600 lbs
DX-RK-XSFG-119X11WT-WL-60
Rake-Extreme Service Full Width Grapple-119 inch raking width x 11 tines with welded replaceable tips-Wheel Loader-Class 60
STANDARD FEATURES:
– 1.75in A514 grade steel rake tines
– Welded AR400 replaceable tine tips
– 11 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 8.15 cubic yards
WEIGHT: 7000 lbs
DX-RK-XSFG-122x11RT-WL-70
Rake-Extreme Service Full Width Grapple-122 inch raking width x 11 tines with Esco replaceable tips-Wheel Loader-Class 70
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Esco weld on nose adapters and teeth
– 11 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 8.35 cubic yards
WEIGHT: 7650 lbs
DX-RK-XSFG-122x11WT-WL-70
Rake-Extreme Service Full Width Grapple-122 inch raking width x 11 tines with welded replaceable tips-Wheel Loader-Class 70
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Weld on AR400 tine tips
– 11 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 8.35 cubic yards
WEIGHT: 7400 lbs
DX-RK-XSFG-134x12RT-WL-80
Rake-Extreme Service Full Width Grapple-134 inch raking width x 12 tines with Esco replaceable tips-Wheel Loader-Class 80
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Esco weld on nose adapters and teeth
– 12 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 9.18 cubic yards
WEIGHT: 8600 lbs
DX-RK-XSFG-134x12WT-WL-80
Rake-Extreme Service Full Width Grapple-134 inch raking width x 12 tines with welded replaceable tips-Wheel Loader-Class 80
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Weld on AR400 tine tips
– 12 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 16.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 9.18 cubic yards
WEIGHT: 8400 lbs
DX-RK-XSFG-146x13RT-WL-90
Rake-Extreme Service Full Width Grapple-146 inch raking width x 13 tines with Esco replaceable tips-Wheel Loader-Class 90
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Esco weld on nose adapters and teeth
– 13 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 20.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 10 cubic yards
WEIGHT: 11,000 lbs
DX-RK-XSFG-146X13WT-WL-90
Rake-Extreme Service Full Width Grapple-146 inch raking width x 13 tines with welded replaceable tips-Wheel Loader-Class 90
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Weld on AR400 tine tips
– 13 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 20.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 10 cubic yards
WEIGHT: 10,650 lbs
DX-RK-XSFG-194x17RT-WL-100
Rake-Extreme Service Full Width Grapple-194 inch raking width x 17 tines with Esco replaceable tips-Wheel Loader-Class 100
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Esco weld on nose adapters and teeth
– 17 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 20.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 13.29 cubic yards
WEIGHT: 17,500 lbs
DX-RK-XSFG-194X17WT-WL-100
Rake-Extreme Service Full Width Grapple-194 inch raking width x 17 tines with welded replaceable tips-Wheel Loader-Class 100
STANDARD FEATURES:
– 2.00in A514 grade steel rake tines
– Weld on AR400 tine tips
– 17 total tines with cross tube
– Avg tine spacing 10 inches
– Full width grapple (1 piece)
– 4.0 x 20.0 HD cylinders
– Cushion valve kit
– Stand legs for ease of uncoupling from machine
– High-capacity clamp opening of 104 inches
– Approximate heap capacity: 13.29 cubic yards
WEIGHT: 17,100 lbs

Design and specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS
The machine will require standard auxiliary hydraulics for operation of the clamp circuit.

CIRCUIT – Grapple Open and Close
– Type: Two-way (Bi-directional)
– Flow min/max: 15-30 GPM
– Pressure (max): 3000 (max)

NOT SUPPLIED: Not provided with jumper hoses to machine lines.

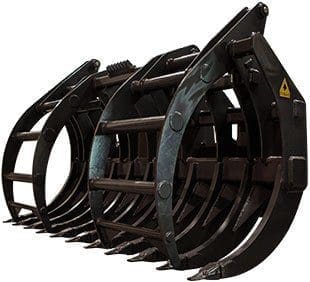

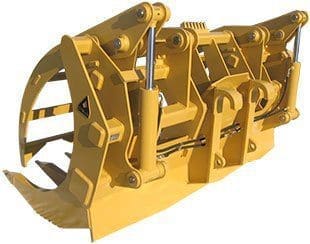

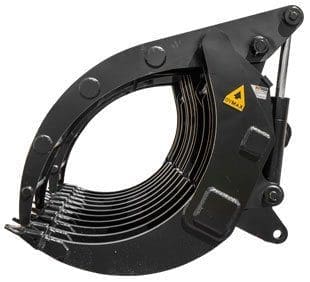

GALLERY

FAQ’S

A dual grapple design gives more independent clamping control, which is helpful on uneven loads. A full-width grapple is better when you want one continuous clamp across the load. Dymax offers both configurations.

Typical jobs include land clearing, C&D debris removal, recycling, storm cleanup, road maintenance, stump removal, waste handling, and mulch or compost operations.

Dymax rakes are available for many popular quick coupler systems or as pin-on versions, with models sized for machines up to 120,000 pounds operating weight. See the specifications table above for more information. Or, contact Dymax Sales (1-785-456-2081) for a personalized recommendation.

Dymax offers weld-on replaceable tooth models and RT-series versions with ESCO replaceable tine tips.

A grapple rake gives operators more control than a standard loader rake by helping clamp and hold bulky or irregular material. That improves load retention and makes handling debris, brush, logs, and other loose material more efficient.

Forks
