General Purpose Buckets for Wheel Loaders, Toolcarriers and Telehandlers:
Dymax General Purpose Buckets for Wheel Loaders, Track Loaders, Toolcarriers and Telehandlers are designed and built to provide years of productive use and service. Available in SDL or HDL style each model can be made to fit your specific application requirements.

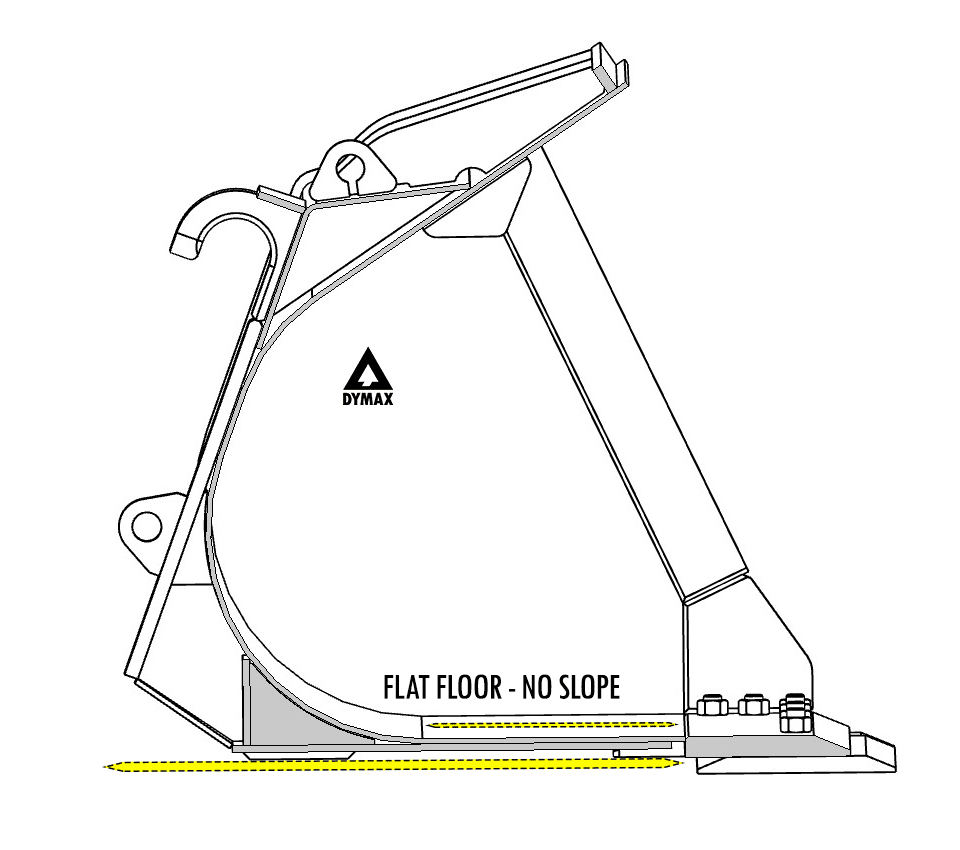

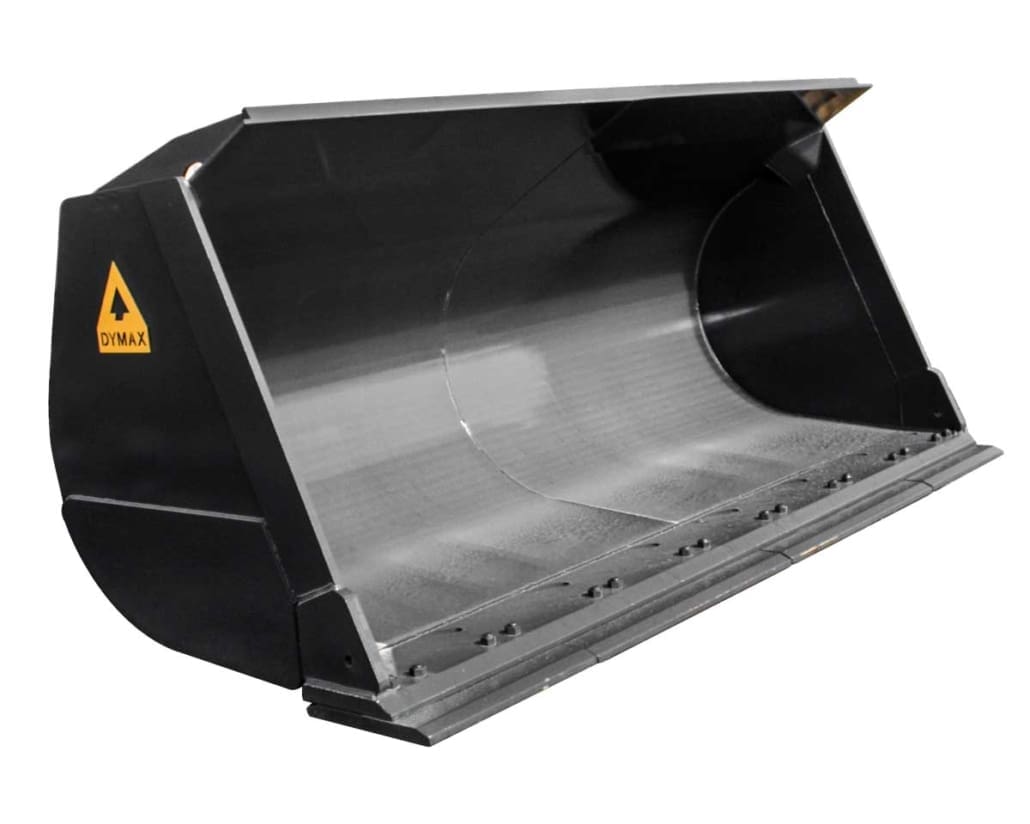

Dymax SD (Standard Duty) General Purpose Buckets feature flat floor construction and bottom wear pads comprised of high tensile steel.

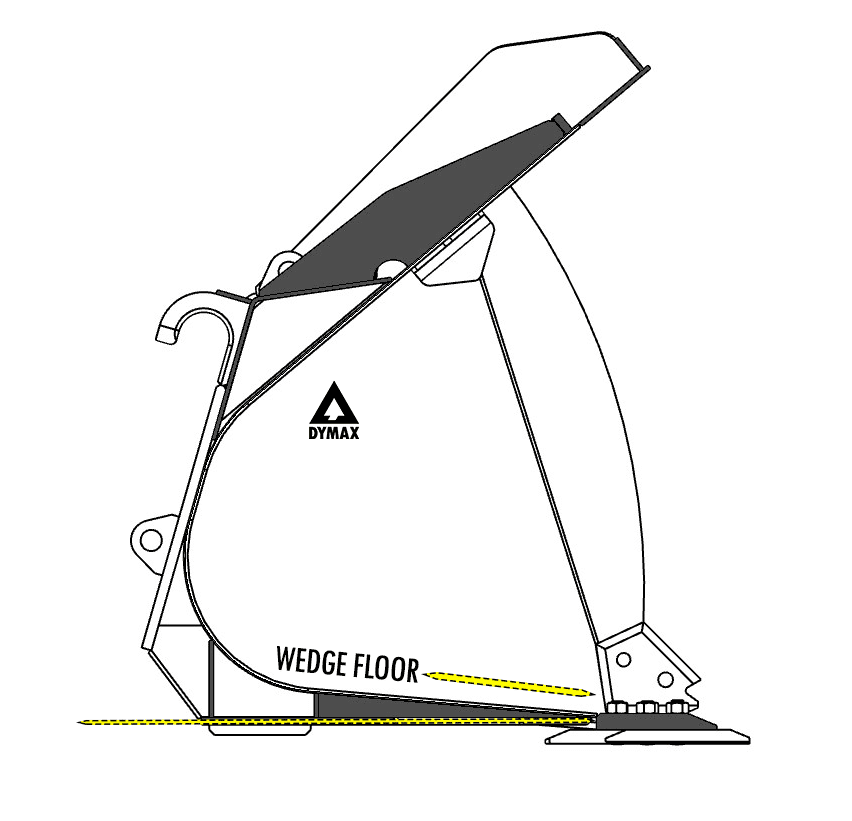

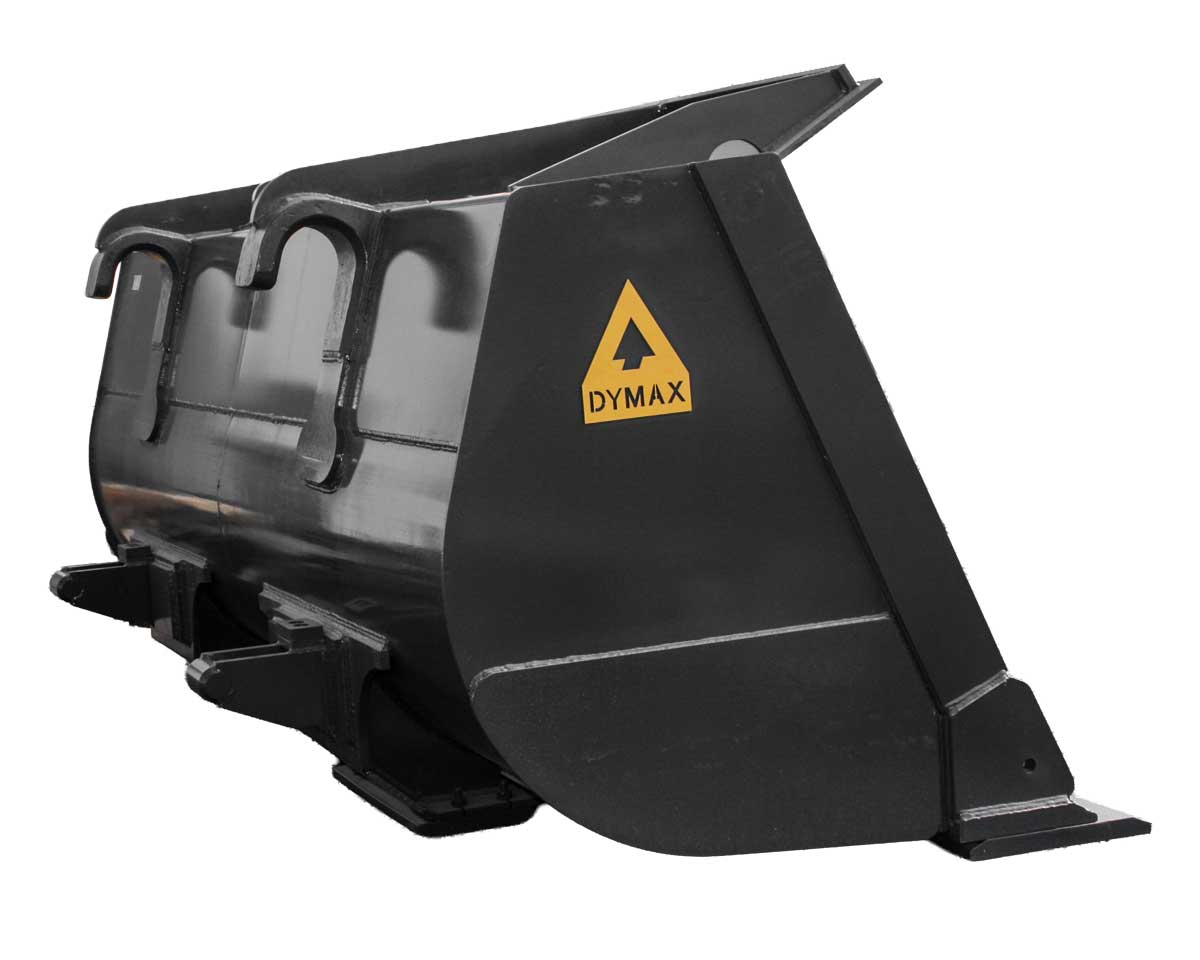

Dymax HD (Heavy Duty) General Purpose Buckets are suited for machines with higher breakout forces, and are designed to match individual loader characteristics, typically yielding additional capacity and production over standard buckets from other manufacturers. The Heavy Duty General Purpose Bucket features a wedge floor design that increases the structural integrity of the bucket, while improving the loading characteristics over flat floor buckets.
Specifications (Standard GP Buckets for Small to Midsize Loaders)
| Model Number | Description | Weight (lbs/kg) |
|---|---|---|
| DX-BK-GPF-2.50cyd-WL-40 | Bucket – General Purpose – Flat Floor Design – 2.50 cyd capacity – Wheel Loader – Class 40 | 2,050 lbs/930 kg |
| DX-BK-GPF-2.75cyd-WL-40 | Bucket – General Purpose – Flat Floor Design – 2.75 cyd capacity – Wheel Loader – Class 40 | 2,160 lbs/980 kg |
| DX-BK-GPF-2.75cyd-WL-50 | Bucket – General Purpose – Flat Floor Design – 2.75 cyd capacity – Wheel Loader – Class 50 | 2,200 lbs/998 kg |
| DX-BK-GPF-3.00cyd-WL-50 | Bucket – General Purpose – Flat Floor Design – 3.00 cyd capacity – Wheel Loader – Class 50 | 2,300 lbs/1,043 kg |
| DX-BK-GPF-3.25cyd-WL-50 | Bucket – General Purpose – Flat Floor Design – 3.25 cyd capacity – Wheel Loader – Class 50 | 2,635 lbs/1,195 kg |
| DX-BK-GPF-3.50cyd-WL-50 | Bucket – General Purpose – Flat Floor Design – 3.50 cyd capacity – Wheel Loader – Class 50 | 2,975 lbs/1,349 kg |
| DX-BK-GPF-3.25cyd-WL-60 | Bucket – General Purpose – Flat Floor Design – 3.25 cyd capacity – Wheel Loader – Class 60 | 2,950 lbs/1,338 kg |
| DX-BK-GPF-3.50cyd-WL-60 | Bucket – General Purpose – Flat Floor Design – 3.50 cyd capacity – Wheel Loader – Class 60 | 3,100 lbs/1,406 kg |
| DX-BK-GPF-3.75cyd-WL-50 | Bucket – General Purpose – Flat Floor Design – 3.75 cyd capacity – Wheel Loader – Class 50 | 3,200 lbs/1,452 kg |
| DX-BK-GPF-4.00cyd-WL-60 | Bucket – General Purpose – Flat Floor Design – 4.00 cyd capacity – Wheel Loader – Class 60 | 3,300 lbs/1,497 kg |
| DX-BK-GPF-4.00cyd-WL-70 | Bucket – General Purpose – Flat Floor Design – 4.00 cyd capacity – Wheel Loader – Class 70 | 3,550 lbs/1,610 kg |
| DX-BK-GPF-4.75cyd-WL-70 | Bucket – General Purpose – Flat Floor Design – 4.75 cyd capacity – Wheel Loader – Class 70 | 3,780 lbs/1,715 kg |
| DX-BK-GPF-5.00cyd-WL-70 | Bucket – General Purpose – Flat Floor Design – 5.00 cyd capacity – Wheel Loader – Class 70 | 4,340 lbs/1,969 kg |
Specifications are subject to change without notice.
Features (Standard GP Buckets for Small to Midsize Loaders)
- Available with replaceable bolt on cutting edges or teeth.
- Fit wheel loaders, toolcarriers and telehandlers.

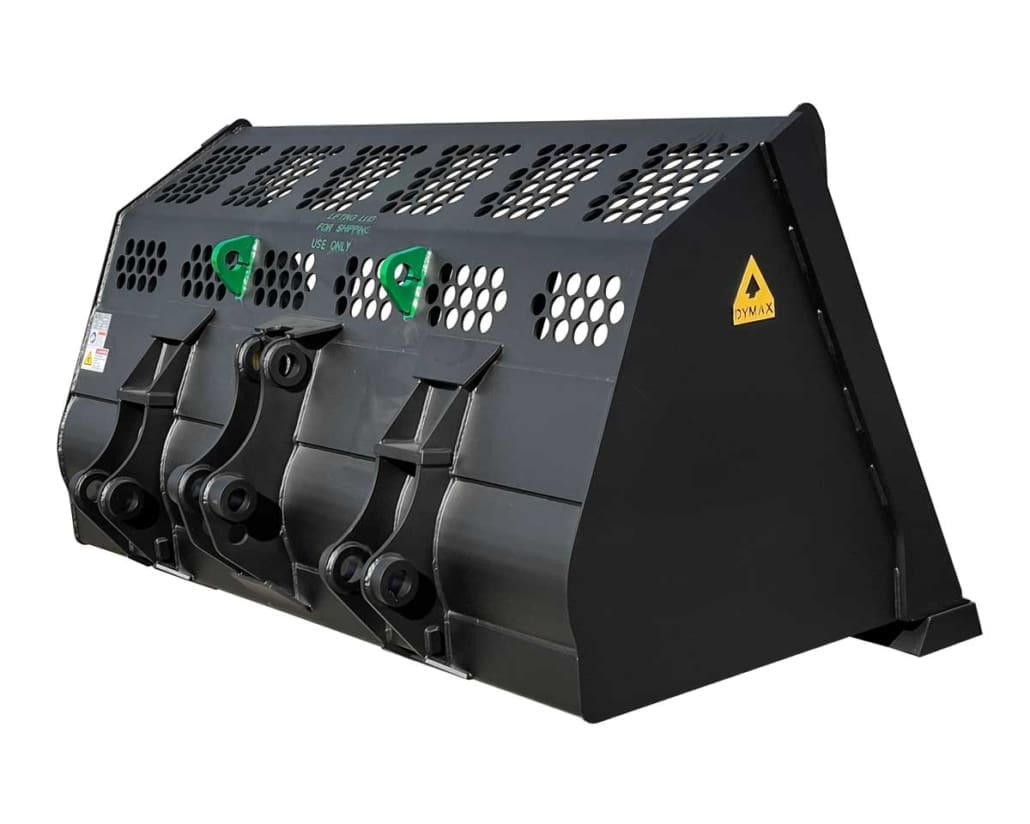

- Available in direct pin-on models or with hooks installed to work with the Dymax coupler system or other popular couplers.
- Available for a wide range of machine sizes and in a variety of sizes and widths.
Specifications (Heavy Duty GP Buckets for mid-size to larger Wheel Loaders)
| Model Number | Description | Weight (lbs/kg) |
|---|---|---|
| DX-BK-GPW-3.25cyd-WL-60 | Bucket – General Purpose – HD Wedge Floor Design – 3.25 cyd capacity – Wheel Loader – Class 60 | 3,050 lbs/1,383 kg |
| DX-BK-GPW-3.50cyd-WL-50 | Bucket – General Purpose – HD Wedge Floor Design – 3.50 cyd capacity – Wheel Loader – Class 50 | 3,200 lbs/1,452 kg |
| DX-BK-GPW-3.75cyd-WL-50 | Bucket – General Purpose – HD Wedge Floor Design – 3.75 cyd capacity – Wheel Loader – Class 50 | 3,300 lbs/1,497 kg |
| DX-BK-GPW-4.00cyd-WL-60 | Bucket – General Purpose – HD Wedge Floor Design – 4.00 cyd capacity – Wheel Loader – Class 60 | 3,400 lbs/1,542 kg |
| DX-BK-GPW-4.00cyd-WL-70 | Bucket – General Purpose – HD Wedge Floor Design – 4.00 cyd capacity – Wheel Loader – Class 70 | 3,650 lbs/1,656 kg |
| DX-BK-GPW-4.50cyd-WL-70 | Bucket – General Purpose – HD Wedge Floor Design – 4.50 cyd capacity – Wheel Loader – Class 70 | 3,790 lbs/1,719 kg |
| DX-BK-GPW-4.75cyd-WL-70 | Bucket – General Purpose – HD Wedge Floor Design – 4.75 cyd capacity – Wheel Loader – Class 70 | 3,880 lbs/1,760 kg |
| DX-BK-GPW-5.00cyd-WL-70 | Bucket – General Purpose – HD Wedge Floor Design – 5.00 cyd capacity – Wheel Loader – Class 70 | 4,190 lbs/1,901 kg |
| DX-BK-GPW-4.75cyd-WL-80 | Bucket – General Purpose – HD Wedge Floor Design – 4.75 cyd capacity – Wheel Loader – Class 80 | 3,950 lbs/1,792 kg |
| DX-BK-GPW-5.00cyd-WL-80 | Bucket – General Purpose – HD Wedge Floor Design – 5.00 cyd capacity – Wheel Loader – Class 80 | 4,280 lbs/1,941 kg |
| DX-BK-GPW-5.25cyd-WL-80 | Bucket – General Purpose – HD Wedge Floor Design – 5.25 cyd capacity – Wheel Loader – Class 80 | 4,400 lbs/1,996 kg |
| DX-BK-GPW-5.50cyd-WL-80 | Bucket – General Purpose – HD Wedge Floor Design – 5.50 cyd capacity – Wheel Loader – Class 80 | 4,600 lbs/2,087 kg |
| DX-BK-GPW-6.00cyd-WL-80 | Bucket – General Purpose – HD Wedge Floor Design – 6.00 cyd capacity – Wheel Loader – Class 80 | 4,800 lbs/2,177 kg |
| DX-BK-GPW-5.50cyd-WL-90 | Bucket – General Purpose – HD Wedge Floor Design – 5.50 cyd capacity – Wheel Loader – Class 90 | 4,900 lbs/2,223 kg |
| DX-BK-GPW-6.00cyd-WL-90 | Bucket – General Purpose – HD Wedge Floor Design – 6.00 cyd capacity – Wheel Loader – Class 90 | 5,300 lbs/2,404 kg |
| DX-BK-GPW-6.50cyd-WL-90 | Bucket – General Purpose – HD Wedge Floor Design – 6.50 cyd capacity – Wheel Loader – Class 90 | 5,820 lbs/2,640 kg |
| DX-BK-GPW-7.00cyd-WL-90 | Bucket – General Purpose – HD Wedge Floor Design – 7.00 cyd capacity – Wheel Loader – Class 90 | 6,600 lbs/2,994 kg |
| DX-BK-GPW-7.25cyd-WL-90 | Bucket – General Purpose – HD Wedge Floor Design – 7.25 cyd capacity – Wheel Loader – Class 90 | 6,800 lbs/3,084 kg |
| DX-BK-GPW-7.50cyd-WL-90 | Bucket – General Purpose – HD Wedge Floor Design – 7.50 cyd capacity – Wheel Loader – Class 90 | 7,200 lbs/3,266 kg |
| DX-BK-GPW-7.50cyd-WL-100 | Bucket – General Purpose – HD Wedge Floor Design – 7.50 cyd capacity – Wheel Loader – Class 100 | 7,200 lbs/3,266 kg |
| DX-BK-GPW-8.00cyd-WL-100 | Bucket – General Purpose – HD Wedge Floor Design – 8.00 cyd capacity – Wheel Loader – Class 100 | 7,800 lbs/3,538 kg |
| DX-BK-GPW-9.00cyd-WL-100 | Bucket – General Purpose – HD Wedge Floor Design – 9.00 cyd capacity – Wheel Loader – Class 100 | 8,500 lbs/3,856 kg |
| DX-BK-GPW-9.50cyd-WL-100 | Bucket – General Purpose – HD Wedge Floor Design – 9.50 cyd capacity – Wheel Loader – Class 100 | 8,980 lbs/4,073 kg |
Specifications are subject to change without notice.
Features (Heavy Duty GP Buckets for mid-size to larger Wheel Loaders)
- Available with replaceable bolt on cutting edges or teeth.
- Fit wheel loaders, toolcarriers and telehandlers.
- Available in direct pin-on models or with hooks installed to work with the Dymax coupler system or other popular couplers.
- Available for a wide range of machine sizes and in a variety of sizes and widths.
