Light material doesn’t mean light duty. Dairy, feedyard, and high-hour loading put thousands of cycles on a bucket every season — enough to crack and wear out a standard light material bucket. The Light Material Plus is built to take it: a 20% stronger moldboard, thicker steel, and convex radial side cutters that hold their shape, load after load.
“I have been ordering Dymax buckets for over 16 years. I never once had a warranty claim or product issue. I feel on the light material buckets there is more reinforcement on the bottom outside edges than other buckets.
“This is a great company to work with and they are a great choice for all your attachment needs.”
– LARRY CUMMINGS, FOLEY EQUIPMENT
| Model Description Weight |
| DX-BK-LMP-3.25cyd-WL-40 Bucket-Light Material Plus-3.25 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 40 WEIGHT: 2800 lbs |
| DX-BK-LMP-3.50cyd-WL-60 Bucket-Light Material Plus-3.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60 WEIGHT: 2770 lbs |
| DX-BK-LMP-4.00cyd-WL-30 Bucket-Light Material Plus-4.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 30 WEIGHT: 2800 lbs |
| DX-BK-LMP-4.00cyd-WL-40 Bucket-Light Material Plus-4.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 40 WEIGHT: 3100 lbs |
| DX-BK-LMP-4.00cyd-WL-60 Bucket-Light Material Plus-4.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60 WEIGHT: 2900 lbs |
| DX-BK-LMP-4.50cyd-WL-50 Bucket-Light Material Plus-4.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 50 WEIGHT: 3280 lbs |
| DX-BK-LMP-4.50cyd-WL-60 Bucket-Light Material Plus-4.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60 WEIGHT: 3280 lbs |
| DX-BK-LMP-5.00cyd-WL-50 Bucket-Light Material Plus-5.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 50 WEIGHT: 3500 lbs |
| DX-BK-LMP-5.00cyd-WL-60 Bucket-Light Material Plus-5.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60 WEIGHT: 3500 lbs |
| DX-BK-LMP-5.50cyd-WL-70 Bucket-Light Material Plus-5.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 WEIGHT: 3850 lbs |
| DX-BK-LMP-5.75cyd-WL-70 Bucket-Light Material Plus-5.75 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 WEIGHT: 3850 lbs |
| DX-BK-LMP-6.00cyd-WL-60 Bucket-Light Material Plus-6.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60 WEIGHT: 3900 lbs |
| DX-BK-LMP-6.00cyd-WL-70 Bucket-Light Material Plus-6.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 WEIGHT: 3900 lbs |
| DX-BK-LMP-6.50cyd-WL-60 Bucket-Light Material Plus-6.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60 WEIGHT: 4250 lbs |
| DX-BK-LMP-6.50cyd-WL-70 Bucket-Light Material Plus-6.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 WEIGHT: 4250 lbs |
| DX-BK-LMP-6.50cyd-WL-80 Bucket-Light Material Plus-6.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 80 WEIGHT: 4750 lbs |
| DX-BK-LMP-6.75cyd-WL-70 Bucket-Light Material Plus-6.75 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 WEIGHT: 4450 lbs |
| DX-BK-LMP-7.00cyd-WL-70 Bucket-Light Material Plus-7.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 WEIGHT: 5200 lbs |
| DX-BK-LMP-8.00cyd-WL-60 Bucket-Light Material Plus-8.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60 WEIGHT: 5460 lbs |
| DX-BK-LMP-8.00cyd-WL-70 Bucket-Light Material Plus-8.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 WEIGHT: 5500 lbs |
| DX-BK-LMP-9.00cyd-WL-70 Bucket-Light Material Plus-9.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70 WEIGHT: 5700 lbs |
| DX-BK-LMP-9.00cyd-WL-80 Bucket-Light Material Plus-9.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 80 WEIGHT: 6500 lbs |
Design and specifications are subject to change without notice. Contact Dymax Sales for custom designs.
| High-cycle loading is the usual cause — thousands of scoops per season concentrate stress on the moldboard and side cutters. Buckets built with lighter steel or straight cutters give out fastest. The Light Material Plus reinforces exactly those areas to extend service life. |
| The Plus is built for higher-cycle work. It uses a 20% stronger moldboard, thicker steel, and convex radial side cutters, so it holds up in dairy, feedyard, and high-hour operations that wear a standard light material bucket out early. The standard bucket is the better value for lighter-duty or occasional use. |
|
Corn, silage, hay, cottonseed, and similar light materials up to 2,000 lbs per cubic yard. For denser or more abrasive materials, ask Dymax about a custom design. |

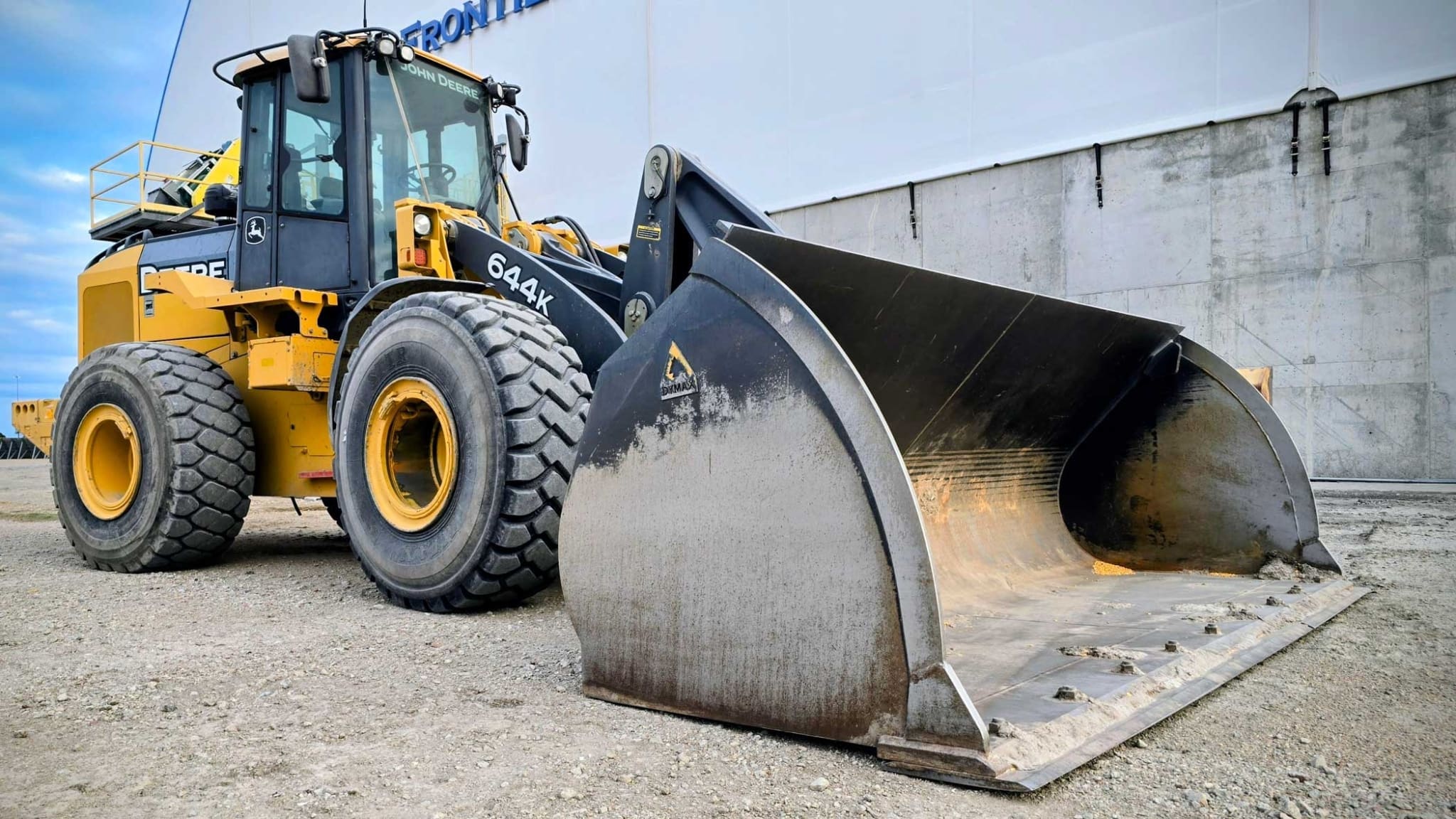

| The Light Material Plus fits wheel loaders such as Cat 930-980 and Deere 524-744, in capacities from 3.25 to 9.0 cubic yards.
Oversizing a light material bucket costs you breakout and stability, so match it to your machine. Send your loader make and model to Dymax Sales for the right fit. |
| BUCKET | BEST FOR | WHAT SETS IT APART | CAPACITY (SAE HEAPED) |
|---|---|---|---|
| Light Material Bucket | General light material — corn, silage, hay, cottonseed, snow | The baseline LM bucket; widest range of sizes and edge patterns. | 0.75–14 cyd |
| Light Material Plus | Corn, silage, and hay in high-hour operations | ~20% more durable than the standard LM bucket. | 3.25–9.0 cyd |
| Feedyard Light Material Bucket | High-hour cattle feeding | Reinforced for repeated dump-shaking; wedge floor. | 4.0–10.5 cyd |
| Bonus Bucket | More capacity when width or dump height is limited | Recessed pockets add capacity without a longer floor — edge stays in view while dumping. | 3.5–8 cyd |
| Extra Wide Corn & Grain Bucket | Even-loading semi-trailers with corn and grain | Extra-wide profile fills trailers in fewer passes. | 6.5–12 cyd |
| Fertilizer Bucket | Potash and dry fertilizer | Long floor fills to 85–90%; abrasion resistant, less spillage | 4.6–9 cyd |
| Sugar Beet Bucket | High-volume sugar beet handling | Half-arrow edge reduces beet damage; screen for visibility | 8.5–9 cyd |
