WHEEL LOADER HYDRAULIC ANGLE SNOW BLADE

Dymax Wheel Loader Hydraulic Angle Snow Blades are built for snow removal, grading, and material control on roads, parking lots, industrial yards, and other large surfaces. These heavy-duty snow plow blades deliver 30° hydraulic angling in both directions for controlled windrowing and efficient material movement.

Customers can choose between two pivot configurations: an oscillating trunnion design for better ground contour follow, or a heavy-duty rigid pivot pin design for maximum pushing power in deep snow and high-load conditions. This allows the blade to be matched to the jobsite and application.

No matter the configuration, Dymax blades are built for durability, hydraulic reliability, and dependable performance in the field. They are well suited for municipal fleets, industrial yards, mine sites, and other demanding winter applications.

Download Brochure Get a Quote

KEY BENEFITS

30° Hydraulic Angling Power: Full 30° left and right hydraulic angling allows operators to efficiently windrow snow or material while maintaining control and productivity.
Built for Heavy Winter Conditions: Heavy-duty moldboard construction, reinforced pivot structure, and large-bore angling cylinders provide the strength needed for deep snow, packed drifts, and industrial clearing.
Pivot Options Matched to Application: Choose the oscillating pivot design for improved contour-following on uneven surfaces, or the rigid pivot pin design for maximum push strength in deep, dense snow conditions.
Operator-Controlled Efficiency: Hydraulic angling from the cab eliminates manual adjustments, improves safety, and allows operators to adapt quickly to changing surface conditions.
Built-In System Protection: Relief valve automatically dissipates excess hydraulic pressure, helping prevent damage to the plow, cylinders, and wheel loader.

APPLICATIONS

Snow Removal
Grading and Material Delivery
Parking Lots, Roadways, and more!

CHOOSE YOUR BLADE, THEN CUSTOMIZE IT!

SHOE OPTIONS | EDGE SYSTEMS | CUSTOM DESIGNS

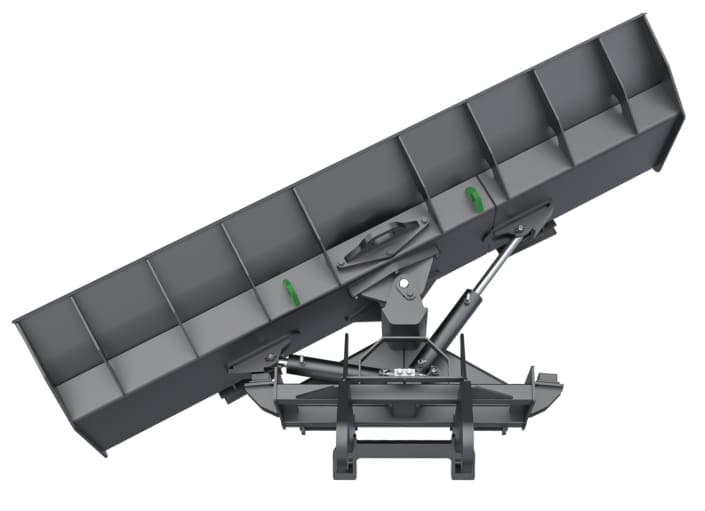

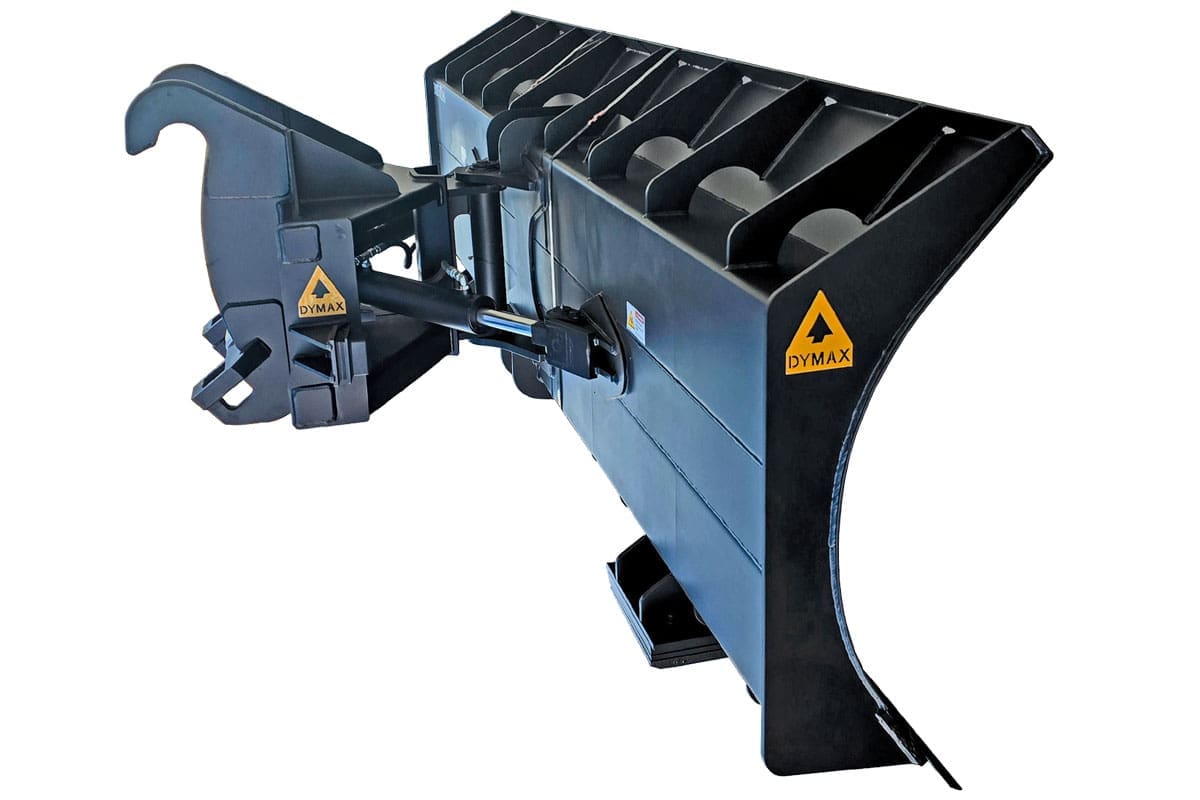

Pivot pin hydraulic angle snow blade attachment for wheel loaders

MODEL: DX-BL-HAP (Pivot Pin)

Widths: Up to 22 feet wide
Moldboard Height: 36” (WL30 or BHL), 48” (WL50-WL80) and 54” (WL90)
Bolt-On Cutting Edges: Standard 6” HT edge or Caterpillar type edge.
Pivot: Grease pin with bushings (fixed) for HD applications.
Machines: Backhoe loaders, wheel loaders, graders
Cylinders: Twin angling delivering up to 30 degrees left and right.
Valves: Includes crossport relief valve

MODEL: DX-BL-HAO (Oscillating)

Widths: Up to 18 feet wide
Moldboard Height: 36” (WL30 or BHL), 48” (WL50-WL80) and 54” (WL90)
Bolt-On Cutting Edges: Standard 6” HT edge or Caterpillar type edge.
Pivot: Trunnion + 2 top pin retainers. Includes 1 slotted retainer for 5 degrees of oscillation or fixed pin retainer to make plow rigid.
Machines: Backhoe woaders, wheel loaders, graders
Cylinders: Twin angling delivering up to 30 degrees left and right
Valve: Includes crossport relief valve

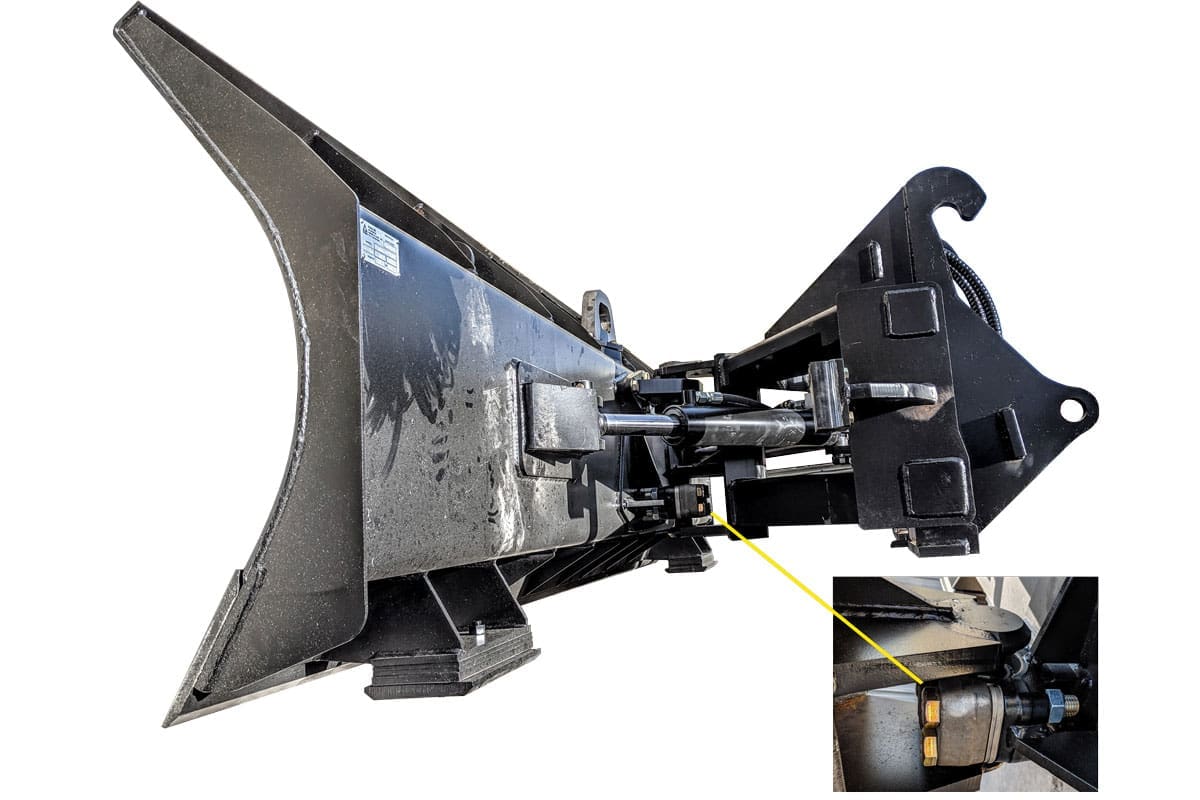

Oscillating wheel loader snow blade for improved ground contour follow

Shoe Options

Pick one – included in price

Shim-Adjustable Wear Pads – Provides a wide, stable contact surface. Ideal for gravel yards, industrial sites, and heavy-duty pushing applications.
Screw-Adjustable Round Skid Shoes – Make quick blade height adjustments. Ideal for paved surfaces, such as roads and parking lots.

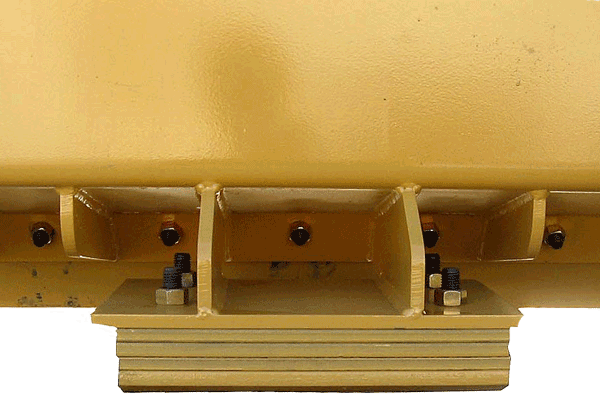

Wear pad option for Dymax wheel loader hydraulic angle snow blade

Round shoe option for Dymax wheel loader hydraulic angle snow blade

Standard Edge Options

Pick one – included in price

Standard Reversible Edge: 3/4” x 8” heat-treated bolt-on cutting edge with 6” bolt hole spacing.
Caterpillar-Style Edge: Heavy-duty non-reversible heat-treated cutting edge
Custom Edge Solutions: Rubber, Poly, Serrated Pick or Polarflex By Valley Blades. (Additional charges may apply.)

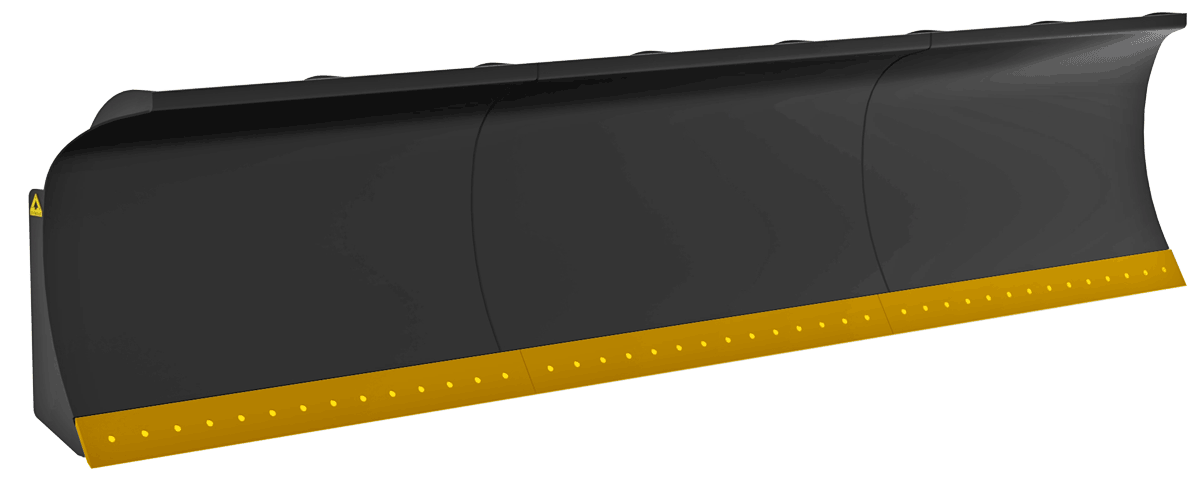

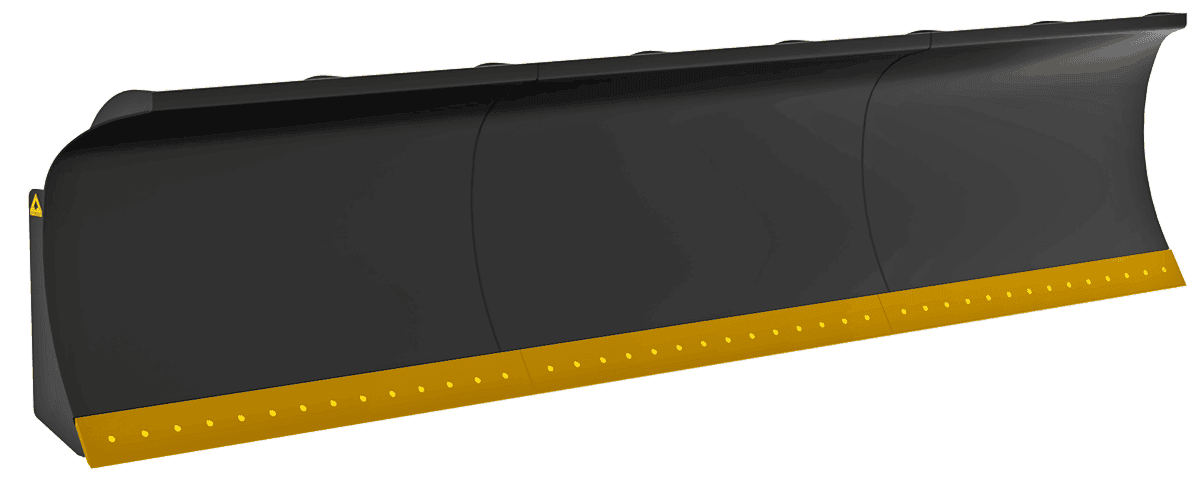

Bolt-on cutting edge options for hydraulic angle snow blade

Upgrade for Snow Containment Models

Additional charges may apply.

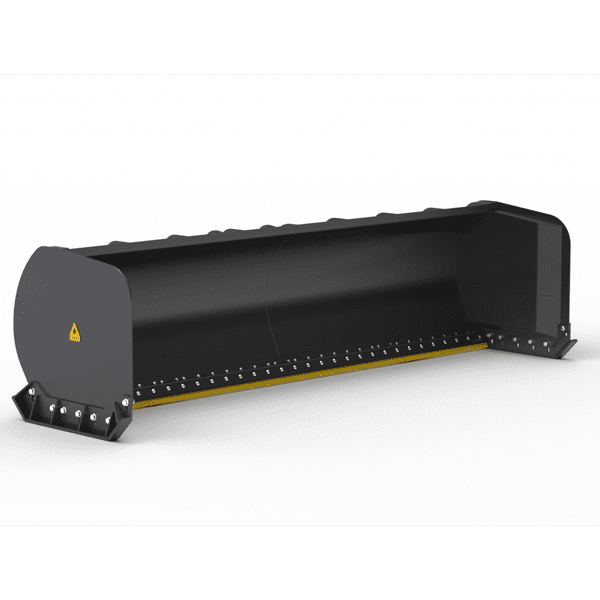

Wheel loader snow plow blade with bolt-on side plates for snow containment

Bolt-On Side Plates (Snow Pusher Kit) – Heavy-duty bolt-on side containment plates convert the plow into a snow pusher configuration, reducing spillover and increasing snow carrying capacity. Ideal for parking lots, industrial yards, and large paved areas where it’s critical to efficiently move and stack large volumes of snow.

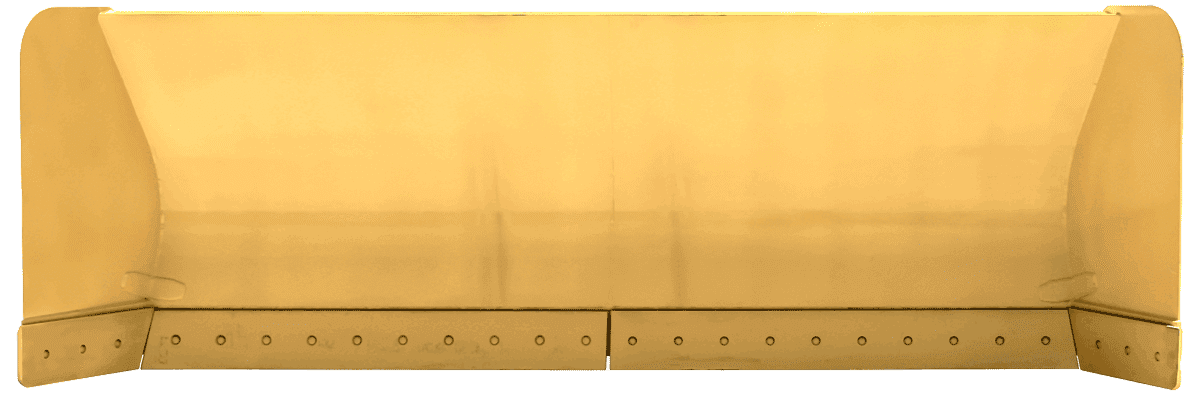

Welded U-wing upgrade for wheel loader snow blade to increase snow capacity

Welded U-Wing Upgrade – Integrated containment wings increase blade capacity for high-volume snow or material pushing applications.

SPECIFICATIONS

DX-BL-HAP MODELS (PIVOT PIN)

Model
Description
Weight (lbs)

DX-BL-HAP-12ftx48in-WL-50
Blade-Hydraulic Angle Pivot Pin-12 feet wide x 48 inches tall-Wheel Loader-Class 50
STANDARD FEATURES:
– Replaceable CAT style bolt-on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– HD Pivot Pin assembly with replaceable bushings
– Rectangular shim adjustable skid shoes
WEIGHT: 3400 lbs

DX-BL-HAP-14ftx48in-WL-70
Blade-Hydraulic Angle Pivot Pin-14 feet wide x 48 inches tall-Wheel Loader-Class 70
STANDARD FEATURES:
– Replaceable CAT style bolt-on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– HD Pivot Pin assembly with replaceable bushings
– Rectangular shim adjustable skid shoes
WEIGHT: 3610 lbs

DX-BL-HAP-16ftx48in-WL-70
Blade-Hydraulic Angle Pivot Pin-16 feet wide x 48 inches tall-Wheel Loader-Class 70
STANDARD FEATURES:
– Replaceable CAT style bolt-on cutting edges
– 30 degree angling left and right
– 5.00×16.00 cylinder size
– Relief valve standard
– HD Pivot Pin assembly with replaceable bushings
– Rectangular shim adjustable skid shoes
WEIGHT: 3850 lbs

DX-BL-HAP-18ftx48in-WL-80
Blade-Hydraulic Angle Pivot Pin-18 feet wide x 48 inches tall-Wheel Loader-Class 80
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30 degree angling left and right
– 5.00×16.00 cylinder size
– Relief valve standard
– HD Pivot Pin assembly with replaceable bushings
– Screw adjustable ROUND skid shoes
WEIGHT: 5500 lbs

DX-BL-HAP-22ftx55in-WL-80
Blade-Hydraulic Angle Pivot Pin-22 feet wide x 55 inches tall-Wheel Loader-Class 80
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 5.00×16.00 cylinder size
– Relief valve standard
– HD Pivot Pin assembly with replaceable bushings
– Screw adjustable ROUND skid shoes
WEIGHT: 6500 lbs

DX-BL-HAP-22ftx55in-WL-90
Blade-Hydraulic Angle Pivot Pin-22 feet wide x 55 inches tall-Wheel Loader-Class 90
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– 30 degree angling left and right
– 5.00×16.00 cylinder size
– Relief valve standard
– HD Pivot Pin assembly with replaceable bushings
– Screw adjustable ROUND skid shoes
WEIGHT: 6500 lbs

Features to Select: Replaceable bolt-on reversible cutting edges or CAT style edge; shim adjustable wear pads or round shoes.

Options & Customization: Snow pusher kit with bolt-on side plates; U-wing welded upgrade; Custom edge arrangements or special width requirements.

Design and specifications are subject to change without notice.

DX-BL-HAO MODELS (OSCILLATING)

Model
Description
Weight (lbs)

DX-BL-HAO-10ftx36in-BL-10
Blade-Hydraulic Angle Oscillation-10 feet wide x 36 inches tall-Backhoe Loader-Class 10
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 3.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer

WEIGHT: 2250 lbs

DX-BL-HAO-10ftx36in-WL-30
Blade-Hydraulic Angle Oscillation-10 feet wide x 36 inches tall-Wheel Loader-Class 30
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 3.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer

WEIGHT: 2250 lbs

DX-BL-HAO-11ftx42in-WL-40
Blade-Hydraulic Angle Oscillation-11 feet wide x 42 inches tall-Wheel Loader-Class 40
STANDARD FEATURES:
– Replaceable Cat style bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 2850 lbs

DX-BL-HAO-12ftx42in-TL-50
Blade-Hydraulic Angle Oscillation-12 feet wide x 42 inches tall-Track Loader-Class 50
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 3100 lbs

DX-BL-HAO-12ftx42in-WL-50
Blade-Hydraulic Angle Oscillation-12 feet wide x 42 inches tall-Wheel Loader-Class 50
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 3100 lbs

DX-BL-HAO-12ftx42in-WL-60
Blade-Hydraulic Angle Oscillation-12 feet wide x 42 inches tall-Wheel Loader-Class 60
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 2950 lbs

DX-BL-HAO-12ftx48in-WL-60
Blade-Hydraulic Angle Oscillation-12 feet wide x 48 inches tall-Wheel Loader-Class 60
CAT 938M – FUSION COUPLER
WIDTH OVER TIRES = 105 inches
NOTE: Tires will not be covered on most WL-60 while the blade is in the full 30 degree angled position.
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 3300 lbs

DX-BL-HAO-13ftx42in-WL-50
Blade-Hydraulic Angle Oscillation-13 feet wide x 42 inches tall-Wheel Loader-Class 50
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 3500 lbs

DX-BL-HAO-13ftx42in-WL-60
Blade-Hydraulic Angle Oscillation-13 feet wide x 42 inches tall-Wheel Loader-Class 60
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 3500 lbs

DX-BL-HAO-14ftx42in-WL-60
Blade-Hydraulic Angle Oscillation-14 feet wide x 42 inches tall-Wheel Loader-Class 60
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 3650 lbs

DX-BL-HAO-14ftx48in-WL-70
Blade-Hydraulic Angle Oscillation-14 feet wide x 48 inches tall-Wheel Loader-Class 70
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 3800 lbs

DX-BL-HAO-14ftx48in-WL-80
Blade-Hydraulic Angle Oscillation-14 feet wide x 48 inches tall-Wheel Loader-Class 80
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 4.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 3800 lbs

DX-BL-HAO-14ftx54in-WL-80
Blade-Hydraulic Angle Oscillation-14 feet wide x 54 inches tall-Wheel Loader-Class 80
STANDARD FEATURES:
– Replaceable bolt on cutting edges (Cat Style)
– 30 degree angling left and right
– 5.00×16.00 cylinder size (UPGRADED)
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
– Choose (Round or Rectangular) Shoes.
WEIGHT: 4500 lbs

DX-BL-HAO-16ftx48in-WL-80
Blade-Hydraulic Angle Oscillation-16 feet wide x 48 inches tall-Wheel Loader-Class 80
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 5.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 4300 lbs

DX-BL-HAO-18ftx48in-WL-80
Blade-Hydraulic Angle Oscillation-18 feet wide x 48 inches tall-Wheel Loader-Class 80
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 5.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 4450 lbs

DX-BL-HAO-18ftx48in-WL-90
Blade-Hydraulic Angle Oscillation-18 feet wide x 48 inches tall-Wheel Loader-Class 90
STANDARD FEATURES:
– Replaceable bolt on cutting edges
– 30 degree angling left and right
– 5.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 4800 lbs

DX-BL-HAO-U16ftx48in-WL-70
Blade-Hydraulic Angle Oscillation-U Shaped Wings 16ft straight width x 48 in height-Wheel Loader-Class 70
STANDARD FEATURES:
– Features U shaped moldboard group with angled wings to retain more material out front
– Replaceable bolt on cutting edge
– 30 degree angling left and right
– 5.00×16.00 cylinder size
– Relief valve standard
– Oscillating A-frame design
– Provided with fixed and slotted pin retainer
WEIGHT: 4400 lbs

Features to Select: Replaceable bolt-on reversible cutting edges or CAT style edge; shim adjustable wear pads or round shoes.

Options & Customization: Snow pusher kit with bolt-on side plates; U-wing welded upgrade; Custom edge arrangements or special width requirements.

Design and specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS

Your loader will require 3rd function auxiliary lines for operation.

CIRCUIT 1 – Angling Cylinders
– Type: Two Way
– GPM (min/max) 15-30
– PSI (max) 3,000

NOT SUPPLIED: Not provided with jumper hose line
